YG9-0836533532Wireless Key Finder

OneWorld Solutions Limited
Wireless Key Finder - FCC ID YG9-0836533532 - OneWorld Solutions Limited
Click to zoom

Application Details

Equipment Class
DSC - Part 15 Security/Remote Control Transmitter
Date of Grant
Jul 20, 2010
Application Purpose
Original Equipment
Date of Application
Jul 20, 2010
Equipment Note
Wireless Key Finder
Frequency Range
433.90000000 - 433.90000000
Company
OneWorld Solutions Limited
Country
China

Documents & Files

Select a file to view

Users Manual

β†—

Block Diagram

β†—

Cover Letter(s)

β†—

External Photos

β†—

ID Label/Location Info

β†—
β†—

Internal Photos

β†—

Operational Description

β†—

Schematics

β†—

Test Report

β†—

Test Setup Photos

β†—

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Block Diagram

532-533-0836 .sch-1 - Wed Jun 02 17:04:36 2010

ID Label/Location Info

FCC Certification Label Sample FCC ID: YG9-0836533532 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

ID Label/Location Info

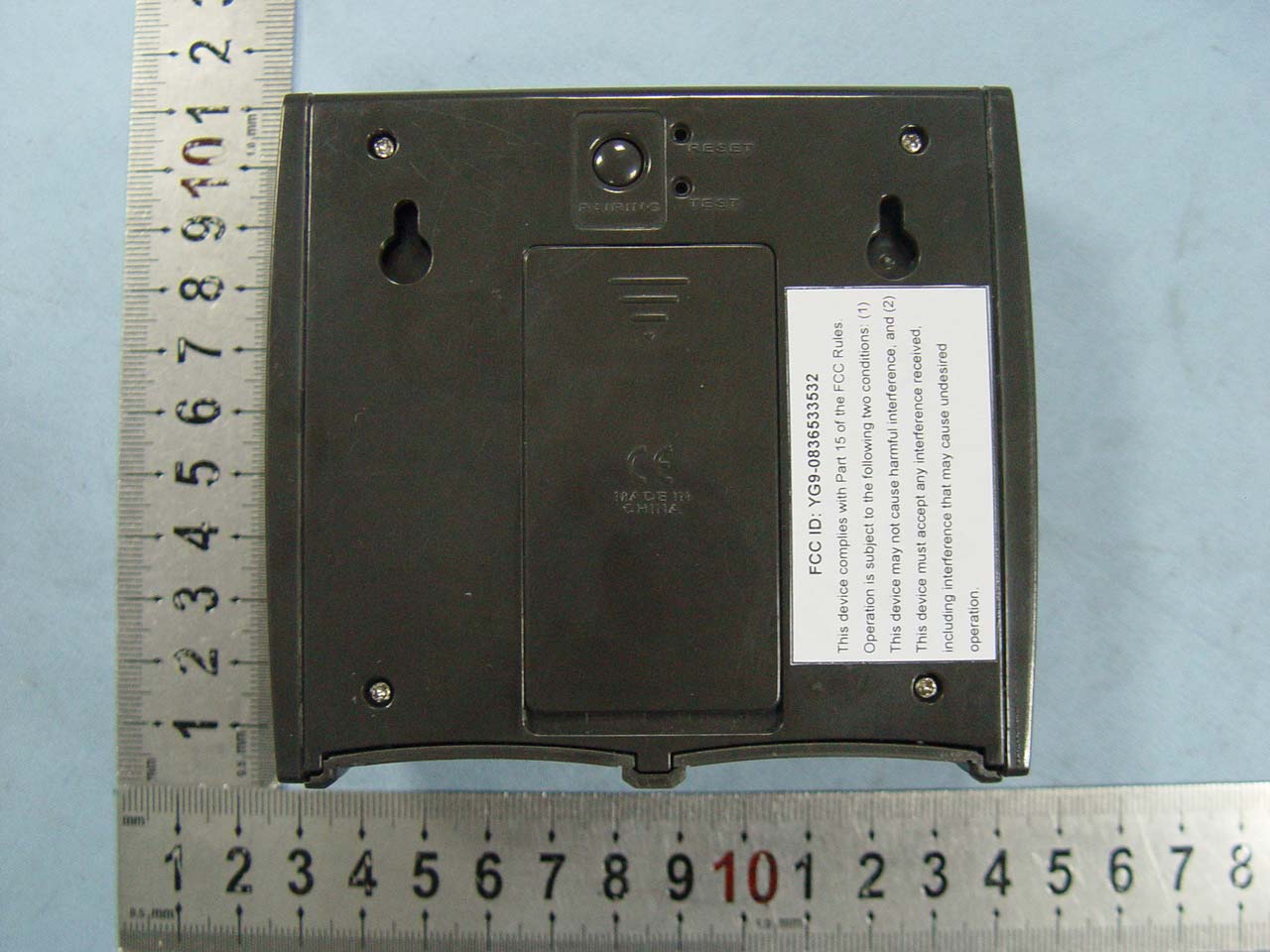

FCC Certification Label Location Sample Label location

Internal Photos

Antenna

Operational Description

Applicant: OneWorld Solutions Limited FCC ID: YG9-0836533532 Operation Description The transmitter use a Sitronix chip ST20P18, most of function can be finished by one chip, such as key-Press detective, and it is the part of RF operating circuit, the transmitter is made of U1(ST20P18), by tx module (433MHz) Q1&Q2(2SC3356) To transmit ID. The ST20P18 OSC use Y1(32.768KHz crystal), supply voltage 3V. TX module PCB OSC use 433MHz crystal, supply voltage 4.5V. (532/533 Power supply is DC 4.5V by three β€œAAA” batteries. The model 0836 Power supply is DC 4.5V by three β€œAA” batteries). When first time batteries are installed in TX unit(Base station), all LEDs will light on 100ms after 0.5sec battery power stable. TX enters power saving mode. In the pairing mode, press and hold pairing key and the corresponding key that the transmitter will transmitting the pairing ID for 5sec. In the standby mode, press and hold pairing key and the corresponding key that the transmitter will transmitting the pairing ID for 5sec. MODULATION TYPE: ASK Transmitter ANT: electronically small antenna (COIL INNER PATHWAY 3MMX.19.5T, LINE PATHWAY 0.6MM)

Schematics

533εŽŸη†ε›Ύ.sch-1 - Thu Apr 01 16:26:22 2010

Test Report

Page 1 of 31 FCC ID: YG9-0836533532 ACCURATE TECHNOLOGY CO., LTD REPORT NO. ATE20101100 APPLICATION CERTIFICATION On Behalf of OneWorld Solutions Limited WIRELESS KEY FINDER Model No.: 533, 0836, 532 FCC ID: YG9-0836533532 Prepared for : OneWorld Solutions Limited Address : Rooms 301-310, Metro Centre, Phase 1, 32 Lam Hing Street, Kowloon Bay, Hong Kong Prepared by : ACCURATE TECHNOLOGY CO., LTD Address : F1, Bldg. A, Changyuan New Material Port, Keyuan Rd. Science & Industry Park, Nanshan, Shenzhen, Guangdong P.R. China Tel: (0755) 26503290 Fax: (0755) 26503396 Report Number : ATE20101100 Date of Test : July 16, 2010 Date of Report : July 19, 2010 Page 2 of 31 FCC ID: YG9-0836533532 ACCURATE TECHNOLOGY CO., LTD REPORT NO. ATE20101100 TABLE OF CONTENTS Description Page Test Report Certification 1. GENERAL INFORMATION .......................................................................................................... 4 1.1. Description of Device (EUT)....................................................................................................................4 1.2. Description of Test Facility ......................................................................................................................5 1.3. Measurement Uncertainty.........................................................................................................................5 2. MEASURING DEVICE AND TEST EQUIPMENT ..................................................................... 6 3. SUMMARY OF TEST RESULTS................................................................................................... 7 4. THE FIELD STRENGTH OF RADIATION EMISSION ............................................................ 8 4.1. Block Diagram of Test Setup....................................................................................................................8 4.2. The Field Strength of Radiation Emission Measurement Limits..............................................................9 4.3. Configuration of EUT on Measurement ...................................................................................................9 4.4. Operating Condition of EUT ....................................................................................................................9 4.5. Test Procedure ........................................................................................................................................10 4.6. The Field Strength of Radiation Emission Measurement Results ..........................................................11 5. 20DB OCCUPIED BANDWIDTH ................................................................................................ 12 5.1. Block Diagram of Test Setup..................................................................................................................12 5.2. The Bandwidth of Emission Limit According To FCC Part 15 Section 15.231(c) ................................12 5.3. EUT Configuration on Measurement .....................................................................................................13 5.4. Operating Condition of EUT ..................................................................................................................13 5.5. Test Procedure ........................................................................................................................................13 5.6. Measurement Result ...............................................................................................................................14 6. RELEASE TIME MEASUREMENT............................................................................................ 15 6.1. Block Diagram of Test Setup..................................................................................................................15 6.2. Release Time Measurement According To FCC Part 15 Section 15.231(a) ..........................................15 6.3. EUT Configuration on Measurement .....................................................................................................16 6.4. Operating Condition of EUT ..................................................................................................................16 6.5. Test Procedure ........................................................................................................................................16 6.6. Measurement Result ...............................................................................................................................17 7. AVERAGE FACTOR MEASUREMENT .................................................................................... 18 7.1. Block Diagram of Test Setup..................................................................................................................18 7.2. Average factor Measurement according to ANSI 63.4: 2003.................................................................18 7.3. EUT Configuration on Measurement .....................................................................................................19 7.4. Operating Condition of EUT ..................................................................................................................19 7.5. Test Procedure ........................................................................................................................................19 7.6. Measurement Result ...............................................................................................................................20 APPENDIX I ( TEST CURVES) (10 pages) Page 3 of 31 FCC ID: YG9-0836533532 ACCURATE TECHNOLOGY CO., LTD REPORT NO. ATE20101100 Test Report Certification Applicant : OneWorld Solutions Limited Manufacturer : Keysbond (China) Limited EUT Description : WIRELESS KEY FINDER (A) MODEL NO.: 533, 0836, 532 (B) SERIAL NO.: N/A (C) POWER SUPPLY: 4.5V DC (β€œAAA” batteries 3 Μ„) Measurement Procedure Used: FCC Rules and Regulatio…

Text truncated - open the document above for the full version.

Test Setup Photos

Radiated emissions test < 1GHz Radiated emissions test > 1GHz

Contact Information

Applicant

Kin Li(Manager)
[email protected]00862084689331Fax: 00862084689337

Test Firm

Accurate Technology Co., Ltd.Sean Liu
[email protected]86-755-26503291Fax: 86-755-26503396

Technical Specifications

#Rule PartsFrequency RangePower Output
115.231433.9 MHz - 433.9 MHz-
