YH4-BDT-7000XCAR DVD PLAYER

USER’S MANUAL 2-DIN 7 inch color TFT Display Car Multi-Media Player — Auto-Insert Shock Absorbing Loader — Electronic Anti-Shock Protection — Electronic Tuning PLL Radio System — 30 Memory Pre-set Stations — Manual/Auto Seek Radio Station — Automatic Memory Preset Store and Preset Scan Function — 16:9 Wide View Angle Color TFT Display — Real Time Clock Display — Electronic Volume Control (Vol/Bass/Treble/Balance/Fader) — Preset Equalizer Control (POP/ CLASSIC /ROCK/FLAT/JAZZ) — 4 Channel High Power Output — Rear Camera Video Input — USB/SD Card Support — Front Audio/Video Input — Rear RCA Audio/Video Input — Rear RCA Audio/Video Output — Full Function Remote Control — Handbrake Control — Antenna Control — Motorized Slide-Down Front Panel — ISO 2-DIN Mounting Chassis Size — Built-in Bluetooth Function (option) — Built-in Analog TV (option) — RDS function (option) — IPod Ready function (option) — External Digital TV box (option) 2 CONTENTS Notes on installation 3 Precautions 4 Control Panel Layout 5 Remote Control Layout 6 Wiring Diagram 7 Basic Operation 8 Radio Operation 9 RDS Operation (option function) 10 Aux & TV Operation (TV is option) 11 IPod ready operation (option function) 11 Bluetooth operation (option function) 12 Navigation operation (option function) 13~15 Multimedia playing 16 Multimedia playing set up 17~21 Replace the battery of IR handset 22 Install the unit 23 Specifications 24 3 Notes on installation The unit is designed for 12V DC, negative ground operation system only. Before installing the unit, make sure your vehicle is connected to 12V DC negative grounded electrical system. The negative battery terminal must be disconnected before making connections, which can reduce damaging to the unit due to short circuit. Be sure to connect the speaker (-) leads to the speaker (-) terminal. Never connect the left and right channel speaker cables each other or to the vehicle body. Do not block vents or radiator panels. Blocking the will cause heat to build up inside and may result in fire. After the completion of the installation and begin to operate the unit (including replacing the battery), please press the reset button on the front panel with pointed objects (such as ball pen) to set the unit to initial status . 4 Precautions The unit can play the following disc only Type of Disc Label on the disc Recorded material Size of disc MPEG4 / DIVX Video and Audio 12cm DVD Video and Audio 12cm VCD Video and Audio 12cm MP3 / WMA/JPEG Compressed Digital Audio 12cm CD Audio 12cm Note: The unit is compatible with DVD,DVD+/-R, VCD 1.0/2.0/3.0, SVCD, CD, CD-R, CD-RW and JPEG DO NOT ATTEMPT TO MODIFY THE UNIT, MODIFYING THE UNIT MAY CAUSE AN ACCIDENT. STOP THE VEHICLE BEFORE CARRYING OUT ANY OPERATION THAT COULD INTERFERE WITH YOUR DRIVING DO NOT TURN ON THE UNIT IF THE TEMPERATURE INSIDE THE VEHICLE IS OUT OF –20C TO 60C THIS PRODUCT IS DESIGNED FOR ONE SINGLE VIDEO OUTPUT, PLEASE USE A SPLITTER IF YOU WOULD LIKE TO CONNECT FOR MULTIPLE VIDEO OUTPUT Handle the disc by its edge to keep the disc clean, and do not touch the surface Do not use your CDs with paste residue or ink attached Do not use CDs with labels or stickers attached, which may leave a sticky residue while beginning to peel off Clean the discs with an optional cleaning cloth. Wipe each disc from center out. 5 Control Panel Layout 6 Remote Control Layout 7 Wiring Diagram 8 BASIC OPERATION Initial System Starts Up Operating the unit for the first time or after replacing the car battery, Press RESET button with a pointed object (such as ballpoint) to set the unit to initial procedure. NOTE: When some errors occur in the LCD display, you can also press RESET button to resume to normal. And it will erase the clock setting and some memorized functions. Turning the Unit ON/OFF Press POWER button to turn on the unit. When the unit is on: Short press POWER button, turn off the monitor, press POWER button again to turn on the monitor. Long press POWER button to turn off the unit. Volume Control Press VOLUME +/- button for increase or decrease the sound volume Mute Function Press MUTE button shortly to cut down the sound output, and “MUTE” icon appear in the LCD display. Press it again to restore previous volume level. Menu Function Press MENU button to enter as below main menu display screen, you can touch the icon of the screen to enter different working mode. Long press MENU button to enter navigation mode directly, long press it again to exit navigation mode directly. Setting the audio & display & general setup Touch icon in the screen to enter setting mode, as below picture. You can touch the screen to set up the audio, display, time parameters etc. 9 BASIC OPERATION Slide down and Slide up the front panel Press OPEN button once to slide down one step until the bottom, Press OPEN button once again to slide up one step until the top. IR Sensor Receiver for wireless IR remote control. Radio Operation 1. Touch the radio icon in the main menu display screen to select radio mode, the LCD will displays as following: 2. Touch the icon “BND” repeatedly to select bands in the following: FM1→ FM2→ FM3→ AM1→ AM2→ FM1 or FM1→ FM2→ FM3→ MW1→ MW2→ FM1 3. Touch the icon “AMS” or press AMS key in IR handset shortly to activate automatically memory storing function. 4. Press SEEKING UP or SEEKING DOWN or icon shortly to manual seek the radio station 5. Long press SEEKING UP or SEEKING DOWN or icon to automatically seek the radio station 6. Touch the frequency bar in the display screen to select preset memory station. 7. Long press icon “AMS” to scan each preset memory station for 10S. 8. Touch the icon “ST” or Press ST key in IR handset to set stereo or mono receiving mode. 10 RDS operation (option function) 1. At any mode, Touch the icon , enter traffic information frequency. When broadcast traffic information can switch to RDS mode automotive. 2. Touch the icon , if showing AF in the LCD display, it is RDS mode, if no show AF, it is normal FM f…

Text truncated - open the document above for the full version.

Block Diagram MCU-U101 TMP91FU62 DC 12V Voltage Power Supply Bluetooth Module Signal Input Port Key-Press Module DVD Servo Module TFT LCD Module XTAL 16MHz & 32.768kHz Ant 2402~2480MHz Audio and Video Output Port XTAL 27MHz XTAL 27MHz XTAL 40MHz

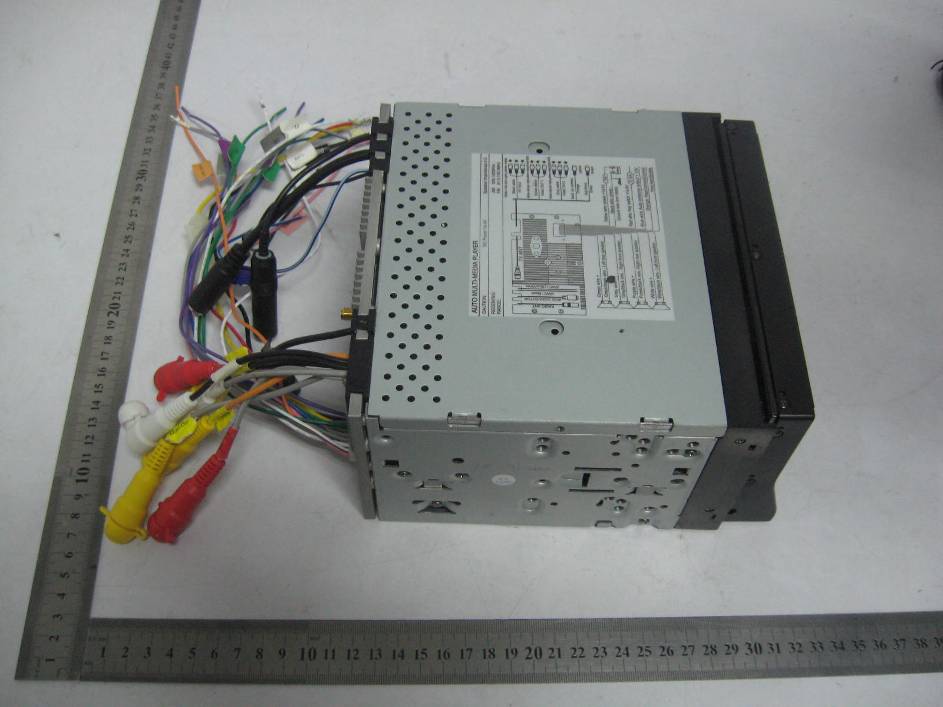

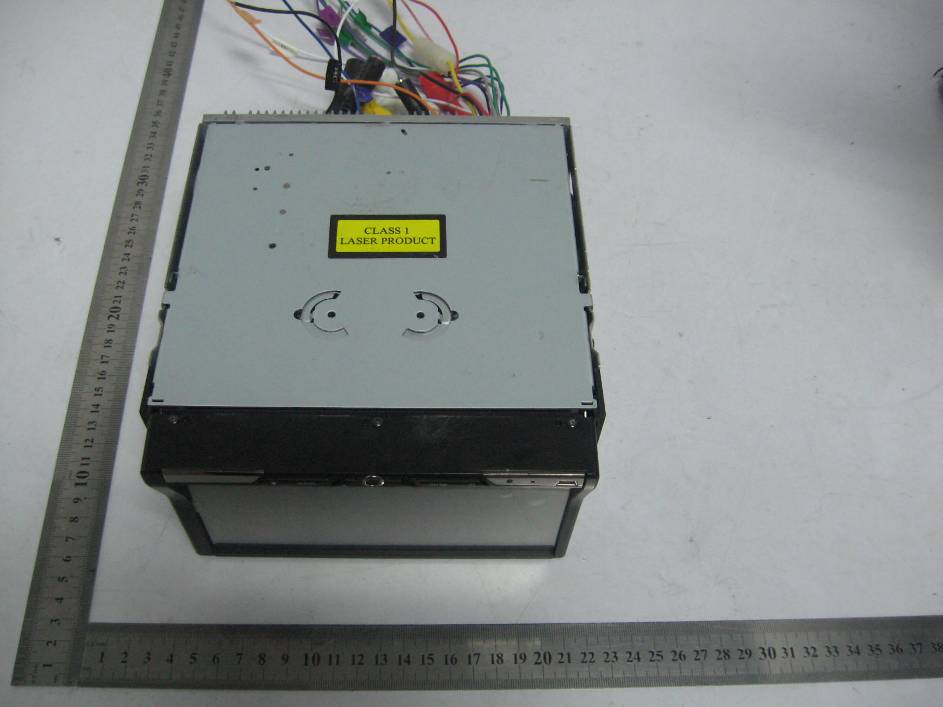

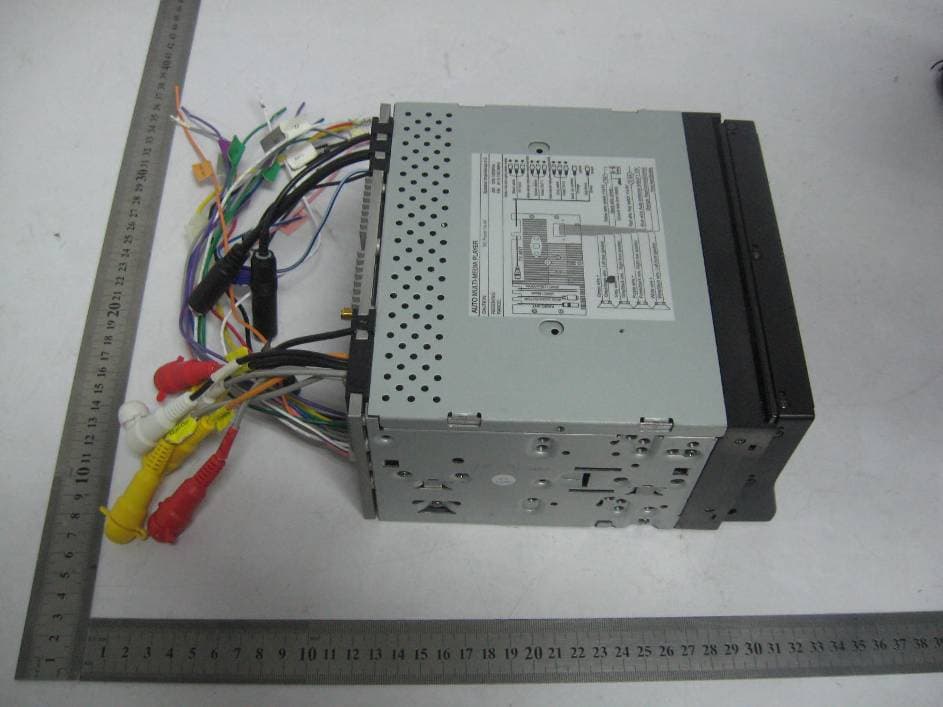

Zhejiang Bosen Elelctronic Co., Ltd. Model: BDT-70003 REPORT NO.: STR10048188I FCC PART 15.247 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 Zhejiang Bosen Elelctronic Co., Ltd. Model: BDT-70003 REPORT NO.: STR10048188I FCC PART 15.247 EUT View 3

Zhejiang Bosen Elelctronic Co., Ltd. Model: BDT-70003 REPORT NO.: STR10048188I FCC PART 15.247 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: YH4-BDT-7000X This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC Label Location

Zhejiang Bosen Elelctronic Co., Ltd. Model: BDT-70003 REPORT NO.: STR10048188I FCC PART 15.247 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: YH4-BDT-7000X This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC Label Location

Zhejiang Bosen Elelctronic Co., Ltd. Model: BDT-70003 REPORT NO.: STR10048188I FCC PART 15.247 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View Solder Board-Component View 1 Zhejiang Bosen Elelctronic Co., Ltd. Model: BDT-70003 REPORT NO.: STR10048188I FCC PART 15.247 Solder Board-Component View 2 Solder Board-Component View 3 Zhejiang Bosen Elelctronic Co., Ltd. Model: BDT-70003 REPORT NO.: STR10048188I FCC PART 15.247 Solder Board-Component View 4 Solder Board-Component View 5 Zhejiang Bosen Elelctronic Co., Ltd. Model: BDT-70003 REPORT NO.: STR10048188I FCC PART 15.247 Solder Board-Component View 6 Solder Board-Component View 7 Zhejiang Bosen Elelctronic Co., Ltd. Model: BDT-70003 REPORT NO.: STR10048188I FCC PART 15.247 Solder Board-Component View 8 Solder Board-Component View 9 Zhejiang Bosen Elelctronic Co., Ltd. Model: BDT-70003 REPORT NO.: STR10048188I FCC PART 15.247 Solder Board-Component View 10 Solder Board-Component View 11 Zhejiang Bosen Elelctronic Co., Ltd. Model: BDT-70003 REPORT NO.: STR10048188I FCC PART 15.247 Solder Board-Component View 12

Circuit Description a. IC-TMP91FU62：IC- TMP91FU62 is the main control unit, The DVD servo module decode the video or audio informatio and to achieve the playing function by the main control unit. In addition, the device can play other program from SD card or via wireless bluetooth received signal. b. Module-U8 is the 2.4 G wireless bluetooth module with a 40MHz clock signal. it will send a signal to the other bluetooth device in GFSK modulation to achieve the wireless communication, the transmitting frequency is 2402 ~ 2480 MHz. c. Supply Voltage: DC 12V.

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn BDT-70001SERVO.sch-1 - Mon Jul 06 15:01:07 2009 BDT-70001SERVO.sch-2 - Mon Jul 06 15:01:08 2009 BDT-70001SERVO.sch-3 - Mon Jul 06 15:01:08 2009 T107+群创2010.01.04.sch-1 - Fri Apr 23 10:39:34 2010 PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn BDT-70003 KEY BOARD.sch-1 - Fri Apr 23 10:24:45 2010 PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

Zhejiang Bosen Electronic Co., Ltd. Model: BDT-70003 REPORT NO.: STR10048188I PAGE 1 OF 30 FCC PART 15.247 FCC Part 15C Measurement and Test Report For Zhejiang Bosen Electronic Co., Ltd. No.1266, Juxian Road, Hi-Tech Park, Ningbo, Zhejiang, China FCC ID: YH4-BDT-7000X Report Concerns: Original Report Equipment Type: CAR DVD PLAYER Model: BDT-70003 Report No.: STR10048188I Test Date: 2010-05-17 to 2010-06-12 Issue Date: 2010-06-13 Test Engineer: John Zhi Reviewed By: Lahm Peng Approved & Authorized By: Jandy so/PSQ Manager Prepared By: SEM.Test Compliance Service Co., Ltd 3/F, Jinbao Commerce Building, Xin'an Fanshen Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by SEM.Test Compliance Service Co., Ltd . Zhejiang Bosen Electronic Co., Ltd. Model: BDT-70003 REPORT NO.: STR10048188I PAGE 2 OF 30 FCC PART 15.247 TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)...............................................................................3 1.2 TEST STANDARDS...................................................................................................................................................3 1.3 RELATED SUBMITTAL(S)/GRANT(S) .......................................................................................................................4 1.4 TEST METHODOLOGY.............................................................................................................................................4 1.5 TEST FACILITY.......................................................................................................................................................4 1.6 EUT EXERCISE SOFTWARE....................................................................................................................................4 1.7 ACCESSORIES EQUIPMENT LIST AND DETAILS.......................................................................................................4 1.8 EUT CABLE LIST AND DETAILS.............................................................................................................................4 2. SUMMARY OF TEST RESULTS ...........................................................................................................................5 3. §15.203 - ANTENNA REQUIREMENT..................................................................................................................6 3.1 STANDARD APPLICABLE.........................................................................................................................................6 3.2 TEST RESULT..........................................................................................................................................................6 4. NUMBER OF HOPPING CHANNELS AND CHANNEL SPACING .................................................................7 4.1 STANDARD APPLICABLE.........................................................................................................................................7 4.2 TEST EQUIPMENT LIST AND DETAILS.....................................................................................................................7 4.3 TEST PROCEDURE...................................................................................................................................................7 4.4 ENVIRONMENTAL CONDITIONS..............................................................................................................................7 4.5 SUMMARY OF TEST RESULTS/PLOTS......................................................................................................................8 5. DWELL TIME OF A HOPPING CHANNEL ......................................................................................................10 5.1 STANDARD APPLICABLE.......................................................................................................................................10 5.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................10 5.3 TEST PROCEDURE.................................................................................................................................................10 5.4 ENVIRONMENTAL CONDITIONS............................................................................................................................10 5.5 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................11 6. 20-DB BANDWIDTH ..............................................................................................................................................13 6.1 STANDARD APPLICABLE.......................................................................................................................................13 6.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................13 6.3 TEST PROCEDURE.................................................................................................................................................13 6.4 ENVIRONMENTAL CONDITIONS............................................................................................................................13 6.5 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................13 7. POWER OUTPUT.......................................................................................................…

Text truncated - open the document above for the full version.

Zhejiang Bosen Elelctronic Co., Ltd. Model: BDT-70003 REPORT NO.: STR10048188I FCC PART 15.247 EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Radiation Emission Test Setup (30MHz to 1GHz) Radiation Emission Test Setup (Above 1GHz)
