YHQ-GX6107DIGITAL SATELLITE RECEIVER

User's Guide Preface The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages. This document contains proprietary information protected by copyright. All rights are reserved. No part of this manual may be reproduced by any mechanical, electronic, or other means in any form without prior written permission of the manufacturer. Limitation of Liability While reasonable efforts have been made to ensure the accuracy of this manual, the manufacturer and distributor assume no liability resulting from errors or omissions in this manual, or from the use of the information contained herein. Federal Communications Commission Radio Frequency Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:1.This device may not cause harmful interference; and 2.This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and if not installed and used in accordance with the instruction manual may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ●Reorient or relocate the receiving antenna. ●Increase the separation between the equipment and receiver. -1- Content Safety Precaution ...................................................2 1. Reference 1.1 General Features .......................................................3 1.2 Accessories ................................................................4 2. Basic Function 2.1 Front Panel .................................................................5 2.2 Rear Panel .................................................................6 2.3 Remote Control Unit ...................................................7 3. Installation and Connection 3.1 Connecting to TV .....................................................9 3.2 Connecting to Dish LNB ...........................................10 4. Installation and Operation 4.1 Menu Guide ..............................................................12 4.2 Other Useful Information ..........................................17 5. Additional Information 5.1 Problem Solving ......................................................30 5.2 Technical Specification .............................................31 5.3 Menu Screen Structure.............................................32 5.4 Glossary ..................................................................33 -2- Safety Precaution This STB has been designed and manufactured to satisfy the international safety standards. Please read the following safety precautions carefully before operating this receiver.  Main Supply: Before operating, please check the units operating voltage is 90~250V AC 50/60Hz.  Overload: Do not overload a wall outlet, extension cord or adapter, neither use damaged power cord or touch it with wet hand as this may result in electric shock.  Liquid: The receiver shall not be exposed to dripping or splashing water, and that no objects filled with liquids, such as base, shall be placed on the apparatus.  Ventilation: Keep the slots on top of the receiver uncover to allow sufficient airflow to the unit. Do not put the receiver on soft furnishings or carpets. Do not expose the receiver to direct light or do not place it near a heater or in humid conditions. Do not stack other electronic equipments on top of the receiver.  Cleaning: Plug out the receiver from the wall outlet before cleaning. Clean the receiver by a soft cloth or mild solution of washing-up liquid (no solvents).  Connection: Disconnect the receiver from the mains when you connect it to satellite LNB or disconnect it from LNB. Failure would possibly cause damage to the LNB.  Location: Put the receiver indoor in order to avoid lightening, raining or sunlight.  Uncover: Do not remove the cover, to reduce the risk of electric shock. Contact qualified and licensed service personnel to repair the receiver, or contact your dealer. -3- 1. Reference 1.1 General Features z MPEG-2 Digital and Fully DVB-S Compliant z SCPC/MCPC Receivable from C/KU-Band Satellite z User Friendly OSD Menu with Full Function z Installation by Easy Setup Guide z 100 Satellites, 4000 Transponders, 6100 Channels. z Brilliant On Screen Graphic z Small Picture in Graphic and Zoom in Function z 8 Favorite Groups and Parent Lock Function z EPG, Including 7 Days Epg and Timer z Supports DiSEqC 1.0/1.2 and 22KHz Tone z Fast Channel Switching z 256 Color graphic user interface z High Sensitivity QPSK Tuner and Demodulator z Network Search/ Blind Search/Easy Tunning z Multi Language (Menu/Audio) z Support 32 Audio PID (Language) z USB and Rs232 port for Additional Information Service and Upgrading Software. z Supports DVB and TTX subtitles. z Supper fast 800 pages OSD Teletext supported z Twin tuner z LNB Power Overload Protection z Digital audio support with AC3. z Picture in Picture, Multi Picture Selection(4/9/10/12/13/16) z View Jpeg/Bmp, Play *.dat,*.mpg,*.vob and mp3 z Support USB z PVR…

Text truncated - open the document above for the full version.

FG DIGITAL TEKNOLOJILER ELEKTRONIK YAZILIM GELISTIRME BILGISAYAR VE DANISMANLIK SANTIC LTD.STI moda, karakol sok. no:19/11 34710 kadikoy istanbul - TURKEY POWER OF ATTORNEY FCC ID: YHQ-GX6107 June 12, 2010 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen VITE Technology Co., Ltd (MR. Tracy Qi) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Shenzhen VITE Technology Co., Ltd (MR. Tracy Qi) on our behalf shall have the same effect as acts of our own. This authorization expires on Dec 25, 2010. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, FG DIGITAL TEKNOLOJILER ELEKTRONIK are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely yours,

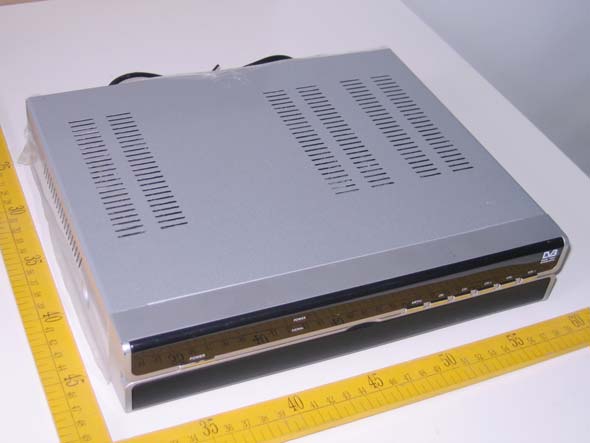

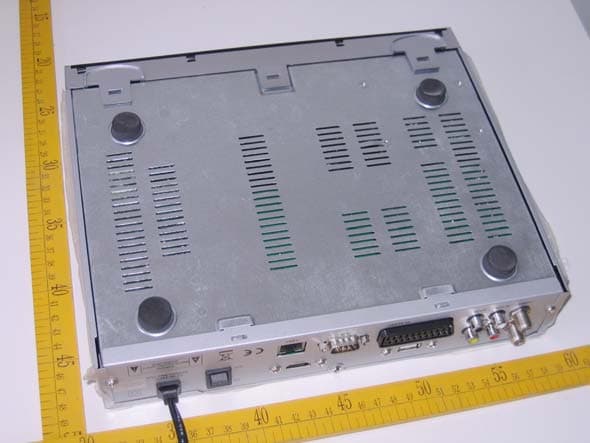

External and Internal Photos of the EUT External Photos

FCC ID Label and Location: Label: Location:

Internal Photos

Operation Description After connecting the receiver to other required equipment, turn on the receiver, there should be no channel information available at the first startup; you need to follow the procedure to setup your receiver to search the channel Main Menu Press MENU button to activate main menu, main menu consists of Installation, service organization，STB setting ,STB status, USB Menu, Ethernet Setting, CA Menu.  Use UP/DOWN button to select your subject and press OK to confirm your selection and enter that sub menu, press EXIT button you can return to the previous menu. 1 Installation Select Installation, press OK button to activate Installation menu, the Installation window will be displayed. 1.1Antenna Setting Press OK to Enter Antenna Setting; here you can make Satellite Search, TP search, blind Search and other Functions. a : Satellite List Enter this picture, you can see the presorted Satellite list, in this menu, you can press the UP/DOWN keys choose the satellite which you want to use, then press the OK to confirm the setting, you can setting other parameters. b: Transponder List If you change the satellite, the transponder will be changed automatically. You will find the transponder list of selected satellite here. Choose TP which you want to use, then press the OK to confirm the setting, you can setting other parameters. c: LNB frequency and power Here you need to check the LNB frequency according to your antenna, set the correct frequency or define yourself, and keep LNB power to be 13/18V. d: 22KHz In case you are using two antennas connected to a 22KHz tone switch box. You can supply either 22KHz by setting “ ON” or “ OFF” to select antenna. e: DiSEqC1.0 DiSEqC1.1 If you connect antenna to DiSEqC Switch, you need to specify the DiSEqC input to which your selected satellite have been configured. f Motor When you Enable this option, and press OK, you will get this window to show you how to adjust position of the dish. ¾Move Auto [W/E] Press RIGHT/LEFT button, the dish will be motorized to East/West continuously, it will stop until it find the best signal. ¾Move west-east Push RIGHT/LEFT button, the dish will be motorized to East/West step by step until you find the best signal showed on the signal bar. ¾Fine Tuning(1) Input digital button to set the moving step; Press RIGHT/LEFT button to move steps. ¾Store Position Save the current position you searched. ¾Go to Position Press OK button to move the dish to the stored position. ¾Go to Reference Press OK button to move the dish to 0 position. Pres Exist after setup, and you can search channel now ¾Set West Limit Enable West limit. ¾Set East Limit Enable East limit. ¾Disable Limit Disable West limit and East limit. USALS: If you use USALS and select the Motor Mode to USALS, here one more option you can move the dish to exact position of the satellite. g. Tuner Select Enter this menu, select tuner which one you input the signal, tuner1 or tuner2 supply change NOTE: If you don’t know any message about the satellite you can press the RED key using blind search. 4.1.2 Automatic Satellites Search Selecting one satellite, and press OK to mark, you can select more satellite at this time, but make sure they are all configured to your DiSEqC Switch, after this step , select all channel scan, free channel scan or blind search, Pressing OK will start searching, During searching the TV Channel and Radio Channel will be listed separately. 4.1.3 Manual TP Search Here you need to select one satellite which your dish pointed, then select the frequency, you need to setup the Polarization of that selected transponder, symbol rate, FEC,Network search (if the transponder contains this function), if you know the PID figure for that channel, you can input and search by this way. 4.1.4 Transfer Data Here you can transfer main sw or channel data from pc to STB FTP Download VFTP download some receiver like message, sw, channel list, so you should connect the Ethernet, then connect FTP severs. 4.1.5 Reset Factory Default You can erase all the channels and settings you made by selecting ALL, if you only want to erase the channels you searched and stored, please select Channel List. You also can save or load channels 4.1.6 USALS Setup You can setup the Dish position to the satellite you want to search, you need to check the detailed information from internet and input the accurate parameters about your local position. 4.2 Service Organizing Enter the service organizing; you can set channel fav, edit channels, like lock, rename, delete, and so on. 4.2.1Edit Favorites Here you can select your favorite channel and mark them set 8 fav, Press the FAV button, you can classify the favorites categories. 4.2.2 Edit Channels In this menu you can delete, rename, lock and move the selected channel. 4.2.3 Remove Satellite Select one satellite and press OK to mark, after you exit this menu, you will be asked to confirm whether delete the satellite or not. If you select YES, all the channels in the selected satellite will be deleted. 4.2.4 Sort channels You can sort the channels in different sequence; press OK on viewing mode you can check the sorting result. 4.2.5 Edit Transponder list Here if you press OK on the left you can rename Delete, Move, and Add satellite. If you are on the right and press OK, you can Delete, Edit and add transponder 4.3 STB Setting Here you can setup Menu Language, audio Language, TV output and Time setting according to your country 4.3.1Output Setting You can setup TV type PAL/NTSC, select TV screen mode either 4:3 or 16:9 according to the TV type and choose Scart output either CVBS or RGB according to the Standard of your country. You also can set the video change. 4.3.2Parent Lock This function prevents children or unauthorized persons from watching programs. You can select if need the password or not for Installation, Service and System, also you can change the Password, the default password is 0000.. When you choose yes, you can “ch…

Text truncated - open the document above for the full version.

GS3601BD.sch-1 - Mon May 31 14:39:05 2010 GS3601BD.sch-2 - Mon May 31 14:39:29 2010 GS3601BD.sch-3 - Mon May 31 14:39:29 2010 GS3601BD.sch-4 - Mon May 31 14:39:30 2010 GS3601BD.sch-5 - Mon May 31 14:39:30 2010 GS3601BD.sch-6 - Mon May 31 14:39:30 2010 GS3601BD.sch-7 - Mon May 31 14:39:31 2010

Shenzhen VITE Technology Co., Ltd Tel: +86-755-89486194 Fax: +86-755-89486187 FCC PART 15 SUBPART B TEST REPORT FCC PART 15B Report Reference No......................: VITE1006003F Compiled by ( position+printed name+signature)..: File administrators Andy Zhang Name of the organization performing the tests ( position+printed name+signature)..: Test Engineer Kendy Wang Approved by ( position+printed name+signature)..: Manager Tracy Qi Date of issue.....................................: Jun 10, 2010 Representative Laboratory Name.: Shenzhen VITE Technology Co., Ltd Address.............................................: Suite 2123, Building 4, Hongfa Centre, Central Area Baoan, Baoan District, Shenzhen, Guangdong, 518101, P.R. China Test Firm..........................................: Bontek Compliance Testing Laboratory Ltd Address.............................................: 1/F, Block East H-3, OCT Eastern Ind. Zone, Qiaocheng East Road, Nanshan, Shenzhen, China Applicant’s name............................: FG DIGITAL TEKNOLOJILER ELEKTRONIK Address.............................................: YAZILIM GELISTIRME BILGISAYAR VE DANISMANLIK SANTIC LTD.STI moda, karakol sok. no:19/11 34710 kadikoy istanbul - TURKEY Test specification: Standard ...........................................: FCC Part 15B TRF Originator ..................................: Shenzhen VITE Technology Co., Ltd Master TRF.......................................: Dated 2009-01 Shenzhen VITE Technology Co., Ltd All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen VITE Technology Co., Ltd is acknowledged as copyright owner and source of the material. Shenzhen VITE Technology Co., Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : Digital Satellite Receiver Trade Mark .......................................: / Model/Type reference.......................: GX6107 Twin Tuner Listed Models ..................................: / Power Supply..............................: AC 90-240V 50/60Hz Result................................................: Positive FCC ID............................................. : YHQ-GX6107 V1.0 Page 2 of 27 Report No.: VITE1006003F T E S T R E P O R T Test Report No. : VITE1006003F Jun 10, 2010 ______________________________________________________________________________________________ Date of issue Equipment under Test : Digital Satellite Receiver Model /Type : GX6107 Twin Tuner Listed Models : / Applicant : FG DIGITAL TEKNOLOJILER ELEKTRONIK Address : YAZILIM GELISTIRME BILGISAYAR VE DANISMANLIK SANTIC LTD.STI moda, karakol sok. no:19/11 34710 kadikoy istanbul - TURKEY Manufacturer : Topwell Electronic Limited Address : RN1102-1103 11/F KOWLOON BUILDING 555 NATHAN ROAD MONGKOK KL Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. V1.0 Page 3 of 27 Report No.: VITE1006003F Contents FCC PART 15 SUBPART B TEST REPORT ........................................................................................1 1. TEST STANDARDS .................................................................. 4 2. SUMMARY............................................................................. 5 2.1. General Remarks 5 2.2. Equipment Under Test 5 2.3. Short description of the Equipment under Test (EUT) 5 2.4. EUT operation mode 5 2.5. EUT configuration 5 2.6. Related Submittal(s) / Grant (s) 6 2.7. Modifications 6 2.8. Test Result Summary 6 3. TEST ENVIRONMENT ............................................................... 7 3.1. Address of the test laboratory 7 3.2. Test Facility 7 3.3. Environmental conditions 7 3.4. Statement of the measurement uncertainty 7 3.5. Equipments Used during the Test 8 4. TEST CONDITIONS AND RESULTS ............................................. 9 4.1. Radiated Emission Test 9 4.2. Conducted Emissions Test 18 5. TEST SETUP PHOTOS OF THE EUT ........................................... 23 6. EXTERNAL AND INTERNAL PHOTOS OF THE EUT ....................... 24 V1.0 Page 4 of 27 Report No.: VITE1006003F 1. TEST STANDARDS The tests were performed according to following standards: FCC Rules Part 15 Subpart B - Unintentional Radiators ANSI C63.4-2003 V1.0 Page 5 of 27 Report No.: VITE1006003F 2. SUMMARY 2.1. General Remarks Date of receipt of test sample : Jun 01, 2010 Testing commenced on : Jun 01, 2010 Testing concluded on : Jun 09, 2010 2.2. Equipment Under Test Power supply system utilised Power supply voltage : z 120V / 60 Hz o 115V / 60Hz o 12 V DC o 24 V DC o Other (specified in blank below) / 2.3. Short description of the Equipment under Test (EUT) A Digital Satellite Receiver. For more details, refer to the user’s manual of the EUT. Serial number: Prototype 2.4. EUT operation mode The EUT has been tested under typical operating condition. 2.5. EUT configuration The following peripheral devices and interface cables were connected during the measurement: o - supplied by the manufacturer ● - supplied by the lab ● LCD TV Manufacturer : SHARP Model No. : LCD32Z330A ● HDMI Cable Shield : Shielded Detachable : Detachable Length (m) : 1.5 ● Scart Cable Shield : Shielded Detachable : Detachable Length (m) : 1.5 ● SPDIF Cable Shield : Shielded Detachable : Detachable Length (m) : 1.5 ● AV Cable Shield : Shielded V1.0 Page 6 of 27 Report No.: VITE1006003F Detachable : Detachable Length (m) : 1.5 2.6. Related Submittal(s) / Grant (s) This submittal(s) (test report) is intended for FCC ID: YHQ-GX6107 filing to comply with the FCC Part 15, Subpart B Rules. 2.7. Modifications No modifications were implemented to meet testing criteria. 2.8. Test Result Summary Test Item Test RequirementSt…
