YHR-RQ101GSM MOBILE PHONE-GSM PORTION

-1- USER MANUAL Model:RQ101 -2- Contents 1 Basic Knowledge.................................7 1.1 Brief Introduction................................7 1.2 Safety Instructions............................,,,8 1.3 Safety Warnings and Precautions.......,,,8 2 Know Your Phone.............................. 12 2.1 Drawing of Keys................................12 2.2 Description of Keys...........................13 2.3 Technical Parameters........................16 3 Preparations before Use...................16 3.1 Install the SIM Card and Battery.........16 3.2 Install the T-Flash Card.....................20 3.3 Battery Charging..............................20 3.4 Power On and Power Off...................23 3.5 Connection to Network.....................24 -3- 3.6 Make a Call.....................................24 3.7 Earphone Use.................................26 4 Input Method...................................26 4.1 Input Method Indicator....................26 4.2 Input Method Shift..........................27 4.3 English Input Method.......................27 4.4 Insert Symbol..................................29 5 Menu Functions...............................29 5.1 Call History.......................................29 5.1.1 Call History of SIM Card 1............29 5.2 Directory...........................................32 5.2.1 Quick Find.................................33 5.2.2 Find Contact..............................33 5.2.3 Add Contact...............................34 5.2.4 Copy All.....................................34 5.2.5 Delete.......................................34 -4- 5.2.6 Groups.....................................34 5.2.7 Other Numbers........................35 5.2.8 Directory Settings....................35 5.3 Message........................................35 5.3.1 SMS.......................................35 5.3.2 MMS......................................41 5.3.3 Chat......................................45 5.3.4 Cell Broadcast (CB).................46 5.4 Setup...........................................47 5.4.1 Profiles..................................47 5.4.2 Dual Card Settings..................48 5.4.3 Phone Settings.......................49 5.4.4 Standby Menu Display............50 5.4.5 Call Settings..........................51 5.4.6 Network Settings...................57 5.4.7 Security Settings....................58 5.4.8 Factory Reset..........................59 -5- 5.5 Multimedia.....................................59 5.5.1 Camera..................................59 5.5.2 Photo Album..........................61 5.5.3 Video Recorder.......................62 5.5.4 Video Player...........................62 5.5.5 Music Player...........................63 5.5.6 Recording..............................64 5.5.7 FM Broadcast.........................65 5.5.8 File Management....................66 5.6 Network Service............................68 5.6.1 STK.......................................68 5.6.2 WAP.......................................68 5.6.3 Data Management..................69 5.7 Toolbox........................................70 5.7.1 Bluetooth...............................70 5.7.2 Calendar.................................71 5.7.3 Task.......................................71 -6- 5.7.4 Alarm......................................72 5.7.5 Calculator...............................72 5.7.6 World Time............................73 5.7.7 E-book...................................73 5.8 Game.............................................75 5.8.1 Game.......................................75 5.8.2 MSN.........................................75 5.8.3 Yahoo........................................76 5.8.4 Ebuddy......................................76 5.8.5 FaceBook...................................76 5.8.6 Twitter.......................................76 6 Appendix................................76 6.1 Appendix 1: Simple Trouble Shooting...76 -7- 1 Basic Knowledge 1.1 Brief Introduction Please read this manual carefully so as to make the best use of your mobile phone. Featured by streamlined delicate shape and comfortable to hold, this phone comes from the perfect combination of humanized design and exquisite workmanship. With fantastic full keypad input, large gorgeous color screen, melodious ring tones, call animation, powerful function of file management (support T-Flash card) and fashionable functions of camera, voice recorder and MP3 player, it can facilitate your work and also make your leisure time full of fun. Based on the principle of sustainable development, we shall reserve the right to improve our product without prior notice and the right of final interpretation of our product performance description. Some information in this manual may differ from the actual content displayed in the mobile phone, as there are different softwares and service providers. Your phone shall prevail. -8- 1.2 Safety Instructions In case your phone is lost or stolen, please inform the Telecom Corp. immediately to disable your SIM card (need network support) so as to avoid the possible economic loss arising from calls made by others. Please take preventive measures to protect your phone from any misuse, like: · Set a PIN for your SIM card. · Set a password for your phone. 1.3 Safety Warnings and Precautions Safety Warnings ¾ Safety first for driving. Do not use your phone while driving. If you have to use it, please activate the handsfree function. Remember that using the phone while driving is illegal in some countries. ¾ Turn off your phone on the plane. As the phone can cause disturbance, using it on the plane is illegal and dangerous. Please turn off your phone during the flight. ¾ Turn off your phone in dangerous areas. -9- Please strictly follow the relevant laws, regulations and rules to turn off your phone in the gas station, oil field, chemical plant, or explosion location. ¾ Follow special regulations. Please follow the special regulations to turn off your phone where mobile phone…

Text truncated - open the document above for the full version.

SUNSTRIKE INTERNATIONAL LIMITED FCC ID: YHR-RQ101 POWER OF ATTORNEY June 13, 2010 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, SUNSTRIKE INTERNATIONAL LIMITED, hereby authorize Shenzhen Super Test Service Technology Co., Ltd. (Terry YANG/ Manager) located at No.5, Langshan 2nd Rd., North Hi-Tech Industrial Park ,Nanshan, Shenzhen, Guangdong ,China on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Shenzhen Super Test Service Technology Co., Ltd. (Terry YANG/ Manager) on our behalf shall have the same effect as acts of our own. This authorization expires on June 30, 2010. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, SUNSTRIKE INTERNATIONAL LIMITED. are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Chen Hao Manager SUNSTRIKE INTERNATIONAL LIMITED June 13, 2010

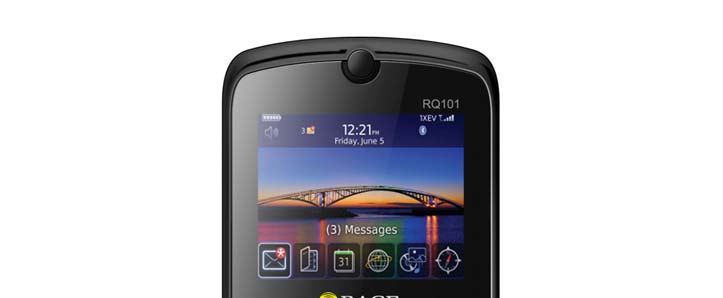

FCC ID: YHR-RQ101 Report No.: STS100508F1 FRONT VIEW OF SAMPLE BACK VIEW OF SAMPLE FCC ID: YHR-RQ101 Report No.: STS100508F1 LEFT VIEW OF SAMPLE RIGHT VIEW OF SAMPLE FCC ID: YHR-RQ101 Report No.: STS100508F1 TOP VIEW OF SAMPLE BOTTOM VIEW OF SAMPLE FCC ID: YHR-RQ101 Report No.: STS100508F1 PHOTO OF POWER SUPPLY PHOTO OF USB CABLE FCC ID: YHR-RQ101 Report No.: STS100508F1 PHOTO OF HEADPHONE PHOTO OF BATTERY FCC ID: YHR-RQ101 Report No.: STS100508F1 PHOTO OF THE ENTIRE SAMPLE FRONT VIEW OF SAMPLE-1 FCC ID: YHR-RQ101 Report No.: STS100508F1 BACK VIEW OF SAMPLE-2 LEFT VIEW OF SAMPLE-3 FCC ID: YHR-RQ101 Report No.: STS100508F1 RIGHT VIEW OF SAMPLE-4

FCC ID: YHR-RQ101 Report No.: STS100508F1 INTERNAL PHOTO OF SAMPLE – 1 INTERNAL PHOTO OF SAMPLE –2 FCC ID: YHR-RQ101 Report No.: STS100508F1 INTERNAL PHOTO OF SAMPLE –3 INTERNAL PHOTO OF POWER SUPPLY-1 FCC ID: YHR-RQ101 Report No.: STS100508F1 INTERNAL PHOTO OF POWER SUPPLY-2

一、 Receiver operation The frequency ranges of the synthesizer for RX mode are RX mode GSM850 869M -894M PCS 1930M-1990M The Receiver structure in SKY77547 is a very-low IF solution. More than 100DB gain, more than 110DB control range. And by the way, all of the DC-offset canceling processes are done within chip. we do not have to care about that. The LNA amplifies the RF signal after passing the T/R switch and RF SAW filter and before it enters the down-converter section. The RF signal is mixed with a local oscillator(LO) signal to generate the baseband signal. Four LPFs are used in the baseband signal processing for reduce block signals. The first LPF employs two external capacitors, and we can check whether the front-end (LNA+MIXer ) is functionally well or not by probing these two capacitors to see if there is any baseband signal(<200kHz). After three stages of DC-offset canceling,the signal(I+/I-/Q+/Q-) then output to the baseband IC for further processing. 二、 Transmitter Operation The frequency ranges of the synthesizer for TX mode are TX mode GSM850 1813M -1868M PCS 2035M-2149M The transmitter chain converts differential IQ baseband signals to a suitable format for transmission by a power amplifier. The common mode voltage range of the modulator inputs is 1.0V-1.4V and they have 0.5 Vp-p swing. The modulator circuit uses double-balance mixers for the I/Q paths. The Local signals are generated by dividing the IFLO signals by 8 in GSM band and by 4 in DCS band, and then passed to the modulator through a phase splitter/shifter. The IF signals generated are then summed to produce a signal modulated IF signal which is amplified and fed into the offset PLL block. Within the offset PLL block there are a down converter, a phase comparator and a VCO driver. The down converter mixes the first local signal and the TXVCO signal to create a reference local signal for use in the offset PLL circuit. The phase comparator and the VCO driver generate an error current, which is proportion to the phase differential between the diference IF and the modulated IF signals, this current is used in a third order loop filter to generate a voltage, which in turn modulates the TXVCO. The RF signal is then amplified by PA and power control loop to the assigned power level within the burst ramping mask. After passing the LPF of the T/R switch, the signal is then radiated through the antenna. VCXO Operation The 26MHz reference frequency is provided by an external VCTCXO module ,supplied to the REFINB pin .The REFIN pin must be AC grounded via a inf capacitor .In this case temperature and frequency stability are provided by the VTCXO module . The AD6548 requies only an external low cost crystal as the frenquency reference .The circuitry to oscillate the crystal and tune its frequency is fully intengrated .For good noise immunity the oscillator is a balanced implementation requiring the crystal to be connected across 2 pin s.there is a programmable capacitor array included for coarse tuning of fixed offsets ,and an intergrated varactor for dynamic control .the oscillator is designed for use with a 26MHz crystal. 三、RF Specification Requirement 1、TX Average carrier power POWER LEVEL(GSM900) max Range dBm normal ultimate 5 33 +/-2 dB*)+/-2.5 dB*) 6 31 +/-3 dB +/-3 dB 7 29 +/-3 dB) +/-4 dB*) 8 27 +/-3 dB +/-4 dB 9 25 +/-3 dB +/-4 dB 10 23 +/-3 dB +/-4 dB 11 21 +/-3 dB +/-4 dB 12 19 +/-3 dB +/-4 dB 13 17 +/-3 dB +/-4 dB 14 15 +/-3 dB +/-4 dB 15 13 +/-3 dB +/-4 dB 16 11 +/-5 dB +/-6 dB 17 9 +/-5 dB +/-6 dB 18 7 +/-5 dB +/-6 dB 19 5 +/-5 dB +/-6 dB POWER LEVEL(DCS 1800) max Range dBm normalultimate 0 30 +/-2 dB*) +/-2.5dB*) 1 28 +/-3 dB+/-4 dB 2 26 +/-3 dB+/-4 dB 3 24 +/-3 dB*) +/-4 dB*) 4 22 +/-3 dB+/-4 dB 5 20 +/-3 dB+/-4 dB 6 18 +/-3 dB+/-4 dB 7 16 +/-3 dB+/-4 dB 8 14 +/-3 dB+/-4 dB 9 12 +/-4 dB+/-5 dB 10 10 +/-4 dB+/-5 dB 11 8 +/-4 dB+/-5 dB 12 6 +/-4 dB+/-5 dB 13 4 +/-4 dB+/-5 dB 14 2 +/-5 dB+/-6 dB 15 0 +/-5 dB+/-6 dB 2、Frequency Error: 0.1ppm 3、Phase Error (a)：Peak Phase Error :20 degree (b)：RMS Phase Error :5 degree 4、ORFS(Ouptut Radio Frequency Spectrum) : 400KHz:-60dB 600KHz～1.8MHz:-60dB 5、Switching Spectrum 400KHz:-19dBm@GSM PCL5 400KHZ:-22dBm@DCS PCL0 6、 Rx Sensitivity -102dBm@RBERII=2.4%

NO TYPE Material Code Part Description QTY location No Marks 1 P H-0502-000JB0-B00 resistance,0 ohm,±5%,1/16W,0402 PCS 29 R4,R26,R27,R216,R101,R118,R829,R833,R836,R68,R69,L5,R52,R808,R100,R107,R110,R11,R400,C512,R515,L503,L502 , R71 , R74 , R78 , R63 , R115 , R323 2 P H-0502-000JF0-C00 resistance,0 ohm,±5%,1/10W,0603 PCS 1 R17 3 P H-0502-02FFC0-D00 resistance,0.2 ohm,±1%,1/8W,0805 PCS 1 R407 4 P H-0502-100JB0-B00 resistance,10 ohm,±5%,1/16W,0402 PCS 4 R813,R21 ,R251,R252 5 p H-0502-101JB0-B00 resistance,100 ohm,±5%,1/16W,0402 PCS 11 LZ201,LZ202,R72,R600,R601,R605,R606,R607,R608,R602,R603 6 P H-0502-102JB0-B00 resistance,1K ohm,±5%,1/16W,0402 PCS 11 R22,R23 ,R200,R202,R204,R209,R221,R97,R89,R87,R807 7 P H-0502-103JB0-B00 resistance,10K ohm,±5%,1/16W,0402 PCS 5 R214,R1 8,R28,R831,R61 8 P H-0502-104JB0-B00 resistance,100K ohm,±5%,1/16W,0402 PCS 10 R845, R215,R67,R70,R77,R90,R92,R93,R94,R46 9 P H-0502-105JB0-B00 resistance,1M ohm,±5%,1/16W,0402 PCS 1 R841 10 P H-0502-152JB0-B00 resistance,1.5K ohm,±5%,1/16W,0402 PCS 4 R839, R203,R206,R207 11 P H-0502-180JF0-C00 resistance,18 ohm,±5%,1/10W,0603 PCS 1 R406 12 P H-0502-221JB0-B00 resistance,220 ohm,±5%,1/16W,0402 PCS 2 R205,R 208 13 P H-0502-222JB0-B00 resistance,2.2K,±5%,1/16W,0402 PCS 4 R814,R815 ,R816,R817 14 P H-0502-273JB0-B00 resistance,27K ohm,±5%,1/16W,0402 PCS 1 R80 15 P H-0502-330JB0-B00 resistance,33ohm,±5%,1/16W,0402 PCS 6 R837,R83 8,R48,R58,R59,R60 16 P H-0502-333JB0-B00 resistance,33K ohm,±5%,1/16W,0402 PCS 1 R213 17 P H-0502-391JB0-B00 resistance,390 ohm,±5%,1/16W,0402 PCS 1 R504 18 P H-0502-392JB0-B00 resistance,3.9K ohm,±5%,1/16W,0402 PCS 1 R408 RQ101 pcba BOM list 备注：ECN10507/ECN10532 19 P H-0502-431JB0-B00 resistance,430 ohm,±5%,1/16W,0402 PCS 3 R409,R 500,R16 20 P H-0502-472JB0-B00 resistance,4.7K ohm,±5%,1/16W,0402 PCS 2 R73,R 75 21 P H-0502-473JB0-B00 resistance,47K ohm,±5%,1/16W,0402 PCS 13 R119,R120,R121,R122,R123,R124,R842,R29,R76,R66,R503,R612 , R613 22 P H-0502-51FJB0-B00 resistance,5.1 ohm,±5%,1/16W,0402 PCS 3 R53,R8 2,L1 23 P H-0502-510JB0-B00 resistance,51 ohm,±5%,1/16W,0402 PCS 1 R818 24 P H-0502-820JB0-B00 resistance,82 ohm,±5%,1/16W,0402 PCS 2 R806,R8 09 25 P H-0504-100555-271 ESD,SDV1005A5R5C271NPTF Sunlord PCS 5 ED15,ED1 0,ED1,ED220,ED221 A H-0504-502200-B00 ESD,AVL5M02200,AMOTECH PCS 5 ED15,ED10,ED1,ED220 ,ED221 26 P H-0504-100555-400 ESD,0402,SDV1005E5R5C400NPTF Sunlord PCS 4 ED1 1,ED12,ED13,ED14 A H-0504-502050-B00 ESD,0402,AVLC5S02050,AMOTECH PCS 4 ED11,ED12,ED1 3,ED14 27 P H-0602-060D8A-B00 capacitance,6pF,±0.5pF,50V,COG,0402 PCS 4 C17, C14,C19,C321 28 P H-0602-101J8A-B00 capacitance,100pF,±5%,50V,COG,0402 PCS 3 C203, C208,C504 29 P H-0602-102K8D-B00 capacitance,1nF,±10%,50V,X7R,0402 PCS 5 C103,C 37,C506,ED202,ED205 30 P H-0602-103K4D-B00 capacitance,10nF,±10%,16V,X7R,0402 PCS 1 C516 31 p H-0602-104K3C-B00 capacitance,100nF,±10%,10V,X5R,0402 PCS 36 C25,C105,C106,C107,C108,C109,C120,C122,C128,C200,C204,C206,C212,C217,C411,C412,C404,C466,C451,C452,C819,C820,C20,C830,C831,C828,C835,C833,C39,C824,C45,C511,C518,C527,C528,C508 32 P H-0602-105K2C-B00 capacitance,1uF,±10%,6.3V,X5R,0402 PCS 20 C3,C29,C12,C64,C402,C410,C406,C408,C453,C454,C455,C822,C821,C826,C11,C46,C510,C517,C501,C502 33 P H-0602-105Z4E-C00 capacitance,1uF,+80-20%,16V,Y5V,0603 PCS 1 C40 0 34 P H-0602-106M2C-D00 capacitance,10uF,±20%,6.3V,X5R,0805 PCS 5 C201 ,C202,C207,C213,C1 35 P H-0602-120J8A-B00 capacitance,12pF,±5%,50V,COG,0402 PCS 10 ED201 ,ED203,C5,C250,C222,C223,C523,C524,C520,C67 36 P H-0602-15FC8A-B00 capacitance,1.5pF,±0.25pF,50V,COG,0402 PCS 1 C 818 37 P H-0602-180J8A-B00 capacitance,18pF,±5%,50V,COG,0402 PCS 4 C814,C 816,C30,C340 38 P H-0602-181J8A-B00 capacitance,180pF,±5%,50V,COG,0402 PCS 1 C522 39 P H-0602-220J8A-B00 capacitance,22pF,±5%,50V,COG,0402 PCS 4 C101,C 102,C13,C521 40 P H-0602-221J8A-B00 capacitance,220pF,±5%,50V,COG,0402 PCS 2 C22,C 18 41 P H-0602-223K3D-B00 capacitance,22nF,±10%,16V,X7R,0402 PCS 1 C221 42 P H-0602-224K3C-B00 capacitance,220nF,±10%,10V,X5R,0402 PCS 1 C832 43 P H-0602-225K2C-C00 capacitance,2.2uF,±10%,6.3V,X5R,0603 PCS 4 C4, C218,C823,C825 44 P H-0602-330J8A-B00 capacitance,33pF,±5%,50V,COG,0402 PCS 37 C2,C36,C43,C205,C209,C210,C211,C214,C216,C220,C251,C252,ED3,ED4,ED5,ED6,ED204,ED400,ED401,ED402,ED403,C50,C51,C52,C53,C54,C55,C56,C57,C58,C59,C60,C61,C62,C6 3,C829,C48 45 P H-0602-361J6A-B00 capacitance,360pF,±5%,25V,COG,0402 PCS 1 C525 46 P H-0602-390J8A-B00 capacitance,39pF,±5%,50V,COG,0402 PCS 2 C813,C 38 47 P H-0602-470J8A-B00 capacitance,47pF,±5%,50V,COG,0402 PCS 1 C33 48 P H-0602-472K3C-B00 capacitance,4.7nF,±10%,10V,X5R,0402 PCS 1 C526 49 P H-0602-473Z4E-B00 capacitance,47nF,+80-20%,16V,Y5V,0402 PCS 1 C1 04 50 P H-0602-475K2C-C00 capacitance,4.7uF,±10%,6.3V,X5R,0603 PCS 6 C40 9,C35,C401,C403,C405,C407 51 P H-0602-68FC8A-B00 capacitance,6.8pF,±0.25pF,50V,COG,0402 PCS 4 C 817,C41,C23,C27 52 P H-0602-820D8A-B00 capacitance82pf,±5%,50V,COG,0402 PCS 2 C40,C34 53 P H-0701-120JB1-001 inductance,12nH,±5%,0402,SDCL1005C12NJTDF,S unlord PCS 1 C815 A H-0701-120JB1-000 inductance,12nH,±5%,0402,LQG12HS15NJ02D,Murat a PCS 1 C815 54 P H-0701-15FSB1-001 inductance,1.5nH,±0.3nH , 0402 , SDCL1005C1N5STDF , Sunlord PCS 2 L506,C361 A H-0701-15FJB0-000 inductance,1.5nH,±0.3nH,0402,,HK10051N5S-T,Taiyo- y uden PCS 2 L506,C361 A H-0701-15FSB1-000 inductance,1.5nH,±0.3nH,0402,LQG15HS1N5S02D,M urata PCS 2 L506,C361 55 P H-0701-150JB1-001 inductance,15nH,±5%,0402,SDCL1005C15NJTDF,S unlord PCS 2 L803,L305 A H-0701-150JB0-000 inductance,15nH,±5%,0402,,HK100515NJ-T,Taiyo- yuden PCS 2 L803,L305 A H-0701-150JB1-000 inductance,15nH,±5%,0402,LQG15HS15NJ02D,Murat a PCS 2 L803,L305 56 P H-0701-220JB1-001 inductance,22nH,±5%,0402,SDCL1005C22NJTDF,S unlord PCS 2 L7,L3 A H-0701-220JB0-000 inductance,22nH,±5%,0402,HK100522NJ,Taiyo-yud en PCS 2 L7,L3 A H-0701-220JB1-000 inductance,22nH,±5%,0402,LQG15HS22NJ02D,Murat a PCS 2 L7,L3 57 P H-0701-43FJB1-001 inductance,4.3nH,±0.3nH , 0402 , SDCL1005C4N3STDF , Sunlord PCS 2 L8,L804 A H-0701-43FJB1-…

Text truncated - open the document above for the full version.

Transmit frequency GSM850 824-849 PCS 1900 1850-1910 Reciever frequency GSM850 869-894 PCS 1900 1930-1990 Modulation GMSK (bt=0.3) Hardware Verision A051-MB-V0.5 Sw Verision A051_7B_RAGE_PJ9225_V117 Emission Designator 200KHz Freq stability +- 1pp Dimension -- Weight -- Data Transmission N/A Voltage 3.6-4.2V Current Idel:<5mA Transmitter Power EGSM: 2w DCS: 1W

Submit 1 System Validation Plots Project name: KS100602B05 FCCID: YHR-RQ101 Page 1 System Validation Plots Project name : KS100602B05 EUT DESCRIPTION Product name: GSM Mobile Phone Model No.: RQ101 Trade name: RAGE Tested date: June 4, 2010 Applicant: SUNSTRIKE INTERNATIONAL LIMITED 7th Floor ,Unit C ,Gemstar Tower, 23 Man Lok Street , Hunghom, Kowloon, Hong Kong Air Temperature: 21 °C Liqued Temperature: 20 °C Crest Factor: CW:___1__ GSM:__8___ GPRS 10: __4___ Area Scan: 7 x 7 x 1 dx=15mm dy=15mm Zoom Scan: 5 x 5 x 7 dx=5mm dy=5mm dz=5mm Z Axis Scan: 1 x 1 x 21 dx=20mm dy=20mm dz=5mm Probe：Antennessa (SN:SN_1109_EP_100) Compliance Certification Services (Kunshan) Inc. No.10, Weiye Rd., Innovation Park, Eco & Tec. Development Part, Kunshan City, Jiangsu Province, PRC. TEL: 86-512-57355888 FAX: 86-512-57370818 http://www.ccsrf.com Project name: KS100602B05 FCCID: YHR-RQ101 Page 2 850 HEAD VALIDATION I. RESULTS TYPE PAR AM E TE RS Noise -- Validation Measurement 1: Validation Plane with Dipole device position on Middle Channel in CW mode GSM850 Phone -- Project name: KS100602B05 FCCID: YHR-RQ101 Page 3 MEASUREMENT 1 Type: Validation measurement (Complete) Date of measurement: 04/06/2010 Measurement duration: 6 minutes 41 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Phantom File surf_sam_plan.txt, Adaptative 2 max Phantom Validation plane Device Position Dipole Band GSM850 Channels Middle Signal CW Project name: KS100602B05 FCCID: YHR-RQ101 Page 4 B. Instrumentations. PC HP (Pentium(R) V 3.06GHz, SN:375052-AA1) Network Emulator R&S (CMU200, SN:B23-03291) Vo l t m e t e r Keithley (2000, SN:1015843) Synthetizer Agilent (E8257C, SN:MY43321570) Amplifier Mini-Circuits (ZHL-42, SN:110405) Power Meter Agilent (E4416A, SN:QB41292714) Probe Antennessa (SN:SN_1109_EP_100) Phantom Antennessa (SN:SN41_05_SAM29) Liquid Antennessa Project name: KS100602B05 FCCID: YHR-RQ101 Page 5 C. SAR Measurement Results Frequency (MHz) 835.000110 Relative permitivity (real part) 41.657147 Relative permitivity (imaginary part) 19.589512 Conductivity (S/m) 0.921352 Variation (%) 0.470000 SURFACE SAR VOLUME SAR Project name: KS100602B05 FCCID: YHR-RQ101 Page 6 Maximum location: X=0.00, Y=-5.00 SAR 1g (W/Kg) 9.574321 Project name: KS100602B05 FCCID: YHR-RQ101 Page 7 Z Axis Scan Project name: KS100602B05 FCCID: YHR-RQ101 Page 8 1900 HEAD VALIDATION I. RESULTS TYPE PAR AM E TE RS Noise -- Validation Measurement 1: Validation Plane with Cheek device position on Middle Channel in CW mode GSM1900 Phone -- Project name: KS100602B05 FCCID: YHR-RQ101 Page 9 MEASUREMENT 1 Type: Validation measurement (Complete) Date of measurement: 04/06/2010 Measurement duration: 7 minutes 3 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Phantom File surf_sam_plan.txt, Adaptative 2 max Phantom Validation plane Device Position Dipole Band GSM1900 Channels Middle Signal CW Project name: KS100602B05 FCCID: YHR-RQ101 Page 10 B. SAR Measurement Results Frequency (MHz) 1900.000000 Relative permitivity (real part) 40.325472 Relative permitivity (imaginary part) 13.223120 Conductivity (S/m) 1.426101 Variation (%) 0.750000 SURFACE SAR VOLUME SAR Project name: KS100602B05 FCCID: YHR-RQ101 Page 11 Maximum location: X=-1.00, Y=-1.00 SAR 1g (W/Kg) 40.147233 Project name: KS100602B05 FCCID: YHR-RQ101 Page 12 Z Axis Scan Project name: KS100602B05 FCCID: YHR-RQ101 Page 13 850 BODY VALIDATION I. RESULTS TYPE PAR AM E TE RS Noise -- Validation Measurement 1: Validation Plane with Dipole device position on Middle Channel in CW mode GSM850 Phone -- Project name: KS100602B05 FCCID: YHR-RQ101 Page 14 MEASUREMENT 1 Type: Validation measurement (Complete) Date of measurement: 04/06/2010 Measurement duration: 6 minutes 51 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Phantom File surf_sam_plan.txt, Adaptative 2 max Phantom Validation plane Device Position Dipole Band GSM850 Channels Middle Signal CW Project name: KS100602B05 FCCID: YHR-RQ101 Page 15 B. Instrumentations. PC HP (Pentium(R) V 3.06GHz, SN:375052-AA1) Network Emulator R&S (CMU200, SN:B23-03291) Vo l t m e t e r Keithley (2000, SN:1015843) Synthetizer Agilent (E8257C, SN:MY43321570) Amplifier Mini-Circuits (ZHL-42, SN:110405) Power Meter Agilent (E4416A, SN:QB41292714) Probe Antennessa (SN:SN_1109_EP_100) Phantom Antennessa (SN:SN41_05_SAM29) Liquid Antennessa Project name: KS100602B05 FCCID: YHR-RQ101 Page 16 C. SAR Measurement Results Frequency (MHz) 835.000004 Relative permitivity (real part) 56.451230 Relative permitivity (imaginary part) 22.1712012 Conductivity (S/m) 0.982310 Variation (%) 0.200000 SURFACE SAR VOLUME SAR Project name: KS100602B05 FCCID: YHR-RQ101 Page 17 Maximum location: X=1.00, Y=-2.00 SAR 1g (W/Kg) 9.656247 Project name: KS100602B05 FCCID: YHR-RQ101 Page 18 Z Axis Scan Project name: KS100602B05 FCCID: YHR-RQ101 Page 19 1900 BODY VALIDATION I. RESULTS TYPE PAR AM E TE RS Noise -- Validation Measurement 1: Validation Plane with Dipole device position on Middle Channel in CW mode GSM1900 Phone -- Project name: KS100602B05 FCCID: YHR-RQ101 Page 20 MEASUREMENT 1 Type: Validation measurement (Complete) Date of measurement:04/06/2010 Measurement duration: 6 minutes 43 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Phantom File surf_sam_plan.txt, Adaptative 2 max Phantom Validation plane Device Position Dipole Band GSM1900 Channels Middle Signal CW B. SAR Measurement Results Project name: KS100602B05 FCCID: YHR-RQ101 Page 21 Frequency (MHz) 1900.000000 Relative permitivity (real part) 52.027928 Relative permitivity (imaginary part) 13.630100 Conductivity (S/m) 1.486720 Variation (%) -0.100000 SURFACE SAR VOLUME SAR Project name: KS100602B05 FCCID: YHR-RQ101 Page 22 Maximum location: X=0.00, Y=-1.00 SAR 1g (W/Kg) 38.574212 Project name: KS100602B05 FCCID: YHR-RQ101 Page 23 Z Axis Scan Submit 2 SAR Test Plots Project name: KS100602B05 FCCID: YHR-RQ101 Page 1 SAR Test Plots Project name : KS100602B05 EUT DESCRIPTION Prod…

Text truncated - open the document above for the full version.

Compliance Certification Services (Kunshan)Inc. Report No: KS100602B05-SF FCCID: YHR-RQ101 Date of Issue: June 4, 2010 Page 1 of 40 Rev. 00 ANSI/IEEE Std. C95.1-1992 In accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C FCC SAR TEST REPORT For GSM Mobile Phone Model No.: RQ101 Trade Name: RAGE Test Report Number: KS100602B05-SF Prepared for SUNSTRIKE INTERNATIONAL LIMITED 7th Floor ,Unit C ,Gemstar Tower, 23 Man Lok Street , Hunghom, Kowloon, Hong Kong Issued by Compliance Certification Services (Kunshan) Inc. No.10, Weiye Rd., Innovation Park, Eco & Tec. Development Part, Kunshan City, Jiangsu Province, P.R.China. TEL: 86-512-57355888 FAX: 86-512-57370818 http://www.ccsrf.com Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Compliance Certification Services (Kunshan)Inc. Report No: KS100602B05-SF FCCID: YHR-RQ101 Date of Issue: June 4, 2010 Page 2 of 40 Rev. 00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. TABLE OF CONTENTS 1. CERTIFICATE OF COMPLIANCE (SAR EVALUATION)..................................................... 3 2. EUT DESCRIPTION.............................................................................................................. 4 3. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC......................... 5 4. Applied Standards ..............................................................................................................5 5. Test Configuration ..............................................................................................................5 6. DOSIMETRIC ASSESSMENT SETUP ................................................................................. 5 6.1 MEASUREMENT SYSTEM DIAGRAM .......................................................................... 7 6.2 SYSTEM COMPONENTS .............................................................................................. 8 7. EVALUATION PROCEDURES........................................................................................... 10 8. MEASUREMENT UNCERTAINTY ..................................................................................... 14 9. EXPOSURE LIMIT .............................................................................................................. 15 10. EUT ARRANGEMENT .................................................................................................... 16 10.1ANTHROPOMORPHIC HEAD PHANTOM ................................................................. 16 10.2DEFINITION OF THE “CHEEK/TOUCH” POSITION .................................................. 17 10.3DEFINITION OF THE “TILTED” POSITION ................................................................ 18 11. MEASUREMENT RESULTS........................................................................................... 19 11.1TEST LIQUIDS CONFIRMATION ............................................................................... 19 11.2SYSTEM PERFORMANCE CHECK ........................................................................... 20 11.3EUT TUNE-UP PROCEDURES AND TEST MODE ................................................... 22 11.4RF POWER OUTPUT ................................................................................................. 23 11.5EUT SETUP PHOTOS ................................................................................................ 24 11.6SAR MEASUREMENT RESULTS............................................................................... 27 EUT PHOTO............................................................................................................................... 31 12. EQUIPMENT LIST & CALIBRATION STATUS .............................................................. 38 13. FACILITIES .....................................................................................................................39 14. REFERENCES ................................................................................................................ 39 15. ATTACHMENTS ............................................................................................................. 40 Compliance Certification Services (Kunshan)Inc. Report No: KS100602B05-SF FCCID: YHR-RQ101 Date of Issue: June 4, 2010 Page 3 of 40 Rev. 00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. 1. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Product name: GSM Mobile Phone Model No.: RQ101 Trade name: RAGE Description: The EUT was scanned during the preliminary test，then the SIM1 was found to transmit the highest SAR value after tested dual SIM1 and SIM2. Device Category: PORTABLE DEVICES Exposure Category: GENERAL POPULATION/UNCONTROLLED EXPOSURE Date of Test: June 4, 2010 Applicant: SUNSTRIKE INTERNATIONAL LIMITED 7th Floor ,Unit C ,Gemstar Tower, 23 Man Lok Street , Hunghom, Kowloon, Hong Kong Manufacturer: SUNSTRIKE INTERNATIONAL LIMITED 7th Floor ,Unit C ,Gemstar Tower, 23 Man Lok Stre…

Text truncated - open the document above for the full version.
