YHT-BRM920AJM1017SECURITY TRANSMITTER

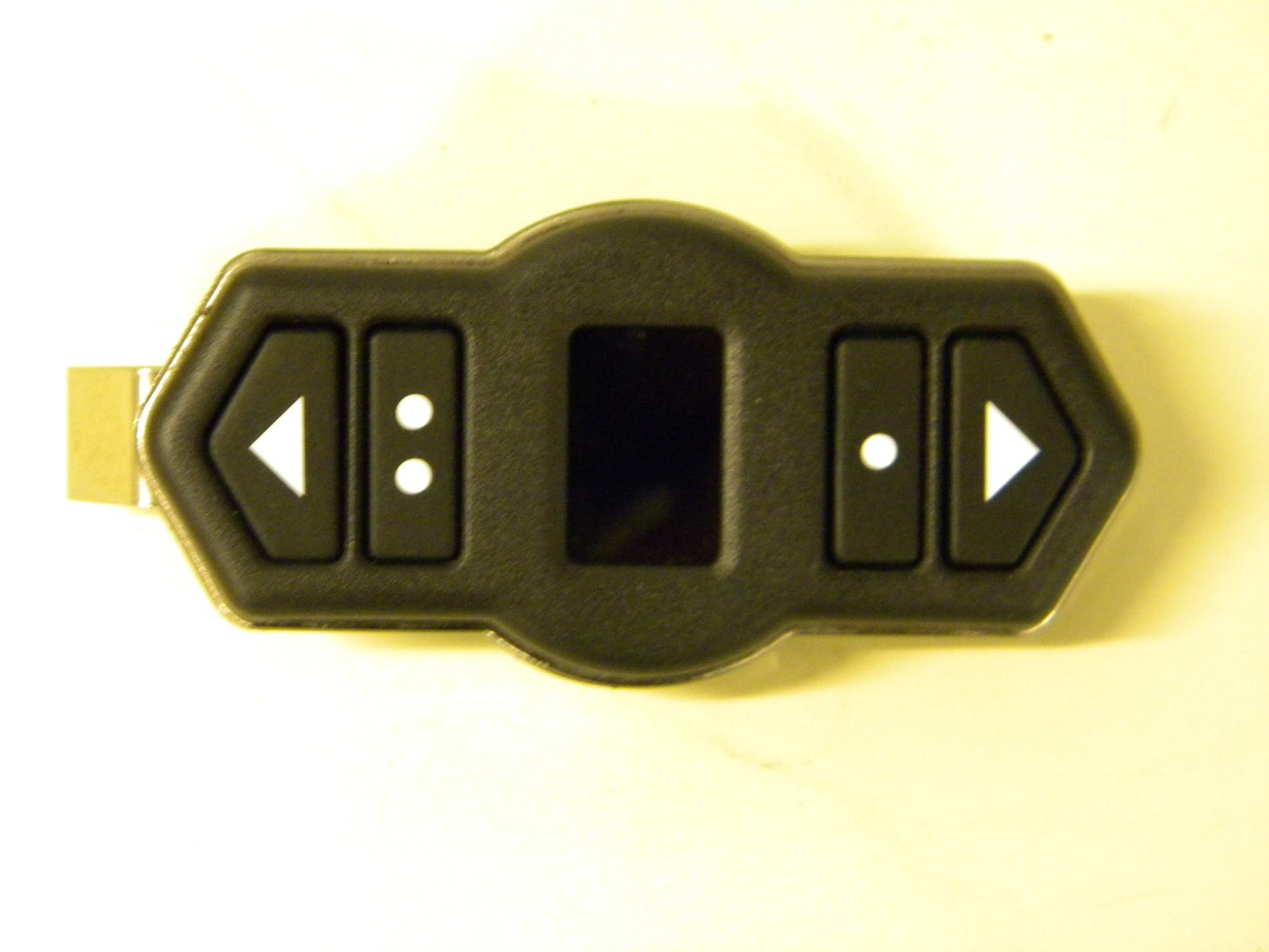

APPLICANT: DRIVEN DESIGN, INC. FCC ID: YHT-BRM920AJM1017 EXTERNAL PHOTOS

APPLICANT: DRIVEN DESIGN, INC. FCC ID: YHT-BRM920AJM1017 INTERNAL PHOTOS

FCC PART 15.231 TEST REPORT LOW POWER UNLICENSED TRANSMITTER Applicant Driven Design, Inc. Address 1135 S. Bridge St. Belding MI 48809 USA FCC ID YHT-BRM920AJM1017 Product Description Security Transmitter Date Sample Received 12/30/2010 Date Tested December 30 th , 2010 Tested By Mario de Aranzeta Approved By Mario de Aranzeta Timco Report No. 2957UT10TestReport.doc Test Results Pass Fail THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA PH: 888.472.2424 OR 352.472.5500 FAX: 352.472.2030 EMAIL: [email protected] HTTP: //WWW.TIMCOENGR.COM Certificate # 0955-01 APPLICANT: Driven Design, Inc. FCC ID: YHT-BRM920AJM1017 REPORT: D\DRIVEN DESIGNS\2957UT10\2957UT10TestReport.doc Page 2 of 14 mdea 09.20.2007 TABLE OF CONTENTS GENERAL REMARKS ......................................................................................................... 3 REPORT SUMMARY ........................................................................................................... 4 TEST ENVIRONMENT ........................................................................................................ 4 TEST SETUP ...................................................................................................................... 4 DUT SPECIFICATION ......................................................................................................... 5 MANUFACTURE DECLARATION OF COMPLIANCE WITH PART 15.231(A) .......................... 6 TEST EQUIPMENT LIST ..................................................................................................... 7 TEST PROCEDURES ......................................................................................................... 8 RADIATION INTERFERENCE ............................................................................................. 9 CALCULATION OF DUTY CYCLE ...................................................................................... 11 OCCUPIED BANDWIDTH ................................................................................................. 13 POWER LINE CONDUCTED INTERFERENCE ................................................................... 14 APPLICANT: Driven Design, Inc. FCC ID: YHT-BRM920AJM1017 REPORT: D\DRIVEN DESIGNS\2957UT10\2957UT10TestReport.doc Page 3 of 14 mdea 09.20.2007 GENERAL REMARKS The attached report shall not be reproduced except in full without the written permission of Timco Engineering Inc. Summary The device under test does: fulfill the general approval requirements as identified in this test report not fulfill the general approval requirements as identified in this test report Attestations This equipment has been tested in accordance with the standards identified in this test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report. All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025 requirements. Certificate # 0955-01 I attest that the necessary measurements were made, under my supervision, at: Timco Engineering Inc. 849 NW State Road 45 Newberry, Fl 32669 Authorized Signatory Name: Mario de Aranzeta C.E.T. Compliance Engineer/ Lab. Supervisor Date: January 3, 2011 APPLICANT: Driven Design, Inc. FCC ID: YHT-BRM920AJM1017 REPORT: D\DRIVEN DESIGNS\2957UT10\2957UT10TestReport.doc Page 4 of 14 mdea 09.20.2007 REPORT SUMMARY Disclaimer The test results only relate to the item tested. Applicable Rule(s) FCC Pt 15.231, Pt 15.209, Pt 15.207, ANSI C63.4: 2003 Receiver The receiver portion of this system has been tested and meets all of the FCC requirements per FCC rules Part 15.109. A report was issued and a copy of this report is available upon request. TEST ENVIRONMENT Test Facility The test sites are located at 849 NW State Road 45 Newberry, FL 32669 USA. Test Condition: Temperature: 26ºC Relative humidity: 50% TEST SETUP Test Exercise (e.g software description, test signal, etc.): The DUT was placed in continuous transmit mode of operation. Deviation from the standard(s) No deviation from the standard(s) Modification to the DUT: No modification was made to the DUT. Supporting Peripheral Equipment Not applicable. The device is a stand-alone remote control radio. APPLICANT: Driven Design, Inc. FCC ID: YHT-BRM920AJM1017 REPORT: D\DRIVEN DESIGNS\2957UT10\2957UT10TestReport.doc Page 5 of 14 mdea 09.20.2007 DUT SPECIFICATION Applicant Driven Design, Inc. Description Security Transmitter FCC ID YHT-BRM920AJM1017 Frequency Range 433.92 MHz DUT Power Source 110–120Vac/50– 60Hz DC Power Battery Operated Exclusively Test Item Prototype Pre-Production Production Type of Equipment Fixed Mobile Portable APPLICANT: Driven Design, Inc. FCC ID: YHT-BRM920AJM1017 REPORT: D\DRIVEN DESIGNS\2957UT10\2957UT10TestReport.doc Page 6 of 14 mdea 09.20.2007 MANUFACTURE DECLARATION OF COMPLIANCE WITH PART 15.231(A) Item Description Yes No 1 Does this device transmit a signal that is only used to control another device? X 2 Does this device send data with this control signal? X 3 Does this device send data? Data is, things like: temperature, wind direction, fluid amount, rate of flow, etc. X 4 Does this device transmit continuously or automatically? X 5 If manually operated does this device stop transmitting within 5 seconds of releasing the button? X 6 If automatically operated does it deactivate 5 seconds after activation? N/A 7 Does it transmit at regular predetermined intervals? X 8 Does it poll or send supervisory information? X If yes does it do a system integrity check? How often? N/A 9 Is this a fire, security or safety of life device? X If YES does the device stop transmitting after the alarm condition is satisfied? N/A 10 Duty cycle: Maximum on-time? * If YES, on-time in 100 ms? If Other, please specify here * On time in * 11 Modula…

Text truncated - open the document above for the full version.
