YI3T69-2WIRELESS REMOTE CONTROL

Application notes to the wireless remote-control switch Common methods of address code learning and removal Learning method: hold down the learning button for about 4 seconds, release it after the learning indicator light, then press the remote control button, if learn successfully, the indicator light will go off immediately, if not, the light will be on, also the learning state will exit automatically over 5 seconds. The above operations need to be repeated for each remote -control learning. Removal method: Press the learning button for about 7 seconds, then all the learned address codes will be deleted after the indicator light flashes three times. Requirements of the wireless transmitting 1. The transmitting and receiving frequencies have to be consistent absolutely. Such as: 315MHz 2. Codec IC model shall match. 3. Codec IC rosc shall meet the technical requirements. 4. Codec IC addresses shall be corresponding. 5. Codec IC data shall be corresponding. 6. The working volt of the transmitting and receiving shall meet the technical requirements.

Coding IC BATTERY 12V KEY high frequency transmitter LED 315MHZ SAWF ANT

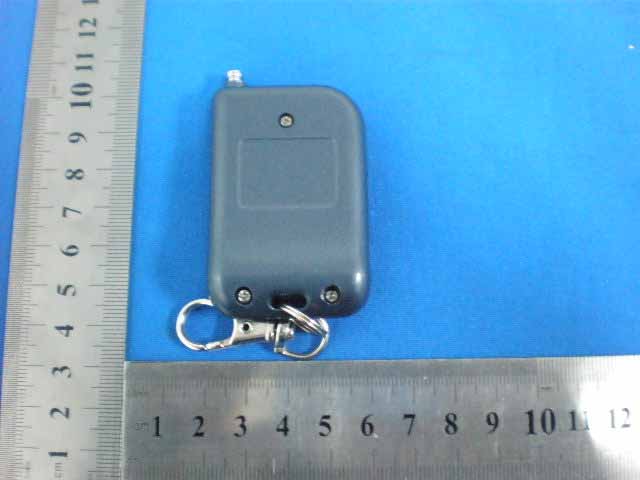

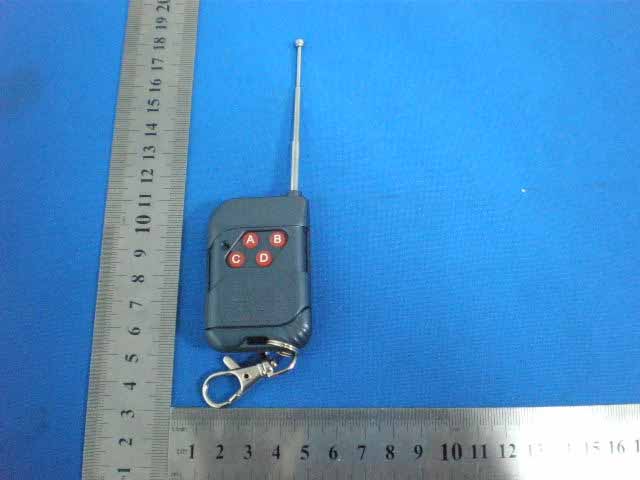

External Photo External Photo External Photo

FCC ID LABEL FCC ID:YI3T69-2 This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions:1. This device may not cause harmful interference, and 2. This device must accept any interference received,including interference that may cause undesired operation. Label Location on EUT EUT Bottom View/ FCC ID Label Location

Internal Photo Internal Photo Internal Photo Internal Photo Antenna

Description The wireless remote control device contains a wireless transmitters and wireless receivers. Wireless transmitter control motors and lights. There’s a long line insideand all the remote commands are sent out through the external case button, modulate and code by the internal circuit, then sent the electromagnetic waves out through antenna by the high-frequency signal amplifier. Wireless receiver is installed in the base for receiving the wireless signals, it processes the transmitter signal from the emitter like enlarging, shaping, decoding, and transform the received signals into pulse signals which the executive circuit can be recognized.

FCC PART 15.231 EMI MEASUREMENT AND TEST REPORT For Ningbo Dallie Industrial Co.,Ltd. No.66, Fengyi Rd., Xiaodong Industrial Area, Yuyao, Ningbo, China FCC ID:YI3T69-2 Jun. 24, 2010 This Report Concerns: Original Report Equipment Type Wireless Remote Control Test Engineer: Eric Li Report No.: BST10060101R-3 Receive EUT Date/Test Date: Jun.18,2010/ Jun.18-24,2010 Reviewed By: Christina Prepared By: Shenzhen BST Technology Co.,Ltd. 3F,Weames Technology Building, No. 10 Kefa Road,Science Park, Nanshan District,Shenzhen,Guangdong,China Tel: 0755-267477513 Fax: 0755-267477513 ext.826 Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of Shenzhen BST Technology Co.,Ltd. This report must not be used by the client to claim product certification,approval,or endorsement by NVLAP, NIST or any agency of the US Government. Ningbo Dallie Industrial Co.,Ltd. FCC ID: YI3T69-2 BST FCC ID REPORT : BST10060101R-3 Page 2/15 TABLE OF CONTENTS 1. GENERAL INFORMATION ....................................................................................................3 1.1. Report information ............................................................................................................3 1.2. Measurement Uncertainty .................................................................................................3 2. PRODUCT DESCRIPTION ......................................................................................................4 2.1. EUT Description ...............................................................................................................4 2.2. Block Diagram of EUT Configuration..............................................................................4 2.3. Support Equipment List ....................................................................................................4 2.4. Test Conditions .................................................................................................................4 3. FCC ID LABEL...........................................................................................................................5 4. TEST RESULTS SUMMARY ...................................................................................................6 Modifications ................................................................................................................................6 5. TEST EQUIPMENT USED .......................................................................................................7 6. CONDUCTED POWER LINE TEST .......................................................................................8 6.1. Test Equipment .................................................................................................................8 6.2. Test Procedure ..................................................................................................................8 6.3. Test Setup..........................................................................................................................8 6.4. Configurating of the EUT .................................................................................................8 6.5. EUT Operating Condition...............................................................................................10 6.6. Conducted Power line Emission Limits..........................................................................10 6.7. Conducted Power Line Test Result.................................................................................10 7. RADIATION EMISSIONS ......................................................................................................11 7.1. Test Equipment ...............................................................................................................11 7.2. Test Procedure ................................................................................................................11 7.3. Radiated Test Setup ........................................................................................................11 7.4. Radiated Emission Limit.................................................................................................11 7.5. Radiated Emission Test Result .......................................................................................12 8. 20B BANDWIDTH....................................................................................................................13 8.1. Test Equipment ...............................................................................................................13 8.2. Test Procedure ................................................................................................................13 8.3. FCC 15.231(c) 20B Bandwidth Limit.............................................................................13 8.4. Test Result ......................................................................................................................13 9. DEACTIVATION TESTING...................................................................................................14 9.1. Test Equipment ...............................................................................................................14 9.2. Test Procedure ................................................................................................................14 9.3. Deactivation Requirement ..............................................................................................14 9.4. Test Result ......................................................................................................................14 10. ANTENNA REQUIREMENT .................................................................................................15 10.1. STANDARD APPLICABLE..........................................................................................15 10.2. ANTENNA CONNECTED CONS…
