YI6RL-0507A-RWIRELESS ALARM SYSTEM MAIN UNIT

User’s Manual For RL-0507A FCC ID: YI6RL-0507A-R IMPORTANT REGULATORY INFORMATION This device complies with Part 15 of the FCC Rules: Operation is subject to the following two conditions: 1. This device may not cause harmful interference and 2. This device must accept any interference that is received, including any interference that may cause undesired operation. WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipments. 202020 © Swann Communications 2010 Swann Technical Support All Countries E-mail: [email protected] Telephone Helpdesk See http://www.worldtimeserver.com for information on time zones and the current time in Melbourne, Australia compared to your local time. USA toll free 1-800-627-2799 (Su, 2pm-10pm US PT) (M-Th, 6am-10pm US PT) (F 6am-2pm US PT) USA Exchange & Repairs 1-800-627-2799 (Option 1) (M-F, 9am-5pm US PT) AUSTRALIA toll free 1300 138 324 (M 9am-5pm AUS ET) (Tu-F 1am-5pm AUS ET) (Sa 1am-9am AUS ET) NEW ZEALAND toll free 0800 479 266 UK 0203 027 0979 1 MWA2080710E SW347-WA2www.swannsecurity.com Operating Instructions Wireless Alarm System SW347-WA2 ™ ™ Advanced security made easy 222 FCC Verifi cation: NOTE: This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to part 15 of the FCC Rules. These limits are de-signed to provide reasonable protection against harmful interference in a residen-tial installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio or television reception, which can be deter-mined by turning the equipment off and on, the user is encouraged to try to cor-rect the interference by one or more of the following measures:· Reorient or relocate the receiving antenna· Increase the separation between the equipment and the receiver· Connect the equipment into an outlet on a circuit different from that to which the receiver is connected· Consult the dealer or an experienced radio/TV technician for helpIMPORTANT NOTE: Prohibition against eavesdropping Except for the operations of law enforcement offi cers conducted under lawful authority, no person shall use, either directly or indirectly, a device operated pursu-ant to the provisions of this Part for the purpose of overhearing or recording the private conversations of others unless such use is authorized by all of the parties engaging in the conversation.WARNING: Modifi cations not approved by the party responsible for compliance could void user’s authority to operate the equipment.IMPORTANT SAFETY INSTRUCTIONS: · Make sure product is fi xed correctly and stable if fastened in place · Do not operate if wires and terminals are exposed IMPORTANT: Regarding Your Passcode The Default Passcode is 1235. In the event that the default settings for the alarm system are restored, or you accidentally lock the system before setting a passcode of your own, then this is the code you’ll need to unlock the system. We strongly recommend choosing a new password as soon as possible. Before You Begin 2 19 Warranty InformationSwann Communications warrants this product against defects in workmanship and material for a period of one (1) year from it’s original purchase date. You must present your receipt as proof of date of purchase for warranty validation. Any unit which proves defective during the stated period will be repaired without charge for parts or labour or replaced at the sole discretion of Swann. The end user is responsible for all freight charges incurred to send the product to Swann’s repair centres. The end user is responsible for all shipping costs incurred when shipping from and to any country other than the country of origin. The warranty does not cover any incidental, accidental or consequential damages arising from the use of or the inability to use this product. Any costs associated with the fitting or removal of this product by a tradesman or other person or any other costs associated with its use are the responsibility of the end user. This warranty applies to the original purchaser of the product only and is not transferable to any third party. Unauthorized end user or third party modifications to any component or evidence of misuse or abuse of the device will render all warranties void.By law some countries do not allow limitations on certain exclusions in this warranty. Where applicable by local laws, regulations and legal rights will take precedence. Swann Communications USA Inc. 12636 Clark Street Santa Fe Springs CA 90670 USA Swann Communications Unit 13, 331 Ingles Street, Port Melbourne Vic 3207 Swann Communications LTD. Stag Gates House 63/64 The Avenue SO171XS United Kingdom 181818 Technical Specifi cations Keypad Control Unit Power Requirements 9V DC (supplied adapter) Wireless Frequency 433 MHzSensitivity >-110dBSiren Volume > 110dBAlarm Duration 0 ~ 20 minutes Operating Temperature -10C° ~ +40C° Remote Control Battery Requirements 1 x 27A (12V DC) Power Consumption (Standby) 0mA Power Consumption (Operating) <10mA Transmission Frequency 433 MHzTransmission Range Up to 262ft/80m line of sight Typical Transmission Range 65ft/20m Operating Temperature -10C° ~ +40C° Passive Infrared Sensor Detection Range > 5m (open area) Typical Detection Range 16ft / 5m ~ 50ft / 15m Battery Requirements 3 x AAA (4.5V DC) Power Consumption (Standby) < 0.1mA Power Consumption (Operating) < 8mA Transmission Frequency 433 MHzTransmission Range Up to 262ft/80m line of sight Typical Transmission Range 65ft/20m Operating Temperature -10C° ~ +40C° Magnetic Window/Door Sensor Battery Requirements 4 x LR44 Button Cells (6V DC) Power Consumption (Standby) < 10μA Power Consumption (Operating) < 15mA Transmission Frequency 433 MHzTransmission Range Up to 262ft/80m line of sight Typical Transmission Range 65ft/20m Operating Temper…

Text truncated - open the document above for the full version.

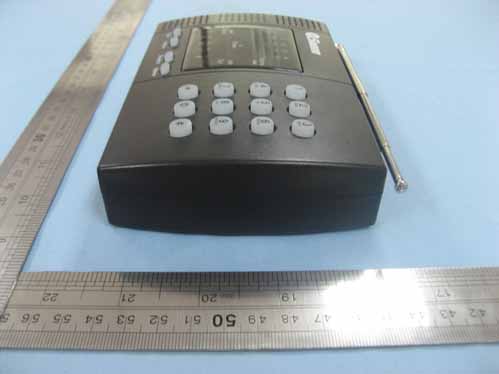

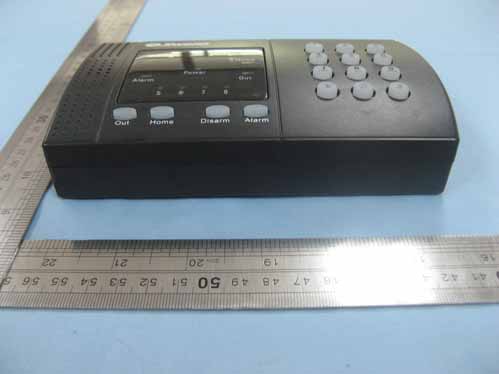

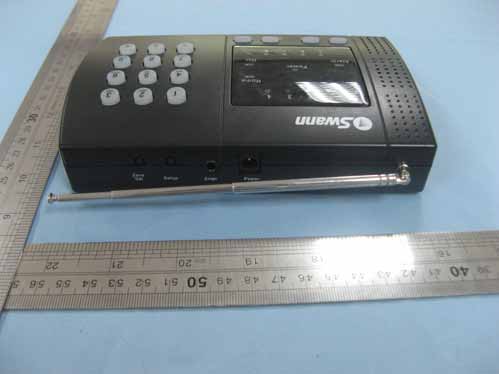

PHOTOGRAPHS OF EUT TOP VIEW OF EUT BATTOM VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT

FCC ID Label Location FCC ID: YI6RL-0507A-R This device complies with Part 15 of the FCC Rules: Operation is subject to the following two conditions: 1. This device may not cause harmful interference and 2. This device must accept any interference that is received, including any interference that may cause undesired operation.

FCC ID Label FCC ID: YI6RL-0507A-R This device complies with Part 15 of the FCC Rules: Operation is subject to the following two conditions: 1. This device may not cause harmful interference and 2. This device must accept any interference that is received, including any interference that may cause undesired operation.

Internal Photos

Operational Description The EUT is a 433MHz Receiver; It received the modulated radio frequency from 433MHz transmitter and gave an alarm.

1234 A B C D 4321 D C B A Title NumberRevisionSize A4 Date:18-Aug-2010Sheet of File:D:\My_Footprint.ddbDrawn By: C5 104 R9 103 R14 103 R7 103 R16 820 R6 103 LD12 RED R13 103 R8 103 C8 104 R10 103 R11 101 R12 102 R15 820 C3 104 C2 104 Vin 1 GND 2 Vout 3 U2 7805 +9+5 C1 1/25 C4 1/16 RB6 RB7 1 2 3 4 5 6 J3 PGM +5 MCLR 1 2 ZP2 CON2 D17 1N4007 S1 1 S2 2 S3 3 S13 F1 S4 4 S5 5 S6 6 S14 F2 KEY3KEY2KEY1KEY0 D1 1N4148 D4 1N4148 D5 1N4148 D6 1N4148 D2 1N4148 R3 103 R4 103 R2 103 R5 103 S7 7 S8 8 S9 9 S15 F3 D11 1N4148 S11 * S10 0 S12 # S16 F4 D8 1N4148 +5 D3 1N4148 D7 1N4148 S17 F5 D10 1N4148 S18 F6 D9 1N4148 D12 1N4148 D13 1N4148 D14 1N4148 KEY4 KEY0 KEY1 KEY2 KEY3 KEY4 C6 20 C7 20 RX RB5 RB4 RB3 RB0 RB1 RB2 R1 103 MCLR RA0/AN0 2 RA1/AN1 3 RA2/AN2 4 RA3/AN3/VREF 5 RA4/T0CKI 6 RA5/AN4/SS 7 RB0/AN12/INT 21 RB1/AN10 22 RB2/AN8 23 RB3/AN9 24 RB4/AN11 25 RB5/AN13 26 RB6 27 RB7 28 RC0/T1OSO 11 RC1/T1OSI 12 RC2/CCP1 13 RC3/SCK/SCL 14 RC4/SDI/SDA 15 RC5/SDO 16 RC6/TX 17 RC7/RX 18 MCLR/RE3/VPP 1 OSC1/RA7 9 OSC2/RA6 10 GND 8 GND 19 VCC 20 U1 PIC16F883 Y1 4Mhz RB6 RB7 +5+5 Q1 5609 LD1 WHITE LD2 WHITE LD3 WHITE LD5 WHITE LD6 WHITE LD7 WHITE LD4 WHITE LD9 RED LD10 RED LD13 RED LD11 RED LD14 RED RB5RB6RB7 RB0 RB1 RB2 RB3 RB4 S19 F7 S20 F8 D15 1N4148 D16 1N4148 LD8 WHITE +5+5+5+5 B1 BUZZ BUZZ BEEP 1 2 JK1 BUZZER BEEP T1 COIL +5 BUZZ Q2 C945 LD15 GREEN LD16 GREEN LD17 GREEN LD18 GREEN LD20 GREEN LD19 GREEN LAMP LAMP R17 561 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 U3 TL0100M C9 104 R18 104 +5 ALRM ALRM R19 104 1 2 3 4 5 6 7 89 10 11 12 13 14 15 16 U4 MICRF211AYQS R20 100K R21 R1 Y2 13.52127MHZ C15 1.5PF C10 1.5PF C12 0.1UF C11 5.6PF C13 0.1UF C14 4.7UF L1 24NH L2 39NH NC SH +3.3V RSSI RX E2 50 0HM ANTENNA E1PCB ANTENNA L3 30NH +5 D18 4148 +3.3V RB0 R27 820 1 2 3 4 5 6 7 89 10 11 12 13 14 15 16 U5 pt4302 X1 13.2256MHZ c15 1.5P c17 105PF c18 104PF c19 4.7UF L3 39NH +3.3V E1 PCB ANTENNA D0 F1 10.7MHZ c16 104PF R2 0 CE R26 100 R25 0 c21 2.5PF c205.6PF L4 30NH R30 2.2M +3.3V L5 27NH +9 D19 4007 1 2 3 J? CON3 tx tx +5 D15 4148 PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

FCC PART 15 TEST REPORT For Wireless alarm system main unit Model Name: RL-0507A Brand Name: RL/SWANN FCC ID: YI6RL-0507A-R Report No.: AGC11881008SZ10-2F2 Date of Issue: Aug.21, 2010 Prepared For GUANGDONG ROULE ELECTRONICS CO., LTD NO.12, Pingdong 3 rd Road, Nanping Industry Community, Zhuhai City, GuangDong, China TEL: 866-0755-8919870 FAX: 866-0755-8818901 Prepared By Attestation of Global Compliance Co., Ltd. 2F., No.2 Building, Huafeng No.1 Technical Industrial Park, Sanwei, Xixiang, Baoan District, Shenzhen TEL: 86-755-2908 1966 FAX: 86-755-2600 8484 Report No.: AGC11881008SZ10-2F2 Page 1 of 23 TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE ··············································································································· 2 2. PRODUCT INFORMATION ··························································································································· 3 3. TEST FACILITY ············································································································································· 4 4. SUPPORT EQUIPMENT LIST ······················································································································· 5 5. SYSTEM DESCRIPTION ······························································································································· 5 6. FCC LINE CONDUCTED EMISSION TEST ·································································································· 6 6.1. TEST EQUIPMENT OF LINE CONDUCTED EMISSION TEST ·································································· 6 6.2 .LIMITS OF LINE CONDUCTED EMISSION TEST ····················································································· 6 6.3. BLOCK DIAGRAM OF LINE CONDUCTED EMISSION TEST ··································································· 6 6.4. PROCEDURE OF LINE CONDUCTED EMISSION TEST ·········································································· 7 6.5 TEST RESULT OF LINE CONDUCTED EMISSION TEST ·········································································· 8 7. FCC RADIATED EMISSION TEST ·············································································································· 10 7.1. TEST EQUIPMENT OF RADIATED EMISSION ······················································································· 10 7.2. LIMITS OF RADIATED EMISSION TEST ································································································· 10 7.3 BLOCK DIAGRAM OF RADIATED EMISSION TEST ················································································ 10 7.4 PROCEDURE OF RADIATED EMISSION TEST ······················································································· 11 7.5 TEST RESULT OF RADIATED EMISSION TEST ····················································································· 12 APPENDIX 1 ···················································································································································· 16 PHOTOGRAPHS OF TEST SETUP ················································································································ 16 APPENDIX 2 ···················································································································································· 17 PHOTOGRAPHS OF EUT ······························································································································· 17 Report No.: AGC11881008SZ10-2F2 Page 2 of 23 1. VERIFICATION OF COMPLIANCE Equipment Under Test: Wireless alarm system main unit Model Name: RL-0507A Applicant: GUANGDONG ROULE ELECTRONICS CO., LTD NO.12, Pingdong 3rd Road, Nanping Industry Community, Zhuhai City, GuangDong, China Manufacturer: GUANGDONG ROULE ELECTRONICS CO., LTD NO.12, Pingdong 3rd Road, Nanping Industry Community, Zhuhai City, GuangDong, China Type of Test: FCC Class B Measurement Procedure: ANSI C63.4: 2003 File Number: AGC11881008SZ10-2F2 Date of test: Aug.13~Aug.21, 2010 Deviation: None Condition of Test Sample: Normal The above equipment was tested by Attestation Of Global Compliance Co., Ltd. For compliance with the requirements set forth in the FCC Rules and Regulations Part 15, the measurement procedure according to ANSI C63.4:2003 This said equipment in the configuration described in this report shows the maximum emission levels emanating from equipment are within the compliance requirements. The test results of this report relate only to the tested sample identified in this report. Checked By : Jekey Zhang Aug.21, 2010 Authorized By : King Zhang Aug.21, 2010 Report No.: AGC11881008SZ10-2F2 Page 3 of 23 2. PRODUCT INFORMATION I/O Port Information ( Applicable Not Applicable) I/O Port of EUT I/O Port Type Q’TY Cable Tested with DC INPUT PORT 1 1 1 Equipment Under Test: Wireless alarm system main unit Housing Type: Plastic Rating Voltage: DC 9V by Adapter Receive frequency: 433.92MHz (only one channel) Description of EUT It is only a Receiver, and can’t transmit Size of EUT: Length 15.2cm width 9.7cm height 3.0cm Report No.: AGC11881008SZ10-2F2 Page 4 of 23 3. TEST FACILITY Location: 2F., No.2 Building, Huafeng No.1 Technical Industrial Park, Sanwei, Xixiang,Baoan,District, Shenzhen, China. Description: There is one 3m semi-anechoic chamber for final test, the Line Conducted labs are constructed and calibrated to meet the FCC requirements in documents ANSI C63.4 and CISPR 22/EN 55022 requirements. Site Filing: The Certificate Registration Number is 259865 Instrument Tolerance: All measuring equipment is in accord with ANSI C63.4 requirements that meet industry regulatory agency and accreditation agency requirement. Ground Plane: Two conductive reference ground planes were used during the Line Conducted Emission, one in vertical and the other in horizontal. The dimensions of these ground planes are as below. The vertic…

Text truncated - open the document above for the full version.

Test Setup Photos
