YI8R12.4G Dongle

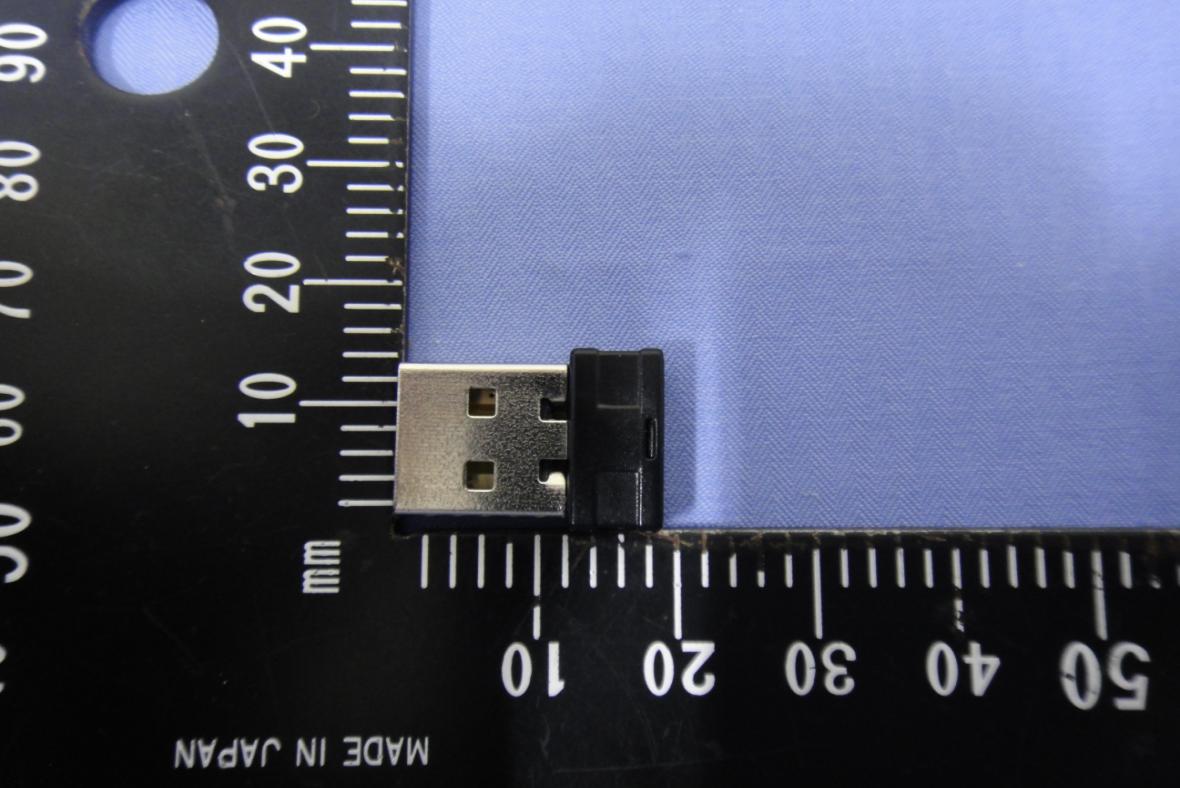

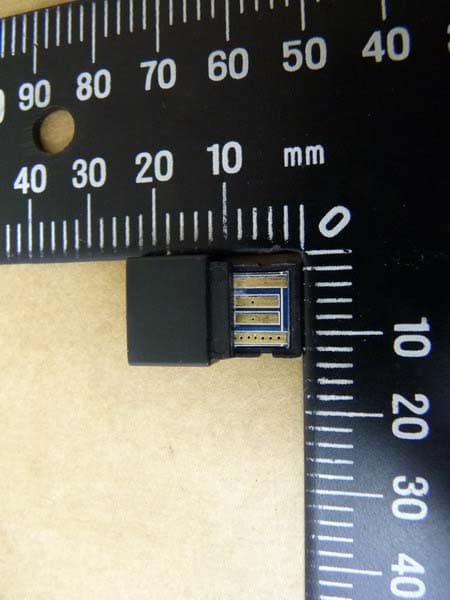

Compliance Certification Services Inc. Report No.: T150211D02 Date of Issue: March 26, 2015 A1 - 1 / 4 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT

Compliance Certification Services Inc. Report No.: T150211D02 Date of Issue: March 26, 2015 A1 - 2 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T150211D02 Date of Issue: March 26, 2015 A1 - 3 Rev. 00 Antenna Compliance Certification Services Inc. Report No.: T150211D02 Date of Issue: March 26, 2015 A1 - 4 Rev. 00

Compliance Certification Services Inc. Report No.: T150211D02-MF Date of Issue: April 9, 2015 Page 1 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. FCC ID: YI8R6 According to KDB 447498 section 4.3.1, the 1-g SAR test exclusion thresholds at test separation distance ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] *·[√f(GHz)] ≤ 3.0 The tune-up power is 0 dBm +/- 2dB, therefore the highest tune-up power is 2.0 dBm(1.58 mW)@ 2408 MHz When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. So, (1.58mW / 5mm)* (2.408GHz^0.5 )= 0.5 [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] * [√f(GHz)] = 0.5 < 3.0 Therefore, standalone SAR measurements are not required for both head and body.

Compliance Certification Services Inc. FCC ID: YI8R1 Report No.: T150211D02-RP Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 / 35 Rev.00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For 2.4G Dongle Model Number: R1~Rxx (x=A〜Z, a〜z, 0〜9, or blank, any character) Trade Name: OMEGA Issued to OMEGA TECHNOLOGY INC. 6F, NO. 87 SEC.3, Chung-Yang Road, Tu-Cheng Dist, New Taipei City 236, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. No.11, Wugong 6th Rd., Wugu Dist., New Taipei City 24891, Taiwan. (R.O.C.) http://www.ccsrf.com [email protected] Issued Date: March 26, 2015 Compliance Certification Services Inc. FCC ID: YI8R1 Report No.: T150211D02-RP Page 2 Rev.00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 March 26, 2015 Initial Issue ALL Becca Chen Compliance Certification Services Inc. FCC ID: YI8R1 Report No.: T150211D02-RP Page 3 Rev.00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION ............................................................................................. 4 2. EUT DESCRIPTION .................................................................................................................... 5 3. TEST METHODOLOGY ............................................................................................................. 6 3.1 EUT CONFIGURATION .......................................................................................................... 6 3.2 EUT EXERCISE ........................................................................................................................ 6 3.3 GENERAL TEST PROCEDURES ........................................................................................... 6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ............................................. 7 3.5 DESCRIPTION OF TEST MODES .......................................................................................... 7 4. INSTRUMENT CALIBRATION ................................................................................................. 8 4.1 MEASURING INSTRUMENT CALIBRATION ..................................................................... 8 4.2 MEASUREMENT EQUIPMENT USED .................................................................................. 8 4.3 MEASUREMENT UNCERTAINTY ........................................................................................ 9 5. FACILITIES AND ACCREDITATIONS ................................................................................. 10 5.1 FACILITIES ............................................................................................................................ 10 5.2 EQUIPMENT .......................................................................................................................... 10 5.3 TABLE OF ACCREDITATIONS AND LISTINGS ............................................................... 11 6. SETUP OF EQUIPMENT UNDER TEST ................................................................................ 12 6.1 SETUP CONFIGURATION OF EUT ..................................................................................... 12 6.2 SUPPORT EQUIPMENT ........................................................................................................ 12 7. FCC PART 15.249 REQUIREMENTS ...................................................................................... 13 7.1 20 DB BANDWIDTH ............................................................................................................. 13 7.2 BAND EDGES MEASUREMENT ......................................................................................... 16 7.3 SPURIOUS EMISSION .......................................................................................................... 22 7.4 POWERLINE CONDUCTED EMISSIONS ........................................................................... 30 APPENDIX I PHOTOGRAPHS OF TEST SETUP ........................................................................ 33 APPENDIX 1 - PHOTOGRAPHS OF EUT Compliance Certification Services Inc. FCC ID: YI8R1 Report No.: T150211D02-RP Page 4 Rev.00 1. TEST RESULT CERTIFICATION Applicant: OMEGA TECHNOLOGY INC. 6F, NO. 87 SEC.3, Chung-Yang Road, Tu-Cheng Dist, New Taipei City 236, Taiwan, R.O.C. Equipment Under Test: 2.4G Dongle Trade Name: OMEGA Model Number: R1~Rxx (x=A〜Z, a〜z, 0〜9, or blank, any character) Date of Test: March 19 ~ March 20, 2015 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C(10–1–12 Edition) No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2009 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements emission limits of FCC Rules Part 15.207, 15.209 and 15.249. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Miller Lee Angel Cheng Section Manager Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. FCC ID: YI8R1 Report No.: T150211D02-RP Page 5 Rev.00 2. EUT DESCRIPTION Product 2.4G Dongle Trade Name OMEGA Model Number R1~Rxx (x=A〜Z, a〜z, 0〜9, or blank, any character) Received Date February 11, 2015 Power Supply Powered from host device Frequency Range 2408 ~ 2474MHz Channel Frequency (MHz) Channel Frequency (MHz) 1 2408 18 2442 2 2410 19 2444 3 2412 20 2446 4 2414 21 2448 5 2416 22 2450 6 2418 23 2452 7 2420 24 2454 8 2422 25 2456 9 2424 26 2458 10 2426 27 2460 11 2428 28 2462…
