AvidaMetrics Product Manual Graphic User Interface (GUI) Description, System Architecture Proprietary – no unauthorized copying permitted 1 of 38 June 2010 Product Manual Features and functions of the AvidaMetrics system. June 2010 AvidaMetrics Product Manual Graphic User Interface (GUI) Description, System Architecture Proprietary – no unauthorized copying permitted 2 of 38 June 2010 I I N N T T R R O O D D U U C C T T I I O O N N This manual describes the features and functions of the AvidaMetrics system. Avidasports has developed a breakthrough technology using athletic telemetry for coaches and swimmers. With our product, AvidaMetrics, coaches have the ultimate planning and training edge, connecting audio technology with performance. For the first time, a coach can track the performance of multiple swimmers during practice. Swimmers are equipped with small devices which help maximize daily training, allowing faster improvement than ever before. General operation of AvidaMetrics system consists of four major applications: System Console * PLAN * TRAIN * REVIEW First, the System Console enables system administrator(s) to establish overall system operating constraints. From the System Console, facility and team information is accessible by the administrator, and acts as the foundation of the system. In PLAN, pre or post training operating conditions can be managed by the coach and swimmer. In TRAIN, coaches observe and swimmers hear real time performance information. After the practice, in REVIEW, complete recorded performance data may be analyzed and compared against previous performances or other swimmers. Based on TRAIN and REVIEW observations, swimmers and coaches may adjust training conditions/planning and repeat this cycle enabling ongoing performance improvement. AvidaMetrics Product Manual Graphic User Interface (GUI) Description, System Architecture Proprietary – no unauthorized copying permitted 3 of 38 June 2010 T T A A B B L L E E O O F F C C O O N N T T E E N N T T S S 1. COMPONENTS .................................................................................................................. 4 1.1 SYSTEM ARCHITECTURE ...................................................................................................................... 4 1.2 SWIMMER’S GEAR ............................................................................................................................. 4 1.3 FACILITY GEAR ................................................................................................................................. 5 1.4 COACH’S GEAR ............................................................................................................................... 5 1.5 WEB BASED SERVER ....................................................................................................................................... 5 2. GRAPHICAL USER INTERFACE (GUI) DESCRIPTION .................................................................. 6 2.1 SYSTEM CONSOLE ............................................................................................................................. 6 2.1.1 SYSTEM CONSOLE OVERVIEW ............................................................................................................ 7 2.1.2 SYSTEM CONSOLE – WHAT CAN BE DONE WITH IT? ............................................................................. 8 TABLE 1 – SYSCON SUMMARY CONTENT ................................................................................. 10 2.2 PLAN .......................................................................................................................................... 12 2.2.1 PLAN - COACH PERSPECTIVE .......................................................................................................... 12 2.2.2 PLAN - SWIMMER PERSPECTIVE ........................................................................................................ 13 2.3 T RAIN .......................................................................................................................................... 15 2.3.1 TRAIN – COACH PERSPECTIVE ......................................................................................................... 15 2.3.2 TRAIN – METRICS ............................................................................................................................. 16 2.3.3 TRAIN – COACH CALL/MESSAGE ................................................................................................... 17 2.3.4 TRAIN – SWIMMER PERSPECTIVE ....................................................................................................... 18 2.3.5 T RAIN – LEDS .................................................................................................................................. 19 TABLE 2 – BUTTON PRESS BEHAVIORS ...................................................................................... 19 2.3.6 T RAIN – LED BEHAVIOR SUMMARY .................................................................................................. 21 2.3.7 TRAIN – ACCEPTANCE ..................................................................................................................... 21 T ABLE 3 – LED BEHAVIORS .................................................................................................... 21 2.3.8 T RAIN – OUTDATED FIRMWARE ........................................................................................................ 22 2.3.9 T RAIN – CATEGORY SELECTION ....................................................................................................... 22 2.3.10 T RAIN – USER INTERFACE .................................................................................................................. 23 2.3.11 T RAIN – PERSISTENCE ....................................................................................................................... 24 2.3.12 T RAIN – AUDIBLE ME…

Text truncated - open the document above for the full version.

www.avidasports.com 20844 HARPER AVENUE | HARPER WOODS, MI 48225 | 313.447.5670 | 313.447.5681 FAX July 20, 2010 FCC ID: YIN-TT10115 Request for Confidentiality In accordance with 47 C.F.R. Section 0.459, we, Avidasports LLC, hereby request confidentiality for the block diagram, schematic and product description presented for certification. In support of the Request for Confidentiality, the following is stated: Enclosed within this application is technical information which we deem to be trade secrets and proprietary. If made public, the information might be used to our disadvantage. To assist in assuring that we receive the full value of our product and protect its competitive posture, we respectfully request this grant of confidentiality. Scott Hedges Vice President of Operations Avidasports LLC 20844 Harper Avenue Suite 300 Harper Woods, MI 48225 Tel: 313-447-5670 x2003 Mobile: 248-303-1039 Email: [email protected] www.avidasports.com

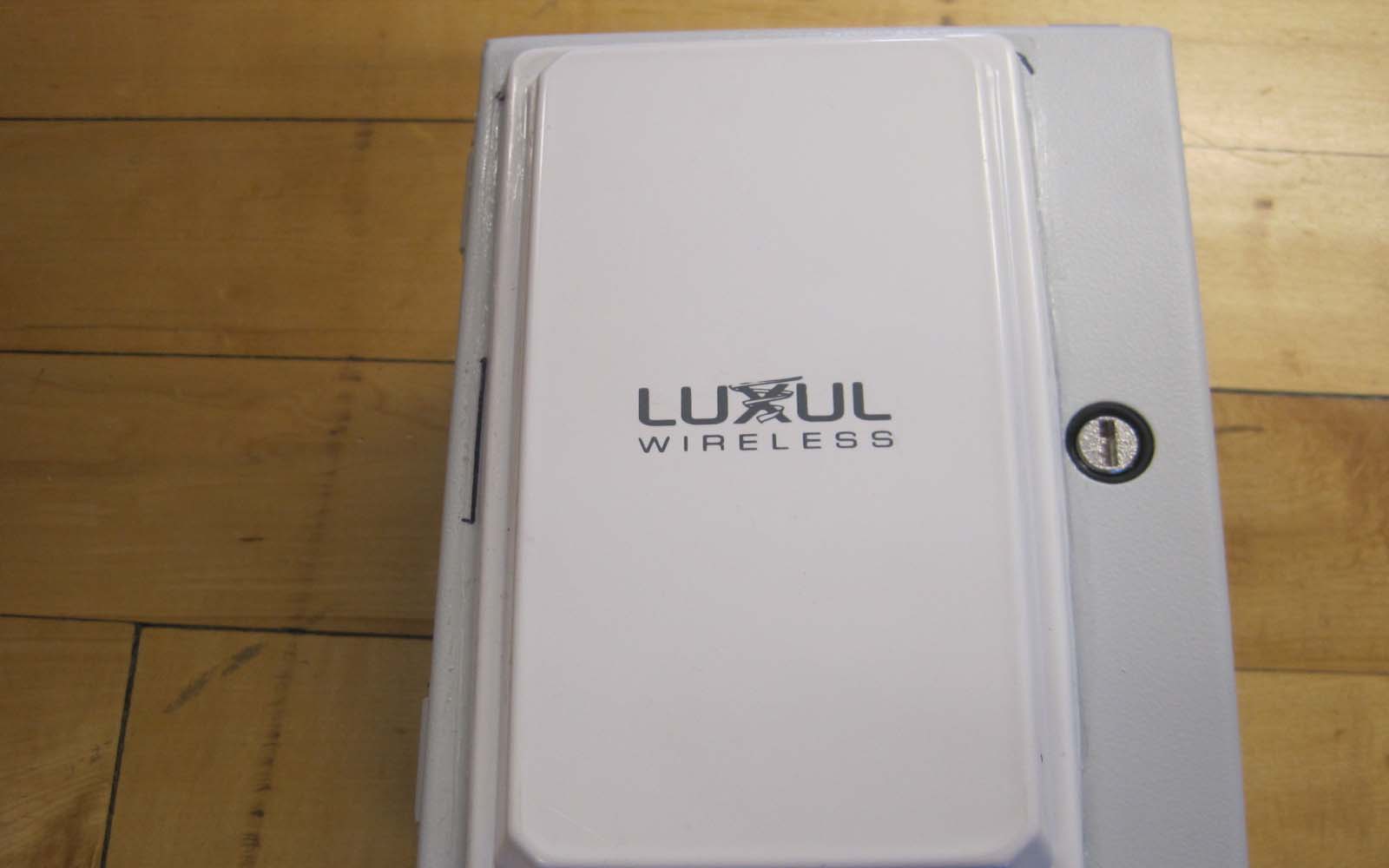

Engineering Test Report No. 1001669-02 Measurement of RF Interference from a Master Station Transceiver For : Twisthink, LLC : 130 Central Avenue, Suite 400 : Holland, MI P.O. No. : 267 Date Received : June 16, 2010 Date Tested : June 16, 2010 through July 20, 2010 Test Personnel : Mark E. Longinotti Specification : FCC "Code of Federal Regulations" Title 47, Part 15, : Subpart C, Section 15.247 Digital : Modulation Intentional Radiators Operating within : The band 2400-2483.5MHz : FCC "Code of Federal Regulations" Title 47, Part 15, : Subpart B, For Receivers Test Report By : Mark E. Longinotti Partially Witnessed By : Ryan Olson Twisthink, LLC EMC Test Engineer Approved By : Craig Fanning EMC Lab Manager iNARTE ® Certified: EMC-000296-NT and ATL-0188-E Elite Electronic Engineering Inc. 1516 Centre Circle Downers Grove, IL 60515 Tel : (630) 495-9770 Fax: (630) 495-9785 www.elitetest.com Engineering Test Report No. 1001669-02 THIS REPORT SHALL NOT BE REPRODUCED, EXCEPT IN FULL, WITHOUT THE WRITTEN APPROVAL OF ELITE ELECTRONIC ENGINEERING INCORPORATED. Page 2 of 90 TABLE OF CONTENTS PARAGRAPH DESCRIPTION OF CONTENTS PAGE NO. 1 INTRODUCTION ............................................................................................................................................... 5 1.1 Scope of Tests .......................................................................................................................................... 5 1.2 Purpose .................................................................................................................................................... 5 1.3 Deviations, Additions and Exclusions ....................................................................................................... 5 1.4 EMC Laboratory Identification .................................................................................................................. 5 1.5 Laboratory Conditions .............................................................................................................................. 5 2 APPLICABLE DOCUMENTS ............................................................................................................................ 5 3 TEST ITEM SET-UP AND OPERATION .......................................................................................................... 6 3.1 General Description .................................................................................................................................. 6 3.1.1 Power Input .......................................................................................................................................... 6 3.1.2 Peripheral Equipment ........................................................................................................................... 6 3.1.3 Interconnect Cables ............................................................................................................................. 6 3.1.4 Grounding ............................................................................................................................................. 6 3.2 Operational Mode ..................................................................................................................................... 6 3.3 Test Item Modifications ............................................................................................................................. 7 4 TEST FACILITY AND TEST INSTRUMENTATION .......................................................................................... 7 4.1 Shielded Enclosure ................................................................................................................................... 7 4.2 Test Instrumentation ................................................................................................................................. 7 4.3 Calibration Traceability ............................................................................................................................. 7 4.4 Measurement Uncertainty ........................................................................................................................ 7 5 TEST PROCEDURES ....................................................................................................................................... 8 5.1 Powerline Conducted Emissions .............................................................................................................. 8 5.1.1 Requirements ....................................................................................................................................... 8 5.1.2 Procedures ........................................................................................................................................... 8 5.1.3 Results .................................................................................................................................................. 9 5.2 6dB Bandwidth .......................................................................................................................................... 9 5.2.1 Requirements ....................................................................................................................................... 9 5.2.2 Procedures ........................................................................................................................................... 9 5.2.3 Results .................................................................................................................................................. 9 5.3 Peak Output Power ................................................................................................................................... 9 5.3.1 Requirements ....................................................................................................................................... 9 5.3.2 Procedures – Conducted Output Power ..…

Text truncated - open the document above for the full version.

Engineering Test Report No. 1001669-02 Page 31 of 90 MANUFACTURER : Twisthink MODEL NO. : Master Station SERIAL NO. : See Below TEST MODE : See Below TEST DATE : July 15, 2010 TEST PARAMETERS : Effective Isotropic Radiated Emissions (EIRP) NOTES : EQUIPMENT USED : NWI1, T2S7, RBB0, NWI0, GRE0, CMA1, Frequency MHz Antenna Polarity Meter Reading dBuV Matched Signal Generator Reading dBm Antenna Gain dB Cable Loss dB EIRP dBm Limit dBm Master Station 801 Filter, Serial No. 1082, Tx @ 2405MHz (Ch. 11) 2405.0 H 91.8 24.2 6.5 3.0 27.7 36.0 2405.0 V 92.8 25.3 6.5 3.0 28.8 36.0 Master Station 803 Filter, Serial No. 1085, Tx @ 2425MHz (Ch. 15) 2425.0 H 91.6 24.8 6.6 3.1 28.3 36.0 2425.0 V 92.5 25.7 6.6 3.1 29.2 36.0 Master Station 806 Filter, Serial No. 1087, Tx @ 2445MHz (Ch. 19) 2445.0 H 90.7 24.4 6.6 3.1 28.0 36.0 2445.0 V 92.7 26.0 6.6 3.1 29.6 36.0 Engineering Test Report No. 1001669-02 Page 32 of 90 RBW 3 MHz VBW 3 MHz A IN1 Unit dB  V Ref Lvl 87 dB  V Ref Lvl 87 dB  V RF Att 0 dB SWT 2 ms Center 2.425 GHz200  s/ 1MA TRG SGL -10 0 10 20 30 40 50 60 70 80 -13 87 1 1 Delta 1 [T1] 2.14 dB 861.723447  s Date: 7.JUL.2010 14:54:17 FCC 15.247Duty Cycle Correction Factor MANUFACTURER : Twisthink MODEL NUMBER : Master Station 803 Filter SERIAL NUMBER : 1085 TEST MODE : Tx @ 2.425GHz (Ch. 15) TEST DATE : July 7, 2010 TEST PARAMETERS : Duty Cycle Correction Factor NOTES : Pulse width = 861.7usec EQUIPMENT USED : RBB0, T2S7, NWI1 Engineering Test Report No. 1001669-02 Page 33 of 90 RBW 3 MHz VBW 3 MHz A IN1 Unit dB  V Ref Lvl 87 dB  V Ref Lvl 87 dB  V RF Att 0 dB TRG SGL 1AP SWT 100 ms Center 2.425 GHz10 ms/ -10 0 10 20 30 40 50 60 70 80 -13 87 1 1 Delta 1 [T1] 0.13 dB 861.723447  s Date: 7.JUL.2010 15:00:30 FCC 15.247Duty Cycle Correction Factor MANUFACTURER : Twisthink MODEL NUMBER : Master Station 803 Filter SERIAL NUMBER : 1085 TEST MODE : Tx @ 2.425GHz (Ch. 15) TEST DATE : July 7, 2010 TEST PARAMETERS : Duty Cycle Correction Factor NOTES : Pulse width = 861.7usec, approximately 30 pulses per 100msec : Duty Cycle = 20*log(on time/100msec) = 20*log((30*861.7usec)/100msec) : Duty Cycle = 20*log(0.25851) = -11.75dB EQUIPMENT USED : RBB0, T2S7, NWI1 Engineering Test Report No. 1001669-02 Page 34 of 90 1MAX 40 dB Offset A 1MA Unit dBm P0 Start 30 MHzStop 1 GHz97 MHz/ Ref Lvl 25 dBm Ref Lvl 25 dBm RBW 100 kHz VBW 100 kHz SWT 300 ms RF Att 0 dB IN1 -70 -60 -50 -40 -30 -20 -10 0 10 20 -75 25 1 Marker 1 [T1] -49.32 dBm 893.08617234 MHz D1 -2.02 dBm Date: 15.JUL.2010 13:31:22 15.247(d) Spurious Emissions at Antenna Terminal MANUFACTURER : Twisthink MODEL NUMBER : Master Station 801 Filter SERIAL NUMBER : 1082 TEST MODE : Tx @ 2405MHz (ch. 11) TEST DATE : July 15, 2010 TEST PARAMETERS : Spurious Emissions at Antenna Terminal NOTES : Display Line D1 represents the 20dB down point from the peak of the transmit : frequency in a 100kHz bandwidth EQUIPMENT USED : RBB0, TVH4 Engineering Test Report No. 1001669-02 Page 35 of 90 A Unit dBm 40 dB Offset 1MAX1MA P0 Start 1 GHzStop 4 GHz300 MHz/ Ref Lvl 25 dBm Ref Lvl 25 dBm RBW 100 kHz VBW 100 kHz SWT 760 ms RF Att 0 dB IN1 -70 -60 -50 -40 -30 -20 -10 0 10 20 -75 25 1 Marker 1 [T1] 17.98 dBm 2.40681363 GHz D1 -2.02 dBm Date: 15.JUL.2010 12:08:52 15.247(d) Spurious Emissions at Antenna Terminal MANUFACTURER : Twisthink MODEL NUMBER : Master Station 801 Filter SERIAL NUMBER : 1082 TEST MODE : Tx @ 2405MHz (ch. 11) TEST DATE : July 15, 2010 TEST PARAMETERS : Spurious Emissions at Antenna Terminal NOTES : Display Line D1 represents the 20dB down point from the peak of the transmit : frequency in a 100kHz bandwidth EQUIPMENT USED : RBB0, TVH4 Engineering Test Report No. 1001669-02 Page 36 of 90 1MAX Ref Lvl 25 dBm Ref Lvl 25 dBm RBW 100 kHz VBW 100 kHz SWT 1.5 s RF Att 0 dB 40 dB Offset A IN1 1MA Unit dBm Start 4 GHzStop 10 GHz600 MHz/ P0 -70 -60 -50 -40 -30 -20 -10 0 10 20 -75 25 1 Marker 1 [T1] -39.08 dBm 6.96993988 GHz D1 -2.02 dBm Date: 15.JUL.2010 12:25:57 15.247(d) Spurious Emissions at Antenna Terminal MANUFACTURER : Twisthink MODEL NUMBER : Master Station 801 Filter SERIAL NUMBER : 1082 TEST MODE : Tx @ 2405MHz (ch. 11) TEST DATE : July 15, 2010 TEST PARAMETERS : Spurious Emissions at Antenna Terminal NOTES : Display Line D1 represents the 20dB down point from the peak of the transmit : frequency in a 100kHz bandwidth EQUIPMENT USED : RBB0, TVH4 Engineering Test Report No. 1001669-02 Page 37 of 90 1MAX Ref Lvl 25 dBm Ref Lvl 25 dBm RBW 100 kHz VBW 100 kHz SWT 2 s RF Att 0 dB 40 dB Offset A IN1 1MA Unit dBm Start 10 GHzStop 18 GHz800 MHz/ P0 -70 -60 -50 -40 -30 -20 -10 0 10 20 -75 25 1 Marker 1 [T1] -42.72 dBm 13.52705411 GHz D1 -2.02 dBm Date: 15.JUL.2010 12:42:04 15.247(d) Spurious Emissions at Antenna Terminal MANUFACTURER : Twisthink MODEL NUMBER : Master Station 801 Filter SERIAL NUMBER : 1082 TEST MODE : Tx @ 2405MHz (ch. 11) TEST DATE : July 15, 2010 TEST PARAMETERS : Spurious Emissions at Antenna Terminal NOTES : Display Line D1 represents the 20dB down point from the peak of the transmit : frequency in a 100kHz bandwidth EQUIPMENT USED : RBB0, TVH4 Engineering Test Report No. 1001669-02 Page 38 of 90 1MAX SWT 1.75 s 40 dB Offset A 1MA Unit dBm Start 18 GHzStop 25 GHz700 MHz/ P0 Ref Lvl 25 dBm Ref Lvl 25 dBm RBW 100 kHz VBW 100 kHz RF Att 0 dB IN1 -70 -60 -50 -40 -30 -20 -10 0 10 20 -75 25 1 Marker 1 [T1] -41.07 dBm 22.13827655 GHz D1 -2.02 dBm Date: 15.JUL.2010 12:46:38 15.247(d) Spurious Emissions at Antenna Terminal MANUFACTURER : Twisthink MODEL NUMBER : Master Station 801 Filter SERIAL NUMBER : 1082 TEST MODE : Tx @ 2405MHz (ch. 11) TEST DATE : July 15, 2010 TEST PARAMETERS : Spurious Emissions at Antenna Terminal NOTES : Display Line D1 represents the 20dB down point from the peak of the transmit : frequency in a 100kHz bandwidth EQUIPMENT USED : RBB0, TVH4 Engineering Test Report No. 1001669-02 Page 39 of 90 1MAX 40 dB Offset A 1MA Unit dBm P0 Start 30 MHzStop 1 GHz97 MHz/ Ref Lvl 25 dBm Ref Lvl 25 dBm RBW 100 kHz VBW 100 kHz SWT 300 ms RF Att…

Text truncated - open the document above for the full version.

Engineering Test Report No. 1001669-02 Page 61 of 90 Engineering Test Report No. 1001669-02 Page 62 of 90 Engineering Test Report No. 1001669-02 Page 63 of 90 Engineering Test Report No. 1001669-02 Page 64 of 90 Engineering Test Report No. 1001669-02 Page 65 of 90 Engineering Test Report No. 1001669-02 Page 66 of 90 Engineering Test Report No. 1001669-02 Page 67 of 90 Manufacturer :Twisthink, LLC Model No. : Master Station 801 Filter Serial No. : 1082 Mode : Transmit at 2405MHz (Ch. 11) Test Specification : FCC 15.249 Date : July 7, 2010 and July 14, 2010 Test Distance : 3 meters Note : Peak readings Freq (MHz) Ant Pol Meter Reading (dBuV) Amb CBL FAC (dB) Ant Fac (dB) Pre Amp (dB) Total dBuV/m at 3 m Total uV/m at 3m Limit uV/m at 3m Margin (dB) 4810.0 H 59.4 5.7 34.5 -37.3 62.3 1298.0 5000.0 -11.7 4810.0 V 55.0 5.7 34.5 -37.3 57.9 782.1 5000.0 -16.1 12025.0 H 50.3 9.8 41.4 -37.3 64.2 1615.2 5000.0 -9.8 12025.0 V 47.6 9.8 41.4 -37.3 61.5 1183.6 5000.0 -12.5 19240.0 H 36.3 Amb 2.2 40.4 -27.5 51.4 372.4 5000.0 -22.6 19240.0 V 36.2 Amb 2.2 40.4 -27.5 51.3 368.2 5000.0 -22.7 Amb = Ambient Total = Meter Reading + Cable Loss + Antenna Factor + Preamp Gain Engineering Test Report No. 1001669-02 Page 68 of 90 Manufacturer :Twisthink, LLC Model No. : Master Station 801 Filter Serial No. : 1082 Mode : Transmit at 2405MHz (Ch. 11) Test Specification : FCC 15.249 Date : July 7, 2010 and July 14, 2010 Test Distance : 3 meters Note : Average readings Amb = Ambient Total = Meter Reading + Cable Loss + Antenna Factor + Pre Amp Gain + Duty Cycle Factor Freq MHz Ant Pol Meter Reading dBuV Amb Cable Loss dB Ant Fac dB Pre Amp Gain dB Duty Cycle Factor dB Total dBuV/m Total uV/m Limit uV/m Margin dB 4810.0 H 41.8 5.7 34.5 -37.3 -11.8 32.9 44.0 500.0 -21.1 4810.0 V 33.8 5.7 34.5 -37.3 -11.8 24.9 17.5 500.0 -29.1 12025.0 H 31.6 Amb 9.8 41.4 -37.3 -11.8 33.7 48.2 500.0 -20.3 12025.0 V 31.3 Amb 9.8 41.4 -37.3 -11.8 33.4 46.6 500.0 -20.6 19240.0 H 23.8 Amb 2.2 40.4 -27.5 -11.8 27.1 22.7 500.0 -26.9 19240.0 V 23.9 Amb 2.2 40.4 -27.5 -11.8 27.2 23.0 500.0 -26.8 Engineering Test Report No. 1001669-02 Page 69 of 90 Engineering Test Report No. 1001669-02 Page 70 of 90 Engineering Test Report No. 1001669-02 Page 71 of 90 Engineering Test Report No. 1001669-02 Page 72 of 90 Engineering Test Report No. 1001669-02 Page 73 of 90 Manufacturer :Twisthink, LLC Model No. : Master Station 803 Filter Serial No. : 1085 Mode : Transmit at 2425MHz (Ch. 15) Test Specification : FCC 15.249 Date : July 7, 2010 and July 14, 2010 Test Distance : 3 meters Note : Peak readings Freq (MHz) Ant Pol Meter Reading (dBuV) Amb CBL FAC (dB) Ant Fac (dB) Pre Amp (dB) Total dBuV/m at 3 m Total uV/m at 3m Limit uV/m at 3m Margin (dB) 4850.0 H 50.6 5.7 34.5 -37.3 53.5 473.0 5000.0 -20.5 4850.0 V 50.9 5.7 34.5 -37.3 53.8 489.7 5000.0 -20.2 7275.0 H 57.9 7.7 38.0 -37.4 66.2 2038.3 5000.0 -7.8 7275.0 V 56.2 7.7 38.0 -37.4 64.5 1675.9 5000.0 -9.5 12125.0 H 50.8 9.8 41.4 -37.2 64.8 1738.9 5000.0 -9.2 12125.0 V 47.3 9.8 41.4 -37.2 61.3 1162.2 5000.0 -12.7 19400.0 H 35.8 Amb 2.2 40.4 -27.3 51.1 358.4 5000.0 -22.9 19400.0 V 35.7 Amb 2.2 40.4 -27.3 51.0 354.3 5000.0 -23.0 Amb = Ambient Total = Meter Reading + Cable Loss + Antenna Factor + Preamp Gain Engineering Test Report No. 1001669-02 Page 74 of 90 Manufacturer :Twisthink, LLC Model No. : Master Station 803 Filter Serial No. : 1085 Mode : Transmit at 2425MHz (Ch. 15) Test Specification : FCC 15.249 Date : July 7, 2010 and July 14, 2010 Test Distance : 3 meters Note : Average readings Amb = Ambient Total = Meter Reading + Cable Loss + Antenna Factor + Pre Amp Gain + Duty Cycle Factor Freq MHz Ant Pol Meter Reading dBuV Amb Cable Loss dB Ant Fac dB Pre Amp Gain dB Duty Cycle Factor dB Total dBuV/m Total uV/m Limit uV/m Margin dB 4850.0 H 36.3 5.7 34.5 -37.3 -11.8 27.4 23.4 500.0 -26.6 4850.0 V 36.1 5.7 34.5 -37.3 -11.8 27.2 22.9 500.0 -26.8 7275.0 H 39.3 7.7 38.0 -37.4 -11.8 35.8 61.6 500.0 -18.2 7275.0 V 35.1 7.7 38.0 -37.4 -11.8 31.6 38.0 500.0 -22.4 12125.0 H 29.4 Amb 9.8 41.4 -37.2 -11.8 31.6 38.0 500.0 -22.4 12125.0 V 29.4 Amb 9.8 41.4 -37.2 -11.8 31.6 38.0 500.0 -22.4 19400.0 H 24.1 Amb 2.2 40.4 -27.3 -11.8 27.6 24.0 500.0 -26.4 19400.0 V 24.1 Amb 2.2 40.4 -27.3 -11.8 27.6 24.0 500.0 -26.4 Engineering Test Report No. 1001669-02 Page 75 of 90 Engineering Test Report No. 1001669-02 Page 76 of 90 Engineering Test Report No. 1001669-02 Page 77 of 90 Engineering Test Report No. 1001669-02 Page 78 of 90 Engineering Test Report No. 1001669-02 Page 79 of 90 Manufacturer :Twisthink, LLC Model No. : Master Station 806 Filter Serial No. : 1087 Mode : Transmit at 2445MHz (Ch. 19) Test Specification : FCC 15.249 Date : July 7, 2010 and July 14, 2010 Test Distance : 3 meters Note : Peak readings Freq (MHz) Ant Pol Meter Reading (dBuV) Amb CBL FAC (dB) Ant Fac (dB) Pre Amp (dB) Total dBuV/m at 3 m Total uV/m at 3m Limit uV/m at 3m Margin (dB) 4890.0 H 57.5 5.8 34.5 -37.3 60.4 1050.8 5000.0 -13.5 4890.0 V 51.5 5.8 34.5 -37.3 54.4 526.6 5000.0 -19.5 7335.0 H 57.6 7.7 38.1 -37.4 65.9 1973.2 5000.0 -8.1 7335.0 V 55.0 7.7 38.1 -37.4 63.3 1462.8 5000.0 -10.7 12225.0 H 47.1 9.9 41.4 -37.1 61.2 1154.1 5000.0 -12.7 12225.0 V 46.9 9.9 41.4 -37.1 61.0 1127.9 5000.0 -12.9 19560.0 H 36.3 Amb 2.2 40.4 -27.1 51.7 386.7 5000.0 -22.2 19560.0 V 35.3 Amb 2.2 40.4 -27.1 50.7 344.7 5000.0 -23.2 Amb = Ambient Total = Meter Reading + Cable Loss + Antenna Factor + Preamp Gain Engineering Test Report No. 1001669-02 Page 80 of 90 Manufacturer :Twisthink, LLC Model No. : Master Station 803 Filter Serial No. : 1087 Mode : Transmit at 2445MHz (Ch. 19) Test Specification : FCC 15.249 Date : July 7, 2010 and July 14, 2010 Test Distance : 3 meters Note : Average readings Amb = Ambient Total = Meter Reading + Cable Loss + Antenna Factor + Pre Amp Gain + Duty Cycle Factor Freq MHz Ant Pol Meter Reading dBuV Amb Cable Loss dB Ant Fac dB Pre Amp Gain dB Duty Cycle Factor dB Total dBuV/m Total uV/m Limit uV/m Margin dB 4890.0 H 40.2 5.8 34.5 -37.3 -1…

Text truncated - open the document above for the full version.

Engineering Test Report No. 1001669-02 Page 18 of 90 Figure 2 Test Setup for Conducted Emissions Engineering Test Report No. 1001669-02 Page 19 of 90 Figure 3 Test Setup for Radiated Emissions – 2GHz to 18GHz, Horizontal Polarization Test Setup for Radiated Emissions – 2GHz to 18GHz, Vertical Polarization
