YJIEXPL-10-01Wireless handheld gaming device - Explorer Player Unit

Page 2of 5 The WiFi access points shall be set-up and configured by GameTech Int'l authorized personnel according the instructions for that equipment to ensure compliance with the specific RF regulations governing the installation location. The access points automatically control the player units’ RF to fully comply with regulations for allowable 802.11 channels (RF frequencies) and transmit power. The players and hall operations personnel shall have no control over these parameters once the parameters are set. Only GameTech Int’l authorized personnel are allowed to set up the WiFi client by accessing the technician menu to set the SSID, authentication mode, security mode, and to enter the security key or password. WiFi “AdHoc” or peer-to-peer mode is not supported in the Explorer system. NOTES 1.Operation of this device in the 5150 MHz to 5250 MHz range (802.11a) is restricted to indoor use only. 2.Changes or modifications not expressly approved by GameTech Int'l could void the user's authority to operate the equipment. 3.This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at their own expense. 4.This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. The capacitive keypad, Figure 1-2, is backlit. The full color display is a 10.2-inch LCD with an integrated touch screen. A molded, high impact polycarbonate front case is transparent so that the “win” LEDs are visible through the plastic without being exposed (see Figure 1-1 above). Figure 1-2. Backlit capacitive keypad Page 3of 5 Battery latch The Explorer incorporates two high-capacity Li Poly rechargeable batteries for long playing time. Both batteries are mounted in slots on the back (see Figure 1-3). The player unit operates exclusively from these ‘lap-top style’ battery packs. Battery charging is accomplished when the player unit is installed to its charging and storage crate. Discrete contacts make the electrical power connection between the crate and player units. The crate is powered from any standard 90-264VAC / 50-60Hz power source. Figure 1-3. Battery slots on back showing ON-OFF switch location The main power ON-OFF switch is located under the upper battery when the battery is installed. The switch is shown in the ON position in Figure 1-3. To gain access to the switch, the battery must be removed using the battery release tool (see Figure 1-4). Place the tool in the two slots as shown, firmly press down on the tool to free the latch from theFigure 1-4. Inserting the battery release tool battery, and carefully slide the battery out of the slot. Lower battery slot ON-OFF switch Upper batteryslot Page 4of 5 To insert a battery, place the Explorer front-down on a clean surface, firmly grip the left side of the Explorer, position the battery label-side down into the slot guides, then carefully slide the battery fully to the left until it latches in place (see Figure 1-5). Figure 1-5. Sliding battery into the upper slot A fold-up stand is on the back of the Explorer that, when unfolded, allows users to view the display at a comfortable angle. The stand features a friction swivel that holds the stand in any chosen position (see Figure 1-6). Figure 1-6. Back of Explorer showing unfolded stand


To release the stand from the back of the Explorer case, perform the following: 1.Place the Explorer front-down on a clean surface and firmly grip the top of the Explorer. 2. Press all four fingers beneath the metal cross bar of the stand, as shown in Figure 1-7, and push in and up to release the stand from its secured position. Note If unable to release the stand by using finger pressure, insert a wide, straight-slot screwdriver beneath the metal crossbar and turn it 90



degrees left or right to

release the stand (see Figure 1-8). 3.Beginning game play With the Explorer powered on, players can begin Bingo game play by entering the card pack number on the keypad that is displayed. To play other games, players enter a player ID number on the keypad (see Figure 1-9). If the device is in a “sleep” mode, tap on the touchscreen to display the keypad.  Figure 1-8. Screwdriver inserted beneath stand crossbar Figure 1-9. Sign-on keypad Page 5 of 5

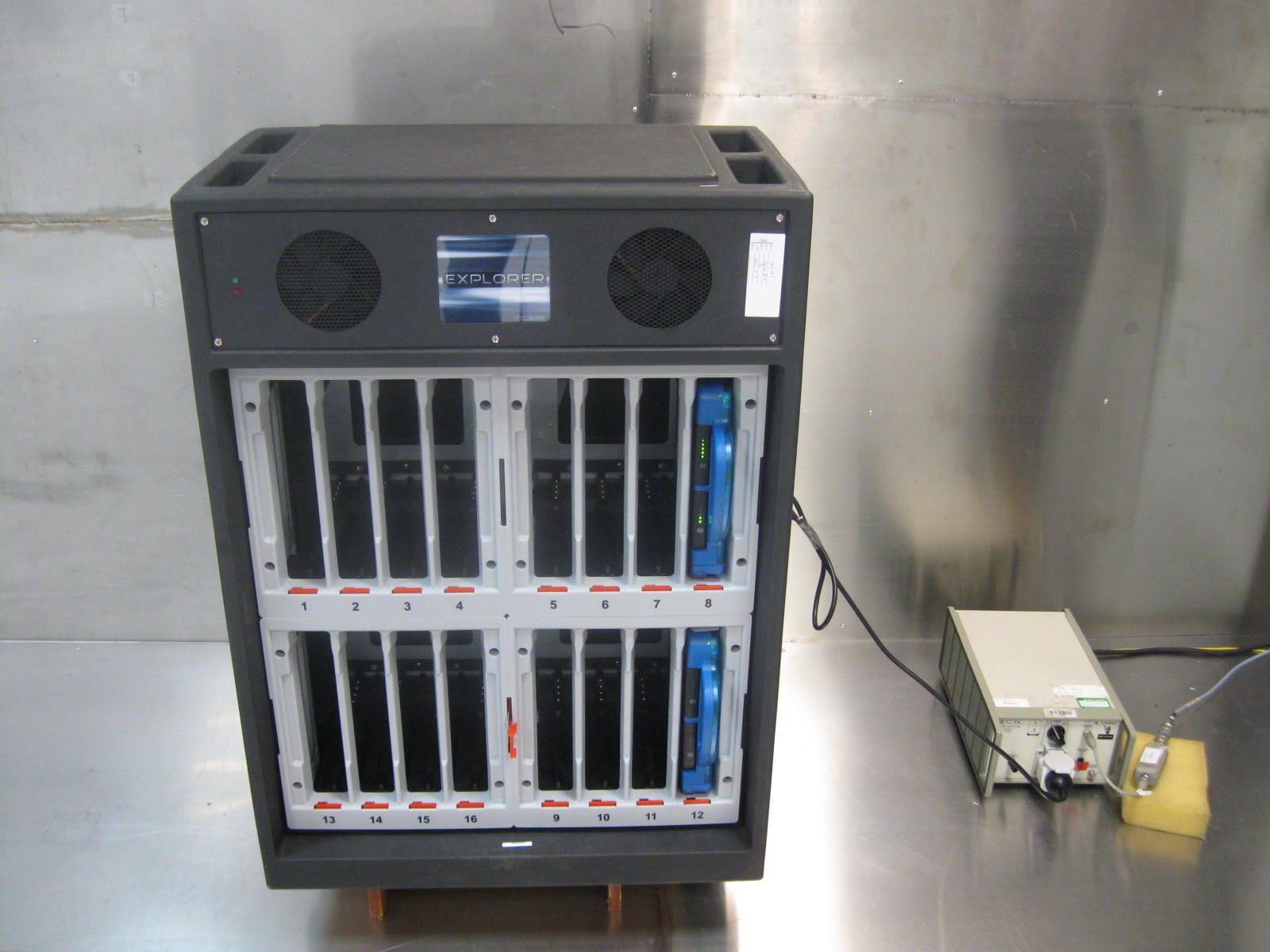

External Photos Enclosure of EUT Enclosure of EUT Photo of adapter Side View Side View Keyboard View Charge Input Port

Lable Location Info Lable

Internal Photos Internal of EUT Internal of EUT Antenna Position Antenna 1 Antenna 2 PCB of EUT PCB of EUT PCB of EUT PCB of EUT WiFi module top side WiFi module top side WiFi module bottom side WiFi module bottom side

RF Exposure Exemption FCC ID: YJIEXPL-10-01 Due to it’s very low output power (conducted 4 mW / radiated ~ 9 mW) this particular device is exempted from routine RF exposure evaluation as it meets the low threshold limits for the general population as defined in the TCB exclusion list.

Report No.: TR-1006-013-02 Page 1 of 33 TDK South China EMC Center SAE Technologies Development (Dongguan) Co., Ltd. Changan Branch FCC Test Report (TR-1006-013-02) Applicant : GameTech International, Inc. Address : 8850 Double Diamond Blvd,Reno NV 89521, USA Manufacturer : Pronology Services Inc. Address : 2nd Industrial Zone Lou Village,Gongming, GuangMing, ShenZhen,GuangDong,China Product Name : Explorer Player Unit Trademark : none Model(s) : EXPL-10-01 Standard(s) : FCC Part 15 Subpart E Test Result : Pass Date of Test : Jun 23, 2010 to Jul 21, 2010 Report issued Dated : Jul 21, 2010 Note: This test report covers 802.11 a test mode only and refer to additional test report for 802.11 b/g measurements (report no.:1006-013-02). The report shall not be reproduced except in full, without the written approval of the TDK EMC Center. The results in this report apply only to the sample(s) tested. The production units are required to conform to the initial sample as received when the units are placed in the market. Responsible Engineer : Approved by : Phenix Zhang Technical manager CHAN king-chui Date : 2010.07.21 Date : 2010.07.21 Report No.: TR-1006-013-02 Page 2 of 33 TDK South China EMC Center SAE Technologies Development (Dongguan) Co., Ltd. Changan Branch Table of Contents Description Page 1. Description of the Test Site ...................................................................................................................... 3 1.1 Test Site Location: ..................................................................................................................................... 3 1.2 Site Registration ....................................................................................................................................... 3 1.3 Test Scope................................................................................................................................................... 3 2. Description of the Tested Samples .......................................................................................................... 4 2.1 Customer Information .............................................................................................................................. 4 2.2 Identification of EUT ............................................................................................................................... 4 2.3 Spec of EUT .............................................................................................................................................. 4 2.4 Test Standards List.................................................................................................................................... 4 3. Test Specifications ....................................................................................................................................... 5 3.1 Standard(s) Used ....................................................................................................................................... 5 3.2 Test Mode ................................................................................................................................................... 5 3.3 Deviations from the Test Specification .................................................................................................... 5 4. Test Result.................................................................................................................................................... 6 4.1 Antenna Requirement ............................................................................................................................... 6 4.2 Conducted Emission (mains).................................................................................................................... 7 4.3 RF Output Power in 5.15-5.25GHz.......................................................................................................... 8 4.4 Peak Power Spectral Density ................................................................................................................. 10 4.5 Peak Excursion........................................................................................................................................ 13 4.6 Undesirable Emissions in 5.15-5.25GHz ............................................................................................... 15 4.7 Radiated Emissions ................................................................................................................................. 19 4.8 Undesirable Emissions ............................................................................................................................ 23 4.9 Frequency Stability ................................................................................................................................. 27 5. FCC ID Label ............................................................................................................................................ 28 6. Test Setup ................................................................................................................................................... 29 6.1 Photographs of the Test Configuration ................................................................................................ 29 6.2 Photographs of the EUT ........................................................................................................................ 30 7. Equipment List.......................................................................................................................................... 32 8. Test Uncertainty ........................................................................................................................................ 33 9. Appendix .................................................................................................................................................... 33 9.1 Confirmation o…

Text truncated - open the document above for the full version.

Radiated emission Below 1GHz: Above 1GHz:
