YLEOG-GSM-900BGSM emergency phone

User Manual 1、 Introduction 2、 phone introducing 3、How to use the phone 4、T he phone feature set introduced 1、 Introduction In order to provide GSM wireless emergency telephone call to provide GSM call program control board to support the button dialing, handset state, recording, playback, echo cancellation technology, hands-on add-free version, built-in antenna, external antenna connector, the phone handset interface To support the toner-type and active type of microphone, programmable software updates. You can use solar battery, Lithium Battery And 12V-24V DC adapter OG-GSM-900B 2 the motherboard description 2.1 Appearance 2.2 Terminal Description 1. SIM Card 2. RS-232 9PIN 3. 6x1 DIP switches 4. play button 5. erase button 6. external play button 7. key pay wire terminal 8. handset 9. handset terminal 10. Carbon Type / electronic selector switch terminals 11. Reset button 12. power board connector 13. Antenna terminal 2.3 Install 1. Install SIM Card SIM card must be installed after the pin code disable 2. Install the lithium battery to 3.7V version of the battery into the power socket 3. Installation of DC transformers, attention must be voltage above 12V-24V 1A adapter joints on the +, - cable into and then tighten the screws 4. Note to install solar battery voltage 6V-12V, the solar electric wire connector on the +, - insert and then tighten the screws 5. Grounding line, the machine must be grounded for safety, the ground of the cable into the ground position, insert the screws will tighten 3 functions 3.1 Memory dial ♦ Direct dial 10 groups ♦ Memory dialing 10 groups ♦ No. 10 group can be allocated ♦ A code switching and memory B code switch to 10 groups (when the received code system into B A code allocated) 3.2 Record / playback function ♦ Recording ♦ Playback ♦ Automatic playback ♦ Delete 3.3 Call function ♦ Set aside ♦ Answer ♦ Direct Dial ♦ Memory dial ♦ Dial-up adapter ♦ Call playback 3.4 Setup ♦ Memory number set ♦ Password Settings 4 How to use 4.1 Recording into the setting mode (Slide off the s1.4 type your password "1968") ♦ Clear recording press the delete key, etc. Erase 7-8 seconds after the completion of the recording removed Erase ♦ Recording press the record button recording through the microphone most 120 seconds ♦ Stop recording 4.2 Playback ♦ Start playback play key ♦ To stop playback during playback press the Play button ♦ Slide the S1.2 playback automatically when a call is automatically on playback 4.3 Call out ♦ A Lifting the handset, and you hear a dial tone Enter the phone number to be allocated. Press "#" key to make a call, if you do not press "#" key, the phone will automatically dial, after 6 seconds later automatically allocated. ♦ Hang up call after putting down the telephone. ♦ Pick up Calls ♦ Hear the phone ring state, can pick up the handset to answer call ♦ Direct Dial (10 groups) by lifting the handset and you hear a dial tone. Press "#" key to make a call. ♦ Memory dialing 10 groups, lifting the handset, hears dial tone. Enter * 0 -* 9. "#" Key to make a call. ♦ Can allocate number (10 groups) by lifting the handset, and can hear the dial tone. Enter the phone number to be allocated. Press "#" key to make a call. ♦ A code of 10 group B code switch, lifting the handset, hears dial tone. Enter the phone number to be allocated. Press "#" key to make a call. B 5 Setup 5.1 Start the setup process for the first time z Toggle off the motherboard SW4.1 location z Will bring the handset (must be linked to the handset from the handset to mention), issued after the handset beep tone (turn off the handset into the program to set the power) z Enter the user password (default setting is "9999") z To enter set mode to issue beep TWO z Input error given busy tone, the handset must be linked back to 5.2 After the start the start the second set-up process z The board of the SW4 (reference motherboard location map) Slide off position z Will bring the handset (must be linked to the handset from the handset to mention), 1 second after the handset issue beep tone (enter program settings, turn off the handset power) z Enter the user password such as 1234 z To enter set mode to issue beep beep TWO z Input error given busy tone, the handset must be linked back to 5.3 Change Password ("0 * 0 *") z Enter the Change Password command string "0 *" z Enter the update command "0 *" z Then enter the new 4 password "xxxx" z Input end of the code "#" z Beep beep's continued success to issue other settings z Input error given busy tone, the handset must be linked back to Example: If you want to change the password to "1234", enter "0 * 0 * 1234 #" 5.4 Remove the password back to factory setting 9999 ("0 ***") z Enter the Change Password command string "0 *" z Enter to delete the string "**" z Enter the string end of the code "#" z Beep beep's continued success to issue other settings z Input error given busy tone, the handset must be linked back to Example: If you want to remove the password, enter "0 ***#", back to factory settings 5.5 ("1 * N *") z Enter the Change Password command string "1 *" z Enter group "N *" (N is 0-9) z Then enter the phone number "nnnnnnnnnnnnnnnnn" z Enter the string end of the code "#" z Beep beep's continued success to issue other settings z Input error given busy tone, the handset must be linked back to Example: If you want to dial, then enter code ("18884663669") Direct Input 1 * 0 * 18884663669 # Remove direct dial setting ("1 ***") z Remove the automatic dialing direct dial input command ("1 *) z Enter delete command code "**" z Enter completion code "#" z Beep beep's continued success to issue other settings z Input error given busy tone, the handset must be linked back to Plus if you want to remove direct dial memory dial settings directly into a *** # Direct dial memory is cleared 5.7 Can set aside a number of settings (Group 10) (2 * N *) z Enter order number can be set aside 2 * z Enter group "N *" (N is 0-9) z Enter the phone number can be …

Text truncated - open the document above for the full version.

ON GUARD, INC Address: 6846 Theall Road # 100, Houston, TEXAS, USA 77066 Tel: 7136648273 Tel: 2815860060 2014-06-09 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID: YLEOG-GSM-900B We hereby request confidential treatment of information accompanying this application as outlined below: - Schematics Diagram - Block Diagram - Operation description - Tune Up Procedure - Part List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s name / title : Bill White / President Contact information / address : 6846 Theall Road # 100, Houston, TEXAS, USA 77066 Tel: 7136648273 Tel: 2815860060

ON GUARD, INC FCC ID: YLEOG-GSM-900B POWER OF ATTORNEY 2014-06-19 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen LCS Compliance Testing Laboratory Ltd. (MR. Gavin Liang, Manager) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Shenzhen LCS Compliance Testing Laboratory Ltd. (MR. Gavin Liang, Manager) on our behalf shall have the same effect as acts of our own. This authorization expires on (2015-06-19). This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, (ON GUARD, INC), are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, ------------------------------- Client’s name / title : Bill White / President Contact information / address : 6846 Theall Road # 100, Houston, TEXAS, USA 77066 Tel: 7136648273 Tel: 2815860060 Company Name: ON GUARD, INC

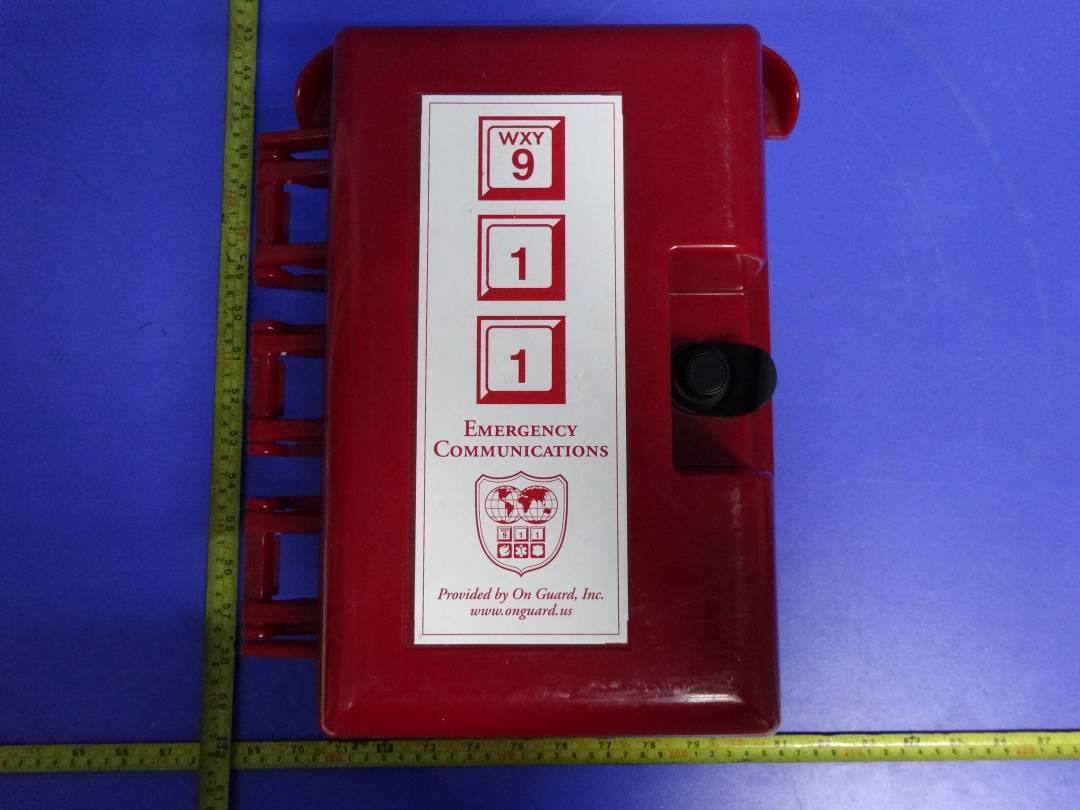

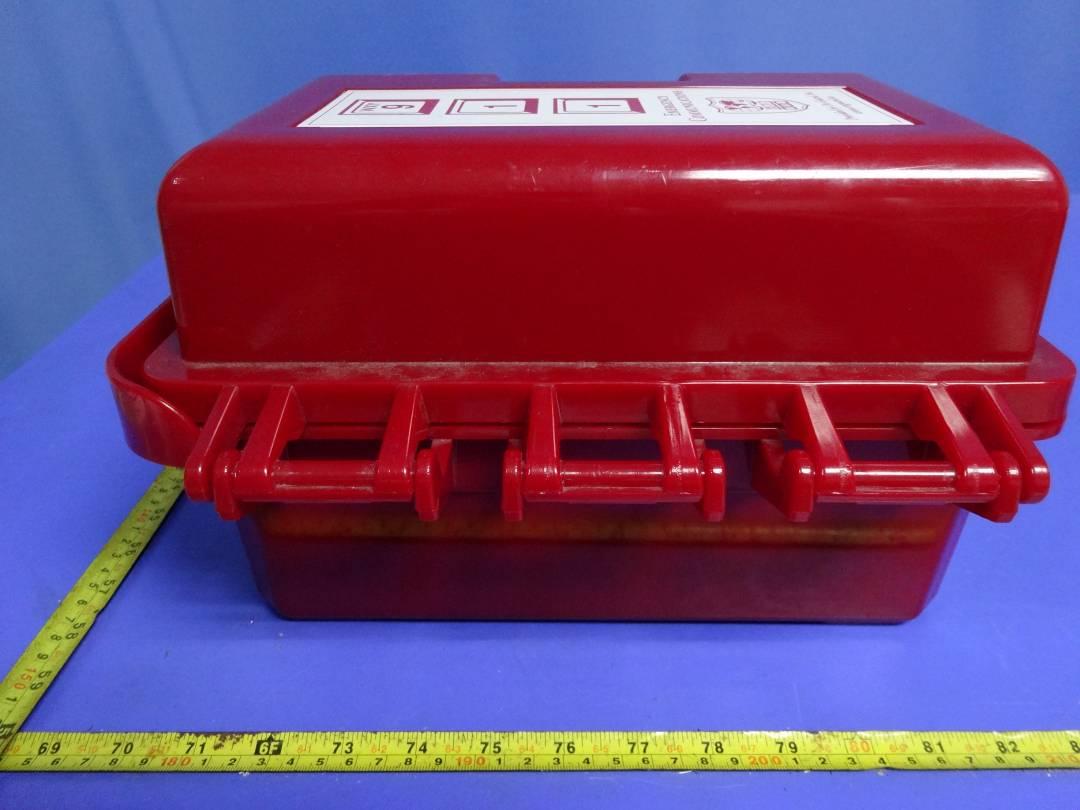

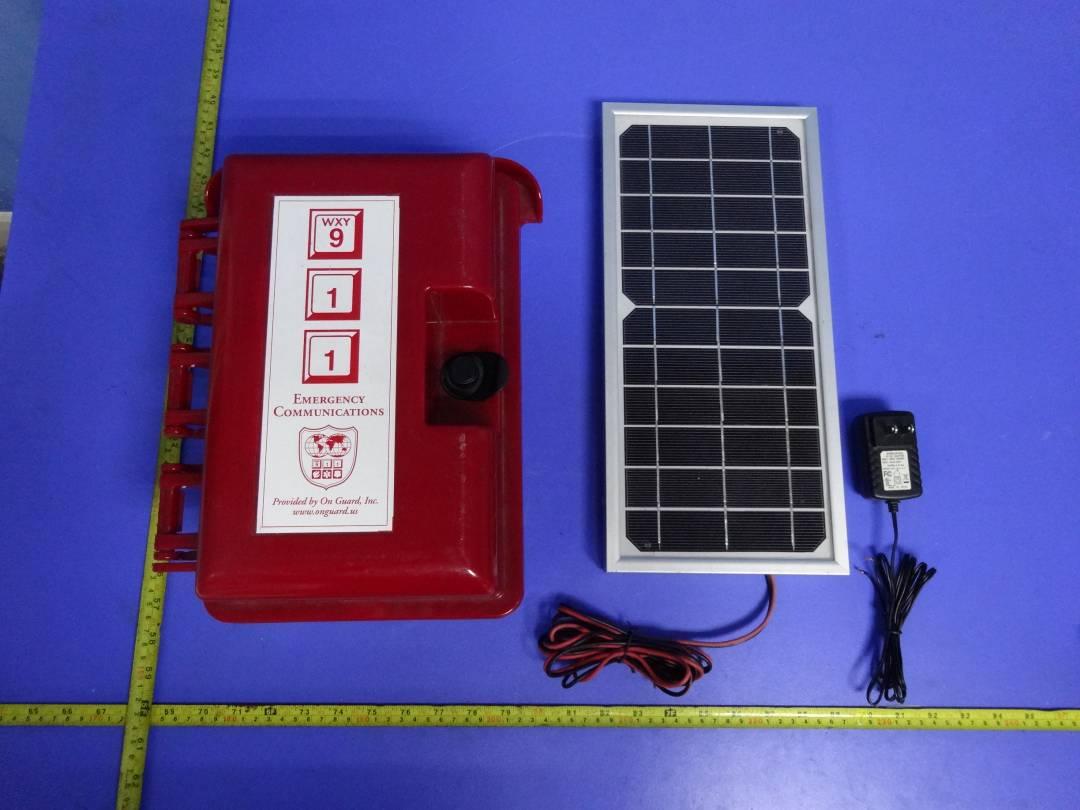

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: YLEOG-GSM-900B Report No.:LCS1405230975E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 4 1. EXTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: YLEOG-GSM-900B Report No.:LCS1405230975E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 4 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: YLEOG-GSM-900B Report No.:LCS1405230975E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 4 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: YLEOG-GSM-900B Report No.:LCS1405230975E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 4 Fig.7 Fig.8
