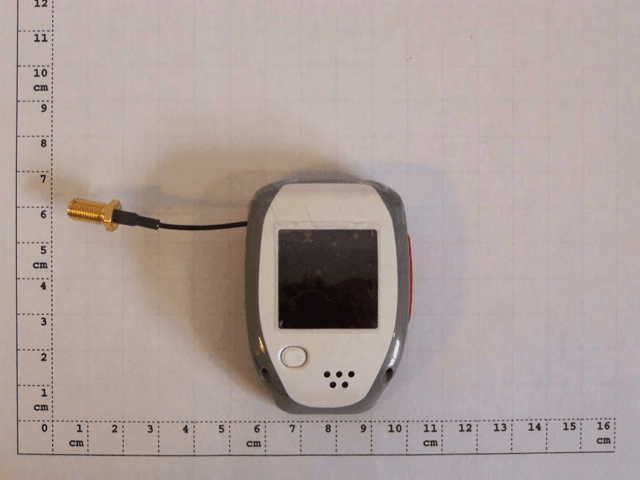

YLO201001Care Watch

www.everon.netCopyright©2009 2 Home:Indicates that Vega is communicating with a working Vega Base and is in its radiofrequency (RF) zone, allowing it to work in energy-saving mode (explained later). Magnifying glass:Indicates that Vega is looking for GPS satellite signals. Pin:Indicates that Vega has succeeded in determining its position using the GPS system. Globe:Indicates that Vega is connected over the mobile network to global positioning servers. GSM Signal Quality:Indicates the quality of the GSM signals (from 0 to 5 bars). Battery:Indicates battery charge level of the Vega. Time Date: Day/Month/Year Display button: Press to activate and use screen functions. Speaker/microphone: For vocal communication. Latches to hold battery pack. Emergency button: Press 2 seconds to send an alarm to the response centre. Alert:Appears when Vega is trying to transmit an emergency button alert to the response centre. 3 About the User Manual This Guide is published by Everon, who may at any time make changes, improvements or typographical corrections without prior notice. At the time that this Guide went to press, the information it contains was deemed, by Everon oy , to be true and accurate. The trademarks “Vega” and “Everon” are the property of Everon Oy. Other products and/or company names cited in this Guide may be trademarks of their respective holders. Publication number: EUC2-200908-A-EN Copyright ©2009 About the User Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 A) System Components . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 Vega . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 Vega Base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 Battery pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 Bracelet parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 Release key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 B) Getting started: Vega System Installation and Charging . . . . . . . . . . . . . . . . . . . .6 Step 1: Bracelet selection and fitting . . . . . . . . . . . . . . .6 Step 2: Vega Base location and installation . . . . . .7 Step 3: Charging the battery pack . . . . . . . . . . . . . . . . . . .8 Step 4: Charging Vega . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 C) Vega Operating Modes . . . . . . . . . . . . . . . . . . . . . .11 1. Inside the home zone (Sleep mode) . . . . . . . . . . .11 2. Outside the home zone (Regular mode AND INSIDE SAFE ZONE) . . . . .12 3. Exiting the safe zone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 4. Vocal communication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 D) In case of an emergency: press the red button . . . . . . . . . . . . . . . . . . . . . . . . . .13 E) Automatic Low battery alert . . . . . . . . . . . . .14 F) Locating Vega . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 G) Environmental Conditions and Restrictions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 1. General instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 2. Water . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 3. Special restrictions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 4. Customer Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 5. Recycling Vega and Components . . . . . . . . . . . . . . .15 H) Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 1. Technical specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 2. Battery autonomy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 3. Network services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 4. Specific Absorption Rate . . . . . . . . . . . . . . . . . . . . . . . . . . .16 I) Legal Advice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17 1. Intellectual property . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17 2. Statement of compliance . . . . . . . . . . . . . . . . . . . . . . . . . .18 Table of Contents to become fully acquainted with the VEGA gps bracelet www.everon.netCopyright©2009 4 A) System Components Vega A. Display B. Emergency button C. Display button D. Speaker/microphone E. Latches to hold battery pack in place on Vega during charging Vega Base A. Latches to hold battery pack in place on the Vega Base during charging B. Receptacle for latch release key C. Radiofrequencies (RF) antenna D. Battery pack base E. Electrical contacts for recharging battery pack (back) F. Blue LED – Vega Base working when ON G. Red and green LEDs – Battery pack charging when Red, and goes Green when fully charged H. Holes for optional wall mounting I. Telephone jack J. DC power jack A B D C E C B A D F E G J I H 5 Battery pack A. Latch – Push in, to hold battery pack either on the Vega Base or on the Vega B. Holes for inserting key to release battery pack from latches on the Vega Base or on the Vega C. Blue LED – Vega charging when ON, and goes OFF when battery pack charge is transferred to Vega battery D. DC power jack for recharging Bracelet parts A. Wrist straps with holes (2 sizes) B. Steel pin C. Wrist straps with safety snaps D. Clasp with two screws E. Vega bracelet support Release key A. Two-pin key to release mechanism A B D C A B D C A E www.everon.netCopyright©2009 6 B) Getting started: Vega System Installation and Charging Step 1: Bracelet selection and fitting Vega comes with two wrist straps of different sizes to ensure a proper fit on a wide range of wrist sizes. I…

Text truncated - open the document above for the full version.



2010-07-30 Page 1 of 37 TEST REPORT Test Report No.: 4-3431-01-02/10 Testing Laboratory CETECOM ICT Services GmbH Untertürkheimer Straße 6 – 10 66117 Saarbrücken/Germany Phone: + 49 681 5 98 - 0 Fax: + 49 681 5 98 - 9075 Internet: http://www.cetecom-ict.de e-mail: [email protected] Accredited Test Laboratory: The test laboratory (area of testing) is accredited according to DIN EN ISO/IEC 17025 DAR registration number: DAT-P-176/94-D1 Appendix with Calibration data, Phantom certificate and system validation information 2010-07-30 Test report no.: 4-3431-01-02/10 2010-07-30 Page 2 of 37 1 Table of contents 1 Table of contents.......................................................................................................................................2 2 Calibration report “Probe ET3DV6”.........................................................................................................3 3 Calibration report “900 MHz System validation dipole”......................................................................12 4 Calibration report “1900 MHz System validation dipole”....................................................................21 5 Calibration certificate of Data Acquisition Unit (DAE) ........................................................................30 6 Certificate of “SAM Twin Phantom V4.0/V4.0C’’ .................................................................................31 7 Application Note System Performance Check .....................................................................................32 7.1 Purpose of system performance check .....................................................................................32 7.2 System Performance check procedure......................................................................................32 7.3 Uncertainty Budget ......................................................................................................................33 7.4 Power set-up for validation .........................................................................................................36 7.5 Laboratory reflection ...................................................................................................................37 7.6 Additional system checks...........................................................................................................37 Test report no.: 4-3431-01-02/10 2010-07-30 Page 3 of 37 2 Calibration report “Probe ET3DV6” Test report no.: 4-3431-01-02/10 2010-07-30 Page 4 of 37 Test report no.: 4-3431-01-02/10 2010-07-30 Page 5 of 37 Test report no.: 4-3431-01-02/10 2010-07-30 Page 6 of 37 Test report no.: 4-3431-01-02/10 2010-07-30 Page 7 of 37 Test report no.: 4-3431-01-02/10 2010-07-30 Page 8 of 37 Test report no.: 4-3431-01-02/10 2010-07-30 Page 9 of 37 Test report no.: 4-3431-01-02/10 2010-07-30 Page 10 of 37 Test report no.: 4-3431-01-02/10 2010-07-30 Page 11 of 37 Test report no.: 4-3431-01-02/10 2010-07-30 Page 12 of 37 3 Calibration report “900 MHz System validation dipole” Test report no.: 4-3431-01-02/10 2010-07-30 Page 13 of 37 Test report no.: 4-3431-01-02/10 2010-07-30 Page 14 of 37 Test report no.: 4-3431-01-02/10 2010-07-30 Page 15 of 37 Test report no.: 4-3431-01-02/10 2010-07-30 Page 16 of 37 Test report no.: 4-3431-01-02/10 2010-07-30 Page 17 of 37 Test report no.: 4-3431-01-02/10 2010-07-30 Page 18 of 37 Test report no.: 4-3431-01-02/10 2010-07-30 Page 19 of 37 Test report no.: 4-3431-01-02/10 2010-07-30 Page 20 of 37 Test report no.: 4-3431-01-02/10 2010-07-30 Page 21 of 37 4 Calibration report “1900 MHz System validation dipole” Test report no.: 4-3431-01-02/10 2010-07-30 Page 22 of 37 Test report no.: 4-3431-01-02/10 2010-07-30 Page 23 of 37 Test report no.: 4-3431-01-02/10 2010-07-30 Page 24 of 37 Test report no.: 4-3431-01-02/10 2010-07-30 Page 25 of 37 Test report no.: 4-3431-01-02/10 2010-07-30 Page 26 of 37 Test report no.: 4-3431-01-02/10 2010-07-30 Page 27 of 37 Test report no.: 4-3431-01-02/10 2010-07-30 Page 28 of 37 Test report no.: 4-3431-01-02/10 2010-07-30 Page 29 of 37 Test report no.: 4-3431-01-02/10 2010-07-30 Page 30 of 37 5 Calibration certificate of Data Acquisition Unit (DAE) Test report no.: 4-3431-01-02/10 2010-07-30 Page 31 of 37 6 Certificate of “SAM Twin Phantom V4.0/V4.0C’’ Test report no.: 4-3431-01-02/10 2010-07-30 Page 32 of 37 7 Application Note System Performance Check 7.1 Purpose of system performance check The system performance check verifies that the system operates within its specifications. System and operator errors can be detected and corrected. It is recommended that the system performance check is performed prior to any usage of the system in order to guarantee reproducible results. The measurement of the Specific Absorption Rate (SAR) is a complicated task and the result depends on the proper functioning of many components and the correct settings of many parameters. Faulty results due to drift, failures or incorrect parameters might not be recognized, since they often look similar in distribution to the correct ones. The Dosimetric Assessment System DASY4 incorporates a system performance check procedure to test the proper functioning of the system. The system performance check uses normal SAR measurements in a simplified setup (the flat section of the SAM Twin Phantom) with a well characterized source (a matched dipole at a specified distance). This setup was selected to give a high sensitivity to all parameters that might fail or vary over time (e.g., probe, liquid parameters, and software settings) and a low sensitivity to external effects inherent in the system (e.g., positioning uncertainty of the device holder). The system performance check does not replace the calibration of the components. The accuracy of the system performance check is not sufficient for calibration purposes. It is possible to calculate the field quite accurately in this simple setup; however, due to the open field situation some factor…

Text truncated - open the document above for the full version.

2010-07-30 Page 1 of 37 TEST REPORT Test Report No.: 4-3431-01-02/10 Testing Laboratory Applicant CETECOM ICT Services GmbH Untertürkheimer Straße 6 – 10 66117 Saarbrücken/Germany Phone: + 49 681 5 98 - 0 Fax: + 49 681 5 98 - 9075 Internet: http://www.cetecom-ict.de e-mail: [email protected] Accredited Test Laboratory: The test laboratory (area of testing) is accredited according to DIN EN ISO/IEC 17025 DAR registration number: DGA-PL-176/94-D1 Everon Oy Vakiotie 9 21420 Lieto/FINLAND Phone: +358 207 920 702 Contact: Alain Moisan e-mail: [email protected] Phone: +1 418 478-1553 Fax: Manufacturer Varitron Technologies Inc. 4811 Chemin de la Savane St. Hubert, Québec J3Y 9G1/CANADA Test Standard/s IEEE 1528-2003 Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR)in the Human Head from Wireless Communications Devices: Measurement Techniques OET Bulletin 65 Supplement C Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields RSS-102 Issue 4 Radio Frequency Exposure Compliance of Radiocommunication Apparatus (All Frequency Bands) For further applied test standards please refer to section 3 of this test report. Test Item Kind of test item: GSM/GPRS/GPS watch helping device Device type: portable device Model name: URG-BRA-002 S/N serial number: 10-25-05-F1-01004607 FCC-ID: YLO201001 IC: 9150A-201001 IMEI-Number: 357023001348128 Hardware status: 05 Software status: 1205 Frequency: see technical details Antenna: integrated antenna Battery option: Integrated Accessories: belt clip & wristband Test sample status: identical prototype Exposure category: general population / uncontrolled environment additional FCC correspondence : KDB tracking number 554080 This test report is electronically signed and valid without handwriting signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Test performed: Test Report authorised: 2010-07-30 Oleksandr Hnatovskiy 2010-07-30 Thomas Vogler Test report no.: 4-3431-01-02/10 2010-07-30 Page 2 of 37 1 Table of contents 1 Table of contents.......................................................................................................................................2 2 General information ..................................................................................................................................3 2.1 Notes................................................................................................................................................3 2.2 Application details .........................................................................................................................3 2.3 Statement of compliance ...............................................................................................................3 2.4 Technical details.............................................................................................................................4 3 Test standard/s:.........................................................................................................................................5 3.1 RF exposure limits .........................................................................................................................5 4 Summary of Measurement Results .........................................................................................................6 5 Test Environment ......................................................................................................................................6 6 Test Set-up .................................................................................................................................................7 6.1 Measurement system .....................................................................................................................7 6.1.1 System Description................................................................................................................7 6.1.2 Test environment ...................................................................................................................8 6.1.3 Probe description...................................................................................................................8 6.1.4 Phantom description..............................................................................................................9 6.1.5 Device holder description ......................................................................................................9 6.1.6 Scanning procedure ............................................................................................................10 6.1.7 Spatial Peak SAR Evaluation ..............................................................................................11 6.1.8 Data Storage and Evaluation...............................................................................................12 6.1.9 Tissue simulating liquids: dielectric properties ....................................................................14 6.1.10 Tissue simulating liquids: parameters .................................................................................14 6.1.11 Measurement uncertainty evaluation for SAR test ..............................................................15 6.1.12 Measurement uncertainty evaluation for system validation ................................................16 6.1.13 System validation ................................................................................................................17 6.1.14 Validation procedure............................................................................................................18 7 Detailed Test Results ..............................................................................................................................19 7.1 Conducted power measurements.........................…

Text truncated - open the document above for the full version.

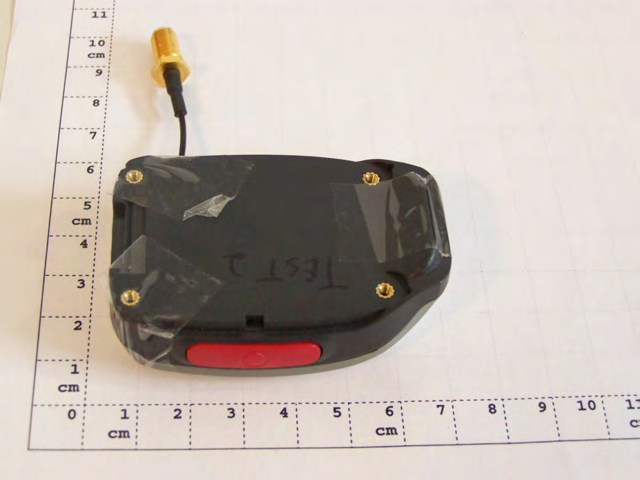

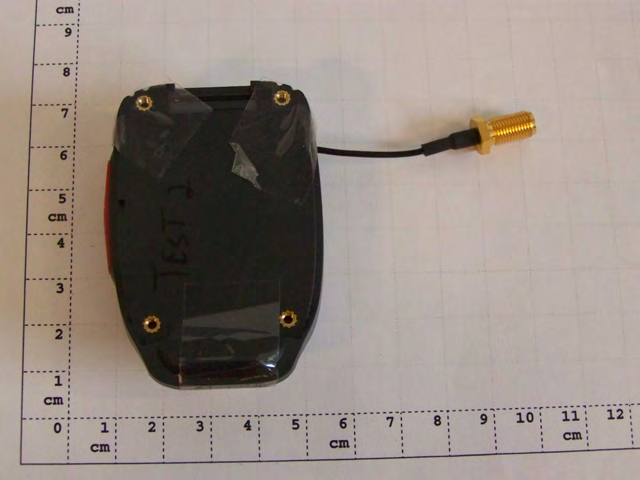

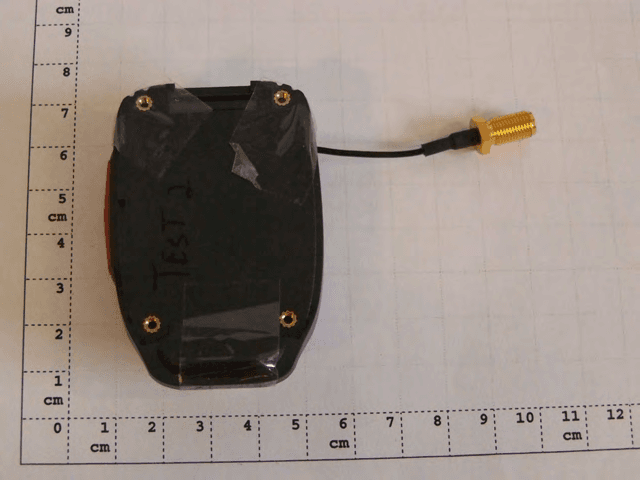

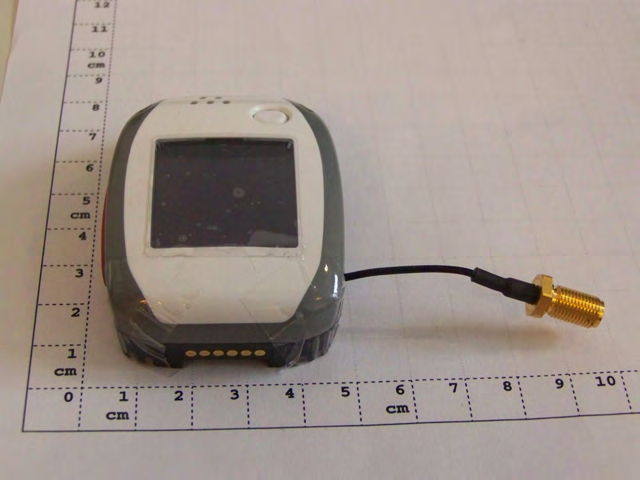

Test report no.: 4-3431-01-02/10 2010-07-30 Page 34 of 37 Photo 9: DUT - rear view Photo 10: Test body position rear side (touching) Test report no.: 4-3431-01-02/10 2010-07-30 Page 35 of 37 Annex C.4: Liquid depth Photo 1: Liquid depth 850 MHz body simulating liquid Photo 2: Liquid depth 1900 MHz body simulating liquid

Page 1 of 26 The test results relate only to the individual items which have been tested. This report shall not be reproduced in parts without the written approval of the testing laboratory © Copyright: All rights reserved by CETECOM Laboratory Accreditation and Listings DGA-PL-176/94-03 Reg. No.: 99538 MRA US-EU 0003 Industry Canada Reg. No.: 3462D-1 3462D-2 Reg. No.: R-2665, R-2666 C-2914, T-339 accredited according to DIN EN ISO/IEC 17025 CETECOM GmbH Laboratory Radio Communications & Electromagnetic Compatibility Im Teelbruch 116 • 45219 Essen • Germany Registered in Essen, Germany, Reg. No.: HRB Essen 8984 Tel.: + 49 (0) 20 54 / 95 19-954 • Fax: + 49 (0) 20 54 / 95 19-964 E-mail: [email protected] • Internet: www.cetecom.com PARTIAL TEST REPORT No.: 2-20789055c/10 for GSM/GPRS/GPS Watch helping device URG-BRA-002 + Battery pack URG-BAT-002 FCC ID: YLO201001 IC: 9150A-201001 According to: FCC Regulations FCC Part 22/24 & IC Regulations RSS-132, Issue 2 RSS-133, Issue 5 RSS-Gen, Issue 2 Everon Oy/AB Test Report 2-20789055c/10, Page 2 of 26 2_20789055c_10.doc Table of contents 1. SUMMARY OF TEST RESULTS ...................................................................................................................... 3 1.1. TESTS OVERVIEW FCC Part 15/22/24 and Kanada IC Standards (RSS) .................................................... 3 2. ADMINISTRATIVE DATA ............................................................................................................................... 5 2.1. Identification of the testing laboratory ............................................................................................................. 5 2.2. Test location .................................................................................................................................................... 5 2.3. Organizational items ........................................................................................................................................ 5 2.4. Applicant’s details ........................................................................................................................................... 5 2.5. Manufacturer’s details ..................................................................................................................................... 5 3. EQUIPMENT UNDER TEST (EUT) ................................................................................................................. 6 3.1. Additional declaration and description of main EUT ...................................................................................... 6 3.2. Configuration of cables used for testing .......................................................................................................... 6 3.3. EUT: Type, S/N etc. and short descriptions used in this test report ................................................................ 7 3.4. Auxiliary Equipment (AE): Type, S/N etc. and short descriptions .................................................................. 7 3.5. EUT set-ups ..................................................................................................................................................... 7 3.6. EUT operating modes ...................................................................................................................................... 8 3.7. Parameter Settings on mobile phone and base station CMU200 ..................................................................... 9 4. DESCRIPTION OF TEST SET-UP’S ................................................................................................................ 10 4.1. Test set-up for radiated measurements ............................................................................................................ 10 5. MEASUREMENTS ............................................................................................................................................. 11 5.1. RF power output (Conducted and Radiated).................................................................................................... 11 5.2. Occupied bandwidth ........................................................................................................................................ 14 5.3. Emission limits (Spurious emission conducted/radiated) f> 30 MHz .............................................................. 15 5.4. Frequency stability on temperature and voltage variations ............................................................................. 20 6. CALIBRATION METHOD OF ANECHOIC CHAMBER ............................................................................. 21 7. MEASUREMENT UNCERTAINTIES .............................................................................................................. 22 8. INSTRUMENTS AND ANCILLARY ................................................................................................................ 23 8.1. Used equipment “CTC” ................................................................................................................................... 23 Table of annex Total pages SEPARATE DOCUMENT 2_20785798C_10_A1.PDF: DIAGRAMS OF TESTING 54 SEPARATE DOCUMENT 2_20785798C_10_A2.PDF: PHOTOS OF SET-UP 3 Test Report 2-20789055c/10, Page 3 of 26 2_20789055c_10.doc 1. Summary of test results The presented GSM/GPRS/GPS watch helping device, type URG-BRA-002, incorporates a already FCC/IC certified GSM/GPRS module from Telit company with FCC-ID RI7GE864. Therefore only radiated tests have been re-performed to show compliance against radiated FCC22/24 limits. The test results apply exclusively to the test samples as presented in chapter 3.1. The CETECOM GmbH does not assume responsibility for any conclusions and generalizations taken in conjunction with other specimens or samples of the type of the item presented to tests. Following tests have been performed to show compliance with a…

Text truncated - open the document above for the full version.

Page 1 of 54 The test results relate only to the individual items which have been tested. This report shall not be reproduced in parts without the written approval of the testing laboratory © Copyright: All rights reserved by CETECOM Laboratory Accreditation and Listings DGA-PL-176/94-03 Reg. No.: 99538 MRA US-EU 0003 Industry Canada Reg. No.: 3462D-1 3462D-2 Reg. No.: R-2665, R-2666 C-2914, T-339 accredited according to DIN EN ISO/IEC 17025 CETECOM GmbH Laboratory Radio Communications & Electromagnetic Compatibility Im Teelbruch 116 • 45219 Essen • Germany Registered in Essen, Germany, Reg. No.: HRB Essen 8984 Tel.: + 49 (0) 20 54 / 95 19-954 • Fax: + 49 (0) 20 54 / 95 19-964 E-mail: [email protected] • Internet: www.cetecom.com Annex 1: Diagrams to PARTIAL TEST REPORT No.: 2-20789055c/10 for GSM/GPRS/GPS Watch helping device URG-BRA-002 + Battery pack URG-BAT-002 FCC-ID: YLO201001 IC: 9150A-201001 According to: FCC Regulations FCC Part 22/24 FCC Part 15.209C & IC Regulations RSS-132, Issue 2 RSS-133, Issue 5 RSS-Gen, Issue 2 Everon Oy/AB Annex 1 to Test Report 2-20789055c/10, Page 2 of 54 2_20789055c_10_A1.doc Table of contents 1. DIAGRAMS ......................................................................................................................................................... 3 1.1. Measurements: Spurious emission measurements – GSM850 mode ............................................................... 3 1.2. Measurements: Spurious emission measurements – GSM1900 mode ............................................................. 25 Annex 1 to Test Report 2-20789055c/10, Page 3 of 54 2_20789055c_10_A1.doc 1. Diagrams 1.1. Measurements: Spurious emission measurements – GSM850 mode 8.151 Radiated Spurious Emission Transducer: c:\vee_user\spuri_V7\FCC_Part_22.917_(GSM_850)\TD_TX_H Sweepnr: Sweep1 Pol. of Antenna: horizontal EUT Position: EUT_vertical+horizontal EUT OP Mode: FCC_Part_22.917_(GSM_850) TCH EUT Description: URG-BRA-002 EUT add. Info: EUT Hardware: 05 EUT Software: 1205 EUT Config: EUT S/N: 357023007187264 Battery: AC/DC Charger; Maximum Voltage; 4.2 VDC Remark: Channel 128 Operator: x_Ken Testing Site: Fully Anechoic Room (FAR); CETECOM Essen Wed 07/Jul/2010 08:06:19pff Spurious Emissions V7.2.5 Annex 1 to Test Report 2-20789055c/10, Page 4 of 54 2_20789055c_10_A1.doc 8.152 Radiated Spurious Emission Transducer: c:\vee_user\spuri_V7\FCC_Part_22.917_(GSM_850)\TD_TX_V Sweepnr: Sweep1 Pol. of Antenna: vertikal EUT Position: EUT_vertical+horizontal EUT OP Mode: FCC_Part_22.917_(GSM_850) TCH EUT Description: URG-BRA-002 EUT add. Info: EUT Hardware: 05 EUT Software: 1205 EUT Config: EUT S/N: 357023007187264 Battery: AC/DC Charger; Maximum Voltage; 4.2 VDC Remark: Channel 128 Operator: x_Ken Testing Site: Fully Anechoic Room (FAR); CETECOM Essen Wed 07/Jul/2010 08:15:38fpf Spurious Emissions V7.2.5 Annex 1 to Test Report 2-20789055c/10, Page 5 of 54 2_20789055c_10_A1.doc 8.153 Radiated Spurious Emission Transducer: c:\vee_user\spuri_V7\FCC_Part_22.917_(GSM_850)\TD_TX_H Sweepnr: Sweep1 Pol. of Antenna: horizontal EUT Position: EUT_vertical+horizontal EUT OP Mode: FCC_Part_22.917_(GSM_850) TCH EUT Description: URG-BRA-002 EUT add. Info: EUT Hardware: 05 EUT Software: 1205 EUT Config: EUT S/N: 357023007187264 Battery: AC/DC Charger; Maximum Voltage; 4.2 VDC Remark: Channel 192 Operator: x_Ken Testing Site: Fully Anechoic Room (FAR); CETECOM Essen Wed 07/Jul/2010 09:19:46pff Spurious Emissions V7.2.5 Annex 1 to Test Report 2-20789055c/10, Page 6 of 54 2_20789055c_10_A1.doc 8.154 Radiated Spurious Emission Transducer: c:\vee_user\spuri_V7\FCC_Part_22.917_(GSM_850)\TD_TX_V Sweepnr: Sweep1 Pol. of Antenna: vertikal EUT Position: EUT_vertical+horizontal EUT OP Mode: FCC_Part_22.917_(GSM_850) TCH EUT Description: URG-BRA-002 EUT add. Info: EUT Hardware: 05 EUT Software: 1205 EUT Config: EUT S/N: 357023007187264 Battery: AC/DC Charger; Maximum Voltage; 4.2 VDC Remark: Channel 192 Operator: x_Ken Testing Site: Fully Anechoic Room (FAR); CETECOM Essen Wed 07/Jul/2010 09:24:08fpf Spurious Emissions V7.2.5 Annex 1 to Test Report 2-20789055c/10, Page 7 of 54 2_20789055c_10_A1.doc 8.155 Radiated Spurious Emission Transducer: c:\vee_user\spuri_V7\FCC_Part_22.917_(GSM_850)\TD_TX_H Sweepnr: Sweep1 Pol. of Antenna: horizontal EUT Position: EUT_vertical+horizontal EUT OP Mode: FCC_Part_22.917_(GSM_850) TCH EUT Description: URG-BRA-002 EUT add. Info: EUT Hardware: 05 EUT Software: 1205 EUT Config: EUT S/N: 357023007187264 Battery: AC/DC Charger; Maximum Voltage; 4.2 VDC Remark: Channel 251 Operator: x_Ken Testing Site: Fully Anechoic Room (FAR); CETECOM Essen Wed 07/Jul/2010 10:18:27pff Spurious Emissions V7.2.5 Annex 1 to Test Report 2-20789055c/10, Page 8 of 54 2_20789055c_10_A1.doc 8.156 Radiated Spurious Emission Transducer: c:\vee_user\spuri_V7\FCC_Part_22.917_(GSM_850)\TD_TX_V Sweepnr: Sweep1 Pol. of Antenna: vertikal EUT Position: EUT_vertical+horizontal EUT OP Mode: FCC_Part_22.917_(GSM_850) TCH EUT Description: URG-BRA-002 EUT add. Info: EUT Hardware: 05 EUT Software: 1205 EUT Config: EUT S/N: 357023007187264 Battery: AC/DC Charger; Maximum Voltage; 4.2 VDC Remark: Channel 251 Operator: x_Ken Testing Site: Fully Anechoic Room (FAR); CETECOM Essen Wed 07/Jul/2010 10:22:23fpf Spurious Emissions V7.2.5 Annex 1 to Test Report 2-20789055c/10, Page 9 of 54 2_20789055c_10_A1.doc 8.157 Radiated Spurious Emission Transducer: c:\vee_user\spuri_V7\FCC_Part_22.917_(GSM_850)\TD_TX_H Sweepnr: Sweep2 Pol. of Antenna: horizontal EUT Position: EUT_vertical+horizontal EUT OP Mode: FCC_Part_22.917_(GSM_850) TCH EUT Description: URG-BRA-002 EUT ad…

Text truncated - open the document above for the full version.
