YMC-TS2009Tire Pressure Monitoring System [Voice]

Installation and Operation Manual 操作說明書 1 TABLE OF CONTENTS目錄 1. AVE胎壓偵測系統 (TPMS) .................................................... 2 2. 注意事項 .............................................................................. 2 3. 可預防的事項 ..................................................................... 3 4. 規格 .............................................................................. 3 5. 零件 .............................................................................. 4 6. 系統裝配步驟 ..................................................................... 5 7. 輪胎感測發射器設置 ............................................................ 6 8. 顯示器介紹 ..................................................................... 7 9. AVE TPMS操作 ............................................................ 10 操作方法 ..................................................................... 10 功能模式 ..................................................................... 10 單位模式Unit mode ......................................................... 11 胎壓設定方法 ................................................................... 12 輪胎設定方法 (換胎或感測發射器互換位置時) ......................... 16 Tire Rotation or Sensor Replacement) ...... 16 10. 警報反應Reacting to Alerts ................................................... 18 11. AVE胎壓監測系統選購配件AVE TPMS Optional Accessories......... 22 12. 保固Warranty ..................................................................... 23 13. 附錄Appendixes ......................................................... 24 2 AVE胎壓監測系統(AVE TPMS) AVE Tire Pressure Monitoring System, AVE TPMS 謝謝您購買Tire Pressure Monitoring System [Voice]。Tire Pressure Monitoring System [Voice]是為了提供您在駕駛時有多一層的保護而設計。他會提前警示車子 輪胎狀況。安裝後，可以即時監控輪胎的壓力及溫度。若偵測到不正常的胎壓及溫 度時，會立刻送出警示聲及閃燈告知駕駛者。即時的處理問題旣可避免交通意外的 發生亦可確保駕駛及乘客的安全。 Thank you for purchasing Tire Pressure Monitoring System [Voice]. Tire Pressure Monitoring System [Voice] was design to ensure extra protection to you when driving. Our TPMS serves as an early warning system for your vehicle. Once installed, Tire Pressure Monitoring System [Voice] will monitor your vehicle tires pressure and temperature in real time. If it detected any irregularities with the tires’ pressure and temperature, it will send out signal to notify the driver. Prompt actions needs to be taken to avoid accidents and ensure safety to the driver and his passenger. 注意事項Notice FCC注意事項FCC Notice 此裝置已經遵守美國FCC法規第15條標準要求。操作使用時仍需注意下列注意事 項。 • 該產品可能因為其他的干擾而導致系統無法動作。 • 該系統不正常的操作可能進而導致系統失效。 此設備已經經過測試並遵守數位Class B的限制，根據FCC第15條規定，這些規 定是設計提供合理的保護以防止干擾訊號。這種設備將會產生無線射頻訊號，如果 未依照安裝及正確使用會導致產生一些訊號源干擾無線通訊。然而，縱使正確安裝 也無法完全確保外界不會有干擾源產生。 如果該產品會干擾到收音機或無線電視的收訊時，可以由使用者自行決定是否關閉 該產品。使用者也可以自行調整正確頻率解決問題，可能方法如下: • 重新調整天線 3 • 增加設備與該系統的距離 • 變更接收器的位置與連接方式 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received, including interference that may cause undesired operations. This equipment has been tested and found to comply with the limits for Class B device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference. This equipment generates, uses, and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio and television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the factoring measures. • Reorient or relocate the receiving antenna • Increase the separation between the equipment an receiver • Connect the equipment into outlet on a circuit different from that to which the receiver is connected 警告Caution 任何的自行修改或變更系統本體將無法保障操作者的權益。必須遵從FCC RF列出 的規定,此設備的天線不能和其它的天線或發射器設置在相同的地方或連接。 Any changes or modifications in construction of this device which are not expressly approved by the manufacturer could void the user’s authority to operate the equipment. To comply with the FCC RF exposure compliance requirements, this device and its antenna must not be co-located or operating to conjunction with any other antenna or transmitter. 4 預防Precaution • 胎壓偵測系統是為了偵測輪胎的狀態，及當不正常的情況發生時可以及時警 示駕駛者而設計 TPMS system is designed to monitor tires condition and alert the user if there is any irregularities are detected. It is the user’s responsibilities to react promptly and discretion to alerts. • 補胎時所使用化學接著劑或是輪胎不正常充氣，可能會造成感測器功能的損 害 Use of chemical sealants for temporary resealing or re-inflation in tire assembly may affect or even damage the sensors function. • 為了您切身的安全，請在安裝前閱讀此一說明書 For your own safety， please read manual before proceeding to installation and setup. • 請專業人士安裝,不可自行安裝 Please seek qualified personnel for proper tire sensors installation. • TPMS胎壓偵測系統安裝後，仍需要準備備胎 Balancing tire is necessary after TPMS is installed. • 請使用所提供的汽車點煙器電源線 Use only power cord cigarette adapter supplied by AVE Technology. • 請勿將所提供的USB接線使用在其它的USB上， 會損害你的USB裝置， 它不是一般市售的USB線，並不相容於其它USB裝置 Do not attempt to use AVE Technology power cord into other USB device. It is NOT USB compatible and may damage your USB device. • 若使用者自行使用USB線在非TPMS上而造成任何損害時，則無法提供保 固 AVE TECHNOLOGY shall not be held responsible for the damage cause on the USB device due to this incompatibility and also from user’s action. • 當拔出電源線時，請不要拉扯電線，它會造成電線損壞 When unplug the power cord, do not pull from the cord. It may damage the cord. • 若電源線於保固期間損壞時請聯絡當地的販賣商 Contact your dealer for new power cord or exchange (if under warranty) if the power cord is damaged. • 請勿自行拆解或修理此一產品 Never try to disassemble or repair the product by yourself. 5 AVE TPMS規格 Specifications of AVE TPMS 感測器與發射器規格 Sensors and transmitter specification • 電池壽命 在正常使用下可使用8年 Battery life Estimated 8 years (normal operating …

Text truncated - open the document above for the full version.

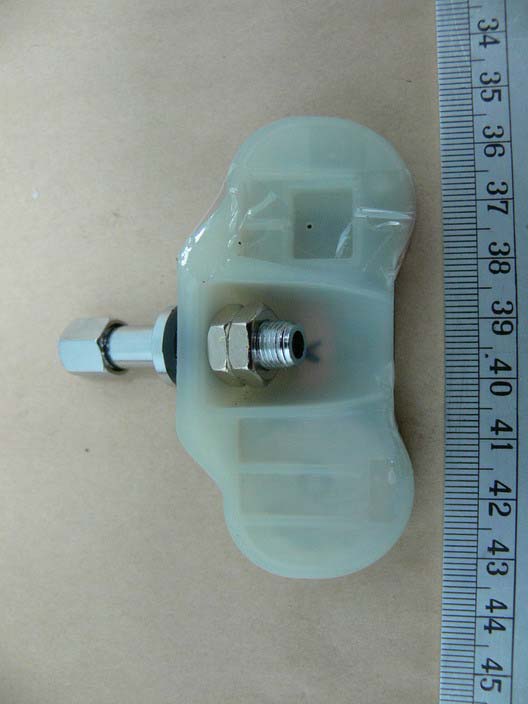

Registration number: W6D21006-10736-C-1 FCC ID: YMC-TS2009 Worldwide Testing Services (Taiwan) Co., Ltd. Appendix page 9 of 16 Pictures External Photos Transmitter and receiver Registration number: W6D21006-10736-C-1 FCC ID: YMC-TS2009 Worldwide Testing Services (Taiwan) Co., Ltd. Appendix page 10 of 16 Transmitter part Registration number: W6D21006-10736-C-1 FCC ID: YMC-TS2009 Worldwide Testing Services (Taiwan) Co., Ltd. Appendix page 11 of 16 Registration number: W6D21006-10736-C-1 FCC ID: YMC-TS2009 Worldwide Testing Services (Taiwan) Co., Ltd. Appendix page 12 of 16

FCC 標籤範例 Model no.: TS-2009 FCC ID: YMC-TS2009

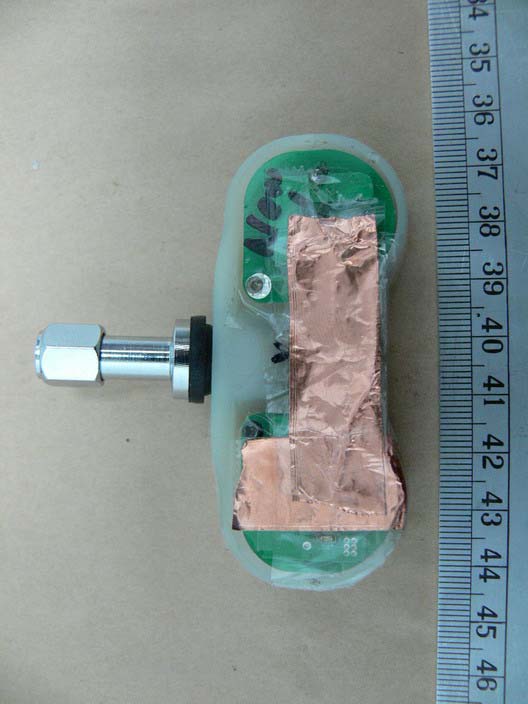

Registration number: W6D21006-10736-C-1 FCC ID: YMC-TS2009 Worldwide Testing Services (Taiwan) Co., Ltd. Appendix page 13 of 16 Internal Photos Registration number: W6D21006-10736-C-1 FCC ID: YMC-TS2009 Worldwide Testing Services (Taiwan) Co., Ltd. Appendix page 14 of 16 Registration number: W6D21006-10736-C-1 FCC ID: YMC-TS2009 Worldwide Testing Services (Taiwan) Co., Ltd. Appendix page 15 of 16

of Applicant: Mictech Security Co., Ltd. Address: No. 47, Chong-Ching Road, Zuo-Ying District, Kaohsiung, Taiwan 81363, R.O.C. Tested and Prepared by Worldwide Testing Services (Taiwan) Co., Ltd. FCC Registration No.: 930600 Industry Canada filed test laboratory Reg. No. IC 5679A-1 A2LA Accredited No.: 2732.01 Report No.: W6D21006-10736-C-1 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU TAIPEI 114, TAIWAN, R.O.C. TEL: 886-2-66068877 FAX: 886-2-66068879 E-mail: [email protected] FCC PART 15 SUBPART C TEST REPORT for Tire Pressure Monitoring System [Voice] Model No.: TS-2009 FCC ID: YMC-TS2009 Registration number: W6D21006-10736-C-1 FCC ID: YMC-TS2009 Worldwide Testing Services (Taiwan) Co., Ltd. Page 1 of 21 TABLE OF CONTENTS 1 G ENERAL INFORMATION 2 1.1 NOTES 2 1.2 TESTING LABORATORY 3 1.2.1 Location 3 1.2.2 Details of accreditation status 3 1.3 D ETAILS OF APPROVAL HOLDER 3 1.4 A PPLICATION DETAILS 4 1.5 T EST ITEM 4 1.6 TEST STANDARDS 5 2 T ECHNICAL TEST 5 2.1 S UMMARY OF TEST RESULTS 5 2.2 T EST ENVIRONMENT 5 2.3 T EST MODE 5 2.4 T EST EQUIPMENT UTILIZED 6 2.5 GENERAL TEST PROCEDURE 8 3 T EST RESULTS (ENCLOSURE) 9 3.1 TRANSMISSION REQUIREMENTS 10 3.1.1 Limit of Transmission Time 10 3.1.2 Active Time 10 3.2 O UTPUT POWER (FIELD STRENGTH) 11 3.3 O UT OF BAND RADIATED EMISSIONS 12 3.4 T RANSMITTER RADIATED EMISSIONS IN RESTRICTED BANDS 13 3.5 S PURIOUS EMISSION RADIATED, TRANSMITTER 14 3.6 C HANNEL BANDWIDTH 16 3.7 A NTENNA REQUIREMENT 17 3.8 D UTY CYCLE 18 3.9 C ONDUCTED MEASUREMENT AT (AC) POWER LINE 19 3.10 E QUPMENT MODIFICTION 20 Registration number: W6D21006-10736-C-1 FCC ID: YMC-TS2009 Worldwide Testing Services (Taiwan) Co., Ltd. Page 2 of 21 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the Worldwide Testing Services (Taiwan) Co., Ltd. Tester: July 5, 2010 Danny Sung Date WTS-Lab. Name Signature Technical responsibility for area of testing: July 5, 2010 Chang Tse-Ming Date WTS Name Signature Registration number: W6D21006-10736-C-1 FCC ID: YMC-TS2009 Worldwide Testing Services (Taiwan) Co., Ltd. Page 3 of 21 1.2 Testing laboratory 1.2.1 Location OATS No.5-1, Shuang Sing Village, LiShuei Rd., Wanli Township, Taipei County 207, Taiwan (R.O.C.) Company Worldwide Testing Services(Taiwan) Co., Ltd. 6F, NO. 58, LANE 188, RUEY-KUANG RD. NEIHU, TAIPEI 114, TAIWAN R.O.C. Tel : 886-2-66068877 Fax : 886-2-66068875 1.2.2 Details of accreditation status Accredited testing laboratory A2LA accredited number: 2732.01 FCC filed test laboratory Reg. No. 930600 Industry Canada filed test laboratory Reg. No. IC 5679A-1 1.3 Details of approval holder Name: Mictech Security Co., Ltd. Street: No. 47, Chong-Ching Road, Zuo-Ying District, Town: Kaohsiung, Country: Taiwan 81363, R.O.C. Telephone: +886-7-345699 Fax: +886-7-345987 Registration number: W6D21006-10736-C-1 FCC ID: YMC-TS2009 Worldwide Testing Services (Taiwan) Co., Ltd. Page 4 of 21 1.4 Application details Date of receipt of test item: July 2, 2010 Date of test from July 2, 2010 to July 5, 2010 1.5 Test item Description of test item: Tire Pressure Monitoring System [Voice] Type identification: TS-2009 Brand name: CruiseTyre Multi-listing model number: ./. Transmitting frequency: 433.92 MHz Operation mode: simplex Voltage supply: Battery 3.6V (The device is tested under fresh battery condition.) Highest clock frequency: 433.92 MHz Antenna type: PCB antenna Photos: see Annex Manufacturer (if applicable) Name: ./. Street: ./. Town: ./. Country: ./. Additional information: ./. Registration number: W6D21006-10736-C-1 FCC ID: YMC-TS2009 Worldwide Testing Services (Taiwan) Co., Ltd. Page 5 of 21 1.6 Test standards Technical standard : FCC RULES PART 15 SUBPART C § 15.231 (e) (2010-9) 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course : of the tests performed. or The deviations as specified in 3 were ascertained in the course of the tests … performed. 2.2 Test environment Temperature: 23 o C Relative humidity content: 20 ... 75 % Air pressure: 86 ... 103 kPa Details of power supply: Battery 3.6V Note: This test report contains only transmitter part. The test result and relevant diagrams of receiver part are listed in the test report number W6D21006-10736-P-15B. 2.3 Test Mode This EUT is the portable device. So the EUT was tested on three different axes. Please see assessment test results as section 3 of this test report. Registration number: W6D21006-10736-C-1 FCC ID: YMC-TS2009 Worldwide Testing Services (Taiwan) Co., Ltd. Page 6 of 21 2.4 Test equipment utilized No. Test equipment Type Serial No. Manufacturer Cal. Date Next Cal. Date ETSTW-CE 001 EMI TEST RECEIVER ESHS10 842121/013 R&S 2009/9/10 2010/9/9 ETSTW-CE 004 ZWEILEITER-V- NETZNACHBILDUNG TWO- LINE V-NETWORK ESH3-Z5 840731/011 R&S 2010/3/2 2011/3/1 ETSTW-CE 005 Line-Impedance Stabilisation Network NNBM 8126D 137 Schwarzbeck 2009/9/9 2010/9/8 ETSTW-CE 006 IMPULSBEGRENZER PULSE LIMITER ESH3-Z2 100226 R&S 2010/5/8 2011/5/7 ETSTW-CE 007 SPECTRUM ANALYZER 5G…

Text truncated - open the document above for the full version.

Registration number: W6D21006-10736-C-1 FCC ID: YMC-TS2009 Worldwide Testing Services (Taiwan) Co., Ltd. Appendix page 16 of 16 Set Up Photos
