YMREZONE-BGSM850/1900 Mobile Phone

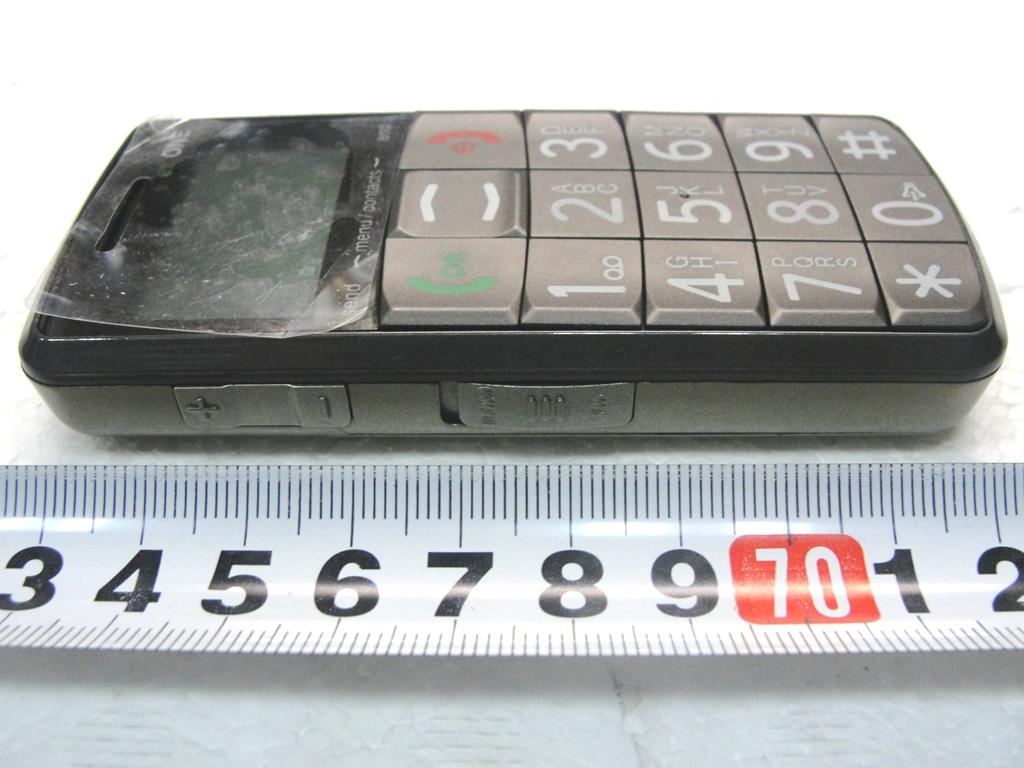

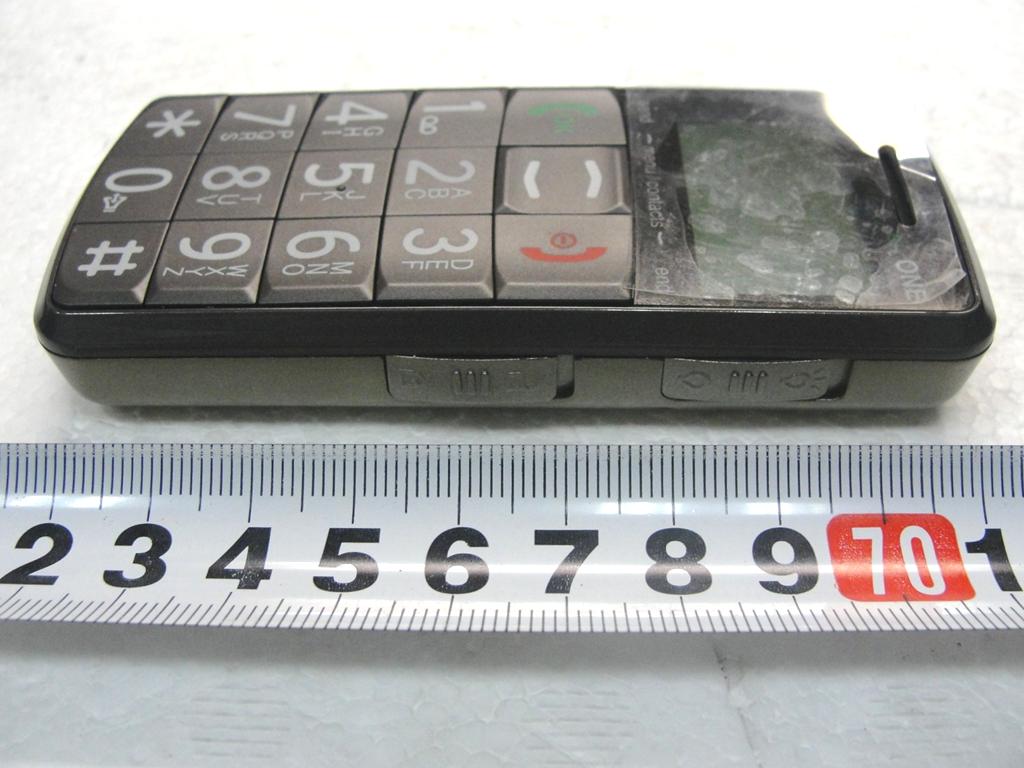

Photographs of EUT Report No.: EP070913-01 Brand Name: Snapfon / Model Name: ez ONE-B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 34 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 17, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YMREZONE-B 1. External Photograph of EUT Sample A Photographs of EUT Report No.: EP070913-01 Brand Name: Snapfon / Model Name: ez ONE-B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 34 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 17, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YMREZONE-B Photographs of EUT Report No.: EP070913-01 Brand Name: Snapfon / Model Name: ez ONE-B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 3 of 34 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 17, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YMREZONE-B Photographs of EUT Report No.: EP070913-01 Brand Name: Snapfon / Model Name: ez ONE-B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 4 of 34 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 17, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YMREZONE-B Photographs of EUT Report No.: EP070913-01 Brand Name: Snapfon / Model Name: ez ONE-B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 5 of 34 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 17, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YMREZONE-B Photographs of EUT Report No.: EP070913-01 Brand Name: Snapfon / Model Name: ez ONE-B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 6 of 34 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 17, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YMREZONE-B Photographs of EUT Report No.: EP070913-01 Brand Name: Snapfon / Model Name: ez ONE-B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 7 of 34 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 17, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YMREZONE-B Sample B Photographs of EUT Report No.: EP070913-01 Brand Name: Snapfon / Model Name: ez ONE-B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 8 of 34 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 17, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YMREZONE-B Photographs of EUT Report No.: EP070913-01 Brand Name: Snapfon / Model Name: ez ONE-B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 9 of 34 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 17, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YMREZONE-B Photographs of EUT Report No.: EP070913-01 Brand Name: Snapfon / Model Name: ez ONE-B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 10 of 34 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 17, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YMREZONE-B Photographs of EUT Report No.: EP070913-01 Brand Name: Snapfon / Model Name: ez ONE-B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 11 of 34 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 17, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YMREZONE-B Photographs of EUT Report No.: EP070913-01 Brand Name: Snapfon / Model Name: ez ONE-B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 12 of 34 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 17, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YMREZONE-B 720510 Photographs of EUT Report No.: EP070913-01 Brand Name: Snapfon / Model Name: ez ONE-B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 13 of 34 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 17, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YMREZONE-B List of Accessory: Specification of Accessory AC Adapter 1 Model Name A1000-50500 Power Rating I/P:100-240Vac, 50/60Hz, 0.3A; O/P: 5.0Vdc, 500mA DC Power Cord Type 1.3 meter non-shielded cable without ferrite core AC Adapter 2 Brand Name Snapfon Model Name A1000-50500 Power Rating I/P:100-240Vac, 50/60Hz, 0.3A; O/P: 5.0Vdc, 500mA DC Power Cord Type 1.3 meter non-shielded cable without ferrite core Battery 1 Model Name V1 Power Rating 3.7Vdc, 1000mAh Type Li-ion Battery 2 Brand Name Snapfon Model Name V1 Power Rating 3.7Vdc, 1000mAh Type Li-ion Earphone Signal Line Type 1.2 meter non-shielded cable without ferrite core Remark: 1. For accessories equipped with this EUT, please refer to the following photos. 2. Adapter 1 and Adapter 2 are identical in structure, only the difference between them is label. 3. Battery 1 and Battery 2 are identical in structure, only the difference between them is label. 2. Photograph of Accessory Photographs of EUT Report No.: EP070913-01 Brand Name: Snapfon / Model Name: ez ONE-B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 14 of 34 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 17, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YMREZONE-B Photographs of EUT Report No.: EP070913-01 Brand Name: Snapfon / Model Name: ez ONE-B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 15 of 34 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 17, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YMREZONE-B Photographs of EUT Report No.: EP070913-01 Brand Name: Snapfon / Model Name: ez ONE-B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 16 of 34 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 17, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YMREZONE-B Adapter 1 Photographs of EUT Report No.: EP070913-01 Brand Name: Snapfon / Model Name: ez ONE-B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 17 of 34 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 17, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YMREZONE-B Adapter 2 Photographs of EUT Report No.: EP070913-01 Brand Name: Snapfon / Model Name: ez ONE-B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 18 of 34 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 17, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YMREZONE-B Photographs of EUT Report No.: EP070913-01 Brand Name: Snapfon /…

Text truncated - open the document above for the full version.

Label Location Label Here

Photographs of EUT Report No.: EP070913-01 Brand Name: Snapfon / Model Name: ez ONE-B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 25 of 34 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 17, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YMREZONE-B 3. Internal Photograph of EUT Photographs of EUT Report No.: EP070913-01 Brand Name: Snapfon / Model Name: ez ONE-B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 26 of 34 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 17, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YMREZONE-B Photographs of EUT Report No.: EP070913-01 Brand Name: Snapfon / Model Name: ez ONE-B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 27 of 34 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 17, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YMREZONE-B Photographs of EUT Report No.: EP070913-01 Brand Name: Snapfon / Model Name: ez ONE-B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 28 of 34 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 17, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YMREZONE-B Photographs of EUT Report No.: EP070913-01 Brand Name: Snapfon / Model Name: ez ONE-B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 29 of 34 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 17, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YMREZONE-B Photographs of EUT Report No.: EP070913-01 Brand Name: Snapfon / Model Name: ez ONE-B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 30 of 34 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 17, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YMREZONE-B Photographs of EUT Report No.: EP070913-01 Brand Name: Snapfon / Model Name: ez ONE-B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 31 of 34 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 17, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YMREZONE-B Photographs of EUT Report No.: EP070913-01 Brand Name: Snapfon / Model Name: ez ONE-B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 32 of 34 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 17, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YMREZONE-B Photographs of EUT Report No.: EP070913-01 Brand Name: Snapfon / Model Name: ez ONE-B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 33 of 34 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 17, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YMREZONE-B Photographs of EUT Report No.: EP070913-01 Brand Name: Snapfon / Model Name: ez ONE-B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 34 of 34 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 17, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YMREZONE-B 720510 WWAN Antenna (Tx / Rx)

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 17, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YMREZONE-B FCC SAR Test Report Report No. : FA070913-01 FCC SAR Test Report APPLICANT : VisiKey LLC (dba Snapfon) EQUIPMENT : GSM850/1900 Mobile Phone BRAND NAME : Snapfon MODEL NAME : ez ONE-B FCC ID : YMREZONE-B STANDARD : FCC 47 CFR Part 2 (2.1093) IEEE C95.1-1999 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was received on Jul. 09, 2010 and completely tested on Jul. 13, 2010. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL (KUNSHAN) INC., the test report shall not be reproduced except in full. Reviewed by: Roy Wu / Manager SPORTON INTERNATIONAL (KUNSHAN) INC. No. 3-2, PingXiang Road, Kunshan, Jiangsu Province, P.R.C. SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 17, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YMREZONE-B FCC SAR Test Report Report No. : FA070913-01 Table of Contents Revision History ................................................................................................................................................................ 3 1. Statement of Compliance .......................................................................................................................................... 4 2. Administration Data ................................................................................................................................................... 5 2.1 Testing Laboratory ............................................................................................................................................ 5 2.2 Applicant ........................................................................................................................................................... 5 2.3 Manufacturer .................................................................................................................................................... 5 2.4 Application Details ............................................................................................................................................ 5 3. General Information ................................................................................................................................................... 6 3.1 Description of Device Under Test (DUT) ........................................................................................................... 6 3.2 Product Photos ................................................................................................................................................. 7 3.3 Applied Standards ............................................................................................................................................ 7 3.4 Device Category and SAR Limits ..................................................................................................................... 8 3.5 Test Conditions ................................................................................................................................................. 8 3.5.1 Ambient Condition .................................................................................................................................. 8 3.5.2 Test Configuration ................................................................................................................................... 8 4. Specific Absorption Rate (SAR) ................................................................................................................................ 9 4.1 Introduction ....................................................................................................................................................... 9 4.2 SAR Definition .................................................................................................................................................. 9 5. SAR Measurement System .......................................................................................................................................10 5.1 E-Field Probe................................................................................................................................................... 11 5.1.1 E-Field Probe Specification ................................................................................................................... 11 5.1.2 E-Field Probe Calibration .......................................................................................................................12 5.2 Data Acquisition Electronics (DAE) ..................................................................................................................12 5.3 Robot ...............................................................................................................................................................12 5.4 Measurement Server .......................................................................................................................................13 5.5 Phantom ..........................................................................................................................................................14 5.6 Device Holder ..................................................................................................................................................15 5.7 Data Storage and Evaluation ...........................................................................................................................16 5.7.1 Data Storage …

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/07/12 System Check_Head_835MHz_100712 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_850_100712 Medium parameters used: f = 835 MHz; σ = 0.897 mho/m; ε r = 40.8; ρ = 1000 kg/m 3 Ambient Temperature : 23.7 °C; Liquid Temperature : 21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.32, 8.32, 8.32); Calibrated: 2009/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2009/11/16 - Phantom: SAM2; Type: SAM; Serial: TP-1479 - Measurement SW : DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Pin=100mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.974 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 33 V/m; Power Drift = -0.00527 dB Peak SAR (extrapolated) = 1.36 W/kg SAR(1 g) = 0.902 mW/g; SAR(10 g) = 0.589 mW/g Maximum value of SAR (measured) = 0.969 mW/ g 0 dB = 0.969mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/07/12 System Check_Body_835MHz_100712 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_850_100712 Medium parameters used: f = 835 MHz; σ = 0.994 mho/m; ε r = 55.6; ρ = 1000 kg/m 3 Ambient Temperature : 23.7 °C; Liquid Temperature : 21.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.22, 8.22, 8.22); Calibrated: 2009/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2009/11/16 - Phantom: SAM1; Type: SAM; Serial: TP-1477 - Measurement SW : DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Pin=100mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.07 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 32.3 V/m; Power Drift = -0.0102 dB Peak SAR (extrapolated) = 1.47 W/kg SAR(1 g) = 0.989 mW/g; SAR(10 g) = 0.653 mW/g Maximum value of SAR (measured) = 1.07 mW/ g 0 dB = 1.07mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/07/13 System Check_Head_1900MHz_100713 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL_1900_100713 Medium parameters used: f = 1900 MHz; σ = 1.44 mho/m; ε r = 39.9; ρ = 1000 kg/m 3 Ambient Temperature : 23.6 °C; Liquid Temperature : 21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(7.32, 7.32, 7.32); Calibrated: 2009/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2009/11/16 - Phantom: SAM2; Type: SAM; Serial: TP-1479 - Measurement SW : DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Pin=100mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 4.66 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 55.5 V/m; Power Drift = 0.0034 dB Peak SAR (extrapolated) = 7.61 W/kg SAR(1 g) = 3.99 mW/g; SAR(10 g) = 2.06 mW/g Maximum value of SAR (measured) = 4.46 mW/ g 0 dB = 4.46mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/07/13 System Check_Body_1900MHz_100713 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: MSL_1900_100713 Medium parameters used: f = 1900 MHz; σ = 1.53 mho/m; ε r = 54.5; ρ = 1000 kg/m 3 Ambient Temperature : 23.7 °C; Liquid Temperature : 21.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(7.04, 7.04, 7.04); Calibrated: 2009/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2009/11/16 - Phantom: SAM1; Type: SAM; Serial: TP-1477 - Measurement SW : DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Pin=100mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 4.69 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 54.7 V/m; Power Drift = -0.00141 dB Peak SAR (extrapolated) = 7.71 W/kg SAR(1 g) = 4.11 mW/g; SAR(10 g) = 2.11 mW/g Maximum value of SAR (measured) = 4.66 mW/ g 0 dB = 4.66mW/g

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/07/12 #10 GSM850_Right Cheek_Ch251 DUT: 070501 Communication System: Generic GSM; Frequency: 848.6 MHz;Duty Cycle: 1:8.3 Medium: HSL_850_100712 Medium parameters used: f = 848.6 MHz; σ = 0.908 mho/m; ε r = 40.6; ρ = 1000 kg/m 3 Ambient Temperature : 23.7 °C; Liquid Temperature : 21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.32, 8.32, 8.32); Calibrated: 2009/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2009/11/16 - Phantom: SAM2; Type: SAM; Serial: TP-1479 - Measurement SW : DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch251/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.02 mW/g Ch251/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 24.4 V/m; Power Drift = -0.033 dB Peak SAR (extrapolated) = 1.55 W/kg SAR(1 g) = 0.954 mW/g; SAR(10 g) = 0.626 mW/g Maximum value of SAR (measured) = 1.01 mW/g 0 dB = 1.01mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/07/12 #10 GSM850_Right Cheek_Ch251_2D DUT: 070501 Communication System: Generic GSM; Frequency: 848.6 MHz;Duty Cycle: 1:8.3 Medium: HSL_850_100712 Medium parameters used: f = 848.6 MHz; σ = 0.908 mho/m; ε r = 40.6; ρ = 1000 kg/m 3 Ambient Temperature : 23.7 °C; Liquid Temperature : 21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.32, 8.32, 8.32); Calibrated: 2009/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2009/11/16 - Phantom: SAM2; Type: SAM; Serial: TP-1479 - Measurement SW : DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch251/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.02 mW/g Ch251/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 24.4 V/m; Power Drift = -0.033 dB Peak SAR (extrapolated) = 1.55 W/kg SAR(1 g) = 0.954 mW/g; SAR(10 g) = 0.626 mW/g Maximum value of SAR (measured) = 1.01 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/07/12 #06 GSM850_Right Tilted_Ch189 DUT: 070501 Communication System: Generic GSM; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium: HSL_850_100712 Medium parameters used: f = 836.6 MHz; σ = 0.898 mho/m; ε r = 40.8; ρ = 1000 kg/m 3 Ambient Temperature : 23.7 °C; Liquid Temperature : 21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.32, 8.32, 8.32); Calibrated: 2009/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2009/11/16 - Phantom: SAM2; Type: SAM; Serial: TP-1479 - Measurement SW : DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch189/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.658 mW/g Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 21.1 V/m; Power Drift = -0.101 dB Peak SAR (extrapolated) = 1.01 W/kg SAR(1 g) = 0.615 mW/g; SAR(10 g) = 0.398 mW/g Maximum value of SAR (measured) = 0.672 mW/g 0 dB = 0.672mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/07/12 #07 GSM850_Left Cheek_Ch189 DUT: 070501 Communication System: Generic GSM; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium: HSL_850_100712 Medium parameters used: f = 836.6 MHz; σ = 0.898 mho/m; ε r = 40.8; ρ = 1000 kg/m 3 Ambient Temperature : 23.7 °C; Liquid Temperature : 21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.32, 8.32, 8.32); Calibrated: 2009/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2009/11/16 - Phantom: SAM2; Type: SAM; Serial: TP-1479 - Measurement SW : DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch189/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.815 mW/g Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 22 V/m; Power Drift = 0.075 dB Peak SAR (extrapolated) = 1.08 W/kg SAR(1 g) = 0.745 mW/g; SAR(10 g) = 0.504 mW/g Maximum value of SAR (measured) = 0.793 mW/g 0 dB = 0.793mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/07/12 #08 GSM850_Left Tilted_Ch189 DUT: 070501 Communication System: Generic GSM; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium: HSL_850_100712 Medium parameters used: f = 836.6 MHz; σ = 0.898 mho/m; ε r = 40.8; ρ = 1000 kg/m 3 Ambient Temperature : 23.7 °C; Liquid Temperature : 21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.32, 8.32, 8.32); Calibrated: 2009/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2009/11/16 - Phantom: SAM2; Type: SAM; Serial: TP-1479 - Measurement SW : DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch189/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.525 mW/g Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 19.9 V/m; Power Drift = -0.061 dB Peak SAR (extrapolated) = 0.657 W/kg SAR(1 g) = 0.470 mW/g; SAR(10 g) = 0.318 mW/g Maximum value of SAR (measured) = 0.500 mW/g 0 dB = 0.500mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/07/13 #15 GSM1900_Right Cheek_Ch512 DUT: 070501 Communication System: Generic GSM; Frequency: 1850.2 MHz;Duty Cycle: 1:8.3 Medium: HSL_1900_100713 Medium parameters used: f = 1850.2 MHz; σ = 1.39 mho/m; ε r = 40.1; ρ = 1000 kg/m 3 Ambient Temperature : 23.6 °C; Liquid Temperature : 21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(7.32, 7.32, 7.32); Calibrated: 2009/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2009/11/16 - Phantom: SAM2; Type: SAM; Serial: TP-1479 - Measurement SW : DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch512/Area Scan (51x91x1): Measurement grid:…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY

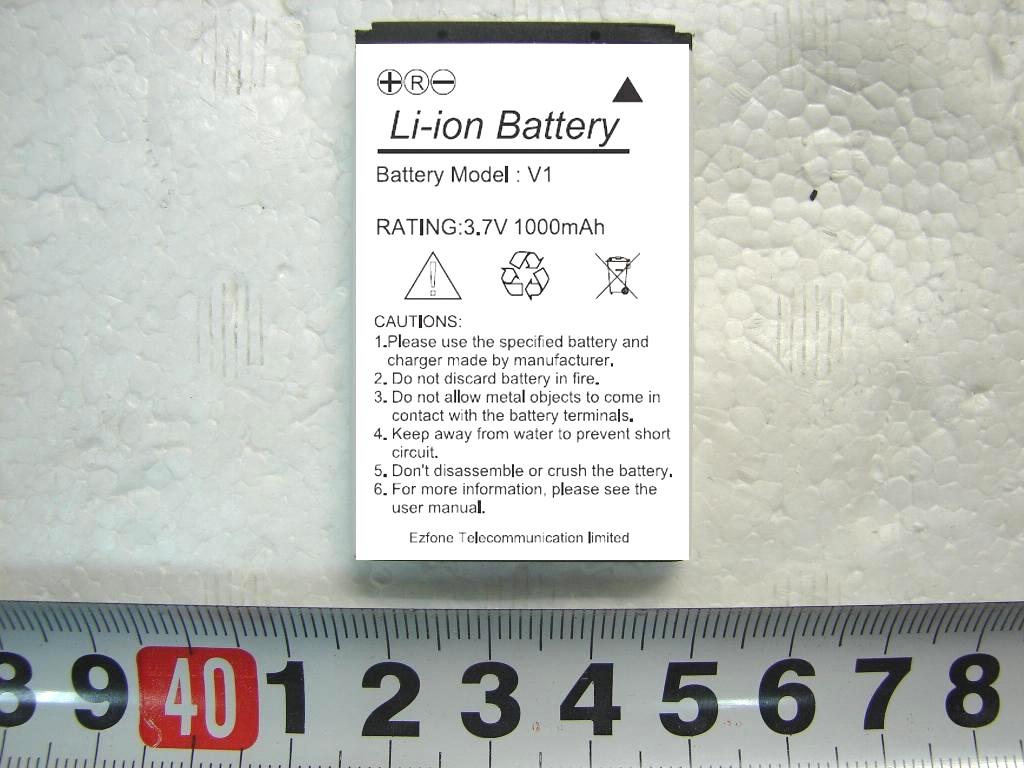

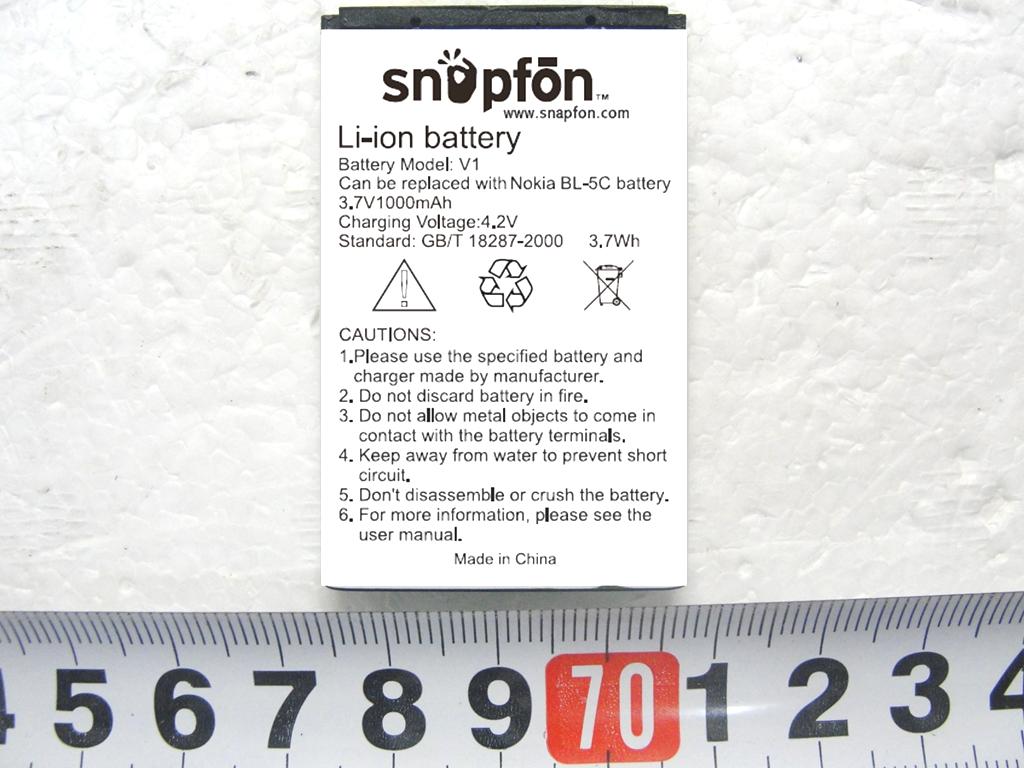

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : D1 of D1 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 17, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YMREZONE-B FCC SAR Test Report Report No. : FA070913-01 Appendix D. Product Photos Sample A Sample B SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : D2 of D2 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 17, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YMREZONE-B FCC SAR Test Report Report No. : FA070913-01 Battery 1 Battery 2 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : E1 of E1 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 17, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YMREZONE-B FCC SAR Test Report Report No. : FA070913-01 Appendix E. Test Setup Photos Right Cheek Right Tilted Left Cheek Left Tilted Face of the DUT with Phantom 1.5 cm Gap Bottom of the DUT with Phantom 1.5 cm Gap

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 36 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 17, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YMREZONE-B FCC RF Test Report Report No. : FG070913-01 FCC RF Test Report APPLICANT : VisiKey LLC (dba Snapfon) EQUIPMENT : GSM850/1900 Mobile Phone BRAND NAME : Snapfon MODEL NAME : ez ONE-B FCC ID : YMREZONE-B STANDARD : FCC 47 CFR Part 2, 22(H), 24(E) CLASSIFICATION : PCS Licensed Transmitter Held to Ear (PCE) Tx/Rx FREQUENCY RANGE : GSM850 : 824.2 ~ 848.8 MHz / 869.2 ~ 893.8 MHz GSM1900 : 1850.2 ~ 1909.8 MHz / 1930.2 ~ 1989.8 MHz MAX. ERP/EIRP POWER : GSM850 (GSM) : 0.52 W GSM1900 (GSM) : 0.44 W EMISSION DESIGNATOR : 244KGXW The product was received on Jul. 09, 2010 and completely tested on Jul. 26, 2010. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI / TIA / EIA-603-C-2004 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL (KUNSHAN) INC., the test report shall not be reproduced except in full. Reviewed by: Anderson Chiu / Vice Manager SPORTON INTERNATIONAL (KUNSHAN) INC. No. 3-2, PingXiang Road, Kunshan, Jiangsu Province, P.R.C. SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 36 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 17, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YMREZONE-B FCC RF Test Report Report No. : FG070913-01 TABLE OF CONTENTS REVISION HISTORY .......................................................................................................................................... 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .........................................................…

Text truncated - open the document above for the full version.
