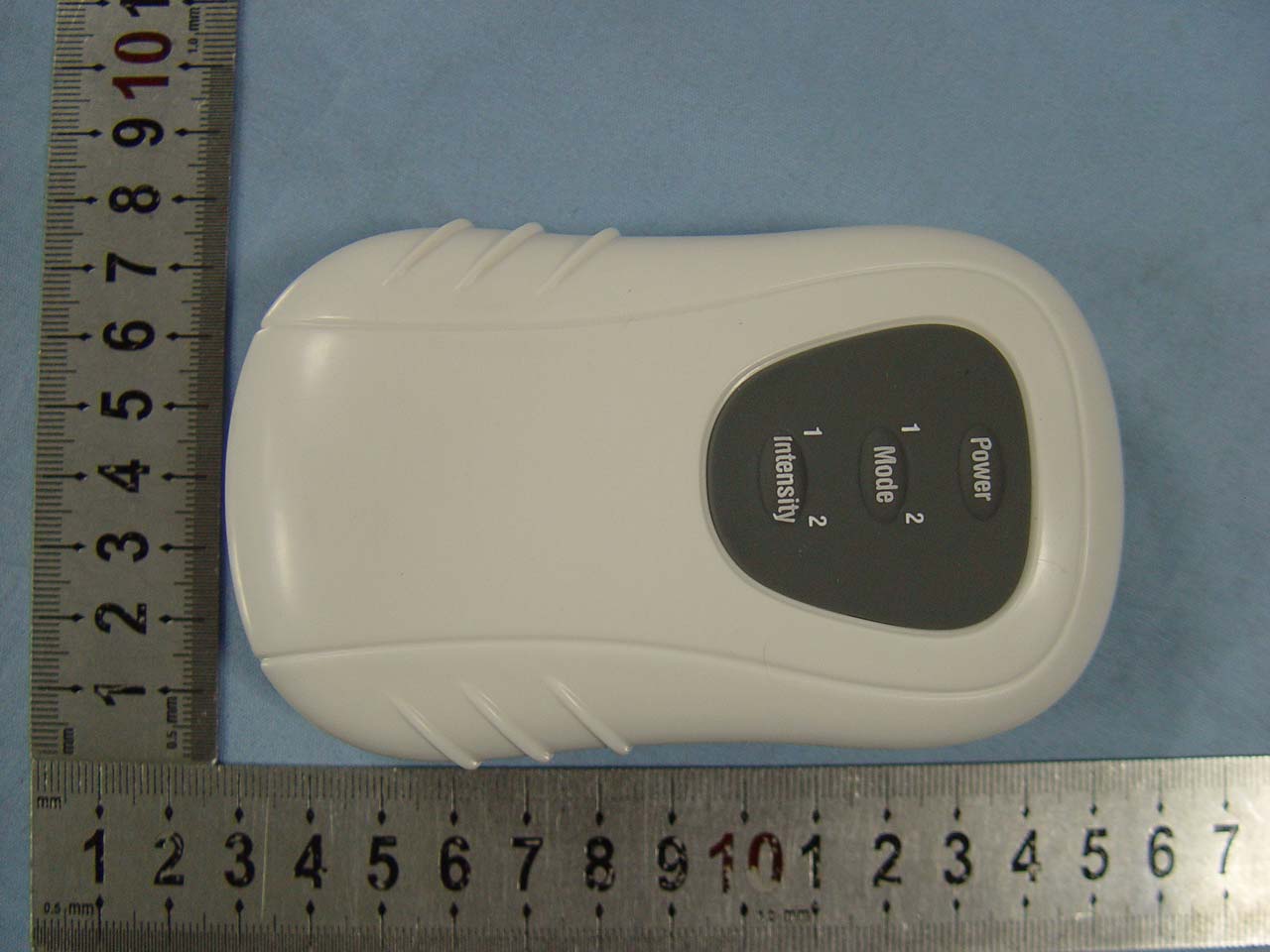

YMX-AB225Soft Spa Massaging Bath Pillow Remote Control

Operation Introduction The Operation Introduction of soft bath massage pillow with wireless remote control: 1.3AAA batteries for hand control, and 4AAA batteries for motor in the bath pillow; 2.The direction to replace the 4AAA batteries in the pillow: Open the battery box according to the direction printed on the cover. After the batteries are replaced, tighten and close the battery box well,to keep it waterproof well. Introductions for use 1. Press the switch of the battery box first. When you hear longer sound, the battery power is on. 2. Then press the power button on the hand control , you will hear short sound . The motor will begin to work,and provide vibration massaging; 3. Mode button: 2 modes for choice “waving” or “ normal” 4. Intensity button: 2 speeds for choice 5. Press the power button on the hand control again, The vibration massaging is stopped; When you won’t use the bath pillow, please press the switch on the battery box to off the power of batteries in the pillow. 6. If the power of the hand control is off ,and the power of the motor is on, you will hear long alarm after 1 minute, to remind you to off the power of the motor . If you don’t off the switch of the battery box, the pillow will come to be on battery-saving status in 1 minute.. 7. When the product is in battery-saving status, the hand control isn’t workable. When you use the massage bath pillow again, Please switch off the power of the battery box in the pillow first, and press the switch on the battery box again.The hand control is workable. 8. 15 minutes timer. When the product work continued in 15 minutes, the product will come into battery-saving status. FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.

Block Diagram

FCC Certification label Sample FCC ID: YMX-AB225 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired o peration.

FCC Certification Label Location Sample Label location

Antenna

Applicant: XIAMEN COMFORT SCIENCE & TECHNOLOGY GTOUP CO., LTD FCC ID: YMX-AB225 Operation Description 1. Battery: Supplied by 3 AAA batteries, Power for SCM and 433MHz carrier wave circuit. 2. Transmitter module of 433MHz carrier wave: The carrier wave generate oscillating from circuit and frequency selective network, is as the carrier of wave. 3. The Circuit of button: Provides the input port for the man-machine operation. 4. MCU: manage the keyboard input information and Data code. 5. The Modulation mode of Transmitter: ASK. 6. Antenna is formed by a copper loop.

1 2 34 ABCD 4 3 2 1 D CBA K2K3 123 J2FT R1 1K R2 1K R40 VCC R5 100 12 J14.5V K1 VCC VCC VCC C1 104 + E147UF/10V R3 1K L1220UH L2220UH C2104 P0.0/INT0 7 VSS 8 P1.0 6 P5.4/P/B 5 V/R/P1.1 4 VDD 1 XOUT/P1.2 3 XIN/P1.3 2 U1SN8P2501-8 POWER POWER INTENMODE MODE INTEN Transmitter Module BATTERY ANTENNA E-139 Title: Company: Designed By:Checked By:Approved By: Version: Sheet: of Draw No. zhangzhou comfort industry CO.LTD V1.0 11

Page 1 of 34 FCC ID: YMX-AB225 ACCURATE TECHNOLOGY CO., LTD REPORT NO. ATE20101530 APPLICATION CERTIFICATION On Behalf of XIAMEN COMFORT SCIENCE & TECHNOLOGY GROUP CO., LTD Soft Spa Massaging Bath Pillow Remote Control Model No.: AB225 FCC ID: YMX-AB225 Prepared for : XIAMEN COMFORT SCIENCE & TECHNOLOGY GROUP CO., LTD Address : 18# LONGSHAN SOUTH ROAD, XIAMEN, FUJIAN CHINA Prepared by : ACCURATE TECHNOLOGY CO., LTD Address : F1, Bldg. A, Changyuan New Material Port, Keyuan Rd. Science & Industry Park, Nanshan, Shenzhen, Guangdong P.R. China Tel: (0755) 26503290 Fax: (0755) 26503396 Report Number : ATE20101530 Date of Test : July 20, 2010 Date of Report : July 22, 2010 Page 2 of 34 FCC ID: YMX-AB225 ACCURATE TECHNOLOGY CO., LTD REPORT NO. ATE20101530 TABLE OF CONTENTS DescriptionPage Test Report Certification 1.GENERAL INFORMATION ..........................................................................................................4 1.1.Description of Device (EUT)....................................................................................................................4 1.2.Description of Test Facility ......................................................................................................................5 1.3.Measurement Uncertainty.........................................................................................................................5 2.MEASURING DEVICE AND TEST EQUIPMENT ..................................................................... 6 3.SUMMARY OF TEST RESULTS................................................................................................... 7 4.THE FIELD STRENGTH OF RADIATION EMISSION ............................................................ 8 4.1.Block Diagram of Test Setup....................................................................................................................8 4.2.The Field Strength of Radiation Emission Measurement Limits..............................................................9 4.3.Configuration of EUT on Measurement ...................................................................................................9 4.4.Operating Condition of EUT ....................................................................................................................9 4.5.Test Procedure ........................................................................................................................................10 4.6.The Field Strength of Radiation Emission Measurement Results ..........................................................11 5.20DB OCCUPIED BANDWIDTH ................................................................................................ 13 5.1.Block Diagram of Test Setup..................................................................................................................13 5.2.The Bandwidth of Emission Limit According To FCC Part 15 Section 15.231(c) ................................13 5.3.EUT Configuration on Measurement .....................................................................................................14 5.4.Operating Condition of EUT ..................................................................................................................14 5.5.Test Procedure ........................................................................................................................................14 5.6.Measurement Result ...............................................................................................................................15 6.RELEASE TIME MEASUREMENT............................................................................................ 16 6.1.Block Diagram of Test Setup..................................................................................................................16 6.2.Release Time Measurement According To FCC Part 15 Section 15.231(a) ..........................................16 6.3.EUT Configuration on Measurement .....................................................................................................17 6.4.Operating Condition of EUT ..................................................................................................................17 6.5.Test Procedure ........................................................................................................................................17 6.6.Measurement Result ...............................................................................................................................18 7.AVERAGE FACTOR MEASUREMENT .................................................................................... 19 7.1.Block Diagram of Test Setup..................................................................................................................19 7.2.Average factor Measurement according to ANSI 63.4: 2003.................................................................19 7.3.EUT Configuration on Measurement .....................................................................................................20 7.4.Operating Condition of EUT ..................................................................................................................20 7.5.Test Procedure ........................................................................................................................................20 7.6.Measurement Result ...............................................................................................................................21 APPENDIX I ( TEST CURVES) (12 pages) Page 3 of 34 Test Report Certification Applicant : XIAMEN COMFORT SCIENCE & TECHNOLOGY GROUP CO., LTD Manufacturer: Zhangzhou Easepal Industrial Co., LTD EUT Description : Soft Spa Massaging Bath Pillow Remote Control (A) MODEL NO.: AB225 (B) SERIAL NO.: N/A (C) POWER SUPPLY: 4.5V DC (“AAA” batteries 3 ̄) Measurement Procedure Used: FCC Rules and Regulations Part 15 Subpart C Section 15.231 ANSI 63…

Text truncated - open the document above for the full version.

Radiated emissions test < 1GHz Radiated emissions test > 1GHz
