YMY-030865TPMS Transceiver and Telematic Unit

Manual The Router is sold as OEM and Aftermarket product. In the case of an Aftermarket business, Alligator ensures to print the FCC/IC manual statement on the packaging and/or separate printed manual that comes with the product to notify the end-user of the commercial product. In the case of an OEM business, Alligator ensures to supply the FCC manual statement to the OEM / Reseller of the product dictating what must be included in the end-user’s manual for the commercial product. The text below must be included in the end product user’s manual to ensure continued FCC and Industry Canada regulatory compliance. The ID numbers must be included in the manual if the device label is not readily accessible to the end user. The compliance paragraphs below must be included in the user’s manual. English Text Notice according to FCC 15.105: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. RF Radiation Exposure Information according to 2.1091 / 2.1093 / OET bulletin 65: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance of 20 cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Notice according to FCC 15.19: This device complies with Part 15 of the FCC Rules and with Industry Canada licence- exempt RSS standards. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Notice according to FCC 15.21: Changes or modifications made to this equipment not expressly approved by Alligator Ventilfabrik GmbH may void the FCC authorization to operate this equipment. French Text Notice according to IC RSS-GEN: Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.

BURY GMBH & CO. KG ROBERT-KOCH-STRASSE 1-7 D-32584 LÖHNE page 1 / 6 M900_01_Alligator_Vehice_Router 1. Setting up DUT. DUT [1] shall be connected as this on Pic Red connector to supply ( Molex 8pin connector to RS485 [4] Status diode will show the used After connection of power Picture 1: DUT with ancillary devices 4 Manual for M900_01_Alligator_Vehice_Router shall be connected as this on Picture 1. Red connector to supply (12V/24V) and black to GND [2], Molex 8pin connector to RS485-USB converter [3]. will show the used test mode optical. After connection of power supply, DUT will be switch on automatically. 1: DUT with ancillary devices BURY GMBH & CO. KG ROBERT-KOCH-STRASSE 1-7 D-32584 LÖHNE page 2 / 6 Please connect [2] connection to Power supply. 2. To set Rx or Tx mode: - On first step you have to install drivers for RS485 to USB converter. Driver setup exe you will find on the included CD (“RS485 drivers.exe”). - RS485-USB converter must be connected to PC, and will be controlling by Docklight software (installation for evaluation version You can find on the CD). - After start Docklight software chose ok on the registration widow.

BURY GMBH & CO. KG ROBERT-KOCH-STRASSE 1-7 D-32584 LÖHNE page 3 / 6 - On to next widow choose option Start with a blank project like on the graphic below, and press continue. - After start of software, choose functions Project settings, Communication settings, like on the graphic below. BURY GMBH & CO. KG ROBERT-KOCH-STRASSE 1-7 D-32584 LÖHNE page 4 / 6 - In widow Project settings Project settings, set correct Baud Rate and correct COM port. port.

BURY GMBH & CO. KG ROBERT-KOCH-STRASSE 1-7 D-32584 LÖHNE page 5 / 6 - After configuration COM port, choose white pool like on the graphic bellow. - In Edit Send Sequence bellow), choose HEX, and write sequence which will be sent to device: AA 0A 24 03 00 87 After configuration COM port, choose Send Sequence function by double click on the white pool like on the graphic bellow. Sequence window, write name of sequence definition (like on the graph bellow), choose HEX, and write sequence which will be sent to device: AA 0A 24 03 00 87, and press OK. function by double click on the window, write name of sequence definition (like on the graph bellow), choose HEX, and write sequence which will be sent to device: BURY GMBH & CO. KG ROBERT-KOCH-STRASSE 1-7 D-32584 LÖHNE page 6 / 6 - Start communication by pressing - Chose communication window from HEX to ASCII. - To set correct mode, please After each activity of the arrow button, Dipl. -Ing. Tomasz Niedźwiedź E-Mail: [email protected] Internet: www.bury.com Tel: +49 5732 9706-214 Fax: +49 5732 9706-209 Start communication by pressing button on the control panel. tion window from HEX to ASCII. To set correct mode, please press on arrow button to send this sequence. each activity of the arrow button, mode will be changed. send this sequence.

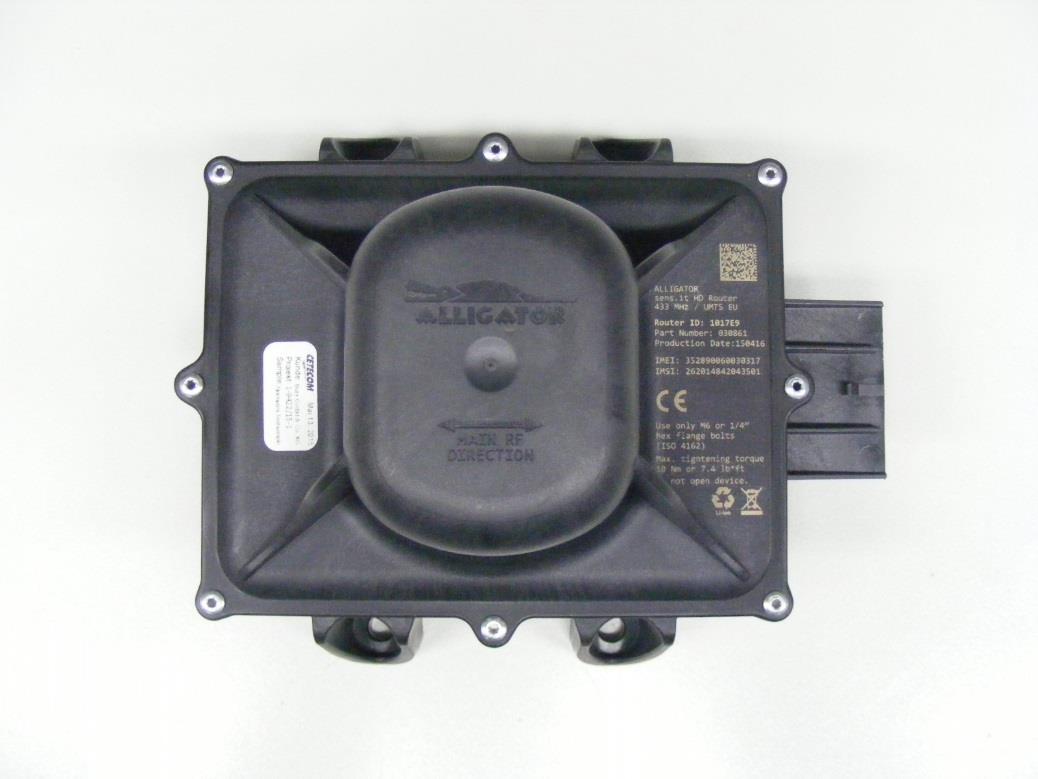

Test report no.: 1-9422/15-01-01_AnnexA Page 1 of 5 Annex A This test report annex is electronically signed and valid without handwriting signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Test report annex authorised: Rene Oelmann Lab Manager Radio Communications & EMC Test report no.: 1-9422/15-01-01_AnnexA Page 2 of 5 External ph ot os o f t he EU T Photo 1: Photo 2: Test report no.: 1-9422/15-01-01_AnnexA Page 3 of 5 Photo 3: Photo 4: Test report no.: 1-9422/15-01-01_AnnexA Page 4 of 5 Photo 5: Photo 6: Test report no.: 1-9422/15-01-01_AnnexA Page 5 of 5 Docu men t his to r y Version Applied changes Date of release Initial release 2015-07-03

7_1402_02 Material: Signature/ Date Signature by Date Bez.x St. aut by Technology Verified by Approved Standards Worked from/ Valid/ Change/ Name Name Datei Scale General tolerances. Drawing number Name Blatt Nr. Printed Issue Mass Part [g] ALLIGATOR sens.it HD Router 433 MHz / UMTS US Router ID: XXXXXX Part Number: 030865 Production Date:yymmdd Use only M6 or 1/4” hex flange bolts (ISO 4162) Max. tightening torque 10 Nm or 7.4 lb*ft Do not open device. IMEI:XXXXXXXXXXXXXXXX IMSI:XXXXXXXXXXXXXXXX FCC ID: YMY-030865 IC ID: 9157A-030865 Contains FCC ID: N7NSL8080 Contains IC ID:2417C-SL8080 Model: 030865 Li-IonLi-Ion A L L I G A T O R s e n s . i t H D R o u t e r 4 3 3 M H z / U M T S U S R o u t e r I D : X X X X X X P a r t N u m b e r : 0 3 0 8 6 5 P r o d u c t i o n D a t e : y y m m d d U s e o n l y M 6 o r 1 / 4 ” h e x f l a n g e b o l t s ( I S O 4 1 6 2 ) M a x . t i g h t e n i n g t o r q u e 1 0 N m o r 7 . 4 l b * f t D o n o t o p e n d e v i c e . I M E I : X X X X X X X X X X X X X X X X I M S I : X X X X X X X X X X X X X X X X F C C I D : Y M Y - 0 3 0 8 6 5 I C : 9 1 5 7 A - 0 3 0 8 6 5 M o d e l : 0 3 0 8 6 5 L i - I o n L i - I o n 1 1 Chmara A. 21-10-2014 Laser marking for Alligator UMTS US Datamatrix (content: “ ID:RouterId,PN:PartNumber, PD:ProductionDate.” example: ID:10CB5F,PN:030865,PD:141015. Font: Consolas Heigt: 1,5 MM 22-12-2014 Orzech C Orzech C 25.06.2015 KZT193/15 ALLIGATOR sens.it HD Router 433 MHz / UMTS US Router ID: XXXXXX Part Number: 030865 Production Date:yymmdd Use only M6 or 1/4” hex flange bolts (ISO 4162) Max. tightening torque 10 Nm or 7.4 lb*ft Do not open device. IMEI:XXXXXXXXXXXXXXXX IMSI:XXXXXXXXXXXXXXXX FCC ID: YMY-030865 IC ID: 9157A-030865 Contains FCC ID: N7NSL8080 Contains IC ID:2417C-SL8080 Model: 030865 Li-IonLi-Ion

Test report no.: 1-9422/15-01-01_AnnexB Page 1 of 7 Annex B This test report annex is electronically signed and valid without handwriting signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Test report annex authorised: Rene Oelmann Lab Manager Radio Communications & EMC Test report no.: 1-9422/15-01-01_AnnexB Page 2 of 7 Inter nal p ho tos of the E UT Photo 1: Photo 2: Test report no.: 1-9422/15-01-01_AnnexB Page 3 of 7 Photo 3: Photo 4: Test report no.: 1-9422/15-01-01_AnnexB Page 4 of 7 Photo 5: Photo 6: Test report no.: 1-9422/15-01-01_AnnexB Page 5 of 7 Photo 7: Photo 8: Test report no.: 1-9422/15-01-01_AnnexB Page 6 of 7 Photo 9: Test report no.: 1-9422/15-01-01_AnnexB Page 7 of 7 Docu men t his to r y Version Applied changes Date of release Initial release 2015-07-03

Page 1 of 3 Maximum Permissible Exposure (MPE) & Exposure evaluation Report identification number: 1-9422/15-01-01 Certification numbers and labeling requirements FCC ID YMY-030865 IC number 9157A-030865 HVIN (Hardware Version Identification Number) 030865 PMN (Product Marketing Name) sens.it HD Router FVIN (Firmware Version Identification Number) V0.4.1 HMN (Host Marketing Name) -/- This test report is electronically signed and valid without handwriting signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Document authorized: René Oelmann Lab Manager Radio Communications & EMC Page 2 of 3 EUT technologies: Technologies: Max. power: (PEAK) Average Power: Max. gain: Min. pathloss: 433 MHz modulated Carrier -8.5 dBm -8.5 dBm -0.5 dBi -/- GSM 35.0 dBm 29.0 dBm -0.5 dBi -/- PCS 32.0 dBm 26.0 dBm 2.8 dBi -/- WCDMA Band II 27.0 dBm 27.0 dBm 2.8 dBi -/- WCDMA Band V 27.0 dBm 27.0 dBm -0.5 dBi -/- Prediction of MPE limit at given distance - FCC Equation from page 18 of OET Bulletin 65, Edition 97-01 S = PG / 4π R 2 where: S = Power density P = Power input to the antenna G = Antenna gain R = Distance to the center of radiation of the antenna The table below is excerpted from Table 1B of 47 CFR 1.1310 titled “Limits for Maximum Permissible Exposure (MPE), Limits for General Population/Uncontrolled Exposure” Frequency Range (MHz) Power Density (mW/cm 2 ) Averaging Time (minutes) 300 -1500 f/1500 30 1500 - 100000 1.0 30 where f = Frequency (MHz) Prediction: worst case < 1500 MHz < 1500 MHz > 1500 MHz Technology 433 MHz modulated carrier GSM -/- P Max power input to the antenna -8.5 dBm 29.0 dBm -/- R Distance 20 cm 20 cm -/- G Antenna gain -0.5 dBi -0.5 dBi -/- S MPE limit for uncontrolled exposure 0.29 mW/cm 2 0.55 mW/cm 2 -/- Calculated Power density: 0.03 μW/cm 2 0.14 mW/cm² -/- Colocation 0.1% + 25.63% 0.1 % 25.63 % -/- This prediction demonstrates the following: The power density levels for FCC at a distance of 20 cm are below the maximum levels allowed by regulations. Page 3 of 3 Prediction of MPE limit at given distance - IC RSS-102, Issue 5, 2.5.2 RF exposure evaluation is required if the separation distance between the user and/or bystander and the device’s radiating element is greater than 20 cm, except when the device operates as follows: • below 20 MHz and the source-based, time-averaged maximum e.i.r.p. of the device is equal to or less than 1 W (adjusted for tune-up tolerance); • at or above 20 MHz and below 48 MHz and the source-based, time-averaged maximum e.i.r.p. of the device is equal to or less than 4.49/ƒ 0.5 W (adjusted for tune-up tolerance), where ƒ is in MHz; • at or above 48 MHz and below 300 MHz and the source-based, time-averaged maximum e.i.r.p. of the device is equal to or less than 0.6 W (adjusted for tune-up tolerance); • at or above 300 MHz and below 6 GHz and the source-based, time-averaged maximum e.i.r.p. of the device is equal to or less than 1.31 x 10 -2 ƒ 0.6834 W (adjusted for tune-up tolerance), where ƒ is in MHz; • at or above 6 GHz and the source-based, time-averaged maximum e.i.r.p. of the device is equal to or less than 5 W (adjusted for tune-up tolerance). Prediction: worst case Technology 433 MHz Modulated Carrier GSM -/- -/- P Max power input to the antenna -8.5 dBm 29.0 dBm -/- -/- G Antenna gain -0.5 dBi -0.5 dBi -/- -/- S MPE limit for uncontrolled exposure 830.0 mW 1288.0 mW -/- -/- Calculated output power: 0.1 mW 707.9 mW -/- -/- Colocation 0.1% + 54.94% 0.02 % 54.95 % -/- -/- Conclusion: for applications where minimum distance to radiating element is 20cm Annex C of RSS-102 should be filled out.

TEST REPORT Test report no.: 1-9422/15-01-04 Testing laboratory Applicant CETECOM ICT Services GmbH Untertuerkheimer Strasse 6 – 10 66117 Saarbruecken / Germany Phone: + 49 681 5 98 - 0 Fax: + 49 681 5 98 - 9075 Internet: http://www.cetecom.com e-mail: [email protected] Accredited Testing Laboratory: The testing laboratory (area of testing) is accredited according to DIN EN ISO/IEC 17025 (2005) by the Deutsche Akkreditierungsstelle GmbH (DAkkS) The accreditation is valid for the scope of testing procedures as stated in the accreditation certificate with the registration number: D-PL-12076-01-00 ALLIGATOR Ventilfabrik GmbH Richard-Steiff-Strasse 4 89537 Giengen / GERMANY Phone: -/- Fax: +49 73 22 / 130 - 418 Contact: Christian Markert e-mail: [email protected] Phone: +49 73 22 / 130 - 392 Manufacturer Bury GmbH & Co. KG Robert-Koch-Str. 1-7 32584 Löhne / GERMANY Test standard/s 47 CFR Part 15 Title 47 of the Code of Federal Regulations; Chapter I; Part 15 - Radio frequency devices RSS 210 Issue 8 Licence-exempt Radio Apparatus (All Frequency Bands): Category I Equipment For further applied test standards please refer to section 3 of this test report. Test Item Kind of test item: Vehicle Router Model name: Alligator sens. it HD Router FCC ID: YMY-030865 IC: 9157A-030865 Frequency: 433.5 MHz – 434.5 MHz Technology tested: GFSK Transceiver Antenna: Integrated antenna Power supply: 24.0 V DC by battery Temperature range: -40°C to +85°C This test report is electronically signed and valid without handwriting signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Test report authorised: Test performed: p.o. Tobias Wittenmeier Rene Oelmann Testing Manager Lab Manager Radio Communications & EMC Radio Communications & EMC Test report no.: 1-9422/15-01-04 Page 2 of 24 1 Table of contents 1 Table of contents ............................................................................................................................................ 2 2 General information ....................................................................................................................................... 3 2.1 Notes and disclaimer .......................................................................................................................... 3 2.2 Application details ............................................................................................................................... 3 3 Test standard/s ............................................................................................................................................... 3 4 Test environment ............................................................................................................................................ 4 5 Test item .......................................................................................................................................................... 4 5.1 Additional information ........................................................................................................................ 4 6 Test laboratories sub-contracted ................................................................................................................. 4 7 Description of the test setup ......................................................................................................................... 5 7.1 Shielded fully anechoic chamber ...................................................................................................... 6 7.2 Conducted measurements normal and extreme conditions ........................................................... 7 8 Summary of measurement results ............................................................................................................... 8 8.1 Additional comments .......................................................................................................................... 8 9 Measurement results ...................................................................................................................................... 9 9.1 Timing of the transmitter .................................................................................................................... 9 9.2 Switch off time ................................................................................................................................... 11 9.3 Emission bandwidth .......................................................................................................................... 12 9.4 Field strength of the fundamental ................................................................................................... 13 9.5 Field strength of the harmonics and spurious ............................................................................... 14 9.6 Receiver spurious emission ............................................................................................................. 19 10 Test equipment and ancillaries used for tests ...................................................................................... 22 11 Observations ............................................................................................................................................. 23 Annex A Document history .......................................................................................................................... 23 Annex B Further information ........................................................................................................................ 23 Annex C Accreditation Certificate ............................................................................................................... 24 Test report no.: 1-9422/15-01-04 Page 3 of 24 2 General information 2.1 Notes and disclaimer The test results of this test report relate exclusively to the test item specified in this test r…

Text truncated - open the document above for the full version.

Test report no.: 1-9422/15-01-01_AnnexD Page 1 of 6 Annex D This test report annex is electronically signed and valid without handwriting signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Test report annex authorised: Rene Oelmann Lab Manager Radio Communications & EMC Test report no.: 1-9422/15-01-01_AnnexD Page 2 of 6 EUT Test se tu p p h otos Photo 1: Photo 2: Test report no.: 1-9422/15-01-01_AnnexD Page 3 of 6 Photo 3: Photo 4: Test report no.: 1-9422/15-01-01_AnnexD Page 4 of 6 Photo 5: Photo 6: Test report no.: 1-9422/15-01-01_AnnexD Page 5 of 6 Photo 7: Test report no.: 1-9422/15-01-01_AnnexD Page 6 of 6 Docu men t his to r y Version Applied changes Date of release Initial release 2015-07-03
