YNWFRC-4Wireless Controller

1 Description of operation This remote control is a short distance high voltage unit which is one of our company’s products. It consists of emitter and receiving box. It mainly used in starting and shutting off the fog machine. It can match with F-400-F fog machine which is produced by our company. It could remote control the fog machine. The Operation Procedure: As the red indication light of the receiving box is on, it means the heating of the fog machine has been finished and the fog machine could operate. At this time, we should press down any of the silica gel A.B.C button, the fog machine could spray fog. When pressing D button, the machine stop spraying. Emitter Main Parameters: 1. Operation voltage: 12VDC 2. Operation frequency: 315MHz 3. Coding type: 2262 4. Emitting distance: >10M Receiving box main parameter: 1. Operation Voltage: 120Vac/60Hz 2. Operation current: <40mA 3. Maximum: Note: 1. Only when the red button of the receiving box on, the emitter could operate; 2. The emitter and receiving box could operate only when their operating frequency and addressing coding match with each other. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 Date: 07 July 2010 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Choicelored Limited hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product Name: Wireless Controller Model No.: FRC-4 We affirm that between SIEMIC and Choicelored Limited, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Peter Tao

FCC ID:YNWFRC-4 opyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. Building F, Dachuang industrial park, No.379, Zhongshan Dadao, Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3100607-02061-O Page 1 of 1 1 External Photos of the EUT External view-front External view-back

Choicelord Limited Address: 15/F.,commercial Bldg,478 Nathan Rd, kowloon, Hong kong Telephone:+86-750-8318407 Telefax:+ 86-750-8309400 Email: [email protected] FCC ID: YNWFRC-4 ____________________________________________________________________________________________ Report No.: CGZ3100607-02061-O Page 1 of 3 APPLICATION FOR FCC CERTIFICATION Document List: EXHIBIT 1. LABEL DRAWING.......................................... 2 EXHIBIT 2. PHOTOGRAPHS........................................... 3 Applicant : Choicelored Limited EUT : Wireless Controller Model No. : FRC-4 Choicelord Limited Address: 15/F.,commercial Bldg,478 Nathan Rd, kowloon, Hong kong Telephone:+86-750-8318407 Telefax:+ 86-750-8309400 Email: [email protected] FCC ID: YNWFRC-4 ____________________________________________________________________________________________ Report No.: CGZ3100607-02061-O Page 2 of 3 EXHIBIT 1. Label Drawing FCC Label Drawing 15mm Please refer Exhibit 2 Figure 2 for Label Placement Location 10mm Choicelord Limited Address: 15/F.,commercial Bldg,478 Nathan Rd, kowloon, Hong kong Telephone:+86-750-8318407 Telefax:+ 86-750-8309400 Email: [email protected] FCC ID: YNWFRC-4 ____________________________________________________________________________________________ Report No.: CGZ3100607-02061-O Page 3 of 3 EXHIBIT 2. Photographs Figure 1 External view-side Label Location

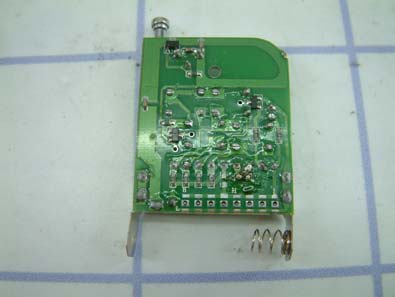

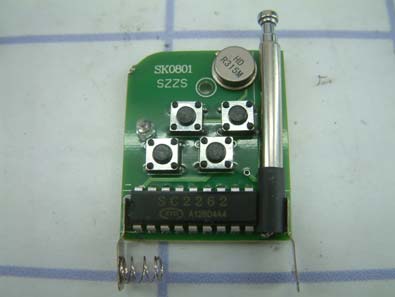

FCC ID: YNWFRC-4 opyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. Building F, Dachuang industrial park, No.379, Zhongshan Dadao, Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3100607-02061-O Page 1 of 1 1 Internal Photos of the EUT Internal view PCB1 layout PCB1 Solder Antenna

The principle of remote device of FRC-4 This product is supplied by batteries of 12V, and it use 315MHz oscillated frequency which is generated by quartz crystal for carrier wave. After amplitude modulation using basic signal generated by coding IC PT2262, then amplify and emit the data including address coding and data coding information out to the space by pole antenna in radio frequency method. Key component: PT2262； Main effect: Receiving user dictate and producing data string according to its own 8 bit address coding and the setting of RC oscillated frequency.

123456 A B C D 654321 D C B A Title NumberRevisionSize B Date:1-Jun-2010 Sheet of File:D:\ Drawn By: D1 IN4007 D2 IN4007 D3 IN4007 D4 IN4007 AC-L AC-N R1 150K 1/2W C1105 400V + EC1 470uF/25V C2 104 R2 20 R3 330 ZD1 12V ZD2 5.1V 12 34 56 78 910 1112 1314 1516 1718 U1 PT2272-L4 R4 220K 1 2 3 4 U2 CON4 VCC VCC R5 RES1 Q1 NPN K1 RELAY-SPDT VCC1 OUT D6 4148 + EC2 100uF/10V C3 104 1 J1 CON1 1 J2 AC-L 1 J3 AC-N VCC1 D5 4007 D64148 D64148 D64148 LED_R R1 10K 1/2W FRC-4A

CENTRE OF TESTING SERVICE INTERNATIONAL OPERATE ACCORDING TO ISO/IEC 17025 FCC ID TEST REPORT TEST REPORT NUMBER : CGZ3100607-02061-O CENTRE OF TESTING SERVICE CO., LTD. Building F, Dachuang industrial park, No.379, Zhongshan Dadao, Guangzhou, China. FCC ID: YNWFRC-4 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. Building F, Dachuang industrial park, No.379, Zhongshan Dadao, Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3100607-02061-O Page 1 of 25 TEST REPORT For FCC ID 47 CFR PART 15 OCT, 2009 Report Reference No. .................... CGZ3100607-02061-O Date of issue ..................................... 17 July 2010 Testing Laboratory Name .............. CETRE OF TESTING SERVICE CO., LTD Address............................................. Building F, Dachuang industrial park, No.379, Zhongshan Dadao, Guangzhou, China. Testing location/ procedure .............. Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s name ............................CHOICELORED LIMITED Address.............................................15/F.Commercial Building 478 Nathan Road Kowloon, Hong Kong Test specification ........................... Standard ........................................... 47 CFR PART 15 OCT, 2009 Test Report Form No. ....................CTSEMC-1.0 TRF Originator.................................. CENTRE OF TESTING SERVICE CO., LTD Master TRF....................................... Dated 2009-01 CENTRE OF TESTING SERVICE CO., LTD. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the CENTRE OF TESTING SERVICE CO., LTD is acknowledged as copyright owner and source of the material. CENTRE OF TESTING SERVICE CO., LTD takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description.....................Wireless Controller Trade Mark....................................... / Manufacturer....................................Heshan Lide Electronic Enterprise Co.,Ltd Model/Type reference......................FRC-4 Ratings............................................. DC 12V Operating Frequency ........................ 315.00MHz/ MSK Result ............................................... Positive Compiled by: Supervised by: Approved by: Quty Liu / File administrators Jackson Zhang / Technique principalKevin Liang / Manager FCC ID: YNWFRC-4 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. Building F, Dachuang industrial park, No.379, Zhongshan Dadao, Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3100607-02061-O Page 2 of 25 FCC ID -- T E S T R E P O R T Test Report No. : CGZ3100607-02061-O 17 May 2010 Date of issue Type / Model............................ Wireless Controller EUT.......................................... FRC-4 Applicant........................... CHOICELORED LIMITED Address.................................... 15/F.Commercial Building 478 Nathan Road Kowloon, Hong Kong Telephone................................ +86-750-8318092 Fax........................................... +86-750-8309 400-8565 Contact..................................... Peter tao Manufacturer...................... Heshan Lide Electronic Enterprise Co.,Ltd Address.................................... Gunghe Town 529728,Heshan City,Guangdon Telephone................................ / Fax........................................... / Contact..................................... / Test report holder................ CHOICELORED LIMITED Address.................................... 15/F.Commercial Building 478 Nathan Road Kowloon, Hong Kong Telephone................................ +86-750-8318092 Fax........................................... +86-750-8309 400-8565 Contact..................................... Peter tao Test Result according to the standards on page 3:Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. FCC ID: YNWFRC-4 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. Building F, Dachuang industrial park, No.379, Zhongshan Dadao, Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3100607-02061-O Page 3 of 25 TABLE OF CONTENTS Description Page 1. TEST STANDARDS.......................................................................................................................................5 2. SUMMARY ....................................................................................................................................................5 2.1 GENERAL REMARKS .......................................................................................................................................5 2.2 FINAL ASSESSMENT .......................................................................................................................................5 3. EQUIPMENT UNDER TEST............................................................................…

Text truncated - open the document above for the full version.

FCC ID: YNWFRC-4 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. Building F, Dachuang industrial park, No.379, Zhongshan Dadao, Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3100607-02061-O Page 1 of 2 1.TEST PHOTOGRAPHS 1.1. Photos of Radiated Emission Test (In Anechoic Chamber) 30~230MHz (X position) 230~1000MHz (X position) above 1000MHz (X position) FCC ID: YNWFRC-4 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. Building F, Dachuang industrial park, No.379, Zhongshan Dadao, Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3100607-02061-O Page 2 of 2 1.2. Band Edge Compliance Test X position
