YOV-MRI3000ASatellite Transceiver

MRI-3000 Remote Meter Reading Interface Installation Manual CT1001-015 Version 0.1 25 February 2010 Use or disclosure of data contained in this document is subject to the following statement: The data shall not be duplicated, used, or disclosed in whole or in part, without written permission of CornerTurn, LLC. Any authorized reproduction of technical data, or portion thereof marked with this legend must also reproduce these markings. The U. S. Government regulates export of this technology or software. Diversion contrary to U.S. law is prohibited. Copyright © CornerTurn, LLC, 2010 All rights reserved. Printed in the United States of America. Installation Guide for MRI-3000 CT1001-015, v0.1 2 Installation Guide for MRI-3000 CT1001-015, v0.1 3 Table of Contents Table of Contents................................................................................................3 Tables...................................................................................................................3 Figures.................................................................................................................4 Introduction.........................................................................................................5 Scope...........................................................................................................................5 Revision History of Installation Guide......................................................................5 Contact Information....................................................................................................5 Safety Information...............................................................................................5 FCC Notice...................................................................................................................5 Product Description............................................................................................6 MRI-3000 Installation Overview.........................................................................8 Supplies and Equipment Needed for MRI-3000 Installation...................................9 Safety Considerations......................................................................................11 Installation Plan.................................................................................................12 Complete Site Surey.................................................................................................12 Antenna Installation..........................................................................................13 MRI-3000 Controller Unit Installation..............................................................15 Attaching Input Power..............................................................................................16 Ethernet Installation..........................................................................................20 System Power-up and Test..............................................................................22 Overview of the MRI Self Test Mode.......................................................................22 System Verification...........................................................................................23 Operation...........................................................................................................26 Overview of the MRI Startup Process.....................................................................26 Customer Care / Warranty................................................................................27 Troubleshooting................................................................................................29 CPU Operation Test – Fail........................................................................................29 LAN Connectivity Test – Fail...................................................................................29 Modem Power Test – Fail.........................................................................................29 Modem Line of Sight Test – Fail..............................................................................29 Modem Connectivity Test – Fail..............................................................................29 MRI-3000 Installation Record...........................................................................30 Tables Table 1: MRI-3000 Components...........................................................................8 Table 2: Mounting Antenna on a Pole.................................................................13 Installation Guide for MRI-3000 CT1001-015, v0.1 4 Table 3: Mounting Antenna on a Wall.................................................................13 Table 4: Mounting Antenna on a Roof................................................................14 Table 5: Mounting MRI-3000 Controller Unit......................................................15 Table 6: Attaching RF Cables.............................................................................15 Table 7: Using MRI-3000 Power Cord................................................................16 Table 8: Using Custom Length Power Cord.......................................................17 Table 9: Attaching Ethernet Cable......................................................................20 Table 10: System Verification.............................................................................23 Figures Figure 1 - MRI-3000 System Block Diagram........................................................7 Figure 2: Overview of the MRI Startup Test........................................................26 Installation Guide for MRI-3000 CT1001-015, v0.1 5 Introduction Scope This document describes the installation and checkout procedures for the MRI- 3000 antennas and cables. Revision History of Installation Guide Rev No. Date Issued Comments 0.1 2 July 2010 First Cut Draft 0.2 19 August 2010 Second…

Text truncated - open the document above for the full version.

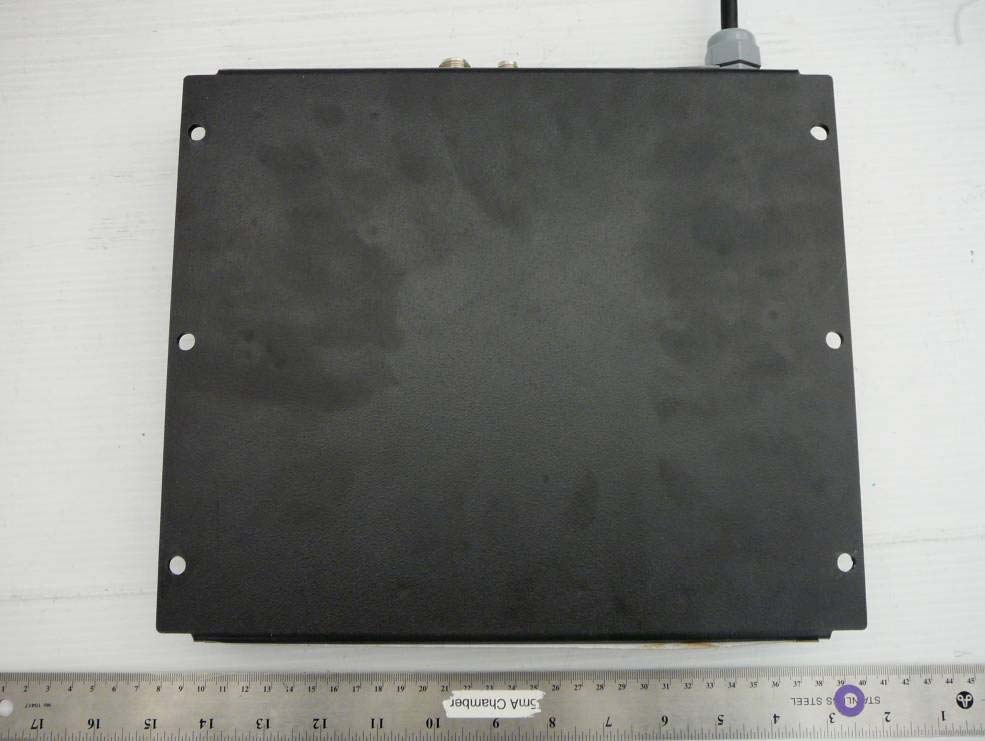

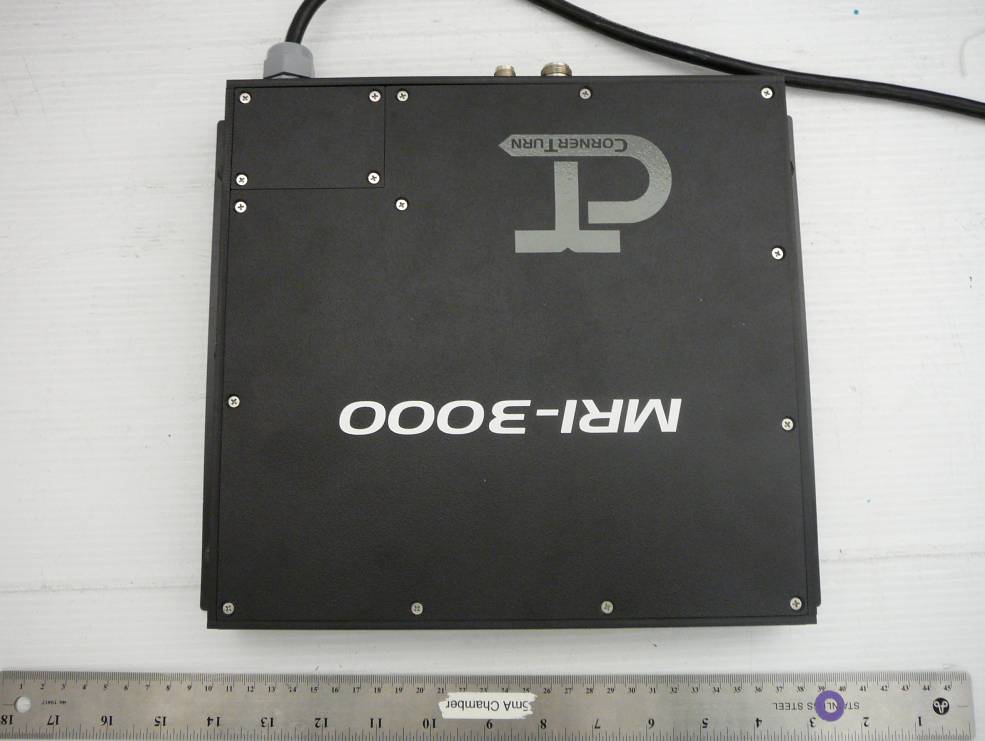

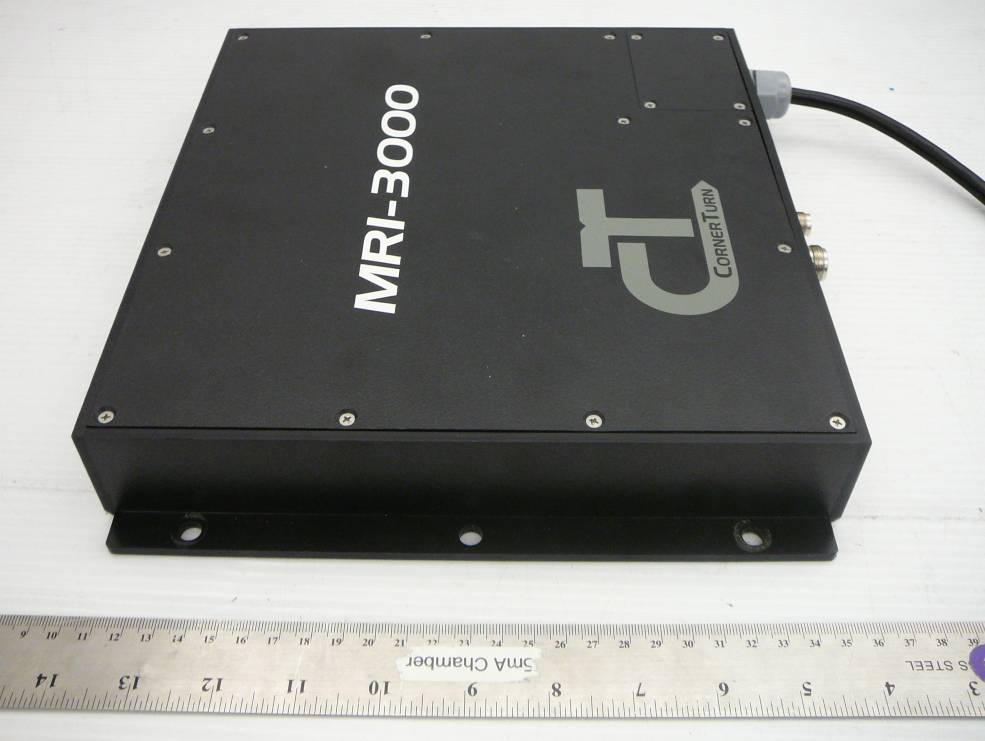

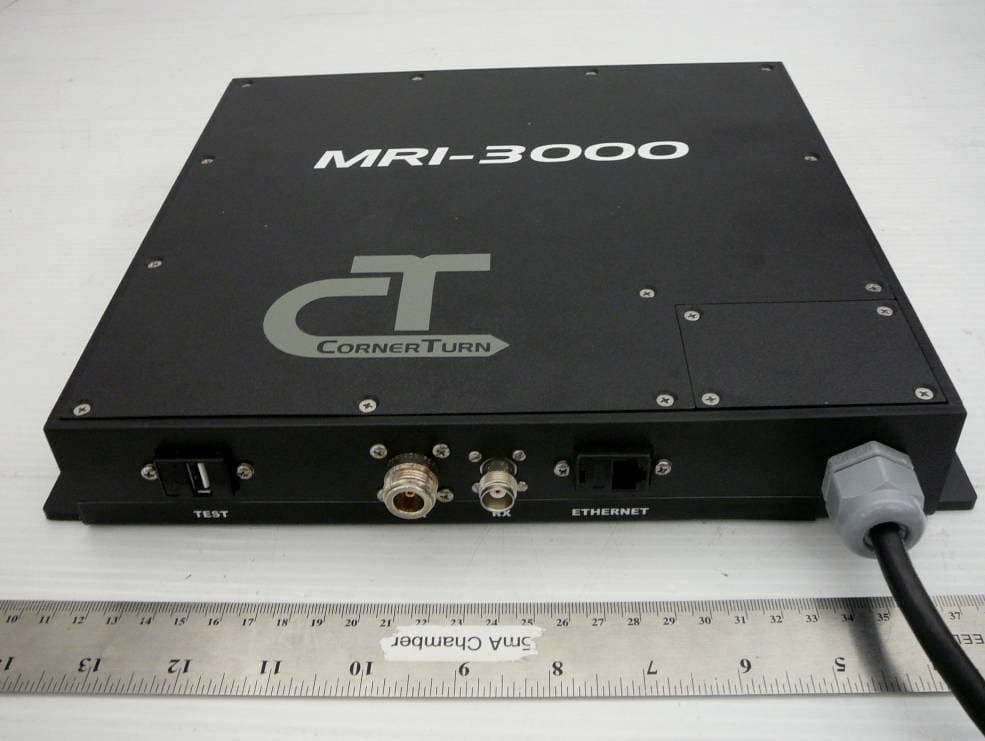

CornerTurn, LLC FCC ID: YOV-MRI3000A Report Number: R1008091-25 Page 17 of 23 FCC Part 25 Test Report 8 EXHIBIT C - EUT PHOTOGRAPHS 8.1 EUT – Front View 8.2 EUT – Rear View CornerTurn, LLC FCC ID: YOV-MRI3000A Report Number: R1008091-25 Page 18 of 23 FCC Part 25 Test Report 8.3 EUT – Side View 8.4 EUT – Top View CornerTurn, LLC FCC ID: YOV-MRI3000A Report Number: R1008091-25 Page 19 of 23 FCC Part 25 Test Report 8.5 EUT – Bottom View 8.6 EUT – Antenna View

FCC ID Label Location Label here

CornerTurn, LLC FCC ID: YOV-MRI3000A Report Number: R1008091-25 Page 20 of 23 FCC Part 25 Test Report 8.7 EUT – PCB Assembly Board 1 Top View 8.8 EUT – PCB Assembly Board 1 Bottom View CornerTurn, LLC FCC ID: YOV-MRI3000A Report Number: R1008091-25 Page 21 of 23 FCC Part 25 Test Report 8.9 EUT – PCB Assembly Board 2 Top View 8.10 EUT – PCB Assembly Board 2 Bottom View CornerTurn, LLC FCC ID: YOV-MRI3000A Report Number: R1008091-25 Page 22 of 23 FCC Part 25 Test Report 8.11 EUT – PCB Assembly RF Modem Top View 8.12 EUT – PCB Assembly RF Modem Bottom View CornerTurn, LLC FCC ID: YOV-MRI3000A Report Number: R1008091-25 Page 23 of 23 FCC Part 25 Test Report 8.13 EUT – PCB Assembly Power Supply Top View 8.14 EUT – PCB Assembly Power Supply Bottom View ***** END OF REPORT *****

CornerTurn, LLC FCC ID: YOV-MRI3000A Report Number: R1008091-25 Page 9 of 23 FCC Part 25 Test Report 4 FCC §1.1307 (b)(1) & §2.1091 - RF Exposure According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minute) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density 4.1 MPE Prediction Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 S = PG/4πR² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna 4.2 MPE Results 4.3 Test Result The power density of prediction frequency at 25 cm is 0.321 mW/cm 2 for the 4.5 dBi antenna which is compliant according to calculation under the MPE limit for uncontrolled exposure of 1.0 mW/cm 2 . Maximum peak output power at antenna input terminal (dBm):29.507 Maximum peak output power at antenna input terminal (mW): 892.69 Prediction distance (cm):25.0 Prediction frequency (MHz): 1615.65 Maximum Antenna Gain, typical (dBi): 4.5 Maximum Antenna Gain (numeric):2.82 Power density of prediction frequency at 25.0 cm (mW/cm 2 ): 0.321 MPE limit for uncontrolled exposure at prediction frequency (mW/cm 2 ): 1.0

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, NIST, or any agency of the Federal Government. * This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “*” (Rev.2) FCC PART 25 TEST AND MEASUREMENT REPORT For CornerTurn, LLC 423 Jenks Circle Suite 101, Corona, CA 92880, USA FCC ID: YOV-MRI3000A Report Type: Original Report Product Type: Satellite Transceiver Test Engineer: Dennis Huang Report Number: R1008091-25 Report Date: 2010-8-30 Reviewed By: Victor Zhang RF Lead Engineer Prepared By: (84) Bay Area Compliance Laboratories Corp. 1274 Anvilwood Ave. Sunnyvale, CA 94089, USA Tel: (408) 732-9162 Fax: (408) 732-9164 CornerTurn, LLC FCC ID: YOV-MRI3000A Report Number: R1008091-25 Page 2 of 23 FCC Part 25 Test Report TABLE OF CONTENTS 1 GENERAL INFORMATION ..............................................................................................................................5 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT).........................................................................5 1.2 MECHANICAL DESCRIPTION OF EUT ...............................................................................................................5 1.3 OBJECTIVE.......................................................................................................................................................5 1.4 RELATED SUBMITTAL(S)/GRANT(S) ................................................................................................................5 1.5 TEST METHODOLOGY......................................................................................................................................5 1.6 MEASUREMENT UNCERTAINTY.......................................................................................................................5 1.7 TEST FACILITY.................................................................................................................................................6 2 SYSTEM TEST CONFIGURATION..................................................................................................................7 2.1 JUSTIFICATION.................................................................................................................................................7 2.2 EUT CONFIGURATION.....................................................................................................................................7 2.3 SPECIAL ACCESSORIES....................................................................................................................................7 2.4 EQUIPMENT MODIFICATIONS...........................................................................................................................7 2.5 INTERNAL CONFIGURATION DETAILS..............................................................................................................7 2.6 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS............................................................................................7 3 SUMMARY OF TEST RESULTS.......................................................................................................................8 4 FCC §1.1307 (B)(1) & §2.1091 - RF EXPOSURE ..............................................................................................9 4.1 MPE PREDICTION............................................................................................................................................9 4.2 MPE RESULTS.................................................................................................................................................9 4.3 TEST RESULT...................................................................................................................................................9 5 FCC §2.1053 & §25.202 (F) – FIELD STRENGTH OF SPURIOUS RADIATION......................................10 5.1 APPLICABLE STANDARD................................................................................................................................10 5.2 MEASUREMENT PROCEDURE.........................................................................................................................10 5.3 TEST EQUIPMENT LIST AND DETAILS............................................................................................................10 5.4 TEST ENVIRONMENTAL CONDITIONS.............................................................................................................10 5.5 TEST SETUP BLOCK DIAGRAM.......................................................................................................................11 5.6 TEST RESULTS SUMMARY.............................................................................................................................11 6 EXHIBIT A – FCC ID LABELING REQUIREMENTS.................................................................................13 6.1 FCC LABELING REQUIREMENTS....................................................................................................................13 6.2 FCC ID LABEL CONTENTS............................................................................................................................13 6.3 FCC ID LABEL LOCATION.............................................................................................................................14 7 EXHIBIT B - TEST SETUP PHOTOGRAPHS ...............................................................................................15 7.1 RADIATED EMISSIONS FRONT VIEW BELOW 1 GHZ.......................................................................................15 7.2 RADIATED EMISSIONS REAR VIEW B…

Text truncated - open the document above for the full version.

CornerTurn, LLC FCC ID: YOV-MRI3000A Report Number: R1008091-25 Page 15 of 23 FCC Part 25 Test Report 7 EXHIBIT B - TEST SETUP PHOTOGRAPHS 7.1 Radiated Emissions Front View below 1 GHz 7.2 Radiated Emissions Rear View below 1 GHz CornerTurn, LLC FCC ID: YOV-MRI3000A Report Number: R1008091-25 Page 16 of 23 FCC Part 25 Test Report 7.3 Radiated Emissions Front View above 1 GHz 7.4 Radiated Emissions Rear View above 1 GHz
