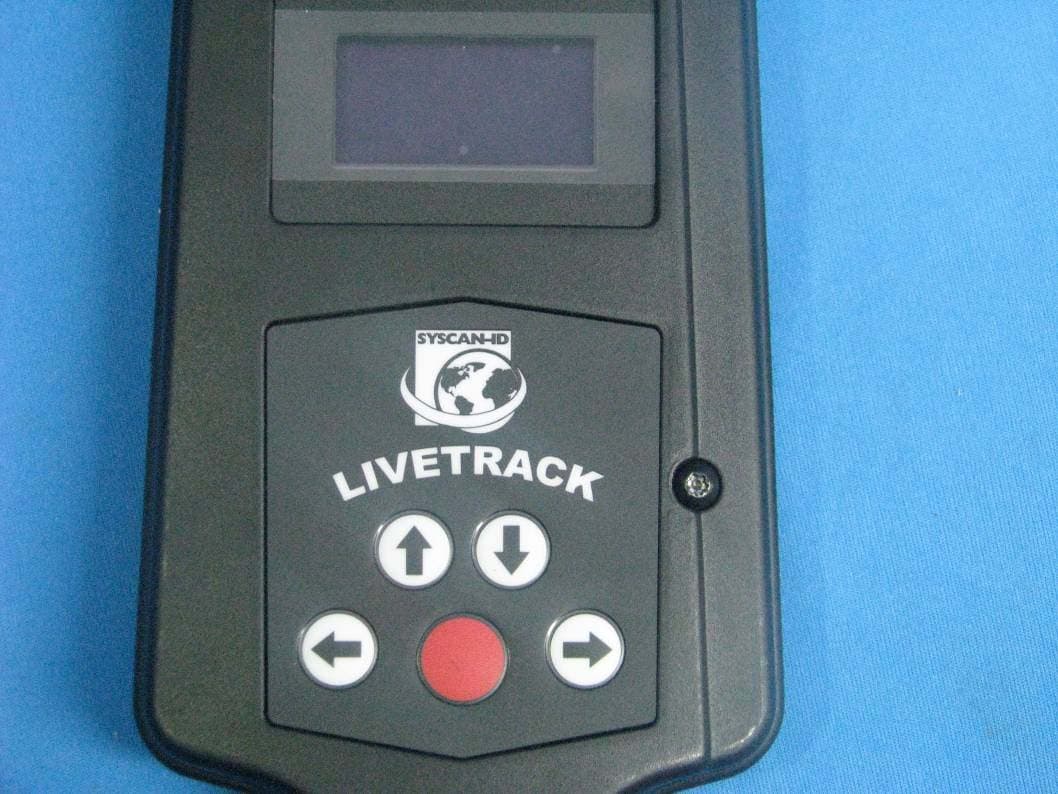

YPJ-LIVETRACK-ID4LiveTrack Reader

Syscan ID Inc.

Click to zoom

Application Details

Equipment Class: DCD - Part 15 Low Power Transmitter Below 1705 kHz
Date of Grant: Oct 28, 2010
Application Purpose: Original Equipment
Date of Application: Oct 17, 2010
Equipment Note: LiveTrack Reader
Frequency Range: 0.13420000 - 0.13420000
Company: Syscan ID Inc.
Country: Canada

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

LiveTrack V3 Reader User Manual January, 2008 Syscan International Inc., Montreal LiveTrack Reader – User Manual. Page: 2 / 22 NOTICE THE POWER SUPPLY IS TO BE USED TO RECHARGE THE BATTERY AND NOT TO RUN THE READER. INFORMATION TO USER This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for Class A Digital Device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures. • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced radio/TV technician for help Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. LiveTrack Reader – User Manual. Page: 3 / 22 1. NOMENCLATURE ............................................................................................................................................................5 1.2 CHARGER/SERIAL CONNECTION................................................................................................................ 6 1.3 INDICATOR ICONS................................................................................................................................7 1.4 MAIN SCREEN...................................................................................................................................... 8 1.5 MENU SCREEN..................................................................................................................................... 9 1.6 INFO MENU....................................................................................................................................... 11 1.7 ADVANCED MENU................................................................................................................................12 2. COMMUNICATIONS ......................................................................................................................................................18 2.1 BLUETOOTH COMMUNICATION............................................................................................................... 18 2.2 SERIAL COMMUNICATION...................................................................................................................... 18 2.3 PACKET DESCRIPTION.......................................................................................................................... 19 2.4 SCALE CONNECTION............................................................................................................................ 20 3. TROUBLESHOOTING ....................................................................................................................................................21 4. CONTACT .........................................................................................................................................................................22 LiveTrack Reader – User Manual. Page: 4 / 22 SPECIFICATIONS Case: Polycarbonate ABS Operating Frequency: 125 kHz and 134.2 kHz RFID Compatibility: HDX ISO, FDX-B ISO and EM4002 Reading Distance : 25-35 cm, 10-14 Inches (HDX) Memory: 30, 000 tags Communication Ports: Serial RS232 or optional Bluetooth (Class1, 100m) Battery: 7.4V Li-ion rechargeable Power Input : 12 VDC for charging battery Protection Class : IP 66 Dimensions: 65 X 10 X 3cm (26 x 4 x 1.2") Weight : 0.7 kg (1.5 lbs) Display : Graphic OLED 128 x 64 pixels Display Languages: English, French, Spanish and German Included in the box: Quick Start Guide, Reader, LiveTrack ® Manager Software, Manuals (on CD), Hand Strap, Serial Cable and 12v DC international power supply. LiveTrack Reader – User Manual. Page: 5 / 22 1. Nomenclature 1. RFID reading zone 2. Display screen 3. ON/OFF button 4. Control buttons 5. Handle/Battery compartment 6. Battery compartment door 7. Charge/Serial connector 1 2 3 4 5 6 7 LiveTrack Reader – User Manual. Page: 6 / 22 1.2 Charger/serial connection Pin 1 : 12 VDC IN Pin 2 : RS-232 TX data to PC Pin 3 : RS-232 Rx data from PC Pin 4 : N/C Pin 5 : GND 1 2 3 4 5 LiveTrack Reader – User Manual. Page: 7 / 22 1.3 Indicator icons Bluetooth icon: ON: The Bluetooth circuit is present and on. OFF: The Bluetooth circuit is off. Connection arrows: The arrows indicate that the Bluetooth is connected. RFID icon: ON: The RFID circuit is on and ready to read. OFF: The RFID circuit is off. Battery icon: Indicates the battery power left in the reader. Bluetooth icon RFID icon Battery icon Connection arrows Counter LiveTrack Reader – User Manual. Page: 8 / 22 1.4 Main screen Turn on the reader by pressing the ON/OFF button. The main screen contains the tag number as well as the counter. Turn off the reader by pressing the ON/OFF button for 2 seconds. 00025 MENU> Tag number Counter HDX: 999 000 000 000 125 00025 MENU> HDX: 999 000 000 000 125 00025 MENU> LiveTrack Reader – User Manual. Page: 9 / 22 1.5 Menu screen Select MENU by pressing the right arrow bu…

Text truncated - open the document above for the full version.

Block Diagram

www.tuv.com Appendix 5 Prüfbericht - Nr.: Test Report No. 02422486 001 Seite 1 von 4 Page 1 of 4 Block Diagram Model: LSB www.tuv.com Appendix 5 Prüfbericht - Nr.: Test Report No. 02422486 001 Seite 2 von 4 Page 2 of 4 Block Diagram Model: SSB www.tuv.com Appendix 5 Prüfbericht - Nr.: Test Report No. 02422486 001 Seite 3 von 4 Page 3 of 4 Block Diagram Model: LS www.tuv.com Appendix 5 Prüfbericht - Nr.: Test Report No. 02422486 001 Seite 4 von 4 Page 4 of 4 Block Diagram Model: SS

External Photos

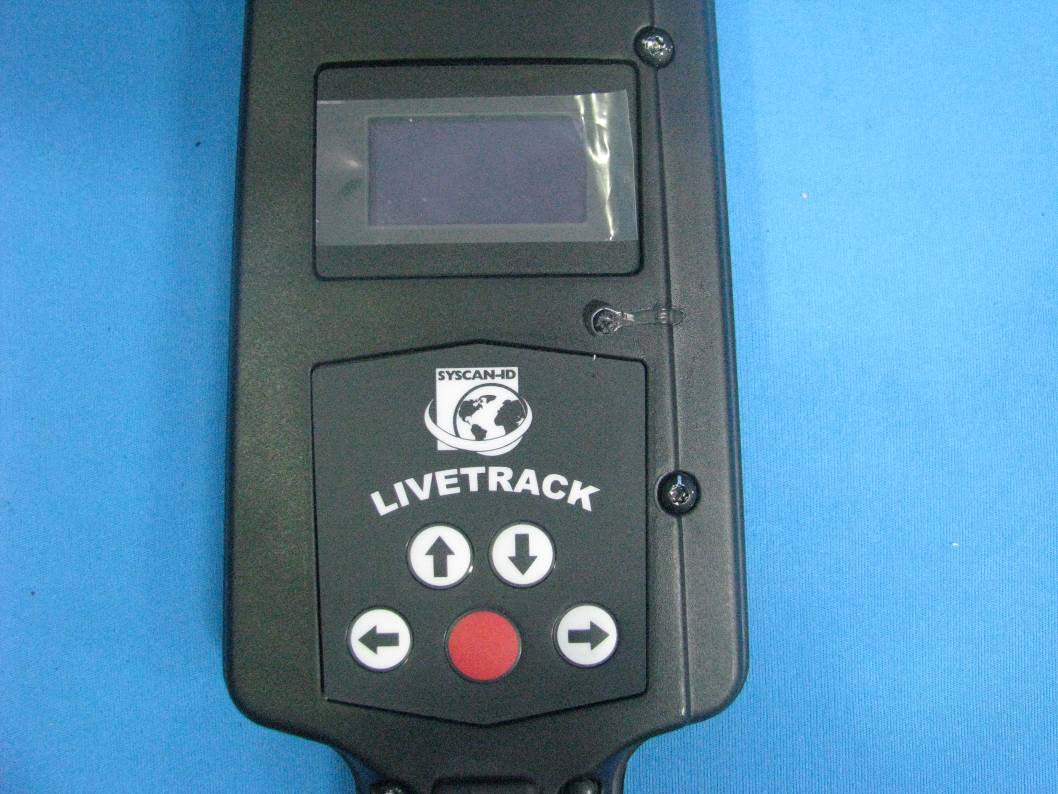

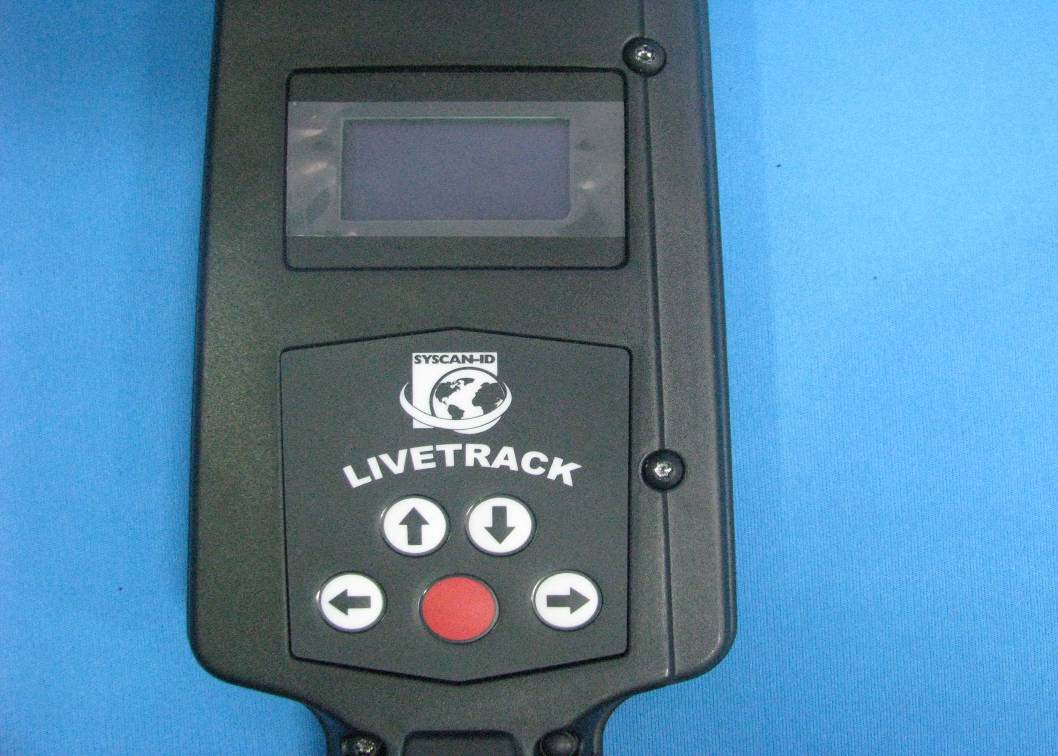

www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 02422486 001 Seite 1 von 20 Page 1 of 20 Model: LS Top view Model: LS Bottom view www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 02422486 001 Seite 2 von 20 Page 2 of 20 Model: LS Side view Model: LS Side view www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 02422486 001 Seite 3 von 20 Page 3 of 20 Model: LS Side view Model: LS Label www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 02422486 001 Seite 4 von 20 Page 4 of 20 Model: LS Display and Keypad Model: LS Dimensional View www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 02422486 001 Seite 5 von 20 Page 5 of 20 Model: LS Dimensional View Model: LS Dimensional View www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 02422486 001 Seite 6 von 20 Page 6 of 20 Model: LSB Top view Model: LSB Bottom view www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 02422486 001 Seite 7 von 20 Page 7 of 20 Model: LSB Side view Model: LSB Side view www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 02422486 001 Seite 8 von 20 Page 8 of 20 Model: LSB Side view Model: LSB Label www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 02422486 001 Seite 9 von 20 Page 9 of 20 Model: LSB Display and Keypad Model: LSB Dimensional View www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 02422486 001 Seite 10 von 20 Page 10 of 20 Model: LSB Dimensional View Model: LSB Dimensional View www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 02422486 001 Seite 11 von 20 Page 11 of 20 Model: SS Top view Model: SS Bottom view www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 02422486 001 Seite 12 von 20 Page 12 of 20 Model: SS Side view Model: SS Side view www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 02422486 001 Seite 13 von 20 Page 13 of 20 Model: SS Side view Model: SS Label www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 02422486 001 Seite 14 von 20 Page 14 of 20 Model: SS Display and Keypad Model: SS Dimensional View www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 02422486 001 Seite 15 von 20 Page 15 of 20 Model: SS Dimensional View Model: LS Dimensional View www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 02422486 001 Seite 16 von 20 Page 16 of 20 Model: SSB Top view Model: SSB Bottom view www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 02422486 001 Seite 17 von 20 Page 17 of 20 Model: SSB Side view Model: SSB Side view www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 02422486 001 Seite 18 von 20 Page 18 of 20 Model: SSB Side view Model: SSB Label www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 02422486 001 Seite 19 von 20 Page 19 of 20 Model: SSB Display and Keypad Model: SSB Dimensional View www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 02422486 001 Seite 20 von 20 Page 20 of 20 Model: SSB Dimensional View Model: SSB Dimensional View

ID Label/Location Info

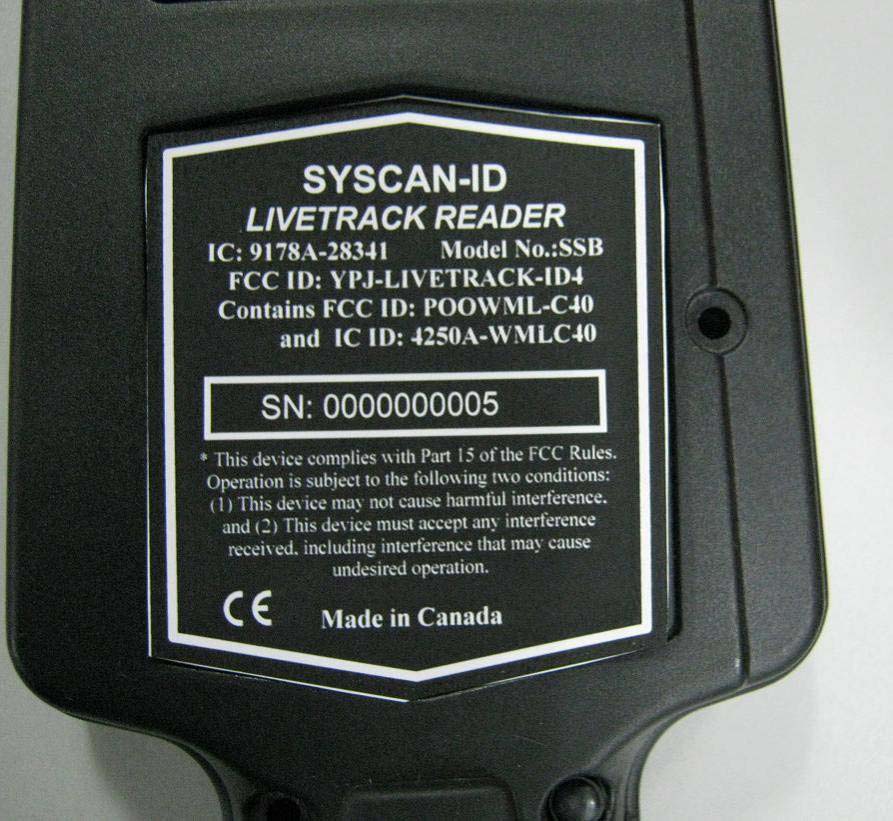

www.tuv.com Appendix 4 Prüfbericht - Nr.: Test Report No. 02422486 001 Seite 1 von 2 Page 1 of 2 Label Diagram Model: LSB Model: LS www.tuv.com Appendix 4 Prüfbericht - Nr.: Test Report No. 02422486 001 Seite 2 von 2 Page 2 of 2 Model: SSB Model: SS

ID Label/Location Info

Internal Photos

www.tuv.com Appendix 3 Prüfbericht - Nr.: Test Report No. 02422486 001 Seite 1 von 12 Page 1 of 12 Model: LS Internal View Model: LS PCB www.tuv.com Appendix 3 Prüfbericht - Nr.: Test Report No. 02422486 001 Seite 2 von 12 Page 2 of 12 Model: LS Antenna Model: LS Bottom View www.tuv.com Appendix 3 Prüfbericht - Nr.: Test Report No. 02422486 001 Seite 3 von 12 Page 3 of 12 Model: LS Internal View of Bottom Opening Model: LSB Internal View www.tuv.com Appendix 3 Prüfbericht - Nr.: Test Report No. 02422486 001 Seite 4 von 12 Page 4 of 12 Model: LSB PCB Model: LSB Antenna www.tuv.com Appendix 3 Prüfbericht - Nr.: Test Report No. 02422486 001 Seite 5 von 12 Page 5 of 12 Model: LSB Bottom View Model: LSB Internal View of Bottom Opening www.tuv.com Appendix 3 Prüfbericht - Nr.: Test Report No. 02422486 001 Seite 6 von 12 Page 6 of 12 Model: SS Internal View Model: SS PCB www.tuv.com Appendix 3 Prüfbericht - Nr.: Test Report No. 02422486 001 Seite 7 von 12 Page 7 of 12 Model: SS Antenna Model: SS Bottom View www.tuv.com Appendix 3 Prüfbericht - Nr.: Test Report No. 02422486 001 Seite 8 von 12 Page 8 of 12 Model: SS Internal View of Bottom Opening Model: SSB Internal View www.tuv.com Appendix 3 Prüfbericht - Nr.: Test Report No. 02422486 001 Seite 9 von 12 Page 9 of 12 Model: SSB PCB Model: SSB Antenna www.tuv.com Appendix 3 Prüfbericht - Nr.: Test Report No. 02422486 001 Seite 10 von 12 Page 10 of 12 Model: SSB Bottom View Model: SSB Internal View of Bottom Opening www.tuv.com Appendix 3 Prüfbericht - Nr.: Test Report No. 02422486 001 Seite 11 von 12 Page 11 of 12 Model: LS, LSB, SS, SSB Battery Bluetooth Module Photo www.tuv.com Appendix 3 Prüfbericht - Nr.: Test Report No. 02422486 001 Seite 12 von 12 Page 12 of 12 SSB Distance between Antennas

Operational Description

www.tuv.com Appendix 6 Prüfbericht - Nr.: Test Report No. 02422486 001 Seite 1 von 1 Page 1 of 1 Specifications of EUT Operating Frequency 125 kHz and 134.2 kHz, 2.4GHz to 2.4835GHz RFID Compatibility HDX ISO, FDX B ISO and EM4002 Communication Ports Serial RS232 or optional Bluetooth (Class1, 100m) Battery 7.4V Li-ion rechargeable Power Input 12 VDC for charging battery Weight 0.7 kg (1.5 lbs) Display Graphic OLED 128 x 64 pixels Supply Voltage Input: AC 100 ~ 240 V; 50 ~ 60 Hz Output: 12V DC 1.6A Dimensions 650 X 100 X 30mm

RF Exposure Info

www.tuv.com Appendix 11 Prüfbericht - Nr.: Test Report No. 02422486 001 Seite 1 von 1 Page 1 of 1 Radio Frequency Human Exposure Evaluation: The highest RF output power of the EUT at 2480 MHz was measured 11.15 dBm which is less than 20mW. Hence the EUT is exempted from routine evaluation limits (SAR Evaluation) according to clause 2.5.1 of RSS-102 Issue 4. Since maximum peak output power of the transmitter is <60/f (GHz) mW, i.e. 13mW<25(=60/2.4) mW, hence the EUT is excluded from SAR evaluation according to FCC KDB publication 447498 D01: Mobile Portable RF Exposure. Maximum Output power of the RFID Transmitter: P = (E x d) squared / (30 x G) Where: E = the measured maximum field strength in V/m = 0.01 G = the numeric gain of the transmitting antenna over an isotropic radiator = 1 d = the distance in meters from which the field strength was measured = 3 P = the power in watts P= (0.01 x 3) ^2/ (30 x 1) = 0.03mW The Bluetooth Antenna and the RFID antenna are separated by more than 5 cm distance.

Test Report

Produkte Products TÜV Rheinland LGA Products GmbH x Tillystraße 2 x D - 90431 Nürnberg x Tel.: +49 911 655 5225 x Fax: +49 911 655 5226 Mail: [email protected] x Web: www.tuv.com Rev.:1.2 2009-12-29 / approved: M.Jungnitsch Prüfbericht - Nr.: 02422486 001 Seite 1 von 22 Test Report No.: Page 1 of 22 Auftraggeber: Client: Syscan-ID Inc. 1975 Hymus Suite 225, Montreal, Quebec, Canada H9P 1J8 Gegenstand der Prüfung: Test item: Livetrack Reader Bezeichnung: Identification: LSB, LS SSB, SS Serien-Nr.: Serial No. 0000000003, 0000000004 0000000005, 0000000006 Wareneingangs-Nr.: Receipt No.: 1403010312 Eingangsdatum: Date of receipt: 2010-05-21 Prüfort: Testing location: Refer page 4 of 22 for test facilities Prüfgrundlage: Test specification: FCC Part 15, Subpart C Prüfergebnis: Test Result: Der Prüfgegenstand entspricht oben genannter Prüfgrundlage(n). The test item passed the test specification(s). Prüflaboratorium: Testing Laboratory: TÜV Rheinland (India) Pvt. Ltd. Alpha Tower, Sigma Soft Tech Park, #7, Whitefield Main Road, Varthur Kodi, Bangalore – 560066, India geprüft / tested by: kontrolliert/ reviewed by: 2010-07-02 Vinay.N Test Engineer 2010-07-02 L.Narasimha Charyulu Sr. Manager Datum Date Name/Stellung Name/Position Unterschrift Signature Datum Date Name/Stellung Name/Position Unterschrift Signature Sonstiges /Other Aspects: FCC ID: YPJ- LIVETRACK-ID4 Abkürzungen: P(ass) = entspricht Prüfgrundlage F(ail) = entspricht nicht Prüfgrundlage N/A = nicht anwendbar N/T = nicht getestet Abbreviations: P(ass) = passed F(ail) = failed N/A = not applicable N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any safety mark on this or similar products. www.tuv.com Test Report No.:02422486 001 Date: 2010-07-02 Page 2 of 22 Test Result Summary Clause Test Item Result FCC 15.209 Spurious Radiated Emissions Pass FCC 15.207 Conducted Emission Test on a.c. Power Line Pass www.tuv.com Test Report No.:02422486 001 Date: 2010-07-02 Page 3 of 22 Content List of Test and Measurement Instruments .............................................................. 4 General Product Information ..................................................................................... 5 Product Function and Intended Use ............................................................................................. 5 Ratings and System Details .......................................................................................................... 5 Operation Descriptions .............................................................................................. 6 Test Set-up and Operation Mode ............................................................................... 9 Principle of Configuration Selection ............................................................................................ 9 Test Operation and Test Software ................................................................................................ 9 Special Accessories and Auxiliary Equipment ........................................................................... 9 Test Methodology ..................................................................................................... 10 Radiated Emission Test ............................................................................................................... 10 Conducted Emission Test on a.c. mains line ............................................................................ 10 Test Results ............................................................................................................... 11 Occupied Bandwidth Measurement ........................................................................................... 11 Spurious Radiated Emissions Section 15.209 .......... 13 Conducted Emission Test on a.c. Power Line Section 15.207 .......... 18 Appendix 1: Test Setup Photo Appendix 2: EUT External Photo Appendix 3: EUT Internal Photo Appendix 4: FCC Label Location Appendix 5: Block Diagram Appendix 6: Specification of EUT Appendix 7: Schematic Diagrams Appendix 8: Bill of Material Appendix 9: User Manual www.tuv.com Test Report No.:02422486 001 Date: 2010-07-02 Page 4 of 22 List of Test and Measurement Instruments Wipro Technologies, Bangalore List of Test and Measurements Equipment Manufacturer Type S/N Calibration Due Date EMI Test Receiver Rohde & Schwarz ESIB40 100306 21.07.2010 LISN Schwarzbeck Mess-Electronik NSLK2128 8128- 243 16.02.2011 Hybrid Log Periodic Antenna TDK HLP3003C 130334 16.02.2011 Broadband Horn Antenna Schwarzbeck Mess-Electronik BBHA9170 9170- 337 02.06.2010 Double Ridged Horn Antenna Schwarzbeck Mess-Electronik BBHA9120D 9120D- 687 14.08.2010 Pre-Amplifier TDK-RFSolution PA-02 100008 14.02.2011 SAMEER-Center for Electromagnetics, Chennai List of Test and Measurements Equipment Manufacturer Type S/N Calibration Due Date EMI Receiver Rohde & Schwarz ESIB7 10088.74 90 13.02.2010 Loop Antenna ETS Lingdren 6507 1487 17.10.2010 Testing Facilities 1) Wipro Technologies Survey No. 70,77,78 / 8A, Dodda Kannelli, Sarjapur Road, Bangalore – 560 035 India 2) SAMEER-Center for Electromagnetics C.I.T.Campus, Taramani, 2nd Main Road, Chennai – 600113 India www.tuv.com Test Report No.:02422486 001 Date: 2010-07-02 Page 5 of 22 General Product Information Product Function and Intended Use Handheld Low Frequency Animal RFID reader intended for Livestock Traceability Ratings and System Details Test Conditions: Voltage: 110 V AC, 60Hz Environmental conditions Temperature: +23 º C RH: 62% Operating Frequency 125 kHz and 134.2 kHz, RFID Compatibility HDX ISO, FDX B ISO and EM4002 Communicat…

Text truncated - open the document above for the full version.

Test Setup Photos

www.tuv.com Appendix 1 Prüfbericht - Nr.: Test Report No. 02422486 001 Seite 1 von 4 Page 1 of 4 Test setup-Conducted Emissions Test setup-Conducted Emissions www.tuv.com Appendix 1 Prüfbericht - Nr.: Test Report No. 02422486 001 Seite 2 von 4 Page 2 of 4 Test setup-Radiated Emissions Test setup-Radiated Emissions www.tuv.com Appendix 1 Prüfbericht - Nr.: Test Report No. 02422486 001 Seite 3 von 4 Page 3 of 4 Test setup-Radiated Emissions Test setup-Radiated Emissions www.tuv.com Appendix 1 Prüfbericht - Nr.: Test Report No. 02422486 001 Seite 4 von 4 Page 4 of 4 Test setup-Radiated Emissions Test setup-Radiated Emissions
