YQZMP001Mobile printer

AB-330M AB-320M Mobile Printer USER'S MANUAL http://www.zonerich.com Zonerich Computer Equipments Co., Ltd. MANUAL REVISION EN 8.1 FEED POWE R R GE F A U H L L C P O W E R M O D E E R R O R You must use only the supplied charger. It is dangerous to use other chargers. Make sure the printer power is off before plug or unplug the cable. Please don`t place the printer in humidity or dusty space, excessive humidity and dust may damage it. Do not put foods or drinks on the printer, in case that splash into the printer. The print head has a high temperature after work. Please don`t touch the print head or touch the motor shell in case scalded. NOTICE Do not plug or unplug with your hands wet. You may be electrocuted. Keep magnetic objects away from the printer. Don't make battery short circuit or heated. Otherwise the battery may be damaged or cause fire or explode. USER'S MANUAL INTRODUCTION WARNING Some semiconductor devices are easily damaged by static electricity. In order to guard the printer against the static electricity , you should turn the printer "OFF", before you connect or remove the cables on the face side. If the printer is damaged by the static electricity, you should turn the printer "OFF". All specifications are subjected to change without notice. Table of Contents AB-320M/AB-330M is the mobile printer model with excellent performance. It is integrated with Serial, USB and Bluetooth interfaces. It can be easily used for forms or receipts printing cooperated with portable equipments, such as PDA, Laptop, Data Samplers etc. The main features of the printer are as follows: 1. High speed printing: 60mm per second max. 2. Low noise thermal printing. 3. RS-232, USB, Bluetooth interfaces integrated. 4. The data buffer allows the unit to receive print data even during printing. 5. Bar code printing is possible by using a bar code command. Please do read the instructions in this manual carefully before using your new AB-320M/AB-330M Table of Contents........................................................................ Chapter 1 ................................................................... Chapter 2 ............................................... 2-1. ............................................................................ 2-2. ................................................................... Chapter 3 .............................. 3-1. I.............................................................................. Chapter 4 R.............................................. ..................................... Chapter 5 .................................................... Chapter 6 ..................................................................... Chapter 7 ....................................................... .............................................................................. Chapter 8 .......................................... .................................... .......................................................... ............................................................... ....................................................................... ................................................................ Overview Setting up the Printer Unpacking Using the Printer oll paper installing Chapter 9 Chapter 10 Specifications Chapter 11 11-1. Command List 11-2. Control Commands Interfaces and cable connection nterfaces 3-2. Connect the cables................................................................ 4-1. Installing or Replacing the Roll Paper 4-2. Cleaning the Print Head......................................................... Battery installation Self test Basic operations 7-1. Power on/off........................................................................... 7-2. Feed paper............................................................................. 7-3. Tear paper Alarming to lack of paper Using and recharging battery Commands 01 02 03 03 04 07 07 09 10 10 11 12 13 14 14 14 14 15 16 17 18 18 19 FEED POWER R GE F A U H L L C P O W E R M O D E E R R O R Strap Clasp Screw Nut Below strap clasp is not included in the box but optional.The strap clasp is fixed on the back shell of the printer using a nut inside and right behind the back shell. Chapter 2 Setting up the Printer Your printer box should include these items. If any of the items was damaged or missing, please contact your dealer for assistance. 2-1. Unpacking AB-320M/AB-330M Serial Cable Roll paper Recharger USB Cable USER'S MANUALUSER'S MANUAL OperatorsM anual e r o w M P o d e l l u F E e r g r r o a r h C e r o w M P o d e l l u F E e r g r r o a r h C FE E D FE E D PO W ER PO W ER U S B Below pictures define every part of printer model AB-320M/AB-320M. Chapter 1 Overview Feed Button Charge(Red light) Full(Green light) Shell Power(Red light) Mode(Blue light) Power Button Card Reader(MSR) (Option) Serial Interface Recharge Port Screw Hole Battery Strap Clasp Screw Hole Error(Yellow light) USB Interface Printer Bag USER'S MANUALUSER'S MANUAL 2-2. Using the Printer BUTTON FEED Press the FEED button once to advance paper one line. You can also hold down the FEED button to feed paper continuously. POWER Press this button and hold on for a few second, the printer can be powered on/off. PANEL LIGHTS CHARGE When the printer is connected with the charger, this light turns RED. FULL When the battery finished recharging, this light turns Green. POWER On-working indicator. MODE In mode-setting statue,it turns BLUE. ERROR Error appears,the light turns Yellow. BAUDRATE SETTING(For example:Set 9600BPS baudrate) Before setting baudrate,make sure the printer is onoffStatus. 1. PressPOWERbutton and hold on tillMODElight turns blue. 2. PressPOWERbutton one time again.the MODE light will flash. 3. Press FEEDbutton to Set baudrate.PressFEEDbutton three times. Press FEEDone time is 2400BPS,Press two times is 4800BPS,Press three times is 9600BPS.Once pressFEEDbutton one more time the baudrate will…

Text truncated - open the document above for the full version.

Zonerich Computer Equipment Co., Ltd. F4,Office Building,U-Best Industry Zone,No.17 Xiangshan Road,Science City, LuoGang District, Guangzhou City, Guangdong,China Attestation for FCC Declaration of Conformity FCC ID: YQZMP001 Data:Aug. 30, 2010 Please be notified that we, the undersigned, Zonerich Computer Equipment Co., Ltd. declares that the product which bears the above FCC ID is also compliant with the FCC requirements for DoC. The test report number supporting the DoC is 10B08008F. Testing in regards to this report was done by Interocean EMC technology Corp. , located at No. 5-2, Lin1, Tin-Fu Tsun, Lin-Kou Hsiang, Taipei County 244, Taiwan, which has been accredited in accordance to all of the requirements of 47CFR 2.948(d) and (e) of the FCC rules and KDB349827. Sincerely, Zonerich Computer Equipment Co., Ltd. Tel: +862032290168 Fax: +862032290575 Mail:[email protected]

Zonerich Computer Equipment Co., Ltd. F4,Office Building,U-Best Industry Zone,No.17 Xiangshan Road,Science City, LuoGang District, Guangzhou City, Guangdong,China” 081710 – 4 Authority to Act as Agent Date: _2010-8-30_ American Telecommunication Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: ____ __ I-Test Laboratory ______ is authorized to act on our behalf, until otherwise notified, for applications to American Telecommunication Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: _____(Typically 8 – 12 months)_____ By: _______ ___________________ ________ Liuis Liu__________ (Signature 1 ) (Print name) Title: _______ General Manager ______ On behalf of: ____ Zonerich Computer Equipment Co., Ltd. ___ (Company Name) Telephone: _____ +862032290168_____ 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

Zonerich Computer Equipment Co., Ltd. F4,Office Building,U-Best Industry Zone,No.17 Xiangshan Road,Science City, LuoGang District, Guangzhou City, Guangdong,China” 081710 – 4 Request for Confidentiality Date: _2010-8-30__ Subject: Confidentiality Request for: ______YQZMP001______ Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 2 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual *Note: ______(Insert Explanation as Necessary)______ ______ Zonerich Computer Equipment Co., Ltd.______ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180 ) 3 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ATCB in the event information regarding the product or the product is made available to the public. ATCB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By: __________________________ ___________ Liuis Liu / General Manager _______ (Signature/Title 4 ) (Print name) 2 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.” 3 - Please refer to http://atcb.com/publicdocs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. 4 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

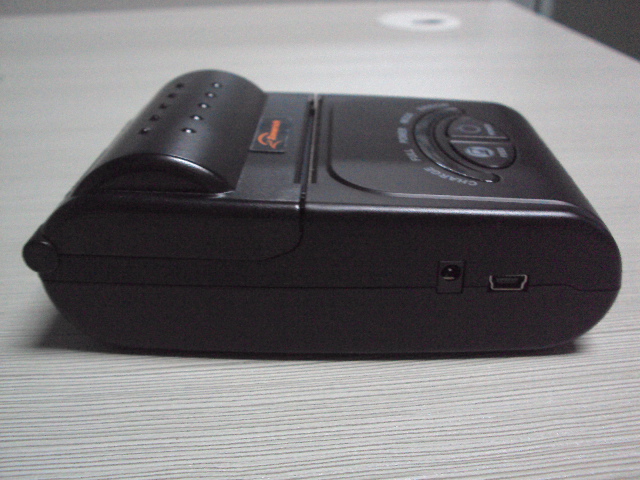

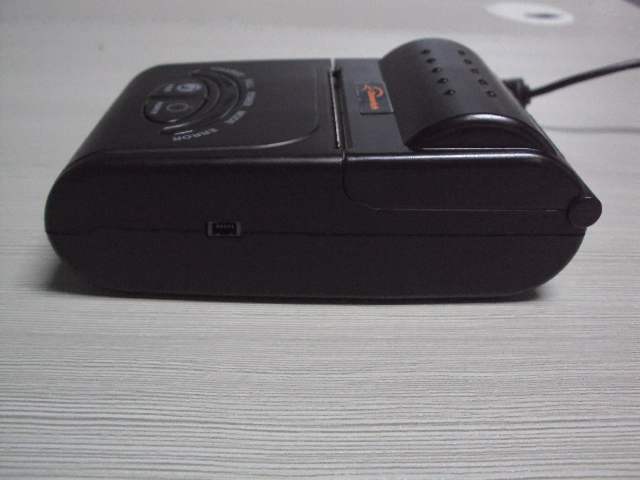

1 Photos of EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Photo 6 Photo 7 Photo 8 Photo 10 Photo 11 Photo 12 Photo13 Photo14 Photo15 Photo16 Photo17

ITL Page 64 of 68 Report No.: 1100720801 10.1.1 MPE CALCULATION METHOD Calculation Method of RF Safety Distance: P :power input to the antenna in Mw EIRP :Equivalent(effective) isotropic radiated power. S :power density mW/ cm 2 G ;numeric gain of antenna relative to isotropic radiator R :distance to centre of radiation in cm FCC radio frequency exposure limits may be exceeded at distances closer than r cm from the antenna of this device EIRP=10 ( Antenna Gain+Peak Output Power/10) Note: 1. s=1.0 mW /cm 2 for limits for General Population/Uncontrolled Exposures. 2. The time averaged power over 30 minutes will be equaled Output Power. 3. Minimum calculated separation distance betweet antenna and persons required:0.53 cm 4. The Power Density at a distance of 20cm calculated from the formula is far below the limit of 1MW/ cm 2 5. For portable device,the power limit is 60/f(in GHz) mW 6. For limit 60/f is equal: 60/2.402=24.98mW 60/2.441=24.58 mW 60/2.480=24.19mW 7. The max.output power E.I.R.P is 0.6324 mW So it is complied with the limit,SAR report is not requied. ITL Page 65 of 68 Report No.: 1100720801 10.1.2 DEVIATION FROM STANDARD No deviation. 10.1.3 TEST SETUP 10.1.4 EUT OPERATION CONDITIONS The EUT tested system was configured as the statements of 4.1.6 Unless otherwise a special operating condition is specified in the follows during the testing. ITL Page 66 of 68 Report No.: 1100720801 10.1.5 TEST RESULTS EUT： Mobile printer Model Name ： AB-320M Temperature： 25 °C Relative Humidity： 60% Pressure： 1012 hPa Test Voltage ： DC 9.0V Test Mode ： CH00 (2402 MHz), CH39(2441 MHz), CH78 (2480 MHz) -1Mbps Frequency (MHz) Antenna Gain (dBi) Peak Output Power (dBm) Calculated EIRP (mW) Power Density (S) (mW/cm²) FCC Threshold (mW) Test Result 2402 1.82 -3.81 0.6324 0.0001258824.98 Complies 2441 1.82 -5.24 0.4550 0.0000905624.58 Complies 2480 1.82 -5.52 0.4266 0.0000849124.19 Complies

ITL Page 1 of 68 Report No.: 1100720801 RADIO TEST REPORT Report Reference No. ............... : 1100720801 Compiled by (+ signature) ........... Jumy Qiu ................. ............................ Approved by (+ signature) ........... Pauler Li ................................................ Date of issue ............................... : 2010.08.26 Total number of pages ................. 68 Applicant’s name ........................... : Zonerich Computer Equipment Co., Ltd. Address ...................................... : F4,Office Building,U-Best Industry Zone,No.17 Xiangshan Road,Science City, LuoGang District, Guangzhou City, Guangdong,China Manufacture's Name ...................... : Zonerich Computer Equipment Co., Ltd. Address ...................................... : F4,Office Building,U-Best Industry Zone,No.17 Xiangshan Road,Science City, LuoGang District, Guangzhou City, Guangdong,China Factory's Name .............................. : Zonerich Computer Equipment Co., Ltd. Address ...................................... : F4,Office Building,U-Best Industry Zone,No.17 Xiangshan Road,Science City, LuoGang District, Guangzhou City, Guangdong,China Test specification: Standard ..................................... : FCC Part 15.247 Test procedure ................................. : ANSI C63.4 : 2009, DA 00-705 Non-standard test method..............: N/A Test item description Product name ........................ : Mobile printer Trademark ............................ : / Model and/or type reference : AB-320M、AB-325M、AB-330M、AB-350M Rating(s) ................................ : DC 9.0V/1A Testing Laboratory information: Testing Laboratory Name ..... : I-Test Laboratory Address ................................ : 1-2 floor, South Block, Building A2 , No 3 Keyan Lu, Science City, Guangzhou, Guangdong Province, P.R. China FCC Registration Number .... : 935596 Tel .......................................... : 0086-20-32209330 Fax ......................................... : 0086-20-62824387 E-mail..................................... : [email protected] ITL Page 2 of 68 Report No.: 1100720801 Possible test case verdicts: - test case does not apply to the test object ................................................................. : N/A - test object does meet the requirement . : P (Pass) - test object does not meet the requirement ............................................. : F (Fail) Testing .................................................... : Date of receipt of test item ...................... : 22 Aug 2010 Date (s) of performance of tests ............. : 23 Aug 2010 ~ 26 Aug. 2010 General remarks: The test results presented in this report relate only to the object tested. The results contained in this report reflect the results for this particular model and serial number. It is the responsibility of the manufacturer to ensure that all production models meet the intent of the requirements detailed within this report. This report would be invalid test report without all the signatures of testing technician and approver. This report shall not be reproduced, except in full, without the written approval of the Issuing testing laboratory. ITL Page 3 of 68 Report No.: 1100720801 Table of Contents Page 1 . SUMMARY OF TEST RESULTS 6 1.1 MEASUREMENT UNCERTAINTY 7 2 . GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF EUT 8 2.2 DESCRIPTION OF TEST MODES 10 2.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 10 2.4 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 11 2.5 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 12 2.6 EQUIPMENTS LIST FOR ALL TEST ITEMS 13 3 . EMC EMISSION TEST 14 3.1 CONDUCTED EMISSION MEASUREMENT 14 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 14 3.1.2 TEST PROCEDURE 15 3.1.3 DEVIATION FROM TEST STANDARD 15 3.1.4 TEST SETUP 15 3.1.5 EUT OPERATING CONDITIONS 16 3.1.6 TEST RESULTS 17 3.2 RADIATED EMISSION MEASUREMENT 19 3.2.1 RADIATED EMISSION LIMITS 19 3.2.2 TEST PROCEDURE 20 3.2.3 DEVIATION FROM TEST STANDARD 20 3.2.4 TEST SETUP 21 3.2.5 EUT OPERATING CONDITIONS 21 3.2.6 TEST RESULTS (BETWEEN30 – 1000 MHZ) 22 3.2.7 TEST RESULTS (ABOVE 1000 MHZ) 24 3.2.8 TEST RESULTS (RESTRICTED BANDS REQUIREMENTS) 36 4 . NUMBER OF HOPPING CHANNEL 40 4.1 APPLIED PROCEDURES / LIMIT 40 4.1.1 TEST PROCEDURE 40 4.1.2 DEVIATION FROM STANDARD 40 4.1.3 TEST SETUP 40 4.1.4 EUT OPERATION CONDITIONS 40 4.1.5 TEST RESULTS 41 5 . AVERAGE TIME OF OCCUPANCY 42 5.1 APPLIED PROCEDURES / LIMIT 42 ITL Page 4 of 68 Report No.: 1100720801 Table of Contents Page 5.1.1 TEST PROCEDURE 42 5.1.2 DEVIATION FROM STANDARD 42 5.1.3 TEST SETUP 43 5.1.4 EUT OPERATION CONDITIONS 43 5.1.5 TEST RESULTS 44 6 . HOPPING CHANNEL SEPARATION MEASUREMENT 50 6.1 APPLIED PROCEDURES / LIMIT 50 6.1.1 TEST PROCEDURE 50 6.1.2 DEVIATION FROM STANDARD 50 6.1.3 TEST SETUP 50 6.1.4 EUT OPERATION CONDITIONS 50 6.1.5 TEST RESULTS 51 7 . BANDWIDTH TEST 53 7.1 APPLIED PROCEDURES / LIMIT 53 7.1.1 TEST PROCEDURE 53 7.1.2 DEVIATION FROM STANDARD 53 7.1.3 TEST SETUP 53 7.1.4 EUT OPERATION CONDITIONS 53 7.1.5 TEST RESULTS 54 8 . PEAK OUTPUT POWER TEST 56 8.1 APPLIED PROCEDURES / LIMIT 56 8.1.1 TEST PROCEDURE 56 8.1.2 DEVIATION FROM STANDARD 56 8.1.3 TEST SETUP 56 8.1.4 EUT OPERATION CONDITIONS 56 8.1.5 TEST RESULTS 57 9 . ANTENNA CONDUCTED SPURIOUS EMISSION 59 9.1 APPLIED PROCEDURES / LIMIT 59 9.1.1 TEST PROCEDURE 59 9.1.2 DEVIATION FROM STANDARD 59 9.1.3 TEST SETUP 60 9.1.4 EUT OPERATION CONDITIONS 60 9.1.5 TEST RESULTS 61 10 . RF EXPOSURE TEST 63 10.1 APPLIED PROCEDURES / LIMIT 63 10.1.1 MPE CALCULATION METHOD 64 10.1.2 DEVIATION FROM STANDARD 65 10.1.3 TEST SETUP 65 ITL Page 5 of 68 Report No.: 1100720801 Table of Contents Page 10.1.4 EUT OPERATION CONDITIONS 65 10.1.5 TEST RESULTS 66 11 . EUT TEST PHOTO 67 ITL Page 6 of 68 Report No.: 1100720801 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247 (c) Ant…

Text truncated - open the document above for the full version.

ITL Page 67 of 68 Report No.: 1100720801 11. EUT TEST PHOTO Radiated Measurement Photos ITL Page 68 of 68 Report No.: 1100720801 Conducted Measurement Photos
