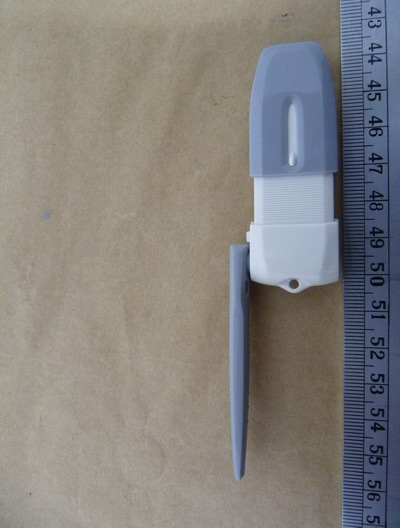

Registration number: W6M21009-10899-R FCC ID: YS8-ALM-A811 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 2 of 11 Pictures External Photos Registration number: W6M21009-10899-R FCC ID: YS8-ALM-A811 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 3 of 11

Label & Location

Registration number: W6M21009-10899-R FCC ID: YS8-ALM-A811 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 4 of 11 Internal Photos Registration number: W6M21009-10899-R FCC ID: YS8-ALM-A811 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 5 of 11 Registration number: W6M21009-10899-R FCC ID: YS8-ALM-A811 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 6 of 11 Registration number: W6M21009-10899-R FCC ID: YS8-ALM-A811 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 7 of 11 Registration number: W6M21009-10899-R FCC ID: YS8-ALM-A811 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 8 of 11

MPE Prediction FCC Rule: 15.247(b)(5) Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. See §1.1307(b)(1) of this Chapter. LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Average time (minutes) (A)Limits For Occupational / Control Exposures 30-300 61.4 0.613 1.0 6 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 30-300 27.5 0.073 0.2 30 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 PG S = -------------- 4πR² where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 11.24(dBm) Maximum peak output power at antenna input terminal: 13.30 (mW) Antenna gain(maximal): 1.5 (dBi) Prediction distance: 20 (cm) Prediction frequency: 2480 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1.0 (mW/cm²) Power density at prediction frequency: 0.0037 (mW/cm²) The manual instruct the user to install and operate the device in a minimum distance of 20 cm between antenna and the users body.

of Applicant: Almacro Technology Inc. Address: 12-3F,NO.888,JING KUO ROAD, TAOYUAN CITY 330, TAIWAN.R.O.C Tested and Prepared by Worldwide Testing Services (Taiwan) Co., Ltd. FCC Registration No.: 930600 Industry Canada filed test laboratory Reg. No. IC 5679A-1 A2LA Accredited No.: 2732.01 Report No.: W6M21009-10899-C-1-R 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU TAIPEI 114, TAIWAN, R.O.C. TEL: 886-2-66068877 FAX: 886-2-66068879 E-mail: [email protected] FCC PART 15 SUBPART C TEST REPORT for 2.4GHz Digital Wireless NVR USB Dongle Model No.: ALM-2811 FCC ID: YS8-ALM-A811 Registration number: W6M21009-10899-C-1-R FCC ID :YS8-ALM-A811 Worldwide Testing Services(Taiwan) Co., Ltd. Page 1 of 40 TABLE OF CONTENTS 1 GENERAL INFORMATION ...................................................................................................... 2 1.1 Notes .................................................................................................. 2 1.2 Testing laboratory .................................................................................................. 3 1.2.1 Location ..............................................................................................................................3 1.2.2 Details of accreditation status ............................................................................................3 1.3 Details of approval holder .................................................................................................. 3 1.4 Application details .................................................................................................. 4 1.5 General information of Test item......................................................................................... 4 1.6 Test standards .................................................................................................. 5 2 TECHNICAL TEST .................................................................................................................... 6 2.1 Summary of test results .................................................................................................. 6 2.2 Test environment .................................................................................................. 6 2.3 Test Equipment List .................................................................................................. 7 2.4 General Test Procedure ................................................................................................ 10 3 TEST RESULTS (ENCLOSURE) ............................................................................................ 12 3.1 Peak Output Power (transmitter) ....................................................................................... 13 3.2 RF Exposure Compliance Requirements ........................................................................... 17 3.3 Out of Band Radiated Emissions ....................................................................................... 17 3.4 Transmitter Radiated Emissions in restricted Bands ......................................................... 18 3.5 Spurious emissions (tx) ................................................................................................ 19 3.6 Carrier Frequency Separation ............................................................................................ 22 3.7 Number of Hopping Frequencies....................................................................................... 25 3.7.1 Pseudorandom Frequency Hopping Sequence ..............................................................27 3.7.2 Coordination of hopping sequences to other transmitters................................................27 3.7.3 System Receiver Hopping Capability ...............................................................................27 3.8 Time of Occupancy (Dwell Time) ..................................................................................... 28 3.9 20dB Bandwidth ................................................................................................ 32 3.10 Band-edge Compliance of RF Emissions .......................................................................... 35 3.11 Radiated Emissions from Digital Part................................................................................ 38 3.12 Power Line Conducted Emission....................................................................................... 39 Registration number: W6M21009-10899-C-1-R FCC ID :YS8-ALM-A811 Worldwide Testing Services(Taiwan) Co., Ltd. Page 2 of 40 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the Worldwide Testing Services(Taiwan) Co., Ltd. Tester: February 25, 2011 Rick Chen Date WTS-Lab. Name Signature Technical responsibility for area of testing: February 25, 2011 Chang Tse-Ming Date WTS Name Signature Registration number: W6M21009-10899-C-1-R FCC ID :YS8-ALM-A811 Worldwide Testing Services(Taiwan) Co., Ltd. Page 3 of 40 1.2 Testing laboratory 1.2.1 Location OATS No.5-1, Shuang …

Text truncated - open the document above for the full version.

Registration number: W6M21009-10899-R FCC ID: YS8-ALM-A811 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 9 of 11 Set Up Photo of Radiated Emission EMI Digital Part Registration number: W6M21009-10899-R FCC ID: YS8-ALM-A811 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 10 of 11 RF Registration number: W6M21009-10899-R FCC ID: YS8-ALM-A811 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 11 of 11 Set Up Photo of Conducted Emission
