YSFHSG-X5MID
Sinotech Digital Technology Company Ltd.
Click to zoom
Application Details
- Equipment Class
- JBC - Part 15 Class B Computing Device/Personal Computer
- Date of Grant
- Sep 26, 2010
- Application Purpose
- Original Equipment
- Date of Application
- Sep 26, 2010
- Equipment Note
- MID
- Country
- China
Documents & Files
Document Text
Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
Users Manual
Preface For your ease as soon as possible to operate the machine,when you start using this machine,please read the instructions we have supplied so that you can properly use the machine. The information in this manual subject to change without notice and does not take up this manual errors or omissions arising from any event caused. 1 Please be sure the following items including in the packing: Machine Adapter USB cable OTG cable Headset HDMI cable Manual Touch pen 2 Directory 1. Main functions 2. Basic Operation 3. Connect the computer and File Transfer 4. The main interface 5. Music player 6. Video Player 7. Image View 8. Recording 9. File 10. Set 11. Book 12. Additional features 3 、Main Fuction ●7-inch wide-screen TFT TFT resistive touch screen the whole 800 * 480 resolution, high-definition display. ●Support MP3, WMA, WAV, OGG, APE format music player, support sequence playing a variety of play modes, lyrics display, album picture playback. ●support AVI, RMVB, DAT, WMV, MPEG, FLV, H.264 supports video click-to-play, 800 * 480 resolution, ultra-clear video playback. ●support HDMI 1080P and PAL,λ NTSC standard TV-OUT TV output function. ●support from the ring features. ●supports up to 32GB capacity SD card. ●support the highest 4096 * 4096 resolution JPG, BMP, GIF, PNG formats picture browsing, picture automatically browsing. ●Energy-saving setting, brightness can be adjusted freely. ●support for ultra-long recording capability. ●Support E-book reading and bookmark feature. ●support WINCE system. ●High-speed USB2.0 transfer. ●mobile hard disk function. ●support for external mouse, keyboard. ●Support firmware upgrade function. ●Support multi-tasking function,λ can look books while listening to music. The information in this manual subject to change without notice and does not take up this manual errors or omissions arising from any event caused. 、Basic Operation z Boot: Long press the power button about 3 seconds, the player displays the boot screen to enter the function selection main interface. ● Shutdown: a. Click the desktop Start menu, choose Shut Down pop-up "Shutdown" "hang" selection dialog box, click on "shutdown", to achieve a shutdown operation. b. in the boot state, long press the power button about 3 seconds, select Shut 4 Down pop-up "Shutdown" "hang" selection dialog box, click on "shutdown", to achieve a shutdown operation. c. In the absence of sufficient power, the machine automatically shut down. ●hang: When you do not have the interim, you can choose hang. At this point the system will be low-power operation, and the program will not be open until closed; again, just a short press the power button, you can revert to the original state of operation. To do the following: a. Click the desktop Start menu, choose Shut Down pop-up "Shutdown" "hang" selection dialog box, click the "hang" and realize suspend operations. b. in the boot state, long press the power button about 3 seconds, select Shut Down pop-up "Shutdown" "hang" selection dialog box, click the "hang" and realize suspend operations. System reset function If you use MID disorder occurred during the procedure, crashes, etc. are not normal circumstances, you can use the stylus hits the fuselage reset reset button on this machine, and then restart the machine. Power Supply Monitoring ●System reset function If you use MID disorder occurred during the procedure, crashes, etc. are not normal circumstances, you can use the stylus hits the fuselage reset reset button on this machine, and then restart the machine. ●Power Supply Monitoringλ Click on the desktop "Control Center" icon into the Control Center interface, choose the power management, monitor battery power status, along with the increase in use of time machine, the battery icon in the cell number will be reduced accordingly, and the battery life time and play the type of file the screen display state and the volume size. Through the power settings: automatic, power and optimal performance, three kinds of options to select the power mode, when the battery icon shows the number of empty cells, please charge. ●Battery Chargingλ This machine adopts built-in high-capacity polymer battery, you can use our company is equipped with a battery charger charging, charging, the player has a certain degree of 5 warming, are a normal phenomenon. ▲ Note: When the red charging indicator light lit, full of light extinguished after. Full charge in 3 hours. ．Connect The Computer and File Transfer The machine via USB cable connected to the computer, so that can achieve the removable disk function for data transmission. The machine and the computer through the USB interface can be used as a U disk to use. You just need to enjoy music directly copied to the player, which can be, without the need for any third-party process .Order to achieve. 、Interface Boot into the main interface, you can choose music, movies, pictures, sound recordings, calendar, computer. Control center and e-books and other models 、Music In the main interface, click the option to start music player, this time to play music files for the last time you saved the list first tracks; In addition, music files can also click on to start music player, this time to play the file for the selected file. z music interface a. click the button to enter the music to set the page, respectively, are: disordered playback, repeat playback and sound settings to choose three options, based on individual set. b. Click to musical pause, on the one, the next one operation. c. Click, drag the page to next page. In the song list, by clicking the "Update Playlist" Achieving the list update; selected to delete the file, click the "Delete" to remove. d. Click to select Mute and volume models. Note: Mute is only valid for this procedure 6 does not affect the system volume. e. Scroll volume adjustment of the volume size of music player. f. Drag to draw a realization of the progress that the point-to-play operation. g. to support the same file n…
Text truncated - open the document above for the full version.
Block Diagram
Block Diagram Ant. 2412~2462MHz MCU TCC8900 XTAL 12MHz DRAM NANA Flash SD/TF Card External USB Disk HDD Memory 7” TFT LCD Display Speaker Touch Panle Audio/MIC I/O 2.4G Wi-Fi Module DC 7.4V Battery Power Supply by DC 9V Adaptor HDMI Output USB to PC XTAL 32.768kHz
External Photos

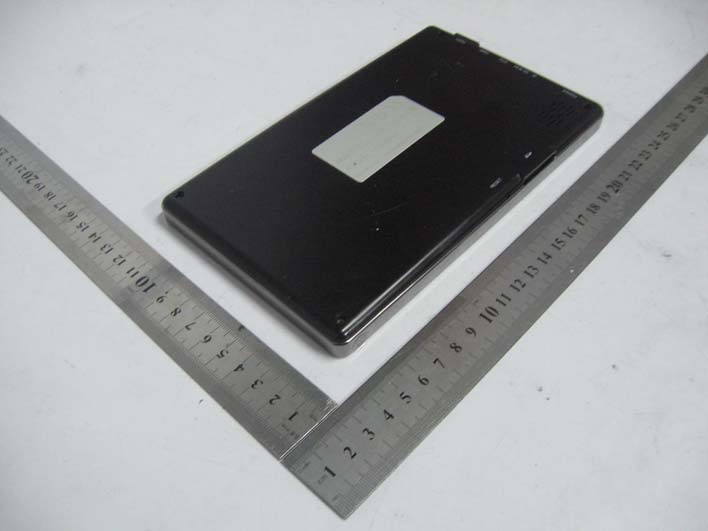

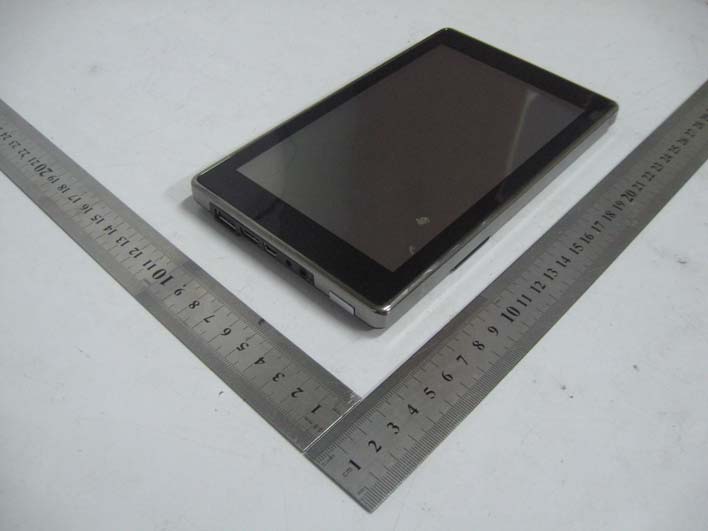

Sinotech Digital Technology Company Ltd Model: HSG-X5 REPORT NO.: STR10098069I-1 FCC PART 15.247 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 Sinotech Digital Technology Company Ltd Model: HSG-X5 REPORT NO.: STR10098069I-1 FCC PART 15.247 EUT View 3
ID Label/Location Info
Sinotech Digital Technology Company Ltd Model: HSG-X5 REPORT NO.: STR10098069I-1 FCC PART 15.247 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: YSFHSG-X5 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location
ID Label/Location Info
Sinotech Digital Technology Company Ltd Model: HSG-X5 REPORT NO.: STR10098069I-1 FCC PART 15.247 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: YSFHSG-X5 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location
Internal Photos
Sinotech Digital Technology Company Ltd Model: HSG-X5 REPORT NO.: STR10098069I-1 FCC PART 15.247 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View Solder Board-Component View 1 Sinotech Digital Technology Company Ltd Model: HSG-X5 REPORT NO.: STR10098069I-1 FCC PART 15.247 Solder Board-Component View 2 Solder Board-Component View 3 Sinotech Digital Technology Company Ltd Model: HSG-X5 REPORT NO.: STR10098069I-1 FCC PART 15.247 Solder Board-Component View 4
Operational Description
Circuit Description 1. The MCU-TCC8900 chip is master micro controller, the oscillator component X1 generated a frequency of 12MHz as base clock frequency, the TCC8900 is a center processing unit which the master frequency of running speed is 333MHz, with 128MHz DRAM and 1GB nand flash, and SD/TF card, one USB port for USB disk and one mini USB port for connect to PC. 2. The IC-RT3070 is a wireless communication IC base on 802.11b/g WIFI wireless technolgy, the 40MHz clock frequency input to RT3070 as base clock frequency, and use the high-frequency from 2412MHz to 2462MHz as carrier frequency, the transmission rate up to 54MHz. 3. The USB disk and SD/TF card all external signal and data input to MCU as program source, playing and display on LCD screen or output to speaker. 4. The work voltage is DC 7.4V, supply by battery, with a DC 9V power adaptor.
RF Exposure Info
RF Exposure Requirements Product Description: MID Model No.: HSG-X5 FCC ID: YSFHSG-X5 Acorrding to the KDB-447498, the following RF exposure evaluation shall to demonstrate RF exposure compliance. Tx frequency range: 2412~2462MHz Antenna-to-tissue separation: 2.5 cm Maximum Output Power: 8.912mW (9.5dBm at channel 2412MHz of the 802.11b mode) Maximum Duty Factor: 100% 60/f(GHz) mW = 24.87 mW Source-based time-averaged conducted output power is 8.912mW =< 60/f (mW) So the transmitter is comply with the RF exposure requirements and the SAR in not required.
