YSI-DM300-DM300IDM300 WiFi Module

Copyright 2010. Delta Mobile Systems, Inc. Confidential & Proprietary DM300 WiFi Module User Guide Document Number 646 Revision 1.1 Date: September 27, 2010 700 Remington Road, 2 nd Floor  Schaumburg, IL 60173 [email protected]  www.deltamobile.com Phone: 847-884-6750 Printed: 9/29/2010 Confidential & Proprietary Page 2 of 8 Revision History Rev. Date Description Author 1.0 9/9/10 Release Joe Shidle, Andrew Grove 1.1 9/27/10 Added Part 15.21 Information To User, Part 15.19 Label, and For Part 15B Tom Meksavan 1.2 9/29/2010 Remove block diagram and operational description section Plato Lee Table of Contents 1. Overview.....................................................................................................................3 2. Startup and Shutdown Sequences ............................................................................... 3 2.1. Startup Sequence .................................................................................................. 3 2.2. Shutdown Sequence.............................................................................................. 3 3. WiFi Setup and Status................................................................................................. 3 3.1. WiFi Connection Modes ....................................................................................... 4 3.1.1. Ad-Hoc Mode.............................................................................................. 4 3.1.1.1. AT Command Sequence ......................................................................... 4 3.1.2. Infrastructure Mode ..................................................................................... 5 3.1.2.1. AT Command Sequence ......................................................................... 5 3.1.3. Supplicant Mode (WPA) ............................................................................. 5 3.1.3.1. AT command sequence .......................................................................... 6 3.2. WiFi Network Scanning ....................................................................................... 6 3.2.1. AT Command Sequence.............................................................................. 6 3.3. WiFi Connection Status ........................................................................................ 7 3.3.1. AT Command Sequence.............................................................................. 7 4. FCC/P15......................................................................................................................7 4.1. Part 15B ................................................................................................................ 7 4.2. Part 15.19 Label .................................................................................................... 8 4.3. Part 15-21 Information To User ........................................................................... 8 4.4. For Part 15B.......................................................................................................... 8 700 Remington Road, 2 nd Floor  Schaumburg, IL 60173 [email protected]  www.deltamobile.com Phone: 847-884-6750 Printed: 9/29/2010 Confidential & Proprietary Page 3 of 8 1. Overview The DM300A (IEEE 802.11b/g) module enables connectivity on M2M and embedded devices. The module translates data on an external wired interface (UART, USB, I2C, etc.) to the connected WiFi network. The module is designed for easy hardware and software integration onto a host board. The DM300A has an on-module trace antenna and a connector to attach an external antenna. Antenna diversity is supported via software configuration. Standard WiFi encryption and authentication protocols are supported: WEP, WPA, WPA2, Open, Shared, Pre-Shared Key. WiFi configuration is accomplished through an AT command interface. The module has an ARM9 processor and additional memory capacity to support custom applications. A currently supported application is serial to WiFi conversion with network communication via the Point-to-Point Protocol (PPP). This user guide provides details on establishing and configuring this particular application. 2. Startup and Shutdown Sequences 2.1. Startup Sequence  Mount DM300A onto a host board  Supply 3.3V to 3.7V to PIN#1 to power on  Use UART1 to communicate with DM300A o UART1 settings are 115200bps, 1 stop bit, no parity and no flow control 2.2. Shutdown Sequence  Send AT+HALT  Disconnect power from DM300A 3. WiFi Setup and Status In the following AT command and response sequences, the client/user input is in regular text and the DM300A response is in italics. 700 Remington Road, 2 nd Floor  Schaumburg, IL 60173 [email protected]  www.deltamobile.com Phone: 847-884-6750 Printed: 9/29/2010 Confidential & Proprietary Page 4 of 8 3.1. WiFi Connection Modes The DM300A supports different WiFi network and encryption modes. These modes are configured via AT commands. The following sections provide the AT command and response sequences to configure the DM300A for the different modes. 3.1.1. Ad-Hoc Mode Ad-Hoc network mode is used for peer-to-peer WiFi connections. 3.1.1.1. AT Command Sequence AT+WMODE=adhoc OK AT+WENCRYPT=open OK AT+WSSID =“Sample SSID” OK RING AT+IPMODE=manual OK AT+IPADRRESS=192.168.1.10 OK AT+IPNETMASK=255.255.255.0 OK AT+IPDEFAULTROUTE=192.168.1.0 OK ATA CONNECT 700 Remington Road, 2 nd Floor  Schaumburg, IL 60173 [email protected]  www.deltamobile.com Phone: 847-884-6750 Printed: 9/29/2010 Confidential & Proprietary Page 5 of 8 3.1.2. Infrastructure Mode Infrastructure network mode is used to establish a connection to a WiFi access point. 3.1.2.1. AT Command Sequence AT+WMODE=managed OK AT+WKEY=1,11223344556677889900AABBCC OK AT+WENCRYPT=wep OK AT+WSSID=“Sample SSID” OK RING AT+IPMODE=manual OK AT+IPADRRESS=192.168.1.10 OK AT+IPNETMASK=255.255.255.0 OK AT+IPDEFAULTROUTE=192.168.1.0 OK AT+IPNAMESERVER=192.168.1.1 OK AT+IPDOMAINNAME=“sample.com” …

Text truncated - open the document above for the full version.

1 of 2 Delta Mobile System, Inc. 700 Remington Road, 2nd Floor, Schaumburg, IL. 60173 TEL: 847-884-6750 Date: 2010/09/24 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize (Miller Lee /Measurement Center Manger) of (A Test Lab Techno Corp.) and hereafter referred to as (ATL), to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by (Miller Lee /Measurement Center Manger) of (A Test Lab Techno Corp.) on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing (ATL) as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; 2 of 2 f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

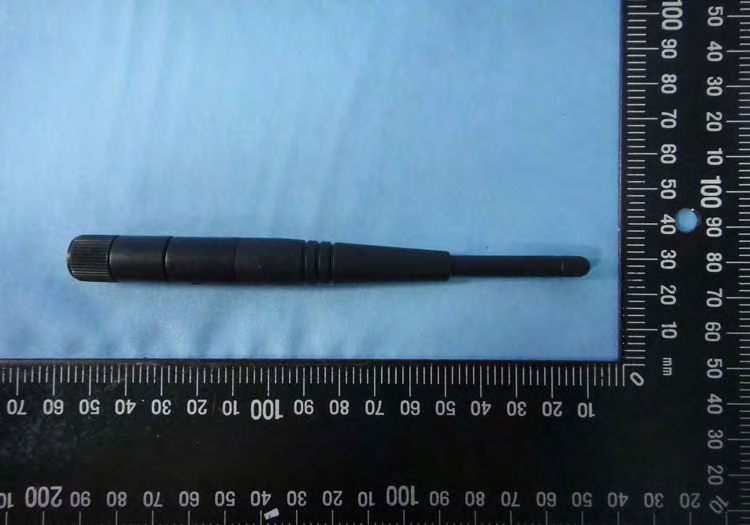

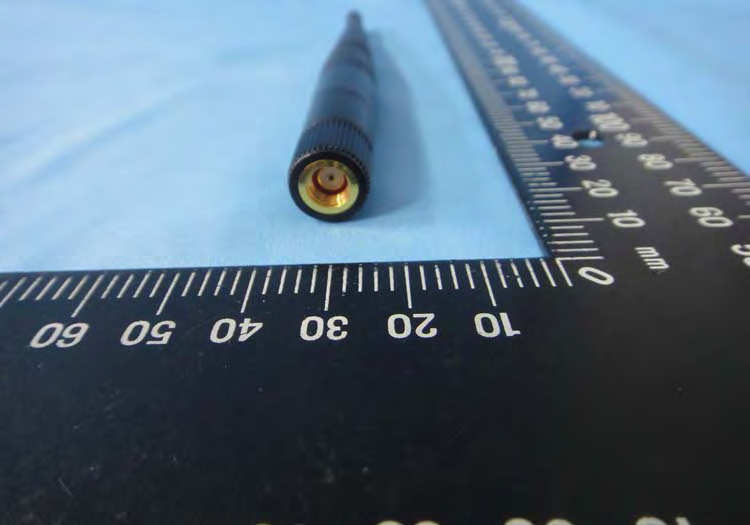

1 of 3 External Photos Model Number: DM300 FCC ID: YSI-DM300-DM300I 2 of 3 EUT Photo 1 ) EUT Photo 2 ) 3 of 3 EUT Photo 3 ) EUT Photo 4 )

1 of 3 Internal Photos Model Number: DM300 FCC ID: YSI-DM300-DM300I 2 of 3 EUT Photo 1 ) EUT Photo 2 ) 3 of 3 EUT Photo 3 )

A Test Lab Techno Corp. Changan Lab：No. 140 -1, Changan Street, Bade City, Taoyuan County, Taiwan R.O.C. Te l：886-3-271-0188 / Fax：886-3-271-0190 MPE Report Test Report No. ： 1009FS16 Applicant ： Delta Mobile Systems Manufacturer ： Trison Technology Corporation Product Type ： DM300 WiFi Module Trade Name ： DM300 Model Number ： DM300 FCC ID ： YSI-DM300-DM300I Dates of Test ： Sep. 21, 2010 Test Specification ： 47 CFR § 2.1091 47 CFR §1.1310 ANSI / IEEE Std.C95.1-2005 Location of Test Lab. ： Chang-an Lab. 1. The test operations have to be performed with cautious behavior, the test results are as attached. 2. The test results are under chamber environment of A Test Lab Techno Corp. A Test Lab Techno Corp. does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples. 3. The measurement report has to be written approval of A Test Lab Techno Corp. It may only be reproduced or published in full. This report shall not be reproduced except in full, without the written approval of A Test Lab Techno Corp. 4. This document may be altered or revised by A Test Lab Techno. Corp. personnel only, and shall be noted in the revision section of the document. Sam Chuang Sep. 28, 2010 Alex Wu Sep. 28, 2010 Approve Signer Testing Engineer ©2010 A Test Lab Techno Corp. Report Number: 1009FS16Page 1 of 7 Contents 1. Description of Equipment under Test (EUT) ..................................................................................... 3 1.1 RF Output Power ........................................................................................................................... 4 2. Human Exposure Assessment ........................................................................................................... 6 2.1 Test Result...................................................................................................................................... 7 ©2010 A Test Lab Techno Corp. Report Number: 1009FS16Page 2 of 7 1. Description of Equipment under Test (EUT) Applicant Delta Mobile Systems Applicant Address 700 Remington Road, 2nd Floor, Schaumburg, IL. 60173 Manufacturer Trison Technology Corporation Manufacturer Address No.3 Kung-Yeh 12th Rd., Ping-Jen Industrial Park, Ping-Jen City, Tao Yuan County, Taiwan, R.O.C Product Type DM300 WiFi Module Trade Name DM300 Model Number DM300 Frequency Range 2412 - 2462 MHz (IEEE 802.11b / IEEE 802.11g ) Transmit Power External Ant. Port : IEEE 802.11b: 0.016 W / 11.94 dBm (mean conducted power) External Ant. Port : IEEE 802.11g: 0.044 W / 16.45 dBm Internal Ant. Port : IEEE 802.11b: 0.042 W / 16.22 dBm Internal Ant. Port : IEEE 802.11g: 0.107 W / 20.31 dBm Modulation Technique IEEE 802.11b:DSSS(CCK, DQPSK, DBPSK) IEEE 802.11g:DSSS(CCK, DQPSK, DBPSK)+ OFDM(QPSK, BPSK, 16-QAM, 64-QAM) Antenna Designation External Ant. : External Type Internal Ant. : PIFA Type Antenna Specification External Ant. : 2.0 dBi Internal Ant. : 2.3 dBi Temperature Range -30 ~ +70°C The above equipment was tested by Compliance Certification Services Inc. For compliance with the requirements set forth in 47 CFR § 2.1091 & 47 CFR § 1.1310. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties ©2010 A Test Lab Techno Corp. Report Number: 1009FS16Page 3 of 7 1.1 RF Output Power Band Data Rate Frequency (MHz) Time-Average Power (dBm) Peak Power (dBm) Worst Case 2412 7.75 11.47 □ 2437 8.00 11.90 □ 1 M 2462 7.50 11.21 □ 2412 7.72 11.47 □ 2437 8.04 11.87 □ 2 M 2462 7.52 11.24 □ 2412 7.69 11.39 □ 2437 7.98 11.94 ■ 5.5 M 2462 7.50 11.24 □ 2412 7.66 11.36 □ 2437 8.15 11.76 □ IEEE 802.11b PIFA Type 11 M 2462 7.50 11.26 □ 2412 7.73 16.13 □ 2437 8.16 15.59 □ 6 M 2462 7.77 14.80 □ 2412 7.64 16.33 □ 2437 8.12 15.74 □ 9 M 2462 7..72 14.83 □ 2412 7.61 16.21 □ 2437 8.13 15.64 □ 12 M 2462 7.72 14.73 □ 2412 7.78 16.45 ■ 2437 8.11 15.82 □ 18 M 2462 7.67 14.91 □ 2412 7.69 16.20 □ 2437 8.07 15.64 □ 24 M 2462 7.65 14.80 □ 2412 7.54 16.32 □ 2437 8.02 15.73 □ 36 M 2462 7.61 14.89 □ 2412 7.57 16.36 □ 2437 7.94 15.82 □ 48 M 2462 7.63 14.97 □ 2412 7.55 16.31 □ 2437 7.92 15.76 □ IEEE 802.11g PIFA Type 54 M 2462 7.60 14.98 □ ©2010 A Test Lab Techno Corp. Report Number: 1009FS16Page 4 of 7 Band Data Rate Frequency (MHz) Time-Average Power (dBm) Peak Power (dBm) Worst Case 2412 11.61 14.74 □ 2437 12.33 16.11 □ 1 M 2462 12.30 16.09 □ 2412 11.44 14.65 □ 2437 12.35 16.08 □ 2 M 2462 12.32 16.15 □ 2412 11.33 14.54 □ 2437 12.20 16.03 □ 5.5 M 2462 12.15 16.08 □ 2412 11.33 14.83 □ 2437 12.37 16.15 □ IEEE 802.11b External Type 11 M 2462 12.28 16.22 ■ 2412 11.60 19.57 □ 2437 12.51 20.04 □ 6 M 2462 12.63 20.19 □ 2412 11.50 19.63 □ 2437 12.52 20.08 □ 9 M 2462 12.55 20.15 □ 2412 11.45 19.45 □ 2437 12.52 19.92 □ 12 M 2462 12.60 20.13 □ 2412 11.44 19.69 □ 2437 12.51 20.06 □ 18 M 2462 12.54 20.31 ■ 2412 11.40 19.50 □ 2437 12.41 19.99 □ 24 M 2462 12.55 20.16 □ 2412 11.32 19.52 □ 2437 12.35 19.96 □ 36 M 2462 12.51 20.22 □ 2412 10.59 19.06 □ 2437 11.83 19.52 □ 48 M 2462 12.05 19.80 □ 2412 10.75 19.13 □ 2437 11.83 19.55 □ IEEE 802.11g External Type 54 M 2462 12.10 19.72 □ ©2010 A Test Lab Techno Corp. Report Number: 1009FS16Page 5 of 7 2. Human Exposure Assessment Due to the design and installation of this product, it is not possible to conduct SAR evaluation. This is because client either manufactures or supplies the antenna(s) that will be used in the installation of this product. Therefore, this product will be evaluated as a mobile device per 47 CFR §1.1310 titled “Radiofrequency radiation exposure limits”, generally referred to as MPE limits. In 47 CFR § 2.1091, paragraph (b) defines a mobile device as “a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 cm is normally maintained between t…

Text truncated - open the document above for the full version.

FCC 47 CFR PART 15 SUBPART C Product Type ： DM300 WiFi Module Applicant ： Delta Mobile Systems Address ： 700 Remington Road, 2nd Floor, Schaumburg, IL. 60173 Trade Name ： DM300 Model Number ： DM300 Test Specification ： FCC 47 CFR PART 15 SUBPART C: Oct., 2009 ANSI C63.4-2003 Issue Date ： Oct. 01, 2010 Issue by A Test Lab Techno Corp. No. 140-1, Changan Street, Bade City, Taoyuan County 334, Taiwan R.O.C. Te l：+86-3-2710188 / Fax：+86-3-2710190 T aiwan Accreditation Foundation accreditation number: 1330 Note: This report shall not be reproduced except in full, without the written approval of A Test Lab Techno Corp. This document may be altered or revised by A Test Lab Techno Corp. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, or any government agencies. The test results in the report only apply to the tested sample. A Test Lab Techno Corp. Report Number: 1009FR15-01 1/78 Revision History Rev. Issue Date Revisions Revised By 00 Sep. 27, 2010 Initial Issue 01 Oct. 01, 2010 Re-test and revised data of IEEE 802.11b (internal ant.) and IEEE 802.11b (internal ant. and External ant.). Joyce Liao A Test Lab Techno Corp. Report Number: 1009FR15-01 2/78 Verification Issued Date: 2010/10/01 Product Type : DM300 WiFi Module Applicant : Delta Mobile Systems Address : 700 Remington Road, 2nd Floor, Schaumburg, IL. 60173 Trade Name : DM300 Model Number : DM300 FCC ID : YSI-DM300-DM300I EUT Rated Voltage : DC 3.3V ~ 3.7V Test Voltage : 120 Vac / 60 Hz Applicable Standard : FCC 47 CFR PART 15 SUBPART C: Oct., 2009 ANSI C63.4-2003 Test Result : Complied Performing Lab. : A Test Lab Techno Corp. No. 140-1, Changan Street, Bade City, Taoyuan County 334, Taiwan R.O.C. Te l：+86-3-2710188 / Fax：+86-3-2710190 T aiwan Accreditation Foundation accreditation number: 1330 http://www.atl-lab.com.tw/e-index.htm The above equipment was tested by A Test Lab Techno Corp. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247 . The test results of this report relate only to the tested sample identified in this report. Approved By ： Reviewed By ： (Manager) (Miller Lee ) (Testing Engineer) (Gary Wu) A Test Lab Techno Corp. Report Number: 1009FR15-01 3/78 TABLE OF CONTENTS 1 General Information ...................................................................................................................................... 6 2 EUT Description ............................................................................................................................................ 7 3 Test Methodology.......................................................................................................................................... 8 3.1. Mode of Operation ................................................................................................................................ 8 3.2. EUT Exercise Software......................................................................................................................... 8 3.3. Configuration of Test System Details .................................................................................................... 9 3.4. Test Site Environment........................................................................................................................... 9 4 Conducted Emission Measurement........................................................................................................... 10 4.1. Limit .................................................................................................................................................... 10 4.2. Test Instruments ................................................................................................................................. 10 4.3. Test Setup........................................................................................................................................... 10 4.4. Test Procedure ....................................................................................................................................11 4.5. Test Result.......................................................................................................................................... 12 5 Radiated Interference Measurement.......................................................................................................... 16 5.1. Limit .................................................................................................................................................... 16 5.2. Test Instruments ................................................................................................................................. 16 5.3. Setup .................................................................................................................................................. 17 5.4. Test Procedure ................................................................................................................................... 17 5.5. Test Result.......................................................................................................................................... 19 6 Maximum Conducted Output Power Measurement.................................................................................. 33 6.1. Limit .................................................................................................................................................... 33 6.2. Test Setup........................................................................................................................................... 33 6.3. Test Instruments ...........................................…

Text truncated - open the document above for the full version.

Part 15C Test Setup Photographs Conducted Emissions Test Configuration: Internal Ant. _ Front View Internal Ant. _ Rear View A Test Lab Techno Corp. Report Number: 1009FR15 1/6 External Ant. _ Front View External Ant. _ Rear View A Test Lab Techno Corp. Report Number: 1009FR15 2/6 Radiated Emissions Test Configuration: Internal Ant. _ Below 1GHz _ Front View Internal Ant. _ Below 1GHz _ Rear View A Test Lab Techno Corp. Report Number: 1009FR15 3/6 Internal Ant. _ Above 1GHz _ Front View Internal Ant. _ Above 1GHz _ Rear View A Test Lab Techno Corp. Report Number: 1009FR15 4/6 External Ant. _ Below 1GHz _ Front View External Ant. _ Below 1GHz _ Rear View A Test Lab Techno Corp. Report Number: 1009FR15 5/6 External Ant. _ Above 1GHz _ Front View External Ant. _ Above 1GHz _ Rear View A Test Lab Techno Corp. Report Number: 1009FR15 6/6
