YU31020010200

KDRC Operation Manual Kadee Quality Products 673 Ave, C White City, OR 97503 FCC Compliance Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Caution: changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. DRAFT COPY ©2010 Kadee Quality Products Co.

Kadee Quality Products 673 Ave. C White City, OR 97503 Date 6/29/2010 Northwest EMC, Inc. 22975 NW Evergreen Parkway, Suite #400 Hillsboro, OR 97124 To Whom It May Concern: Kadee is submitting this application for modular certification of their Model 10200, FCC ID: YU310200 under FCC 15.249. The device operates in the 902 — 928 MHz band. It utilizes an integral antenna and is therefore compliant with FCC 15.203 requirements. The receiver portion of this transceiver was FCC Verified under FCC 15B. A test report and technical exhibits have been submitted in support of this application. Best regards, Michael Dunham Plant Engineer Kadee Quality Products

Northwest EMC TCB Compliance Opinion Rev. 12/08/09 KADE0001 Information about the Applicant Grantee (Company Name) Kadee Quality Products FCC Contact Person Michael Dunham Address 673 Ave. C City, State, Zip White City, OR 97503 Job Number KADE0001 Model 10200 FCC ID YU310200 Agent Approval Type Original Equipment Class DXT Part 15, Low Power Transceiver, Rx Verified Rule Part 15.249 Overview The Kadee Quality Products' model 10200 is a radio module used in various Kadee products. The radio is an RFM radio chip, model TRC103. The Kadee transmitter operates in the 902 - 928 MHz band as a 15.249 low power device. The output power of the device is lower than the threshhold requireing routine SAR evaluation. The radio qualifies for use in mobile or portable devices. Confidentiality requested for allowed files. Request is properly addressed and referenced. No short term confidentiality requested. A letter listing the applicable modular requirements was submitted. Recommendation All items have been resolved and completed to my satisfaction; therefore I recommend this application for approval. Signature Dave Tolman, TCB Committee 3/17/2011

Kadee Quality Products 673 Ave. C White City, OR 97503 November 4, 2010 Dear Application Examiner: Kadee Quality Products, Model Number 10200, FCC ID YU310200 is seeking modular approval. The radio meets the requirements for modular approval as detailed in FCC 15.212. Compliance to each of the requirements is described below: 1."The modular transmitter must have its own RF shielding." The radio portion of the module is contained in its own RF shielding. The shielding is installed at the factory. Please see the Internal Photos exhibit. 2."The modular transmitter must have buffered modulation/data inputs." The EUT has buffered data inputs to insure compliance with Part 15 requirements under conditions of excessive data rates or over-modulation. Please see the Schematics exhibit. 3."The modular transmitter must have its own power supply regulation." The EUT has its own power supply regulation to insure compliance with Part 15 requirements regardless of the quality or level of external DC supplying the module from the host unit. Please see Schematics exhibit. Also, the technical report exhibit contains AC power line conducted emissions data taken with the EUT powered from a linear power supply that contains no EMC suppression components. 4. "The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c)." The EUT meets the FCC antenna requirements. Please see Antenna information exhibit and internal photos exhibit. 5."The modular transmitter must be tested in a stand -alone configuration." The EUT was tested in a stand-alone configuration. The module was greater than 10 cm from the host device. Please see test setup photos exhibit and technical report exhibit. 6. "The modular transmitter must be labeled with its own FCC ID number." The EUT is labeled with its own FCC ID number. Please see FCC ID label & location exhibit. Since the FCC ID number will not be visible when the module is installed inside a host device, another label with the FCC ID will be applied to the exterior of the host device. 7. "The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer Must provide adequate instructions along with the module to explain any such requirements." The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the User Manual. 8. "The modular transmitter must comply with any applicable RF exposure requirements." The EUT is compliant with all applicable RF exposure requirements. Please see RF Exposure Exhibit. Please contact me if you have additional questions. Your attention to this matter is greatly appreciated. Best regards, 141g402. Michael Dunham Plant Engineer Kadee Quality Products

November 4, 2010 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 To whom it may concern, Kadee Quality Products hereby respectfully request that under the provision of 47 CFR 0.459, the documents listed below and attached with this application for certification be provided with confidential status. • Schematics.pdf •Operational Description.pdf • Frequency Block Diagrams.pdf Any exhibit / information for which Kadee have requested confidentiality, but which may not be accorded such treatment by the FCC, should be returned to Kadee Quality Products. The documents listed above contain trade secrets that are treated as confidential by Kadee Quality Products. Substantial competitive harm to Kadee could result should they be made available to the public. Sincerely, Michael Dunham Plant Engineer Kadee Quality Products 673 Ave. C White City, OR 97503

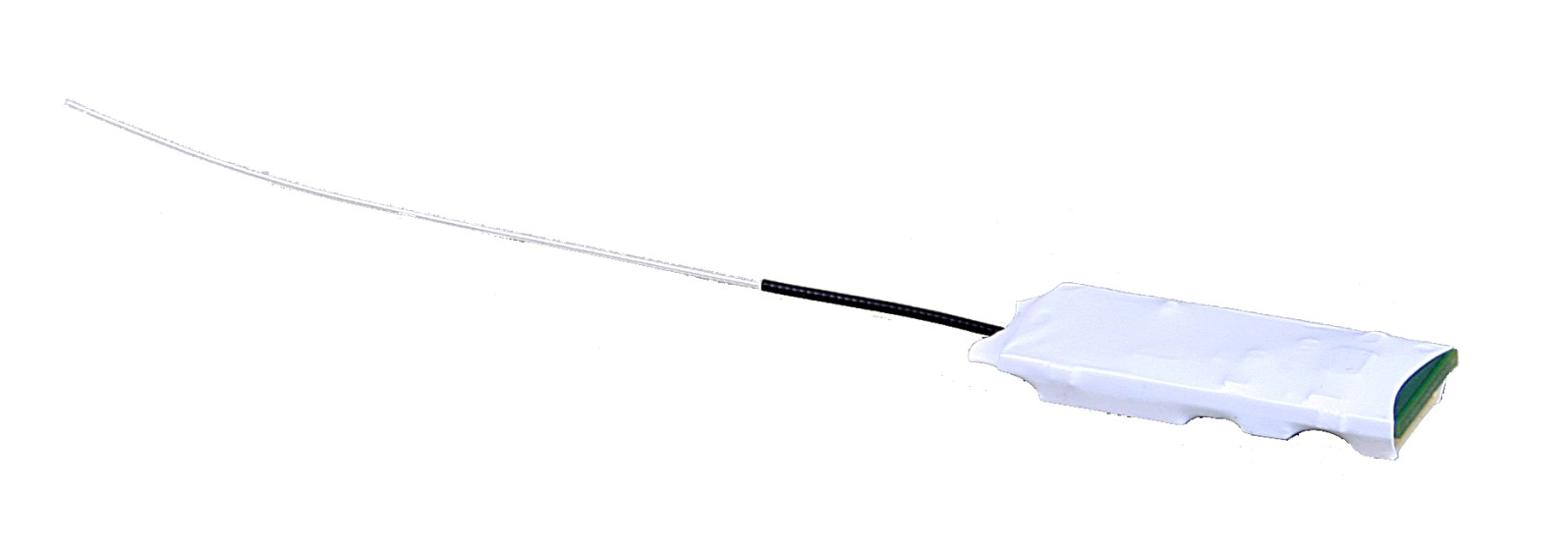

External Photos for Model No. 10200 Kadee Quality Products 673 Ave. C White City, OR 97503 Exhibit No. 6 KDRC No. 10200 U.FL Antenna Conn RF Shield Model No. 10200 with wrap removed 11 Pos. Conn. Header Top/ Side View Bottom / Side View Antenna Top/ Side View (close up)

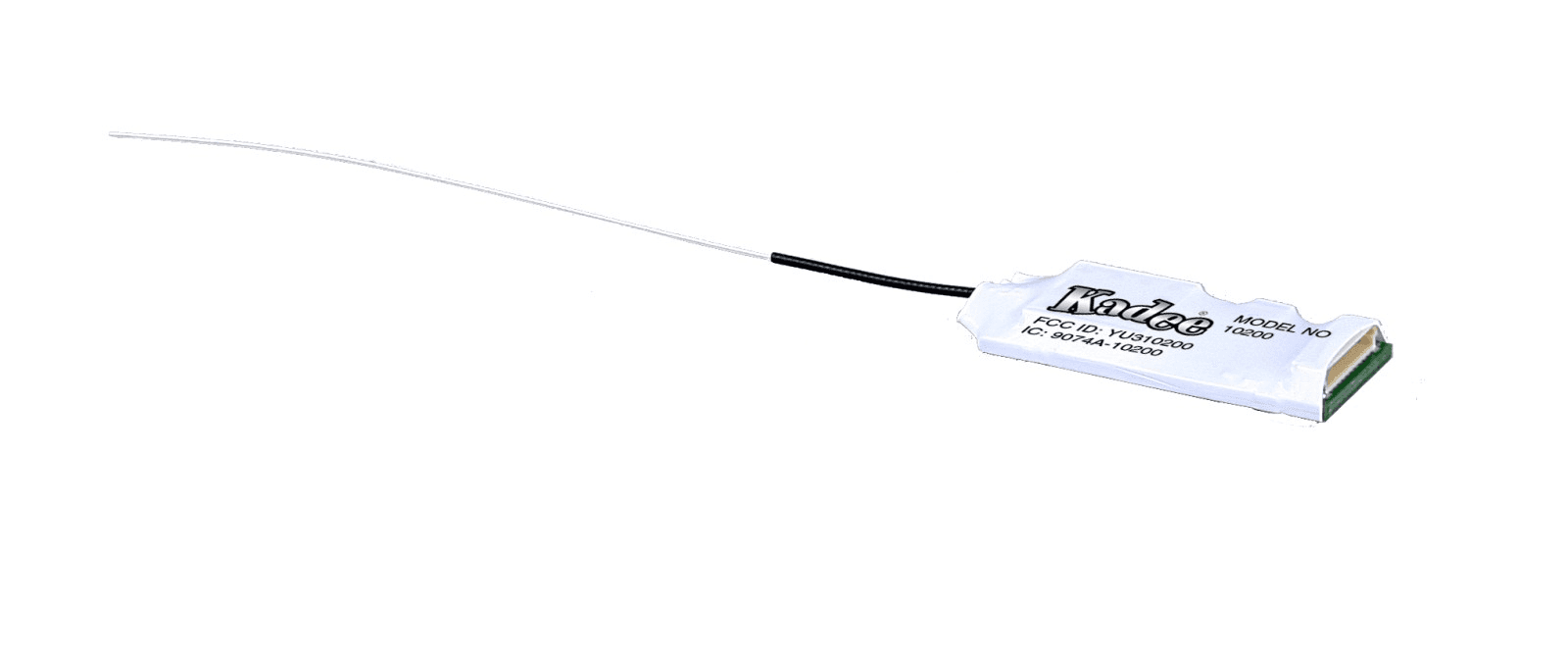

FCC ID Label & Location for Model No. 10200 Kadee Quality Products 673 Ave. C White City, OR 97503 Exhibit No. 5 KDRC No. 10200 Sample Host Device Model No. 10200 Label (close up) Label (close up)

Internal Photos for Model No. 10200 (&/ User Controls Board) Kadee Quality Products 673 Ave. C White City, OR 97503 Exhibit No. 7 KDRC No. 10200 Radio section w/RF Shield removed User Control Board (back)User Control Board (front)User Control (back removed) Model No. 10200 (top)Model No. 10200 (bottom)

X Y inch

Kadee Quality Products 10200 Report No. KADE0004 Report Prepared By www.nwemc.com 1-888-EMI-CERT © 2011 Northwest EMC, Inc 22975 NW Evergreen Parkway Suite 400 Hillsboro, Oregon 97124 Certificate of Test Last Date of Test: January 7, 2011 Kadee Quality Products Model: 10200 Emissions Test Description Specification Test Method Pass/Fail Spurious Radiated Emissions FCC 15.249:2011 ANSI C63.10:2009 Pass AC Powerline Conducted Emissions FCC 15.207:2011 ANSI C63.10:2009 Pass Field Strength of Fundamental FCC 15.249:2011 ANSI C63.10:2009 Pass Modifications made to the product See the Modifications section of this report Test Facility The measurement facility used to collect the data is located at: Northwest EMC, Inc. 22975 NW Evergreen Parkway, Suite 400 Hillsboro, OR 97124 Phone: (503) 844-4066 Fax: 844-3826 This site has been fully described in a report filed with and accepted by the FCC (Federal Communications Commission) and Industry Canada (Site filing #2834D-2). Approved By: Tim O’Shea, Operations Manager NVLAP Lab Code: 200630-0 This report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government of the United States of America. Product compliance is the responsibility of the client, therefore the tests and equipment modes of operation represented in this report were agreed upon by the client, prior to testing. This Report may only be duplicated in its entirety. The results of this test pertain only to the sample(s) tested. The specific description is noted in each of the individual sections of the test report supporting this certificate of test. Northwest EMC Revision History Revision 06/29/09 Barometric Pressure The recorded barometric pressure has been normalized to sea level. Revision Number Description Date Page Number 00 None Accreditations and Authorizations FCC Accredited by NVLAP for performance of FCC radio, digital, and ISM device testing. Our Open Area Test Sites, certification chambers, and conducted measurement facilities have been fully described in reports filed with the FCC and accepted by the FCC in letters maintained in our files. Northwest EMC has been accredited by ANSI to ISO / IEC Guide 65 as a product certifier. We have been designated by the FCC as a Telecommunications Certification Body (TCB). This allows Northwest EMC to certify transmitters to FCC specifications in accordance with 47 CFR 2.960 and 2.962. NVLAP Northwest EMC, Inc. is accredited under the National Voluntary Laboratory Accreditation Program (NVLAP) for satisfactory compliance with the requirements of ISO/IEC 17025 for Testing Laboratories. NVLAP is administered by the National Institute of Standards and Technology (NIST), an agency of the U.S. Commerce Department. The NVLAP accreditation encompasses Electromagnetic Compatibility Testing in accordance with the European Union EMC Directive 2004/108/EC, and ANSI C63.4. Additionally, Northwest EMC is accredited by NVLAP to perform radio testing in accordance with the European Union R&TTE Directive 1999/5/EEC, the requirements of FCC, and the RSS radio standards for Industry Canada. Industry Canada Accredited by NVLAP for performance of Industry Canada RSS and ICES testing. Our Open Area Test Sites and certification chambers comply with RSS-Gen, Issue 2 and have been filed with Industry Canada and accepted. Northwest EMC has been accredited by ANSI to ISO / IEC Guide 65 as a product certifier. We have been designated by NIST and recognized by Industry Canada as a Certification Body (CB) per the APEC Mutual Recognition Arrangement (MRA). This allows Northwest EMC to certify transmitters to Industry Canada technical requirements. (Site Filing Numbers - Hillsboro: 2834D-1, 2834D-2, Sultan: 2834C-1, Irvine: 2834B-1, 2834B-2, Brooklyn Park: 2834E-1) CAB Designated by NIST and validated by the European Commission as a Conformity Assessment Body (CAB) to conduct tests and approve products to the EMC directive and transmitters to the R&TTE directive, as described in the U.S. - EU Mutual Recognition Agreement. Australia/New Zealand The National Association of Testing Authorities (NATA), Australia has been appointed by the ACA as an accreditation body to accredit test laboratories and competent bodies for EMC standards. Accredited test reports or assessments by competent bodies must carry the NATA logo. Test reports made by an overseas laboratory that has been accredited for the relevant standards by an overseas accreditation body that has a Mutual Recognition Agreement (MRA) with NATA are also accepted as technical grounds for product conformity. The report should be endorsed with the respective logo of the accreditation body (NVLAP). Accreditations and Authorizations VCCI Accepted as an Associate Member to the VCCI, Acceptance No. 564. Conducted and radiated measurement facilities have been registered in accordance with Regulations for Voluntary Control Measures, Article 8. (Registration Numbers. - Hillsboro: C-1071, R-1025, G-84, C-2687, T- 1658, and R-2318, Irvine: R-1943, G-85, C-2766, and T-1659, Sultan: R-871, G-83, C-1784, and T-1511, Brooklyn Park: R-3125, G-86, G-141, C-3464, and T-1634). BSMI Northwest EMC has been designated by NIST and validated by C-Taipei (BSMI) as a CAB to conduct tests as described in the APEC Mutual Recognition Agreement (US0017). GOST Northwest EMC, Inc. has been assessed and accredited by the Russian Certification bodies Certinform VNIINMASH, CERTINFO, SAMTES, and Federal CHEC, to perform EMC and Hygienic testing for Information Technology Products. As a result of their laboratory assessment, they will accept test results from Northwest EMC, Inc. for product certification KCC Northwest EMC, Inc is a CAB designated by MRA partners and recognized by Korea. (Assigned Lab Numbers: Hillsboro: US0017, Irvine: US0158, Sultan: US0157, Brooklyn Park: US0175) VIETNAM Vietnam MIC has approved Northwest EMC as an accredited test lab. Per Decision No. 194/QD-QLCL (…

Text truncated - open the document above for the full version.

NORTHWEST EMC CE 001.jpg CE 002.jpg Conducted Emissions PSA-ESCI 2010.04.06 NORTHWEST EMC CE 003.jpg Conducted Emissions PSA-ESCI 2010.04.06 NORTHWEST EMC Field Strength of Fundamental PSA 2008.07.21 NORTHWEST EMC Field Strength of Fundamental PSA 2008.07.21 NORTHWEST EMC Field Strength of Fundamental PSA 2008.07.21 NORTHWEST EMC Spurious Radiated Emissions PSA 2008.07.21 NORTHWEST EMC Spurious Radiated Emissions PSA 2008.07.21
