YUL-JL20LTE 700M RF Repeater

JL20 LTE RF Repeater OPERATION MANUAL Ve rsion 2.00 January 2011 Repeater Operations Manual Version 2.00 Model: JL20 ©2011 Juni | America Inc. 9825 Willows Rd. NE | Ste. #100 Redmond, WA 98025 Office: 425-702-0848 | FAX: 425-702-0706 [email protected] | www.juniglobal.com Repeater Operations Manual Version 2.00 Model: JL20 ©2011 Juni | America Inc. TABLE OF CONTENTS IMPORTANT SAFETY PRECAUTIONS................................................................................................................. 4 1. ...............................................................................................................................................5 INTRODUCTION 2. ............................................................................................................................... ... 6 SYSTE M DESCRIPTION 2.1 ............................................................................................................................................6 C ONFIGURATION 2.2 ............................................................................................................................................... 7 APPLICATIONS 2.2.1 ............................................................................................................ 7 In-Building Coverage Application 2.3 ........................................................................................... 8 G ENERAL APPEARANCE OF THE JL20 REPEATER 2.3.1 ................................................................................................................................. 8 General Appearance 2.3.2 ................................................................................................................................9 Mechanical Drawing 2.4 ......................................................................................................................... 10 P ORT & LED DESCRIPTION 2.5 ........................................................................................................................ 11 FREQUENCY BAND SETTING 2.6 ................................................................................................................................11 ALARM DESCRIPTIONS 3. ............................................................................................................................................... 13 INSTALLATION 3.1 .................................................................................................................... 13 T RANSPORTATION TO THE SITE 3.2 ...................................................................................................................... 13 HANDLING OF THE REPEATER 3.3 ......................................................................................................................... 13 INSTALLATION CONDITIONS 3.4 ......................................................................................... 14 INSPECTION BEFORE INSTALLING THE REPEATER 3.5 ......................................................................................................................... 14 INSTALLATION PROCEDURE 3.5.1 ................................................................................................................. 14 Repeater Cabinet Installation 3.5.2 .................................................................................................................. 18 Repeater Cable Connections 3.5.3 ............................................................................................................................ 19 Powering Up the JL20 3.6 ............................................................................................................... 19 C AUTIONS DURING INSTALLATION 3.7 ........................................................................................................................ 20 STORAGE OF THE REPEATER 3.8 ............................................................................................................................................ 20 MAINTENANCE 3.9 ................................................................................................................................20 SAFETY INSTRUCTIONS APPENDIX 1. SYSTEM SPECIFICATIONS......................................................................................................... 21  .........................................................................................................................................21 RF SPECIFICATIONS  ........................................................................................ 22 MECHANICAL & ENVIRONMENTAL SPECIFICATIONS APPENDIX 2. JL20 COMMISSIONING & SETUP CHECKLIST...................................................................... 23 APPENDIX 3. RISK ASSESSMENT AND CONTROL FORM............................................................................ 28 Repeater Operations Manual Version 2.00 Model: JL20 ©2011 Juni | America Inc. Important Safety Precautions The JL20 unit is powered by 12VDC. Only personnel who have received relevant training from Juni are authorised to open any part or section of the JL20. To prevent electrical shock when installing or maintaining the equipment, ensure the supply of VDC (and/or VAC) is removed by switching off the power from the power source before accessing any section of the equipment. Only when t he Repeater is fully installed and all cable connections are made should the power be turned on. Ensure all installation items are complete before turning on the Rep eater. on. Ensure the total input power to the Repeater is within the range -75dBm ~ - 30dBm. Input powers outside this range may affect Repeater performance. Ensure frequencies are configured correctly. Incorrect frequency settings can severely affect Repeater performance. When installing the Repeater, ensure the heat-sink section of the Repeater is not exposed to direct sunlight. Where possible, have the heat-sink section of the Repeater facing a northe…

Text truncated - open the document above for the full version.

2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 JUNI Korea Co.,Ltd. March 11, 2011 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, JUNI Korea Co.Ltd. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): LTE 700M RF Repeater We affirm that between SIEMIC and JUNI Korea Co.,Ltd. any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, FCC ID : YUL-JL20

Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 JUNI Korea Co.,Ltd. To: Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID YUL-JL20 We hereby request confidential treatment of information accompanying this application as outlined below: COMNFIDENTIAL AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Schematics 3 Operational Description 4 Part List & Tune-UP Procedure CONFIDENTIAL 5 Internal Photos 6 External Photos 7 Test-Setup Photos SHORT-TERM CONFIDENTIAL 8 User’s Manual The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Applicant’s Company : JUNI Korea Address : E-603 Bundang-gu, SeongnaM-si, Gyeonggi-do, South Korea

FCC ID : YULJFW600 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr (Front) 1/5 FCC ID : YULJFW600 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr ack) (B 2/5 FCC ID : YULJFW600 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr (Left) 3/5 FCC ID : YULJFW600 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr (Right) 4/5 FCC ID : YULJFW600 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr 5/5

FCC ID : YUL-JL20 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr 1/2 1.1 ID Label Information Following is a copy of the label that will be placed on the rear side of the cabinet. Both the FCC ID and compliance statement are included in the product label Figure 1.1 PRODUCT LABEL Model Name : JL-20 FCC ID : YUL-JL20 EUT Type : LTE 700M RF Repeater Serial No : This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference , and (2) this device must accept any interference received, Includin g interference that may cause undesired operation. JUNI Korea Co.Ltd. E-603 Bundang-gu, Seongnam-si, Gyeonggi-do, South Korea MADE IN KOREA FCC ID : YUL-JL20 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr 2/2 1.2 Label Location Photos The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Figure 1.2 LABEL LOCATION LABEL LOCATION

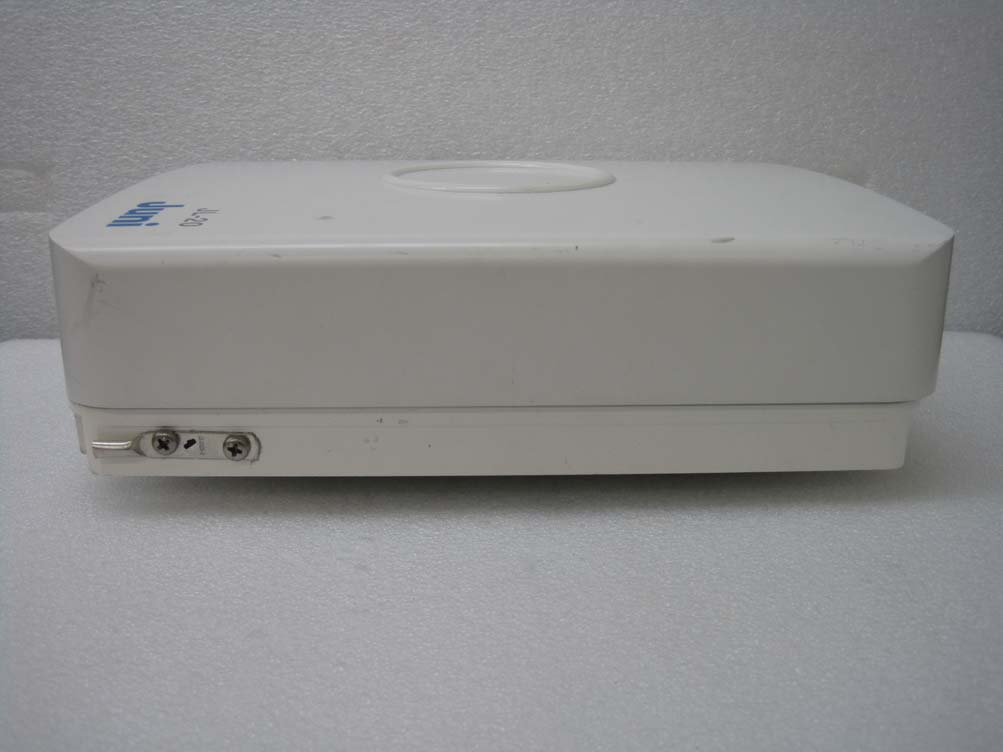

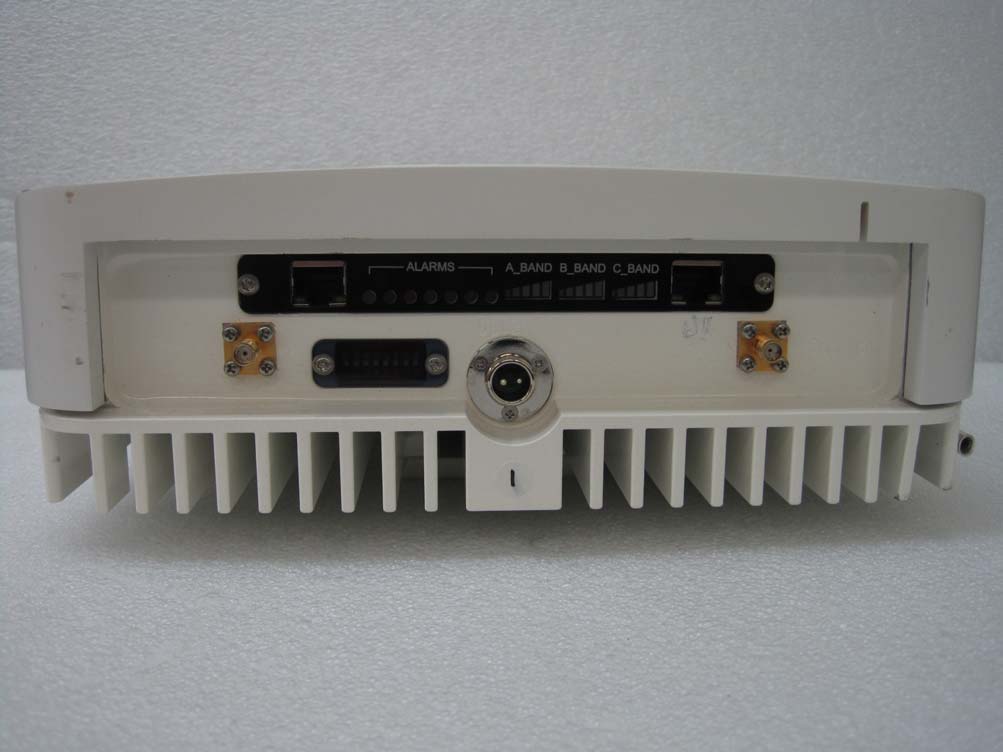

FCC ID : YUL-JL20 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr 1/4 FCC ID : YUL-JL20 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr 2/4 FCC ID : YUL-JL20 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr 3/4 FCC ID : YUL-JL20 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr 4/4

Report No.: HCTR1103FR09-2 FCC ID: YUL-JL20 DATE: March 28, 2011 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 99 of 102 3.6 RF Exposure Statement 1. LIMITS According to §1.1310 and §2.1091 RF exposure is calculated. (B) Limits for General Population/Uncontrolled Exposures Frequency range (MHz) Electric field Strength (V/m) Magnetic field Strength (A/m) Power density (mW/cm²) Averaging time (minutes) 0.3 - 1.34....................................... 1.34 - 30....................................... 30 - 300....................................... 300 - 1500.................................... 1500 - 100.000................................. 614 824/f 27.5 ............... ............... 1.63 2.19/f 0.073 ............... ............... *(100) *(180/ f²) 0.2 f/1500 1.0 30 30 30 30 30 F = frequency in MHz * = Plane-wave equivalent power density 2. MAXIMUM PERMISSIBLE EXPOSURE Prediction Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S = PG/4πR² S = Power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Report No.: HCTR1103FR09-2 FCC ID: YUL-JL20 DATE: March 28, 2011 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 100 of 102 2-1 Limit (DownLink) Max Peak output Power at antenna input terminal 20.040 dBm Max Peak output Power at antenna input terminal 100.925 mW Prediction distance 25.000 cm Prediction frequency 731.000 MHz Antenna Gain(typical) 12.000 dBi Antenna Gain(numeric) 15.849 - Power density at prediction frequency( S) 0.20366 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 0.487 mW/cm 2 2-2 Limit (UpLink) Max Peak output Power at antenna input terminal 19.990 dBm Max Peak output Power at antenna input terminal 99.770 mW Prediction distance 25.000 cm Prediction frequency 701.000 MHz Antenna Gain(typical) 12.000 dBi Antenna Gain(numeric) 15.849 - Power density at prediction frequency( S) 0.20133 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 0.467 mW/cm 2 3. RESULTS The power density level at 25 cm is 0.20366 mW/cm², which is below the uncontrolled exposure limit of 0.487 mW/cm² at 731 MHz The power density level at 25 cm is 0.20133 mW/cm², which is below the uncontrolled exposure limit of 0.467 mW/cm² at 701 MHz Simultaneous MPE at 25 Cm is (0.20366/0.487) + (0.20133/0.467) = 0.849307 < 1

HCT CO., LTD. CERTIFICATION DIVISION SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 645 6300 FAX: +82 31 645 6401 CERTIFICATE OF COMPLIANCE TEST REPORT T est Report No.: HCTR1103FR09-2 Test Site: HCT CO., LTD. Date of Issue: March 28, 2011 JUNI Korea Co. Ltd. E-603 Bundang-gu, Seongnam-si, Gyeonggi-do, Sourth Korea EUT Type: LTE 700M RF Repeater Model(s): JL-20 UL Frequency: 777.0 MHz – 787.0 MHz 698.5 MHz – 703.5 MHz 704.5 MHz – 709.5 MHz DL Frequency: 746.0 MHz – 756.0 MHz 728.5 MHz – 733.5 MHz 734.5 MHz – 739.5 MHz Max. RF Output Power: 20 dBm (0.1 W) Trade Name/Model(s): JUNI Korea Co. Ltd. / JL-20 FCC Classification: Licensed Non-Broadcast Station Transmitter (TNB) Application Type: Certification FCC Rule Part(s): §2, §15 Subpart B, §27 Subpart C Emission Designator(s): Band C : 8M91G9W / 8M91D9W Band A : 4M48G9W / 4M48D9W Band B : 4M49G9W / 4M49D9W JUNI Korea Co. Ltd. YUL-JL20 FCC : APPLICANT : This eq uipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ∮2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. HCT Co., Ltd. Certifies that no party to this application has been denied FCC benefits pursuant to section 5301 of the Anti- Drug Abuse Act of 1998, 21 U.S. C. 853(a) This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd. Report No.: HCTR1103FR09-2 FCC ID: YUL-JL20 DATE: March 28, 2011 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 2 of 102 Version TEST REPORT NO. DATE DESCRIPTION HCTR1103FR09 March 11, 2011 - First Approval Report HCTR1103FR09-1 March 17, 2011 Add of the 27.53(c) (4). HCTR1103FR09-1 March 28, 2011 Add of the 27.53(f) Radiated. Report No.: HCTR1103FR09-2 FCC ID: YUL-JL20 DATE: March 28, 2011 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 3 of 102 Table of Contents 1. SCOPE.........................................................................................................................................................４ 2. INTRODUCTION........................................................................................................................................５ 3. DESCRIPTION OF TESTS.........................................................................................................................６ 3.1 Conducted RF Power Test.............................................................................................................７ 3.2 Occupied bandwidth...................................................................................................................２２ 3.3 Spurious Emissions at Antenna Terminal...............................................................................４９ 3.4 Radiated Spurious Emissions....................................................................................................９４ 3.5 Frequency stability.....................................................................................................................９６ 3.6 RF Exposure Statement.............................................................................................................９９ 4. LIST OF TEST EQUIPMENT...............................................................................................................１０１ 5. CONCLUSION......................................................................................................................................１０２ Report No.: HCTR1103FR09-2 FCC ID: YUL-JL20 DATE: March 28, 2011 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 4 of 102 MEASUREMENT REPORT 1. SCOPE Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. General Information FCC: EU T Type: Trade Name: Mo del(s): Frequency Ranges Application Type: FCC Classificati on: FCC Rule Part(s): M odulation(s): YUL-JL20 LTE 700M RF Repeater JUNI Korea Co. Ltd. JL-20 Uplink : 777.0 MHz – 787.0 MHz 698.5 MHz - 703.5 MHz 704.5 MHz - 709.5 MHz Downlink: 746.0 MHz – 756.0 MHz 728.5 MHz - 733.5 MHz 734.5 MHz - 739.5 MHz Certification Licensed Non-Broadcast Station Transmitter (TNB) §2, §15 Subpart B, §27 Subpart C QPSK, 16QAM, 64QAM RF Output Power: Uplink: 20 dBm Downlink : 20 dBm Company Name: JUNI Korea Co. Ltd. Address: E-603 Bundang-gu, Seongnam-si, Gyeonggi-do, South Korea Tel. / Fax : + 82-32-870-5782 / + 82-32-870-5784 Report No.: HCTR1103FR09-2 FCC ID: YUL-JL20 DATE: March 28, 2011 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 5 of 102 2. INTRODUCTION EUT DESCRIPTION The JUNI Korea Co. Ltd. JL-20 LTE 700M RF Repeater. Its basic purpose is used for communications. It transmits from Uplink : 777 - 787 MHz, 698.5 - 703.5 MHz, 704.5 - 709.5 MHz and receives from Downlink: 746 - 756 MHz, 728.5 - 733.5 MHz, 734.5 MHz - 739.5 MHz. The RF power is rated at 100 mW (20 dBm). MEASURING INSTRUMENT CALIBRATION The measuring equipment, which was utilized in performing the tests documented herein, has been calibrated in accordance with the manufacturer's recommendations for utilizing calibration equipment, which is traceable to recognized national stan…

Text truncated - open the document above for the full version.

Model: JL-20 Report No.: HCTE1103FE05-1 Date: March 17, 2011 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8539 FAX: +82 31 639 8535 www.hct.co.kr Page 2 of 21 TABLE OF CONTENTS PAGE 1. GENERAL INFORMATION 1.1 Product description 3 1.2 Related submittal(s)/Grant(s) 3 1.3 Tested system details 4 1.4 Cable description 5 1.5 Noise suppression parts on cable. (I/O cable) 5 1.6 Test methodology 6 1.7 Test facility 6 1.8 Frequency Range of Radiated Measurements 6 2. SYSTEM TEST CONFIGURATION 2.1 Conducted Emission test 7 2.2 Radiated Emission test 7 3. PRELIMINARY TEST 3.1 Conducted Emission test 8 3.2 Radiated Emission test 8 4. CONDUCTED AND RADIATED EMISSION TESTS SUMMARY 4.1 Conducted Emission test 10 4.2 Radiated Emission test 15 4.3 Test setup photos 17 5. FIELD STRENGTH CALCULATION 19 6. TEST EQUIPMENT 20 7. CONCLUSION 21 Model: JL-20 Report No.: HCTE1103FE05-1 Date: March 17, 2011 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8539 FAX: +82 31 639 8535 www.hct.co.kr Page 3 of 21 1. GENERAL INFORMATION 1.1 Product Description Equipment Under Test (E.U.T) is LTE 700M RF Repeater, Model: JL-20 manufactured by JUNI KOREA. Its basic purpose is used for communications. Model (s) JL-20 E.U.T Type LTE 700M RF Repeater UL Frequency 777.0 ㎒ to 787.0 ㎒ 698.5 ㎒ to 703.5 ㎒ 704.5 ㎒ to 709.5 ㎒ DL Frequency 746.0 ㎒ to 756.0 ㎒ 728.5 ㎒ to 733.5 ㎒ 734.5 ㎒ to 739.5 ㎒ 1.2 Related Submittal(s) / Grant(s) Original submittal only. Model: JL-20 Report No.: HCTE1103FE05-1 Date: March 17, 2011 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8539 FAX: +82 31 639 8535 www.hct.co.kr Page 4 of 21 1.3 Tested System Details All equipment descriptions used in the tested system (including inserted cards) are: Device Type Manufacturer Model Number/ Serial Number FCC ID / DoC Connected To LTE 700M RF Repeater JUNI KOREA JL-20 - E.U.T Switching adaptor BT Telecom DSA-60W-121 BT805C000098 - E.U.T Notebook PC SAMSUNG NT-R519 ZLA693AS900033M DoC E.U.T Notebook PC adaptor DELTA ADP-60ZH D AD-6019R DA44-00242A - Notebook PC Notebook PC H.P Compaq 6730b CNU9082TXV - Router Notebook PC adaptor H.P Series PPP014H-S F3-08090296490E - Notebook PC Mouse Microsoft Intellimouse optical USB and PS/2 compatible 3902B008 DoC Notebook PC Router SDT WLB5054AIP 615061401854 - Notebook PC 250 W Louder Weinschel 1433-3 MJ716 - E.U.T Model: JL-20 Report No.: HCTE1103FE05-1 Date: March 17, 2011 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8539 FAX: +82 31 639 8535 www.hct.co.kr Page 5 of 21 1.4 Cable Description Product Name Port Power Cord Shielded (Y/N) I/O Cable Shielded (Y/N) Length (m) DC in N - (P)3.6 LAN 1 - N (D)2.0 LAN 2 - N (D)8.0 Donor - Y (D)1.0 LTE 700M RF Repeater Service - Y (D)1.0 DC in N - (P)1.8 AC in N - (P)1.8 Notebook PC USB1 - Y (D)1.5 Notebook PC adaptor AC in N - (P)1.8 * The marked "(D)" means the data cable and "(P)" means the power cable. Model: JL-20 Report No.: HCTE1103FE05-1 Date: March 17, 2011 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8539 FAX: +82 31 639 8535 www.hct.co.kr Page 6 of 21 1.5 Noise Suppression Parts on Cable. (I/O cable) Product Name Port Ferrite Bead (Y/N) Location Metal Hood (Y/N) Location DC in N - Y E.U.T end LAN 1 N - N - LAN 2 N - N - Donor N - Y Both end LTE 700M RF Repeater Service N - Y Both end DC in N - Y Notebook PC End AC in N - Y Both end Notebook PC USB1 Y Notebook PC End Y Notebook PC End Notebook PC adaptor AC in N - Y Both end Model: JL-20 Report No.: HCTE1103FE05-1 Date: March 17, 2011 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8539 FAX: +82 31 639 8535 www.hct.co.kr Page 7 of 21 1.6 Test Methodology Both Conducted and Radiated testing was performed according to the procedures in ANSI C63.4/2003. Radiated testing was performed at an antenna to E.U.T distance of 10 m 1.7 Test Facility The 10 m semi anechoic chamber used to collect the radiated data is located at the 105-1, Jangam-Ri, Majang-Myeon, Icheon-Si, Kyoungki-Do, South Korea, and the conducted measurement facility used to measure the conducted data are located at San 136-1, Ami-Ri Bubal-Eup, Icheon-Si, Kyoungki-Do, 467-701, South Korea. Those measurement facilities are constructed in conformance with the requirements of ANSI C63.4 and CISPR Publication 22. Detailed description of test facilities was submitted to the Commission and accepted dated Sep. 03, 2010 (Registration Number: 90661) 1.8 Frequency Range of Radiated Measurements An unintentional radiator, including a digital device, the spectrum shall be investigated from the lowest radio frequency signal generated or used in the device, without going below the lowest frequency for which a Radiated Emission limit is specified, up to the frequency shown in the following table Highest frequency generated or used in the device or on which the device operates or tunes (㎒) Upper frequency of measurement range (㎒) Below 1.705 30 1.705 to 108 1 000 108 to 500 2 000 500 to 1 000 5 000 Above 1 000 5 th harmonic of the highest frequency or 40 ㎓, whichever is lower Model: JL-20 Report No.: HCTE1103FE05-1 Date: March 17, 2011 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8539 FAX: +82 31 639 8535 www.hct.co.kr Page 8 of 21 2. SYSTEM TEST CONFIGURATION 2.1 Conducted Emissions Test E.U.T was connected to LISN via Notebook PC adaptor. Preliminary Power Line Conducted Emission tests were performed by using the procedure in ANSI C63.4/2003 7.2.3 to determine the worst operating conditions. [ Conducted Emission Limits ] Freq. Range Quasi-Peak Average 150 ㎑ to 0.5 ㎒ 79 dB(㎶) 66 dB(㎶) 0.5 ㎒ to 30 ㎒ 73 dB(㎶) 60 dB(㎶) 2.2 Radiated Emission Test Preliminary Radiated Emission tests were performed by using the procedure in ANS…

Text truncated - open the document above for the full version.

FCC ID : YUL-JL20 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr (Test Setup) 1/1
