YV5-PDWM5500Wireless Microphone

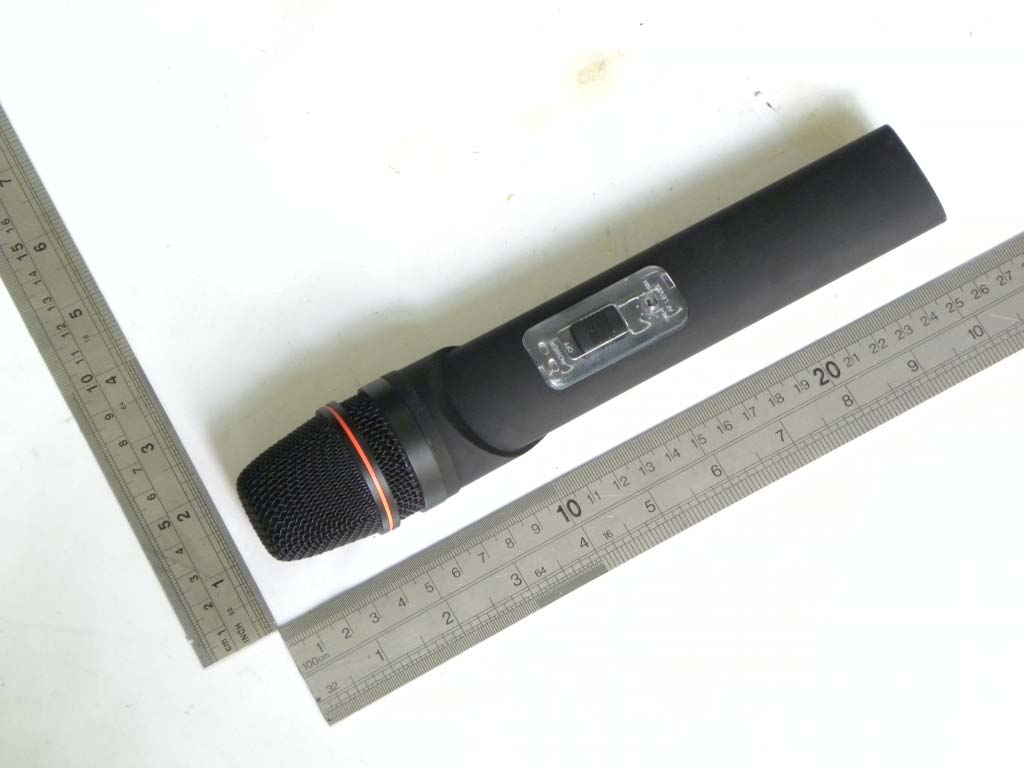

General Appearance of the EUT

FCC ID: YV5-PDWM5500 Label format: This device complies with Part 74 FCC rules FCC ID: YV5-PDWM5500

FCC ID Lable Location On EUT

Antenna

Operation Description Launch receiving process principle: The voice through cartridge into speech compression processing chip (31101)， after dressing and beautification, through aggravating circuit handling then gets higher SNR. Then will the audio signal processing, the modulation of speech signal by modulation (MHz 174.2 - MHz215.8) software-processable through the antenna then output. By the receiving antenna catches radio-frequency carrier frequency signal, sent to rf input.High frequency signal through the oscillation (MHz 174.2-215.8 MHz) circuit and frequency mixing circuit into fixed intermediate frequency signal 10.7 MHz.to improve the sensitivity and selective frequency signal(10.7M) intermediate frequency signal be enlarged. It ancient frequency automatic gain control circuit (AGC) to get by detection circuit of signal. The detection of low frequency signal be enlarged by the low frequency amplifier, send to language processing chip (31101), and finally increase treatmented then output.

NO.NameSpecificationUnit ReceiveEmit Remarks 1 1/6W Color Loop Resistance47pcs13 21/6W Color Loop Resistance150pcs10 31/6W Color Loop Resistance220pcs10 4 1/6W Color Loop Resistance330pcs30 51/6W Color Loop Resistance560pcs22 6 1/6W Color Loop Resistance680pcs10 7 1/6W Color Loop Resistance1Kpcs43 8 1/6W Color Loop Resistance1K5pcs20 9 1/6W Color Loop Resistance1K8pcs01 10 1/6W Color Loop Resistance2K2pcs02 11 1/6W Color Loop Resistance3Kpcs10 12 1/6W Color Loop Resistance3K3pcs31 131/6W Color Loop Resistance4K7pcs30 14 1/6W Color Loop Resistance5.6Kpcs11 151/6W Color Loop Resistance8.2Kpcs00 161/6W Color Loop Resistance10Kpcs54 17 1/6W Color Loop Resistance11Kpcs10 181/6W Color Loop Resistance12Kpcs10 19 1/6W Color Loop Resistance15Kpcs30 201/6W Color Loop Resistance22Kpcs10 211/6W Color Loop Resistance24Kpcs01 221/6W Color Loop Resistance33Kpcs31 231/6W Color Loop Resistance47Kpcs11 24 1/6W Color Loop Resistance56Kpcs22 251/6W Color Loop Resistance100Kpcs11 261/6W Color Loop Resistance150Kpcs12 271/6W Color Loop Resistance200Kpcs10 281/6W Color Loop Resistance470Kpcs10 29 1/6W Color Loop Resistance820Kpcs10 30 Adjustable Resistance103pcs10 31Adjustable Resistance502pcs01 32 Ceramic Capacitor1Ppcs02Big Chip 33 Ceramic Capacitor2Ppcs20Big Chip 34 Ceramic Capacitor3Ppcs01Big Chip 35Ceramic Capacitor4Ppcs10Big Chip 36Ceramic Capacitor5Ppcs10Big Chip 37Ceramic Capacitor6Ppcs00Big Chip 38 Ceramic Capacitor7Ppcs02Big Chip 39Ceramic Capacitor8ppcs11Big Chip 40 Ceramic Capacitor10Ppcs11Big Chip 41Ceramic Capacitor12ppcs02Big Chip 42Ceramic Capacitor15Ppcs00Big Chip 43 Ceramic Capacitor18Ppcs00Big Chip 44 Ceramic Capacitor20Ppcs01Big Chip 45 Ceramic Capacitor24ppcs01Big Chip 46Ceramic Capacitor27ppcs00Big Chip 47Ceramic Capacitor33ppcs01Big Chip 48Ceramic Capacitor39Ppcs10Big Chip 49 Ceramic Capacitor47ppcs01Big Chip 50Ceramic Capacitor100Ppcs34 51Ceramic Capacitor102Ppcs00 Bill of Materials 52Ceramic Capacitor103Ppcs1410 53 Ceramic Capacitor104Ppcs33 54Ceramic Capacitor200Ppcs20 55 Ceramic Capacitor330Ppcs00 56Ceramic Capacitor470ppcs01 57 Polyester Therewithal Capacitor102pcs00 58 Polyester Therewithal Capacitor222Jpcs20 59 Polyester Therewithal Capacitor392Jpcs01 60 Polyester Therewithal Capacitor682Jpcs00 61Electrolytic Capacitor1Upcs32 62Electrolytic Capacitor2U2pcs01 63 Electrolytic Capacitor4U7pcs03 64Electrolytic Capacitor4U7pcs33 65 Electrolytic Capacitor10UFpcs02 66Electrolytic Capacitor10UFpcs50 67 Electrolytic Capacitor47UF/16Vpcs02 68 Electrolytic Capacitor100U/16Vpcs31 69Electrolytic Capacitor100U/16Vpcs02 70 Electrolytic Capacitor100U/10Vpcs01 71Electrolytic Capacitor220/16Vpcs10 72JQL0.68UHpcs00 73JQL0.82UHpcs10 74 JQL3.3uHpcs00 75JQL10uHpcs03 76JQL10uHpcs02 77Magnetic Core Inductor250UHpcs01 78Variable Capacitance Diode (VCD)2638pcs01 79 Diode4148pcs31 80Diode Schottky9.1Vpcs01 81Schottky Barrier Diode (SBD)5817pcs01 82Tripod Filter10.7Mpcs20 83Bipod Filter10.7Mpcs10 84 Coil0.6*3*3.5pcs12 85 Coil0.6*3*4.5pcs20 86Coil0.6*3*6.5pcs02 87 Coil0.6*3*11.5pcs00 88 Intermediate Frequence711550pcs00 89 TriodeH10pcs11 90Triode9014pcs71 91Triode9015pcs10 92Triode9018pcs12 93 Triode8050pcs02 94Intermediate Frequence9801pcs01 95 Intermediate Frequence3K33pcs01 96Intermediate Frequence1444pcs11 97Intermediate Frequence5130pcs01 98 Inteqrated Circuit (IC)CSC2003Ppcs10 99Inteqrated Circuit (IC)MC4066pcs00 100 Inteqrated Circuit (IC)TA31101pcs11 101Inteqrated Circuit (IC)CSC31101CPpcs00 102Inteqrated Circuit (IC)TL084pcs00 103Crystal203.6Jpcs10 104 Crystal203.6Fpcs01 105Jumper4mmpcs01 106Jumper5mmpcs01 107 Jumper6mmpcs44 108Jumper8mmpcs03 109 Jumper14MMpcs20 110Cushion2Ppcs10 111Cushion4ppcs10 112 Double-bank Switchpcs01 113LED (Red)Ø3pcs01 114 PCBReceivepcs10W-708 115PCBEmitpcs01W-708 116 117 Microphone TubeSpark 3V Tubepcs 118Microphone Tube Pedestalpcs 119Microphone Tube bat-handle switchpcs 120Bat-handle switch casingpcs 121GauzeButton-head Plastic Gauzepcs 122Dynamic Microphone CartridgeT-103pcs 123Antenna Pedestal306pcs 124Antenna306pcs 125Batter1.5Vpcs 126Contact Plate1.5Vpair/2pcs 127Frequency Sticher256.1Mpcs 128Packaging BoxKraft Sealings 270*55*60pcs 129Containerpcs 130Launch Panel Antenna1.2*5*29pcs 131Blue Tail-hoodpcs 132Green Tail-hood pcs 133Yellow Connector Wirepcs 134Blue Connector Wirepcs 135Embossing Polybag95*325pcs 136Rectangle Bubble Bag13*23pcs 137Countersunk head Tapping Screws1.7*5pcs 0.5 2 1 1 1 1 1 1 0 0 1 1 1 1 1 1 ACCESSORIES 1 1 1 0

DONGGUAN EMTEK CO., LTD. Report No: KAD100830045E FCC ID: YV5-PDWM5500 DATE: 10/29/2010 Page 1 of 30 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 74 SUBPART H REQUIREMENT OF Wireless Microphone MODEL No.: PDWM100,PDWM94,PDWM5500,PDWM5000,PDWM2500, PDWM3000,PDWM2300,PDWM2000,W-980D,W-970,W-970B Tr a d e m ar k : N / A FCC ID: YV5-PDWM5500 REPORT No: KAD100830045E ISSUE DATE: October 29, 2010 Prepared for GUANGZHOU JINKE ELECTRONIC CO., LTD. 5th, Longhu Inds, Shijing Rd, Shijing Town, Baiyun District, Guangzhou City, Guangdong Province, China. Prepared by DONGGUAN EMTEK CO., LTD No.281, Guantai Road, Nancheng District, Dongguan, Guangdong, China TEL: 86-769-22807078 FAX: 86-769-22807079 DONGGUAN EMTEK CO., LTD. Report No: KAD100830045E FCC ID: YV5-PDWM5500 DATE: 10/29/2010 Page 2 of 39 VERIFICATION OF COMPLIANCE Applicant: GUANGZHOU JINKE ELECTRONIC CO., LTD. 5th, Longhu Inds, Shijing Rd, Shijing Town, Baiyun District, Guangzhou City, Guangdong Province, China. Product Description: Wireless Microphone Trademark: N/A Model Number: Basic Model: PDWM5500 Additional Model: PDWM100,PDWM94,PDWM5000,PDWM2500,PDWM3000, PDWM2300,PDWM2000,W-980D,W-970,W-970B (Note: These models are the same except appearance and model number, all models use the same FCC ID Number. YV5-PDWM5500.) Serial Number: N/A File Number: KAD100830045E Date of Test: August 30, 2010 to October 29, 2010 We hereby certify that: The above equipment was tested by DONGGUAN EMTEK CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2009) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 74 Subpart H. The test results of this report relate only to the tested sample identified in this report. Approved By Nicol Lee / Q.A. Manager DONGGUAN EMTEK CO., LTD. DONGGUAN EMTEK CO., LTD. Report No: KAD100830045E FCC ID: YV5-PDWM5500 DATE: 10/29/2010 Page 3 of 39 Ta b l e o f C o n t e n t s 1. GENERAL INFORMATION ................................................................................................. 5 1.1 Product Description ........................................................................................................................................ 5 1.2 Related Submittal(s) / Grant (s) ...................................................................................................................... 5 1.3 Test Methodology ........................................................................................................................................... 5 1.4 Special Accessories......................................................................................................................................... 5 1.5 Equipment Modifications ............................................................................................................................... 5 1.6 Test Facility .................................................................................................................................................... 6 2. SYSTEM TEST CONFIGURATION .................................................................................... 7 2.1 EUT Configuration ......................................................................................................................................... 7 2.2 EUT Exercise.................................................................................................................................................. 7 2.3 General Technical Requirements .................................................................................................................... 7 2.4 Configuration of Tested System...................................................................................................................... 8 3. SUMMARY OF TEST RESULTS ......................................................................................... 9 4. DESCRIPTION OF TEST MODES ...................................................................................... 9 5. MAXIMUM TRANSMITTER POWER ............................................................................. 10 5.1 Provisions Applicable ................................................................................................................................... 10 5.4 Measurement Equipment Used:.................................................................................................................... 12 5.4 Measurement Result ..................................................................................................................................... 12 6. MODULATION CHARACTERISTICS ............................................................................. 15 6.1 Provisions Applicable.................................................................................................................................... 15 6.2 Measurement Method.................................................................................................................................... 15 6.3 Measurement instruments ............................................................................................................................. 16 6.4 Measurement Result...................................................................................................................................... 16 7. FREQUENCY TOLERANCE .............................................................................................. 22 7.1 Provisions Applicable.................................................................................................................................... 22 7.2 Measurement Procedure ................................................................................................................................ 22 7.3 Test …

Text truncated - open the document above for the full version.

Radiated Emission Setup Photos
