YW3IPOOL1310TXI-POOL SPEAKER-TRANSMITTER

FCC ID: YW3IPOOL1310TX POWER OF ATTORNEY January 4, 2011. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize GTC Centre Limited (Mr. C.S. Lin) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by GTC Centre Limited (Mr. C.S. Lin) on our behalf shall have the same effect as acts of our own. This authorization expires on January 3, 2012. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, Speed Digital Limited, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, Speed Digital Limited _________________________ Patrick Lui

REPORT NO.: 10102888 (Tx) DATE: 29 October, 2010 Page 16 of 20 APPENDIX C Photos of EUT

FCC ID: YW3IPOOL1310TX MADE IN CHINA This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

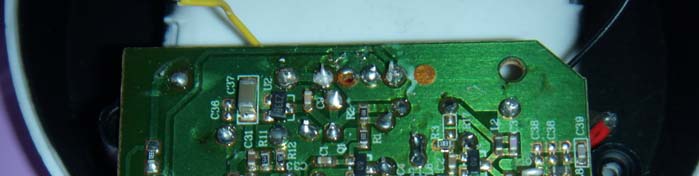

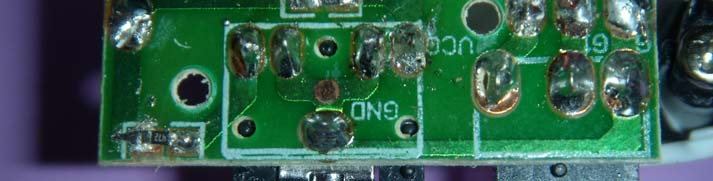

REPORT NO.: 10102888 (Tx) DATE: 29 October, 2010 Page 17 of 20 Photos of EUT Component Side View REPORT NO.: 10102888 (Tx) DATE: 29 October, 2010 Page 18 of 20 Photos of EUT Component Copper View

Transmitter 1. Audio input block The audio input block provide audio input interface to external audio signal which is connected to the PCB via a 3.5mm jacket. A high input impedance input block with appropriate signal level reduction is implemented to ensure the later FM modulator will produce +/-60kHz modulated signal with a 1kHz 2Vpp sinusoidal input signal. 2. 3.3V voltage regulator block A voltage supplier regulator is applied to provide a 3.3V voltage for the FM modulation system. The voltage regulator also has the function of shutting down the system when the battery level is too low to maintain the FM modulation block to generate the correct carrier frequency at 49.86MHz. 3. FM modulation block The FM modulation block will FM modulate the input signal after signal level reduction to FM signal with carrier frequency at 49.86MHz. The modulation bandwidth is +/- 60KHz maximum. 4. RF output block The FM modulated signal is amplified by the RF amplifier in the RF output block. A two-stage RF amplification is applied to generate at least 4dBm output at low battery power. The RF amplifier is directly connected to the 6V battery to increase the amplification efficiency by using higher VDD. At the end of the RF amplifier is a low pass filter to remove EMI, and then there is an antenna matching network which allows the amplified signal to be transmitted through a quarter-wave antenna efficiently. 5. 6V battery block The whole system is powered by a 6V battery. The voltage level detector in the 3.3V voltage regulator will provide an appropriate monitoring of the battery level and shut down the system when the battery level is too low to ensure the correct carrier frequency are being used in the transmitter system.

123456 A B C D 6 54321 D C B A Title NumberRevisionSize B Date:11-Nov-2009Sheet of File:F:\电子E\49MHZ\49MHZ-TX-SCH(入实验室).DDBDrawn By: L3 0.47UH Q1 9018 R1 33K R2 10 6V 6V C11NF C5 56P C6 82P C7 56P C4 1NF L5 270NH L6 270NH E1 ANTENNA 49MHZ TX-RF AMP 49-RF AMP090327 C16 NIL(10NF) C15 1UF + C13 NIL(100UF/10V)C11 NIL(10NF) C10 1UF + C8 NIL(100UF/10V) + C17 100UF/10V C18 0.1UF C19 NIL(1UF) C21 0.1UF 1 2 3 4 5 6 7 8 9 1011 12 13 14 15 16 17 18 19 20 U1 CM4902 C26 0.47UF R7 1.8K R6 1.8K C23 0.47UF C25 10UF C24 NIL(330PF) R5 10K R8 10K R9 10K R13 1.5K C22 1UF C27 2PF L 7 5 6 0 N H C28 27PF R10 22 D2 B B 2 0 2 IN AUDIO IN AUDIO RF OUT Q3 9012 R14 10K R12 15K R11 5.1K C31 1UF VDD VDD VDD VDD Y1 4.3012MHZ C29 2PF C30 2PF C 3 2 1 8 p f C33 nil R15 100K C36 NIL(10NF) C37 (10UF) R16 56k G N D 3 IN 1 OUT 2 U2 CM7R6206-3.3V C9 10NF C20 100UF/10V C2 1NF Q2 9018 R3 10K L1 10UH L2 0.47UH C3 22PF C12 3.3NF C39 82PFC38 56PF C40 56PF L8 270NH L9 270NH C41 1NF PDF created with pdfFactory trial version www.pdffactory.com

FCC TEST REPORT Application No.: 10102888 (49MHz, Tx) Rm02, 15/F Fonda Ind Bldg, 37-39 Au Pui Wan Street, Fotan Shatin, N.T., Hong Kong Tel: [852] 2690 0881 Fax: [852] 2690 0877 REPORT NO.: 10102888 (Tx) DATE: 29 October, 2010 Page 2 of 20 TABLE OF CONTENTS Cover Sheet --------------------------- p.1 Table of Contents --------------------------- p.2 General Details --------------------------- p.3 ~ p.4 Summary of Test Results --------------------------- p.5 Radiation Emission Test --------------------------- p.6 ~ p.8 Conducted Emission Test --------------------------- p.9 ~ p.10 Bandwidth Measurement --------------------------- p.11 ~ p.12 Appendix A List of Measurement Equipment --------------------------- p.13 Appendix B Duty Cycle correction During 100msec --------------------------- p.14~ p.15 Appendix C Test Sample & Setup (Photos) --------------------------- p.16 ~ p.20 REPORT NO.: 10102888 (Tx) DATE: 29 October, 2010 Page 3 of 20 APPLICANT: Speed Digital Ltd ADDRESS: Unit C,13/F, Por Mee Factory Building, 500 Castle Peak Road, Kowloon,Hong Kong DATE OF RECEIVED: 05 Oct, 2010 DATE OF TESTING: 05 Oct 2010 to 29 Oct 2010 DESCRIPTION OF SAMPLE: Product: Pooltunes; i-pool Brand Name: NIL Model No.: 13001, SF1005, SF1003 FCC ID: YW3IPOOL1310TX Input Voltage: DC9V (6F22 x 1) Description of EUT Operation The Equipment Under Test (EUT) is a Speed Digital Limited, i-pool Speaker. INVESTIGATION REQUESTED: FCC PART 15 SUBPART C TEST RESULTS: See attached sheets CONCLUSIONS: The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on page 5 in Test report. CS Lin, EMC for Chief Executive REPORT NO.: 10102888 (Tx) DATE: 29 October, 2010 Page 4 of 20 General Details Test Laboratory GTC CENTRE LTD EMC Laboratory Rm02, 15/F Fonda Ind Bldg, 37-39 Au Pui Wan Street, Fotan Shatin, N.T., Hong Kong Telephone: Fax: 852 2699 0881 852 2699 0877 Applicant Details Applicant Speed Digital Ltd Unit C,13/F, Por Mee Factory Building, 500 Castle Peak Road, Kowloon,Hong Kong Manufacturer Speed Digital Ltd Unit C,13/F, Por Mee Factory Building, 500 Castle Peak Road, Kowloon,Hong Kong REPORT NO.: 10102888 (Tx) DATE: 29 October, 2010 Page 5 of 20 Technical Details Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15 and ANSI C63.4:2003 for FCC Certification. Test Standards and Results Summary Tables EMISSION Results Summary Test Result Test Condition Test Requirement Test Method Pass Failed N/A Field Strength of Fundamental Emissions & Spurious Emissions FCC 47CFR 15.235 ANSI C63.4:2003 Radiated Emissions, 30MHz to 1GHz FCC 47CFR 15.209 ANSI C63.4:2003 Conducted Emissions on AC, 0.15MHz to 30MHz FCC 47CFR 15.207 ANSI C63.4:2003 Note: N/A – Not Applicable REPORT NO.: 10102888 (Tx) DATE: 29 October, 2010 Page 6 of 20 Test Results Emission Radiation Emission Measurement (30MHz to 1GHz) Setup diagram: Test Method: The sample was placed 0.8m above the ground plane on the OATS*. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigated all operating modes, rotated about all 3 axis (X,Y & Z) and considered typical configuration to obtain worst position, manipulating interconnecting cables, rotating turntable, varying antenna height from 1m to 4m in both horizontal and vertical polarizations. The emissions worst-case are shown in Test Results of the following pages. *. OATS [Open Area Test Site] located at GTC with a metal ground plane filed with the FCC pursuant to section 2.948 EUT Computer Test Receiver Printer out 3 Meter Cable Data Transmission Ground Plane Turn Table REPORT NO.: 10102888 (Tx) DATE: 29 October, 2010 Page 7 of 20 of the FCC rules. With Registration Number:493655 Radiation Emissions Measurement Appl. : Speed Digital Ltd Model: 13001 Operation: TX mode Test Requirement: FCC 47CFR 15.235 Test Method: ANSI C63.4:2003 Limits for Field Strength of Fundamental Emissions : Frequency Range of Fundamental Field Strength of Fundamental Emission Field Strength of Fundamental Emission [Peak] [Average] [MHz] [μV/m] [μV/m] 49.82-49.90 100,000 10,000 Results: Field Strength of Fundamental Emissions Peak Value Frequency Measured Level @3m Correction FactorField StrengthField StrengthLimit @3m E-Field Polarity MHz dBμV dB/m dBμV/m μV/m μV/m 49.86 62.5 11.7 74.2 5,128.6 100,000 Horizontal Field Strength of Fundamental Emissions Average Frequency Adjusted by Duty Cycle Field StrengthField StrengthLimit @3m E-Field Polarity MHz dB dBμV/m μV/m μV/m 49.86 -7.9 60.2 1,023.3 10,000 Horizontal According to FCC 47CFR 15.35, the limit on the radio frequency emissions as measured using instrumentation with a peak detector function, corresponding to 20dB above the maximum permitted average limit for the frequency being investigated unless a different peak emission limit is otherwise specified in the rules. Remarks: Correction Factor included Antenna Factor and Cable Attenuation. Calculated measurement uncertainty : 30MHz to 1GHz ±4.1dB REPORT NO.: 10102888 (Tx) DATE: 29 October, 2010 Page 8 of 20 Radiation Emissions Measurement Appl. : Speed Digital Ltd Model: 13001 Operation: TX mode Test Requirement: FCC 47CFR 15.209 Test Method: ANSI C63.4:2003 Results: Frequency Range Quasi-Peak Limits [MHz] [μV/m] 30-88 100 88-216 150 216-960 200 Above960 500 The emission limits shown in the above table are based on measurement employing a CISPR quasi-peak detector and above 1000MHz are based on measurements employing an average detector. Radiated Emissions Quasi-Peak Frequency Measured Level @3m Correction Factor Field Strength Field Strength Limit @3m E-Field Polarity MHz dBμV dB/m dBμV/m μV/m μV/m 99.7 28.0 10.3 38.3 82.2 150 Vertical 149.6 26.5 15.1 41.6 120.2 150 Horizontal 199.4 23.0 16.5 39.5 …

Text truncated - open the document above for the full version.

REPORT NO.: 10102888 (Tx) DATE: 29 October, 2010 Page 19 of 20 Photos of EUT Measurement of Radiated Emission Test Set up REPORT NO.: 10102888 (Tx) DATE: 29 October, 2010 Page 20 of 20 Line Conduct End of Document
