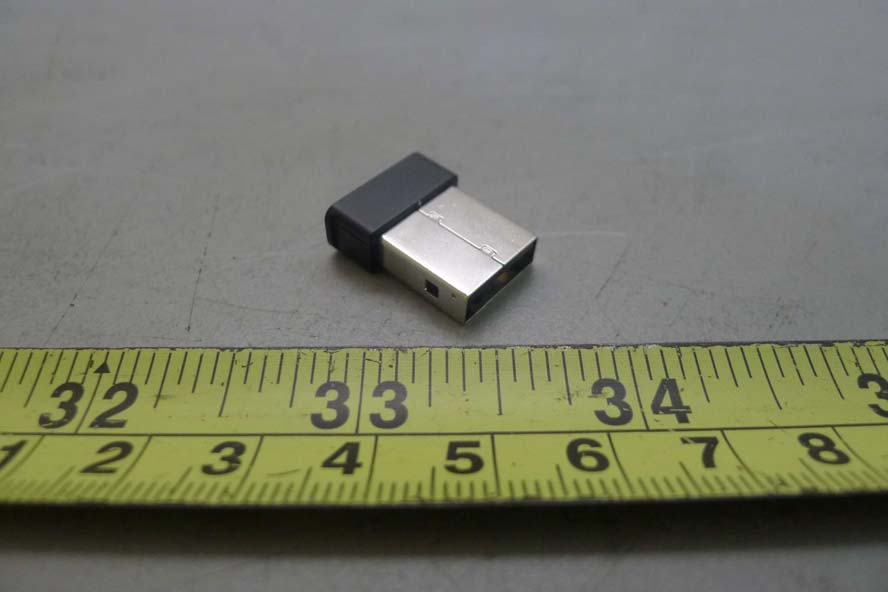

YWG-UDONGLEUSB Receiver

Touch-You Curved-Touch 2.4GHz Remote Control USER GUIDE Touch what you desire More than Touch INTRODUCTION Congratulations on your purchase of the Touch you Curved-Touch 2.4GHz Remote Control, the amazing and revolutionary Remote Control that combines gravity control with swipe gestures that bring any large screen into the palm of your hands. FEATURES  2.4GHz Wireless technology.  Plug-And-Go Nano Transceiver.  Seamless connections range up to 33ft (10M).  Patent of Curve-Touch technology.  Easily navigate mouse pointer with finger gestures  Ergonomic design enhances comfort for both left-handed and right-handed users.  Power mode :  Support one AAA battery / Rechargeable battery  Without any driver to install Production Certifications: FCC SYSTEM REQUIREMENTS Hardware  Available USB Port For 2.4GHz-dongle enabled desktop or laptop computer (Automatically enabled with 2.4GHz) Operating System  Android PACKAGE CONTENTS  FRENZY Curve-touch 2.4GHz Remote Controller  2.4GHz Nano Transceiver Dongle  User Guide 1 2 PHYSICAL SPECIFICATION GESTURES AND FUNCTION 1.1 Basic Gestures Item Function Gesture Description Diagram 1 Flip to Right Slide from Left to Right 2 Flip to Left Slide from Right to Left 3 Backward One finger hold “cursor” icon 0.5 second and slide to left side Interface 2.4GHz Operating Distance 33ft (10 meters ) Dongle Mini USB Nano Transceiver Dongle Button / Scroll All by flap and multi-gesture Dimensions 80.00 (L) x 59.00 (W) x 28.00(H) mm Operation Temperature 0 - 40 ± 2°C Operation Humidity 90 ± 2~3 %RH Certification FCC 3 4 4 Forward One finger hold “cursor” icon 0.5 second and slide to right side 5 Page Up One Finger scroll up 6 Page down One Finger scroll down 7 Open a menu Hold one second at “Home + menu” icon 8 Home One click at “ Home + menu ” icon 9 Volume Up One finger hold 0.5 second and scroll up 10 Volume Down One finger hold 0.5 second and scroll down 1.2 Air Mouse Gestures and Diagram Item Function Gesture Description Diagram 1 Confirm To open an APP and “OK” One Touch any of the middle area 2 Mouse Cursor Move Hand while enable Air Mouse mode 3 Drag & Drop File One Touch any of the middle area and move hands to Drag & Drop Pushed and move the hands  Drag Released  stop Drag ( Drop File ) 1.3 Power Button Gestures and Diagram Item Function Gesture Description Diagram 1 Power ON Press Power Button for 1 second 2 Power OFF Press Power Button for 3 second 3 Open Standby menu and go to Standby mode 1. One click “Power Button” to open Standby menu while in working mode 2. Then Select “ OK “ 4 Wake up To wake up TV Box One Touch any touching area Power ON definition: 1) Power ON means the first time to turn on remote controller to use it. 2) Diagram LED STATUS INDICATOR Item Remote Controller Status Description Time LED Status 1 Power ON Press Power Button 1 sec Blink 3 times 2 Power OFF Press Power Button 3 sec Blink 1 time 3 Execute Gesture Function Gesture operation Blink 1 time POWER SAVING MODE Item Remote Status Description Wake up 1 Standby mode Without using the RA103 up to 1 sec No need wake up. 2 Sleep mode Without using the RA103 up to 1 min One Touch on any touching area 3 Power OFF Without using the RA103 up to 6 hours Press Power Button to Turn ON Note: If TV BOX and Remote are in standby mode, it needs to touch twice to wake up TV BOX. First touch wake up is for Remote, second is for TV Box. Power Button 5 6 Federal Communications Commission (FCC) StatementREGULATORY COMPLIANCE - THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. Federal Communications Commission Requirements The equipment has been tested and found to comply with the limits for Class B Digital Device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ●Reorient of relocate the receiving antenna. ●Increase the separation between the equipment and receiver. ●Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ●Consult the dealer or an experienced radio/TV technician for help. THE CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and receiver. (2) This device must accept any interference received, including interference that may cause undesired operation. 7

CERTIFICATE OF COMPLIANCE Authorized under Declaration of Conformity according to 47 CFR, Part 2 and Part 15 of the FCC Rules. The product listed in follows was (were) tested in the Neutron EMC Laboratory to comply with the criteria limits Class B of conducted and radiated emissions of the Technical Standards FCC Part 15, Subpart B: 2012, established by the FCC, USA. Equipment USB Receiver Model Name D002 Brand Name Touch-You Applicant Touch-You Inc. Address 5F., No. 671, Bannan Rd., Zhonghe Dist., New Taipei City 235, Taiwan (R.O.C.) Standard(s) ANSI C63.4: 2009 ICES-003 Issue 5: 2012 CISPR 22: 2008 CAN/CSA-CISPR 22-10 The test data, data evaluation, and equipment configuration contained in our test report (Report No. NEI-FCCE-1-1311038) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). The test data contained in the referenced test report relate only to the EUT sample and item(s) tested. Andy Chiu Authorized Signatory Neutron Engineering Inc. B1, No. 37, Lane 365, YangGuang St., NeiHu District 114, Taipei, Taiwan. TEL: +886-2-2657-3299 FAX: +886-2-2657-3331

RV-0000000 Project No.: 1311038 Page 2 of 5 Neutron Engineering Inc. 1311038 131103 8

JE!Mbcfm!boe!Mpdbujpo!jogp/kqh

RV-0000000 Project No.: 1311038 Page 3 of 5 Neutron Engineering Inc. 1311038 RV-0000000 Project No.: 1311038 Page 4 of 5 Neutron Engineering Inc. 1311038 131103 8 Antenna RV-0000000 Project No.: 1311038 Page 5 of 5 Neutron Engineering Inc. 1311038 131103 8

Neutron Engineering Inc. FCC RF EXPOSURE REPORT FCC ID: YWG-UDongle Project No. : 1311038 Equipment : USB Receiver Model : D002 Applicant : Touch-You Inc. Address : 5F., No. 671, Bannan Rd., Zhonghe Dist., New Taipei City 235, Taiwan (R.O.C.) According: : FCC Guidelines for Human Exposure IEEE C95.1 Neutron Engineering Inc. B1, No. 37, Lane 365, YangGuang St., NeiHu District 114, Taipei, Taiwan. TEL : +886-2-2657-3299 FAX : +886-2-2657-3331 Neutron Engineering Inc. GENERAL CONCULUSION: Table for Filed Antenna: Ant. Brand Model Name Antenna Type Connector Gain (dBi) 1 N/A N/A Printed N/A 0.00 Maximum measured transmitter power: Mode Output Power (dBm)Out Power (mW) Limit (mW) GFSK -3.4700 0.4498 10 According to FCC KDB447498, Appendix A, SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm The transmitter power is 0.4498 mW, less than 10mW at 5mm distance. Conclusion: No SAR evaluation required since transmitter power is below FCC threshold

FCC ID: YWG-UDONGLE RV-0000000 Report No.: NEI-FCCP-1-1311038 Page 1 of 60 Neutron Engineering Inc. Radio Test Report FCC ID: YWG-UDONGLE This report concerns (check one) : Original Grant Class II Change Issued Date : Nov. 28, 2013 Project No. : 1311038 Equipment : USB Receiver Model Name : D002 Applicant : Touch-You Inc. Address : 5F., No. 671, Bannan Rd., Zhonghe Dist., New Taipei City 235, Taiwan (R.O.C.) Tested by: Neutron Engineering Inc. EMC Laboratory Date of Receipt: Nov. 05, 2013 Date of Test: Nov. 05, 2013 ~ Nov. 25, 2013 Testing Engineer : (Josh Lin) Technical Manager : (Jeff Yang) Authorized Signatory : (Andy Chiu) Neutron Engineering Inc. B1, No. 37, Lane 365, YangGuang St., NeiHu District 114, Taipei, Taiwan. TEL: +886-2-2657-3299 FAX: +886-2-2657-3331 FCC ID: YWG-UDONGLE RV-0000000 Report No.: NEI-FCCP-1-1311038 Page 2 of 60 Neutron Engineering Inc. Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C., or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations, inferences or generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. FCC ID: YWG-UDONGLE RV-0000000 Report No.: NEI-FCCP-1-1311038 Page 3 of 60 Neutron Engineering Inc. Table of Contents REPORT ISSUED HISTORY 5 1 CERTIFICATION 6 2 . SUMMARY OF TEST RESULTS 7 2.1 TEST FACILITY 8 2.2 MEASUREMENT UNCERTAINTY 9 3 GENERAL INFORMATION 10 3.1 GENERAL DESCRIPTION OF EUT 10 3.2 DESCRIPTION OF TEST MODES 12 3.3 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 13 3.4 DESCRIPTION OF SUPPORT UNITS 14 4 CONDUCTED EMISSION 15 4.1 LIMIT 15 4.2 MEASUREMENT INSTRUMENTS LIST 15 4.3 TEST PROCEDURES 16 4.4 TEST SETUP LAYOUT 16 4.5 DEVIATION FROM TEST STANDARD 16 4.6 EUT OPERATING CONDITIONS 17 4.7 TEST RESULTS 18 5 ANTENNA CONDUCTED SPURIOUS EMISSION 20 5.1 LIMIT 20 5.2 MEASUREMENT INSTRUMENTS LIST 20 5.3 TEST PROCEDURES 20 5.4 TEST SETUP LAYOUT 20 5.5 DEVIATION FROM TEST STANDARD 20 5.6 EUT OPERATING CONDITIONS 20 5.7 TEST RESULTS 21 6 6 DB BANDWIDTH 25 6.1 LIMIT 25 6.2 MEASUREMENT INSTRUMENTS LIST 25 6.3 TEST PROCEDURES 25 6.4 TEST SETUP LAYOUT 25 6.5 DEVIATION FROM TEST STANDARD 25 6.6 EUT OPERATING CONDITIONS 25 6.7 TEST RESULTS 26 7 MAXIMUM PEAK CONDUCTED OUTPUT POWER 28 7.1 LIMIT 28 7.2 MEASUREMENT INSTRUMENTS LIST 28 7.3 TEST PROCEDURES 28 FCC ID: YWG-UDONGLE RV-0000000 Report No.: NEI-FCCP-1-1311038 Page 4 of 60 Neutron Engineering Inc. Table of Contents 7.4 TEST SETUP LAYOUT 28 7.5 DEVIATION FROM TEST STANDARD 28 7.6 EUT OPERATING CONDITIONS 28 7.7 TEST RESULTS 29 8 RADIATED SPURIOUS EMISSION (9 KHZ TO 1 GHZ) 30 8.1 LIMIT 30 8.2 MEASUREMENT INSTRUMENTS LIST 31 8.3 MEASURING INSTRUMENTS SETTING 31 8.4 TEST PROCEDURES 32 8.5 DEVIATION FROM TEST STANDARD 32 8.6 TEST SETUP LAYOUT 32 8.7 EUT OPERATING CONDITIONS 33 8.8 TEST RESULTS 34 9 RADIATED SPURIOUS EMISSION (ABOVE 1 GHZ) 36 9.1 LIMIT 36 9.2 MEASUREMENT INSTRUMENTS LIST 37 9.3 MEASURING INSTRUMENTS SETTING 37 9.4 TEST PROCEDURES 38 9.5 DEVIATION FROM TEST STANDARD 38 9.6 TEST SETUP LAYOUT 38 9.7 EUT OPERATING CONDITIONS 39 9.8 TEST RESULTS 40 9.9 TEST RESULTS (RESTRICTED BANDS) 52 10 POWER SPECTRAL DENSITY 56 10.1 LIMIT 56 10.2 MEASUREMENT INSTRUMENTS LIST 56 10.3 TEST PROCEDURES 56 10.4 TEST SETUP LAYOUT 56 10.5 DEVIATION FROM TEST STANDARD 56 10.6 EUT OPERATING CONDITIONS 56 10.7 TEST RESULTS 57 11 EUT TEST PHOTO 59 FCC ID: YWG-UDONGLE RV-0000000 Report No.: NEI-FCCP-1-1311038 Page 5 of 60 Neutron Engineering Inc. REPORT ISSUED HISTORY Revised Version No. Description Issued Date - Initial Issue. Nov. 28, 2013 FCC ID: YWG-UDONGLE RV-0000000 Report No.: NEI-FCCP-1-1311038 Page 6 of 60 Neutron Engineering Inc. 1 CERTIFICATION Equipment : USB Receiver Brand Name : Touch-You Model Name : D002 A p p l i c a n t : Touch-You Inc. Date of Test : Nov. 05, 2013 ~ Nov. 25, 2013 Standards : FCC Part 15, Subpart C: 2012 ANSI C63.4: 2009 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-1-1311038) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). FCC ID: YWG-UDONGLE RV-0000000 Report No.: NEI-FCCP-1-1311038 Page 7 of 60 Neutron Engineering Inc. 2. SUMMARY OF TEST RESULTS Standard Clause Test Item Result 15.207 Conducted Emission PASS 15.247 (c) Antenna conducted Spurious Emission PASS 15.247 (a)(2) 6dB Bandwidth PASS 15.247 (b) Maximum Peak Conducted Output Power PASS 15.247 (c) Radiated Spurious Emission PASS 15.247 (d)(e) Power Spectral Density PASS 15.205 R…

Text truncated - open the document above for the full version.

FCC ID: YWG-UDONGLE RV-0000000 Report No.: NEI-FCCP-1-1311038 Page 59 of 60 Neutron Engineering Inc. 11 EUT TEST PHOTO Conducted emission test photos FCC ID: YWG-UDONGLE RV-0000000 Report No.: NEI-FCCP-1-1311038 Page 60 of 60 Neutron Engineering Inc. Radiated spurious emission test photos
