使 用 說 明 書 User’s Guide 版 權 所 有 © 2010 Wellshine Wireless Technology Co.,Ltd. All Rights Reserved. 守護鈴:防盜智慧隨身碟 拆封時：確定包裝中有下列物品 下底盒 -電源供應器 -USB充電傳輸線 第二層 -項圈皮件 -鎖匙圈皮件 第一層 -守護鈴主機 -守護鈴子機 1 2 3 4 1234 使用說明書 產品規格 蜂鳴孔 狀態顯示 電源開關 27x68x15 mm 2G 20公克 紅燈閃爍 有 無 140 mAh 子 機 主 機 27x50x15 mm 無 20公克 紅燈閃爍 無 有 140 mAh 尺 寸 記 憶 體 重 量 低電壓警示 USB2.0 Micro-USB 電 池 主 機子 機 防失模式 子 機 主 機 模式 I：防失模式 步驟(一) 配對(連線) 說明: - 將子機飾板打開,指撥開關切到ON,紅藍色LED燈恆亮。 - 將主機飾板打開,指撥開關切到 I (如附圖),紅藍色LED燈恆亮。 - 按下主機按鍵1秒後放開。主與子機立即進入搜尋連線模式, 等待主與子機藍燈恆亮。 - 連線後,主機發出『嗶』一短聲, 主子機藍色LED每2秒一長閃。 步驟(二) 警報啟動及解除 說明: - 子機離開主機超過3米時,主機與子機的警報器同時『嗶嗶』作 響,並LED均以紅藍燈互閃警示。 - 當主機與子機回到3米以內, 警報器與警示LED閃爍解除, 回歸正常連線狀態。 適用情境: 預防孩童或寵物走失、貴重物品遺失、搶奪、竊盜等犯罪行為。 連 線 對 應 子 機 主 機 防偷模式 模式 II：防偷模式 步驟(一) 配對(連線) 說明 : - 將子機飾板打開,指撥開關切到ON,紅藍色LED燈恆亮。 - 將主機飾板打開,指撥開關切到 II (如附圖),紅藍色LED燈恆亮。 - 按下主機按鍵1秒後放開。主與子機立即進入搜尋連線模式, 等待主與子機藍燈恆亮。 - 連線後,主機發出『嗶』一短聲,主子機藍色LED每5秒一長閃。 步驟(二) 警報啟動及解除 說明: - 筆記型電腦震動及移動警示 :子機USB裝製於筆記型電腦上, 如有移動或震動時警報器會發出『嗶嗶』作響,此時子機上的 LED紅藍燈相互閃警示。 - 子機USB自筆記型電腦上移除斷電警示：若子機遭拔除,此時子 機會啟動斷電警示狀態,警報器『嗶』作響,LED紅藍燈相互閃示 - 解除警報器及警示燈： 由主機解除警報,按主機上按鍵1秒即可解除。 適用情境:預防Notebook發生竊盜、搶奪狀況 連 線 對 應 。 親子模式一( I )防偷模式二( II ) 防狼模式&充電方式 防狼模式 : 主機在任何模式下,包含OFF,模式I,模式II,均可啟動防狼模式,持續 按主機按鍵超過3秒,警報器作響。若主機按鍵再持續按3秒後， 即可解除警報。 適用情境:預防歹徒突襲,發生危險 。 電池低電壓及充電顯示 : - 低電壓顯示 (包含主機與子機) : 紅色LED閃爍。 - 充電中 : 紅色LED恆亮。 - 充飽電 : 紅色燈熄滅。 *** LED 顯示動作表*** 充電方式 : -主機:以MiniUSB cable連接電源供應器或電腦USB port即可充電 -子機:直接將子機連接於電腦的USB port 充電即可。 開機及切換模式 進入連線模式 已連線 紅 藍 燈 恆 亮 紅 藍 燈 閃 爍 紅 燈 閃 OFF 紅燈恆亮 (如在模式連線中藍燈依原來模式亮燈方式同步進行) 藍 燈 恆 亮 藍燈每2秒一長閃藍燈每5秒一長閃 行 為 模 式 主 機子 機 主 機子 機 低電壓 充電中 充飽電 警報狀態 (包含模式一/二及防狼模式) 。 雲端OTG應用功能 雲端OTG( On The Go)應用功能 a.功能說明 : 雲端OTG是將守護鈴結合網路服務機制,讓消費者可以隨時更新 唯勝無線科技最新的服務及程式,並且結合未來創新好玩的產品 。讓您在唯勝的網站服務可以直接加值及享受無線生活的樂趣。 適用情境:預防電腦內部貴重資料遭竊取 b.雲端OTG程式操作說明 : 在PC/NB系統右下方的應用程式Icon( ),請將滑鼠鍵置於圖式 按右鍵, 可以進行下列選項 : 1.登錄:登錄為VIP會員,即可享有唯勝的用戶專屬服務。 2.程式更新:雲端OTG程式更新。 3.eDM:最新的電子檔DM,可以更新及刪除。 4.開啟程式:開啟雲端OTG應用程式檔案夾。 5.操作說明:雲端OTG的使用說明(PDF檔)。 6.關於:說明雲端OTG的版本。 登錄後,將來有更多好玩的應用軟體等你來下載! 軟體下載請至官方網站 (http://www.guardangel.com.tw )。 Packaging Included: Lower Layer - Power Adaptor - MINI USB Cable Second Layer - Leather Necklace - Key Chain First Layer - Master Unit - Slave Unit 1 2 3 4 1234 User Manual Product SPEC. BEEP LED Power 27x68x15 mm 2G 20g Yes NO 140 mAh Slave Unit Master Unit 27x50x15 mm NO 20g Red LED flashesRed LED flashes NO Yes 140 mAh Dimension Memory Weight Low Power Status USB2.0 Micro-USB Battery Master UnitSlave Unit Preventing of Lost Slave UnitMaster Unit Mode I : Preventing of lost For example: children,elderly or pets Connection- Master unit and Slave unit. - Open the panel of Slave unit, and switch to “ON”. The LED is steady ON by Blue and Red. - Open the panel of Master unit, and switch to I (as shown on the picture). The LED is steady ON by blue and red. Connecting : Master unit and Slave unit would search for connection and blue LED steady “ON” after pressing button on the Master unit for a second. After connection, you will hear a short sound of beep, and the Blue LED indicator on Master unit and Slave unit will flash every 2 seconds. Alarm Initiation and Relieve: - If the distance between Master unit and Slave unit is over 3m, the Master unit and Slave unit will keep alarming and the LED indicators will flashes red to blue light interactively. - While Master unit and Slave unit are coming back within 3 meters, it would stop alarming and flashing. The Master unit and Slave unit will come back to the normal status. connection Slave UnitMaster Unit Prevent stealing for PC Mode II: Prevent stealing for PC Connecting Master unit and Slave unit - Open the panel of Slave unit, and switch to “ON”. The LED is steady ON by Blue and Red. - Open the panel of Master unit, and switch to II (as shown on the picture). The LED is steady ON by blue and red. Press the Master unit for a second and let go .The Master unit will automatically search for connection and blue LED steady “ON”. After connection, you will hear a short sound of beep, on Master unit, the Blue LED indicator on Master unit and Slave unit will flash every 5 seconds. Alarm Initiation and Relieve - Preventing Notebook to be stealing: After inserting the Slave unit to Notebook USB port, once the Notebook stealing by someone, the Slave unit would start alarming, at the same time, LED indicator would flash Blue and Red interactively. - Once the Slave unit plug off by someone, it would also alarm and at the same time the power will cut off. LED indicator would flash Blue and Red interactively. - To relieve Alarm Press the button on Master unit for a second then it will relieved. connection Preventing of lost (children/elderly/pets) Prevent from stealing (note book, valuable things) Preventing from Sexual Harasser Preventing from sexual harasser You can start the Preventing function under any modes (includes OFF, I, and II). Just keep pressing button on Master unit for 3 seconds, and then it would alarm loudly. To relieve the alarm, just press button again for another 3 seconds. Indication of Low battery and charging: - Low power indication: Red LED flashes. (Both Master unit and Slave unit) - Charging Indication : Red light steady ON - Full of battery charged : Red light off *** LED Indication*** The way of charging: - Master unit: Plug Mini USB cable to Master unit and connect to power adapter or USB port on a computer - Slave unit: simply insert Slave unit to the USB port on a computer Steady ON by red and blue LED LED indicator flash Blue and Red interactively Red LED flashes OFF Red light steady ON Blue LED steady ON Blue LED flashes (every 2 seconds) Blue LED flashes (every 5 seconds) Mode Master UnitSlave UnitMaster UnitSlave Unit Alarm(Mode I, Mode II, & Preventing from sexual harasser ) Connecting Mode Connected Indication Low Power Status Charging Status Full Of Battery Charged Turn on & Modes Switch Function of Cloud computing- OTG application Function of Cloud computing- OTG (On The Go) application: a. Application for function Cloud computing -OTG is a Web network service to link up Security Angel. Users…

Text truncated - open the document above for the full version.

910805 2 Wellshine Wireless Technology Co., Ltd. 8F-2, No.205, Fusing Rd., Taoyuan City, Taoyuan Country 330, Taiwan (R.O.C) Date: Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: We, the undersigned, hereby authorize ELECTRONICS TESTING CENTER, TAIWAN, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by ELECTRONICS TESTING CENTER, TAIWAN on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing ELECTRONICS TESTING CENTER, TAIWAN as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division;

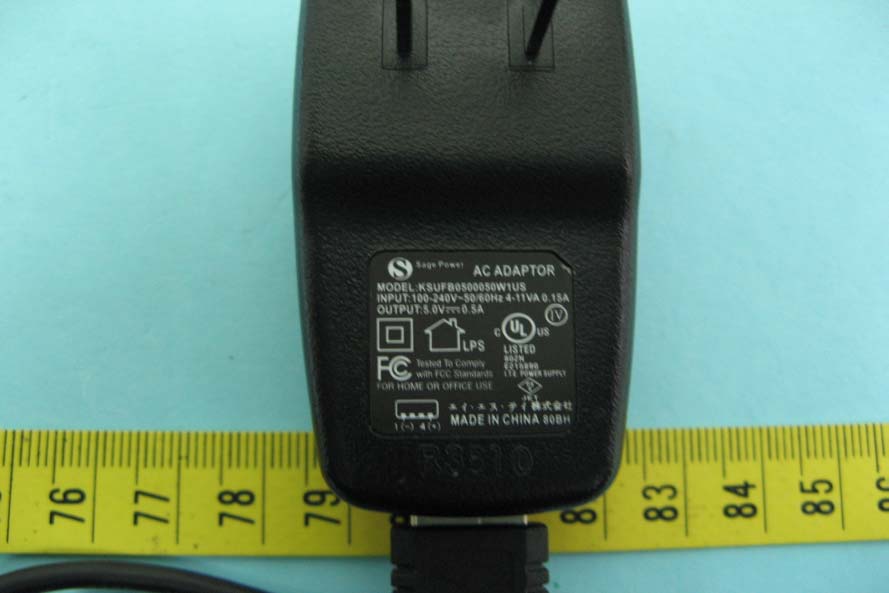

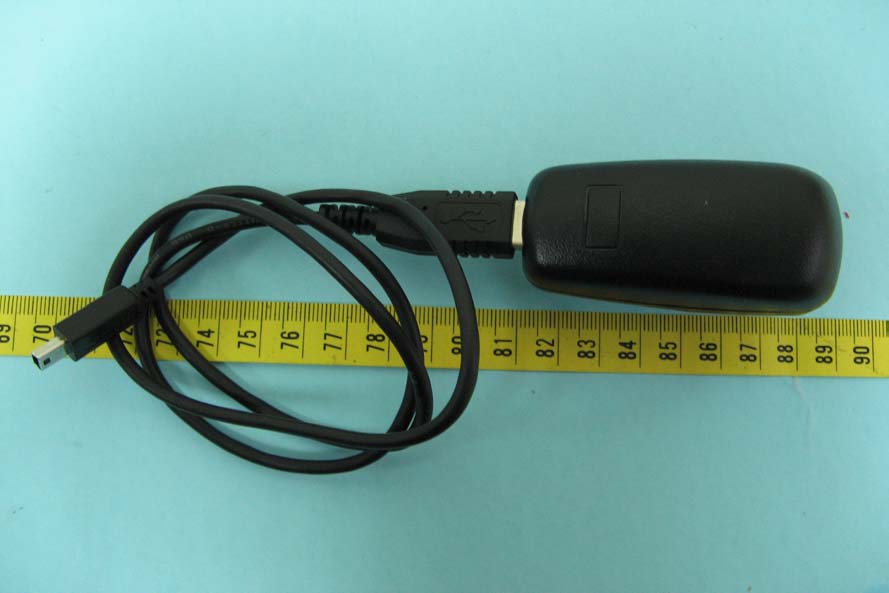

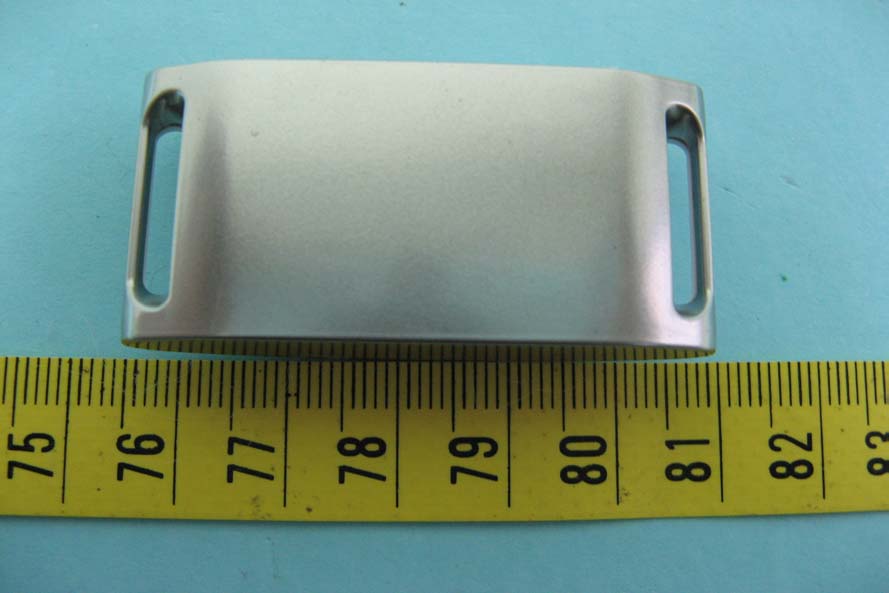

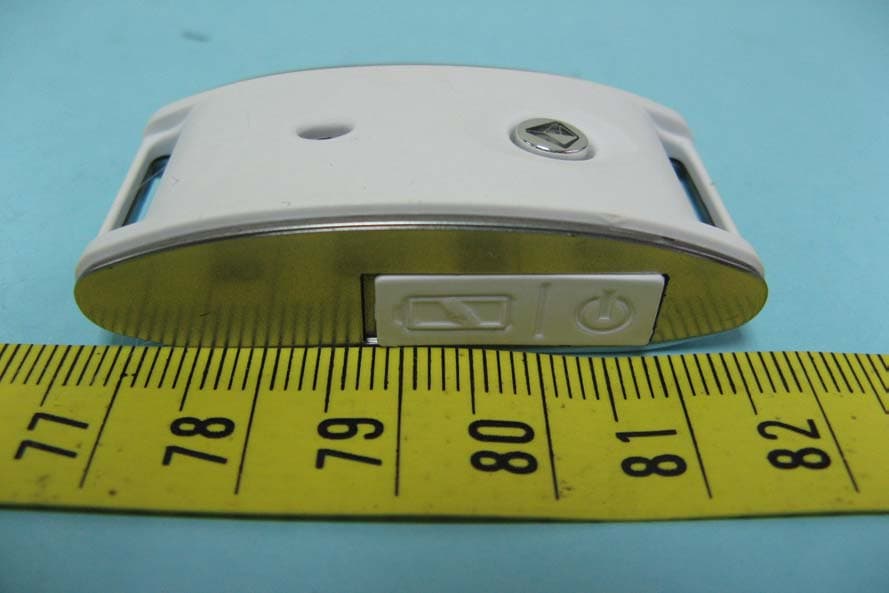

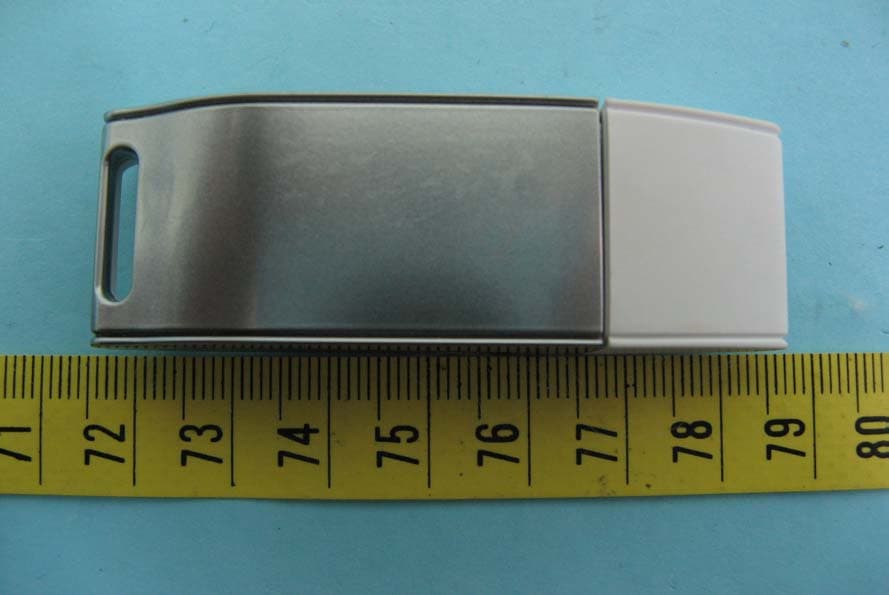

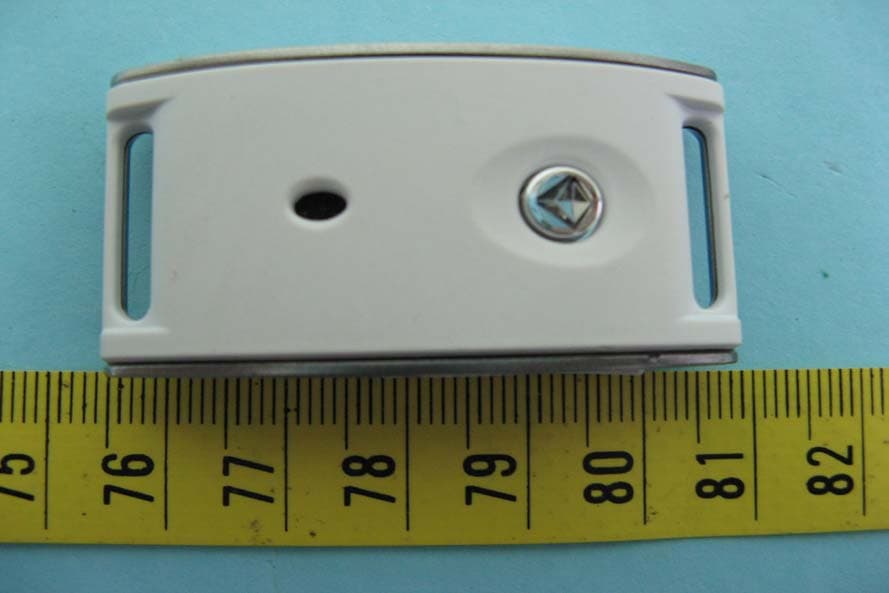

ETC Report No. : 10-10-RBF-027-01 Sheet 1 of 6 Sheets FCC ID.: YXBWSAM Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 1. Top View of EUT 2. Bottom View of EUT ETC Report No. : 10-10-RBF-027-01 Sheet 2 of 6 Sheets FCC ID.: YXBWSAM Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 3. Side View of EUT 4. Front View of EUT ETC Report No. : 10-10-RBF-027-01 Sheet 3 of 6 Sheets FCC ID.: YXBWSAM Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 5. Side View of EUT 6. Rear View of EUT ETC Report No. : 10-10-RBF-027-01 Sheet 6 of 6 Sheets FCC ID.: YXBWSAM Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 10. Top View of Adapter 11. Bottom View of Adapter
