YY2-M100Magic Touchpad

1 | Hanson Technology Limited FelTouch Magic User’s Manual 2 Contents | Hanson Technology Limited Contents Contents ......................................................................................................................... 2 Introduction .................................................................................................................... 3 Getting Started ............................................................................................................... 4 Product package...................................................................................................... 4 Front, Back and Side views ...................................................................................... 4 Touch active panel .................................................................................................. 5 Notification LED ...................................................................................................... 5 Side [Connect] and [Mode] buttons ......................................................................... 6 Pairing a Bluetooth connection ............................................................................... 6 Power switch and power standby mode. ................................................................. 6 Keyboard backlight .................................................................................................. 7 Gravity sensor ......................................................................................................... 7 Sound echo ............................................................................................................. 7 Vibration feedback (Haptics) ................................................................................... 7 Battery low and power charging .............................................................................. 7 Touch actions.................................................................................................................. 8 Function Buttons .......................................................................................................... 10 Keyboard mode ............................................................................................................ 10 Pointing (mouse) mode ................................................................................................. 10 Multimedia control mode ............................................................................................. 12 Operation Modes .......................................................................................................... 14 Software compatibility .................................................................................................. 15 Other Technical Specifications ...................................................................................... 16 3 Introduction | Hanson Technology Limited Introduction FelTouch Magic is a wireless remote input device for computers, tablet PC and other TV connected media center products including iPAD, Apple Mac, PCs running Windows or Hanson’s SurBox Smart TV box.
True multi-touch touchpad as keyboard, mouse.
For tablet PCs, computers and home media boxes.
Sleek design.
Touch gestures to control multimedia features.
Bluetooth 3.0 wireless communication.
Capacitive touch technology, 168 (mm) x 96 (mm) wide touch panel.
Backlit keyboard.
Sound echo and vibration feedback (Haptics) to improve keyboard input.
Function side buttons – Connect and Mode buttons.
Built-in rechargeable battery powered. 4 Getting Started | Hanson Technology Limited Getting Started Product package The product package includes
FelTouch Magic touchpad
USB cable (to mini USB connector)
User’s manual Front, Back and Side views ① Right [M] button ⑥ G-sensor switch ⑪ Windows support ⑯ Power socket ② LED Blue ⑦ Sound echo switch ⑫ Pointing mode ○ 17 Mouse active ③ LED Red/Green ⑧ Vibration switch ⑬ Keyboard mode ⑱ Mouse left button 5 Getting Started | Hanson Technology Limited ④ Left [C] button ⑨ Android support ⑭ Multimedia mode ○ 19 Handwriting ○ 5 Backlight switch ⑩ Mac OS support ⑮ Power switch ○ 20 Mouse right button Touch active panel This product is built by a high sensitive capacitive touch panel, 168x96 mm in size, as a touch gesture, pointing and keyboard input. Touch area allows up to five points recognized at the same time, can be used for multi touch gestures, faster input and combined key inputs, such as CTRL-C. Notification LED There are two LED indicators located on left-top side of the product – one with blue color and the other one is green or red color depends on the events occurred.
When power is ON, the blue led indicator will be turned on. (The backlight is also on when powered on, and remain around 10 seconds.)
When [C] button is pressed, Bluetooth connection request will be activated, and LED Blue will flash slowly to indicate this state.
Once the Bluetooth connection is established, the LED Blue will be turned off. 6 Getting Started | Hanson Technology Limited
In the case of successful keyboard input or touch gesture, LED Green will flash one time shortly.
If system detects a battery low status, it will flash LED Blue quickly.
When external power source is connected, LED will show red color, until battery is fully charged. Side [Connect] and [Mode] buttons [C] Bluetooth Connect button While Bluetooth is not connected, press this button will  activate Bluetooth connect request, to broadcast itself for other devices to find and pairing. In power-saving mode, this key is to wake up key. [M] Mode button Press this button and mode switch keys at the same time to change the operation modes. The operation modes can be divided into 1) the supported operating systems, 2) function modes. To adjust to right operating system in connection, this product is able to optimize touch gestures applying to specific OS functions. Function modes i…

Text truncated - open the document above for the full version.

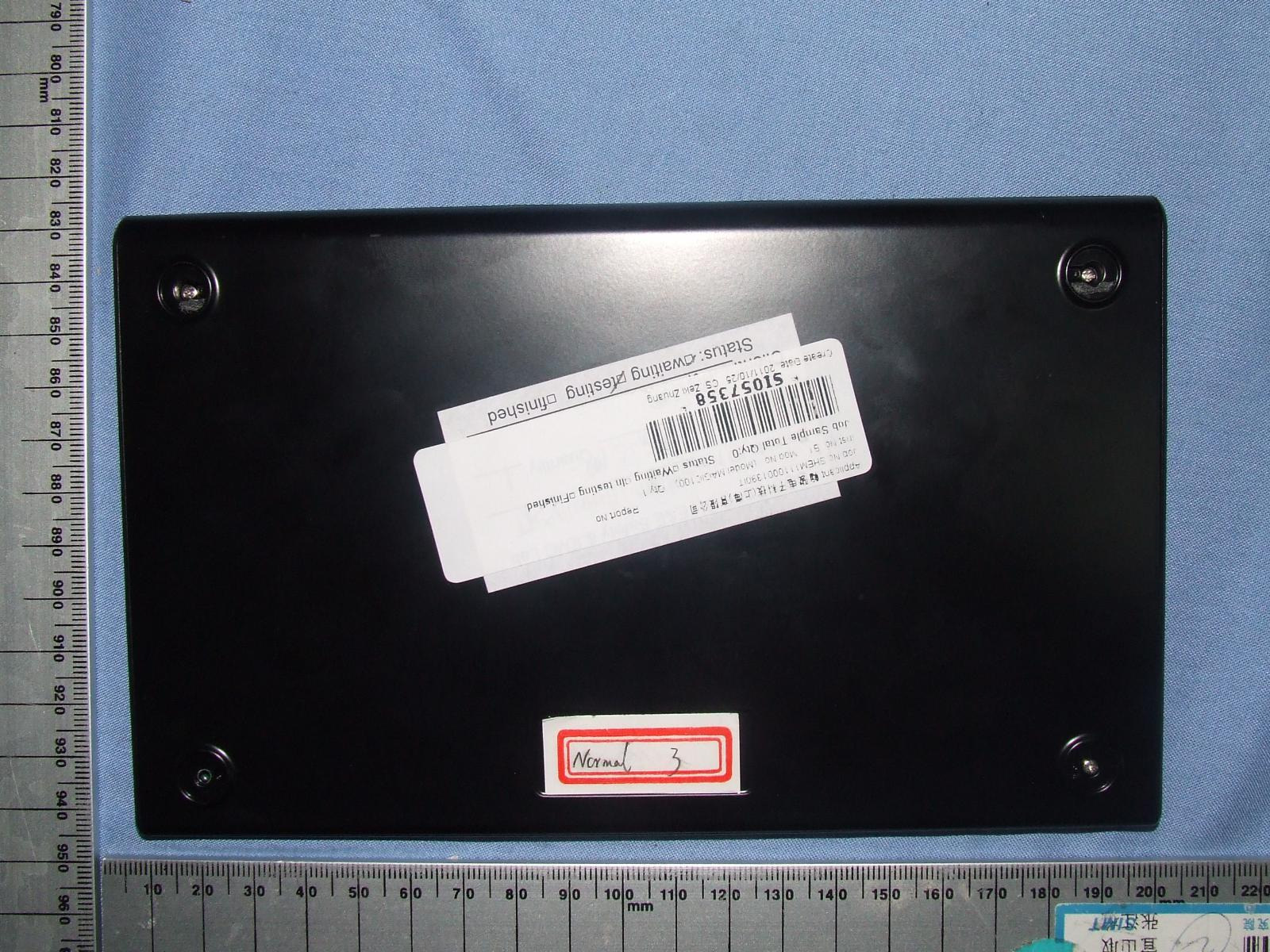

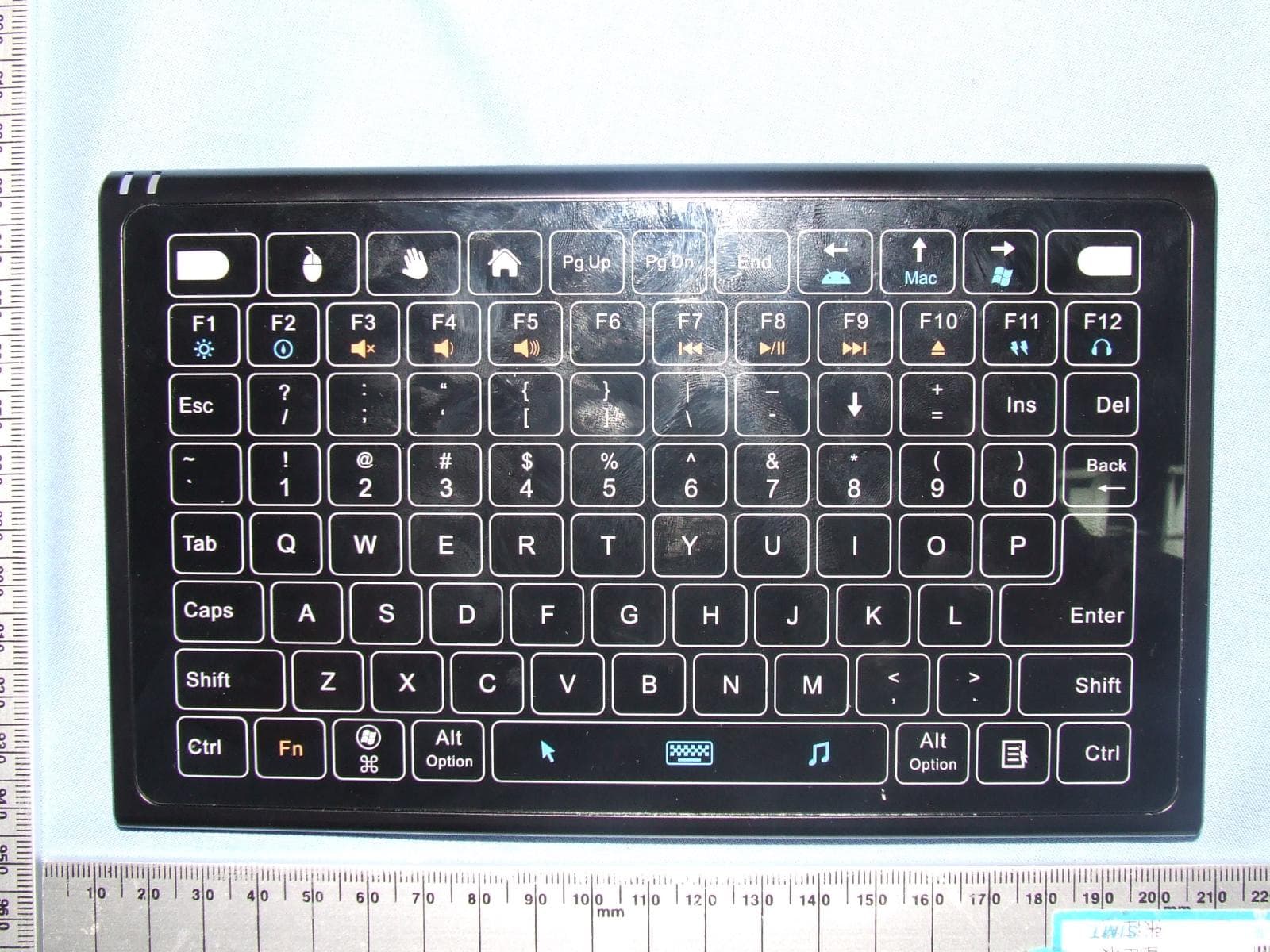

SGS-CSTC Standards Technical Services (Shanghai)Co., Ltd. Page 1 of 5 EUT External Photos Applicant: HANSON TECHNOLOGY LIMITED Address of Applicant: Rm 1503, Kun Yang Building, No. 798, Zhao Jia Bang Road, Shanghai, China Equipment Under Test (EUT): Product Name: Magic Touchpad Brand Name: Feltouch Model No.: MAGIC 100 SGS-CSTC Standards Technical Services (Shanghai)Co., Ltd. Page 2 of 5 1 Contents Page 1 CONTENTS ..................................................................................................... 2 2 EXTERNAL PHOTOS .................................................................................... 3 3 POWER SUPPLY CABLE ............................................................................. 5 SGS-CSTC Standards Technical Services (Shanghai)Co., Ltd. Page 3 of 5 2 External Photos Front View Back View SGS-CSTC Standards Technical Services (Shanghai)Co., Ltd. Page 4 of 5 Left View Right View SGS-CSTC Standards Technical Services (Shanghai)Co., Ltd. Page 5 of 5 3 Power supply Cable E EE En nn nd dd d

Lable size: 38 x 14 mm Lable location: Lable content:

SGS-CSTC Standards Technical Services (Shanghai)Co., Ltd. Page 1 of 6 EUT Internal Photos Applicant: HANSON TECHNOLOGY LIMITED Address of Applicant: Rm 1503, Kun Yang Building, No. 798, Zhao Jia Bang Road, Shanghai, China Equipment Under Test (EUT): Product Name: Magic Touchpad Brand Name: Feltouch Model No.: MAGIC 100 SGS-CSTC Standards Technical Services (Shanghai)Co., Ltd. Page 2 of 6 1 Contents Page 1 CONTENTS ..................................................................................................... 2 2 INTERNAL PHOTOS ..................................................................................... 3 SGS-CSTC Standards Technical Services (Shanghai)Co., Ltd. Page 3 of 6 2 Internal Photos SGS-CSTC Standards Technical Services (Shanghai)Co., Ltd. Page 4 of 6 SGS-CSTC Standards Technical Services (Shanghai)Co., Ltd. Page 5 of 6 SGS-CSTC Standards Technical Services (Shanghai)Co., Ltd. Page 6 of 6 E EE En nn nd dd d

SGS-CSTC Standards Technical Services（ （（ （Shanghai） ）） ） Co., Ltd. 588 West Jindu Road,Songjiang District,Shanghai,China Telephone: +86 (0) 21 6191 5666 Fax: +86 (0) 21 6191 5655 [email protected] Report No.: SHEM111000139005 Page： 1 of 9 The CE mark as shown below can be used, under the responsibility of the manufacturer, after completion of an EC Declaration of Conformity and compliance with all relevant EC Directives. E&E Section Head E&E EMC Engineer SGS-CSTC(Shanghai) Co., Ltd. SGS-CSTC(Shanghai) Co., Ltd. This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e- document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to thesample(s) tested and such sample(s) are retained for 90 days only Member of the SGS Group (Société Générale de Surveillance) TEST REPORT Application No.: SHEM111000139005 Applicant : HANSON TECHNOLOGY LIMITED Equipment under Test (EUT) NOTE: The following sample(s) submitted was/were identified on behalf of the client as EUT Name: Magic Touchpad Brand Name: Feltouch Model No: MAGIC 100 Standards: EN 62479 (2010-09) Date of Receipt: Oct. 18, 2011 Date of Test: Oct. 20, 2011 to Nov 09, 2011 Date of Issue: Nov 18, 2011 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services（ （（ （Shanghai） ）） ） Co., Ltd. 588 West Jindu Road,Songjiang District,Shanghai,China Telephone: +86 (0) 21 6191 5666 Fax: +86 (0) 21 6191 5655 [email protected] Report No.: SHEM111000139005 Page: 2 of 9 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e- document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to thesample(s) tested and such sample(s) are retained for 90 days only 1 Change History Version Change Contents Author Date V1.0 First Edition Zenger zhang 18-Nov-2011 SGS-CSTC Standards Technical Services（ （（ （Shanghai） ）） ） Co., Ltd. 588 West Jindu Road,Songjiang District,Shanghai,China Telephone: +86 (0) 21 6191 5666 Fax: +86 (0) 21 6191 5655 [email protected] Report No.: SHEM111000139005 Page: 3 of 9 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e- document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to thesample(s) tested and such sample(s) are retained for 90 days only 2 Contents Page COVER PAGE.................................................................................................................................................. 1 1 CHANGE HISTORY ........................................................................................................................................ 2 2 CONTENTS ...................................................................................................................................................... 3 3 GENERAL INFORMATION ............................................................................................................................. 4 …

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. 588 West Jindu Road,Songjiang District,Shanghai,China Telephone: +86 (0) 21 6191 5666 Fax: +86 (0) 21 6191 5655 [email protected] Report No.: SHEM111000139004 Page 1 of 49 The CE mark as shown below can be used, under the responsibility of the manufacturer, after completion of an EC Declaration of Conformity and compliance with all relevant EC Directives. E&E Section Head E&E EMC Engineer SGS-CSTC(Shanghai) Co., Ltd. SGS-CSTC(Shanghai) Co., Ltd. This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e- document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to thesample(s) tested and such sample(s) are retained for 90 days only TEST REPORT Application No. : SHEM111000139004 Applicant: HANSON TECHNOLOGY LIMITED FCC ID: YY2-M100 Equipment Under Test (EUT): Product Name: Magic Touchpad Brand Name: Feltouch Model: MAGIC 100 Standards: FCC PART 15 Subpart C: 2009 Date of Receipt: Oct. 18, 2011 Date of Test: Oct. 20, 2011 to Nov 09, 2011 Date of Issue: Nov 14, 2011 Test Result : PASS * *In the configuration tested, the EUT detailed in this report complied with the standards specified above. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. 588 West Jindu Road,Songjiang District,Shanghai,China Telephone: +86 (0) 21 6191 5666 Fax: +86 (0) 21 6191 5655 [email protected] Report No.: SHEM111000139004 Page 2 of 49 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e- document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to thesample(s) tested and such sample(s) are retained for 90 days only 2 Change History Version Change Contents Author Date V1.0 First Edition Zenger Zhang 14-Nov-2011 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. 588 West Jindu Road,Songjiang District,Shanghai,China Telephone: +86 (0) 21 6191 5666 Fax: +86 (0) 21 6191 5655 [email protected] Report No.: SHEM111000139004 Page 3 of 49 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e- document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to thesample(s) tested and such sample(s) are retained for 90 days only 3 Test Summary Test items Test Requirement Standard Paragraph Result Antenna Requirement FCC PART 15 :2009 Section 15.247 (c) PASS Occupied Bandwidth FCC PART 15 :2009 Section 15.247 (a1) PASS Carrier Frequencies Separated FCC PART 15 :2009 Section 15.247(a)(1) PASS Hopping Channel Number FCC PART 15 :2009 Section 15.247(a)(1)(iii) PASS Dwell Time FCC PART 15 :2009 Section 15.247(a)(1)(iii) PASS Maximum Peak Output Power FCC PART 15 :2009 Section 15.247(b)(1) PASS RF Exposure Compliance Requirement FCC PART 15 :2009 15.247(b)(4)& TCB Exclusion List (7 July 2002) PASS Conducted Spurious Emission (30MHz to 25GHz) FCC PART 15 :2009 Section 15.207 &15.247(d) PASS Radiated Spurious Emission (30MHz to 25GHz) FCC PART 15 :2009 Section 15.209 &15.247(d) PASS Ban…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services (Shanghai)Co., Ltd. Page 1 of 7 MAGIC100 Test Setup Photos Applicant: HANSON TECHNOLOGY LIMITED Address of Applicant: Rm 1503, Kun Yang Building, No. 798, Zhao Jia Bang Road, Shanghai, China Equipment Under Test (EUT): Product Name: Magic Touchpad Brand Name: Feltouch Model No.: MAGIC 100 SGS-CSTC Standards Technical Services (Shanghai)Co., Ltd. Page 2 of 7 1 Contents Page 1 CONTENTS ...................................................................................................... 2 2 EQUIPMENT UNDER TEST PICTURES ..................................................... 3 2.1 Radiated Emission Test Setup ......................................................... 3 2.2 Conducted Emission Test Setup ...................................................... 4 2.3 Radiated Immunity Test Setup ......................................................... 4 2.4 Radio frequency common mode Test Setup .................................... 5 2.5 ESD Test Setup................................................................................ 5 2.6 EFT /Surges/Dips Test Setup ........................................................... 6 2.7 Harmonic & Flicker Test Setup ......................................................... 6 SGS-CSTC Standards Technical Services (Shanghai)Co., Ltd. Page 3 of 7 2 EQUIPMENT UNDER TEST PICTURES 2.1 Radiated Emission Test Setup 30M-1GHz 1G-6GHz SGS-CSTC Standards Technical Services (Shanghai)Co., Ltd. Page 4 of 7 2.2 Conducted Emission Test Setup 2.3 Radiated Immunity Test Setup SGS-CSTC Standards Technical Services (Shanghai)Co., Ltd. Page 5 of 7 2.4 Radio frequency common mode Test Setup 2.5 ESD Test Setup SGS-CSTC Standards Technical Services (Shanghai)Co., Ltd. Page 6 of 7 2.6 EFT /Surges/Dips Test Setup 2.7 Harmonic & Flicker Test Setup SGS-CSTC Standards Technical Services (Shanghai)Co., Ltd. Page 7 of 7 E EE En nn nd dd d
