YY6-YONGTAIWireless Optical Mouse

SUNPLUS INNOVATION TECHNOLOGY INC. (SUNPLUSIT) reserves the right to change this documentation without prior notice. Information provided by SUNPLUSIT is believed to be accurate and reliable. However, SUNPLUSIT makes no warranty for any errors which may appear in this document. Contact SUNPLUSIT to obtain the latest version of device specifications before placing your order. No responsibility is assumed by SUNPLUSIT for any infringement of patent or other rights of third parties which may result from its use. In addition, SUNPLUSIT products are not authorized for use as critical components in life support devices/ systems or aviation devices/systems, where a malfunction or failure of the product may reasonably be expected to result in significant injury to the user, without the express written approval of SUNPLUSIT. Preliminary NOV. 24, 2009 Version 0.92 M M 2 2 4 4 - - 0 0 0 0 1 1 2 2 . . 4 4 G G H H z z 3 3 2 2 C C H H 2 2 w w a a y y R R F F O O p p t t i i c c a a l l / / L L a a s s e e r r T T i i l l t t - - W W h h e e e e l l M M o o u u s s e e S S o o C C M24-001 © Sunplus Innovation Technology Inc. Proprietary & Confidential 2 NOV. 24, 2009 Version: 0.92 2.4GHZ 32CH 2WAY RF OPTICAL/LASER TILT-WHEEL MOUSE SOC 1. FEATURES 1.1. Mouse Features „ Decodes mouse sensor automatically for mouse X-Y direction: z Avagotech - A7530; A7050; A5030; A5090; A3040 z Pixart – P3204; P3603 „ Displacement tracking speed : 12 ~ 20 inchs/Sec „ Sensor orientation Vertical or Horizontal strap for mouse shape (see section 5.1) „ Flexible support numbers of buttons: z Left; Middle; Right button for standard and side_up; side_down for extended button z 2 tilt buttons (left / right) decode for horizontal scrolling z 2 customized buttons for Multimedia / Internet hot-keys „ In-use Sensitivity Switching to high and low CPI for 2 segment resolution with LED indicator through “CPI_SW” button and no software driver required. „ Resolution CPI-LED blinking indicator (see section 5.2) - High (1600 / 1000) CPI = LED blinking 2 seconds with 12Hz - Low (800 / 500) CPI = LED blinking 2 seconds with 2Hz „ Supports mechanical wheel encoding (1:2) „ High speed mouse report rate up to 125 report/s „ Supports LOP ALPC system to comply IEC 60825-1 eye safety „ SunplusIT software driver available for Tilt-button enable 1.2. Comments Features „ Component Reduction: - Integrated high efficiency DC/DC converter - Built-in internal 6MHz oscillator and one output clock to external mouse sensor. - Built-in EEPROM (128 Bytes) used for Channel; ID and RF test memorizes. „ Low Operating Voltage from 1.8V to 4.2V 1.3. 2.4GHz RF Features „ 2.4GHz GFSK RF transceiver „ 32 channels hopping with 2 group form 2.405GHz ~ 2.476GHz. (see section 6) „ Sensitively up to -93 dBm (@ 250kbps) „ Output power up to 0 dBm „ Low-noise amplifier, power amplifier, modern and data slicer/recovery on chip „ High speed RF link data rate Max. 1M bit/s „ 24 bits ID number (16777216 combinations): allows the receiver to identify its mouse „ 1 connect (bind) button for RF link sync or Auto connect (by AP-Tool active) while Power on (batteries insert) 1.4. Power Management Features „ Smart power On / Off via BIND button (One-touch) or RF disconnected „ Support 5 stages of operate mode for smart battery power saving - Active mode: when activity (movement; buttons; scrolling) is detected - Idle mode: when inactivity (without movement; buttons; scrolling) within 5 Sec - Standby mode: Idle mode occurred after 5 Sec. entrance - Wait mode: Standby mode occurred after 60 Sec. entrance - Suspend mode: Wait mode occurred after 10 min. entrance 1.5. Package „ 40Pin QFN 6 X 6 mm package available. 2. BLOCK DIAGRAM Optical Sensor Modulator PA ANT1 Demodulator LNA Control Unit ANT2 16 MHz RF Transceiver Regulator SPI RSSI I/O C ells Tim ers 128 Bytes EEPROM 128 Bytes RAM DC-DC / LDO / LVD CPU Build-in 6MHZ O scillator SPI 8K Mask Rom BAT PAPB (1.8v 4.2v) PCPD VDD_OUT RF_VDD VLX VBAT M24-001 Proprietary & Confidential 3 AUG. 23, 2009 Version: 0.94 3. SIGNAL DESCRIPTIONS 3.1. PIN Descriptions IC Name PIN No. I/O Function Description VBAT 1 I Battery power in and low power detection VDD_OUT 2 O DC/DC output (for whole system power) TEST 3 - Reserved for internal test only VLX 4 O DC/DC Lx switch output BAT_L 5 I Battery low voltage detection input VSS 6 P System ground RF_PSBO 7 B RF digital output. Assert to force RF to enter Power-Saving Mode or Power-Down Mode, depended on the state of TRRDY. VDD 8 P System power NCS 9 O Optical Sensor SPI / Sensor Chip Select / Sensor CLKOUT RF_VCCD 10 P RF digital power RF_GNDD 11 P RF digital ground RF_VDDD 12 P RF digital decoupling power pin RF_XOUT 13 O 16MHz Crystal output RF_XIN 14 I 16MHz Crystal input RF_PSB 15 B RF digital input. Assert to force RF to enter Power-Saving Mode or Power-Down Mode, depended on the state of TRRDY. RF_VCOG 16 P RF VCO ground RF_VCOPG 17 P RF VCO frame ground RF_VCOVDD 18 P RF VCO power RF_VDD 19 P RF power ANT1 20 B RF signal pin, Antenna I/F ANT2 21 B RF signal pin, Antenna I/F RF_GNDPG 22 P RF frame ground RF_GND 23 P RF ground. RF_VCC 24 P RF power GND_IF 25 P RF Analog IF ground MISO 26 B MCU SPI Slave Data output S0 27 B Key matrix scan line Column 0 R2 28 B Key matrix scan line Row 2 R1 29 B Key matrix scan line Row 1 R0 30 B Key matrix scan line Row 0 S1 31 B Key matrix scan line Column 1 R4 32 B Key matrix scan line Row 4 R3 33 B Key matrix scan line Row 3 ESCLK 34 O MCU SPI Clock output MOSI (DIR2) 35 B MCU SPI Slave Data input / Strap for sensor orientation (See section 5) ZA 36 I Z-Wheel phase A ZB 37 I Z-Wheel phase B BIND 38 B RF Connection Button / Battery low (CPI)-LED indicator DIR (DIR1) 39 I Strap for sensor orientation (See section 5) MOTION / PD 40 B Mouse Sensor Motion pin input / Power down pin for optical sensor only M24-001 Proprietary & Confidential 4 NOV. 24, 2009 Version: 0.92 3.2. PIN Assignment 4. APPLICATION BLOCK DIAGRAM M24-001 QFN40 VBAT VDD_OUT TEST VLX BAT_L VSS RF…

Text truncated - open the document above for the full version.

Block Diagram

2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 Yongtai Electronic ZHUHAI YONGTAI ELECTRONIC CO.,LTD. No.25 Jingfeng Road West,Jingding Industrial park,Jingding Town,Zhuhai City,China Tel: (86)(756) 3891785 Fax: (86)(756) 3891780 E-mail: [email protected] ______________________________________________________________________________ SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 Date: 01 November 2010 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, ZHUHAI YONGTAI ELECTRONIC CO., LTD. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product Name: Wireless Optical Mouse Model Name: YT-RFOP721 We affirm that between SIEMIC and ZHUHAI YONGTAI ELECTRONIC CO., LTD. any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely,

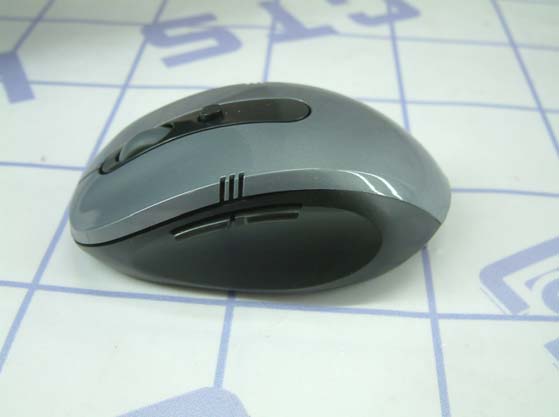

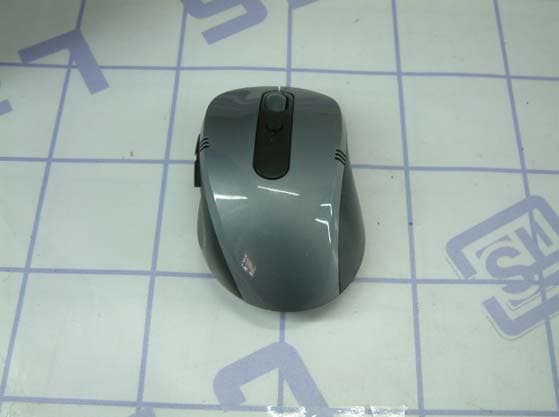

FCC ID: YY6-YONGTAI opyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. Building F, Dachuang industrial park, No.379, Zhongshan Dadao, Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3101028-03749-O Page 1 of 2 1 External Photos of the EUT Transmitter external view-front Transmitter external view -back FCC ID: YY6-YONGTAI opyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. Building F, Dachuang industrial park, No.379, Zhongshan Dadao, Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3101028-03749-O Page 2 of 2 Transmitter external view -side

Yongtai Electronic ZHUHAI YONGTAI ELECTRONIC CO.,LTD. No.25 Jingfeng Road West,Jingding Industrial park,Jingding Town,Zhuhai City,China Tel: (86)(756) 3891785 Fax: (86)(756) 3891780 E-mail: [email protected]. FCC ID:YY6-YONGTAI ____________________________________________________________________________________________ Report No.: CGZ3101028-03749-O Page 1 of 3 APPLICATION FOR ID CERTIFICATION Applicant : ZHUHAI YONGTAI ELECTRONIC CO., LTD. EUT : Wireless Optical Mouse Model No. : YT-RFOP721 Document List: EXHIBIT 1. LABEL DRAWING............................................................................................2 EXHIBIT 2. PHOTOGRAPHS..............................................................................................3 Yongtai Electronic ZHUHAI YONGTAI ELECTRONIC CO.,LTD. No.25 Jingfeng Road West,Jingding Industrial park,Jingding Town,Zhuhai City,China Tel: (86)(756) 3891785 Fax: (86)(756) 3891780 E-mail: [email protected]. FCC ID:YY6-YONGTAI ____________________________________________________________________________________________ Report No.: CGZ3101028-03749-O Page 2 of 3 EXHIBIT 1. Label Drawing FCC/ID Label Drawing 15mm Please refer Exhibit 2 Figure 2 for Label Placement Location ZHUHAI YONGTAI ELECTRONIC CO., LTD. Product name: Wireless Optical Mouse Model No. YT-RFOP721 FCC ID: YY6-YONGTAI Yongtai Electronic ZHUHAI YONGTAI ELECTRONIC CO.,LTD. No.25 Jingfeng Road West,Jingding Industrial park,Jingding Town,Zhuhai City,China Tel: (86)(756) 3891785 Fax: (86)(756) 3891780 E-mail: [email protected]. FCC ID:YY6-YONGTAI ____________________________________________________________________________________________ Report No.: CGZ3101028-03749-O Page 3 of 3 EXHIBIT 2. Photographs Figure 1 External view-back Label Location

FCC ID: YY6-YONGTAI opyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. Building F, Dachuang industrial park, No.379, Zhongshan Dadao, Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3101028-03749-O Page 1 of 3 1 Internal Photos of the EUT Transmitter Internal view Transmitter PCB1 Layout Antenna FCC ID: YY6-YONGTAI opyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. Building F, Dachuang industrial park, No.379, Zhongshan Dadao, Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3101028-03749-O Page 2 of 3 Transmitter PCB1 Solder Transmitter PCB2 Layout FCC ID: YY6-YONGTAI opyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. Building F, Dachuang industrial park, No.379, Zhongshan Dadao, Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3101028-03749-O Page 3 of 3 Transmitter PCB2 Solder

Description of operation 1.The device input voltage 1.5V (single cell), after the XC6383A-281 (DC / DC converter), a stable 2.7V output DC voltage, respectively to the sensor (PAN3204) and the control chip (M24). 2.Sensor PAN3204 sensors are optical class, move the mouse to read the images into digital signals, through the SPI interface, connected to the control chip, the demodulation. 3. left, right key to open the encoder, connected to the input and output control chip I / O port, the modulation. 4. X1 crystal oscillator to generate reference frequency, provided to the control chip. 5. Control integrated RF chip module, been to signal modulation, firing 2.4GHz band signal, such as high-frequency components through the inductor L3, resulting in about 0DBM power, through the PCB antenna, transmitter. 6.The receiver is connected to the PC, the power provided by the USB port, the receiver control chip (R24), the received high frequency signal, the results of demodulation, converted into digital signals, input to the PC, to achieve the mouse function.

FCC ID: YY6-YONGTAI Bluetooth (Portable device) According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB 447498 (2)(a)(i) Frequency Range Low Frequency (MHz) High Frequency(MHz) Center frequency (MHz) 60/f SAR Limitation (mw) 2405 2476 2442 24.5 Maximum measured transmitter power: Conducted Power (mw) Max Antenna Gain (dBi) EIRP (mw) 1.290 2.0 2.04 Threshold at which no SAR required is 25 mw. Maximum Tx power is 2.04 mw EIRP. Conclusion: No SAR is required. SIMULTANEOUS TRANSMISSION EVALUATION Wish N/A Signature

44 33 22 11 4 4 3 3 2 2 1 1 MOSI ZB S2S2 R0 R1 ZA MOTION BINDVSS R0 RF_PSB RF_PWR ZB ESCLK MISO R3 R3 S0 S1 R1 ESCLK S1S1 BIND R2 S2 S1 RF_PWR R2 R3 R3 R2 RF_PWR S0 BIND R0 S2 ZA DIR R0 R1 S0 R1 S0 MOSIMISO RF_PSB S0 S1 R2 SDIO MOTION S2 V_BAT VLX1 V_BAT V_BAT VLX1 V_BAT RFVCC VCC VCC SVDD VCC SVDD VCC RFVCC VCC VCC VCC TitleSize Document Number Rev Date: Sheet of SunplusIT ENG. AP: Drawn: Check By: 2.4GHZ-2W-ISS-MSE-SPRF24XXA-P3204-TX-CELL PA1 2.4GHz 2way RF SoC Optical Mouse Solution ( DC optional) B 11 Friday, March 26, 2010 Y.C. Chen D.C. KEY_PAD TBD (DIR1) ( ## ) R5, R4, R13,D2 Mount Closed to Sensor within 5mm ## ## Power Straps Option 180 degree Closed toDC/DC Lx pin ANT PCB LayoutPattern seeAppendix Not Mount ## TBD (DIR2) For EMI concern Ext. DC 2CELL Closed to Sensor Ext. DC 1CELLINT. DC 2CELL 2.4G RF SoC Closed toRF XIO ## R4, R9,R10,R13,D2 PCBANT 90 degree Ext DC Power Block Digital GND & Analog GND Sensor Orientation 270 degree Depend on Z Encoder quality (optional) Power Type Closed toRF_VDD 0 degree C8 and C9depend on X1Crystal Spec Closed toVDD_OUT #### GND ** Not MountR8 (DIR2)Mount TBD ## LESR 0.2ohm Closed toRF_ANT SPRF2411A (Mask) Should be connected by this point R6, R9, U3, D1 Closed toRF VCCD TBD MountTBD Not MountR7 (DIR1) R6, R9, R10, U3, D1 Mount Closed toSoC VDD pin Not Mount R5, R6, U3, D1 Mount ## ** R5, R4, R10,R13,D2 Not Mount Optical Sensor Closed toRF_ANT C1 10uF R10 1M 1% C21 22pF L422nH R14 10R C201pF C19 22pF R51K R31K S11 CUST3 L3 3.3nH L5 100uH R40R PAN3204 U1 PAN3204 SDIO 3 SCLK 4 OSC_RES 1 GND 6 VDD 7 LED 5 MOTSWK 2 VDDA 8 LD1 HLMP ED80 R134K 1% C14 0.01uF C231uF J1 BAT Conn 12 C11 2.2nF S4 S4 S6 CPI C820pF C15 0.1uF R2TBD R9 1M 1% S9 CUST1 C16 0.1uF C7 1uF SW1Z Encoder 32 1 SW2BIND R13 0R R11 10R S3 RB S2 MB U3 XC6383A-281PR Lx 3 Vout 2 Vss 1 C180.1uF C10 22pF C13 0.01uF C17 1pF S8 TIL_R X1 16MHz S1 LB C920pF C22 0.1uF D2 1N5819 1 2 C12 2pF S7 TIL_L C4 0.1uF SW3SW MAG-SPDT + C610uF L2 0R R12 1M U2 SPRF2421A (OTP) VBAT 1 VDD_OUT 2 TEST 3 VLX 4 RF_GNDD 11 RF_VDDD 12 RF_XOUT 13 RF_XIN 14 RF_VCC 24 PB1 26 PD2 28 PD0 30 PC5 31 PA4 32 PA3 33 PB2 34 PC6 5 VSS 6 PA5 7 VDD 8 PA1 9 RF_VCCD 10 RF_PSB 15 RF_VCOG 16 RF_VCOPG 17 RF_VCOVDD 18 RF_VDD 19 ANT1 20 ANT2 21 RF_GNDPG 22 RF_GND 23 GND_IF 25 PC4 27 PD1 29 PB3 35 PA6 36 PA7 37 PB0 38 PB7 39 PB6 40 S5 S5 D1 1N5819 1 2 + C2100uF R733K S10 CUST2 + C3 100uF S12 CUST4 R833K R60R LD2 BAT_LOW
