YY8BLUETOOTHAD05BlueTooth Module

Chen-Chang Fitness TECH. Ltd. 晨昌健康科技行銷有限公司 http://www.x-bike.com.tw BlueToothModule AD-05 Datasheet Module NameAD-05 UpDate2014/07/15 VersionV1.1 Copyright ©, 2014 by Chen-Chang Fitness TECH. Ltd. All rights reserved. No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language, in any form or by any means without the prior written permission of Chen-Chang Fitness TECH. Ltd. Chen-Chang Fitness TECH. Ltd. Table of Content 1.Introduction 1.1 Features 1.2 Application 2.Product Specification 2.1 Interfaces 2.2 Hardware Design Considerations 3.Compatibility Requirements 4.Environmental Requirements 4.1 Temperature 4.2 Humidity Appendix A: Dimension Appendix B: Product Image Appendix C: PIN Assignment Considerations Chen-Chang Fitness TECH. Ltd. 1. Introduction Part Name: AD -05 Bluetooth Module Part Number: AD-05-xxxx The Chen -Chang AD -05 Bluetooth Module is design for Bluetooth standard SPP/ BLE electronic accessories via Bluetooth connectivity. It is available in the 2.4GHz ISM band Class 2 Radio, compatible with Bluetooth Core Specification Version 3.0/ 4.0 + EDR. It narrows down the module size and minimizes its cost. The optimized power design minimize power consumption to keep low battery Chen -Chang Fitness TECH. Ltd. 1.1 Features -Bluetooth 3.0/ 4.0+ EDR compliant -Low power 1.8V RF operation -RF transmitter output power Class 2 -RF receiver GFSK typical -90dBm, π/4 PSK typical -90dBm, 8DPSK typical -83dBm, BLE typical -92dBm -Internal ROM and 4Mibts of flash -1 LED 1.2 Application -GPS -Printers -Electric Scale -Blood Pressure Monitors -Bar code Scanner -Industrial Applications (CNC, PLC, RFID) -Embedded systems Chen-Chang Fitness TECH. Ltd. 2.Product Specification 2.1 Interfaces -Bluetooth RF interface -Bluetooth Link Status Pin -UART up to 921600 bps 2.2 Hardware Design Considerations -Power：The module requires 5V. -Serial Flash and Firmware Version：Firmware code is stored on chip internal flash. - Radio Characteristics： Frequency Band: 2402 ~ 2480 GHz Number of Channels: Bluetooth V3.0 + EDRLow Energy 79 channels (1MHz) 40 channels (2MHz) Chen -Chang Fitness TECH. Ltd. Current Consumption ( Class BR/ EDR ) Operation ModePeak current AVG current UnitNote Peak current at TX mode48.82mA Peak current at RX mode44.76mA Deep power down mode0.37mA Connected + Sniff, Master (No data) 2.26mANo data was transmittedSniff (40 20 4 0) Connected + Sniff, Master (No data) 0.84mANo data was transmitted Sniff (500 20 4 0) Connected + Sniff, Slave (No data) 0.82mANo data was transmitted Sniff(500 20 3 3) iPhone parameters Data, Master17.35mAData transmitted at 115200bps Data, Slave20.04mAData transmitted at 115200bps Chen-Chang Fitness TECH. Ltd. Current Consumption ( Low Energy ) Operation ModeAVG current UnitNote Standby mode (Discoverable & connectable mode) 8.477mAfast advinterval = 20ms Standby mode (Discoverable & connectable mode) 3.363mAadvinterval = 160ms Deep power down mode0.371mA Connected (No data)0.696mANo data was transmitted connection interval = 500ms, (LE_Connection_Interval_Max= 0x0190) Connected (No data)1.55mANo data was transmitted connection interval = 20ms, (LE_Connection_Interval_Max= 0x0010) Connected (transfer data)12.688mAconnection interval = 500ms, (LE_Connection_Interval_Max= 0x0190) Connected (transfer data)16.761mAconnection interval = 20ms, (LE_Connection_Interval_Max= 0x0010) Chen-Chang Fitness TECH. Ltd. Baud Rate Desired baud rateClockPDivActual Baud rateError Rate % 92160048000000133.506410269230770.16 46080048000000137.512820514615380.16 230400480000001315.5256412307690.16 115200160000001310.1837607111888-2.87 57600160000001320.8675214586081.75 38400160000001331.5512821384620.16 28800160000001342.235042728623-0.62 19200160000001363.6025641192310.16 14400160000001384.9700855144800.55 96001600000013127.70512896150.16 48001600000013255.91025648080.16 24001600000013512.3205132399-0.03 Chen-Chang Fitness TECH. Ltd. 3.Compatibility Requirements The Chen -Chang AD -05 Bluetooth module shall pass the standard test plan, which includes hardware compatibility and reliability, and software compatibility test. 4.Environmental Requirements 4.1 Temperature 4.2 Humidity ConditionsOperating TemperatureNon -Operating Temperature Minimum-10 °C-40 °C Maximum+70 °C+80 °C ConditionsOperating TemperatureNon -Operating Temperature Minimum10 %5 % Maximum90 %95 % Chen -Chang Fitness TECH. Ltd. Appendix A: Dimension Appendix B: Product Image Chen-Chang Fitness TECH. Ltd. Appendix C: PIN Assignment P/NI/ONameDescription 1O/PBT Link / GNDBluetooth Link Status (with R9) / Ground (with R10) 2PGNDGround 3OTXUART_TX 4IRXUART_RX 注意事項：依NCC要求低功率電波輻射性電機管理辦法： 第12條：經形式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得 擅自變更頻率，加大功率或是變更原設計之功能及特性。 第14條：低功率射頻電機之使用不得影響飛航安全及干擾合法通訊；經發現有干擾現 象時，應立即停用，並改善至無干擾時方得繼續使用。 前項合法通信，指依電信法規定作業之無線電通訊。 低功率射頻電機需忍受合法通信或工業，科學及醫療用電波輻射性電機設備之干擾。 Considerations Chen-Chang Fitness TECH. Ltd. FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connec…

Text truncated - open the document above for the full version.

Date (2 6 TUV S U Octagon Segensw Fareham Hampsh PO15 5R Dear Si r RE: M o FCC ID : The foll Modula (a) The Physic a the shie (b) The the de v signal (c) The (d) The a uniqu specifi c 2.929(b (e) The configu (f) The or use a requirem (g) The transmi explain (h) The * Pleas e Yours s i Name: Title: 6/09/2014) UD BABT TC n House, worth Road, m, hire, RL r/Madam, odular Appro : YY8BLUET owing attes r approval r radio elem al compone eld, but mus module mu vice will com module mu module mu e antenna c c antenna(s b) module mu ration module mu an electroni ments) module mu tter. The gr compliance module mu e provide a d incerely, Chen-Chan g B oval Reques TOOTHAD05 station addre requirement ents must h nts and tun st be on the ust have bu mply with Pa ust contain ust contain connector, a ), per Sectio ust demons st be labelle ic display (S ust comply w rantee must e requireme ust comply w etailed expla g Health Tec st for Model 5 esses the re t have the rad ing capacito e module as ffered mod art 15 requir power supp a permanen and be mar ons 15.203 strate compl ed with its p See KDB Pu with all spe t provide co ents with RF exp anation if the chnology Mar l: equirements dio frequen or(s) may b ssembly ulation/data rements wit ply regulatio ntly attache rketed and o , 15.204(b), liance in a s permanently ublication 7 cific rules a omprehensiv posure requ e answer is “N rketing Co., L s to support cy circuitry be located e a inputs to e th any type on on the m ed antenna, operated on , 15.204(c), stand-alone y affixed FC 784748 abou applicable to ve instructio uirements No.” Ltd t modular ap shielded. external to ensure that of input odule or contain nly with 15.212(a), e CC ID label, ut labelling o the ons to pproval: Yes Yes Yes Yes Yes Yes , Yes Yes Yes No *

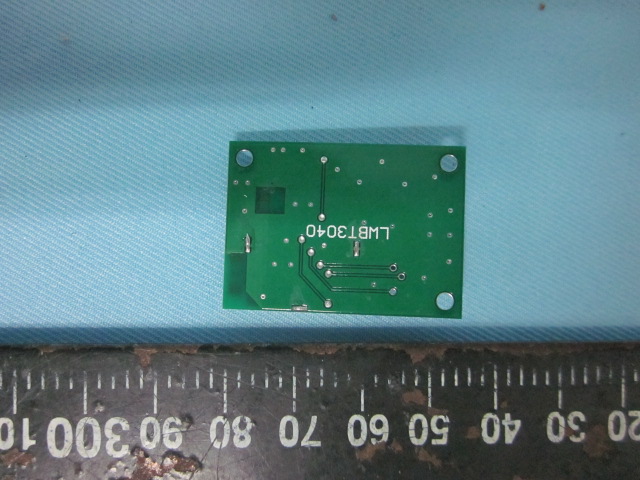

ETC Report No. : 14-06-RBF-021-05 FCC ID.: YY8BLUETOOTHAD05 Sheet 1 of 2 Sheets Rev. No 2.1 CONSTRUCTED PHOTOS of EUT (A) EUT 1. 2.

ETC Report No. : 14-06-RBF-021-05 FCC ID.: YY8BLUETOOTHAD05 Sheet 2 of 2 Sheets Rev. No 2.1 CONSTRUCTED PHOTOS of EUT 3. 4.

Specification for Approval Customer A04 LTCC ANTENNA Part name 料 GPL52P245000-00 Part No. CUSTOMER APPROVED BY APPROVAL CHIEF SUPERVISOR Approval No. Model Part No. CHIEF SALES R&D DESIGN Jeff James GWP Hui Date: 2009.11.13 Date: 2009.11.13 WIESON INTERNATIONAL CO., LTD. WIESON INTERNATIONAL CO., LTD. SPECIFICATION LIST TYPE OF PRODUCT LTCC Antenna ITEM INDEX PAGE . Introduction......................................................................... 3 . Dimensions................................................................... 3 . 路Evaluation Board............................................................ 3 . Electrical Characteristics.................................................. 4 . 流度Reflow Soldering Standard Condition............................... 4 六. Environmental Test......................................................... 5 . Packaging........................................................................... 6 . Test Report...................................................................7～18 . Green Report................................................................. 19~23 Approvals Rev Date Description Edited by Prepared Hui 01 2009.11.13 NEW RELEASE Hui Checked GWP Approved Jeff Issued No 1.0 Sheet 2 OF 23 WIESON INTERNATIONAL CO., LTD. TYPE OF PRODUCT LTCC Antenna PAGE : 3/23 . Introduction ""狀GPL列路藍 GPS "WIESON" microwave multi-layer chip ceramic antenna GPL series are designed to be used in WLAN, Bluetooth, multiple-band mobile phone antenna, GPS, etc and compact size SMD chip design. . Dimensions 路Evaluation Board WIESON INTERNATIONAL CO., LTD. TYPE OF PRODUCT LTCC Antenna PAGE : 4/23 . Electrical Characteristics Item Specification 率 Center Frequency 2450 25 MHz Bandwidth >150MHz Gain 1.5 dBi Typical VSWR 2.0 MAX. Polarization Linear Azimuth Beam width Omni-directional Impedance 50 Ohm 路率率 . 流度Reflow Soldering Standard Condition WIESON INTERNATIONAL CO., LTD. TYPE OF PRODUCT LTCC Antenna PAGE : 5/23 六. Environmental Test Item Requirement Vibration Resist 率 2 落 Drop Shock 度落 Solder Heat Proof 度 力 Tensile Strength of Terminal 拉力 Bending Resist Test 力 離 金 落 Moisture Proof 度度 復 High Temperature Endurance 度 復 Low Temperature Endurance 度 復 冷 Temperature Cycle Test 復 Item Requirement 度 Temperature range 255 度Relative Humidity range 55~75%RH 度 Operating Temperature range -40~+85 度 Storage Temperature range -40~+85 WIESON INTERNATIONAL CO., LTD. TYPE OF PRODUCT LTCC Antenna PAGE : 6/23 . Packaging 1. Plastic Tape Remarks for Package Reserve a length of 150~200mm for the trailer of the carrier and 250~300 mm for the leader of the carrier and further 250mm of cover tape at the leading part of the carrier. 2. Reel WIESON INTERNATIONAL CO., LTD. TYPE OF PRODUCT LTCC Antenna PAGE : 7/23 . Test Report 1. S-PARAMETER Summary This report to account for the measurement setup and result of LTCC Chip antenna. (1) The measurement setup includes reflection coefficient, pattern, and gain measurement. (2) The measured data for LTCC Chip antenna are presented and analysis. I. Measurement Coefficient Measurement A. Reflection Coefficient Measurement (a) InstrumentNetwork Analyzer. (b) Setup (1) Calibrate the Network Analyzer by one port calibration using O.S.L. calibration kits. (2) Connect the antenna under test to the Network Analyzer. (3) Measure the S11(reflection coefficient) shown in Fig. 1. (4) Generally, the S11 is less than –10dB to ensure the 90% power into antenna and only less than 10% power back to system. Fig. 1 LTCC antenna measured in Network Analyzer. WIESON INTERNATIONAL CO., LTD. TYPE OF PRODUCT LTCC Antenna PAGE : 8/23 II. Test Value A. VSWR Frequency Sample 2.40GHz 2.45GHz 2.50GHz 1 1.4011 1.2627 1.3671 2 1.3578 1.1881 1.3185 SAMLE-1 SAMPLE-2 WIESON INTERNATIONAL CO., LTD. TYPE OF PRODUCT LTCC Antenna PAGE : 9/23 B. RETURN LOSS Frequency Sample 2.40GHz 2.45GHz 2.50GHz 1 -15.659 -18.567 -16.305 2 -16.188 -21.179 -17.406 SAMPLE-1 SAMPLE-2 WIESON INTERNATIONAL CO., LTD. TYPE OF PRODUCT LTCC Antenna PAGE : 10/23 C. SMITH CHART SAMPLE-1 SAMPLE-2 WIESON INTERNATIONAL CO., LTD. TYPE OF PRODUCT LTCC Antenna PAGE : 11/23 2. 2D PATTERN I. Measurement (a) Instrumentsanechoic chamber, network analyzer, standard gain antenna. (b) chamber description (1) The anechoic chamber is a far-field measurement system with size of 3.25M*2.84M*6.4M. The quiet zone region is 44cm*44cm*44cm at frequency range of 2.4GHz in the center of the rotator. Fig. 2 The interior components of the anechoic. (2) Fig. 2. shows the interior components of the anechoic chamber. The antenna standard antenna as probe and antenna under test is 3M. The antenna under test is fixed on a step rotator. We can control the rotating angle for accurate or rough measurement. (3) While we measure the radiation patterns by rotating AUT with 360 degrees and repeat again by replacing the AUT with the standard gain antenna under test, we compare both data and using a formula to obtain the G AUT = G stand + P AUT - P stand G AUT Gain of AUT G stand Gain of Standard Gain Antenna P AUT Measured Power of AUT P stand Measured Power of Standard Gain Antenna WIESON INTERNATIONAL CO., LTD. TYPE OF PRODUCT LTCC Antenna PAGE : 12/23 (3) Gain of AUT. The standard gain antenna is a gain horn( SG-430 1.7GHz ~ 2.6GHz ). (4) The planes defined in the Fig. 4 which we want to measure are H(X-Y) , E1(X-Z) and E2(Y-Z) planes. The vertical or horizontal polarization’s power is measured by rotating the antenna probe to 0 degree or to 90 degree shown in Fig. 3, respectively. While we combine both vertical and horizontal power, we obtain total power. (5) From the total power in three basic planes( H, and E ), we can analyze the performance of the antenna is good or not. (a) Antenna Probe at 0 degree (b) Antenna Probe at 90 degree as a vertical polarization. as a horizontal polarization. Fig. 3. The definition of vertical and horizontal polarization. (c) Plane definition Fig. 4. The plane definitionH-Plane , E1-Plane and E2-Plane. WIESON INTERNA…

Text truncated - open the document above for the full version.

According to KDB 447498 section 4.3.1, the 1-g SAR test exclusion thresholds at test separation distance ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance,mm)] ·[ √f(GHz)] ≤ 3.0 The max. average power of channel, including tune-up tolerance(mW) is 2.5 mW @ 2402MHz (With Tune-up tolerance), The min. test separation distance (mm) is 5 mm, So, [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] ·[√f(GHz)] = 0.77 < 3.0 (With Tune-up tolerance). Therefore, standalone SAR measurements are not required for both head and body. Signature___________________________________ Name/Title: S. S. Liou / Section Manager, EMC Testing Department II TEL: +886‐2‐2602‐3052 Email: [email protected]

Rev. No 1.0 FCC Part 15 EMI TEST REPORT Part I - BT 3.0 E.U.T. : BlueTooth Module Model : AD-05 FCC ID : YY8BLUETOOTHAD05 for APPLICANT : Chen-Chang Health Technology Marketing Co., Ltd ADDRESS : No.32, Ln. 197, Shenlin S. Rd., Daya Dist., Taichung City, Taiwan Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34. LIN 5, DINGFU VIL., LINKOU DIST., NEW TAIPEI CITY, TAIWAN, 24442, R.O.C. Tel:(02)26023052 Fax:(02)26010910 http://www.etc.org.tw ; e-mail : [email protected] Report Number : 14-06-RBF-021-05 ETC Report No. : 14-06-RBF-021-05 FCC ID.: YY8BLUETOOTHAD05 Rev. No 1.0 TEST REPORT CERTIFICATION Applicant : Chen-Chang Health Technology Marketing Co., Ltd No.32, Ln. 197, Shenlin S. Rd., Daya Township, Taichung City, Taiwan Manufacture : Chen-Chang Health Technology Marketing Co., Ltd No.32, Ln. 197, Shenlin S. Rd., Daya Township, Taichung City, Taiwan Description of Device : a) Type of EUT : BlueTooth Module b) Trade Name : Performance X-BIKE c) Model No. : AD-05 d) Power Supply : DC 1.8V Regulation Applied : FCC Rules and Regulations Part 15 Subpart C I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in ANSI C63.4, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of ETC. Summary of Tests Test Results Radiated Emission Pass Conducted Emission Pass Hopping Channel Separation Pass Number of Hopping frequencies used Pass Hopping Channel Bandwidth Pass Dwell Time of each frequency Pass Output Power Requirement Pass 100 kHz Bandwidth of Frequency Band Edges Requirement Pass Out-of-Band Conducted Emission Requirement Pass ETC Report No. : 14-06-RBF-021-05 FCC ID.: YY8BLUETOOTHAD05 Rev. No 1.0 Date Test Item Received : Jun. 09, 2014 Date Test Campaign Completed : Jul. 30, 2014 Date of Issue : Jul. 30, 2014 Test Engineer : ( Jiapeng Chen, Engineer ) Approve & Authorized : S. S. Liou, Section Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No. : 14-06-RBF-021-05 FCC ID.: YY8BLUETOOTHAD05 Rev. No 1.0 Table of Contents Page 1 GENERAL INFORMATION ....................................................................................................... 1 1.1 Product Description ...................................................................................................................... 1 1.2 Test Methodology ........................................................................................................................ 1 1.3 Test Facility .................................................................................................................................. 1 2 PROVISIONS APPLICABLE ...................................................................................................... 2 2.1 Definition ..................................................................................................................................... 2 2.2 Requirement for Compliance ....................................................................................................... 3 2.3 Restricted Bands of Operation ..................................................................................................... 5 2.4 Labeling Requirement .................................................................................................................. 6 2.5 User Information .......................................................................................................................... 6 3 SYSTEM TEST CONFIGURATION .......................................................................................... 7 3.1 Justification .................................................................................................................................. 7 3.2 Devices for Tested System ........................................................................................................... 7 4 RADIATED EMISSION MEASUREMENT .............................................................................. 8 4.1 Applicable Standard ..................................................................................................................... 8 4.2 Measurement Procedure ............................................................................................................... 8 4.3 Measuring Instrument ................................................................................................................ 10 4.4 Radiated Emission Data ............................................................................................................. 11 4.5 Field Strength Calculation .......................................................................................................... 21 4.6 Photos of Radiation Measuring Setup ........................................................................................ 22 5 CONDUCTED EMISSION MEASUREMENT ........................................................................ 23 5.1 Standard Applicable ................................................................................................................... 23 5.2 Measurement Procedure ............................................................................................................. 23 5.3 Conducted Emission Data .......................................................................................................... 24 5.4 Result Data Calculation .............................................................................................................. 26 5.5 Conducted Measurement Equipment ......................................................................................... 26 5.6 Photos of Conduction Measuring Setup ...................................................................................…

Text truncated - open the document above for the full version.

ETC Report No. : 14-06-RBF-021-05 FCC ID.: YY8BLUETOOTHAD05 Sheet 27 of 107 Sheets Rev. No 2.1 5.6 Photos of Conduction Measuring Setup ETC Report No. : 14-06-RBF-021-05 FCC ID.: YY8BLUETOOTHAD05 Sheet 22 of 107 Sheets Rev. No 2.1 4.6 Photos of Radiation Measuring Setup
