YZ500000001WIRELESS N300 PCI ADAPTER

© 2010 Encore Electronics, Inc. All rights reserved.COVER Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein. All trademarks and brand names are the properties of their respective holders. © 2010 Encore Electronics, Inc. 1 www.encore-usa.com TABLE OF CONTENTS A — OVERVIEW....................................................................................... 2 A.1 PACKAGE CONTENTS...................................................................... 2 A.2 SYSTEM REQUIREMENTS................................................................. 2 B — HARDWARE INSTALLATION.......................................................... 2 C — SOFTWARE INSTALLATION .......................................................... 3 D — USING WINDOWS WIRELESS MANAGER IN WINDOWS 7 ® AND WINDOWS VISTA ® ........................................................................... 5 E — USING ENCORE WIRELESS WIZARD IN WINDOWS XP ® ........... 6 F — TECHNICAL SUPPORT................................................................... 6 Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein. All trademarks and brand names are the properties of their respective holders. © 2010 Encore Electronics, Inc. All rights reserved. 2 www.encore-usa.com A — Overview Thank you for choosing Encore Electronics’ Wireless N300 Adapter (ENLWI-NX2). This pamphlet explains the essential steps to connect to your home or office wireless network. For more details and screenshots, please refer to the User Manual in the Installation CD. A.1 Package Contents  Wireless N300 PCI Adapter x 1  Quick Installation Guide x 1  Installation CD (User Manual on CD) x 1 A.2 System Requirements  Available PCI slot  Operating System: Windows ® 7, Windows Vista ® , or Windows ® XP  CD-ROM Drive B — Hardware Installation 1. Shut down your computer, and then, disconnect your computer’s power cord. 2. Open the case of your computer 3. Locate an empty PCI slot. Make sure the ENLWI-NX2 can fit. 4. Insert the ENLWI-NX2 firmly into the empty PCI slot. 5. Put the cover back to your computer case. 6. Attach the two external antennas to the connectors on the back of the ENLWI-NX2. 7. Reconnect the power cord, and then, turn on your computer. 3 www.encore-usa.com C — Software Installation 1.  Click “Cancel,” if you see the ‘Found New Hardware Wizard’ window when you start Windows for the first time after installing the hardware. 2. Insert the ‘Installation CD” to the CD-ROM drive. Depending on your computer’s configuration, one of the following 3 scenarios will happen (A , B or C). A. The ‘Encore Welcome Window’ appears automatically, and then, the window switches to the ‘Quick Setup’ window in Step 3. B. The ‘AutoPlay’ window appears automatically  If you see the ‘AutoPlay’ window instead, select “Run autorun.exe.” C. Use ‘Run Command’ when A or B does not appear.  If neither the ‘Encore Welcome Window nor the ‘AutoPlay’ window appears, type “D:\autorun.exe” in the “Run Command” window in the Start menu ( ) (‘D’ is the drive letter of your CD-ROM drive). Note: You can use “Browse” to find the CD-ROM drive letter. If the “Run command” window is not in the Start menu, go to the Start menu ( ) → type “run” in the “search box” → select “Run” in the list of results. 3. Quick Setup Window  Click the “Software & Driver Installation ( )” icon. 4 www.encore-usa.com 4. Follow the on-screen instructions. Note:  Click “Yes” to continue, if you see ‘Do you want to allow the following program to make changes to this computer?’ in the ‘User Account Control’ window in Windows 7 or Windows Vista.  Click “Install this driver software anyway,” if you see ‘Windows can’t verify the publisher of this driver software’ in the ‘Windows Security’ window in Windows 7 or Windows Vista.  Click “Continue Anyway,” if you see this warning message in the ‘Hardware Installation’ window in Windows XP. 5 www.encore-usa.com D — Using Windows Wireless Manager in Windows 7 ® and Windows Vista ® 1. Windows 7 Tray Icon Windows Vista Tray Icon  Left-click on the “Windows Wireless Manager Tray Icon” ( in Windows 7 and in Windows Vista). Note: If you cannot see the icon, click the “Show hidden icons ( )” arrow in the system tray. 2.  Click “Connect to a network” (NOT “Network and Sharing center.”) Note: This step only applies to Windows Vista. 3. 1. Select the “Wireless Network Connection” of your choice. 2. Click “Connect.” 4. 1. Enter the “Security Key” (also called password, passphrase or pre-shared key). 2. Click “OK.” Note: If no wireless security is turned on, the warning message ‘Information sent over this network might be visible to others.’ will appear. Select “Connect Anyway” if you want to proceed. 5. The ‘Set Network Location’ window may appear. 1. Select “Home”, “Work” or “Public.” Windows will automatically configure the appropriate firewall settings. 2. Click “Close” in the follow-up window. Note: This step only applies to Windows Vista. 6. The “Window Wireless Manager Tray Icon” will become in Windows 7 and in Windows Vista Note: For help with the Windows Wireless Manager, please refer to “Help and Support” in the Start menu ( ) at the lower left corner of your screen. 6 www.encore-usa.com E — Using Encore Wireless Wizard in Windows XP ® 1. 1. Right-click on the “Encore Wireless Manager Tray Icon ( ).” 2. Select “Set Wizard.” 2. 1. Check “Wireless Local Area Networks (Infrastructure).” 2. Click “Next,” in the ‘Select Operation Mode’ window. 3. 1. Select the ‘SSID’ (wireless network name) you want to connect to. 2. Click “Next,” in the ‘ Select The Infrastructure Connection List’ window. 4.  Only enter and confirm the “Network Key” (also called password, passphrase or pre-shared key) of your router or access point, in the ‘Wireless Network Properties’ window. 5. 1. Check “Obtain an IP address automati…

Text truncated - open the document above for the full version.

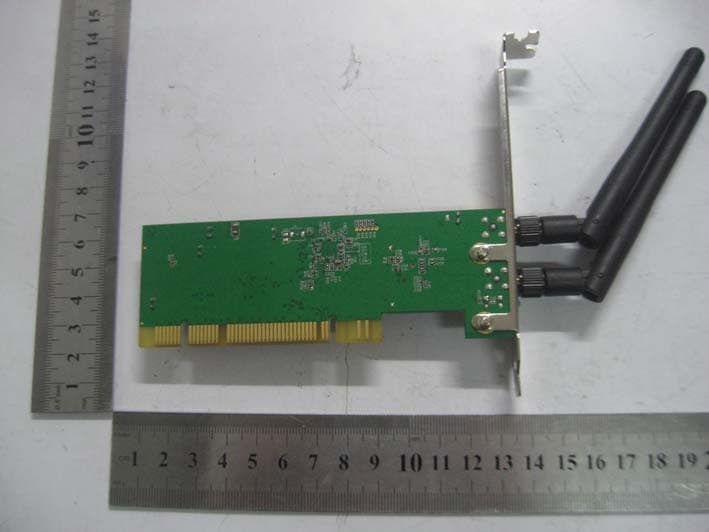

ENCORE ELECTRONICS INC. Model: ENLWI-NX2 REPORT NO.: STR10118125I-1 FCC PART 15.247 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2

ENCORE ELECTRONICS INC. Model: ENLWI-NX2 REPORT NO.: STR10118125I-1 FCC PART 15.247 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: YZ500000001 Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

ENCORE ELECTRONICS INC. Model: ENLWI-NX2 REPORT NO.: STR10118125I-1 FCC PART 15.247 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: YZ500000001 Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

ENCORE ELECTRONICS INC. Model: ENLWI-NX2 REPORT NO.: STR10118125I-1 FCC PART 15.247 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS Solder Board-Component View 1 Solder Board-Component View 2 ENCORE ELECTRONICS INC. Model: ENLWI-NX2 REPORT NO.: STR10118125I-1 FCC PART 15.247 Antenna Connector

Circuit Description XTAL1 the 40 MHz crystal oscillator provides the base clock source of U1 Wireless LAN network interface controller’s operating. U1 drives reference differential clock for modulator and demodulator of U9 RF transceiver. U1 combines a MAC and 1T1R capable baseband and includes a PCI interface for host connection. U9, a MISO RF transceiver consists of two receivers and one transmitter used with U1 to form a complete 2412-2462MHz frequency band Wireless LAN application. Antenna, Ground, and Power Source There are two external 2.4GHz band antenna connected by two SMA connectors. Besides Print circuit board provides copper plane ground, host provides a reference grounding connecting by PCI interface. Whole system power source is fed with DC 3.3Volt by PCI interface.

1. MAXIMUM PERMISSIBLE EXPOSURE (MPE) 1.1 Standard Applicable According to §1.1307(b)(1), system operating under the provisions of this section shall be operating in a manner that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. (a) Limits for Occupational / Controlled Exposure Frequency range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times | E | 2 , | H | 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f)* 6 30-300 61.4 0.163 1.0 6 300-1500 / / F/300 6 1500-100000 / / 5 6 (b) Limits for General Population / Uncontrolled Exposure Frequency range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times | E | 2 , | H | 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 / / F/1500 30 1500-100000 / / 1 30 Note: f = frequency in MHz: * = Plane-wave equivalents power density 1.2 MPE Calculation Method S = (30*P*G) / (377*R 2 ) S = power density (in appropriate units, e.g., mw/cm 2 ) P = power input to the antenna (in appropriate units, e.g., mw) G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor is normally numeric gain. R = distance to the center of radiation of the antenna (in appropriate units, e.g., cm) 1.3 MPE Calculation Result Maximum peak output power at antenna input terminal: 15.52(dBm) Maximum peak output power at antenna input terminal: 35.645(mW) Prediction distance: >20 (cm) Prediction frequency: 2412 (MHz) Antenna gain (typical): 2.0 (dBi) Antenna gain (typical): 1.585 (numeric) The worst case is power density at prediction frequency at 20cm: 0.01124 (mw/cm 2 ) MPE limit for general population exposure at prediction frequency: 1 (mw/cm 2 ) 0.01124 (mw/cm 2 ) < 1 (mw/cm 2 ) Result: Pass

55 44 33 22 11 D D C C B B A A HISTORY DATE R0A SCHEMATIC MODIFIED HISTORY INITIATIVE R0A => MODEL NAME: ENDB-PRL8190 TITLE COVER SHEETBLOCK DIAGRAM 11n Wireless PCI Card PAGE 12345 BB/MAC_RTL8190PCIRF_RTL8256 R0A => change the verison only Schematic of ENDB-PRL8190 0B COVER SHEET B 1 5 Monday, September 13, 2010 ENDB-PRL8190 Model Size Document Number Rev Date: Sheet of Title Drawn By Encore Electronics Inc. 55 44 33 22 11 D D C C B B A A RTL8190 MAC BB CONTROLLER RF ANT1ANT2 XTAL 40MHz (RX, option) RTL8256 LDOAP1117LDOAP1122 3.3V 1.2V2.2V Schematic of ENDB-PRL8190 0B BLOCK DIAGRAM A 2 5 Monday, September 13, 2010 ENDB-PRL8190 Model Size Document Number Rev Date: Sheet of Title Drawn By Encore Electronics Inc. 55 44 33 22 11 D D C C B B A A DGND AGND GPIO3 Pull high: 93c56; Pull low :93c46 DGNDscrew hole for breaket DGND Opical point (for manufacture) RTL8190 LED0: Activity (LED1)RTL8190 LED1: Link (LED2)(the hebavior control by sw setting) Shielding Frame Schematic of ENDB-PRL8190 0B BB/MAC_RTL8190 C 3 5 Monday, September 13, 2010 ENDB-PRL8190 Model Size Document Number Rev Date: Sheet of Title Drawn By Encore Electronics Inc. XINDA6O EEDOEECSEESKEEDI VDD22 XOUT DVDD33 DVDD33 VDD12 XOUT XIN VDD12 GPIO7GPIO5GPIO6 GPIO3GPIO2GPIO1GPIO0GPIO4 GPIO1GPIO7 EESK GPIO0GPIO6GPIO5 EEDIEECSEEDO GPIO2GPIO3GPIO4 VCC3V3_1 VCC3V3_1VDD12 DVDD33 DVDD33 VDD12 DVDD33 DVDD33 VDD22 DVDD33 DVDD33 VCC3V3 DVDD33 VCC3V3 VCC3V3_1 VCC3V3VCC3V3 VCC3V3_1VCC3V3_1 VCC3V3VCC3V3 VCC3V3_1 DVDD33 C8 1uF C24 NP R610K TP9 R70 C300.1uF TP1 C90.1uF + C40100uF(DIP) J1 6 HEADER 123456 U1C RTL-8190 F6F7F8F9 F10 G6G7G8G9 G10 H6H7H8H9 H10 J6J7J8J9 J10 K6K7K8K9 K10 L6L7L8L9 L10 M6M7M8M9 M10 N6N7N8N9 N10 P6P7P8P9 P10 R6R7R8R9 R10 W1 Y1 F11F12F13F14F15G11G12G13G14G15H11H12H13H14H15J11J12J13J14J15K11K12K13K14K15L11L12L13L14L15M11M12M13M14M15N11N12N13N14N15P11P12P13P14P15R11R12R13R14R15W20Y20 DGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGND DGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGND R110K H2 2 3 4 5 6 7 8 9 1 C16110uF R40100 R27 NP C2NP/10uF L1 BEAD 1 2 U1B RTL-8190 A1A2 C10 D4D5D6D7 E4 F4 G3 B8 C8 G8 C5D9 A20B20C12C16D15D16E17F17F18C15M18N18T18U18 GNDAGNDAGNDAGNDAGNDAGNDAGNDAGNDAGNDAGNDAGNDPLLGNDPLLGNDPLLGNDBGGND15 GNDAGNDAGNDAGNDAGNDAGNDAGNDAGNDAGNDA GND15 HG2HG2HG1HG1 U493LC56 1234 8765 CSSKDIDO VCC NCNC GND R35 NP L2 BEAD 1 2 R4175 R8 0 C23 0.1uF LED2 LED/GREEN 1 2 TP2 R30 NP C15 0.1uF C60.1uF R3815K C12 1uF C160.1uF C4 24pF U1A RTL-8190 A4B4A3B3 C1C2 B1B2A6B6A5B5E1E2 D1D2 A7 F1 C7 B7 F2F3 H1H2 A8 A19B19A18B18B16A16B17A17D19D20C19C20B14A14B15A15E20A13E18E19C13B13A9B9C6 TIP_2TIN_2TQN_2TQP_2TIP3TIN3TQP_3TQN_3RIP_2RIN_2RQN_2RQP_2RIN_3RIP_3RQP_3RQN_3RSSI_2RSSI_3TSSI5G_2TSSI2G_2TSSI5G_3TSSI2G_3XOXIDA6O TIN_0 TIP_0 TQP_0 TQN_0 TIN_1 TIP_1 TQP_1 TQN_1 RIP_0 RIN_0 RQP_0 RQN_0 RIN_1 RIP_1 RQP_1 RQN_1 RSSI_0RSSI_1 TSSI5G_0TSSI2G_0TSSI5G_1TSSI2G_1 REFCKP REFCKN R12K C20 1uF TP3 C270.1uF C50.1uFC260.1uF C11 1uF H3 C13 1uF C330.1uF TP4 U1F RTL-8190 U19U20 V19V20V18 K18L18N19N20P18 HV1HV1REG_OUT1REG_OUT1RSET HV2HV2 REG_OUT2REG_OUT2 ENSWREG_H U1D RTL-8190 C3C4D3 E3 D10 D8 G2 H3C9 C17C18D17D18C14D11D12D13D14 VDDAVDDAVDDAVDDAVDD15VDDBGVDDPLLVDD33PD_REGU VDDARVDDARVDDARVDDAR VDD15R VDDPLL VDDREGVDDREGVDDREG C280.1uF U8 AP1122 1 2 3 4 GND Vout Vin Vout L3 BEAD 1 2 H1 2 3 4 5 6 7 8 9 1 C140.1uF R26510R25NC/510 TP8 H4 + C29100uF(DIP) C71uF U2TP 1 1 L50 1 2 R371K TP7 R39NP R33 NP H5 L6NP/4.7uH 12 R29NP TP6 R31NP R32 NPR28 NP C360.1uF R3NP C17 0.1uF U1H RTL-8190 W7 V6Y6 W5 V4 W4 V3 W3 Y3V2Y2 W9 V9 Y10 V5 V11V10 W11 V1 Y11 Y4 W12 Y12 W6W2 W16 U1 W10Y7Y16Y13Y9Y5W19Y19W18Y18V17W17Y17V16V15W15Y15V14W14Y14V13W13V12V8W8Y8V7 DMA[27]DMA[28]DMA[29]DMA[30]DMA[31]DMA[32]DMA[33]DMA[34]DMA[35]DMA[36]DMA[37]DMA[38]DMA[39]DMA[40]DMA[41]DMA[42]DMA[43]DMA[44]DMA[45]DMA[46]DMA[47]DMA[48]DMA[49]DMA[50]DMA[51]DMA[52]DMA[53] DMA[0]DMA[1]DMA[2]DMA[3]DMA[4]DMA[5]DMA[6]DMA[7]DMA[8]DMA[9] DMA[10]DMA[11]DMA[12]DMA[13]DMA[14]DMA[15]DMA[16]DMA[17]DMA[18]DMA[19]DMA[20]DMA[21]DMA[22]DMA[23]DMA[24]DMA[25]DMA[26] TP5 C100.1uF R9 0 R34 10K C210.1uF R2195.3K U7 AP1117_ADJ 1 2 3 4 GND/ADJ Vout Vin Vout C18 NP R22NP U1E RTL-8190 G4 H4 J3J4 K3K4P4 R3R4 T4 U5U6U7 L3L4 M3M4 N3N4 T3 U2U3U4U8U9 U10 G17H17H18P17R17T17U11U12U13J17J18K17L17M17N17U14U15U16U17 DVDD12DVDD12DVDD12DVDD12DVDD12DVDD12DVDD12DVDD12DVDD12DVDD12DVDD12DVDD12DVDD12DVDD33DVDD33DVDD33DVDD33DVDD33DVDD33DVDD33DVDD33DVDD33DVDD33DVDD33DVDD33DVDD33 DVDD12DVDD12DVDD12DVDD12DVDD12DVDD12DVDD12DVDD12DVDD12DVDD33DVDD33DVDD33DVDD33DVDD33DVDD33DVDD33DVDD33DVDD33DVDD33 R36 NP C220.1uF R20 XTAL140MHz 12 34 XTALPGND XTALP GND R1012K + C39 100uF(DIP) U1G RTL-8190 B12A12 C11 A10A11B10B11 J1J2 L1L2 K1K2 M1M2 N1N2 P1P2P3 R2 T20T19T1T2R1P20P19R20R19R18K20K19M20M19L20L19J20J19G19F19G20F20G18H20H19 C_RFENVC_RFRWC_RFSCKC_RFLEC_RFSDD_RFLED_RFSDC_PAPE_5GC_PAPE_2GD_PAPE_5GD_PAPE_2GC_TRSWC_TRSWBD_TRSWD_TRSWBEXRSTBEXPWRONEESKEEDIEEDOEECS LED[1]LED[0] GPIO[7]GPIO[6]GPIO[5]GPIO[4]GPIO[3]GPIO[2]GPIO[1]GPIO[0] A_TRSW A_TRSWB B_TRSW B_TRSWB B_PAPE_2GB_PAPE_5GA_PAPE_2GA_PAPE_5G B_RFSD B_RFLE A_RFSD A_RFLE A_RFSCK A_RFRW A_RFENV C3 24pF LED1 NC/LED/GREEN 1 2 AD26 PERRB RIP_3 TRDYB DEVSELB RQP_2 AD21 AD0CBE0BCLKAD9AD14 RSSI_2 AD11 AD22 IDSELSERRB TQP_2 AD10 INTAB AD23 PMEB REFCKP RIP_2 AD15 TQN_2 CBE2B RQN_2 AD2AD6AD19 AD25 REQB AD20 RSSI_3 AD3 STOPBFRAMEB AD24 AD8 REFCKN TIN_2 AD30 RIN_3 CBE3BAD5PCIRSTB RQN_3 AD1AD13 AD29 PAR RQP_3 AD4 AD31 IRDYBGNTB TIP_2 AD27 AD7 TSSI2G_2 AD12AD17AD16 AD28 CBE1B RIN_2 AD18 C_RFSDD_RFLEC_RFRWC_RFENVD_RFSDC_RFLEC_RFSCK 55 44 33 22 11 D D C C B B A A Schematic of ENDB-PRL8190 0B PCI B 4 5 Monday, September 13, 2010 ENDB-PRL8190 Model Size Document Number Rev Date: Sheet of Title Drawn By Encore Electronics Inc.…

Text truncated - open the document above for the full version.

ENCORE ELECTRONICS INC. Model: ENLWI-NX2 REPORT NO.: STR10118125I-1 PAGE 1 OF 79 FCC PART 15.247 FCC Part 15C Measurement and Test Report For ENCORE ELECTRONICS INC. 16483 Old Valley Blvd., La Puente, CA 91744, USA FCC ID: YZ500000001 Report Concerns: Original Report Equipment Type: Wireless N300 PCI Adapter Model: ENLWI-NX2 Report No.: STR10118125I-1 Test Date: 2010-11-13 to 2010-11-23 Issue Date: 2010-11-25 Tested By: Seven Song / Engineer Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy so / PSQ Manager Prepared By: SEM.Test Compliance Service Co., Ltd 3/F, Jinbao Commerce Building, Xin'an Fanshen Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by SEM.Test Compliance Service Co., Ltd . ENCORE ELECTRONICS INC. Model: ENLWI-NX2 REPORT NO.: STR10118125I-1 PAGE 2 OF 79 FCC PART 15.247 TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)...............................................................................3 1.2 TEST STANDARDS...................................................................................................................................................3 1.3 RELATED SUBMITTAL(S)/GRANT(S) .......................................................................................................................3 1.4 TEST METHODOLOGY.............................................................................................................................................4 1.5 TEST FACILITY.......................................................................................................................................................4 1.6 EUT EXERCISE SOFTWARE....................................................................................................................................4 1.7 ACCESSORIES EQUIPMENT LIST AND DETAILS.......................................................................................................4 1.8 EUT CABLE LIST AND DETAILS.............................................................................................................................4 2. SUMMARY OF TEST RESULTS ...........................................................................................................................5 3. CONDUCTED EMISSIONS ....................................................................................................................................6 3.1 MEASUREMENT UNCERTAINTY..............................................................................................................................6 3.2 TEST EQUIPMENT LIST AND DETAILS.....................................................................................................................6 3.3 TEST PROCEDURE...................................................................................................................................................6 3.4 BASIC TEST SETUP BLOCK DIAGRAM.....................................................................................................................6 3.5 ENVIRONMENTAL CONDITIONS..............................................................................................................................7 3.6 SUMMARY OF TEST RESULTS/PLOTS......................................................................................................................7 3.7 CONDUCTED EMISSIONS TEST DATA......................................................................................................................7 4. §15.203 - ANTENNA REQUIREMENT................................................................................................................10 4.1 STANDARD APPLICABLE.......................................................................................................................................10 4.2 TEST RESULT........................................................................................................................................................10 5. POWER SPECTRAL DENSITY ...........................................................................................................................11 5.1 STANDARD APPLICABLE.......................................................................................................................................11 5.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................11 5.3 TEST PROCEDURE.................................................................................................................................................11 5.4 ENVIRONMENTAL CONDITIONS............................................................................................................................11 5.5 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................12 6. 6-DB BANDWIDTH ................................................................................................................................................19 6.1 STANDARD APPLICABLE.......................................................................................................................................19 6.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................19 6.3 TEST PROCEDURE.................................................................................................................................................19 6.4 ENVIRONMENTAL CONDITIONS.......................................................…

Text truncated - open the document above for the full version.

ENCORE ELECTRONICS INC. Model: ENLWI-NX2 REPORT NO.: STR10118125I-1 FCC PART 15.247 EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Conducted Emission Test Setup ENCORE ELECTRONICS INC. Model: ENLWI-NX2 REPORT NO.: STR10118125I-1 FCC PART 15.247 Radiation Emission Test Setup (30MHz to 1GHz) Radiation Emission Test Setup (Above 1GHz) ENCORE ELECTRONICS INC. Model: ENLWI-NX2 REPORT NO.: STR10118125I-1 FCC PART 15.247 EUT Test Setup
