YZKECW7210L

Edgecore Networks Corporation

IEEE 802.11a/b/g/n/ac Enterprise Cloud Based Indoor Access Point

Click to zoom

Application Details

Equipment Class: NII - Unlicensed National Information Infrastructure TX
Date of Grant: Mar 19, 2014
Application Purpose: Original Equipment
Date of Application: Mar 19, 2014
Equipment Note: IEEE 802.11a/b/g/n/ac Enterprise Cloud Based Indoor Access Point
Frequency Range: 5210.00000000 - 5210.00000000
Company: Edgecore Networks Corporation
Country: Taiwan

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

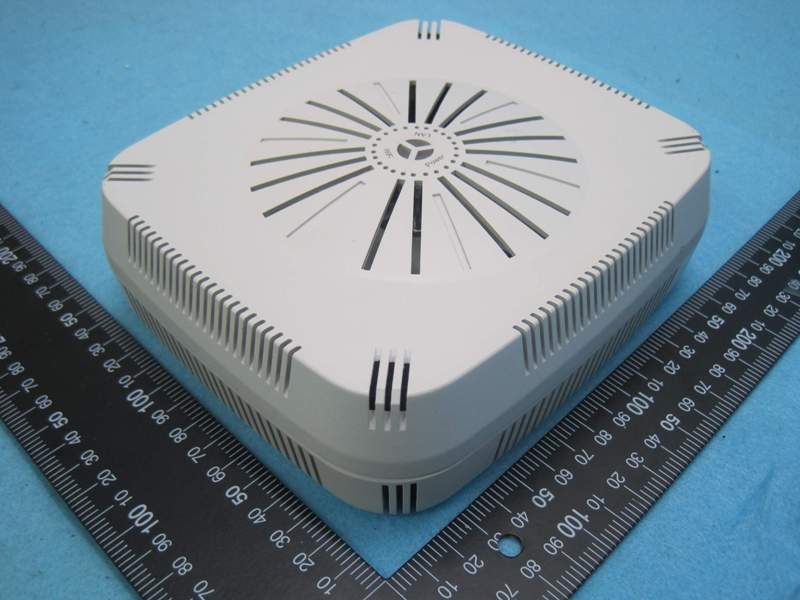

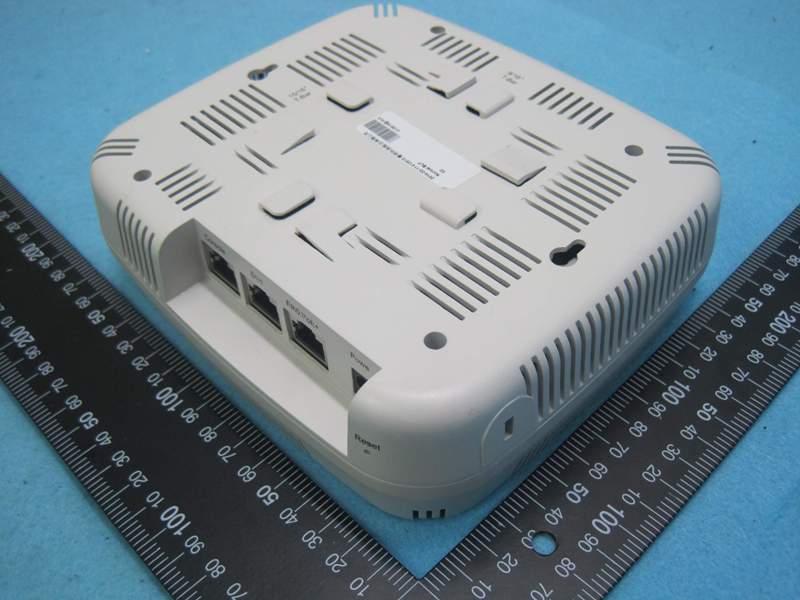

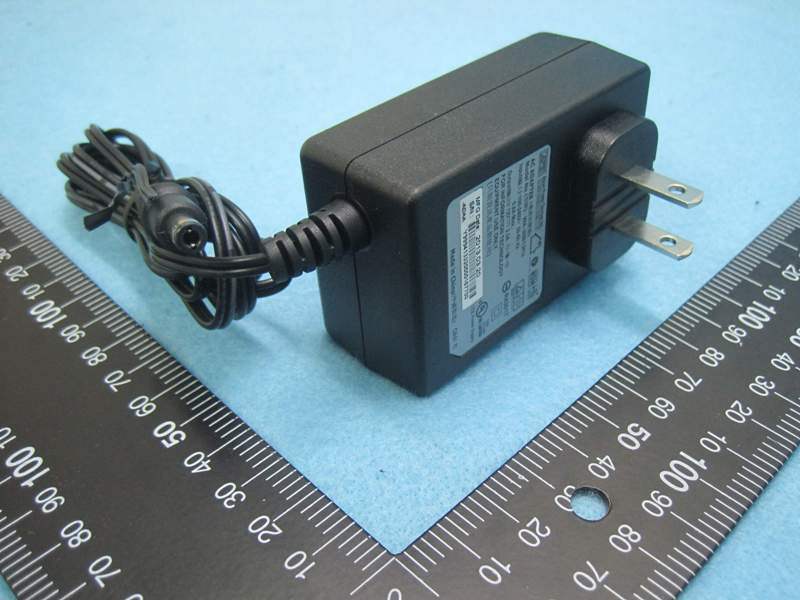

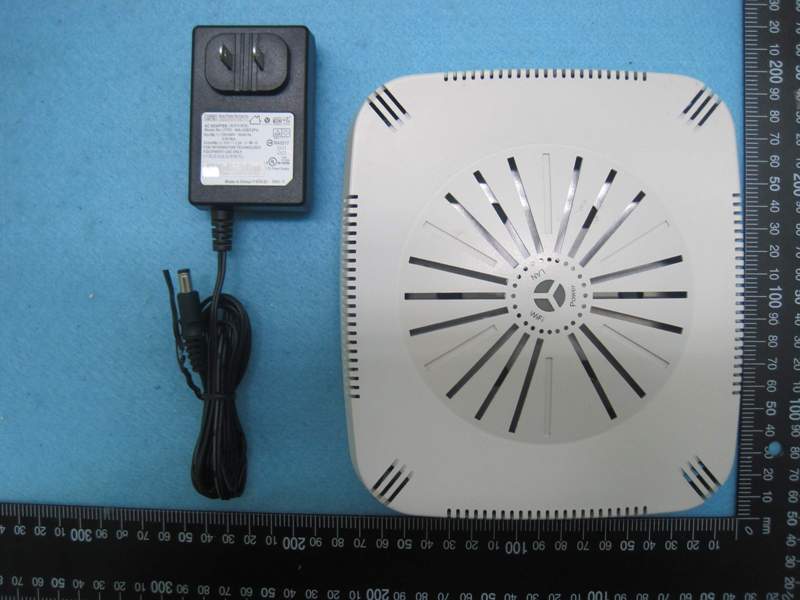

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

Test Report

Test Setup Photos

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
3	15E	5.21 GHz - 5.21 GHz	47.60 mW

Confidentiality

Long Term

Grant Notes

Output Power listed is the maximum combined conducted output power as indicated in the filing. This device must be installed and operated to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users must be provided transmitter operating conditions for satisfying RF exposure compliance. Device is operating in a 3T3R Spatial Multiplexing MIMO configuration as described in this filing. Operating of this device in the 5150 MHz to 5250 MHz range is restricted to indoor use only. This device supports 802.11n, 20MHz, 40MHz and 802.11ac 80MHz mode.
