JWS-CB100-3-FCC Remote Control Users’ Manual 1. Technical Parameters: Operating Frequency： 433.92MHz±100KHz Modulation Type： OOK RF Power： ＜10mW Rated Voltage： DC 12V Rated Current： ＜10mA Encoding Type： 53A1S 1.5M 2. Use Connect the DC Power, the indicator LED2 will turn on, the transmitter will send out a DO signal with a frequency 0.33s and pause 10s, at the same time the signal indicator LED turns on. 3. Notes If the transmission range turns short or the indicator turns dim, please check-up the power supply in time. FCC WARNING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: Any changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. NOTE 2: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment.

1 2 34 ABCD 4 3 2 1 D CBA 当前时间 当前日期 2010/11/12 图名 绘制 图号 文件名 校对 审核 版本号 公司名称公司地址 JWS-CB100-3-FCC A/0 Vin 2 Vout 3 GND 1 HT71XX U1 HT7130 12 J1CON2 +3V +12V 编码芯片 编码控制信号 ANT433.92MHz 调制与高频放大 433 .92MHz 滤波输出 13.560 MHz 晶体振荡 JWS-CB100-3-FCC BLOCK DIAGRAM

SOBEAC INC. 1916 W, VALLEY, BLVD, ALHAMBRA, CALIAFORNIA 91803 (FCCID: YZWNOCLICK) POWER OF ATTORNEY 20L0-11-L9 Federaf Communlcations Commission Authorization and Eval-uati-on Division 7435 Oakfand Mil.Ls Road Columbla, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize SEM.Test Compliance Service Co., Ltd. Jandy So on our behalf, to apply to the Federaf Communications Comm-ission on our equipment. Any and all acts carried out by SEM.Test Compfj-ance Service Co.. Ltd. Jandy So on our behalf shalf have the same effect as acts of our own. This is to advise that we are in fu1l compliance with the Antl-Drug Abuse Act. We, SOBEAC INC., are not subject to a denial of federal benefits pursuant to Sectj-on 5301 of the Anti-Drug Act of 1988, 21 USC853a' and no party to the appJ-ication is subject to a denial of federal benefits pursuant to that section. Sincerely, SOBEAC INC. (VAN, CHAU) (Manager)

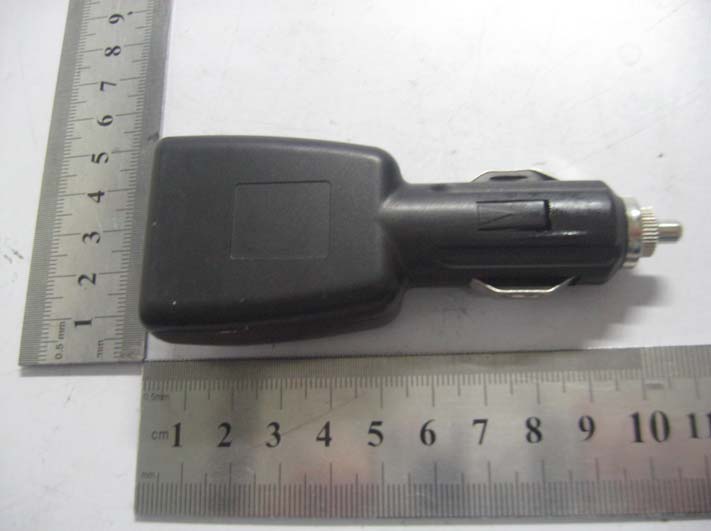

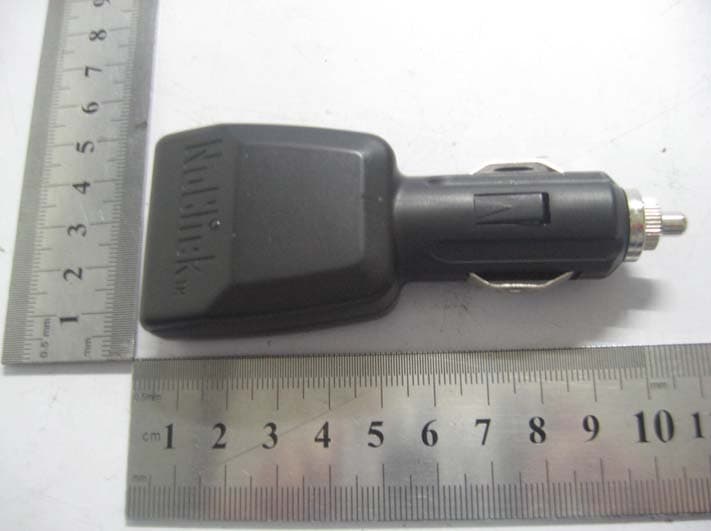

SOBEAC INC. Model: JWS-CB100-3-FCC REPORT NO.: STR10118171I FCC PART 15.231 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2

SOBEAC INC. Model: JWS-CB100-3-FCC REPORT NO.: STR10118171I FCC PART 15.231 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: YZWNOCLICK Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

SOBEAC INC. Model: JWS-CB100-3-FCC REPORT NO.: STR10118171I FCC PART 15.231 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: YZWNOCLICK Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

SOBEAC INC. Model: JWS-CB100-3-FCC REPORT NO.: STR10118171I FCC PART 15.231 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View Solder Board-Component View 1 SOBEAC INC. Model: JWS-CB100-3-FCC REPORT NO.: STR10118171I FCC PART 15.231 Solder Board-Component View 2

Circuit Description This is a RF transmitter. By the coding circuit, modulation and high frequency circuit, the output filter circuit and the antenna output of several parts. The coding circuit control and send out a DO signal with a frequency 0.33s and pause 10s, which with the high frequency carrier to generate amplitude modulated signals, by the filter circuit restrains the high frequency harmonics, finally radiated output by the antenna. The clock signal to the crystal is 13.56MHz, and the transmitting frequency of the RF signal is 433.92MHz. This working voltage is DC 12V.

1 2 34 ABCD 4 3 2 1 D CBA 当前时间 当前日期 2010/11/12 图名 绘制 图号 文件名 校对 审核 版本号 公司名称公司地址 C134.7P C12475 L2 560NH C8 12P L1 68NH C620PC520P C11NC C7100P C10NC TXD ANT JWS-CB100-3-FCC L3 22NH A/0 R3 100K +3V C147P PAOUT 1 GND 2 VDD 3 ASK 6 XTLIN 5 XTLOUT 4 U3MICRF113 X113.560MHz R5 0R C3104 C9 NC LED1RED +3V R61K VDD 1 GP5/OSC1/CLKIN 2 GP4/OSC2 3 GP3//MCLR/VPP 4 GP2/T0CK1 5 GP1 6 GP0 7 VSS 8 U253A1S C2104 R2 100K +3V R4 0R TXD Vin 2 Vout 3 GND 1 HT71XX U1 HT7136 C410UF/16V 12 J1CON2 C1104 D1IN5819 +3V LED2RED R13K +12V

SOBEAC INC. Model: JWS-CB100-3-FCC REPORT NO.: STR10118171I PAGE 1 OF 18 FCC PART 15.231 FCC PART 15.231 MEASUREMENT AND TEST REPORT FOR SOBEAC INC. 1916 W, VALLEY, BLVD, ALHAMBRA, CALIFORNIA FCC ID: YZWNOCLICK Report Concerns: Original Report Equipment Type: NoClick-T Model: JWS-CB100-3-FCC Report No.: STR10118171I Test Date: 2010-11-18 to 2010-11-20 Issue Date: 2010-11-26 Tested By: Susan Su / Engineer Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy so / PSQ Manager Prepared By: SEM.Test Compliance Service Co., Ltd 3/F, Jinbao Commerce Building, Xin'an Fanshen Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by SEM.Test Compliance Service Co., Ltd . SOBEAC INC. Model: JWS-CB100-3-FCC REPORT NO.: STR10118171I PAGE 2 OF 18 FCC PART 15.231 TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)...............................................................................3 1.2 TEST STANDARDS...................................................................................................................................................3 1.3 RELATED SUBMITTAL(S)/GRANT(S) .......................................................................................................................3 1.4 TEST METHODOLOGY.............................................................................................................................................3 1.5 TEST FACILITY.......................................................................................................................................................4 1.6 EUT EXERCISE SOFTWARE....................................................................................................................................4 1.7 ACCESSORIES EQUIPMENT LIST AND DETAILS.......................................................................................................4 1.8 EUT CABLE LIST AND DETAILS.............................................................................................................................4 2. SUMMARY OF TEST RESULTS ...........................................................................................................................5 3. §15.203 ANTENNA REQUIREMENT ....................................................................................................................6 3.1 STANDARD APPLICABLE.........................................................................................................................................6 3.2 TEST RESULT..........................................................................................................................................................6 4. §15.205, §15.209, §15.231 (E) RADIATED EMISSION .........................................................................................7 4.1 MEASUREMENT UNCERTAINTY..............................................................................................................................7 4.2 STANDARD APPLICABLE.........................................................................................................................................7 4.3 TEST EQUIPMENT LIST AND DETAILS.....................................................................................................................8 4.4 TEST PROCEDURE...................................................................................................................................................8 4.5 CORRECTED AMPLITUDE & MARGIN CALCULATION..............................................................................................9 4.6 ENVIRONMENTAL CONDITIONS..............................................................................................................................9 4.7 SUMMARY OF TEST RESULTS/PLOTS......................................................................................................................9 5. §15.231(C) 20DB BANDWIDTH TESTING .........................................................................................................12 5.1 STANDARD APPLICABLE.......................................................................................................................................12 5.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................12 5.3 TEST PROCEDURE.................................................................................................................................................12 5.4 ENVIRONMENTAL CONDITIONS............................................................................................................................12 5.5 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................12 6. §15.231(E) DEACTIVATION TESTING ..............................................................................................................14 6.1 STANDARD APPLICABLE.......................................................................................................................................14 6.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................14 6.3 TEST PROCEDURE.................................................................................................................................................14 6.4 ENVIRONMENTAL CONDITIONS............................................................................................................................14 6.5 SUMMARY O…
