YZZGHP62XWCompact Hotel Phone

GHP620/W GHP621/W Compact Hotel Phone Quick Installation Guide Grandstream Networks, Inc. 126 Brookline Ave, 3rd Floor Boston, MA 02215. USA Tel : +1 (617) 566 - 9300 Fax: +1 (617) 249 - 1987 www.grandstream.com For Certification, Warranty and RMA information, please visit www.grandstream.com ~ 1 ~~ 2 ~ PACKAGE CONTENT: PRECAUTIONS: WARNING: Please DO NOT power cycle the GHP620/W and GHP621/W during system bootup or firmware upgrade. You may corrupt firmware image files and cause the unit to malfunction. WARNING: Use only the power adapter included in the GHP620W/ GHP621W package. Using an alternative nonqualified power adapter may damage the unit. 1x GHP62X/W Phone 1x Base Stand 1x Handset 1x Faceplate 1x RJ11(4P4C) Phone Cord 1x Quick Installa- tion Guide The GHP620/W and GHP621/W are not pre-configured to support or carry emergency calls to any type of hospital, law enforcement agency, medical care unit (“Emergency Service(s)”), or any other kind of Emergency Service. You must make additional arrangements to access Emergency Services. It is your responsibility to purchase SIP-com- pliant Internet telephone service, properly configure the GHP620/W GHP621/W to use that service, and peri- odically test your configuration to confirm that it works as you expect. If you do not do so, it is your responsibility to purchase traditional wireless or landline telephone services to access Emergency Services. GRANDSTREAM DOES NOT PROVIDE CONNECTIONS TO EMERGENCY SERVICES VIA THE GHP620/W AND THE GHP621/W. NEITHER GRANDSTREAM NOR ITS OFFICERS, EMPLOYEES OR AFFILIATES MAY BE HELD LIABLE FOR ANY CLAIM, DAMAGE, OR LOSS. YOU HEREBY WAIVE ANY AND ALL SUCH CLAIMS OR CAUSES OF ACTION ARISING FROM OR RELATING TO YOUR INABILITY TO USE THE GHP620/W AND GHP621/W TO CONTACT EMERGENCY SERVICES, AND YOUR FAILURE TO MAKE ADDITIONAL ARRANGE- MENTS TO ACCESS EMERGENCY SERVICES IN ACCORDANCE WITH THE IMMEDIATELY PRECEDING PARAGRAPH. The GNU GPL license terms are incorporated into the device firmware and can be accessed via the Web user interface of the device at http(s)://IP/#/gpl_license. To obtain a CD with GPL source code information please submit a written request to [email protected] EN OVERVIEW: The GHP series of hotel phones feature the GHP620(W) and the GHP621(W), easy-to-use IP phones for any hotel room that can be programmed and customized based on the needs of the hotel and their guests. These devices feature Wi-Fi adjacent models that come equipped with integrated dual-band Wi-Fi (GHP620W/GHP621W). The GHP series features of the series include; one HD speaker on each handset, 2 SIP accounts/lines, 6 programmable keys, 10 speed dial keys, 3-way voice conferencing, full band Opus voice codec, and advanced jitter-resilience algorithm that tolerates up to 30% packet loss without impacting voice quality. The series is supported by Grandstream’s Device Management System (GDMS), which provides a centralized interface to configure, provision, manage and monitor the deployment of Grand- stream endpoints. GHP series IP phones can be installed on desktop or wall-mounted, and powered by PoE (GHP620/GHP621), power adapter (GHP620W/GHP621W), and USB Type C charging. Its compact design makes it perfect for any hotel deployment. These IP Phones could also be used for deployments in settings such as hospitals, apartments, dor- mitories, and more. 12V 1x 12V Power Adapter (GHP620W and GHP621W) ~ 3 ~~ 4 ~ GHP620/W & GHP621/W DESCRIPTION: Wall Mount Front panel Back panel Desktop Installation 1. On the wall where the GHP620/W & GHP621/W will be mounted, mark two dots with 100mm distance in between vertically. 2. Using a drill, make a hole on each marked dot. Put a plastic expansion bolt and screw (not provided) into each hole. Leave enough space on the screws to mount the GHP620/W & GHP621/W. 3. Attach the wall mount spacers to the slot for wall mount spacers on the back of the phone. 4. Mount the GHP620/W & GHP621/W on the screws using its “Wall Mount Slots”. Flash Volume Down Key Softkeys Redial Alphanumeric Keypad Mute Indicator Volume Up Key HoldSpeaker LAN Port Mute USB Type-C Port Wall Mount Stand Slots Message Power Handset Port Message Waiting Indicator Note: The LED for the message waiting indicator will flash in green when there is a message waiting. PHONE SETUP: Desktop Wall For installing the phone on the table with the phone stand, attach the phone stand to the bottom of the phone where there is a slot for the phone stand. INSTALLING THE FACEPLATE: 1. Remove the release paper from the back of the faceplate. 2. Stick the faceplate on the indicated area. Please refer to the illustration. ~ 5 ~ 1. Plug in the phone cord to the handset RJ11 port and then connect it to the base. 2. Connect the LAN port of the phone to the RJ45 socket of a hub/switch or a router (LAN side of the router) using the Ethernet cable. This step can be skipped if using GHP620W & GHP621W with Wi-Fi. 3. Power up the phone: • For GHP620W & GHP621W: Connect the 12V DC output plug to the power jack on the phone; plug the power adapter into an electrical outlet. • For GHP620 & GHP621: A PoE switch must be used in step 2. Refer to online documents and FAQ for more detailed information: https://www.grandstream.com/our-products CONNECTING THE PHONE: To set up the phone, follow the steps below: PHONE CONFIGURATION: 1. Ensure your phone is powered up and connected to the Internet. 2. Locate the MAC address on the bottom of the device or on the package. 3. From a computer connected to the same network as the GHP62X, type in the following address using the GHP62X’s MAC address on your browser: https://<mac>.local Example: https://c074adffffff.local Note: The user can also dial **47# and the current IP address will be announced by the IVR. 4. Enter the admin username and password to access the configuration menu. (The factory default username is “admin” and the default random password can be found on the sticker at the back of the unit). Note: The GHP6…

Text truncated - open the document above for the full version.

Grandstream Networks, Inc. www.grandstream.com 126 Brookline Avenue -3 rd Floor Tel: +1-617-566-9300 Boston, MA 02215 USA Fax: +1-617-249-1987 Boston, MAI Los Angeles, CAI Dallas, TXICasablanca, MoroccoIValencia, VenezuelaIHangzhou, China IShenzhen, ChinaI Selangor, Malaysia I Madrid, Spain Confirmation Letter We hereby confirm that any of our production units bearing the following model numbers are identical in electrical, mechanical and physical design. The GHP621W(black)/GHP620W(white) use the same PCBA. Only the model name and color are different. Confirmed by: Company： Grandstream Networks, Inc 126 Brookline Ave., 3rd Floor Boston, MA 02215,USA Name/Title：Ning Wei/ Manager Signature： Date of issue：November 8, 2022

C5266091_X8_Ed.1 1/1 Grandstream Networks, Inc. 126 Brookline Ave., 3rd Floor Boston, MA 02215, USA Letter of Authorization Company: Grandstream Networks, Inc. Address: 126 Brookline Ave., 3rd Floor Boston, MA 02215, USA Model Number: GHP621W, GHP620W FCC Identifier: YZZGHP62XW We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: Ning Wei Date: Nov. 08, 2022 Title: Manager Signature of applicant:

C5266091_X10_Ed.1 1/1 Grandstream Networks, Inc. 126 Brookline Ave., 3rd Floor Boston, MA 02215, USA Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: Nov. 08 ,2022 Subject: Request for Confidentiality FCC ID: YZZGHP62XW To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality ID Label/Location No No Attestation Statement No No External Photos No Block Diagram Schematics Test Report No No Test Setup Photos No User’s Manual Internal Photos Parts List / Tune Up RF Exposure Info Operational Description Cover Letter(s) No No SDR Software / Security Info No Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Ning Wei Title: Manager

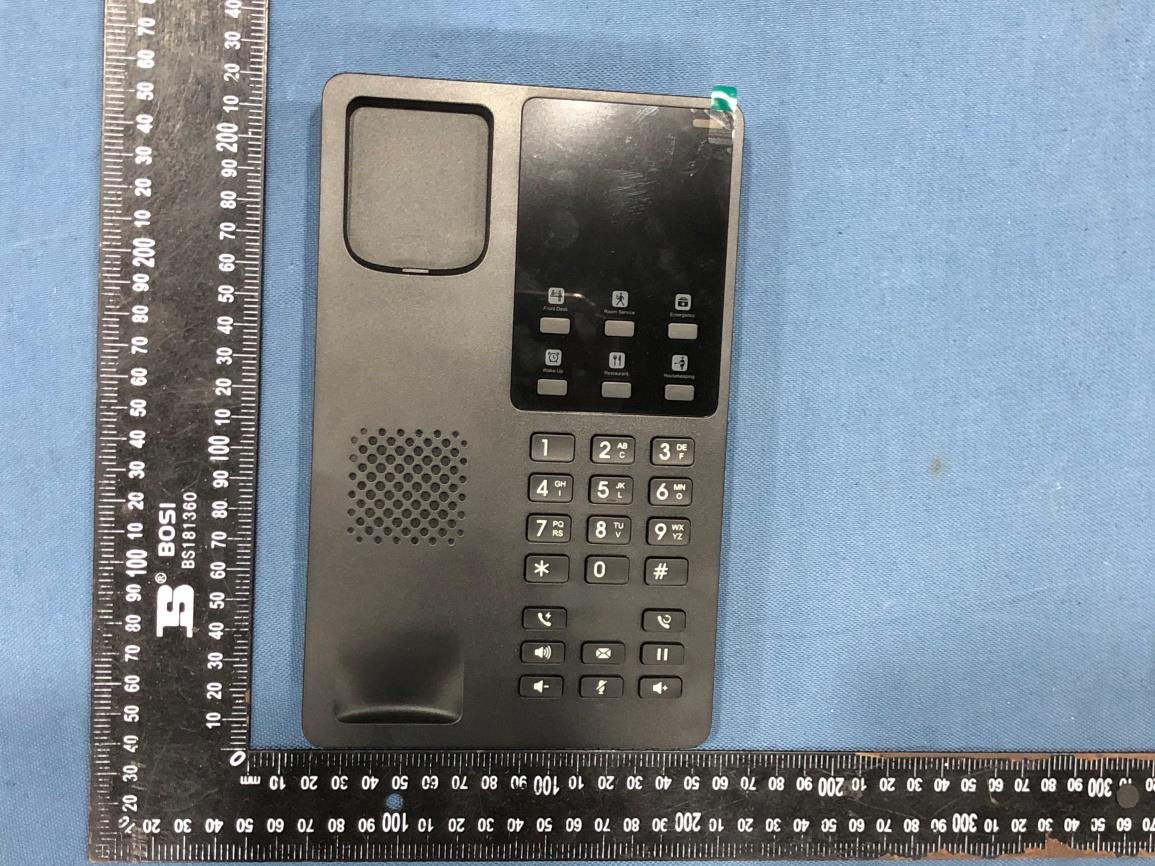

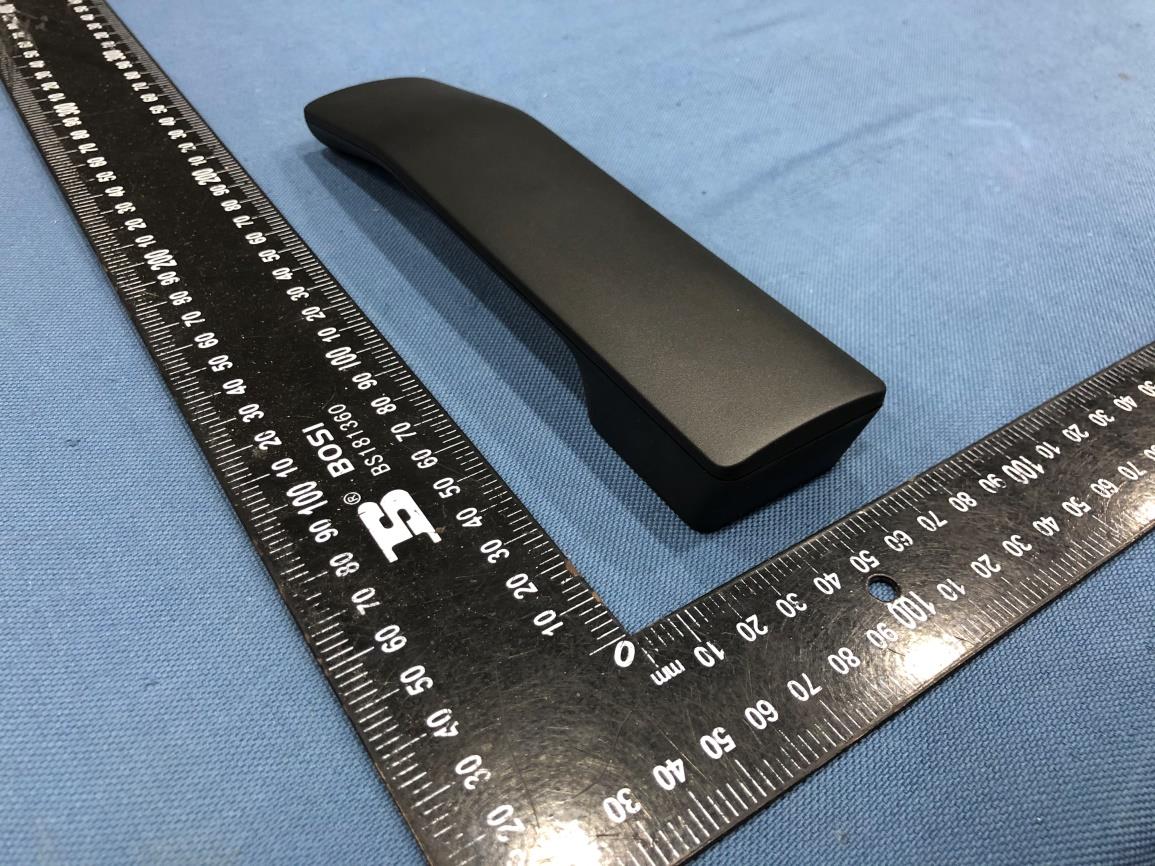

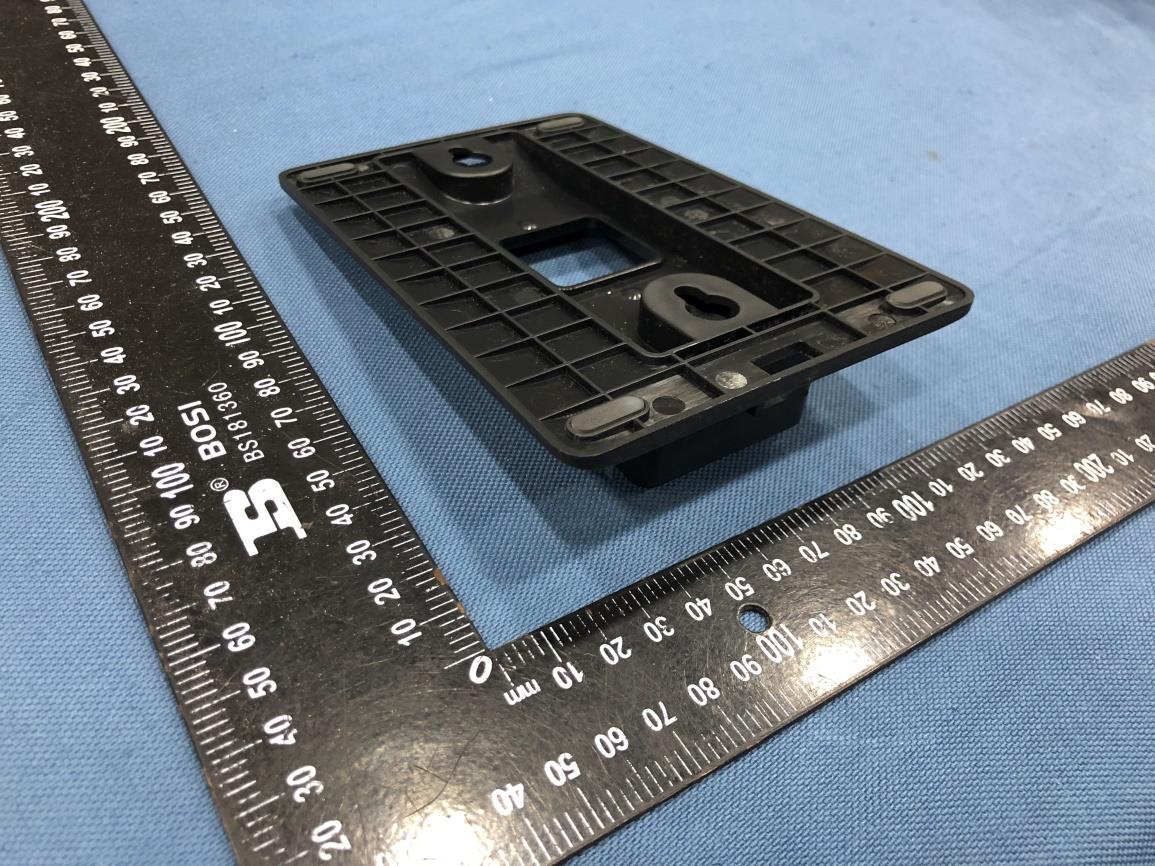

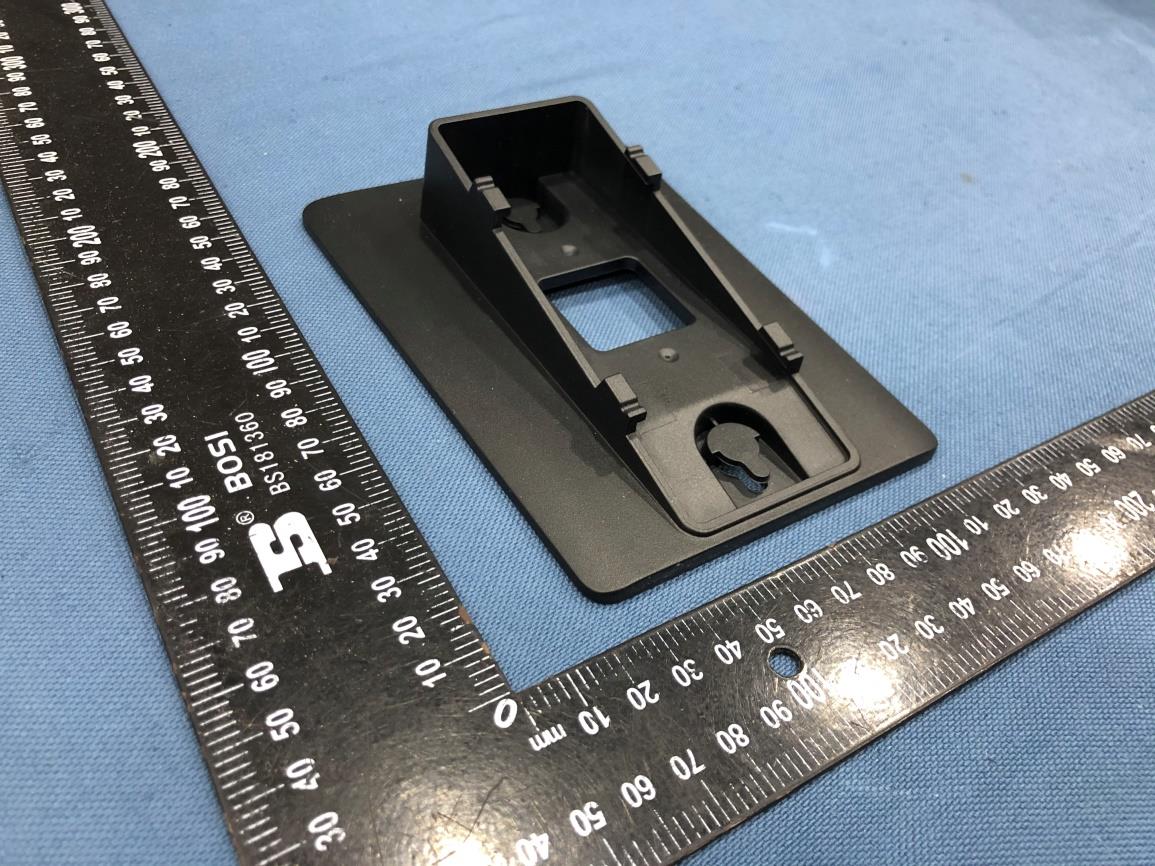

Page 1 of 12 FCC ID: YZZGHP62XW IC: 11964A-GHP62XW Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com APPENDIX 2 PHOTOS OF EUT CONSTRUCTIONAL DETAILS EUT EXTERNAL PHOTOS EUT Photo EUT Photo Page 2 of 12 FCC ID: YZZGHP62XW IC: 11964A-GHP62XW Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 3 of 12 FCC ID: YZZGHP62XW IC: 11964A-GHP62XW Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 4 of 12 FCC ID: YZZGHP62XW IC: 11964A-GHP62XW Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 5 of 12 FCC ID: YZZGHP62XW IC: 11964A-GHP62XW Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 6 of 12 FCC ID: YZZGHP62XW IC: 11964A-GHP62XW Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 7 of 12 FCC ID: YZZGHP62XW IC: 11964A-GHP62XW Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 8 of 12 FCC ID: YZZGHP62XW IC: 11964A-GHP62XW Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 9 of 12 FCC ID: YZZGHP62XW IC: 11964A-GHP62XW Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 10 of 12 FCC ID: YZZGHP62XW IC: 11964A-GHP62XW Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 11 of 12 FCC ID: YZZGHP62XW IC: 11964A-GHP62XW Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 12 of 12 FCC ID: YZZGHP62XW IC: 11964A-GHP62XW Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo

Label location

Page 1 of 6 FCC ID: YZZGHP62XW IC: 11964A-GHP62XW Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com APPENDIX 2 PHOTOS OF EUT CONSTRUCTIONAL DETAILS EUT INTERNAL PHOTOS EUT Photo EUT Photo Page 2 of 6 FCC ID: YZZGHP62XW IC: 11964A-GHP62XW Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Antenna Page 3 of 6 FCC ID: YZZGHP62XW IC: 11964A-GHP62XW Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 4 of 6 FCC ID: YZZGHP62XW IC: 11964A-GHP62XW Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 5 of 6 FCC ID: YZZGHP62XW IC: 11964A-GHP62XW Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 6 of 6 FCC ID: YZZGHP62XW IC: 11964A-GHP62XW Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo

Page 1 of 13 Report No.: 2209201719RFC-3 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS102-V1.1 RF EXPOSURE EVALUATION REPORT Product Name: Compact Hotel Phone Trade Mark: GRANDSTREAM Model No. / HVIN: GHP621W Add. Model No. / HVIN: GHP620W Report Number: 2209201719RFC-3 Test Standards: FCC 47 CFR Part 1 Subpart I RSS-102 Issue 5 FCC ID: YZZGHP62XW IC: 11964A-GHP62XW Test Result: PASS Date of Issue: November 15, 2022 Prepared for: Grandstream Networks, Inc. 126 Brookline Ave., 3rd Floor, Boston, MA 02215, USA Prepared by: Shenzhen UnionTrust Quality and Technology Co., Ltd. Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China TEL: +86-755-2823 0888 FAX: +86-755-2823 0886 Prepared by: Reviewed by: Kieron Luo Henry Lu Project Engineer Team Leader Approved by: Date: November 15, 2022 Kevin Liang Assistant Manager Page 2 of 13 Report No.: 2209201719RFC-3 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS102-V1.1 Version Version No. Date Description V1.0 November 15, 2022 Original Page 3 of 13 Report No.: 2209201719RFC-3 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS102-V1.1 CONTENTS 1. GENERAL INFORMATION ....................................................................................................................................... 4 1.1 CLIENT INFORMATION ........................................................................................................................................ 4 1.2 EUT INFORMATION ............................................................................................................................................ 4 1.3 PRODUCT SPECIFICATION SUBJECTIVE TO THIS STANDARD ................................................................................. 4 1.4 OTHER INFORMATION ......................................................................................................................................... 6 1.5 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................................................................... 7 1.6 DEVIATION FROM STANDARDS ............................................................................................................................ 7 1.7 ABNORMALITIES FROM STANDARD CONDITIONS .................................................................................................. 7 1.8 OTHER INFORMATION REQUESTED BY THE CUSTOMER ........................................................................................ 7 2. EQUIPMENT LIST .................................................................................................................................................... 7 3. MPE EVALUATION ................................................................................................................................................... 8 3.1 REFERENCE DOCUMENTS FOR EVALUATION ........................................................................................................ 8 3.2 MPE COMPLIANCE REQUIREMENT ..................................................................................................................... 8 3.2.1 LIMITS ................................................................................................................................................... 8 3.2.2 TEST PROCEDURE ................................................................................................................................. 9 3.3 MPE CALCULATION METHOD ............................................................................................................................. 9 3.4 MPE CALCULATION RESULTS ............................................................................................................................ 9 3.4.1 FOR WLAN ........................................................................................................................................... 9 3.4.2 SIMULTANEOUS MULTI-BAND TRANSMISSION MPE ANALYSIS .................................................................. 13 APPENDIX 1 PHOTOS OF TEST SETUP ..................................................................................................................... 13 APPENDIX 2 PHOTOS OF EUT CONSTRUCTIONAL DETAILS ................................................................................. 13 Page 4 of 13 Report No.: 2209201719RFC-3 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS102-V1.1 1. GENERAL INFORMATION 1.1 CLIENT INFORMATION Applicant: Grandstream Networks, Inc. Address of Applicant: 126 Brookline Ave., 3rd Floor Boston, MA 02215, USA Manufacturer: Grandstream Networks, Inc. Address of Manufacturer: 126 Brookline Ave., 3rd Floor Boston, MA 02215, USA 1.2 EUT INFORMATION Product Name: Compact Hotel Phone Model No. / HVIN: GHP621W Add. Model No. / HVIN: GHP620W Trade Mark: GRANDSTREAM DUT Stage: Identical Prototype EUT Supports Function: (Provided by the customer) 2.4 GHz ISM Band: IEEE 802.11b/g/n 5 GHz U-NII Bands: 5 150 MHz to 5 250 MHz IEEE 802.11a/n/ac 5 250 MHz to 5 350 MHz …

Text truncated - open the document above for the full version.

Page 1 of 50 Report No.: 2209201719RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS247-V1.1 TEST REPORT Product Name: Compact Hotel Phone Trade Mark: GRANDSTREAM Model No. / HVIN: GHP621W Add. Model No. / HVIN: GHP620W Report Number: 2209201719RFC-1 Test Standards: FCC 47 CFR Part 15 Subpart C RSS-247 Issue 2 RSS-Gen Issue 5 FCC ID: YZZGHP62XW IC: 11964A-GHP62XW Test Result: PASS Date of Issue: November 24, 2022 Prepared for: Grandstream Networks, Inc. 126 Brookline Ave., 3rd Floor, Boston, MA 02215, USA Prepared by: Shenzhen UnionTrust Quality and Technology Co., Ltd. Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China TEL: +86-755-2823 0888 FAX: +86-755-2823 0886 Prepared by: Reviewed by: Kieron Luo Henry Lu Project Engineer Team Leader Approved by: Date: November 24, 2022 Kevin Liang Assistant Manager Page 2 of 50 Report No.: 2209201719RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS247-V1.1 Version Version No. Date Description V1.0 November 24, 2022 Original Page 3 of 50 Report No.: 2209201719RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS247-V1.1 CONTENTS 1. GENERAL INFORMATION ....................................................................................................................................... 4 1.1 CLIENT INFORMATION ........................................................................................................................................ 4 1.2 EUT INFORMATION ............................................................................................................................................ 4 1.2.1 GENERAL DESCRIPTION OF EUT ............................................................................................................ 4 1.2.2 DESCRIPTION OF ACCESSORIES .............................................................................................................. 4 1.3 PRODUCT SPECIFICATION SUBJECTIVE TO THIS STANDARD ................................................................................. 5 1.4 OTHER INFORMATION ......................................................................................................................................... 5 1.5 DESCRIPTION OF SUPPORT UNITS ...................................................................................................................... 6 1.6 TEST LOCATION ................................................................................................................................................. 6 1.7 TEST FACILITY ................................................................................................................................................... 6 1.8 DEVIATION FROM STANDARDS ............................................................................................................................ 6 1.9 ABNORMALITIES FROM STANDARD CONDITIONS .................................................................................................. 6 1.10 OTHER INFORMATION REQUESTED BY THE CUSTOMER ........................................................................................ 7 1.11 MEASUREMENT UNCERTAINTY ........................................................................................................................... 7 2. TEST SUMMARY ...................................................................................................................................................... 8 3. EQUIPMENT LIST .................................................................................................................................................... 9 4. TEST CONFIGURATION ........................................................................................................................................ 10 4.1 ENVIRONMENTAL CONDITIONS FOR TESTING ...................................................................................................... 10 4.1.1 NORMAL OR EXTREME TEST CONDITIONS ............................................................................................. 10 4.1.2 RECORD OF NORMAL ENVIRONMENT AND TEST SAMPLE ........................................................................ 10 4.2 TEST CHANNELS ............................................................................................................................................. 10 4.3 EUT TEST STATUS .......................................................................................................................................... 11 4.4 PRE-SCAN ....................................................................................................................................................... 11 4.5 TEST SETUP .................................................................................................................................................... 12 4.5.1 FOR RADIATED EMISSIONS TEST SETUP ................................................................................................ 12 4.5.2 FOR CONDUCTED EMISSIONS TEST SETUP ............................................................................................ 13 4.5.3 FOR CONDUCTED RF TEST SETUP ..................................................................................................…

Text truncated - open the document above for the full version.

1 / 3 GHP621W\GHP620W天线技术规格书 Antenna Specification Brand Name: GRANDSTREAM Manufacture: SHENZHEN CHAOLIU NETWORK TECHNOLOGIES CO., LTD Product Number（or model Nanme）: 118-00122-00 设计规格specifications 频率范围Frequency（MHz） 2.4G:2400～2500 5G：5150～5850 电压驻波比VSWR ≦2.0：1 峰值增益Peak Gain（dBi） 2.4G: 3.99 5G：5.32 效率Efficiency（%） 2.4G:≧55 5G:≧60 天线类型Type Dipole Antenna 辐射方向Radiation Properties 全向Omni-directional 最大输入功率Max Input Power(Watts) 2 阻抗Impedance（Ohms） 50 工作温度Operation Temperature -40°C to 85°C 储存温度Storage Temperature -40°C to 85°C 相对湿度Relative Humidity 40% to 95% 环保认证ROHS Compliant 通过Yes 辐射方向图Radiation Pattern （Unit：dB） 2.4G phi=0deg 2.4G phi=90deg 0 3 3 4 2 / 3 2.4G theta=90deg 5G phi=0deg 5G phi=90deg 5G theta=90deg 3 6 3 3 4 4 3 / 3 总成图Mechanical Drawing ▲规格书到此结束END OF THE SPECIFICATION.

Page 26 of 50 Report No.: 2209201719RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS247-V1.1 IEEE 802.11n-HT20 Channel 1 Channel 6 Channel 11 Page 27 of 50 Report No.: 2209201719RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS247-V1.1 5.6 CONDUCTED OUT OF BAND EMISSION Test Requirement: FCC 47 CFR Part 15 Subpart C Section 15.247(d) RSS-247 Issue 2, Section 5.5 Test Method: ANSI C63.10-2013 Clause 11.11 Limit: In any 100kHz bandwidth outside the frequency bands in which the spread spectrum intentional radiator in operating, the radio frequency power that is produced by the intentional radiator shall be at least 20dB below that in the 100kHz bandwidth within the band that contains the highest level of the desired power. Test Procedure: Remove the antenna from the EUT and then connect a low loss RF cable from the antenna port to the spectrum analyzer. Use the following spectrum analyzer settings: Step 1:Measurement Procedure REF a) Set instrument center frequency to DTS channel center frequency. b) Set the span to ≥ 1.5 times the DTS bandwidth. c) Set the RBW = 100 kHz. d) Set the VBW ≥ 3 x RBW. e) Detector = peak. f) Sweep time =…

Text truncated - open the document above for the full version.
