YZZGWN7605LROutdoor Long-Range Wi-Fi Access Point

For Certification, Warranty and RMA information, please visit www.grandstream.com Grandstream Networks, Inc. 126 Brookline Ave, 3rd Floor Boston, MA 02215. USA Tel : +1 (617) 566 - 9250 Fax: +1 (617) 249 - 1987 www.grandstream.com In all EU member states, operation of 5150 - 5350 MHz is restricted to indoor use only. GWN7605LR Outdoor Long-Range Wi-Fi Access Point Quick Installation Guide ~1~ ~2~ OVERVIEW This long range Wi-Fi access point is designed to provide extended cov- erage support and is ideal for outdoor Wi-Fi solutions thanks to its wa- terproof casing and heat resistant technology. The GWN7605LR comes equipped with dual-band 2x2:2 MU-MIMO technology and a sophisti- cated antenna design for maximum network throughput and extended Wi-Fi coverage range of up to 250 meters. To ensure easy installation and management, the GWN7605LR uses a controller-less distributed network management design in which the controller is embedded within the product’s web user interface. The GWN7605LR is also supported by GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platforms. It is the ideal Wi-Fi AP for voice-over-Wi- Fi deployments and offers a seamless connection with Grandstream’s Wi-Fi-capable IP phones. With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals, 100+ concurrent clients per AP and dual Gigabit network ports with PoE/PoE+, GWN- 7605LR is ideal for deployment of medium/low wireless network environ- ments with medium to advanced user density. PACKAGE CONTENTS GWN7605LR PORTS POWERING AND CONNECTING THE GWN7605LR PRECAUTIONS • Do not attempt to open, disassemble, or modify the device. • Do not expose this device to temperatures outside range of -30° to 70° for operating and -30° to 80° for storage. • Do not expose the GWN7605LR to environments outside of the fol- lowing humidity range: 5-95% RH (non-condensing). • Do not power cycle your GWN7605LR access point during system boot up or firmware upgrade. You may corrupt firmware images and cause the unit to malfunction. GWN7605LR can be powered on using PoE/PoE+ switch using follow- ing steps: Step 1: Plug a RJ45 Ethernet cable into the network port of GWN- 7605LR. EN 1x Base Bracket 4x Screws (PM 3.0 x 7) PortDescription NET/POEEthernet RJ45 port (10/100/1000Mbps) supporting PoE/PoE+. NETEthernet RJ45 port (10/100/1000Mbps) to your rout- er or another GWN76xx. RESETFactory reset button. Press for 7 seconds to reset factory default settings. Network Port RJ45 Ethernet Cable to power over Ethernet (PoE/PoE+) Switch Step 2: Plug the other end into the uplink port of the power over Ethernet (PoE/PoE+) switch. GWN7605LR can be mounted on the wall or on a metal bar, Please refer to the following steps for the appropriate installation. 4x Expansion Screws 2x Antennas GWN7605LR Access point 2x Metal Straps 1x Quick Installation Guide HARDWARE INSTALLATION ~3~ ~4~ Pole Mount 1. Connect the Ethernet cable (RJ45) to the correct ports of your GWN- 7605LR and insert the cover bracket. 2. Connect each antenna to an antenna connector by rotating it clock- wise. 3. Attach the Base Bracket with screws (PM 3.0 x 7) on the back of GWN7605LR access point. 1 2 3 4 5 1 2 3 Wall Mount 5 6 4. Drill four holes on the wall referring to the positions of the ones on the Base Bracket. Then, fix an expansion screw in each hole. 5. Attach the GWN7605LR access point by securing the Base Bracket with the expansion screws on the wall. Wall 1. Connect the Ethernet cable (RJ45) to the correct ports of your GWN- 7605LR and insert the cover bracket. 2. Connect each antenna to an antenna connector by rotating it clock- wise. 3. Attach the Base Bracket with screws (PM 3.0 x 7) on the back of GWN7605LR access point. 4. Open the metal straps by turning the locking mechanism count- er-clockwise. You can loosen it by hand or use a flathead screwdriver. 5. Straighten out the end of the metal straps and slide it through the back of the base bracket. 6. Wrap the metal strap around the pole and use a flathead screwdriver to tighten the locking mechanism by turning it clockwise. Pole Wall ~5~ ~6~ CONNECT TO GWN7605LR DEFAULT Wi-Fi NETWORK GWN7605LR can be used as standalone access point out of box, or after factory reset with Wi-Fi enabled by default. After powering the GWN7605LR and connecting it to the network, GWN- 7605LR will broadcast a default SSID based on its MAC address GWN[MAC’s last 6 digits] and a random password. Note: GWN7605LR’s default SSID and password information are print- ed on the sticker at the back of the unit. A computer connected to the GWN7605LR’s SSID, or to the same net- work as the GWN7605LR can discover and access its configuration inter- face using one of the below methods: Method 1: Discover GWN7605LR using its MAC Address 1.Locate the MAC address on the MAC tag of the unit, which is on the underside of the device, or on the package. 2.From a computer connected to same network as the GWN7605LR, type in following address using GWN7605LR’s MAC address on your browser https://gwn_<mac>.local Example: If a GWN7605LR has the MAC address 00:0B:82:8C:4D:F8, this unit can be accessed by typing https://gwn_000b828c4df8.local on the browser. ACCESSING THE CONFIGURATION INTERFACE Method 2: Discover GWN7605LR using GWN Discovery Tool 1.Download and install GWN Discovery Tool from the following link: http://www.grandstream.com/tools/GWNDiscoveryTool.zip 2.Open the GWN DiscoveryTool, and click on Scan. 3.The tool will discover all GWN76xx Access Points connected on the network showing their MAC and IP addresses. 4.Click on Manage Device to be redirected directly to the GWN- 7605LR’s configuration interface, or type in manually the displayed IP address on your browser. 5.Enter username and password to login. (The default administrator username is “admin” and the default random password can be found at the back sticker on the GWN7605LR). ●Make sure that the GWN7605LR is not already paired with …

Text truncated - open the document above for the full version.

Grandstream Networks, Inc. 126 Brookline Ave, 3rd Floor Boston, MA 02215, USA Tel: 1-617-5669300 Fax: 1-617-2491987 Email: [email protected] Attestation Letter Date: 2020-03-25 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir or Madam: The RF chip, model MT7621DA, installed in our product: Product Name: Outdoor Long- Range Wi-Fi Access Point, Model: GWN7605LR, FCC ID: YZZGWN7605LR, supports 2.4G and 5G WiFi functions. For use in the US market, this chip will not support or enable 5G WiFi DFS Band2 and band3 functions. The 5G WiFi DFS Band2 and band3 have been shielded by the manufacturer via using the software. Once the certification of 5G WiFi DFS Band2 and band3 have been completed, then we will open the software for the US market. Sincerely, Signature Ning Wei Manager

Grandstream Networks, Inc. 126 Brookline Ave, 3rd Floor Boston, MA 02215, USA Tel: 1-617-5669300 Fax: 1-617-2491987 Email: [email protected] QA-FR-170-B 7/29/2014 FCC Authorization Date: 2020-03-25 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We Grandstream Networks, Inc., the undersigned, hereby authorizes Bay Area Compliance Laboratories Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratories Corporation on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Ning Wei Manager

Grandstream Networks, Inc. 126 Brookline Ave, 3rd Floor Boston, MA 02215, USA Tel: 1-617-5669300 Fax: 1-617-2491987 Email: [email protected] FCC Confidential Authorization Date: 2020-03-25 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: YZZGWN7605LR In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Grandstream Networks, Inc. hereby requests long-term confidential treatment of information accompanying this application as outlined below: • Block Diagram • Schematics • Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely Yours, Signature: Ning Wei Manager • Software Secutity Description

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS 2.4G Wi-Fi Antenna 1 & 5G Wi-Fi Antenna 0 2.4G Wi-Fi Antenna 0 & 5G Wi-Fi Antenna1

EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

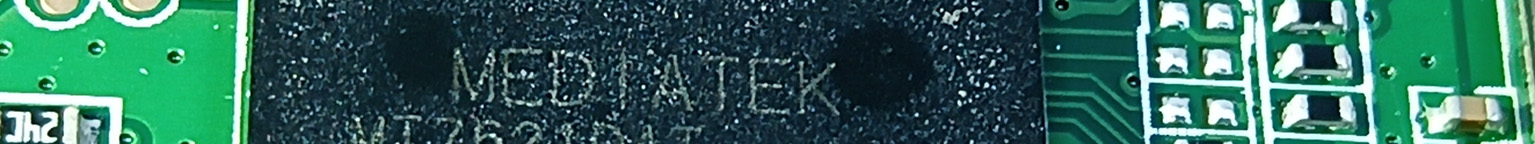

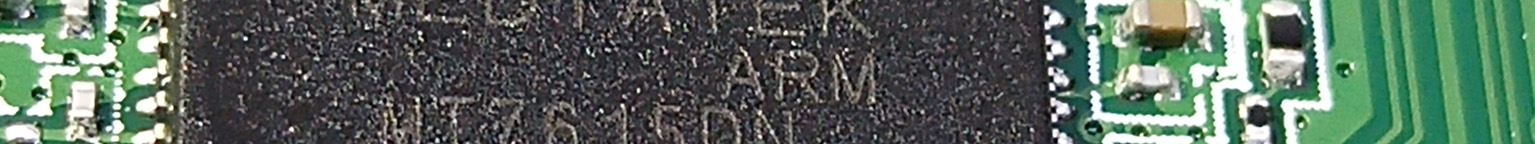

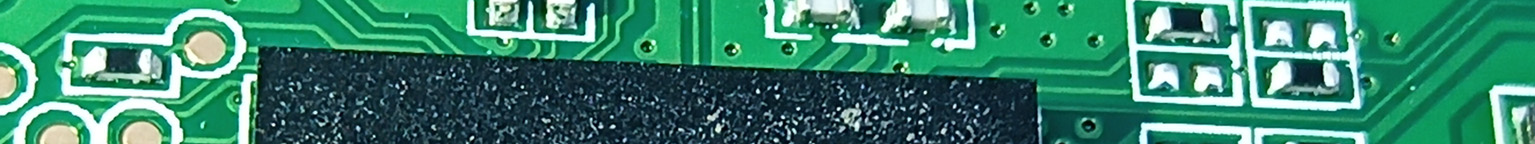

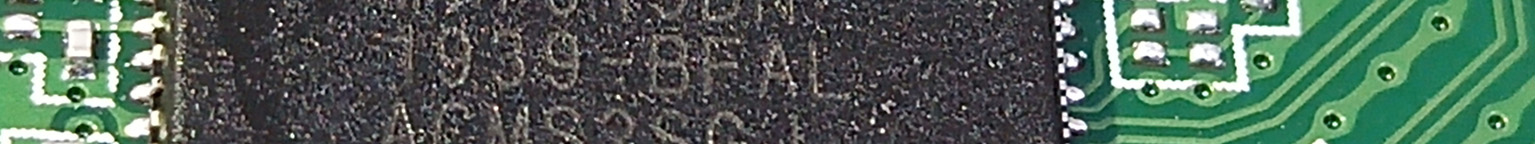

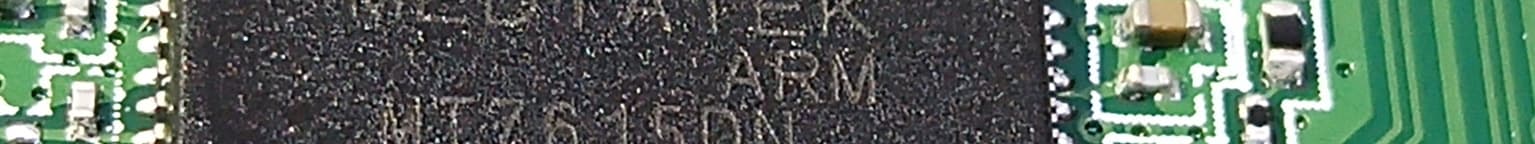

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Chip RJ45 Port Ant Port

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200305002-00B FCC Part 15.407 Page 19 of 104 §1.1307 (b) (1) & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to subpart 15.247 (i) and subpart 1.1307 (b)(1), 2.1091 systems operating under the provisions of this section shall be operated in a manner that ensures the public is not exposed to RF energy level in excess of the communication guidelines. Limits for General Population/Uncontrolled Exposure Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (Minutes) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density Result Calculated Formulary: Predication of MPE limit at a given distance S = 2 4R PG  S = power density (in appropriate units, e.g. mW/cm2) P = power input to the antenna (in appropriate units, e.g., mW). G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain. R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200305002-00B FCC Part 15.407 Page 20 of 104 Frequency (MHz) Antenna Gain Tune up conducted power Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) (dBi) (numeric) (dBm) (mW) 2412-2462 3.5 2.24 30 1000 20 0.446 1 5150-5250 6.5 4.47 19 79.43 20 0.071 1 5725-5850 6.5 4.47 21 125.89 20 0.112 1 Note: 1. the tune up conducted power was declared by the applicant 2. the 2.4G Wi-Fi can transmit at the same time with the 5G Wi-Fi. 3. For the 5G Wi-Fi, as it can support the beam-forming fucnitoin, so the antenna gain should add the 10lg2, 3.5dBi+10lg2=6.5dBi. Simultaneous transmitting consideration: The ratio=MPE 2.4G /limit + MPE 5G /limit=0.446+0.112=0.558＜1.0 So simultaneous exposure comply with the limit. To maintain compliance with the FCC’s RF exposure guidelines, place the equipment at least 20cm from nearby persons. Result: Compliance
