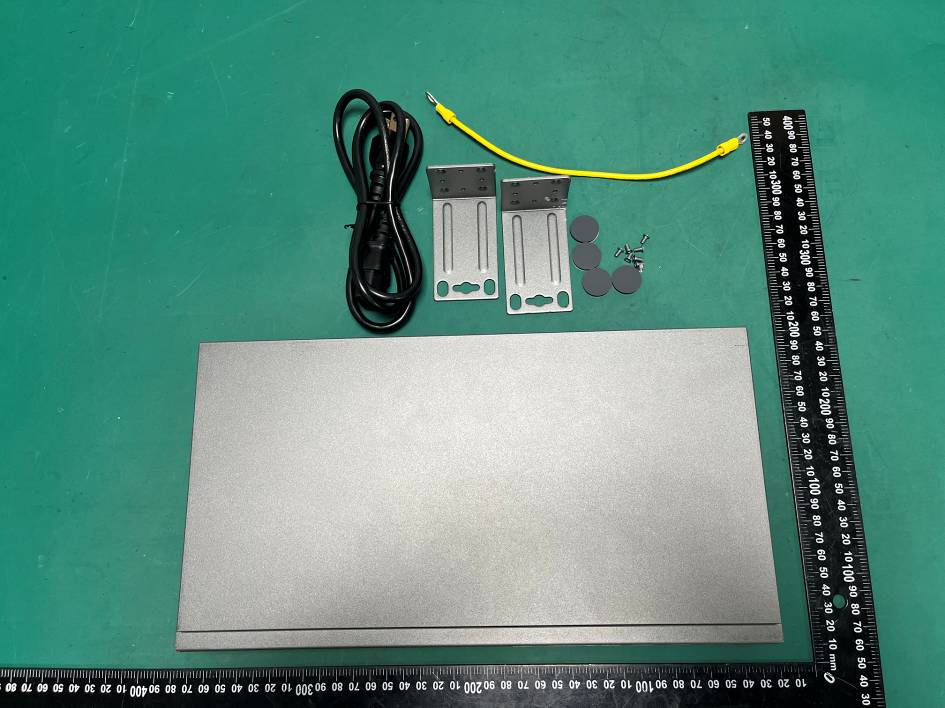

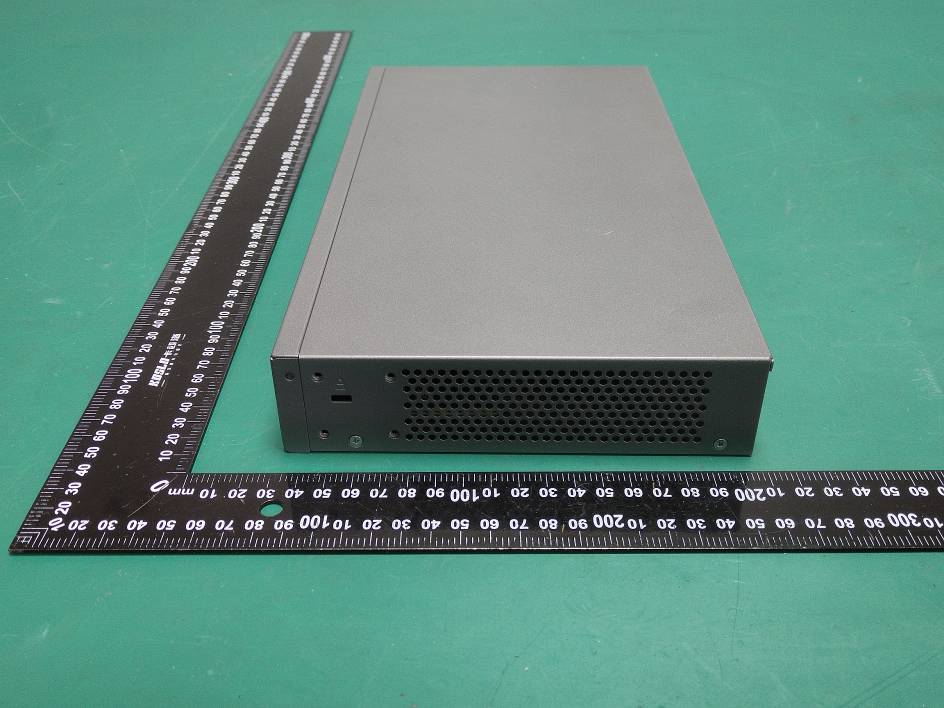

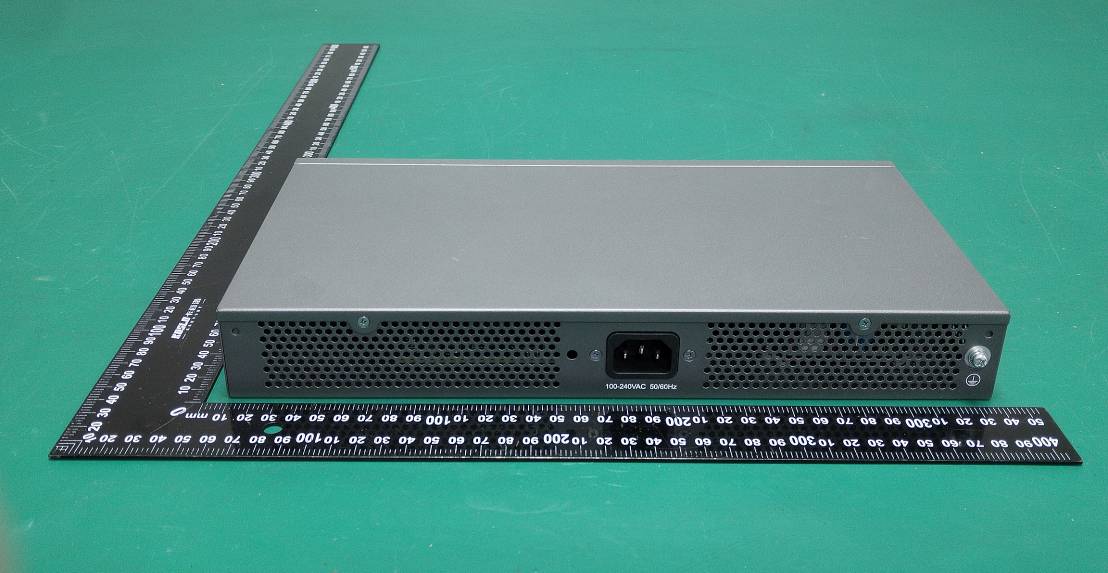

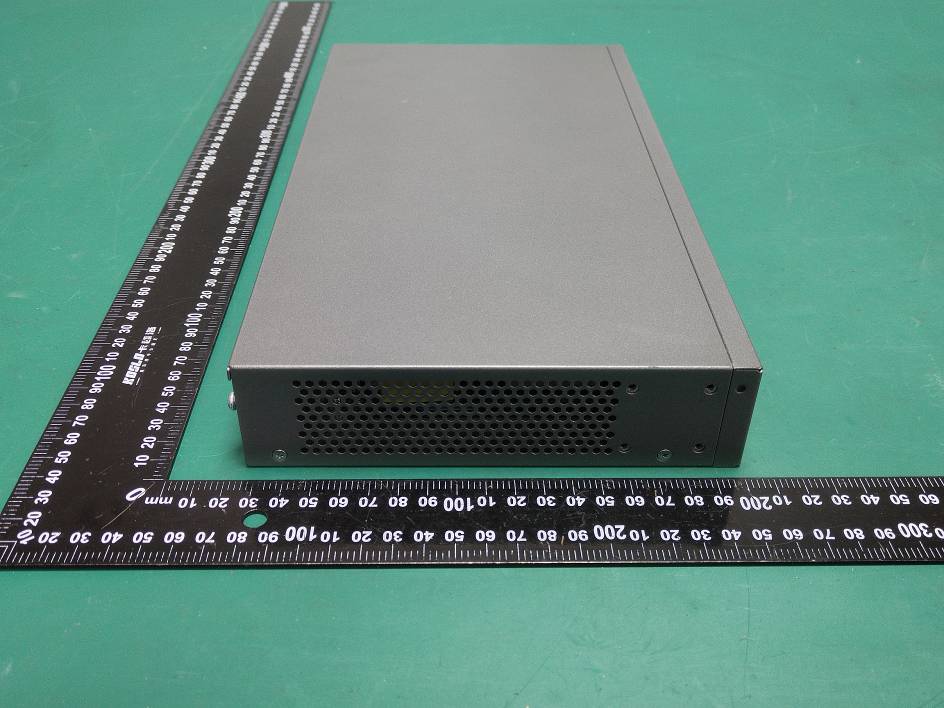

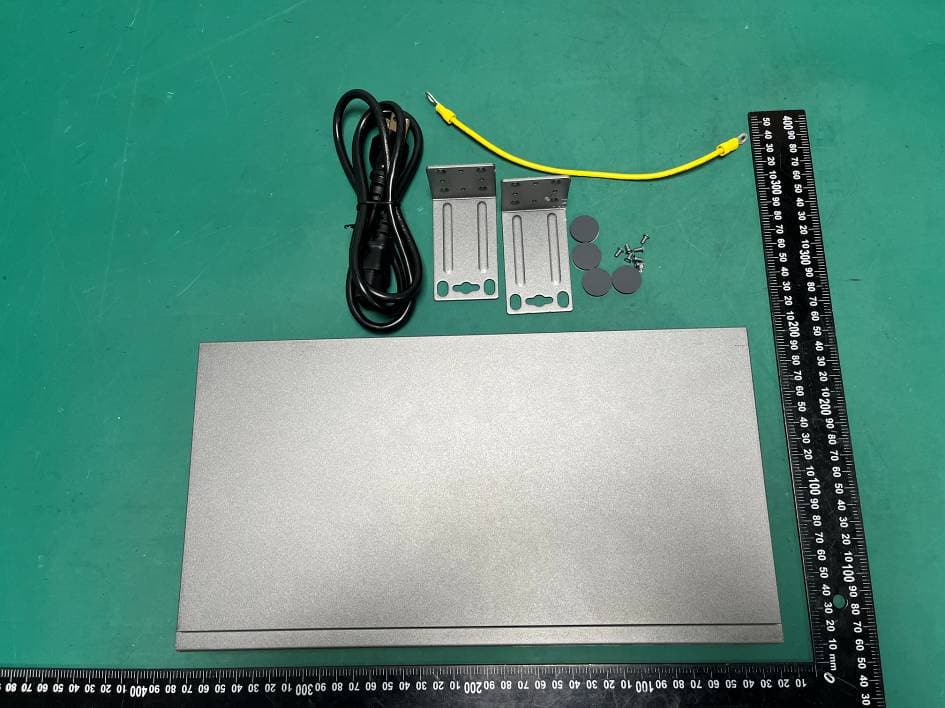

YZZGWN7801PV2Enterprise Layer 2+ Managed Network Switch

Grandstream Networks, Inc. 126 Brookline Ave, 3rd Floor Boston, MA 02215. USA Tel : +1 (617) 566 - 9300 www.grandstream.com For Certification, Warranty and RMA information, please visit www.grandstream.com GWN7800 Series Entreprise Layer 2+ Managed Network Switch Quick Installation Guide Content English...........................................................................1 Chinese..........................................................................7 Español.........................................................................10 Français........................................................................16 Deutsch.........................................................................22 Italiano..........................................................................28 Português......................................................................34 Русскй..........................................................................40 ~ 2 ~~ 1 ~ EN OVERVIEW The GWN7800 series are Layer 2+ managed network switches that allow small-to-medium enterprises to build scalable, se- cure, high performance, and smart business networks that are fully manageable. It supports advanced VLAN for fl exible and sophisticated traffic segmentation, advanced QoS for automated detection & prioritization of latency sensitive voice/video traf- fic, IGMP Snooping for network performance optimization, and comprehensive security capabilities against potential attacks. The PoE models provide smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points and other PoE endpoints. The GWN7800 series can be managed in a number of ways, including the local network controller embedded in the GWN7800 series switch, Grandstream’s free on-premise network management software (GWN Manager), as well as Grandstream’s cloud network management platform (GWN.Cloud). The GWN7800 series are best value enterprise-grade managed network switches for small-to-medium businesses. PRECAUTIONS • Do not attempt to open, disassemble, or modify the device. • Do not expose this device to temperature outside range of 0 °C to 45 °C for operation and -10 °C to 60 °C for storage. • Do not expose the GWN7800 to environments outside of the following humidity range: 10-90% RH (non-condensing) for operation and 5-95% RH (non-condensing) forstorage. • Do not power cycle your GWN7800 during system boot up or firmware upgrade. You may corrupt firmware images and cause the unit to malfunction. PACKAGE CONTENTS GWN7800 Series Switch 1x 25cm Ground Cable 1x 1.2m (10A) AC Cable PORTS & LED INDICATORS 4x Rubber Footpads 8x Screws (KM 3*6) GWN7801/GWN7801P 9 8 No.Port & LEDDescription 1Port 1-88x Ethernet RJ45 (10/100/1000Mbps), used for connecting terminals. Note: GWN7801P Ethernet ports support PoE and PoE+. 21-8 Ethernet ports’ LED indicators 3Port SFP1/2 2x 1000Mbps SFP ports 4SFP 1/2SFP ports’ LED indicators 5CONSOLE1x Console port, used for connecting managing PC 6RESET Factory Reset pinhole. Press for 5 seconds to reset factory default settings 7SYSSystem LED indicator 8100-240VAC 50-60HzPower socket 9Lightning protection grounding post 1 2 3 4 5 6 7 1x Quick Installation Guide 1x Power Cord Anti-Trip GWN7802/GWN7802P No.Port & LEDDescription 1Port 1-1616x Ethernet RJ45 (10/100/1000Mbps), used for connecting terminals. Note: GWN7802P Ethernet ports support PoE and PoE+. 21-16Ethernet ports’ LED indicators 3Port SFP1/2/3/44x 1000Mbps SFP ports 4SFP 1/2/3/4SFP ports’ LED indicators 5RESETFactory Reset pinhole. Press for 5 seconds to reset factory default settings 6SYSSystem LED indicator 7CONSOLE1x Console port, used for connecting managing PC 8100-240VAC 50-60HzPower socket 9 Lightning protection grounding post 10Fan1x Fan 2 1 3 4 5 6 7 8 9 GWN7802 GWN7802P 8 9 10 GWN7803/GWN7803P No.Port & LEDDescription 1Port 1-2424x Ethernet RJ45 (10/100/1000Mbps), used for connecting terminals. Note: GWN7803P Ethernet ports support PoE and PoE+. 21-24Ethernet ports’ LED indicators 3Port SFP1/2/3/44x 1000Mbps SFP ports 4SFP 1/2/3/4SFP ports’ LED indicators 5RESETFactory Reset pinhole. Press for 5 seconds to reset factory default settings 6SYSSystem LED indicator 7CONSOLE1x Console port, used for connecting managing PC 8100-240VAC 50-60HzPower socket 9Lightning protection grounding post 10 Fan2x Fans 1 2 4 3 5 6 7 8 9 GWN7803 8 9 10 GWN7803P Rack Mounting Kits 2x (GWN7802(P)/GWN7803(P)) Extended Rack Mounting Kits 2x (GWN7801(P)) ~ 4 ~~ 3 ~ LED Indicator LED IndicatorStatusDescription System Indicator OffPower off Solid greenBooting Flashing greenUpgrade Solid blueNormal use Flashing blue Provisioning Solid red Upgrade failed Flashing redFactory reset Port Indicator OffFor all ports, port off & For SFP ports, port failure Solid greenPort connected and there is no activity Flashing greenPort connected and data is transferring Solid yellowEthernet port connected and PoE powered Flashing yellow Ethernet port connected, data is transferring and PoE powered Alternately flashing yellow and green Ethernet port failure Powering on the Switch Connect the power cable and the switch first, then connect the power cable to the power supply system of the equipment room. POWERING & CONNECTING Grounding the Switch 1. Remove the ground screw from the back of switch, and connect one end of the ground cable to the wiring terminal of switch. 2. Put the ground screw back into the screw hole, and tighten it with a screwdriver. 3. Connect the other end of the ground cable to other device that has been grounded or directly to the terminal of the ground bar in the equipment room. Connecting Power Cord Anti-Trip 1. Place the smooth side of the fixing strap towards the power outlet and insert it into the hole on the side of it. 2. After plugging the power cord into the power outlet, slide the protector over the remaining strap until it slides over the end of the power cord. In order to protect the power supply from accidental disconnection, it’s recommended to use a p…

Text truncated - open the document above for the full version.

~ 22 ~~ 21 ~ Méthode 2 : connexion à l’aide de l’interface du port de la console Méthode 3 : Connexion à distance à l’aide de SSH/Telnet 1.Utilisez le câble de console pour connecter le port de console du switch et le port série du PC. 2.Ouvrez le programme d’émulation de terminal du PC (par exemple SecureCRT), entrez le nom d’utilisateur et le mot de passe par défaut pour vous connecter. (Le nom d’utilisateur par défaut de l’administrateur est “admin” et le mot de passe aléatoire par défaut se trouve sur l’autocollant du switch GWN7800). 1.Activez le Telnet du switch. 2.Entrez “cmd” dans PC/Démarrer. 3.Entrez “telnet <gwn7800_IP>” dans la fenêtre cmd 4.Entrez le nom d’utilisateur et le mot de passe par défaut pour vous connecter (le nom d’utilisateur par défaut de l’administrateur est “admin” et le mot de passe aléatoire par défaut se trouve sur l’autocollant du switch GWN7800). Méthode 4 : Configurer à l’aide de GWN.Cloud/GWN Manager Tapez https://www.gwn.cloud dans le navigateur, puis entrez le compte et le mot de passe pour vous connecter à la plateforme cloud. Si vous n’avez pas de compte, veuillez d’abord vous inscrire ou demander à l’administrateur de vous en attribuer un. ACCÉDER & CONFIGURER Méthode 1 : connexion à l’aide de l’interface utilisateur Web 1.Un PC utilise un câble réseau pour connecter correctement n’importe quel port RJ45 du switch. 2.Définissez l’adresse IP Ethernet (ou de connexion locale) du PC sur 192.168.0.x (“x” est une valeur comprise entre 1 et 253) et le masque de sous-réseau sur 255.255.255.0, de sorte qu’il se trouve dans le même segment de réseau avec l’adresse IP du switch. Si DHCP est utilisé, cette étape peut être ignorée. 3.Tapez l’adresse IP de gestion par défaut du switch http://<gwn7800_IP> dans le navigateur, puis entrez le nom d’utilisateur et le mot de passe pour vous connecter (le nom d’utilisateur par défaut de l’administrateur est “admin” et le mot de passe aléatoire par défaut se trouve sur l’autocollant du switch GWN7800). Les termes de la licence GNU GPL sont incorporés dans le micrologiciel dupériphérique et sont accessibles via l’interface util- isateur Web du périphérique à l’adresse http(s)://IP/gpl_license. Pour obtenir un CD contenant les informations du code source GPL, veuillez envoyer une demande écrite à [email protected] Pour plus de détails, veuillez consulter le manuel d’utilisation sur: https://www.grandstream.com/our-products Remarque: Si aucun serveur DHCP n’est disponible, l’adresse IP par défaut du GWN7800 est 192.168.0.254. DE ÜBERSICHT Die GWN7800-Serie sind Managed Layer 2+ Netzwerk-Switche, mit denen kleine und mittlere Unternehmen skalierbare, sichere, leis- tungsstarke und intelligente Unternehmensnetzwerke aufbauen können, die vollständig verwaltbar sind. Die Switche unterstützen er- weitertes VLAN für eine flexible und intelligente Segmentierung, erweitertes QoS für die automatische Erkennung und Priorisierung von latenz-sensiblen Sprach-/Videodaten, IGMP-Snooping für die Optimierung der Netzwerkleistung und umfassende Sicherheitsfunk- tionen gegen potenzielle Angriffe. Die PoE-Modelle bieten einen intelligenten und dynamischen PoE-Ausgang zur Stromversorgung von IP-Telefonen, IP-Kameras, Wi-Fi-Access Points und anderen PoE-Endgeräten. Die GWN7800-Serie kann auf verschiedene Arten verwaltet werden, darunter der lokale Netzwerk-Kontroller, der in den Switch der GWN7800-Serie eingebettet ist. Ferner können Switche über die kostenlose On-Premise-Netzwerkverwaltungssoftware von Grandstream (GWN Manager) sowie die Grandstream Cloud-Netzwerkverwaltungsplattform (GWN.Cloud) administriert werden. Die GWN7800-Serie sind preisgünstige Managed Netzwerk- Switche der Enterprise-Klasse für kleine bis mittlere Unternehmen. SICHERHEITSHINWEISE • Das Produkt darf nicht geöffnet, zerlegt oder verändert werden. • Bitte beachten Sie die zulässigen Temperaturbereiche für Nutzu ng(0°C bis 45 °C) und Lagerung (-10 °C bis 60 °C). • Das Produkt darf nur in Umgebungen mit einem relativen Luftfeuchtebereichs von 10% bis 90% (nicht kondensierend) genutzt werden. • Die Stromversorgung darf während des Start- bzw. Upgradevorgangs nicht unterbrochen werden. Dies kann die Firmware beschädigen und zu unerwünschten Fehlfunktionen führen VERPACKUNGSINHALT PORTS & LED INDIKATOR GWN7801/GWN7801P 9 8 Nr.Port & LEDBeschreibung 1Port 1-88x Ethernet RJ45 (10/100/1000Mbps), für den Anschluß von Endgeräten. Hinweis: GWN7801P Ethernet Ports unterstützen PoE und PoE+. 21-8 LED Indikatoren der Ethernet Ports 3Port SFP1/2 2x 1000MBit/s SFP Ports 4SFP 1/2LED Indikatoren der SFP Ports 5CONSOLE1 x Console Port zum Anschluss des verwaltenden PC ́s 6RESET Werkseinstellungen zurücksetzen. 5 Sekunden lang drücken, um die Werkseinstellungen zurückzusetzen. 7SYSSystem LED Indikator 8100-240VAC 50-60HzStromanschluß 99 Blitzschutz Erdungsanschluss 1 2 3 4 5 6 7 GWN7800 Switch-Serie 1x 25cm Massekabel 1x 1,2m (10A) AC Kabel 4 x Gummiunterlagen 8x Schrauben (KM 3*6) 1x Kurzinstallationsanleitung 1x Stromkabel (Stolperschutz) Rack-Montagewinkel 2x (GWN7802(P)/GWN7803(P)) Erweiterter Einbausatz zur Rack-Montage 2x (GWN7801(P)) Entrée d’air GWN7803P Entrée d’air Sortie d’air Ventilateur Panneau arrière ~ 24 ~~ 23 ~ GWN7802/GWN7802P Nr.Port & LEDBeschreibung 1Port 1-1616x Ethernet RJ45 (10/100/1000Mbps), für den Anschluß von Endgeräten. Hinweis: GWN7802P Ethernet Ports unterstützen PoE und PoE+. 21-16LED Indikatoren der Ethernet Ports 3Port SFP1/2/3/44x 1000MBit/s SFP Ports 4SFP 1/2/3/4LED Indikatoren der SFP Ports 5RESETWerkseinstellungen zurücksetzen. 5 Sekunden lang drücken, um die Werkseinstellungen zurückzusetzen. 6SYSSystem LED Indikator 7CONSOLE1 x Console Port zum Anschluss des verwaltenden PC ́s 8100-240VAC 50-60HzStromanschluß 9Blitzschutz Erdungsanschluss 10Lüfter1x Lüfter 2 1 3 4 5 6 7 8 9 GWN7802 GWN7802P 8 9 10 GWN7803/GWN7803P 1 2 4 3 5 6 7 8 9 GWN7803 8 9 10 GWN7803P Nr.Port & LEDBeschreibung 1Port 1-2424x Ethernet RJ45 (10/100/1000Mbps), für den Anschluß …
