YZZGXP2130V2IP PHONE

GXP2130/GXP2140/GXP2160 USER MANUAL Grandstream Networks, Inc. GXP2130/GXP2140/GXP2160 Enterprise IP Phone FIRMWARE VERSION 1.0.1.14 GXP2130/GXP2140/GXP2160 USER MANUAL Page 2 of 84 GXP2130/GXP2140/GXP2160 User Manual Index GUI INTERFACE EXAMPLES .................................................................... 6 GNU GPL INFORMATION .......................................................................... 7 CHANGE LOG ........................................................................................... 8 FIRMWARE VERSION 1.0.1.14 ............................................................................................................ 8 WELCOME ................................................................................................. 9 PRODUCT OVERVIEW ............................................................................ 10 FEATURE HIGHTLIGHTS ................................................................................................................... 10 GXP2130/GXP2140/GXP2160 TECHNICAL SPECIFICATIONS ........................................................ 11 INSTALLATION ........................................................................................ 16 EQUIPMENT PACKAGING ................................................................................................................. 16 CONNECTING YOUR PHONE ........................................................................................................... 16 GXP2200EXT MODULE ...................................................................................................................... 17 SAFETY COMPLIANCES .................................................................................................................... 18 WARRANTY ......................................................................................................................................... 18 GETTING TO KNOW GXP2130/GXP2140/GXP2160 ............................... 20 IDLE SCREEN ..................................................................................................................................... 20 USING THE KEYPAD .......................................................................................................................... 26 MAKING PHONE CALLS..................................................................................................................... 28 HANDSET, SPEAKER AND HEADSET MODE ........................................................................... 28 MULTIPLE SIP ACCOUNTS AND LINES ..................................................................................... 28 COMPLETING CALLS.................................................................................................................. 29 MAKING CALLS USING IP ADDRESSES ................................................................................... 31 ANSWERING PHONE CALLS ............................................................................................................ 32 RECEIVING CALLS...................................................................................................................... 32 DO NOT DISTURB ....................................................................................................................... 32 DURING A PHONE CALL .................................................................................................................... 33 CALL WAITING/CALL HOLD ....................................................................................................... 33 MUTE ............................................................................................................................................ 33 CALL TRANSFER ........................................................................................................................ 33 FIRMWARE VERSION 1.0.1.14 GXP2130/GXP2140/GXP2160 USER MANUAL Page 3 of 84 4-WAY/ 5-WAY CONFERENCING ............................................................................................... 34 VOICE MESSAGES (MESSAGE WAITING INDICATOR) ........................................................... 36 SHARED CALL APPEARANCE (SCA) ........................................................................................ 36 CALL FEATURES ................................................................................................................................ 37 CONFIGURATION GUIDE ........................................................................ 40 CONFIGURATION VIA KEYPAD ......................................................................................................... 40 CONFIGURATION VIA WEB BROWSER ........................................................................................... 46 DEFINITIONS ...................................................................................................................................... 47 STATUS PAGE DEFINITIONS ..................................................................................................... 47 ACCOUNTS PAGE DEFINITIONS ............................................................................................... 48 SETTINGS PAGE DEFINITIONS ................................................................................................. 57 NETWORK PAGE DEFINITIONS ................................................................................................. 64 MAINTENANCE PAGE DEFINITIONS ......................................................................................... 66 PHONEBOOK PAGE DEFINITIONS ............................................................................................ 69 NAT SETTINGS ................................................................................................................................... 71 WEATHER UPDATE ............................................................................................................................ 72 PUBLIC…

Text truncated - open the document above for the full version.

< Grandstream Networks, Inc. > August 8, 2014. Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: YZZGXP2130V2. Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram YZZGXP2130V2_Blcok Diagram.pdf Schematic Diagram YZZGXP2130V2_Schematic Diagram.pdf Circuit Description YZZGXP2130V2_Circuit Description.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Grandstream Networks, Inc. ---------------------------------------------------------- Ning Wei & Deputy management Address:5F,Bldg #1,No.2 Kefa Rd.,Science&Technology Park,Shenzhen,China Tel: (86)-755-26014600 Fax: (86)-755-26014601

Grandstream Networks,Inc. FCC ID:YZZGXP2130V2 POWER OF ATTORNEY (August 5 th ,2014) Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We,(Grandstream Networks,Inc.) the undersigned, hereby authorize ECMG Electronic Technical Testing Corp.(MR.Jawen Yin, EMC Manager) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by ECMG Electronic Technical Testing Corp. (MR.Jawen Yin,EMC Manager)on our behalf shall have the same effect as acts of our own. This authorization expires on (February 4 th ,2015). This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, (Grandstream Networks,Inc.), are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section.

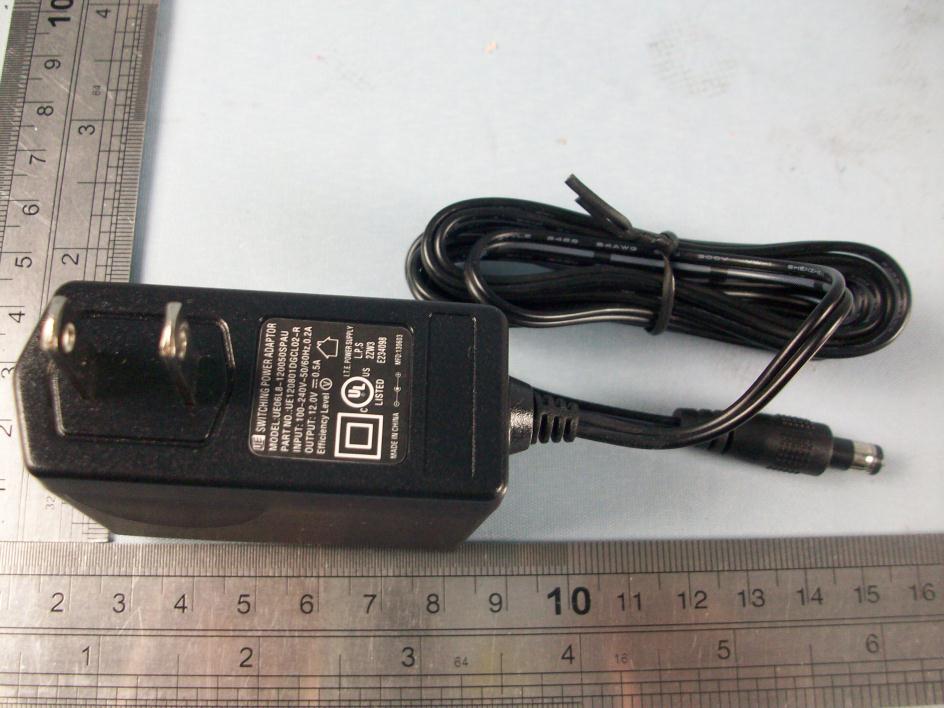

1 of 4 EUT External Photos for model GXP2130 EUT- Front View EUT- Rear View EUT- Top View EUT- Bottom View EUT- Right Side View EUT- Left Side View Power Adaptor #1 View (Manufacturer: Mass Power) Power Adaptor #2 View (Manufacturer: UE power)

1177 FCC Label

1 of 8 Internal Photo (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo (6) EUT Photo (7) EUT Photo (8) EUT Photo (9) EUT Photo (10) EUT Photo (11) EUT Photo (12) EUT Photo (13) EUT Photo (14) EUT Photo (15) EUT Photo

Description Of Circuit This wireless module(RDA5876A) complies with Bluetooth 2.1 + EDR specification and it could achieve up to a speed of 3Mbps with EDR mode. The integrated module provides UART HCI interface for Bluetooth. It supports π/4 DQPSK and 8DPSK modulation and operates in 2402~ 2480 MHz bands. And this device provided of transmitting speed: GFSK (1Mbps), π/4-DQPSK (2Mbps), 8DPSK (3Mbps) for bluetooth. The device of RF carrier is DPSK,DQPSK for bluetooth. This device uses an PCB Antenna with peak gain is 2dBi. For more antenna information as below: Antenna information: Antenna Name Specifications 2.4G Buletooth Antenna Frequency 2.4~2.5GHz Impedance 50 0hm Nominal Frequency Range: 2.4GHz~2.5GHz Connector Type/ Maximum Gain soldering /2dBi Antenna Type/ Pattern: PCB Antenna Measurement: L=60mm(Tin) Antenna Material FR4 The other instruction, please have a look at the user’s manual.

www.ecmg-global.net EMI TEST REPORT On Model Name: IP Phone Model Number: GXP2130 Brand Name: Grandstream Prepared for Grandstream Networks, Inc. FCC ID Number: YZZGXP2130V2 According to FCC 47 CFR Part 15, Subpart B Test Report #: SHE-1408-11202-FCC Tested by: MRT Andy Zhu /Engineer Company Name Reviewed by: ECMG Jawen Yin/ Senior Engineer Company Name QC Manager: ECMG Swall Zhang/QC Manager Company Name Test Report Released by: sep.16 th , 2014   Swall Zhang Date Test Location Tests performed in a Certified ANSI Semi-Anechoic Chamber and Shielded Room. Test Site Location: MRT Technology (Suzhou) co., Ltd. D8 Building, Youxin Industrial Park, No.2 Tian’edang Rd., Wuzhong Economic Development Zone, Suzhou, China Accreditation Bodies The test facility was recognized, certified, or accredited by the following organizations:  MRT Lab is accredited to ISO 17025 by the American Association for Laboratory Accreditation (A2LA) under the American Association for Laboratory Accreditation Program (A2LA Cert. No. 3628.01) in EMC, Telecommunications and Radio testing for FCC, Industry Canada, EU and TELEC Rules.  MRT facility is a FCC registered (MRT Reg. No. 809388) test facility with the site description report on file and has met all the requirements specified in Section 2.948 of the FCC Rules and Industry Canada (11384A-1).  MRT facility is an IC registered (11384A-1) test laboratory with the site description on file at Industry Canada. Table of Contents GOVERNMENT DISCLAIMER NOTICE ____________________________________________ 2 REPRODUCTION CLAUSE _______________________________________________________ 2 OPINIONS AND INTERPRETATIONS _____________________________________________ 2 STATEMENT OF MEASUREMENT UNCERTAINTY _________________________________ 2 ADMINISTRATIVE DATA ________________________________________________________ 3 EUT DESCRIPTION ______________________________________________________________ 4 TEST SUMMARY ________________________________________________________________ 5 TEST MODE JUSTIFICATION ____________________________________________________ 6 EUT EXERCISE SOFTWARE ______________________________________________________ 6 EQUIPMENT MODIFICATION ____________________________________________________ 6 §15.33 FREQUENCY RANGE OF RADIATED MEASUREMENTS _____________________ 7 EUT SAMPLE PHOTOS FOR MODEL GXP2130 ____________________________________ 8 TEST SYSTEM DETAILS ________________________________________________________ 16 ATTACHMENT 1 - CONDUCTED EMISSION TEST RESULTS ______________________ 19 ATTACHMENT 2 – RADIATED EMISSION MEASUREMENT _______________________ 24 FCC Test Report #: SHE-1408-11202-FCC Prepared for Grandstream Networks, Inc. Prepared by ECMG Electronic Technical Testing Corp (Shenzhen) Page 1 of 38 List Attached Files Exhibit Type File Description File Name Test Report Test Report YZZGXP2130V2 _Test report.pdf Operation Description Technical Description YZZGXP2130V2_operation description.pdf External Photos External Photos YZZGXP2130V2_External Photos Internal Photos Internal Photos YZZGXP2130V2_Internal Photos Block Diagram Block Diagram YZZGXP2130V2_Block Diagram.pdf Schematics Circuit Diagram YZZGXP2130V2 _Schematics.pdf ID Label/Location Label and Location YZZGXP2130V2_Label & Location.pdf User Manual User Manual YZZGXP2130V2 _User Manual.pdf Test set-up photos Test set-up photos YZZGXP2130V2 _Test Set-up Photos FCC Test Report #: SHE-1408-11202-FCC Prepared for Grandstream Networks, Inc. Prepared by ECMG Electronic Technical Testing Corp (Shenzhen) Page 2 of 38 Government Disclaimer Notice When government drawing, specification, or other data are used for any purpose other than in connection with a definitely related government procurement operation, the United States Government thereby incurs no responsibility nor any obligation whatsoever; and the fact that the Government may have formulated, furnished, or in any way supplied the said drawing, specifications, or other data, is not to be regarded by implication or otherwise in any manner licensing the holder or any other person or corporation, or conveying any rights or permission to manufacture, use, or sell patented invention that may in any way be related thereto.This report must not be used to claim product endorsement by NVLAP or any agency of the U.S. Government. Reproduction Clause Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from ECMG Electronic Technical Testing Corp (Shenzhen). Opinions and Interpretations This test report relates to the abovementioned equipment under test (EUT).Without the permission of ECMG Electronic Technical Testing Corp (Shenzhen) Test Lab this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark on this or similar products. The manufacturer has sole responsibility of continued compliance of the device. Statement of Measurement Uncertainty The data and results referenced in the document are true and accurate. The reader is cautioned that there may be errors within the calibration limits of the equipment and facilities that can account for a nominal measurement error. Furthermore, component and process variability of devices similar to that tested may result in additional deviation. FCC Test Report #: SHE-1408-11202-FCC Prepared for Grandstream Networks, Inc. Prepared by ECMG Electronic Technical Testing Corp (Shenzhen) Page 3 of 38 Administrative Data Test Sample : IP Phone Model Numbers : GXP2130 Model Tested : GXP2130 Receipt Date : Aug.8 th , 2014 Date Tested : Sep.10 th , 2014 Applicant : Grandstream Networks, Inc. Address 5F, Bldg #1, No.2 Kefa Rd., Science & Technology Park, Shenzhen, China Telephone : (86)-755-26014600 Fax : (86)-755-26014601 Manufacturer : Grandstream Networks, Inc. Address 5F, Bldg #1, No.2 Kefa Rd., Science & Technology Park, Shenzhen, China Telephone : (86)-755-26014600 Fax : (86)-755-26…

Text truncated - open the document above for the full version.

Description: Front View of Conducted Emission Description: Rear View of Conducted Emission Description: Radiated Emission Test Setup for 9kHz ~ 30MHz Description: Radiated disturbance Test Setup for 30MHz ~ 1GHz Description: Radiated disturbance Test Setup for 1GHz ~ 18GHz
