YZZGXP2200IP Phone

Grandstream Networks, Inc. www.grandstream.com Grandstream Networks, Inc. GXP2200 Enterprise Application Phone User Manual GXP2200 USER MANUAL Page 1 of 131 GXP2200 User Manual Index GNU GPL INFORMATION........................................................................... 9 CHANGE LOG........................................................................................... 10 FIRMWARE VERSION 1.0.1.9 ............................................................................................................ 10 WELCOME ................................................................................................ 11 PRODUCT OVERVIEW ............................................................................. 12 FEATURE HIGHTLIGHTS ................................................................................................................... 12 GXP2200 TECHNICAL SPECIFICATIONS ......................................................................................... 13 INSTALLATION ......................................................................................... 15 EQUIPMENT PACKAGING ................................................................................................................. 15 CONNECTING YOUR PHONE............................................................................................................ 15 GXP2200 EXTENSION BOARD.......................................................................................................... 16 SAFETY COMPLIANCES.................................................................................................................... 18 WARRANTY......................................................................................................................................... 18 GETTING TO KNOW GXP2200 ................................................................ 19 USING THE TOUCHSCREEN............................................................................................................. 19 IDLE SCREEN ..................................................................................................................................... 20 SETTING UP HOME SCREEN .................................................................................................... 20 ADDING IDLE SCREENS ............................................................................................................21 DELETING IDLE SCREENS ........................................................................................................ 21 IDLE SCREEN ICONS ................................................................................................................. 22 ONSCREEN KEYBOARD.................................................................................................................... 24 USING THE KEYPAD .......................................................................................................................... 26 USING THE MESSAGE WAITING INDICATOR.................................................................................. 28 MANAGING STATUS BAR .................................................................................................................. 28 MAKING PHONE CALLS.......................................................................... 31 REGISTERING SIP ACCOUNTS ........................................................................................................31 HANDSET, SPEAKER AND HEADSET MODE................................................................................... 32 MAKING A CALL.................................................................................................................................. 32 DIRECT IP CALL ................................................................................................................................. 35 ANSWERING A CALL.......................................................................................................................... 36 GXP2200 USER MANUAL Page 2 of 131 CALL HOLD ......................................................................................................................................... 39 CALL WAITING .................................................................................................................................... 39 CALL TRANSFER................................................................................................................................ 40 5-WAY CONFERENCE ........................................................................................................................ 41 VOICEMAIL（MESSAGE WAITING INDICATION）.......................................................................... 44 MUTE ................................................................................................................................................... 45 DND ..................................................................................................................................................... 45 CALL FORWARD................................................................................................................................. 45 GXP2200 APPLICATIONS ........................................................................ 48 CUSTOMIZING IDLE SCREENS ........................................................................................................48 ADDING AN ITEM TO IDLE SCREEN ......................................................................................... 48 MOVING AN ITEM ON IDLE SCREEN ........................................................................................ 49 REMOVING AN ITEM FROM IDLE SCREEN.............................................................................. 49 CHANGING IDLE SCREEN WALLPAPER .................................................................................. 50 MANAGING APPS AND WIDGETS.................................................................…

Text truncated - open the document above for the full version.

GXP2200 Project System block Diagram Page 1/1 Title: Project System block Diagram Owner: Tongfei Ling Reviewers: Bencong REVISION HISTORY Version Date Changed ByChanges 2.2A 2012-9-24 Tongfei Ling First release edition N/C N/C N/C N/C Over View: 1. GXP2200 System Block Diagram: GXP2200 System Block Diagram 2.402GHz-2.480GHz

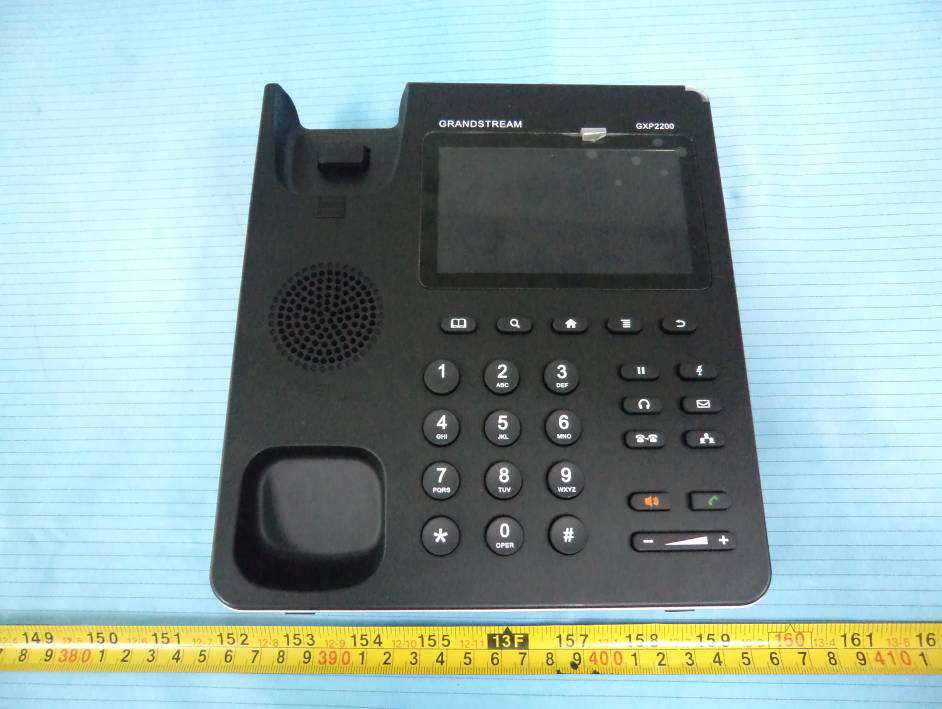

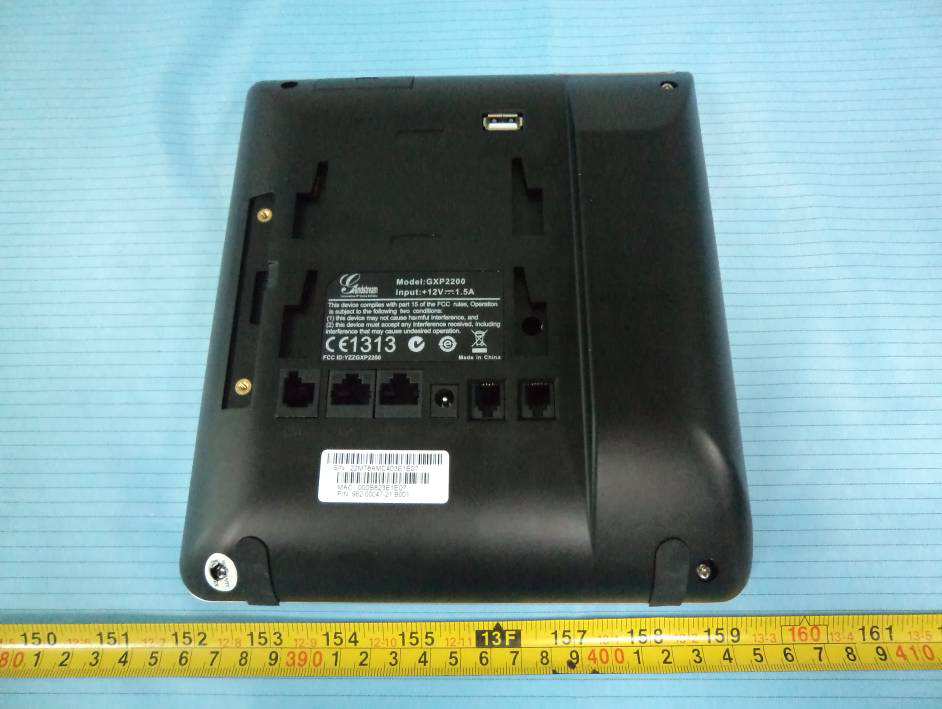

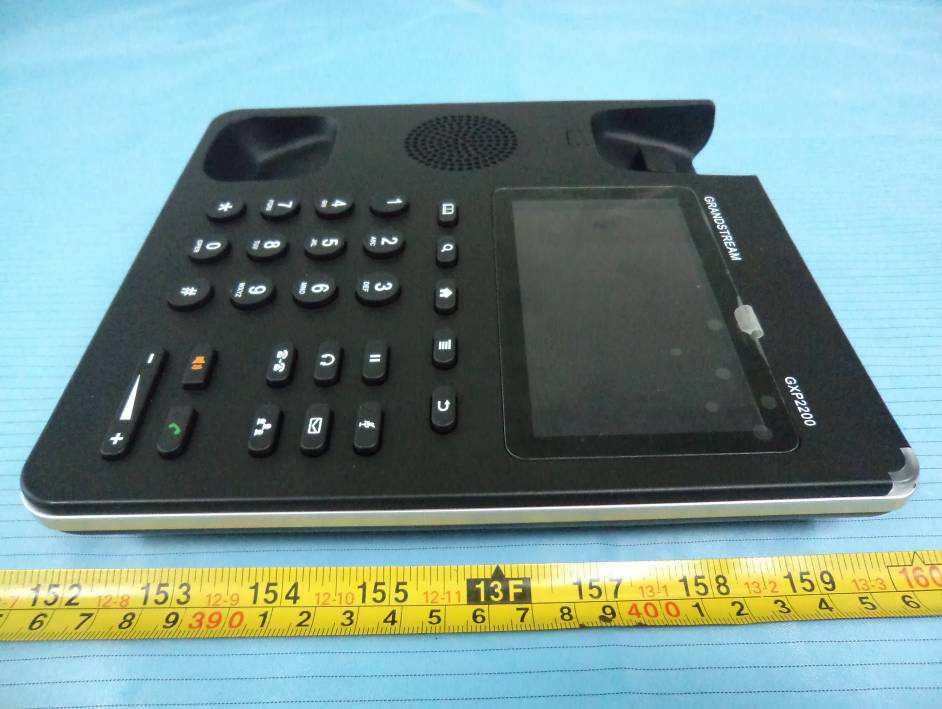

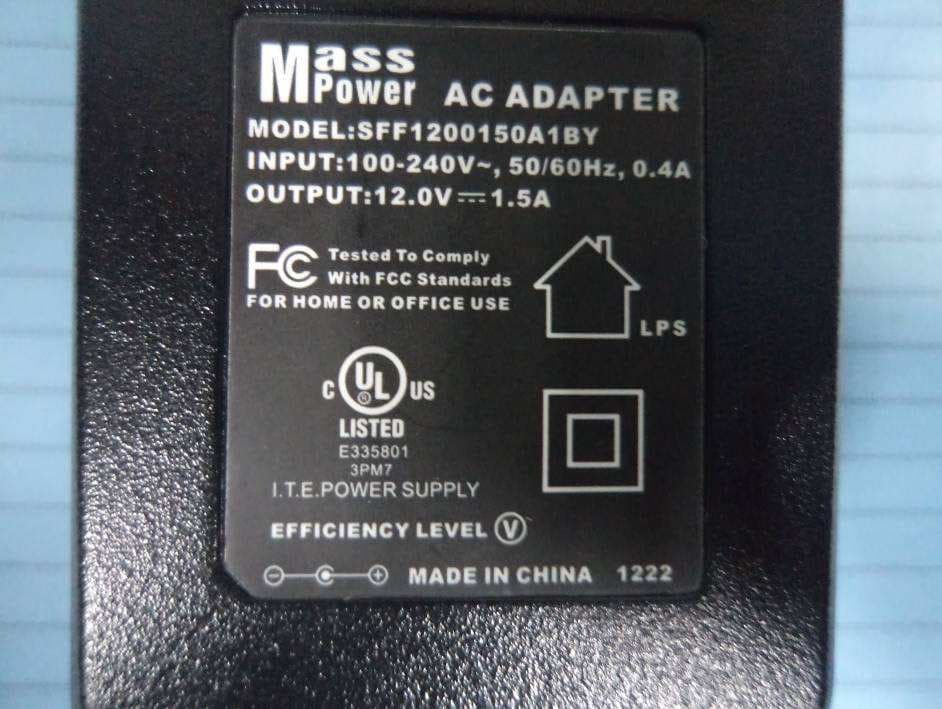

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – All View EUT (Base) – Front View EUT (Base) – Rear View EUT (Base) – Top View EUT (Base) – Bottom View EUT (Base) – Left Side View EUT (Base) – Right Side View EUT (Handset) – Top View Accessory – Extension Board Front View Accessory – Extension Board Bottom View EUT – Adapter View EUT – Adapter Label View

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925) Label here

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT (Base) – Cover off View EUT (Base) – Main Board Top View BT Antenna EUT (Base) – Main Board Bottom View EUT (Base) – Key Board Top View EUT (Base) – Key Board Bottom View EUT (Base) – LCD Top View EUT (Base) – LCD Bottom View EUT (Handset) – Cover off View

GXP2200 Project System Circuits Description Page 1/2 Title: GXP2200 Circuits Description General description GXP2200 comprises the following subsystems: •The ARM + Cortex multimedia processor •Two external Ethernet Switch,one for LAN,one for PC. • Four external SDRAM code execution and data •A iNAND flash for code/data storage •MMI parts as keyboard, LED and acoustic components GXP2200 include MB, KP, Power Adapter; MB: - DMW96 DMW96 is a third generation System on a Chip(SoC),a member of the DSP XpandR TM chipset.DMW96 is a highly integrated family of wireless multimedia processors that implements a multicore architecture for improved performance in wireless, connected multimedia applications. The DMW96 family is based on an ARM Cortex TM A8 with video and graphic hardware accelerators for video,audio and 2D/3D applications,along with two wireless moderns supporting 802.11 and DECT protocols.It is available with a communication (cordless) subsystem based on the ARM926EJ-S TM core, voice coprocessor engines, and a security subsystem. The DMW96 family targets multimedia home applications that require video,audio and voice capabilities together with a rich, interactive and easy-ot-use graphical user interface. - SDRAM Memory SDRAM is a high-speed synchronous dynamic random access memory,organized as 1GBIT*4,WIDE 8 bit(512MB),up to 246MHz Clock Frequency, it connect DMW96 with GXP2200 Project System Circuits Description Page 2/2 memory interface,boot and program is run in SDRAM; - Flash The Flash is a 4GB memory, it used for store program, it connect with DMW96; - Ethernet Switch Ethernet Switch can support one 10/100/1000 Manage . it connect with LAN port that used to transmission data, LAN port connect with Ethernet; - Power Module Power Module is supply +1V3D, +1V8D,+3V3D ,+5VD,+1V0D, +1V2D,VDD_MICREF voltage, It contain 1 LDOS and 5 DC-DC; +1V0D is used for Ethernet core; + 1V3D is used for DMW96 core; + 1V8D is used for DMW96 1V8D I/O GPIO,CODEC and DDR2 SDRAM; + 3V3D is used for DMW96 3V3D I/O,iNAND flash,Ethernet,Bluetooth,SD Card,LCD,CODEC and LEDs; +5VD is used for LCD backlight，CODEC amplifier and USB port; POE Module supply +10.8V voltage. GXP2200 TECHNICAL SPECIFICATIONS Table 1: GXP2200 TECHNICAL SPECIFICATIONS Protocols and Standards SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, IPv6, TLS, SRTP Network Interfaces Dual switched 10/100/1000Mbps ports with integrated PoE Graphic Display 480x272 capacitive touch screen TFT LCD Bluetooth Yes, integrated Auxiliary Ports RJ9 headset jack (allowing EHS with Plantronics headsets), USB, SD, extension module port Feature Keys 10 function keys for MUTE, HOLD, PHONEBOOK, MESSAGE, HEADSET, TRANSFER, CONFERENCE, VOLUME, SPEAKER, SEND/REDIAL, 4 Android navigations control keys for HOME, MENU, SEARCH, BACK Voice Codec Support for G.711u/a, G.722 (wide-band), G.729A/B Audio Codec AAC, MP3, AMR, WAVE, MIDI, Vorbis Video Decoder H.264 BP/MP/HP, H.263/H.263+, MPEG4, up to 1080p resolution Telephony Features Hold, transfer (unconditional/no answer/busy), forward, call park/pickup, 5-way conference, shared-call-appearance (SCA)/bridged-line-appearance (BLA), virtual BLF/speed-dial extensions, downloadable phone book (XML, LDAP, up to 1000 items), call waiting, call log (up to 500 records), boss-secretary virtual button, flexible dial plan, hot desking, personalized music ringtones, server redundancy and fail-over Sample Applications Skype, Google Voice, Microsoft LYNC, Web browser, Adobe Flash, Facebook, Twitter, Youtube, news/weather/stock, Internet Radio, Pandora, Last.fm, Yahoo Flickr, Photobucket, alarm clock, Google Calendar, PBX-in-phone, mobile phone data import/export via Bluetooth, and etc. API/SDK available for advanced custom application development Applications Deployment Allow various Android 2.3 compliant applications to be developed, downloaded and run in the embedded device with provisioning control HD Audio Yes, HD handset and speakerphone with support for wideband audio Base Stand Yes, integrated stand with 2 adjustable angles QoS Layer 2 (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS Security User and administrator level passwords, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, TLS, SRTP, HTTPS, 802.1x media access control Multi-language English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, Chinese, Korean, Japanese and etc Upgrade and Provisioning Firmware upgrade via TFTP/HTTP/HTTPS or local HTTP upload, mass provisioning using TR-069 or AES encrypted XML configuration file Power and Green Energy Efficiency Universal power adapter: Input: 100-240VAC 50-60Hz; Output: 12VDC, 1.5A (supplying power for up to 4 cascaded GXP2200EXT) Integrated Power-over-Ethernet (802.3af, class 0); Max power consumption 10W (power adapter, no GXP2200EXT), 12W (PoE, no GXP2200EXT), or 18W (power adapter only, with 4 cascaded GXP2200EXT) Physical Unit dimension: 188mm (W) x 210mm (H) x 85mm (D) (handset onhook) Unit weight: 0.86kg Package weight: 1.42kg Temperature and Humidity 32-104 o F / 0-40 o C, 10-90% (non-condensing) Package Content GXP2200 phone, handset with cord, universal power supply, network cable, quick start guide Compliance FCC Part 15 (CFR 47) Class B; EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1; AS/NZS CISPR 22 Class B, AS/NZS CISPR 24, RoHS; UL 60950 (power adapter) RF Specification Transmitter Frequency: 2402~ 2408 MHz Receiver Frequency: 2402~ 2408 MHz RF-Output Power (E.I.R.P): 0dBm Type of Modulation: GFSK Antenna Name Model(s)/Type(s) Model/Part Number: SLB-100030060 Manufacturer: Cambridge Semiconductor, CamSemi Frequency Range: 2.4GHz~2.5GHz Connector Type/ Maximum Gain soldering /2dBi Antenna Type/ Pattern: PCB Antenna Antenna information: RF Antenna Assembly Measurement: L=60mm(Tin)

55 44 33 22 11 D D C C B B A A SizeDate: DWG NO Rev Sheet of BOARD:PRODUCT: Designer: 2.1A Wednesday, April 25, 2012 1 11 B GXP2200 <PCB PART NUMBER> FRAMEWORK IP Phone Group SizeDate: DWG NO Rev Sheet of BOARD:PRODUCT: Designer: 2.1A Wednesday, April 25, 2012 1 11 B GXP2200 <PCB PART NUMBER> FRAMEWORK IP Phone Group SizeDate: DWG NO Rev Sheet of BOARD:PRODUCT: Designer: 2.1A Wednesday, April 25, 2012 1 11 B GXP2200 <PCB PART NUMBER> FRAMEWORK IP Phone Group +1V0D +1V0DImax=2000mA DC-DC MP1472 +3V3D+3V3D+3V3D+3V3D+3V3D+3V3D Headset RJ9 +12VD EXT*4 +12V 750mA +3V3D Output:Imax=2000mATarget need:500mA Target Power Consumers EMMC FLASH USB DDR21Gbit (4GByte) Audio HF MICHF SPK Codec SD CARD Switch/Phy Transformer FRAMEWORK-SYSTEM FRAMEWORK-POWER ADAPTEROUTPUT:+12V-1.5A +10V8_POEOUTPUT:12.95W +3V3DImax=2A DC-DC Handset RJ9 JTAG/UART HKSW KEYPAD POWERDC JACK POWER SUPPLY DDR21Gbit DDR21Gbit DDR21Gbit +12VD TouchScreen4.3'LCD LCDBacklight WAN RJ45PC RJ45 POE BLUETOOTH EXT*4 Output:Imax=1500mATarget need:1.4Apower up First power up Fifthpower up Fourth +12VD Output:Imax=2000mATarget need:409mA MP1472 +12VD +1V3DImax=2A DC-DC +1V3D Output:Imax=2000mATarget need:1200mApower up Second MP1472 DC-DC +1V8D+1V8D +1V8DImax=2A Target need:600mAOutput:Imax=2000mA +1V8D +12VD power up Third MP1472 +5VD+5VD+5VD 4.3'LCD 5V 50mA5V 750mA USB +5VD AUDIO AMPLIFIER 5V 50mA 4.3'LCD Backlight 5V 200mA DC-DC +12VD power up sixthOutput:Imax=2000mATarget need:1050mA +5VDImax=2A MP1472 55 44 33 22 11 D D C C B B A A +1V8D +12VD +10V8D_POE +3V3D VDD_MICREF +1V3D +12VD +12VD +3V3D+5VD +12VD+12VD +3V3D +1V0D +12VD +3V3D SizeDate: DWG NO Rev Sheet of BOARD:PRODUCT: Designer: 2.1A Wednesday, April 25, 2012 2 11 B GXP2200 <PCB PART NUMBER> POWER IP Phone Group SizeDate: DWG NO Rev Sheet of BOARD:PRODUCT: Designer: 2.1A Wednesday, April 25, 2012 2 11 B GXP2200 <PCB PART NUMBER> POWER IP Phone Group SizeDate: DWG NO Rev Sheet of BOARD:PRODUCT: Designer: 2.1A Wednesday, April 25, 2012 2 11 B GXP2200 <PCB PART NUMBER> POWER IP Phone Group Vout=0.923*(1+R114/R115)=1.80VVout=0.923V*(1+R106/R108)=1.31V Vout=0.923V*(1+R118/R119)=3.30V Vout=0.8V*(1+R122/R123)=5.05V For USB,LCDImax = 2000mA Imax = 2000mA Imax = 2000mAImax = 2000mA Vout=0.923*(1+R110/R111)=1.02VImax = 2000mA Vout=1.242V*(1+R104/R103)=2.04V J101DS-201SJ101DS-201S 123 0402 * C13110nF/50V 0402 * C13110nF/50V 0402 * C141100nF/16V 0402 * C141100nF/16V 0603 * R116100K 0603 * R116100K 1206 * C10910uF/16V 1206 * C10910uF/16V 0603 * C1345.6nF/50V 0603 * C1345.6nF/50V 0402 *C110100nF/16V 0402 *C110100nF/16V 0805 * C105 10uF/6.3V 0805 * C105 10uF/6.3V 0603 * R114 10K(1%) 0603 * R114 10K(1%) EC-8 C103220uF/16V EC-8 C103220uF/16V 0402 * C101220pF 0402 * C101220pF 0603 * C1542.2nF/50V 0603 * C1542.2nF/50V TP TP107VDD_MICREF TP TP107VDD_MICREF 0603 * R1035.1K 0603 * R1035.1K 0603 * C125NC(DNI) 0603 * C125NC(DNI) 1206 * C15210uF/16V 1206 * C15210uF/16V 0402 * C148100nF/16V 0402 * C148100nF/16V 0603 * R104 3.3K 0603 * R104 3.3K 0603 * R11910K(1%) 0603 * R11910K(1%) 0805 * C13610uF/6.3V 0805 * C13610uF/6.3V TP TP106+5VD TP TP106+5VD 0603 * R102 100K 0603 * R102 100K 0402 * C12010nF/50V 0402 * C12010nF/50V 1206 * C13910uF/16V 1206 * C13910uF/16V 0603 * R11510.5K 0603 * R11510.5K 0402 * C12710nF/50V 0402 * C12710nF/50V U106MP1472U106MP1472 SS 1 EN 2 COMP 3 FB 4 GND 5 SW 6 IN 7 BS 8 0603 * R122 47K 0603 * R122 47K 0603 * R105100K 0603 * R105100K U104MIC5205YM5U104MIC5205YM5 VIN 1 EN 3 GND 2 VOUT 5 ADJ 4 0603 * R110 1.1K 0603 * R110 1.1K * L103SF54-150M * L103SF54-150M 0805 * C14610uF/6.3V 0805 * C14610uF/6.3V TP TP112GND TP TP112GND EC-8 C112220uF/16V EC-8 C112220uF/16V 0603 * R1133.3K 0603 * R1133.3K + SIZE-A C10447uF/6.3V + SIZE-A C10447uF/6.3V + SIZE-A C14347uF/6.3V(DNI) + SIZE-A C14347uF/6.3V(DNI) TP TP111GND TP TP111GND * L105SF54-150M * L105SF54-150M 0402 * C121100nF/16V 0402 * C121100nF/16V + SIZE-A C14047uF/6.3V(DNI) + SIZE-A C14047uF/6.3V(DNI) 0402 * C108100nF/16V 0402 * C108100nF/16V 0603 * R11110K(1%) 0603 * R11110K(1%) 1206 * C12910uF/16V 1206 * C12910uF/16V TP TP110GND TP TP110GND 0603 * C145 NC(DNI) 0603 * C145 NC(DNI) 0402 *C133100nF/16V 0402 *C133100nF/16V 0402 *C106100nF/16V 0402 *C106100nF/16V * L102SF54-150M * L102SF54-150M 0603 * C115 NC(DNI) 0603 * C115 NC(DNI) + SIZE-A C12247uF/6.3V + SIZE-A C12247uF/6.3V 0603 * R12110K 0603 * R12110K TP TP109GND TP TP109GND TP TP108GND TP TP108GND 0603 * R10824.9K 0603 * R10824.9K 1206 * C11910uF/16V 1206 * C11910uF/16V 0603 * C155 NC(DNI) 0603 * C155 NC(DNI) 0402 * C13210nF/50V 0402 * C13210nF/50V TP TP104+1V8D TP TP104+1V8D B101BLM21PG221SN1B101BLM21PG221SN1 0603 * R120100K 0603 * R120100K 0402 * C11810nF/50V 0402 * C11810nF/50V U101MP1472U101MP1472 SS 1 EN 2 COMP 3 FB 4 GND 5 SW 6 IN 7 BS 8 U103MP1472U103MP1472 SS 1 EN 2 COMP 3 FB 4 GND 5 SW 6 IN 7 BS 8 0603 * C135 NC(DNI) 0603 * C135 NC(DNI) U105MP1472U105MP1472 SS 1 EN 2 COMP 3 FB 4 GND 5 SW 6 IN 7 BS 8 0603 * R118 26.1K 0603 * R118 26.1K 0402 * R101 1K 0402 * R101 1K TP TP101+12VD TP TP101+12VD TP TP105+3V3D TP TP105+3V3D 0402 * C11310nF/50V 0402 * C11310nF/50V 0402 * C11410nF/50V 0402 * C11410nF/50V 0402 *C137100nF/16V 0402 *C137100nF/16V 0603 * R1092K 0603 * R1092K 0805 * C10710uF/6.3V 0805 * C10710uF/6.3V 0402 *C153100nF/16V 0402 *C153100nF/16V 0402 * C128100nF/16V 0402 * C128100nF/16V * L101SF54-150M * L101SF54-150M 0805 * C11610uF/6.3V 0805 * C11610uF/6.3V EC-8 C142220uF/16V EC-8 C142220uF/16V * L104SF54-150M * L104SF54-150M TP TP102+1V3D TP TP102+1V3D 0805 * C12610uF/6.3V 0805 * C12610uF/6.3V B102BLM21PG221SN1B102BLM21PG221SN1 TP TP113+1V0D TP TP113+1V0D 0402 * C158100nF/16V 0402 * C158100nF/16V + SIZE-A C14747uF/6.3V + SIZE-A C14747uF/6.3V 0402 * C12410nF/50V 0402 * C12410nF/50V 0603 * R12310.5K 0603 * R12310.5K 0603 * R1072K 0603 * R1072K 0603 * R1175.6K 0603 * R1175.6K 0402 * C123100nF/16V(DNI) 0402 * C123100nF/16V(DNI) 0603 * C1443.3nF/50V 0603 * C1443.3nF/50V 1206 * C14910uF/16V 1206 * C14910uF/16V EC-8 C111220uF/16V EC-8 C111220uF/16V U102MP1472U102MP1472 SS 1 EN 2…

Text truncated - open the document above for the full version.

Note: This test report is prepared for the customer shown above and for the equipment described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, or any agency of the Federal Government. * This report may contain data that are not covered by the NVLAP accreditation and shall be marked with an asterisk “★” FCC PART 15.247 TEST REPORT For Grandstream Networks, Inc. 5F, Bldg. #1, No.2 Kefa Road, Science & Technology Park, Shenzhen, Guangdong, China Report Type: Original Report Product Name: Wireless IP Phone Test Engineer: Jimmy Xiao Report Number: RSZ120919011-00 Report Date: 2012-09-27 Reviewed By: Suny Sun EMC Engineer Test Laboratory: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn FCC ID: YZZGXP2200 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ120919011-00 FCC Part 15.247 Page 2 of 69 TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .....................................................................................4 OBJECTIVE...................................................................................................................................................................4 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................4 TEST METHODOLOGY..................................................................................................................................................4 TEST FACILITY.............................................................................................................................................................5 SYSTEM TEST CONFIGURATION ..........................................................................................................................6 DESCRIPTION OF TEST CONFIGURATION......................................................................................................................6 EQUIPMENT MODIFICATIONS.......................................................................................................................................6 SUPPORT EQUIPMENT LIST AND DETAILS....................................................................................................................6 EXTERNAL I/O CABLE..................................................................................................................................................6 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................7 SUMMARY OF TEST RESULTS ...............................................................................................................................8 FCC §15.247 (i) & §2.1091 - MAXIMUM PERMISSIBLE EXPOSURE (MPE).........................................................9 STANDARD APPLICABLE..............................................................................................................................................9 FCC §15.203 – ANTENNA REQUIREMENT ..........................................................................................................10 APPLICABLE STANDARD............................................................................................................................................10 ANTENNA CONNECTOR CONSTRUCTION....................................................................................................................10 FCC §15.207 (a) – AC LINE CONDUCTED EMISSIONS .....................................................................................11 APPLICABLE STANDARD............................................................................................................................................11 MEASUREMENT UNCERTAINTY..................................................................................................................................11 EUT SETUP................................................................................................................................................................11 EMI TEST RECEIVER SETUP.......................................................................................................................................12 TEST PROCEDURE......................................................................................................................................................12 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................12 CORRECTED FACTOR & MARGIN CALCULATION.......................................................................................................12 TEST RESULTS SUMMARY..........................................................................................................................................12 TEST DATA................................................................................................................................................................13 FCC §15.205, §15.209 & §15.247(d) – RADIATED EMISSIONS...........................................................................17 APPLICABLE STANDARD............................................................................................................................................17 MEASUREMENT UNCERTAINTY...............................................................................................................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions - Front View (Powered by adapter) Conducted Emissions - Side View (Powered by adapter) Conducted Emissions - Front View (Powered by PoE) Conducted Emissions - Side View (Powered by PoE) Radiated Emissions – Front View (Below 1 GHz) Radiated Emissions – Rear View (Below 1 GHz) Radiated Emissions – Front View (Above 1 GHz) Radiated Emissions – Rear View (Above 1 GHz)
