Grandstream Networks, Inc. GXV3615 Series User Manual GXV3615 IP Camera Series Firmware 1.0.4.8 Page2of 30 Grandstream Networks, Inc.11/29/10 Safety Instructions These instr uctions ar e intended to assist users with the operation of the GXV3615 and also to instruct on how to avoid dangerous situations or damage to the device. War nings: S erious injury or death may be caused if any of the war nings below are neglected . Cautions: Injury or damage to the equipment may occur if any of the following caution messages ar e neglected. War ningsFollow these safeguards to prevent serious injur y or death. CautionsFollow these pr ecautions to prevent potential injur y or material damage. Warnings: Input voltage should meet both the SELV (Safety Extra Low Voltage) and the Limited Power Source with DC 12V accor ding to the IEC 60950-1 standar d. P lease r efer to the technical specifications for mor e details. Do not use a thir d-party power adapter or pow er cor d When the device is installed on the w all or c eiling, make sur e that it is firm ly attached. Notice˖ Make sure that the power supply voltage is correct befor e using the cam era. Do not drop the device or expose it to physical shock. Do not expos e the device to tem per atur es outside the range of -10 o C to + 60 o C when the device is in oper ation. Do not expos e the device to damp/w et conditions or high electr omagnetism radiation. To avoid heat accumulation, make sur e that your oper ating environment has proper ventilation. Do not attempt to open, disassemble, or modify the device A few parts ( e.g. electrolytic capacitor) of the equipm ent s hall be r eplaced regular ly according to their aver age life tim e. The aver age life time varies from the differ ences b etw een oper ating envir onments and usage history. Regular m aintenance checks are r ecommended for all users. Pleas e contact your dealer for mor e details. GXV3615 IP Camera Series Firmware 1.0.4.8 Page3of 30 Grandstream Networks, Inc.11/29/10 Contents Welcome ............................................................................................................................................ 1 Package Contents................................................................................................................................ 5 P roduct Overview...............................................................................................................................5 GXV3615 Series Overview..........................................................................................................5 GXV3615 Series Front Panel........................................................................................................ 6 GXV3615 Series Back Panel........................................................................................................ 6 GXV3615 Series Sample Connection Diagram .............................................................................. 6 GXV3615 Series Key Features .....................................................................................................6 GXV3615 Lens Specification ....................................................................................................... 8 Minimum Recommended System Requirement.............................................................................. 9 Connect your GXV3615 Series..................................................................................................... 9 Configur ing the GXV3615 Series via Web Browser............................................................................ 10 Access GXV3615 Series Web Configurat ion Menu...................................................................... 10 Connect the Camera to DHCP server........................................................................................... 10 Connect to the Camera using Static IP. .........................................................................................11 GXV3615 Series Home Web Page .............................................................................................. 12 GXV3615 Series System Page.................................................................................................... 13 GXV3615 Series Video & Audio Page ........................................................................................ 14 GXV3615 Series Networking P age ±Assign an IP to GXV3615................................................... 15 GXV3615W Wif i P age ±This page is only available for GXV3615W........................................... 16 GXV3615 Series DDNS Page..................................................................................................... 16 GXV3615 Series SIP Page .........................................................................................................17 GXV3615 Series Status Page......................................................................................................19 GXV3615 Series User Management Page.................................................................................... 20 GXV3615 Series Maintenance Page............................................................................................ 20 GXV3615 Series SMTP Page ..................................................................................................... 21 GXV3615 Series FTP Page ........................................................................................................22 GXV3615 Series Motion Detection Page..................................................................................... 22 GXV3615 Series System Log..................................................................................................... 24 FAQ................................................................................................................................................. 25 Compliance ......................................................................................…

Text truncated - open the document above for the full version.

Grandstream Networks, Inc. Date: Dec. 17. 2010 Federal communications commission Authorization and Evaluation Division FCC ID:YZZGXV3615W Confidentiality Request Pursuant to section 0.457 and 0.459 of the commission’s rules, the applicant hereby requests confidential treatment of information accompanying this application as outline below: Exhibit Type File Name Schematics YZZGXV3615W_Schematics.pdf Block diagram YZZGXV3615W_Block diagram.pdf Operational description YZZGXV3615W_Operational description.pdf The above materials contain trade secrets and proprietary information not customarily released to the public, the public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application. Sincerely, Ning Wei /Deputy managemet Phone:0755-26014600 FAX:0755-26014601 Email:[email protected]

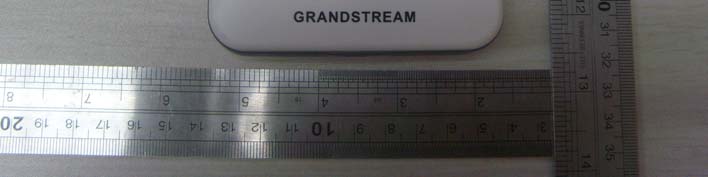

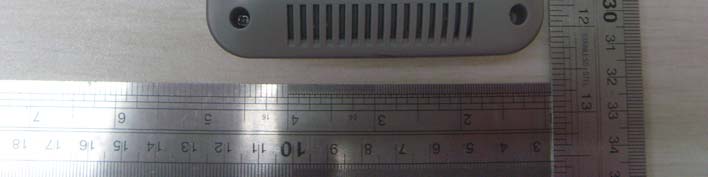

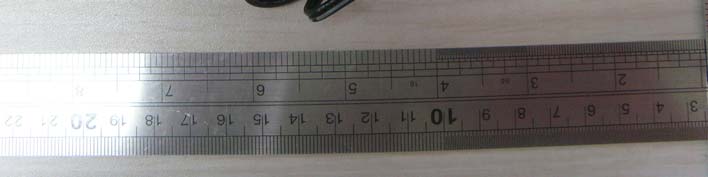

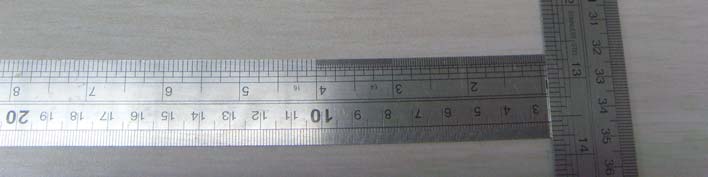

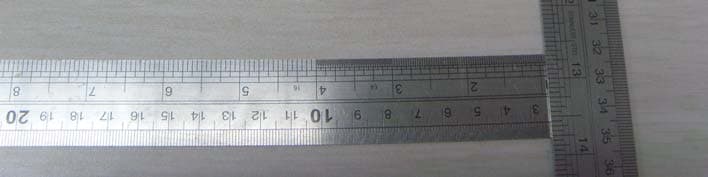

EUT -Full View #1 EUT -Full View #2 EUT -Front View EUT-Rear View EUT Support View AC/DC Adapter View

Label Sample & Label Location Label format: Label Location:

Uncovered View #1 Uncovered View #2 Antenna location view 802.11b/g/n module and antenna view This is data cord of 802.11b/g/n module and is connected to main board Main Board -Front View Main Board -Rear View 802.11b/g/n module- Front View 802.11b/g/n module -Rear View 802.11b/g/n module –Unshield View

WiFi Spec. and Antenna Spec.(which used on GXV3615W) Product 802.11b/g/n Adapter Trader Name ALLWINS Model Number AWM51N_US_HS Power Adapter Powerd from main board(+3V3D) Frequency Range IEEE 802.11b:2412~2472MHz IEEE 802.11g:2412~2472MHz draft 802.11nStandard-20MHz: 2412~2472MHz draft 802.11nStandard-40MHz: 2422~2462MHz Number of Channels IEEE 802.11b/g:13channels draft 802.11n Standard-20MHz:13channels draft 802.11n Wide-40MHz:9channels Transmit Power Mode Frequency Range(MHz) Output Power(dBm) Output Power(mW) IEEE 802.11b 2412~2472MHz 16±15% 22.91~69.18 IEEE 802.11g 2412~2472MHz 12±15% 10.47~23.99 draft 802.11n-20MHz 2412~2472MHz 12±15% 10.47~23.99 draft 802.11n-40MHz 2422~2462MHz 12±15% 10.47~23.99 Antenna Spec. Dipole Antenna /Gain:2dBi，1T1R Temperature Range 0°C~40°C Antenna Spec.: 1. part name:WiFi 2.4GHz 2dBi Dipole Antenna Coaxial 1.13mm ,L=120mm 2. Working Frequency 2400MHz~2483.5MHz 3. Impedance:50ohm(NOminal) 4. Gain:2dBi 5. Polarization: Linear 6. Admitted Power:2W 7. Operating Temp.:-20°C~+65°C

www.ecmg-global.com.cn EMI Test Report On Model Name: IP Camera Model Number: GXV3615W Prepared for Grandstream Networks,Inc FCC ID Number: YZZGXV3615W According to FCC Part 15 (2009), Subpart B Test Report #: SHE-1011-10539-FCC ID-15B Prepared by: May Wang Reviewed by: Jawen Yin QC Manager: Swall Zhang Test Report Released by: December 18, 2010 ⎯⎯⎯⎯⎯⎯⎯ ⎯⎯⎯⎯⎯⎯⎯ Swall Zhang Date Test Location Tests performed in a Certified ANSI Semi-Anechoic Chamber and Shielded Room. Test Site Location : Galanz 25 South Ronggui Rd., Shunde, Foshan, Guangdong, China Tel : 86-757-23612785 Fax : 86-757-23612537 Test Facility The test facility was recognized, certified, or accredited by the following organizations: z CNAL – LAB Code: L2244 Galanz EMC Laboratory has been assessed and in compliance with CNAL/AC01:2002 accreditation criteria for testing laboratories (identical to ISO/IEC 17025:2005 General Requirements)for the Competence of Testing Laboratories. z FCC – Registration No.: 580210 Galanz EMC Laboratory has been registered and fully described in a report filed with the (FCC) Federal Communications Commission. The acceptance letter from the FCC was maintained in our files. Table of Contents GOVERNMENT DISCLAIMER NOTICE _______________________________________________ 2 REPRODUCTION CLAUSE __________________________________________________________ 2 OPINIONS AND INTERPRETATIONS ________________________________________________ 2 STATEMENT OF MEASUREMENT UNCERTAINTY ____________________________________ 2 ADMINISTRATIVE DATA ___________________________________________________________ 3 EUT DESCRIPTION _________________________________________________________________ 4 TEST SUMMARY ___________________________________________________________________ 6 TEST MODE JUSTIFICATION _______________________________________________________ 7 EUT EXERCISE SOFTWARE _________________________________________________________ 7 EQUIPMENT MODIFICATION _______________________________________________________ 7 TEST SYSTEM DETAILS ____________________________________________________________ 8 ATTACHMENT 1 - CONDUCTED EMISSION TEST RESULTS __________________________ 9 ATTACHMENT 2 – RADIATED EMISSION MEASUREMENT __________________________ 13 FCC Test Report #: SHE-1011-10539-FCCID-15B Prepared for Grandstream Networks,Inc Prepared by EMC Compliance Management Group Page 1 of 22 List Attached Files Exhibit Type File Description File Name Test Report Test Report YZZGXV3615W _Test report.pdf Operation Description Technical Description YZZGXV3615W_operation description.pdf External Photos External Photos YZZGXV3615W_External Photos Internal Photos Internal Photos YZZGXV3615W_Internal Photos Block Diagram Block Diagram YZZGXV3615W_Block Diagram.pdf Schematics Circuit Diagram YZZGXV3615W _Schematics.pdf ID Label/Location Label and Location YZZGXV3615W _Label & Location.pdf User Manual User Manual YZZGXV3615W _User Manual.pdf Test setup photos Test setup photos YZZGXV3615W _Test Setup Photos FCC Test Report #: SHE-1011-10539-FCC ID-15B Prepared for Grandstream Networks,Inc Prepared by EMC Compliance Management Group Page 2 of 22 Government Disclaimer Notice When government drawing, specification, or other data are used for any purpose other than in connection with a definitely related government procurement operation, the United States Government thereby incurs no responsibility nor any obligation whatsoever; and the fact that the Government may have formulated, furnished, or in any way supplied the said drawing, specifications, or other data, is not to be regarded by implication or otherwise in any manner licensing the holder or any other person or corporation, or conveying any rights or permission to manufacture, use, or sell patented invention that may in any way be related thereto.This report must not be used to claim product endorsement by NVLAP or any agency of the U.S. Government. Reproduction Clause Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from EMC Compliance Management Group. Opinions and Interpretations This test report relates to the abovementioned equipment under test (EUT).Without the permission of EMC Compliance Management Group Test Lab this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark on this or similar products.The manufacturer has sole responsibility of continued compliance of the device. Statement of Measurement Uncertainty The data and results referenced in the document are true and accurate. The reader is cautioned that there may be errors within the calibration limits of the equipment and facilities that can account for a nominal measurement error. Furthermore, component and process variability of devices similar to that tested may result in additional deviation. FCC Test Report #: SHE-1011-10539-FCC ID-15B Prepared for Grandstream Networks,Inc Prepared by EMC Compliance Management Group Page 3 of 22 Administrative Data Test Sample : IP Camera Model Numbers : GXV3615W Model Tested : GXV3615W Receipt Date of Test Item : December 3,2010 Date Tested : December 6, 2010 to December 16,2010 Applicant : Grandstream Networks,Inc : 5F, Bldg #1, No.2 Kefa Rd., Science & Technology Park, Shenzhen, China Telephone : +86-755-26014600 Fax : +86-755-26014601 Manufacturer : Grandstream Networks,Inc : 5F, Bldg #1, No.2 Kefa Rd., Science & Technology Park, Shenzhen, China Telephone : +86-755-26014600 Fax : +86-755-26014601 FCC Test Report #: SHE-1011-10539-FCC ID-15B Prepared for Grandstream Networks,Inc Prepared by EMC Compliance Management Group Page 4 of 22 EUT Description Grandstream Networks,Inc Model number GXV3615W (referred to as the EUT in this report) is a IP Camera. The EUT is an IP Camera built-in IEEE 802.11b/g/n adapter which operates in 2.4GHz ISM band and technical specifications of EUT as below: Parameter Range Rated voltage DC12V Basic parameters Rated Current…

Text truncated - open the document above for the full version.

Conducted Emission Test Set-up Radiated Emission Test Set-up -below 1GHz Radiated Emission Test Set-up - Above
