YZZGXV3615WP-HDIP CAMERA

Grandstream Networks, Inc. GXV3615WP_HD Series User Manual GXV3615WP_HD IP Camera Series Firmware 1.0.4.8 Page 2 of 30 Grandstream Networks, Inc. 02/10/12 Safety Instructions These instructions are intended to assist users with the operation of the GXV3615WP_HD and also to instruct on how to avoid dangerous situations or damage to the device. Warnings: Serious injury or death may be caused if any of the warnings below are neglected. Cautions: Injury or damage to the equipment may occur if any of the following caution messages are neglected. Warnings Follow these safeguards to prevent serious injury or death. Cautions Follow these precautions to prevent potential injury or material damage. Warnings: Input voltage should meet both the SELV (Safety Extra Low Voltage) and the Limited Power Source with DC 12V according to the IEC60950-1 standard. Please refer to the technical specifications for more details. Do not use a third-party power adapter or power cord When the device is installed on the wall or ceiling, make sure that it is firmly attached. Notice： Make sure that the power supply voltage is correct before using the camera. Do not drop the device or expose it to physical shock. Do not expose the device to temperatures outside the range of -10 o C to +60 o C when the device is in operation. Do not expose the device to damp/wet conditions or high electromagnetism radiation. To avoid heat accumulation, make sure that your operating environment has proper ventilation. Do not attempt to open, disassemble, or modify the device A few parts (e.g. electrolytic capacitor) of the equipment shall be replaced regularly according to their average life time. The average life time varies from the differences between operating environments and usage history. Regular maintenance checks are recommended for all users. Please contact your dealer for more details. GXV3615WP_HD IP Camera Series Firmware 1.0.4.8 Page 3 of 30 Grandstream Networks, Inc. 02/10/12 Contents Welcome .........................................................................................................................................................4 Package Contents ............................................................................................................................................5 Product Overview ...........................................................................................................................................5 GXV3615WP_HD Series Overview.......................................................................................................5 GXV3615WP_HD Series Front Panel ....................................................................................................6 GXV3615WP_HD Series Back Panel ....................................................................................................6 GXV3615WP_HD Series Sample Connection Diagram ........................................................................6 GXV3615WP_HD Series Key Features .................................................................................................7 GXV3615WP_HD Lens Specification ...................................................................................................8 Minimum Recommended System Requirement .....................................................................................9 Connect your GXV3615WP_HD Series.................................................................................................9 Configuring the GXV3615WP_HD Series via Web Browser...............................................................10 Access GXV3615WP_HD Series Web Configuration Menu ...............................................................10 Connect the Camera to DHCP server....................................................................................................10 Connect to the Camera using Static IP. .................................................................................................11 GXV3615WP_HD Series Home Web Page..........................................................................................12 GXV3615WP_HD Series System Page ................................................................................................13 GXV3615WP_HD Series Video & Audio Page ...................................................................................14 GXV3615WP_HD Series Networking Page – Assign an IP to GXV3615WP_HD .............................15 GXV3615WP_HD And GXV3615W_HD Wifi Page – This page is only available for GXV3615W_HD and GXV3615WP_HD .........................................................................................16 GXV3615WP_HD Series DDNS Page.................................................................................................16 GXV3615WP_HD Series SIP Page ......................................................................................................17 GXV3615WP_HD Series Status Page ..................................................................................................19 GXV3615WP_HD Series User Management Page ..............................................................................20 GXV3615WP_HD Series Maintenance Page .......................................................................................20 GXV3615WP_HD Series SMTP Page .................................................................................................21 GXV3615WP_HD Series FTP Page .....................................................................................................22 GXV3615WP_HD Series Motion Detection Page ...............................................................................22 GXV3615WP_HD Series System Log .................................................................................................24 FAQ..................................................................................................................................................…

Text truncated - open the document above for the full version.

Grandstream Networks,INC Date: 2012/2/13 Federal communications commission Authorization and Evaluation Division FCC ID:YZZGXV3615WP-HD Confidentiality Request Pursuant to section 0.457 and 0.459 of the commission’s rules, the applicant hereby requests confidential treatment of information accompanying this application as outline below: Schematics YZZGXV3615WP-HD_ Schematics.pdf Block diagram YZZGXV3615WP-HD_ Block diagram.pdf Operational description YZZGXV3615WP-HD_Operational description.pdf The above materials contain trade secrets and proprietary information not customarily released to the public, the public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application. Sincerely,

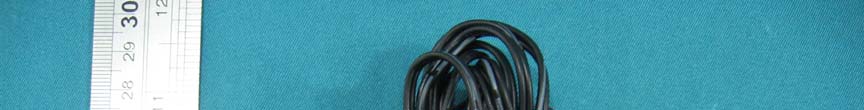

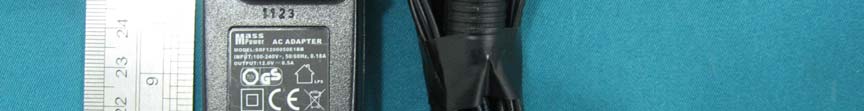

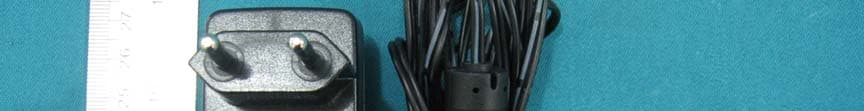

Front view Rear view Support View Power adaptor view

FCC Product Label & Label Location Proposed FCC Label format: FCC Label Location:

Inside view Wifi module view Wifi PCB front view(removed shield cover) Wifi PCB Rear view Mainboard front view Main Board -Rear View

www.ecmg-global.net EMI TEST REPORT On Model Name: IP Camera Model Number: GXV3615WP_HD/ GXV3615W_HD/GXV3615P_HD/GXV3615_HD Brand Name: Grandstream Prepared for Grandstream Networks, INC FCC ID Number: YZZGXV3615WP-HD According to FCC 47 CFR Part 15, Subpart B Test Report #: SHE-1202-10783-FCC Prepared by: Sewen Guo Reviewed by: Jawen Yin QC Manager: Swall Zhang Test Report Released by: February 28, 2012 ⎯⎯⎯⎯⎯⎯⎯ ⎯⎯⎯⎯⎯⎯⎯ Swall Zhang Date Test Location Tests performed in a Certified ANSI Semi-Anechoic Chamber and Shielded Room. Test Site Location : Galanz 25 South Ronggui Rd.,Shunde, Foshan,Guangdong, China Tel : (86)-757-23612785 Fax : (86)-757-23612537 Test Facility The test facility was recognized, certified, or accredited by the following organizations: z CNAL – LAB Code: L2244 Galanz EMC Laboratory has been assessed and in compliance with CNAL/AC01:2002 accreditation criteria for testing laboratories (identical to ISO/IEC 17025:2005 General Requirements)for the Competence of Testing Laboratories. z FCC – Registration No.: 580210 Galanz EMC Laboratory has been registered and fully described in a report filed with the (FCC) Federal Communications Commission. The acceptance letter from the FCC was maintained in our files. Table of Contents GOVERNMENT DISCLAIMER NOTICE _____________________________________________ 2 REPRODUCTION CLAUSE ________________________________________________________ 2 OPINIONS AND INTERPRETATIONS ______________________________________________ 2 STATEMENT OF MEASUREMENT UNCERTAINTY __________________________________ 2 ADMINISTRATIVE DATA _________________________________________________________ 3 EUT DESCRIPTION _______________________________________________________________ 4 EUT MODEL DERIVED____________________________________________________________ 7 TEST SUMMARY _________________________________________________________________ 9 TEST MODE JUSTIFICATION ____________________________________________________10 EUT EXERCISE SOFTWARE ______________________________________________________10 EQUIPMENT MODIFICATION ____________________________________________________10 EUT SAMPLE PHOTOS __________________________________________________________11 TEST SYSTEM DETAILS _________________________________________________________15 ATTACHMENT 1 - CONDUCTED EMISSION TEST RESULTS _______________________19 ATTACHMENT 2 – RADIATED EMISSION MEASUREMENT ________________________23 FCC Test Report #: SHE-1202-10783-FCC Prepared for Grandstream Networks, INC Prepared by ECMG Electronic Technical Testing Corp (Shenzhen) Page 1 of 31 List Attached Files Exhibit Type File Description File Name Test Report Test Report YZZGXV3615WP-HD _Test report.pdf Operation Description Technical Description YZZGXV3615WP-HD _operation description.pdf External Photos External Photos YZZGXV3615WP-HD _External Photos Internal Photos Internal Photos YZZGXV3615WP-HD _Internal Photos Block Diagram Block Diagram YZZGXV3615WP-HD _Block Diagram.pdf Schematics Circuit Diagram YZZGXV3615WP-HD _Schematics.pdf ID Label/Location Label and Location YZZGXV3615WP-HD _Label & Location.pdf User Manual User Manual YZZGXV3615WP-HD _User Manual.pdf Test setup photos Test setup photos YZZGXV3615WP-HD _Test Setup Photos FCC Test Report #: SHE-1202-10783-FCC Prepared for Grandstream Networks, INC Prepared by ECMG Electronic Technical Testing Corp (Shenzhen) Page 2 of 31 Government Disclaimer Notice When government drawing, specification, or other data are used for any purpose other than in connection with a definitely related government procurement operation, the United States Government thereby incurs no responsibility nor any obligation whatsoever; and the fact that the Government may have formulated, furnished, or in any way supplied the said drawing, specifications, or other data, is not to be regarded by implication or otherwise in any manner licensing the holder or any other person or corporation, or conveying any rights or permission to manufacture, use, or sell patented invention that may in any way be related thereto.This report must not be used to claim product endorsement by NVLAP or any agency of the U.S. Government. Reproduction Clause Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from ECMG Electronic Technical Testing Corp (Shenzhen). Opinions and Interpretations This test report relates to the abovementioned equipment under test (EUT).Without the permission of ECMG Electronic Technical Testing Corp (Shenzhen) Test Lab this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark on this or similar products. The manufacturer has sole responsibility of continued compliance of the device. Statement of Measurement Uncertainty The data and results referenced in the document are true and accurate. The reader is cautioned that there may be errors within the calibration limits of the equipment and facilities that can account for a nominal measurement error. Furthermore, component and process variability of devices similar to that tested may result in additional deviation. FCC Test Report #: SHE-1202-10783-FCC Prepared for Grandstream Networks, INC Prepared by ECMG Electronic Technical Testing Corp (Shenzhen) Page 3 of 31 Administrative Data Test Sample : IP Camera Model Numbers : GXV3615WP_HD/GXV3615W_HD/ GXV3615P_HD/GXV3615_HD Model Tested : GXV3615WP_HD Receipt Date : February 16, 2012 Date Tested : February 17, 2012 Applicant : Grandstream Networks, INC Address 5F, Bldg #1, No.2 Kefa Rd., Science & Technology Park, Shenzhen, China Telephone : (86)-755-26014600 Fax : (86)-755-26014601 Manufacturer : Grandstream Networks, INC Address 5F, Bldg #1, No.2 Kefa Rd., Science & Technology Park, Shenzhen, China Telephone : (86)-755-26014600 Fax : (86)-755-26014601 Factory : Grandstream Networks, INC Address 5F, Bldg #1, No.2 Kefa Rd., Science & Technology Park, Shenzhen, China Telephone : (…
