YZZGXV3662-FHDIP Camera

Grandstream Networks, Inc. GXV3662_FHD User Manual GXV3662_FHD IP Camera Firmware 1.0.1.11 Page 2 of 36 Grandstream Networks, Inc. 01/2011 Safety Instructions These instructions are intended to assist users with the operation of the GXV3662_FHD and also to instruct on how to avoid dangerous situations or damage to the device. Warnings: Serious injury or death may be caused if any of the warnings below are neglected. Cautions: Injury or damage to the equipment may occur if any of the following caution messages are neglected. Warnings Follow these safeguards to prevent serious injury or death. Cautions Follow these precautions to prevent potential injury or material damage. Warnings: Input voltage should meet both the SELV (Safety Extra Low Voltage) and the Limited Power Source with DC 12V according to the IEC60950-1 standard. Please refer to the technical specifications for more details. Do not use a third-party power adapter or power cord When the device is installed on the wall or ceiling, make sure that it is firmly attached. Notice： Make sure that the power supply voltage is correct before using the camera. Do not drop the device or expose it to physical shock. Do not expose the device to temperatures outside the range of -30 o C to +50 o C PSU and PoE mode when the device is in operation. Do not expose the device to high electromagnetism radiation. To avoid heat accumulation, make sure that your operating environment has proper ventilation. Do not attempt to open, disassemble, or modify the device A few parts (e.g. electrolytic capacitor) of the equipment shall be replaced regularly according to their average life time. The average life time varies from the differences between operating environments and usage history. Regular maintenance checks are recommended for all users. Please contact your dealer for more details. GXV3662_FHD IP Camera Firmware 1.0.1.11 Page 3 of 36 Grandstream Networks, Inc. 01/2011 Note： This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. GXV3662_FHD IP Camera Firmware 1.0.1.11 Page 4 of 36 Grandstream Networks, Inc. 01/2011 Contents Welcome .........................................................................................................................................................5 Package Contents ............................................................................................................................................6 Product Overview ...........................................................................................................................................7 GXV3662_FHD Top View .....................................................................................................................7 GXV3662_FHD Side View ....................................................................................................................7 GXV3662_FHD Bottom View................................................................................................................7 GXV3662_FHD Inside connections .......................................................................................................8 GXV3662_FHD Sample Connection Diagram.....................................................................................10 GXV3662_FHD Key Features..............................................................................................................10 GXV3662_FHD Lens Specification .....................................................................................................11 Minimum Recommended System Requirement ...................................................................................12 Connect your GXV3662_FHD .............................................................................................................12 Configuring the GXV3662_FHD via Web Browser .....................................................................................13 Access the GXV3662_FHD Web Configuration Menu ........................................................................13 Connect the Camera to a DHCP server. ................................................................................................13 Connect to the Camera Using a Static IP. .............................................................................................14 GXV3662_FHD Home Web Page ........................................................................................................15 GXV3662_FHD System Time and Name Page ......................................................................…

Text truncated - open the document above for the full version.

GXV3662_FHD_V0.3 Project System block Diagram Over View: GXV3662_FHD System Block Diagram: DSP 128*8Mbit DDR RJ45 ( PC/LAN) POE TPS23750 POWER +12V/1A ADAPTER DC-DC 2.5V DC-DC 3.3V DC-DC 1.8V DC-DC 1.2V 12V/1A 64Mbit FLASH 128*8Mbit DDR PHY 667MHz 25MHz cdce906pw Audio Video sd 24MHZ JTAG+UART 667MHz

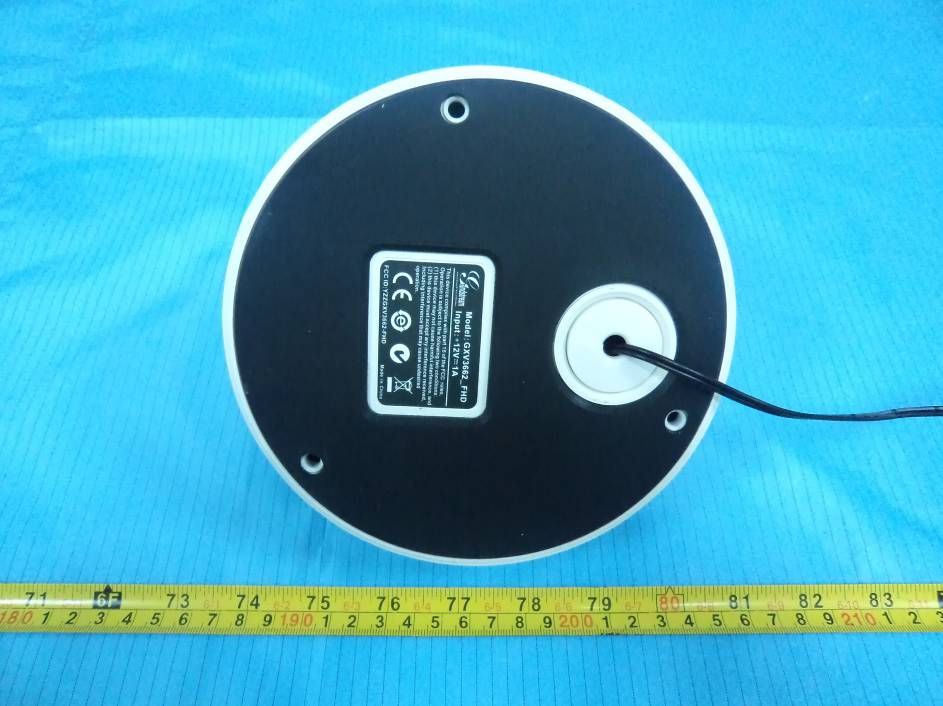

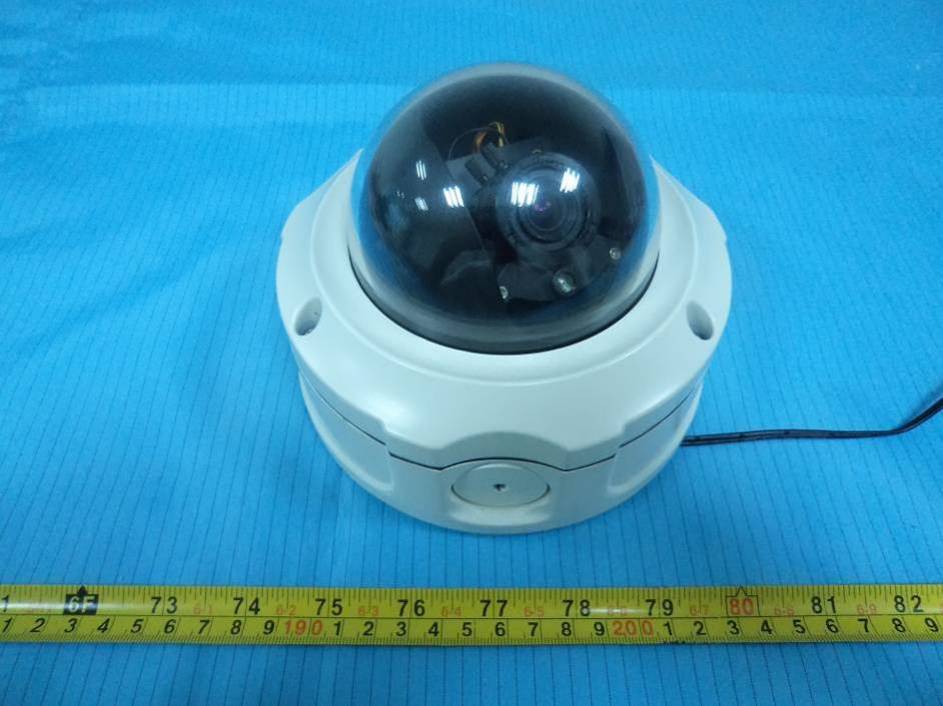

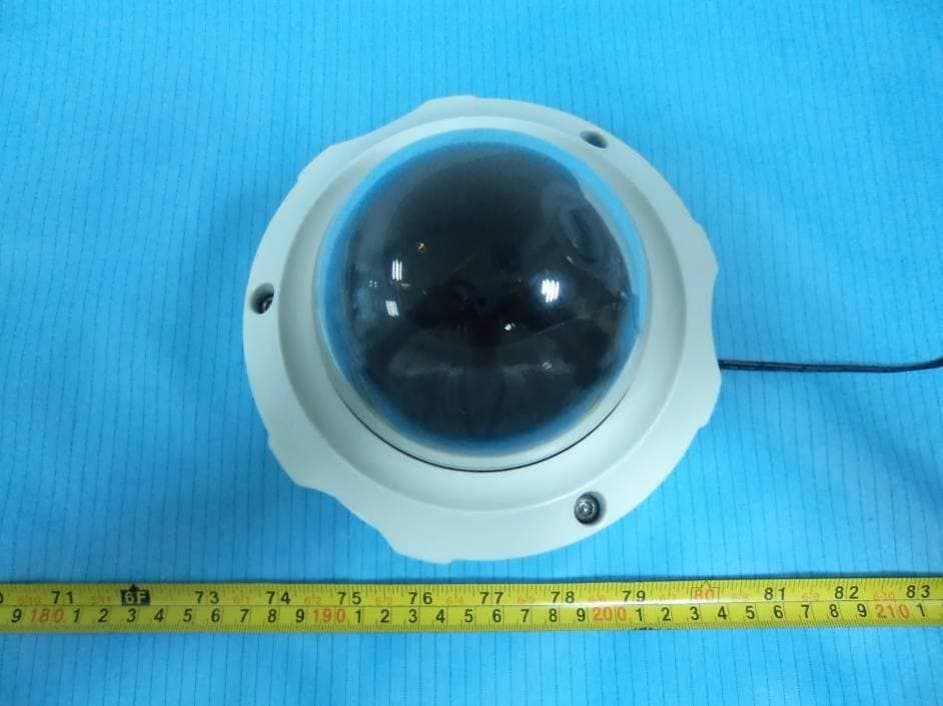

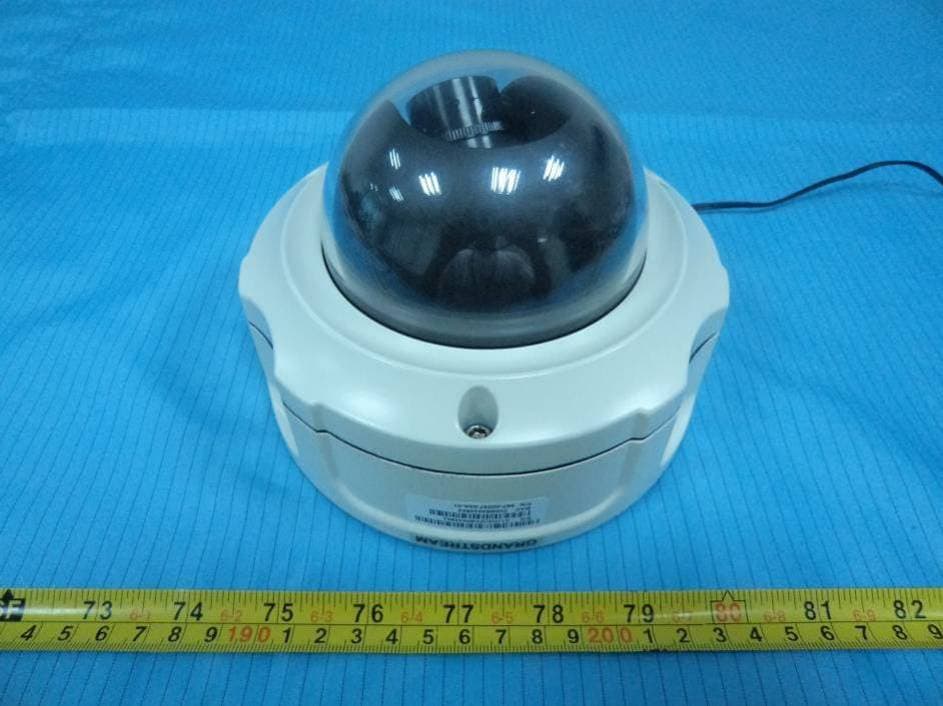

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – All View EUT – Top View EUT – Bottom View EUT – Side View 1 EUT – Side View 2 EUT – Adapter View EUT – Adapter Label View

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925) Label here

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Cover off View EUT – Main Board Top View EUT– Main Board Bottom View EUT – Camera Top View EUT – Camera Bottom View EUT – Camera Side View EUT – Camera Board Top View EUT – Camera Board Bottom View

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, or any agency of the Federal Government. * This report may contain data that are not covered by the NVLAP accreditation and shall be marked with an asterisk “★” FCC PART 15 CLASS B TEST REPORT For Grandstream Networks, INC 5F, Bldg #1, No.2 Kefa Rd., Science & Technology Park, Shenzhen, China Report Type: Original Report Product Name: IP CAMERA Test Engineer: Andrew Shu Report Number: RSZ120925003-00 Report Date: 2012-11-08 Reviewed By: Dick Zhang EMC Leader Test Laboratory: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn FCC ID: YZZGXV3662-FHD Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ120925003-00 FCC Part 15 Class B Page 2 of 21 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 3 OBJECTIVE ................................................................................................................................................................... 3 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 3 TEST METHODOLOGY .................................................................................................................................................. 3 TEST FACILITY ............................................................................................................................................................. 4 SYSTEM TEST CONFIGURATION .......................................................................................................................... 5 JUSTIFICATION ............................................................................................................................................................. 5 EUT EXERCISE SOFTWARE .......................................................................................................................................... 5 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 5 REMOTE AND SUPPORT EQUIPMENT LIST AND DETAILS .............................................................................................. 5 EXTERNAL I/O CABLE .................................................................................................................................................. 5 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 6 SUMMARY OF TEST RESULTS ............................................................................................................................... 7 FCC §15.107 – AC LINE CONDUCTED EMISSIONS ............................................................................................. 8 EUT SETUP .................................................................................................................................................................. 8 EMI TEST RECEIVER SETUP ......................................................................................................................................... 9 TEST PROCEDURE ........................................................................................................................................................ 9 TEST EQUIPMENT LIST AND DETAILS ........................................................................................................................... 9 CORRECTED FACTOR & MARGIN CALCULATION ......................................................................................................... 9 TEST RESULTS SUMMARY .......................................................................................................................................... 10 TEST DATA ................................................................................................................................................................ 10 FCC§15.109 - RADIATED EMISSIONS .................................................................................................................. 15 EUT SETUP ................................................................................................................................................................ 15 EMI TEST RECEIVER SETUP ....................................................................................................................................... 16 TEST PROCEDURE ...................................................................................................................................................... 16 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 16 CORRECTED AMPLITUDE & MARGIN CALCULATION ................................................................................................. 16 TEST RESULTS SUMMARY .......................................................................................................................................... 17 TEST DATA ........................................................................................................................................................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions - Front View (Powered by AC adapter) Conducted Emissions - Side View (Powered by AC adapter) Conducted Emissions - Front View (Powered by PoE) Conducted Emissions - Side View (Powered by PoE) 30 MHz – 1 GHz: Radiated Emissions - Front View (Powered by AC adapter) Radiated Emissions – Rear View (Powered by AC adapter) Radiated Emissions - Front View (Powered by PoE) Radiated Emissions – Rear View (Powered by PoE) 1 GHz – 2 GHz: Radiated Emissions - Front View (Powered by AC adapter) Radiated Emissions – Rear View (Powered by AC adapter) Radiated Emissions - Front View (Powered by PoE) Radiated Emissions – Rear View (Powered by PoE)
