Z2F-RDB12Remote Controller For Fireworks

Instruction for 12 buttons remote Usage 1. Put the 23A 12V battery into the battery box on the back of the remote, and then turn on the remote switch.(Down for On and UP for Off) 2. The remote should work with the fireworks firing system receiver. You could run the receivers by the remote button when keep in distance. technical parameters 1.working voltage: DC12V/23A 2.working frequency: 433MHz 3.working current: 34mA 4.encoded mode : Leaning code（eV1527） 5.transmission range : >50m(the Sensitivity of the dashreceiver is higher 6.than -103dBm when it is in the open ground ) 6.output power: 16dBm (40mW) 7.transmission rate : ：<10Kbps 8.modulation system: OOK（AM） 9.operating temperature: -10°C~+70°C 10.Dimension: 85*36.5*16mm FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. (Example- use only shielded interface cables when connecting to computer or peripheral devices). This equipment complies with Part 15 of FCC RF Rules. Operation is subject to the following two conditions: 1) This device may not cause interference and 2) This device must accept any interference, including interference that may cause undesired operation of the device. Caution! The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user authority to operate the equipment.

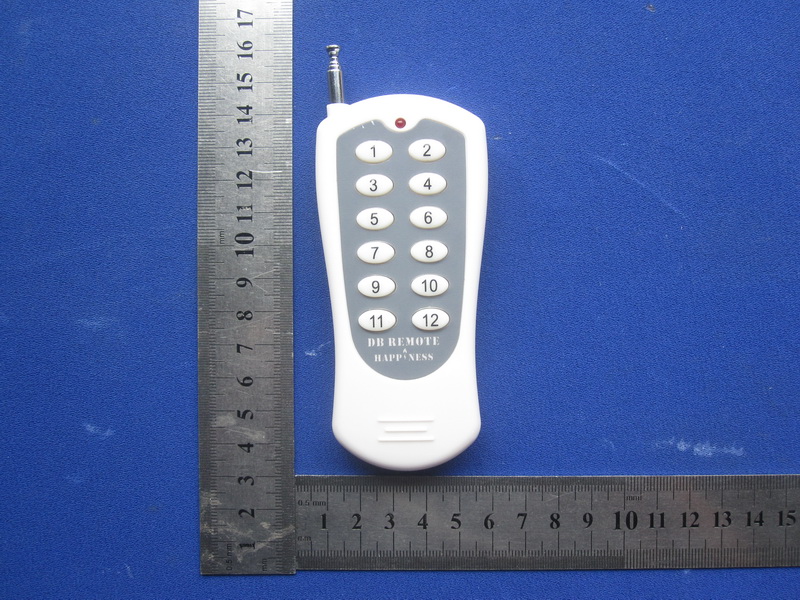

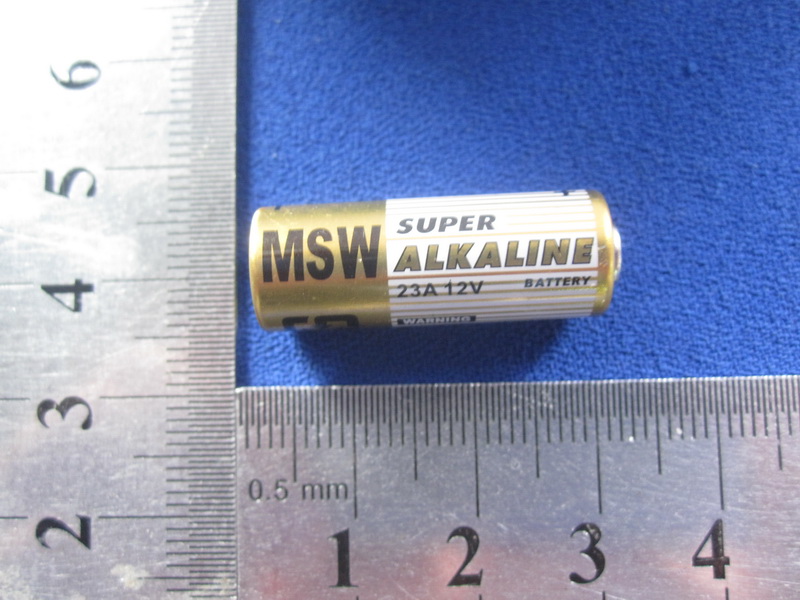

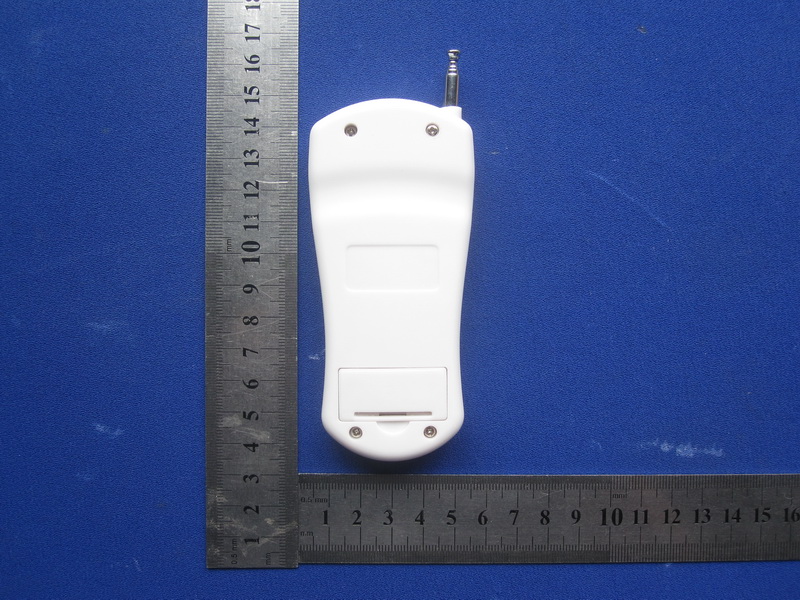

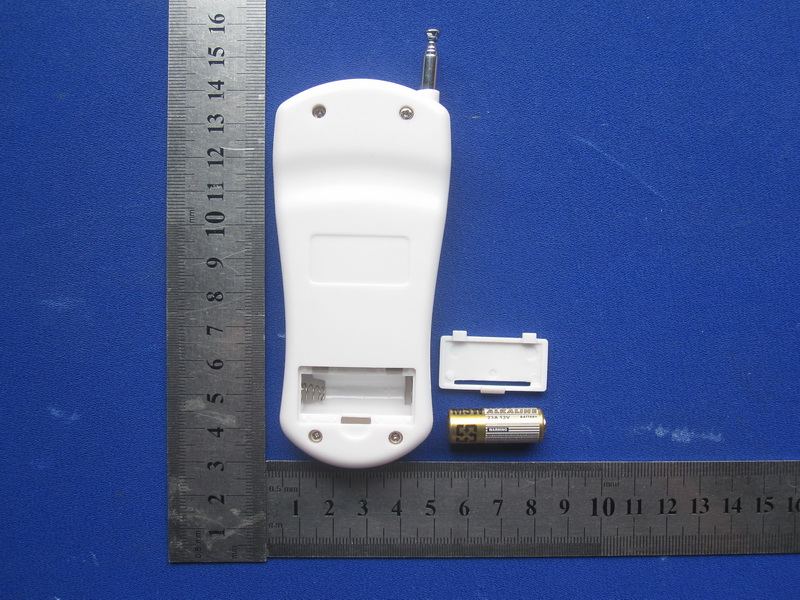

Report No.: TB-FCC111329 Page: 3 of 8 TB-RF-075-1.0 Appendix III EUT External Photographs Photo 1 Appearance of EUT (Model: RDB12) Photo 2 Appearance of EUT (Model: RDB12-1) Report No.: TB-FCC111329 Page: 4 of 8 TB-RF-075-1.0 Photo 3 Appearance of EUT Photo 4 Appearance of EUT Report No.: TB-FCC111329 Page: 5 of 8 TB-RF-075-1.0 Photo 5 Appearance of Battery

Report No.: TB-FCC111329 Page: 1 of 8 TB-RF-074-1.0 Appendix IID Label FCC ID: Z2F-RDB12

Report No.: TB-FCC111329 Page: 2 of 8 TB-RF-075-1.0 Appendix II ID Label Location FCC ID LOCATION

Report No.: TB-FCC111329 Page: 6 of 8 TB-RF-075-1.0 Appendix IV EUT Internal Photographs Photo 6 Inside of EUT Photo 7 Appearance of PCB Report No.: TB-FCC111329 Page: 7 of 8 TB-RF-075-1.0 Photo 8 Appearance of PCB Photo 9 Appearance of Antenna Antenna

Shenzhen Meihua Electronic Technology Co., Ltd. Report No.: TB-FCC111329 Page: 1 of 28 TB-RF-074-1.0 Room 505, East DingXin Bldg., LiuXian Road, XiLi Town, Nanshan, Shenzhen, China Tel: +86 75526292087 Fax: +86 75526751700 FCC Radio Test Report FCC ID: Z2F-RDB12 Report No. : TB-FCC111329 Applicant : Liuyang Happiness Firing System Factory Equipment Under Test (EUT) EUT Name : Remote Controller For Fireworks Model No. : RDB12 Serial No. : RDB12-1 Brand Name : Smile Face Fireworks Receipt Date : 2011-09-08 Test Date : 2011-09-09 to 2011-09-16 Issue Date : 2011-09-20 Tested By: : Bontek Compliance Testing Laboratory Ltd. Standards : FCC Part 15, Subpart C(15.231)/ANSI C63.4:2003 Test/Witness Engineer : Approved& Authorized : Report No.: TB-FCC111329 Page: 2 of 28 TB-RF-074-1.0 Contents CONTENTS.............................................................................................................................................2 TEST REPORT DECLARATION........................................................................................................4 1. GENERAL INFORMATION ABOUT EUT.............................................................................5 1.1 General Description of EUT (Equipment Under Test)...................................................5 1.2 Block Diagram Showing The Configuration of System Tested.....................................5 1.3 Description of Support Units..............................................................................................6 1.4 Description of Test Mode....................................................................................................6 1.5 Test Facility...........................................................................................................................6 2. TEST SUMMARY.......................................................................................................................7 3. CONDUCTED EMISSION TEST.............................................................................................8 3.1 Test Standard and Limit......................................................................................................8 3.2 Test Setup.............................................................................................................................8 3.3 Test Procedure.....................................................................................................................8 3.4 Test Equipment Used..........................................................................................................9 3.5 Test Data...............................................................................................................................9 4. RADIATED EMISSION TEST................................................................................................10 4.1 Test Standard and Limit....................................................................................................10 4.2 Test Setup...........................................................................................................................11 4.3 Test Procedure...................................................................................................................12 4.4 EUT Operating Condition.................................................................................................13 4.5 Test Equipment..................................................................................................................13 4.6 Test Condition....................................................................................................................13 4.7 Test Data.............................................................................................................................14 5. BANDWIDTH............................................................................................................................17 5.1 Test Standard and Limit....................................................................................................17 5.2 Test Setup...........................................................................................................................17 5.3 Test Procedure...................................................................................................................17 5.4 EUT Operating Condition.................................................................................................17 5.5 Test Equipment..................................................................................................................18 5.6 Test Condition....................................................................................................................18 5.7 Test Data.............................................................................................................................19 6. RELEASE TIME MEASUREMENT.......................................................................................20 6.1 Test Standard and Limit....................................................................................................20 6.2 Test Setup...........................................................................................................................20 6.3 Test Procedure...................................................................................................................20 6.4 EUT Operating Condition.................................................................................................20 6.5 Test Equipment..................................................................................................................21 6.6 Test Condition....................................................................................................................22 6.7 Test Data.............................................................................................................................22 Report No.: TB-FCC111329 Page: 3 of 28 TB-RF-074-1.0 …

Text truncated - open the document above for the full version.

Report No.: TB-FCC111329 Page: 8 of 8 TB-RF-075-1.0 Appendix V EUT Test Photographs Photo of Setup for Radiated Emission (Above 1 GHz) Photo of Setup for Radiated Emission (Bellow 1 GHz)
