Z4C-0054Metal detector supporting wireless audio, used for detecting buried metal objects

Español ES RECOMENDACIONES E INSTRUCCIONES DE SEGURIDAD Para obtener una especificación completa del producto y una guía operativa, lea el Manual de instrucciones completo en www.minelab.com/ product-manuals Como alternativa, póngase en contacto con nosotros para hacer arreglos alternativos para una copia. INSTRUCCIONES DE ENSAMBLAJE Para obtener orientación sobre el ensamblaje del detector, consulte la Guía de Introducción incluida o visite la Base de conocimientos en línea aquí: www.minelab.com/product-manuals. El sitio web de Minelab también proporciona información sobre los accesorios disponibles para su detector. TERMINOS DE LA GARANTIA Consulte www.minelab.com/support/product- warranty / www.minelab.com.mx/condiciones- garantia (México) para conocer todos los términos y condiciones de la garantía. Registre la garantía de su producto en línea en register.minelab.com. CONSIDERACIONES DE SEGURIDAD • Mantener fuera del alcance de los niños, las piezas pequeñas son un peligro de asfixia. • No mutile las pilas. • Deseche las baterías según la normativa local. • Solo cargue el detector y los accesorios de acuerdo con las instrucciones del manual. • No arroje el detector o los accesorios al fuego. • Desconecte la bobina y / o la batería antes de empacar / guardar como equipaje. VEILIGHEIDSOVERWEGINGEN • Buiten bereik van kinderen houden, kleine onderdelen vormen een verstikkingsgevaar. • Beschadig de batterijen niet. • Lever batterijen in volgens de plaatselijke voorschriften. • Laad de detector en accessoires alleen op volgens de instructies in de handleiding. • Stel de detector of accessoires niet bloot aan open vuur. • Ontkoppel de zoekschijf en/of batterij vóór het inpakken/opslaan als bagage. WETTELIJK VERPLICHTE INFORMATIE Vereenvoudigde EU-conformiteitsverklaring Hierbij verklaart Minelab Electronics Pty Ltd dat het type radioapparatuur [verwijs naar detectors uit tabel 1] voldoet aan Richtlijn 2014/53/EU. De volledige tekst van de EU- conformiteitsverklaring is beschikbaar op het volgende internetadres: www.minelab.com/compliance. Polski PL PORADY I ZALECENIA DOTYCZĄCE BEZPIECZEŃSTWA Pełne informacje techniczne oraz wskazówki dotyczące użytkowania znajdują się w pełnej wersji Instrukcji Użytkownika na stronie www.minelab.com/product-manuals. Alternatywnie, prosimy o kontakt w celu udostępnienia materiałów. MONTAŻ Instrukcje dotyczące sposobu składania wykrywacza znajdują się w załączonej Skróconej INFORMACIÓN REGLAMENTARIA Declaración de conformidad de la UE simplificada Por la presente, Minelab Electronics Pty Ltd declara que el tipo de equipo de radio [Consulte los detectores enumerados en la Tabla 1] cumple con la Directiva 2014/53 / UE. El texto completo de la declaración de conformidad de la UE está disponible en la siguiente dirección de Internet: www.minelab.com/compliance. Importador en México: Minelab de México, S.A. de C.V., Calle Mississippi #303 , San Pedro Garza García, Nuevo León, Cp 66220 Français FR CONSEILS ET CONSIGNES DE SECURITE Pour connaître les spécifications complètes du produit et son mode de fonctionnement, veuillez-vous référer au manuel d’utilisation disponible sur: www.minelab.com/product-manuals. Vous pouvez également nous contacter pour en obtenir un exemplaire. INSTRUCTIONS DE MONTAGE Pour savoir comment assembler votre détecter, veuillez vous référer à la notice simplifiée fournie avec ou consultez la base d’informations produits disponible ici : www.minelab.com/product-manuals. Le site Minelab vous indique également quels accessoires sont disponibles pour votre détecteur. CONDITIONS DE GARANTIE Pour connaitre les modalités et les conditions Instrukcji lub w bazie zasobów na stronie: www.minelab.com/product-manuals. Na stronie Minelab znajdują się informacje dotyczące dostępnych akcesoriów. WARUNKI RĘKOJMI Warunki i zasady rękojmi znajdują się na: www.minelab.com/support/product-warranty. Zarejestruj produkt online na stronie: register.minelab.com. ZASADY BEZPIECZEŃSTWA • Trzymaj z dala od dzieci, małe części mogą być przyczyną zadławienia. • Nie otwieraj i nie niszcz baterii i akumulatorów. • Utylizuj baterie i akumulatory zgodnie z obowiązującymi przepisami. • Ładuj akumulatory zgodnie z instrukcją. • Nie wrzucaj baterii, akumulatorów ani wykrywacza do ognia. • Odłącz cewkę i/lub baterie/akumulatory przed umieszczeniem w bagażu. • UWAGA — Ryzyko wybuchu, jeśli bateria jest • wymieniona na nieprawidłowy typ. • Używanie słuchawek przy WYSOKIEJ głośności może powodować zmniejszenie świadomości otoczenia i prowadzić do uszkodzenia słuchu. Zaleca się stosowanie w niższej głośności. • W przypadku korzystania przez dzieci wymagany jest nadzór osoby dorosłej. Modyfikacja Jakiekolwiek modyfikacje nie zaakceptowane przez gwaranta tezgo urządzenia mogą uchylić prawo użytkownika to korzystania z tego urządzenia. de garantie veuillez consulter: www.minelab.com/support/product-warranty. Enregistrez votre produit en ligne pour bénéficier de la garantie sur register.minelab.com. CONSIGNES DE SECURITE • Tenir hors de la portée des enfants, la présence de petites pièces pouvant constituer un risque d’étouffement. • Ne pas tenter d’ouvrir les batteries. • Éliminer les batteries conformément aux lois en vigueur. • Ne charger le détecteur et ses accessoires qu’en respectant le mode d’emploi. • Ne pas jeter le détecteur ni les batteries au feu. • Débrancher le disque et/ou la batterie avant de ranger le détecteur ou de le transporter. INFORMATION RÉGLEMENTAIRE Avis de conformité Canadien Le présent produit est conforme aux spécifications techniques retenues par l’Innovation, Sciences et Développement économique Canada (ISDE). RSS-Gen l’avis: Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: 1) l’appareil ne doit pas produire de brouillage; 2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est su…

Text truncated - open the document above for the full version.

Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 17 June 2022 Confidentiality Request regarding application for certification of FCC ID: (Z4C-0054) Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram Schematics Operational Description Parts list CONF_EQX_XTP Wireless Connection Diagram.pdf CONF_EQX XTP Wireless Audio Schematic.pdf CONF_EQX XTP Operational Description.pdf CONF_EQX XTP Wireless Audio BOM.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Pursuant to DA04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application as outlined below for a period of 90 days: Exhibit Type File Name External Photos Internal Photos Test Setup Photos Manual CONF_Pics_Ext-XTP.pdf CONF_Pics-Int-XTP.pdf CONF_Pics-TestSetup-XTP.pdf CONF_4901-0418-1 GSG, X-TERRA PRO EN_WEB.pdf Sincerely, Philip Beck

EMC Technologies Pty Ltd, 176 Harrick Road, Keilor Park VIC 3042 Australia www.emctech.com.au To: Federal Communications Commission Attention: Certification Officer Date: June 30, 2022 EMC Ref: M2112041 Subject: FCC FILING – FCC ID: Z4C-0054 Company: Minelab Electronics Pty Ltd FCC ID : FCC ID: Z4C-0054 Minelab Electronics is applying for original certification of the Metal Detector - Model X-TERRA PRO. X-TERRA PRO (project name: Tormentor) is designed as a high-performance coin & treasure metal detector. EUT Transmitter Details: • Type: Bluetooth Low Energy • Operating Freq: 2400 – 2483.5 MHz • Antenna: PCB trace Please note: o Label: Device to use E-label o Application includes a request for grant deferment (30 November 2022) o Test results from FCC ID: Z4C-0054A are re-used for this application with spot frequency testing performed to verify the results in accordance with KDB 484596. (Refer to Test Reports M2112040-8 RDO FCC15.247&RSS247 and M2112041-7 RDO Spot Check FCC15.247&RSS247 for results). EMC Technologies is acting as agent Minelab Electronics Pty Ltd in this application. Regards _____________ Shabbir Ahmed CEO EMC Technologies Pty Ltd 176 Harrick Road, Keilor Park, VIC 3042 Australia Ph: +61 3 9365 1000 www.emctech.com.au EMC Technologies Pty Ltd ABN 82 057 105 549 176 Harrick Road, Keilor Park, VIC 3042 Australia Ph: + 613 9365 1000 Fax: + 613 9331 7455 Email: [email protected]

Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 10 June 2022 To Whom It May Concern: SUBJECT: FCC Application for (Z4C-0054) We, the undersigned, hereby authorize Shabbir Ahmed at EMC Technologies Pty Ltd to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters, to apply to the Federal Communications Commission for FCC approval of our equipment. Any and all related commitments made by Shabbir Ahmed at EMC Technologies on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti- Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, Philip Beck

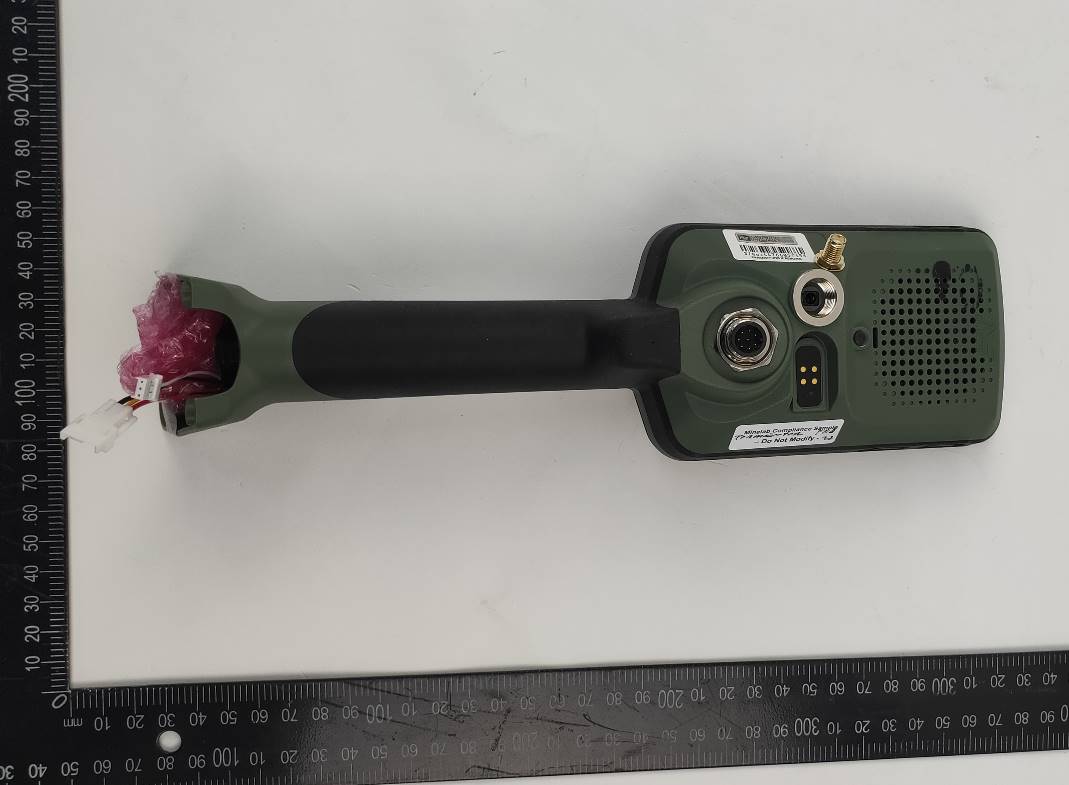

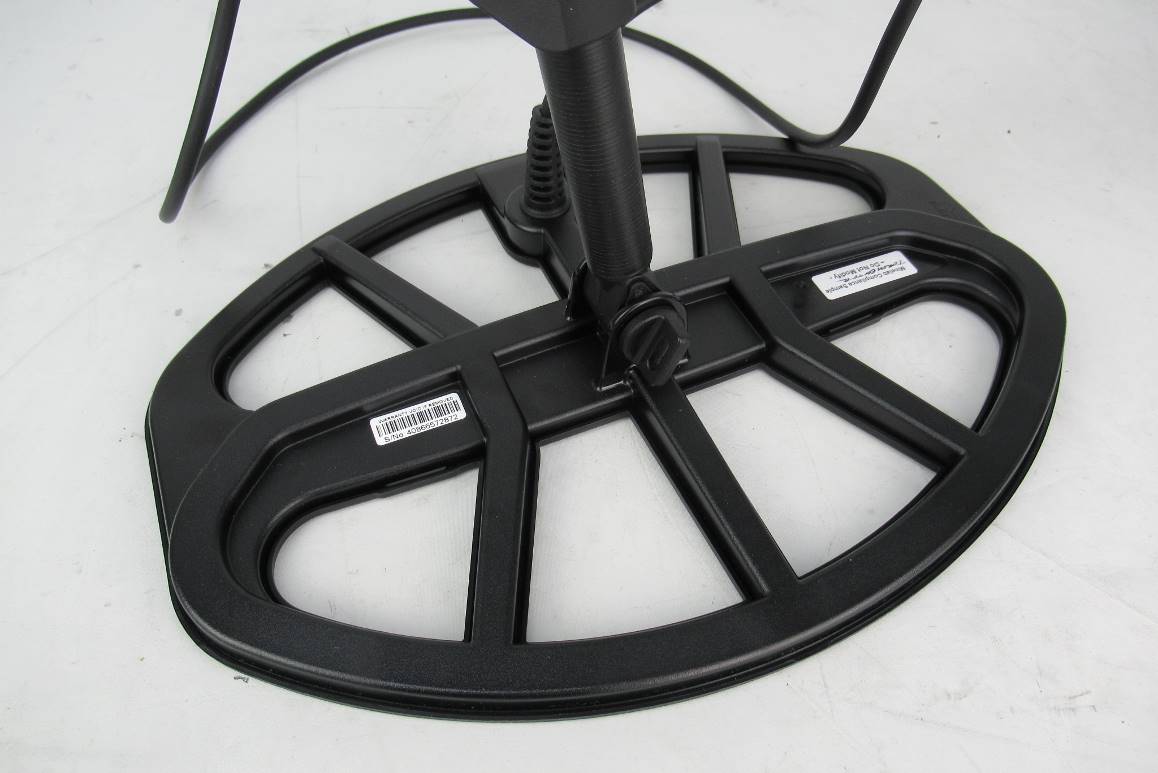

FCC ID: Z4C-0054, IC: 24927-0054 EMC Technologies Pty Ltd 176 Harrick Road, Keilor Park, Victoria 3042, Australia Ph: + 61 (0)3 9365 1000, Email: [email protected], Web: www.emctech.com.au TEST SAMPLE PHOTOS - EXTERNAL FCC ID: Z4C-0054, IC: 24927-0054 EMC Technologies Pty Ltd 176 Harrick Road, Keilor Park, Victoria 3042, Australia Ph: + 61 (0)3 9365 1000, Email: [email protected], Web: www.emctech.com.au TEST SAMPLE PHOTOS - EXTERNAL FCC ID: Z4C-0054, IC: 24927-0054 EMC Technologies Pty Ltd 176 Harrick Road, Keilor Park, Victoria 3042, Australia Ph: + 61 (0)3 9365 1000, Email: [email protected], Web: www.emctech.com.au TEST SAMPLE PHOTOS - EXTERNAL FCC ID: Z4C-0054, IC: 24927-0054 EMC Technologies Pty Ltd 176 Harrick Road, Keilor Park, Victoria 3042, Australia Ph: + 61 (0)3 9365 1000, Email: [email protected], Web: www.emctech.com.au TEST SAMPLE PHOTOS - EXTERNAL FCC ID: Z4C-0054, IC: 24927-0054 EMC Technologies Pty Ltd 176 Harrick Road, Keilor Park, Victoria 3042, Australia Ph: + 61 (0)3 9365 1000, Email: [email protected], Web: www.emctech.com.au TEST SAMPLE PHOTOS - EXTERNAL FCC ID: Z4C-0054, IC: 24927-0054 EMC Technologies Pty Ltd 176 Harrick Road, Keilor Park, Victoria 3042, Australia Ph: + 61 (0)3 9365 1000, Email: [email protected], Web: www.emctech.com.au TEST SAMPLE PHOTOS - EXTERNAL FCC ID: Z4C-0054, IC: 24927-0054 EMC Technologies Pty Ltd 176 Harrick Road, Keilor Park, Victoria 3042, Australia Ph: + 61 (0)3 9365 1000, Email: [email protected], Web: www.emctech.com.au TEST SAMPLE PHOTOS – EXTERNAL

Label: Z4C-0054, IC: 24927-0054 E-Labelling: Regulatory information instructions on carton: Product marking:

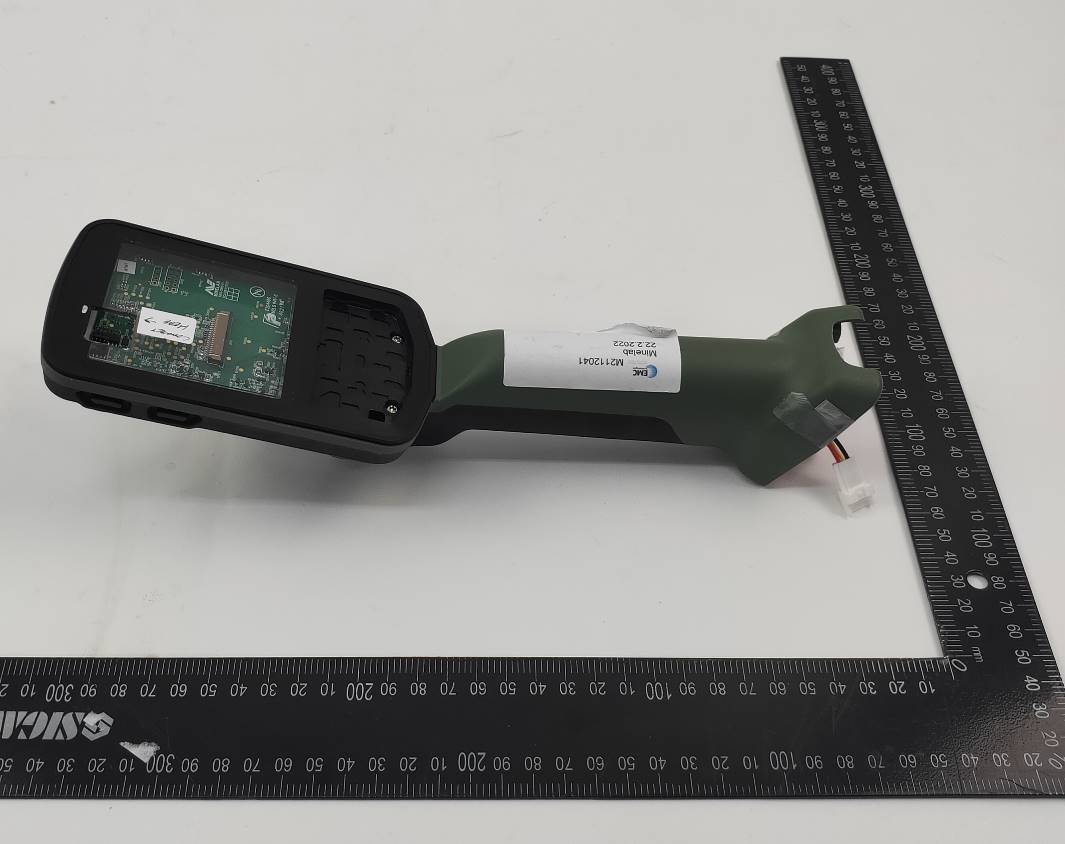

FCC ID: Z4C-0054, IC: 24927-0054 EMC Technologies Pty Ltd 176 Harrick Road, Keilor Park, Victoria 3042, Australia Ph: + 61 (0)3 9365 1000, Email: [email protected], Web: www.emctech.com.au TEST SAMPLE PHOTOS - INTERNAL FCC ID: Z4C-0054, IC: 24927-0054 EMC Technologies Pty Ltd 176 Harrick Road, Keilor Park, Victoria 3042, Australia Ph: + 61 (0)3 9365 1000, Email: [email protected], Web: www.emctech.com.au TEST SAMPLE PHOTOS - INTERNAL FCC ID: Z4C-0054, IC: 24927-0054 EMC Technologies Pty Ltd 176 Harrick Road, Keilor Park, Victoria 3042, Australia Ph: + 61 (0)3 9365 1000, Email: [email protected], Web: www.emctech.com.au TEST SAMPLE PHOTOS – INTERNAL

Page 1 of 23 EMC Technologies Pty. Ltd. ABN 82 057 105 549 Melbourne 176 Harrick Road Keilor Park, Vic 3042 Tel: +61 3 9365 1000 Sydney Unit 3/87 Station Road Seven Hills, NSW 2147 Tel: +61 2 9624 2777 Email: [email protected] Web: www.emctech.com.au Accredited for compliance with ISO/IEC 17020. NATA is a signatory to the ILAC Mutual Recognition Arrangement for the mutual recognition of the equivalence of testing, medical testing, calibration, inspection and proficiency testing scheme providers reports. Except for the Certificate of Compliance, this document must only be reproduced in full. RF EXPOSURE PROCEDURES AND EQUIPMENT AUTHORIZATION POLICIES FOR MOBILE AND PORTABLE DEVICES REPORT NUMBER: M2112041-5 V1.0 STANDARD: FCC KDB 447498 D01 CLIENT: MINELAB ELECTRONICS PTY LTD DEVICE: TORMENTOR METAL DETECTOR MODEL: X-TERRA PRO DATE OF ISSUE: 5 JULY 2022 EMC Technologies Pty Ltd reports apply only to the specific samples tested under stated test conditions. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. EMC Technologies Pty Ltd shall have no liability for any deductions, inferences or generalisations drawn by the client or others from EMC Technologies Pty Ltd issued reports. This report shall not be used to claim, constitute or imply product endorsement by EMC Technologies Pty Ltd. Page 2 of 23 Report No. M2112041-5 V1.0 Except for the Certificate of Compliance, this document must only be reproduced in full. REVISION TABLE Version Sec/Para Changed Change Made Date 0 Initial issue of document 26/06/2022 1 TCB Comments 05/07/2022 Page 3 of 23 Report No. M2112041-5 V1.0 Except for the Certificate of Compliance, this document must only be reproduced in full. CONTENTS Introduction ......................................................................................................................... 5 1.1 Laboratory Overview .................................................................................................. 5 1.2 Test Laboratory/Accreditations .................................................................................. 5 Device Details ..................................................................................................................... 5 SAR TEST EXCLUSION THRESHOLD FOR 100MHz to 6GHz and 50mm ................... 6 LIMITS for Low Power Consumer Wireless Power Transfer Application ........................... 8 MEASUREMENT METHOD ............................................................................................... 8 5.1 Table 1: Test Equipment List ..................................................................................... 8 5.2 Measurement Procedures ......................................................................................... 8 Uncertainty ......................................................................................................................... 8 MEASUREMENT RESULTS .............................................................................................. 9 7.1 Results ....................................................................................................................... 9 7.2 Bluetooth Module Results .......................................................................................... 9 Conclusion .......................................................................................................................... 9 Appendix A – Probe Datasheet ........................................................................................ 12 APPENDIX B – Measurement Plots ............................................................................ 13 APPENDIX C – Supplied Information .......................................................................... 21 APPENDIX D – Photos ................................................................................................ 22 Page 4 of 23 Report No. M2112041-5 V1.0 Except for the Certificate of Compliance, this document must only be reproduced in full. RADIOFREQUENCY RADIATION EXPOSURE EVALUATION REPORT - MPE Device: Tormentor Metal Detector Model Number: X-Terra Pro Serial Number: 73790867765 / 40866572870 (coil) Manufacturer: Minelab Electronics Pt y Ltd Inspected for: Minelab Electronics Pt y Ltd Address: 2 Second Avenue, Mawson Lakes, SA 5095 Phone Number: 0434481762 Contact: Charles Edwards Email: charles.edwards @codan.com.au Standards: 447498 D01 General RF Exposure Guidance v06 RF exposure procedures and equipment authorization policies for mobile and portable devices. Result: Based on an assessment of the documentation provided the Tormentor Metal Detector, modelX-Terra Pro complies with the RF exposure requirements of 447498 D01. Refer to Report M2112041-5 V1.0 for full details Assessment Date: 19 April 2022 Assessment En gineers: Deborah OlaleyeEmad Mansour Authorised Signatory: Emad Mansour EMR/On-Site Project Manager EMC Technolo gies Pty Ltd Issued by: EMC Technologies Pty. Ltd., 176 Harrick Road, Keilor Park, VIC, 3042, Australia. Phone: +61 3 9365 1000 E-mail: [email protected] Web: www.emctech.com.au Page 5 of 23 Report No. M2112041-5 V1.0 Except for the Certificate of Compliance, this document must only be reproduced in full. INTRODUCTION This report is intended to demonstrate compliance of the Tormentor Metal Detector model X- Terra Pro with the RF exposure requirements of KDB 447498 D01-v06. Evaluation was performed in accordance with KDB 680106-v03 as per TCP enquiry (Tracking Number 781827) The test sample was provided by the Client. The conclusion herein is based on the information provided by the client. 1.1 Laboratory Overview EMC Technologies Pty. Ltd. is an independently owned Australian company that is NATA accredited to ISO 17025 for both testing and calibration and ISO 17020 for Inspection. – Accreditation Number 5292. 1.2 Test Laboratory/Accreditations Inspection was pe…

Text truncated - open the document above for the full version.

Page 1 of 19 EMC Technologies Pty. Ltd. ABN 82 057 105 549 Melbourne 176 Harrick Road Keilor Park, Vic 3042 Tel: +61 3 9365 1000 Sydney Unit 3/87 Station Road Seven Hills, NSW 2147 Tel: +61 2 9624 2777 Email: [email protected] Web: www.emctech.com.au Accredited for compliance with ISO/IEC 17025 – Testing. The results of tests, calibration and/or measurements included in this document are traceable to Australian/national standards. NATA is a signatory to the ILAC Mutual Recognition Arrangement for the mutual recognition of the equivalence of testing, medical testing, calibration and inspection reports. This document shall not be reproduced except in full. RADIO TEST REPORT REPORT NUMBER: M2112041-7 TEST STANDARD: SPOT CHECK EVALUATION TO FCC PART 15 SUBPART C SECTION 15.247 ISED RSS-247 SECTION 5.0 CLIENT: MINELAB ELECTRONICS PTY LTD DEVICE: TORMENTOR METAL DETECTOR MODEL: X-TERRA PRO FCC ID: Z4C-0054 IC: 24927-0054 DATE OF ISSUE: 15 JUNE 2022 EMC Technologies Pty Ltd reports apply only to the specific samples tested under stated test conditions. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. EMC Technologies Pty Ltd shall have no liability for any deductions, inferences or generalisations drawn by the client or others from EMC Technologies Pty Ltd issued reports. This report shall not be used to claim, constitute or imply product endorsement by EMC Technologies Pty Ltd. Page 2 of 19 Report No. M2112041-7 This document shall not be reproduced except in full. REVISION TABLE Version Sec/Para Changed Change Made Date 1 Initial issue of document 15/06/2022 Page 3 of 19 Report No. M2112041-7 This document shall not be reproduced except in full. CONTENTS 1 Test Summary ........................................................................................................... 6 2 Test Facility ............................................................................................................... 6 2.1 General ............................................................................................................. 6 2.2 Test Laboratory/Accreditations............................................................................ 6 3 Test Equipment Calibration......................................................................................... 7 4 Measurement Uncertainty........................................................................................... 7 5 Device Details............................................................................................................ 8 5.1 EUT (Transmitter) Details ................................................................................... 8 5.2 EUT (Host) Details ............................................................................................. 8 5.3 Test Conf iguration.............................................................................................. 8 5.4 Modif ications ..................................................................................................... 8 5.5 Deviations f rom the Standard.............................................................................. 8 6 Results ...................................................................................................................... 9 6.1 §15.203/ RSS-Gen 6.8 Antenna Requirement ...................................................... 9 6.2 §15.205/ RSS-Gen 8.10/ RSS-247 3.3 Restricted Bands of Operation................... 9 6.3 §15.209/ RSS-Gen 8.9 Radiated Emission Limits; General Requirements ............. 9 6.4 §15.247(b)(3)/ RSS-247 5. 4(d) Peak Output Power .............................................. 9 6.4.1 Test Procedure............................................................................................... 9 6.4.2 Limits............................................................................................................. 9 6.4.3 Results .......................................................................................................... 9 6.5 §15.247(d)/ RSS-247 5.5 Out-of-Band/Spurious Emissions ................................ 11 6.5.1 Test procedure ............................................................................................. 11 6.5.2 Evaluation of f ield strength ............................................................................ 12 6.5.3 Limits........................................................................................................... 12 6.5.4 Transmitter Spurious Emissions: 9 kHz to 30 MHz .......................................... 12 6.5.5 Transmitter Spurious Emissions: 30 - 1000 M Hz............................................. 13 6.5.6 Transmitter Spurious Emissions: 1 - 18 GHz .................................................. 14 6.5.7 Transmitter Spurious Emissions: 18 – 26 GHz................................................ 16 6.6 §15.247(d)/ RSS-247 5.5 Band Edge Emission Measurements ........................... 17 6.7 §15.247(e)/ RSS-247 5.2(b) Power Spectral Density .......................................... 19 6.8 §15.247(i)/ RSS-Gen 3.4/RSS-102 Maximum Permissible Exposure ................... 19 Page 4 of 19 Report No. M2112041-7 This document shall not be reproduced except in full. GRAPHS Graph 6-1: Max Output Power, 2402 MHz ........................................................................ 10 Graph 6-2: Max Output Power, 2440 MHz ........................................................................ 10 Graph 6-3: Max Output Power, 2480 MHz ........................................................................ 11 Graph 6-4: Transmitter Spurious Emissions, 9 kHz – 30 MHz, 2402 M Hz ........................... 12 Graph 6-5: Transmitter Spurious Emissions, 30 – 1000 MHz, 2402 MHz ............................ 13 Graph 6-6: Transmitter Spurious Emissions, 1 – 18 GHz, 2402 MHz, Peak ........................…

Text truncated - open the document above for the full version.

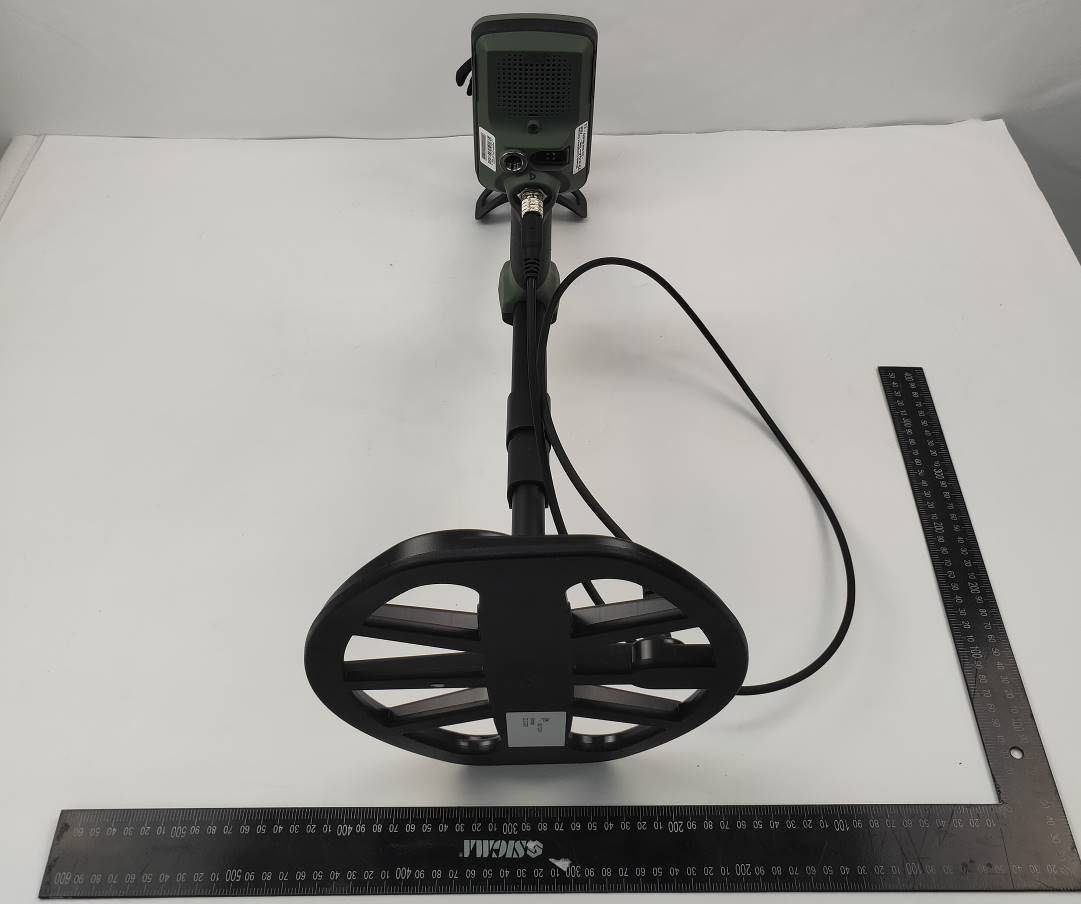

FCC ID: Z4C-0054, IC: 24927-0054 EMC Technologies Pty Ltd 176 Harrick Road, Keilor Park, Victoria 3042, Australia Ph: + 61 (0)3 9365 1000, Email: [email protected], Web: www.emctech.com.au TEST SETUP PHOTOS FCC ID: Z4C-0054, IC: 24927-0054 EMC Technologies Pty Ltd 176 Harrick Road, Keilor Park, Victoria 3042, Australia Ph: + 61 (0)3 9365 1000, Email: [email protected], Web: www.emctech.com.au TEST SETUP PHOTOS FCC ID: Z4C-0054, IC: 24927-0054 EMC Technologies Pty Ltd 176 Harrick Road, Keilor Park, Victoria 3042, Australia Ph: + 61 (0)3 9365 1000, Email: [email protected], Web: www.emctech.com.au TEST SETUP PHOTOS FCC ID: Z4C-0054, IC: 24927-0054 EMC Technologies Pty Ltd 176 Harrick Road, Keilor Park, Victoria 3042, Australia Ph: + 61 (0)3 9365 1000, Email: [email protected], Web: www.emctech.com.au TEST SETUP PHOTOS FCC ID: Z4C-0054, IC: 24927-0054 EMC Technologies Pty Ltd 176 Harrick Road, Keilor Park, Victoria 3042, Australia Ph: + 61 (0)3 9365 1000, Email: [email protected], Web: www.emctech.com.au TEST SETUP PHOTOS FCC ID: Z4C-0054, IC: 24927-0054 EMC Technologies Pty Ltd 176 Harrick Road, Keilor Park, Victoria 3042, Australia Ph: + 61 (0)3 9365 1000, Email: [email protected], Web: www.emctech.com.au M2112041-5 APPENDIX D – PHOTOS Page 20 of 21 Report No. M2112041-5 Except for the Certificate of Compliance, this document must only be reproduced in full. APPENDIX D – PHOTOS Survey Point 1-7 Surve y Point 8 (E/H-Field Spatial Averaging) Page 21 of 21 Report No. M2112041-5 Except for the Certificate of Compliance, this document must only be reproduced in full. Separation Distance
