Z63-BTHDP003Wireless Headphone

861 Caution We will no longer guarantee the performance or warranty if the user attemptsto dismantle and modify this product in anyway.The device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) The device may not cause harmful interference, and (2) The device must accept any interference recieved, including interference thatmay cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.These limits are designed to provide reasonable protection against harmful interference in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

67$7(0(17  7KH VHULDO PRGHOV ZKLFK LQGLFDWHG LQ WKH FHUWLILFDWH RI )&& ,'DV IROORZLQJV  861850/862/863/894/895/897/883/881/304/806/866/853:HVWDWHWKDWWKHVH VHULDOQDPHEHORQJWRWHFKQRORJ\6KHQ=KHQ$RQL(OHFWURQLF,QGXVWU\ &R/WG7KHUHLVQRWDQ\GLIIHUHQFHLQWKHSURGXFWSOHDVHSD\DWWHQWLRQ 7HFKQRORJ\˖ShenZhen Aoni Electronic Industry Co.,Ltd.  WK 1RYHPEHU

ShenZhen Aoni Electronic Industry Co., Ltd. HongHui Industrial Park 2nd LiuXian Road,Xin'An streets,District 68,Bao’an District, Shenzhen, China FCC Authorization Letter Number: CF304 Version: V03 Date: 2-11-2015 We, (the approval holder) Company name ShenZhen Aoni Electronic Industry Co.,Ltd. Address HongHui Industrial Park 2nd LiuXian Road,Xin'An streets,District 68,Bao’an District City Shenzhen Country China declare that the following representative (agent): Name (person) Ruby.zhang Company name Compliance Certification Services Inc. Address No.10-1 Mingkeda Logistics park, No.18 Huanguan South Road. Guan Lan Town, Baoan District, Shenzhen, China City Shenzhen, Country China is hereby authorized to apply the following equipment for certification on our behalf: Product Description Wireless Headphone Type or Model(s) 861/850/862/863/894/895/897/883/881/304/806/866/853 Tradename or Brand(s) ANC/aoni We also authorize Teleconformity (Mr. M. Koop, Manager Certification, Address: Rietven 31, 7534NH Enschede, the Netherlands) to apply and sign this application for certification, registration or filing on our behalf (as representative agent or certifier). Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Shenzhen 2015/11/10 Owen.Wong engineer

ShenZhen Aoni Electronic Industry Co., Ltd. HongHui Industrial Park, 2nd LiuXian Road, Xin'An streets, District 68, Bao’an District, Shenzhen, China FCC Confidentiality Request Number: CF303 Version: V02 Date:17-06-2011 To: Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company name ShenZhen Aoni Electronic Industry Co.,Ltd. Address HongHui Industrial Park, 2nd LiuXian Road, Xin'An streets, District 68, Bao’an District City Shenzhen Country China request for this certification filing under: Grantee Code Product Number FCC ID: Z63 - BTHDP003 to maintain permanent confidentiality for the following documents submitted within this application: (please cross what is applicable, or add other documents, provide the file name and description) Exhibit √ Operational Description √ Block Diagrams √ Schematics Diagrams Bill of Materials Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. The documents indicated as confidential above, are not publicly available elsewhere. Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Shenzhen 2015/11/18 Owen.Wong engineer

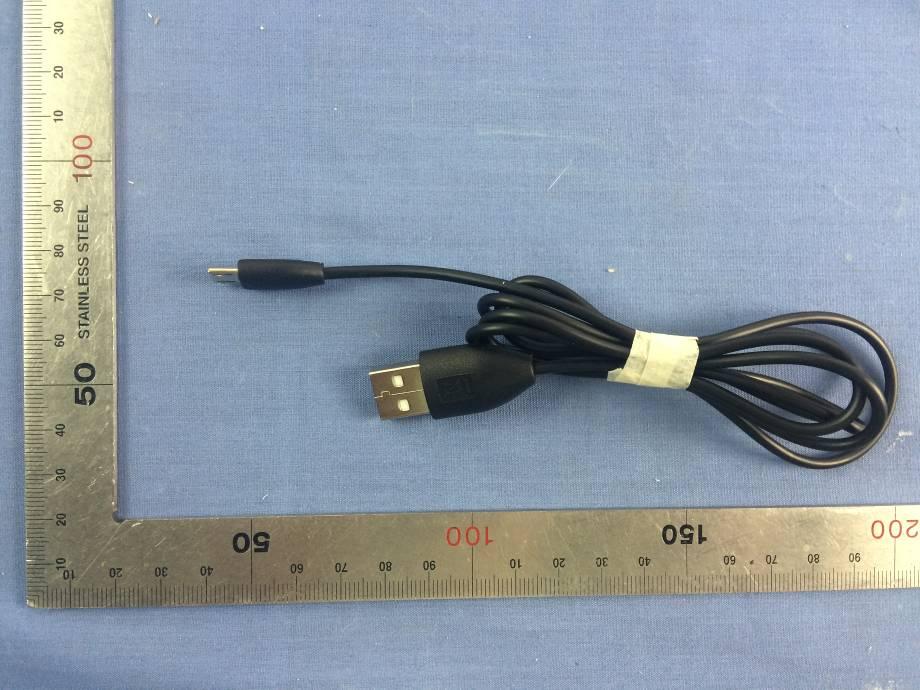

Report No: C151026Z04 Page 1 / 4 External Photos of EUT Report No: C151026Z04 Page 2 / 4 Report No: C151026Z04 Page 3 / 4 Report No: C151026Z04 Page 4 / 4

Made in China Item No.: 861 Aoni Bluetooth Headphone Power: 5V 500mA Made in China Item No.: 861 Power: 5V 500mA FCC ID:Z63-BTHDP003 Made in China Item No.: 861 Aoni Bluetooth Headphone Power: 5V 500mA FCC ID:Z63-BTHDP003

Report No: C151026Z04 Page 1 / 5 Internal Photos of EUT Report No: C151026Z04 Page 2 / 5 RF Module Report No: C151026Z04 Page 3 / 5 Antenna Report No: C151026Z04 Page 4 / 5 Report No: C151026Z04 Page 5 / 5

FCC RF Exposure FCC ID: Z63-BTHDP003 Exposure category: General population/uncontrolled environment EUT Type: Production Unit Device Type: Portable Device Refer Standard: KDB 447498 D01 General RF Exposure Guidance v05r02 FCC Part 2 §2.1091 Evaluation method According to KDB447498 D01 General RF Exposure Guidance v05r01Section 4.3.1 Standalone SAR test exclusion considerations:“ Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. Conducted Power Results Bluetooth Mode Channel Frequency(MHz) AVG Conducted Output Power (dBm) GFSK 00 2402 -5.39 39 2441 -3.54 78 2480 -1.90 8DPSK 00 2402 -2.78 39 2441 -0.48 78 2480 1.22 π/4DQPSK 00 2402 -2.59 39 2441 -0.55 78 2480 -0.05 Manufacturing tolerance Bluetooth GFSK (AVG) Channel Channel 00 Channel 39 Channel 78 Target (dBm) -5.0 -3.0 -1.0 Tolerance ±(dB) 1.0 1.0 1.0 8DPSK (AVG) Channel Channel 00 Channel 39 Channel 78 Target (dBm) -2.0 0.0 1.0 Tolerance ±(dB) 1.0 1.0 1.0 π/4DQPSK (AVG) Channel Channel 00 Channel 39 Channel 78 Target (dBm) -2.0 0.0 0.0 Tolerance ±(dB) 1.0 1.0 1.0 Evaluation Results Band/Mode f (GHz) Antenna Distance (mm) RF output power (including tune-up tolerance) SAR Test Exclusion Threshold SAR Test Exclusion dBm mW BT* 2.450 5 2.0 1.585 0.496<3.0 Yes Conclusion The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v05r02. .......................End of Report.........................

Report No.: C151026Z04-RP1 FCC ID: Z63-BTHDP003 Page 1 / 61 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Wireless Headphone Model: 861, 850, 862, 863, 894, 895, 897, 883, 881, 304, 806, 866, 853 Brand: ANC/ aoni Test Report Number: C151026Z04-RP1 Prepared for ShenZhen Aoni Electronic Industry Co., Ltd HongHui Industrial Park, 2nd LiuXian Road, Xin’An streets, District 68, Bao’an District, ShenZhen, China Prepared by COMPLIANCE CERTIFICATION SERVICES (SHENZHEN) INC. No.10-1, Mingkeda Logistics Park, No.18, Huanguan South Rd., Guan Lan Town, Baoan District, Shenzhen China TEL: 86-755-28055000 FAX: 86-755-28055221 E-Mail: [email protected] Issued Date: November 12, 2015 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services (Shenzhen) Inc. This document may be altered or revised by Compliance Certification Services (Shenzhen) Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NVLAP, NIST, CNAS or any government agencies. The test result of this report relate only to the tested sample identified in this report. 检 测 CNAS L4818 Report No.: C151026Z04-RP1 FCC ID: Z63-BTHDP003 Page 2 / 61 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 November 12, 2015 Initial Issue ALL Nancy Fu Report No.: C151026Z04-RP1 FCC ID: Z63-BTHDP003 Page 3 / 61 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION ....................................................................................4 2. EUT DESCRIPTION ........................................................................................................5 3. TEST METHODOLOGY ..................................................................................................6 3.1 DESCRIPTION OF TEST MODES ...............................................................................6 4. FACILITIES AND ACCREDITATIONS ............................................................................7 4.1 FACILITIES ..................................................................................................................7 4.2 ACCREDITATIONS .....................................................................................................7 4.3 MEASUREMENT UNCERTAINTY ...............................................................................7 5. SETUP OF EQUIPMENT UNDER TEST .........................................................................8 5.1 SETUP CONFIGURATION OF EUT .............................................................................8 5.2 SUPPORT EQUIPMENT ............................................................................................8 6. FCC PART 15.247 REQUIREMENTS .............................................................................9 6.1 20DB BANDWIDTH ......................................................................................................9 6.2 ANTENNA GAIN ........................................................................................................ 14 6.3 PEAK POWER ........................................................................................................... 15 6.4 PEAK POWER SPECTRAL DENSITY........................................................................ 17 6.5 BAND EDGES MEASUREMENT ............................................................................... 18 6.6 FREQUENCY SEPARATION ..................................................................................... 28 6.7 NUMBER OF HOPPING FREQUENCY ...................................................................... 31 6.8 TIME OF OCCUPANCY (DWELL TIME) ..................................................................... 33 6.9 SPURIOUS EMISSIONS ............................................................................................ 40 6.10 POWERLINE CONDUCTED EMISSIONS ................................................................ 58 Report No.: C151026Z04-RP1 FCC ID: Z63-BTHDP003 Page 4 / 61 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1. TEST RESULT CERTIFICATION Product Wireless Headphone Model 861, 850, 862, 863, 894, 895, 897, 883, 881, 304, 806, 866, 853 Brand ANC/ aoni Tested October 26~ November 12, 2015 Applicant ShenZhen Aoni Electronic Industry Co., Ltd HongHui Industrial Park, 2nd LiuXian Road, Xin’An streets, District 68, Bao’an District, ShenZhen, China Manufacturer ShenZhen Aoni Electronic Industry Co., Ltd HongHui Industrial Park, 2nd LiuXian Road, Xin’An streets, District 68, Bao’an District, ShenZhen, China APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services (Shenzhen) Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10:2013 and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.207, 15.209 and 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Sunday Hu Supervisor of EMC Dept. Compliance Certification Services (Shenzhen) Inc. Ruby Zhang Supervisor of Report Dept. Compliance Certification Services (Shenzhen) Inc. Report No.: C151026Z04-RP1 FCC ID: Z63-BTHDP003 Page 5 / 61 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 2. EUT DESCRIPTION Product Wireless Headphone Model Number 861, 850…

Text truncated - open the document above for the full version.

Report No.: C151026Z04-RP1 FCC ID: Z63-BTHDP003 Page 1/2 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Report No.: C151026Z04-RP1 FCC ID: Z63-BTHDP003 Page 2/2 RADIATED EMISSION TEST Below 1GHz Above 1GHz
