Z63-E932Smart Battery Doorbell Camera

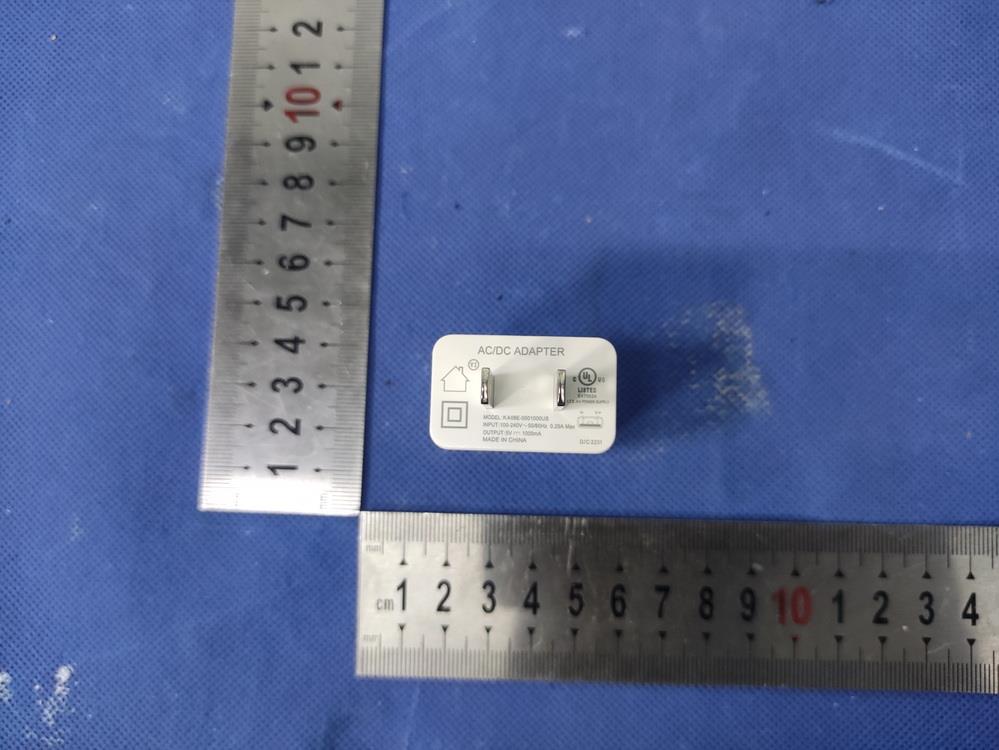

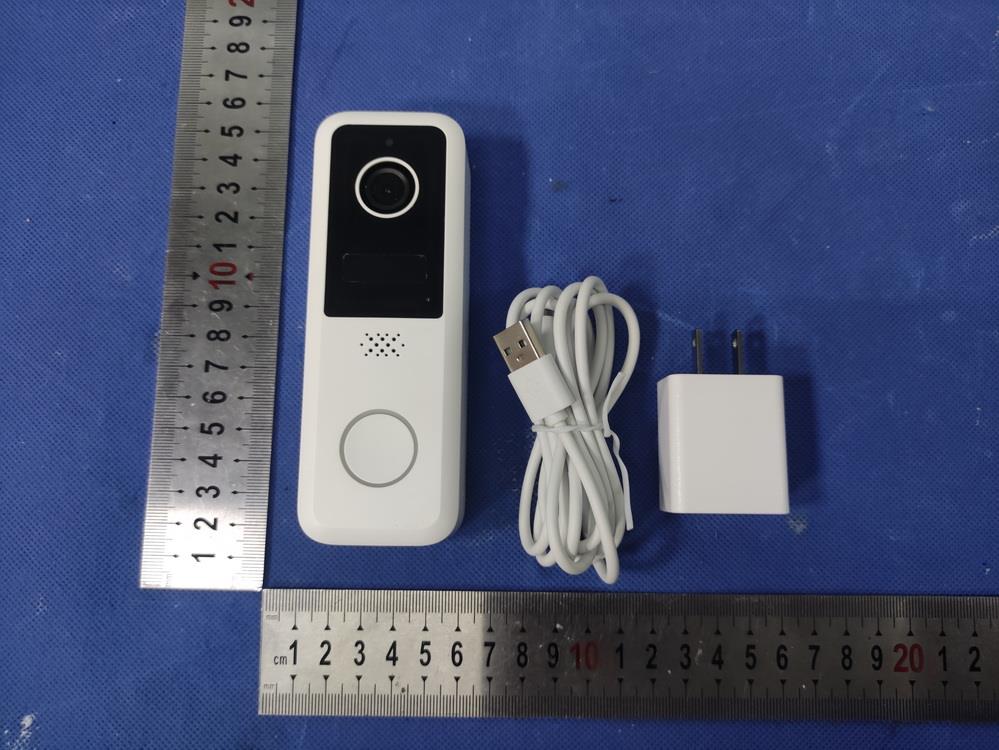

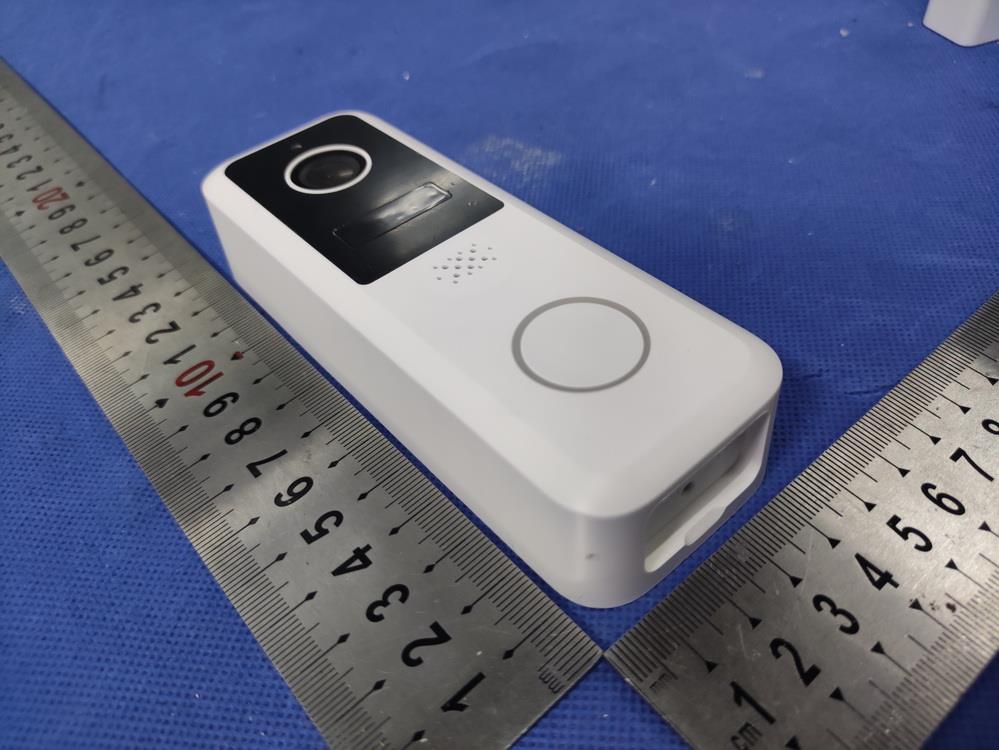

Quick Start Guide Smart Battery Doorbell Camera Model: E93G Welcome Thank you for choosing our smart camera. Getting started is easy. What’s Included Video Doorbell Back Veneer Power Adapter USB Cable Product Details 1. Connection Preparation Bring the doorbell and phone within 1 to 3 feet (30 to 100 centimeters) of the router. Router 30cm~100cm Doorbell Smartphone Note: Make sure smart phone is connected with your wireless router. Please note the doorbell is only working under 2.4G Wi-Fi, not support 5G Wi-Fi. For the best experience, please download the "Tuya smart" APP to your smartphone from App Store or Google Play, or you can also scan the QR code below, the APP icon will be displayed after installed successfully. 2. Get th e APP and Account Launch the app from your smartphone and click the Sign Up button. Follow the on-screen instructions. 7. Schematic diagram of doorbell installation 6.Pairing of doorbell and chime Connect the power to the doorbell by Micro USB Power Adapter.(DC5V/1.5A) 4. Connect the power to the doorbell Hammer expansion bolt into wall body as per the hole position of locating sticke; Use a screw to fix the back plate; Put the doorbell downward to buckle it on the back plate to complete installation. You’re done! Congratulations! Your doorbell is set up and ready to go. All trademarks are used fo r reference purposes only. Thanks again for choosing our smart camera! Makelife safe in your hands! Boost security mobility in your smartphone! Appendix: Camera LED Guide NO.LED StatusCamera Stat us 1System starting upWhite LED on for 2 seconds 2Standby for configurationWhite LED blinks slowly 3Doorbell networking failureWhite LED blinks quickly 4Doorbell networking successfulWhite LED on for 2 seconds 5 6 7 8 9 10 11 12 Doorbell sleeping normallyWhite LED goes out Doorbell wake upWhite LED breath flash Press the doorbell buttonWhite LED breath flash OTA upgradeWhite LED blinks slowly Doorbell chargingGreen LED on Doorbell charging completeGreen LED goes out Doorbell charging abnormallyGreen LED blinks quickly Doorbell working abnormallyWhite LED always on USB Chime or DC Chime3M tapeSpanner Power interface Lens Ambient Light Detection Speaker PIR Doorbell Buttons Volume Button Ringtone Button Doorbell Bottom ViewChime Doorbell Front ViewDoorbell Rear View Micro SD card Power Switch Reset Insert the Micro SD card gently on the side edge of doorbell. 3. Insert th e Mi cro SD card Press the Reset button for above 5 seconds, then release the button to reset the camera, then the LED light will blink in white slowly. Click "Add Device" or "+" on the right corner to add device; Then click" Security&Video Surveillance" to select " Smart Doorbell" 5. Set up your doorbell Follow the App's instructions and input the right wifi password; Point the QR code to the camera lens for 15-20cm ; Click"HEARD THE BEEP" when you heard "dingding". After processing, it paired successfully. The white light is on, camera is ready for viewing. Wall Mount Screw Sets X2 Tuya Smart Tuya Smart 成品尺寸：77*120mm 折后封面 深圳奥尼电子股份有限公司 SHENZHEN AONI ELECTRONIC CO., LTD FORMAT 版 本 日 期 DATE 比例 APPROVED 批 准 要求 ±1° 角 度 ±1° 变更NO. 年/月/日 尺 寸 公 差 尺 寸 ±1mm 位 数 记 事 审 核 CHECKED DRAWN 制 图 设 计 DESIGNED x / x . x 1 : 1 2022.09.06 A 夏媛媛 韦静 128g铜版纸， 单黑色两面印刷， RoHS 品名 料号 IPC_E93G_中性_ 折页_说明书 Press the Reset button for above 5 seconds Quick Start Guide Quick Start Guide Smart Battery Doorbell Camera Model: E93G white LED blinks 1 1 2 2 3 Press and keep the volume button of chime, until you hear the sound of “Ding Ding Ding Ding” from chime. Press the doorbell button, you can hear" Ding dong" too. Press the doorbell button again, the chime rings mean the paring is successful. 1 2 3 3 Back VeneerDoorbellWall Indicator LED 展开尺寸：385*120mm 40610E93G0002 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note:This equipment has been tested and found to comply with the limits for a class B digital device,pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequence energy and,if not installed and used in accordance with the instructions,may cause harmful interference to radio communications.However,there is no guarantee that interference will not occur in a particular installation.if this equipmemt does cause harmful interference to radio or television reception,which can be determined by turning the equipment off and on,the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an autlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This equipment should be installed and operated with a minumum distance of 20 cm between the radiator and your body. FCC Statement

SHENZHEN AONI ELECTRONIC CO.,LTD Declaration on model difference We the undersigned hereby confirm that these models are identical, and all models have the same RF module and antenna, PCB layout , schematics and component. the difference is the model Numbers and color of case panel. Production name FCC ID Trademark Model no. Smart Battery Doorbell Camera Z63-E932 N/A E932, E93G, ES06560G Sincerely, tendy Dong SHENZHEN AONI ELECTRONIC CO.,LTD No.5,Bldg., Honghui Industrial Park, 2nd Liuxian Road, Baoan District, Shenzhen, P.R.china

SHENZHEN AONI ELECTRONIC CO.,LTD 2022-09-16 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (EUT Name: Smart Battery Doorbell Camera /Model: E932, E93G, ES06560G /FCC ID: Z63-E932) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the (Block Diagram ,Operational Description,Schematics) required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, tendy Dong SHENZHEN AONI ELECTRONIC CO.,LTD No.5,Bldg., Honghui Industrial Park, 2nd Liuxian Road, Baoan District, Shenzhen, P.R.china

SHENZHEN AONI ELECTRONIC CO.,LTD 2022-09-16 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize DongGuan Anci Electronic Technology Co., Ltd. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, tendy Dong SHENZHEN AONI ELECTRONIC CO.,LTD No.5,Bldg., Honghui Industrial Park, 2nd Liuxian Road, Baoan District, Shenzhen, P.R.china

Model: E93G Model: E932, ES06560G

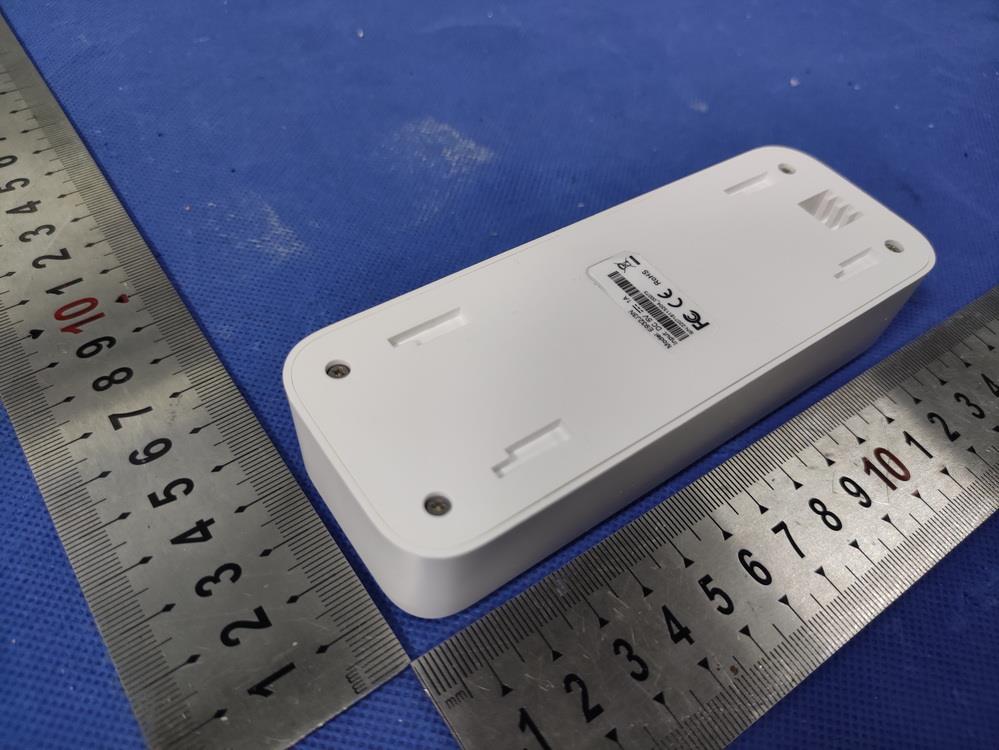

Label： Label location：

WIFI ANT 433.91MHz ANT

ShenzhenMayacommunicationequipmentCo.,LTD Model:E93GJ3N Date：2022.9.16 -2- 1.aim FortheProductionfromshenzhenmayacommunicationequipmentco.,LTD.Thatmobile communicationterminalantennaproductspecificationsandtestmethodsforspecification, avoidthetestconditions,theerrorcausedbydifferentmethods 2.Antennadebugdesignrequirementfrequencyband. frequency frequencyband WIFIWIFI2.4G other / 3.Productcellphoneandskychart. Theantenna ShenzhenMayacommunicationequipmentCo.,LTD Model:E93GJ3N Date：2022.9.16 -3- 4.electrical 4.1Testmethoddescriptionanddata. Devicenameuse VectorNetworkAnalyzerS11/Impedance/PassiveTest Agilent8960 SP6010 R&SCMU200 GSM,GPRS,EDGE,CDMA2000,1xev-do, td-scdma,WCDMA,HSDPAmobilephonemobile communicationequipmenttest. R&SCMW500 MT8820C Includingtd-scdma,WCDMA, HSDPA,LTE,WIFI,GPSmobilephonemobile communicationequipmenttest. SP9500E Contains5G,SA,NSA AgilentE4438C TestactiveGPS MVGChamber PassiveTest/OTAactiveTest/Efficiency/Gain 4.2PassiveTestReport Testequipment:networkanalyzer. Testmethod:witha50ohmCABLECABLEfromtheinstrumenttestportisderived,usingthe calibrationafteracalibrationmechanismofSMAconnector,connectinghandrecordsrelatedtothe frequencypointscorrespondingreturnlossandstandingwaveratiodata. ShenzhenMayacommunicationequipmentCo.,LTD Model:E93GJ3N Date：2022.9.16 -4- 4.3ActiveTestReport TRP/TIS Fromtestingtools,measuring,networkanalyzer,fullwavesfarfieldETS,FrenchMVGSG24LT (Satmio)nearfield3dmicrowavedarkroom,thehighprecisionpositioningsystemandits controllerandthecomputerwithautomatictestproceduretestenvironment:thetemperatureof 22°C+3°C,humidity60%plusorminus60%testmethods:UsingESTor24ltSatimosystem softwareTestmethodandcalculationofTRPwhentestedTRP,DUT(DeviceUnderTest)isina stateofmaximumtransmittedpower,includingthreetochoosechannelTest,bypositioningsystem controlthelocationoftheDUT,with15degreesforsteplength,measuringthreedimensional space,theeffectiveradiatedpower(EIRP)atvariouspointsthroughtheaverageoftheintegral sphere,computationformulaisasfollows InTIStest,theDUTatthemaximumtransmissionpowerofthestate,includingthreetochoose channeltest,bycontrollingthelocationoftheDUT,at30degreesforthesteplength,measuring thethreedimensionalspaceeachpointreceivingsensitivity,theaverageofthespherebyintegral calculation,calculationformulaisasfollows: ShenzhenMayacommunicationequipmentCo.,LTD Model:E93GJ3N Date：2022.9.16 -5- 4.4PassiveTestReport VSWR Efficiencygain ShenzhenMayacommunicationequipmentCo.,LTD Model:E93GJ3N Date：2022.9.16 -6- Directionalpattern ShenzhenMayacommunicationequipmentCo.,LTD Model:E93GJ3N Date：2022.9.16 -7- 4.5OTATRP/TISTestReport ShenzhenMayacommunicationequipmentCo.,LTD Model:E93GJ3N Date：2022.9.16 -8- 5.Matchingcircuitdescription Note:wedonotdebugtheantennamatchingcircuit. 6.Environmentaltreatment AntennaAssemblypositiondiagram Thewireinsidetheyellowcoilshouldbefixed wellandawayfromtheantennatoavoid interference Thecoaxiallineisarrangedunderthelampplate alongtheinneredgeoftheshell ShenzhenMayacommunicationequipmentCo.,LTD Model:E93GJ3N Date：2022.9.16 -9- 7.structuraldrawings ShenzhenMayacommunicationequipmentCo.,LTD Model:E93GJ3N Date：2022.9.16 -10- 8.WarningSign 1.Thesectiononperformanceandstructurevalidation ★Pleaseconfirmtheappearanceandperformanceoftheproductbeforeyousign theacknowledgement. ★Pleasebesuretoprovidethefinalmassproductiontrialproductionmachine toourcompanyortakebackourcompanyverificationbeforemassproduction ★Astheproductofthisacknowledgementisahighlysensitiveobject,please besuretokeepthetestingmachineforfollow-up ★Asthisproductisacustom-madeobject,theuseofthetargeted,customers inmaterialreplacementorfornon-designateditems,pleasebesuretochange thematerialornon-designateditemsofthemachinesenttoourcompanytoverify theradio-frequencyperformance,otherwise,maycausetheusestateandthe designstateinconsistentserioushiddendanger,toourcompanysealeddebugging samplefunctionconfirmation,ensureourcompanydebuggingsamplefunction completelynormal,preventfunctionabnormaltotheantennaperformanceerror causedbytheantennaperformance 2.Aboutproductstorage ★Asthisproducthasprintinginkonthesurface,adhesiveonthebackand electroplate,pleasemakesurethetemperatureisbetween23°c-27°Candthe relativehumidityisbelow60%duringstorageortransportation,nostrongacid, nosulfur,nooxygenstorageortransportenvironment ★Astheproductbackglueontheenvironmentrequirementsaremorestringent, pleasecustomersmustbereceivedaftertheproduct,intheproductquality guaranteeperiodtoensurethereliabilityoftheproduct 3.Tipsforusingtheproduct ★Duetothespecialstructureofthisproduct,pleaseusethisproductmustbe infullcontactwiththepastedobjects,andpastedobjectsmustnotberesidual chemicals(releaseagent,etc.)orasfaraspossibledonotusetherawmaterials withreleaseagent,toensurethattheproductisingoodworkingcondition, pleasecleanthesurfaceofthepastedarticlebeforeusingtheproducttoensure thatthereisnochemicalresidueonthesurfaceofthepastedarticle 4.StatementofQualityAssuranceforthisproduct ★Thisproductqualityguaranteeperiodis12months,ifyouruseandstorage environmenttomeettheaboverequirements,inthevalidguaranteeperiodofany qualityproblems,anddeterminedthatourproductsareabnormal,ourcompanycan providefreereplacementservices,after12months,ourproductsprovide life-longconsultationandpaidreplacementservices ★Thisproductisaspecialcustomdevice,pleasereceivetheproductmustwithin 3workingdaysoftheproductquantityconfirmation

RF EXPOSURE EVALUATION EUT Specification EUT Smart Battery Doorbell Camera Model Number E932 FCC ID Z63-E932 Antenna gain (Max) 3.86dBi Operation Frequency WLAN: 2.412GHz ~ 2.462GHz Input Rating DC 5V, 1A Max. output power 802.11b: 9.85dBm 802.11g: 8.25dBm 802.11n(HT20): 8.79dBm 802.11n(HT40): 7.72dBm Test Requirement: According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500-100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 6 1500-100000 -- -- 1 30 11.1 Friis transmission formula: Pd= (Pout*G)\ (4*pi*R 2 ) Where Pd= Power density in mW/cm 2 Pout=output power to antenna in mW G= Numeric gain of the antenna relative to isotropic antenna Pi=3.1416 R= distance between observation point and center of the radiator in cm=20cm Pd the limit of MPE, 1mW/cm 2 . If we know the maximum gain of the nd total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. 11.2 Measurement Result Antenna gain: 3.86dBi WIFI: Signature: Tiger Xu Date: 2022-09-20 Operatin g Mode Test Channel Tune up tolerance (dBm) Max tune up conducte d power(dB m) Output Peak power (mW) Ant. Gain (dBi) Ant. Gain (numeric) Power density at 20cm (mW/ cm2 ) Power density Limits (mW/ cm2 ) 110±111 12.5893.862.4320.006091 1 610±111 12.5893.862.4320.006091 1 119±110 10.0003.862.4320.004838 1 18±19 7.9433.862.4320.003843 1 67±18 6.3103.862.4320.003053 1 118±19 7.9433.862.4320.003843 1 802.11n18±19 7.9433.862.4320.003843 1 (HT20)69±110 10.0003.862.4320.004838 1 119±110 10.0003.862.4320.004838 1 802.11n38±19 7.9433.862.4320.003843 1 (HT40)67±18 6.3103.862.4320.003053 1 97±18 6.3103.862.4320.003053 1 802.11b 802.11g

TRF No.: 01-R001-3A-WIFI TRF Originator: GTG TRF Date: 2022-06-29 Web: www.gtggroup.com E-mail: [email protected] Tel.: 86-400 755 8988 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF Smart Battery Doorbell Camera Model No.: E932, E93G, ES06560G FCC ID: Z63-E932 Trademark: N/A Report No.: E01A22090062F00101 Issue Date: September 15, 2022 Prepared for SHENZHEN AONI ELECTRONIC CO.,LTD No.5,Bldg., Honghui Industrial Park, 2nd Liuxian Road, Baoan District, Shenzhen, P.R.china Prepared by Dong Guan Anci Electronic Technology Co., Ltd. 1-2 Floor, Building A, No.11, Headquarters 2 Road, Songshan, Lake Hi-tech Industrial Development Zone, Dongguan City, Guangdong Pr., China. This report shall not be reproduced, except in full, without the written approval of Dong Guan Anci Eleaactronic Technology Co., Ltd. 1 of 62 Report No.: E01A22090062F00101 TRF No.: 01-R001-3A-WIFI Global Testing , Great Quality. VERIFICATION OF COMPLIANCE Applicant: SHENZHEN AONI ELECTRONIC CO.,LTD. No.5,Bldg., Honghui Industrial Park, 2nd Liuxian Road, Baoan District, Shenzhen, P.R.china. Manufacturer: SHENZHEN AONI ELECTRONIC CO.,LTD No.5,Bldg., Honghui Industrial Park, 2nd Liuxian Road, Baoan District, Shenzhen, P.R.china Product Description: Smart Battery Doorbell Camera Trade Mark: N/A Model Number: E932, E93G, ES06560G (All models are identical except for the case panel color. We choose model: E932 to do all tests.) We hereby certify that: The above equipment was tested by Dong Guan Anci Electronic Technology Co., Ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10-2013 and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.247(2022). Date of Test : September 06, 2022 to September 14, 2022 Prepared by : Duke Liu/Editor Reviewer & Authorized Signer : Tiger Xu/ Supervisor 2 of 62 Report No.: E01A22090062F00101 TRF No.: 01-R001-3A-WIFI Global Testing , Great Quality. Modified Information Versio n Summary Revision Date Report No. Ver.1.0 Original Report / E01A22090062F00101 3 of 62 Report No.: E01A22090062F00101 TRF No.: 01-R001-3A-WIFI Global Testing , Great Quality. Table of Contents 1. GENERAL INFORMATION ................................................................................................................................. 5 1.1 PRODUCT DESCRIPTION .................................................................................................................................. 5 1.2 TEST METHODOLOGY ...................................................................................................................................... 5 2. SYSTEM TEST CONFIGURATION .................................................................................................................... 6 2.1 EUT CONFIGURATION ..................................................................................................................................... 6 2.2 EUT EXERCISE ................................................................................................................................................ 6 2.3 TEST PROCEDURE ........................................................................................................................................... 6 2.4 CONFIGURATION OF TESTED SYSTEM............................................................................................................. 6 3. DESCRIPTION OF TEST MODES ..................................................................................................................... 8 4. SUMMARY OF TEST RESULTS ...................................................................................................................... 11 5. TEST FACILITY ................................................................................................................................................... 12 6. CONDUCTED EMISSIONS TEST .................................................................................................................... 13 6.1 MEASUREMENT PROCEDURE: ....................................................................................................................... 13 6.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ............................................................................... 13 6.3 MEASUREMENT EQUIPMENT USED: .............................................................................................................. 13 6.4 CONDUCTED EMISSION LIMIT .............................................................................................................................. 13 6.5 MEASUREMENT RESULT: ............................................................................................................................... 14 7. RADIATED EMISSION TEST ........................................................................................................................... 16 7.1 MEASUREMENT PROCEDURE ........................................................................................................................ 16 7.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ............................................................................... 17 7.3 MEASUREMENT EQUIPMENT USED ............................................................................................................... 18 7.4 RADIATED EMISSION LIMIT ............................................................................................................................ 19 7.5 MEASUREMENT RESULT ................................................................................................................................ 20 8. 6DB BANDWIDTH TEST ........................................................................................................…
