Z63-E93CSmart Camera

Quick Start Guide Quick Start Guide Smart Wireless Indoor/ Outdoor Security Camera Dear User, Thanks for selecting this product.Please kindly add your camera according to the Quick Start Guide and keep the Quick Start Guide properly. I. Packing List II. Product Overview III. Indicator Light Illustration IV. Getting Started V. Adding Device IV. Charging Camera VII. Installing Camera Base Station Adaptor for base Ethernet Cable Sync Key � Power port � WiFi Security Camera Camera Adaptor Camera USB cable Screws Mounting Base Quick Start Guide SD Card Slot � Indicator Light 1Indicator Light 2 � USB port � Reset Button Base Station Camera On/off Button Indicator Light 1 Solid Red: Activating Quick Flashing Red:Waiting for Internet Pairing Quick Flashing Green:Connecting to Server Solid Green:Connected to Server Successfully Slow Flashing Red: Device Fault Slow Flashing Green: Device Upgrading Indicator Light 2 Indicator Light Red LED blinks quickly: Standby for configuration. Green LED blinks quickly: Network pairing. Green LED on : Camera online. Yellow LED blinks slowly : Firmware upgrade. Red LED blinks slowly : Device fault. Flashing Green: Adding camera; The indicator light will turn off after completion SYNC:Press the SYNC key, the Base Station will enter Adding camera status Siren Off:When Siren on, press the SYNC key to turn it off Power Supply Port For local Storage(SD Card Max Capacity:128GB) SYNC Key Power Port SD Card Slot Connect USB storage device for local storage, up to 2TB USB Slot Port to connect Router’s LAN port WAN Port Press and hold for 3s, the base station will be reset. SYNC: Press the button, then the device will enter Waiting for Pairing status. Power Button: Press the button to wake up it when the camera is in deep sleep mode; Press and hold the button for 3s, the camera will enter deep sleep mode. Reset Button Charging portUSB Charging Port Press and hold for 3s,the device will power off and reboot after reset setting, but the camera will not be unbound. Reset Button � WAN Port � � Lens � On/off button � USB Charging Port � PIR � Microphone � Light sensor � Indicator Light � Reset Button 1. Search for “Tuya Smart” on the Apple App Store or Google Play Store. Download and install the App. 2. Creating a new account on “Tuya Smart” App. 3. Connecting Device 1. Add Base Station 2. Add Camera 1. The camera is with built-in 6000mAh rechargeable battery 3. It requires 4hrs for full charging. Once full charging, the white indicator will turns off into power outlet(100v-240v) for charging. The indicator light on camera will turns solid white indicating that the device is in charging(if the indicator light flashes when charging,please contact customer service) 2. When charging, please use the camera USB cable to connect camera and camera adaptor, then plug the adptor 1. Drill or drive the mounting screws into the wall. If it’s stone wall, then requires screw anchor 3. Install the camera on the mounting base and adjust the camera angle 2. Mount the mounting base on the screws Enter the verification code and creat a password. NotePlease make sure that your mobile device OS is iOS 9.0 or higher, or Android 4.1 or higher. 1. Need one router connecting to internet 2. Need at uplink network with at least 2MB speed Recommended mounting height:2-3meter � � � � � � � � � � � Enter your verification code � Please connect your mobile and base station to one router � Open “Tuya Smart” App, click the top right “+” to add device � Select “Video Surveillance—Base Station”, follow the instructions to add the base station. � Please press the On/off button of all cameras one by one, then the cameras will beep, and the indicator light of the camera starts to flash red; If the indicator light does not flash red, please press and hold the reset button for 5s to reset the camera. � Enter the Base station interface on the app, click the “+Add Device” in bottom, or press the pairing button on top of the base station to enter pairing status, the Indicator light 2 will flash green. � When the camera successfully pairs to base station, a voice prompt will be heard from camera and camera’s indicator light will turn green, while Indicator light 2 of base station will turn off and base station exit the pairing status. Then the added cameras will be displayed on the app. � If there is any camera could not pair to the base station, please add the camera again following the above steps � Use the Ethernet cable to connect the Base Station to Router’s LAN port � Plug the adapter to the power outlet to power on the base station. The Indicator light 1 will change from solid red to blink red when the base station is ready for paring. � � � � � Internet � � � Smart Camera E93C FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the rec…

Text truncated - open the document above for the full version.

ShenZhen Aoni Electronic Industry Co., Ltd. TCBJ FORM-4 Issued by: TCB Administrator Revision 6 12/06/10 2020.07.27 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, ShenZhen Aoni Electronic Industry Co., Ltd. hereby authorize (Shenzhen STS Test Services Co., Ltd.) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Date 2020.07.27 Signature Name: tendy Dong Title: Manager Company: ShenZhen Aoni Electronic Industry Co., Ltd. Address: HongHui Industrial Park,2nd LiuXian Road, Xin'An streets, District 68, Bao'an District, ShenZhen, China

ShenZhen Aoni Electronic Industry Co., Ltd. TCBJ FORM-4 Issued by: TCB Administrator Revision 6 12/06/10 2020.07.27 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (Smart Camera / E93C, E93CR07, E93CH22, SC051- WBR2/FCC ID: Z63-E93C) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. required to be submitted with this application be permanently withheld from public review. Please contact me if there is any information you may need. Date 2020.07.27 Signature Name: tendy Dong Title: Manager Company: ShenZhen Aoni Electronic Industry Co., Ltd. Address: HongHui Industrial Park,2nd LiuXian Road, Xin'An streets, District 68, Bao'an District, ShenZhen, China

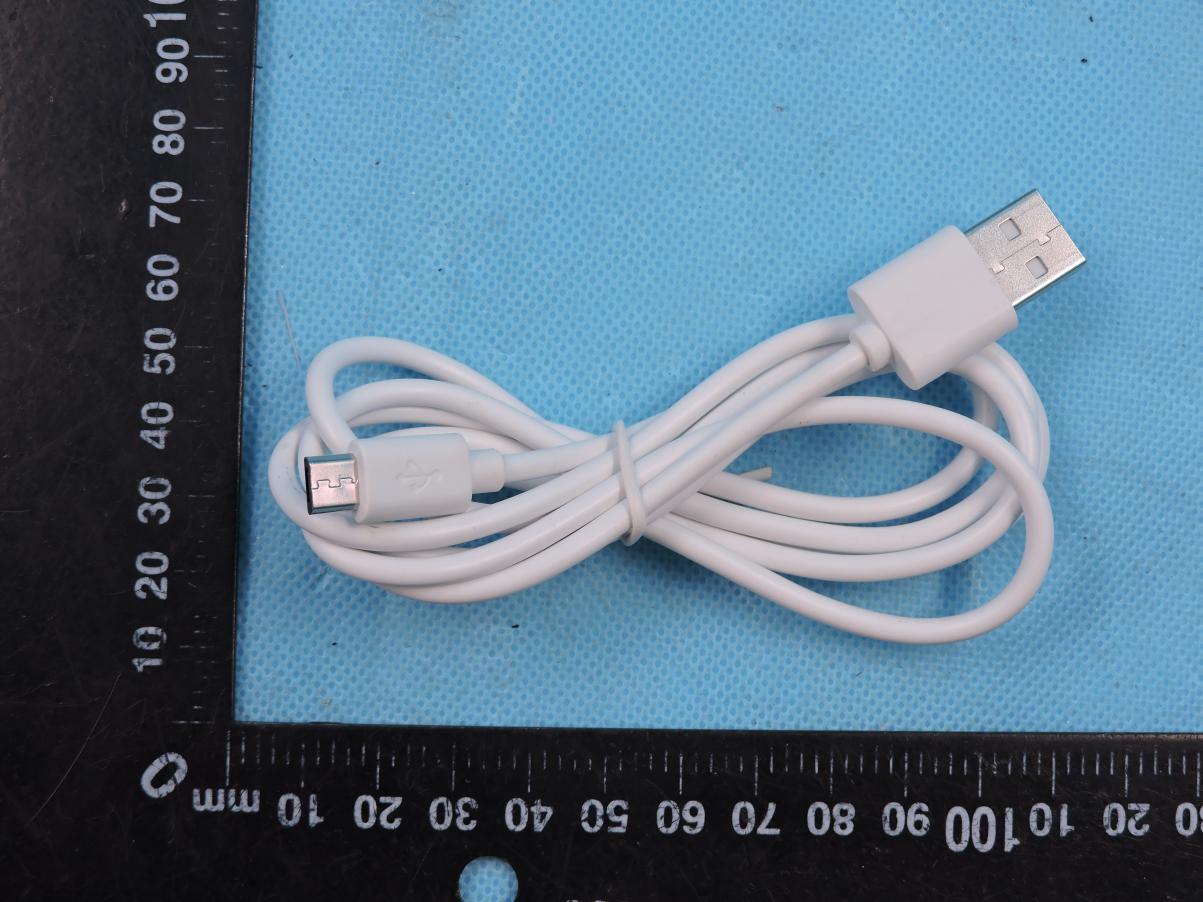

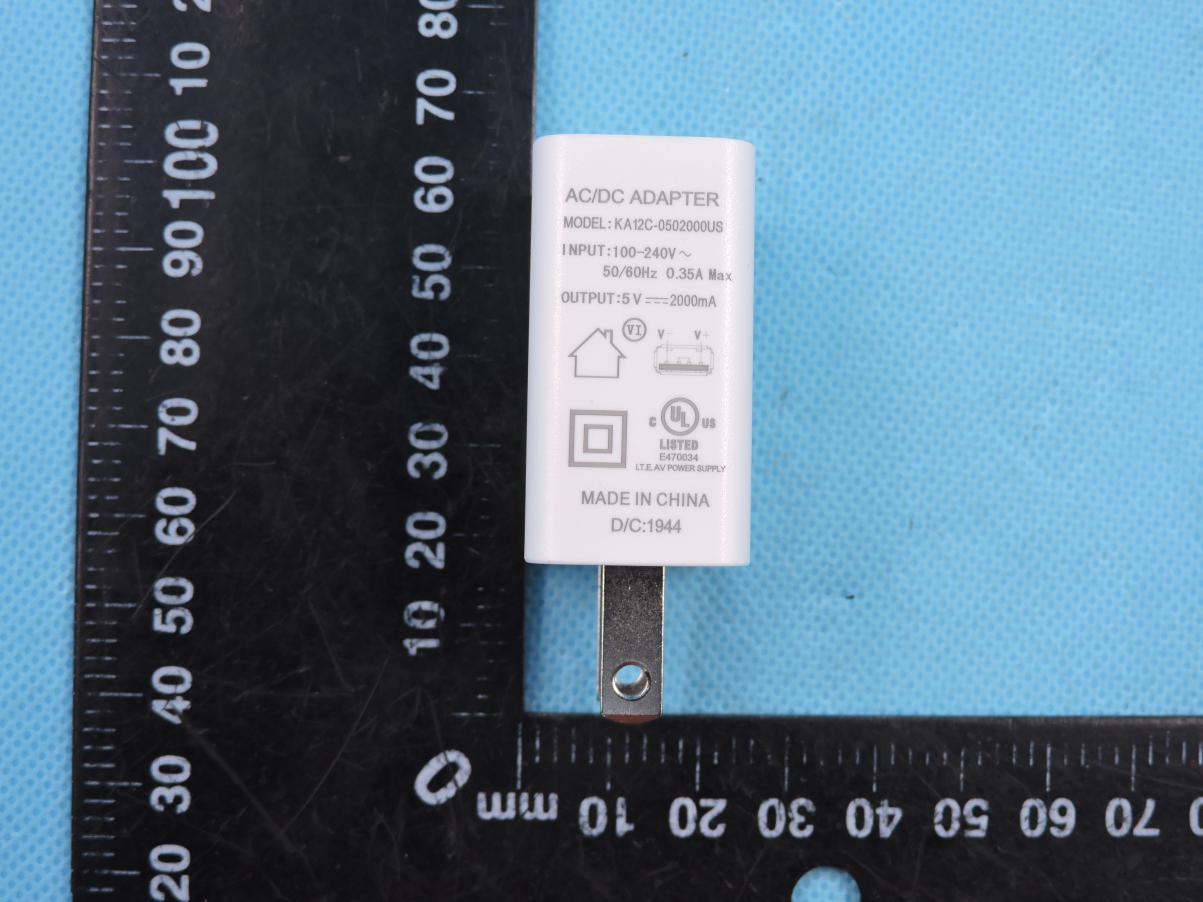

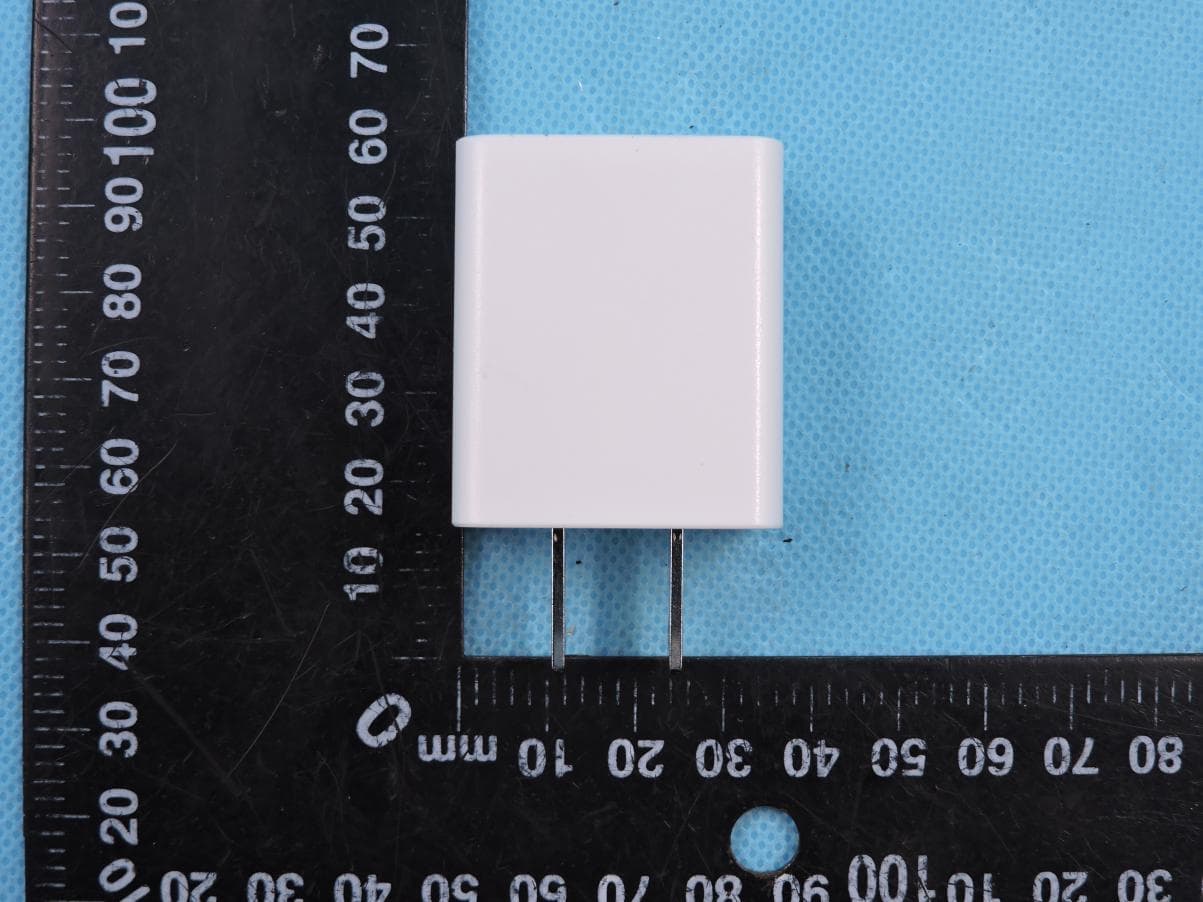

Page 1 of 6 Report No.: STS2006029 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: E93C Photo 1 Photo 2 Page 2 of 6 Report No.: STS2006029 Photo 3 Photo 4 Page 3 of 6 Report No.: STS2006029 Photo 5 Photo 6 Page 4 of 6 Report No.: STS2006029 Photo 7 Photo 8 Page 5 of 6 Report No.: STS2006029 Photo 9 Photo 10 Page 6 of 6 Report No.: STS2006029 Photo 11 Photo 12

FCC Label 20mm*30mm, sticker Smart Camera Model Name: E93C FCC ID: Z63- E93C

Page 1 of 7 Report No.: STS2006029 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: E93C Photo 1 Photo 2 WIFI Antenna Page 2 of 7 Report No.: STS2006029 Photo 3 Photo 4 Page 3 of 7 Report No.: STS2006029 Photo 5 Photo 6 BT Antenna Page 4 of 7 Report No.: STS2006029 Photo 7 Photo 8 Page 5 of 7 Report No.: STS2006029 Photo 9 Photo 10 Page 6 of 7 Report No.: STS2006029 Photo 11 Photo 12 Page 7 of 7 Report No.: STS2006029 Photo 13

RF Exposure Report FCC ID: Z63-E93C RF Exposure Measurement The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The gain of the antennas used in the product is extracted from the Antenna data sheets provided and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis Transmission formula is far field assumption, the calculated result of that is an over-prediction for near field power density. It is taken as worst case to specify the safety range. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of the human exposure to radio-frequency (RF) radiation as specified in 1.1307 (b) Limits for Maximum Permissible Exposure (MPE) F= Frequency in MHz Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm²) Limits for Occupational / controlled Exposures 300 - 1500 -- -- F/300 1500 – 100000 -- -- 5.0 Limits for General population / Uncontrolled Exposure 300 - 1500 -- -- F/1500 1500 – 100000 -- -- 1.0 Friss Formula Friss Transmission Formula: Pd = (Pout * G) / (4*pi*r²) Where Pd = power density in mW/cm² Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = Distance between observation point and the center of radiator in cm If we know the maximum gain of the antenna and the total output power to the antenna, through calculation, we will know MPE value at distance 20cm. EUT Operation condition EUT was enabled to transmit and receive at lowest, middle and highest channels. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance from the antenna should be included in the User manual. So, this device is classified as Mobile device. BLE Mode 2402-2480MHz Detector PEAK GFSK 6±1dBm ANT Gain (G) Antenna gain : 2.5dBi (gain of antenna in linear scale=1.78) Protocol ANT Gain(gain of antenna in linear scale) Channel Frequency (MHz) Output Power to Antenna (dBm) Output Power to Antenna (mW) Power Density (mW/cm² Limit (mW/cm²) GFSK 1.75 2480 7 5.011872 0.001745 1 2.4G WIFI Mode 802.11b/g/n20:2412-2462MHz Detector PEAK 802.11b 17±1dBm 802.11g 16±1dBm 802.11n20 16±1dBm 802.11n40 16±1dBm ANT Gain (G) Antenna gain : 2dBi (gain of antenna in linear scale=1.58) Protocol ANT Gain(gain of antenna in linear scale) Channel Frequency (MHz) Output Power to Antenna (dBm) Output Power to Antenna (mW) Power Density (mW/cm²) Limit (mW/cm²) 802.11 b 1.58 2437 18 63.09573 0.019833 1 802.11 g 1.58 2437 17 50.11872 0.015754 1 802.11 n20 1.58 2437 17 50.11872 0.015754 1 802.11 n40 1.58 2437 17 50.11872 0.015754 1 Evaluate Simultaneous Protocol ANT Gain(gain of antenna in linear scale) Output Power to Antenna (mW) Power Density (mW/cm²) Limit (mW/cm² ) BT+WIFI 1.75 5.01+63.09573=68.10573 0.0237 1 According to the maximum gain of the antenna and the total output power to the antenna, through calculation, we will know MPE value 0.0237 at distance 20cm. This is less than the limit 1,so the SAR test is not required.

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, All Test Data Presented in this report is only applicable to presented Test sample. Shenzhen STS Test Services Co., Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] RADIO TEST REPORT Report No.:STS1906029W03 Issued for ShenZhen Aoni Electronic Industry Co., Ltd. HongHui Industrial Park,2nd LiuXian Road, Xin'An streets, District 68, Bao'an District, ShenZhen, China Product Name: Smart Camera Brand Name: N/A Model Name: E93C Series Model: E93CR07, E93CH22, SC051-WBR2 FCC ID: Z63-E93C Test Standard: FCC Part 15.247 S T L A B S Page 2 of 59 Report No.: STS1906029W03 TEST RESULT CERTIFICATION Applicant’s Name ................. : ShenZhen Aoni Electronic Industry Co., Ltd. Address ................................. : HongHui Industrial Park,2nd LiuXian Road, Xin'An streets, District 68, Bao'an District, ShenZhen, China Manufacture's Name ............ : ShenZhen Aoni Electronic Industry Co., Ltd. Address ................................. : HongHui Industrial Park,2nd LiuXian Road, Xin'An streets, District 68, Bao'an District, ShenZhen, China Product Description Product Name ....................... : Smart Camera Brand Name ........................ : N/A Model Name .......................... : E93C Series Model ......................... : E93CR07, E93CH22, SC051-WBR2 Test Standards ..................... : FCC Part15.247 Test Procedure ...................... : ANSI C63.10-2013 This device described above has been tested by STS, the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of STS, this document may be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test ........................................... : Date of receipt of test item ..................... : 15 June 2020 Date (s) of performance of tests ............. : 15 June 2020 ~ 23 June 2020 Date of Issue .......................................... : 28 June 2020 Test Result.............................................. : Pass Testing Engineer : (Chris Chen) Technical Manager : (Sean she) Authorized Signatory : (Vita Li) Page 3 of 59 Report No.: STS1906029W03 Table of Contents 1. SUMMARY OF TEST RESULTS 6 1.1 TEST FACTORY 7 1.2 MEASUREMENT UNCERTAINTY 7 2. GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF THE EUT 8 2.2 DESCRIPTION OF THE TEST MODES 10 2.3 TEST SOFTWARE AND POWER LEVEL 10 2.4 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 11 2.5 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 12 2.6 EQUIPMENTS LIST 13 3. EMC EMISSION TEST 14 3.1 CONDUCTED EMISSION MEASUREMENT 14 3.2 TEST PROCEDURE 15 3.3 TEST SETUP 15 3.4 EUT OPERATING CONDITIONS 15 3.5 TEST RESULTS 16 4. RADIATED EMISSION MEASUREMENT 18 4.1 RADIATED EMISSION LIMITS 18 4.2 TEST PROCEDURE 20 4.3 TEST SETUP 21 4.4 EUT OPERATING CONDITIONS 21 4.5 FIELD STRENGTH CALCULATION 21 4.6 TEST RESULTS 23 5. CONDUCTED SPURIOUS & BAND EDGE EMISSION 36 5.1 LIMIT 36 5.2 TEST PROCEDURE 36 5.3 TEST SETUP 36 5.4 EUT OPERATION CONDITIONS 36 5.5 TEST RESULTS 37 6. POWER SPECTRAL DENSITY TEST 45 6.1 LIMIT 45 6.2 TEST PROCEDURE 45 6.3 TEST SETUP 45 Page 4 of 59 Report No.: STS1906029W03 Table of Contents 6.4 EUT OPERATION CONDITIONS 45 6.5 TEST RESULTS 46 7. BANDWIDTH TEST 50 7.1 LIMIT 50 7.2 TEST PROCEDURE 50 7.3 TEST SETUP 50 7.4 EUT OPERATION CONDITIONS 50 7.5 TEST RESULTS 51 8. PEAK OUTPUT POWER TEST 55 8.1 LIMIT 55 8.2 TEST PROCEDURE 55 8.3 TEST SETUP 55 8.4 EUT OPERATION CONDITIONS 55 8.5 TEST RESULTS 56 9. ANTENNA REQUIREMENT 58 9.1 STANDARD REQUIREMENT 58 9.2 EUT ANTENNA 58 10. EUT TEST PHOTO 59 Page 5 of 59 Report No.: STS1906029W03 Revision History Rev. Issue Date Report NO. Effect Page Contents 00 28 June 2020 STS1906029W03 ALL Initial Issue Page 6 of 59 Report No.: STS1906029W03 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: KDB 558074 D01 15.247 Meas Guidance v05r02. FCC Part 15.247,Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS -- 15.247 (a)(2) 6dB Bandwidth PASS -- 15.247 (b)(3) Output Power PASS -- 15.247 (c) Radiated Spurious Emission PASS -- 15.247 (d) Conducted Spurious & Band Edge Emission PASS -- 15.247 (e) Power Spectral Density PASS -- 15.205 Restricted Band Edge Emission PASS -- Part 15.247(d)/part 15.209(a) Band Edge Emission PASS -- 15.203 Antenna Requirement PASS -- NOTE: (1) ‘N/A’ denotes test is not applicable in this Test Report. (2) All tests are according to ANSI C63.10-2013. Page 7 of 59 Report No.: STS1906029W03 1.1 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 RF output power, conducted ±0.68dB 2 Unwanted Emissions, conducted ±2.988dB 3 All emissions, radiated 30-1GHz ±5.6dB 4 All emissions, radiated 1G-6GHz ±5.5dB 5 All emissions, radiated>6G ±5.8dB 6 Conducted Emission (9KHz-150KHz) ±3.37dB 7 Conducted Emission (150KHz-30MHz) ±3.83dB Page 8 of 59 Report No.: STS1906029W03 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF THE EUT Product Name Smart Camera Trade Name N/A Model Name E93C Series Model E93CR07, E93CH22, SC051-…

Text truncated - open the document above for the full version.

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, All Test Data Presented in this report is only applicable to presented Test sample. Shenzhen STS Test Services Co., Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] RADIO TEST REPORT Report No.:STS1906029W04 Issued for ShenZhen Aoni Electronic Industry Co., Ltd. HongHui Industrial Park,2nd LiuXian Road, Xin'An streets, District 68, Bao'an District, ShenZhen, China Product Name: Smart Camera Brand Name: N/A Model Name: E93C Series Model: E93CR07, E93CH22, SC051-WBR2 FCC ID: Z63-E93C Test Standard: FCC Part 15.247 S T L A B S Page 2 of 69 Report No.:STS1906029W04 TEST RESULT CERTIFICATION Applicant’s Name ................. : ShenZhen Aoni Electronic Industry Co., Ltd. Address ................................. : HongHui Industrial Park,2nd LiuXian Road, Xin'An streets, District 68, Bao'an District, ShenZhen, China Manufacture's Name ............ : ShenZhen Aoni Electronic Industry Co., Ltd. Address ................................. : HongHui Industrial Park,2nd LiuXian Road, Xin'An streets, District 68, Bao'an District, ShenZhen, China Product Description Product Name ........................ : Smart Camera Brand Name ........................... : N/A Model Name .......................... : E93C SeriesModel ........................... : E93CR07, E93CH22, SC051-WBR2 Test Standards ..................... : FCC Part15.247 Test Procedure........................: ANSI C63.10-2013 This device described above has been tested by STS, the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of STS, this document only be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test ........................................... : Date of receipt of test item ...................... : 15 June 2020 Date (s) of performance of tests ............. : 15 June 2020 ~ 23 June 2020 Date of Issue .......................................... : 28 June 2020 Test Result .............................................. : Pass Testing Engineer : (Chris Chen) Technical Manager : (Sean she) Authorized Signatory : (Vita Li) Page 3 of 69 Report No.:STS1906029W04 Table of Contents Page 1. SUMMARY OF TEST RESULTS 6 1.1 TEST FACTORY 7 1.2 MEASUREMENT UNCERTAINTY 7 2. GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF THE EUT 8 2.2 DESCRIPTION OF THE TEST MODES 10 2.3 TEST SOFTWARE AND POWER LEVEL 10 2.4 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 11 2.5 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 12 2.6 EQUIPMENTS LIST FOR ALL TEST ITEMS 13 3. EMC EMISSION TEST 14 3.1 CONDUCTED EMISSION MEASUREMENT 14 3.2 RADIATED EMISSION MEASUREMENT 18 4.CONDUCTED SPURIOUS & BAND EDGE EMISSION 31 4.1 LIMIT 31 4.2 TEST PROCEDURE 31 4.3DEVIATION FROM STANDARD 31 4.4 TEST SETUP 31 4.5 EUT OPERATION CONDITIONS 31 4.6 TEST RESULTS 32 5. POWER SPECTRAL DENSITY TEST 48 5.1 LIMIT 48 5.2 TEST PROCEDURE 48 5.3 DEVIATION FROM STANDARD 48 5.4 TEST SETUP 48 5.5 EUT OPERATION CONDITIONS 48 5.6 TEST RESULTS 49 6. BANDWIDTH TEST 57 6.1 LIMIT 57 6.2 TEST PROCEDURE 57 6.3 DEVIATION FROM STANDARD 57 6.4 TEST SETUP 57 6.5 EUT OPERATION CONDITIONS 57 Page 4 of 69 Report No.:STS1906029W04 Table of Contents Page 6.6 TEST RESULTS 58 7. PEAK OUTPUT POWER TEST 66 7.1 LIMIT 66 7.2 TEST PROCEDURE 66 7.3 DEVIATION FROM STANDARD 66 7.4 TEST SETUP 66 7.5 EUT OPERATION CONDITIONS 66 7.6 TEST RESULTS 67 8. ANTENNA REQUIREMENT 68 8.1 STANDARD REQUIREMENT 68 8.2 EUT ANTENNA 68 APPENDIX-PHOTOS OF TEST SETUP 69 Page 5 of 69 Report No.:STS1906029W04 Revision History Rev. Issue Date Report No. Effect Page Contents 00 28 June 2020 STS1906029W04 ALL Initial Issue Page 6 of 69 Report No.:STS1906029W04 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: KDB 558074 D01 15.247 Meas Guidance v05r02. FCC Part 15.247,Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS -- 15.247 (a)(2) 6dB Bandwidth PASS -- 15.247 (b)(3) Output Power PASS -- 15.247 (c) Radiated Spurious Emission PASS -- 15.247 (d) Conducted Spurious & Band Edge Emission PASS -- 15.247 (e) Power Spectral Density PASS -- 15.205 Restricted Band Edge Emission PASS -- Part 15.247(d)/part 15.209(a) Band Edge Emission PASS -- 15.203 Antenna Requirement PASS -- NOTE: (1) ‘N/A’ denotes test is not applicable in this Test Report. (2) All tests are according to ANSI C63.10-2013. Page 7 of 69 Report No.:STS1906029W04 1.1 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ±U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 RF output power, conducted ±0.68dB 2 Unwanted Emissions, conducted ±2.988dB 3 All emissions, radiated 30-1GHz ±5.6dB 4 All emissions, radiated 1G-6GHz ±5.5dB 5 All emissions, radiated>6G ±5.8dB 6 Conducted Emission (9KHz-150KHz) ±3.37dB 7 Conducted Emission (150KHz-30MHz) ±3.83dB Page 8 of 69 Report No.:STS1906029W04 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF THE EUT Product Name Smart Camera Trade Name N/A Model Name E93C Series Model E93CR07, E93CH22, SC051-WBR2 Model Difference Only difference in model name Product Description The EUT is a Sm…

Text truncated - open the document above for the full version.

Page 1 of2FCC ID:Z63-E93C DTS Setup photo Model name: E93C DTS conduction DTSradiation L Page 2 of2FCC ID:Z63-E93C DTSradiation H
