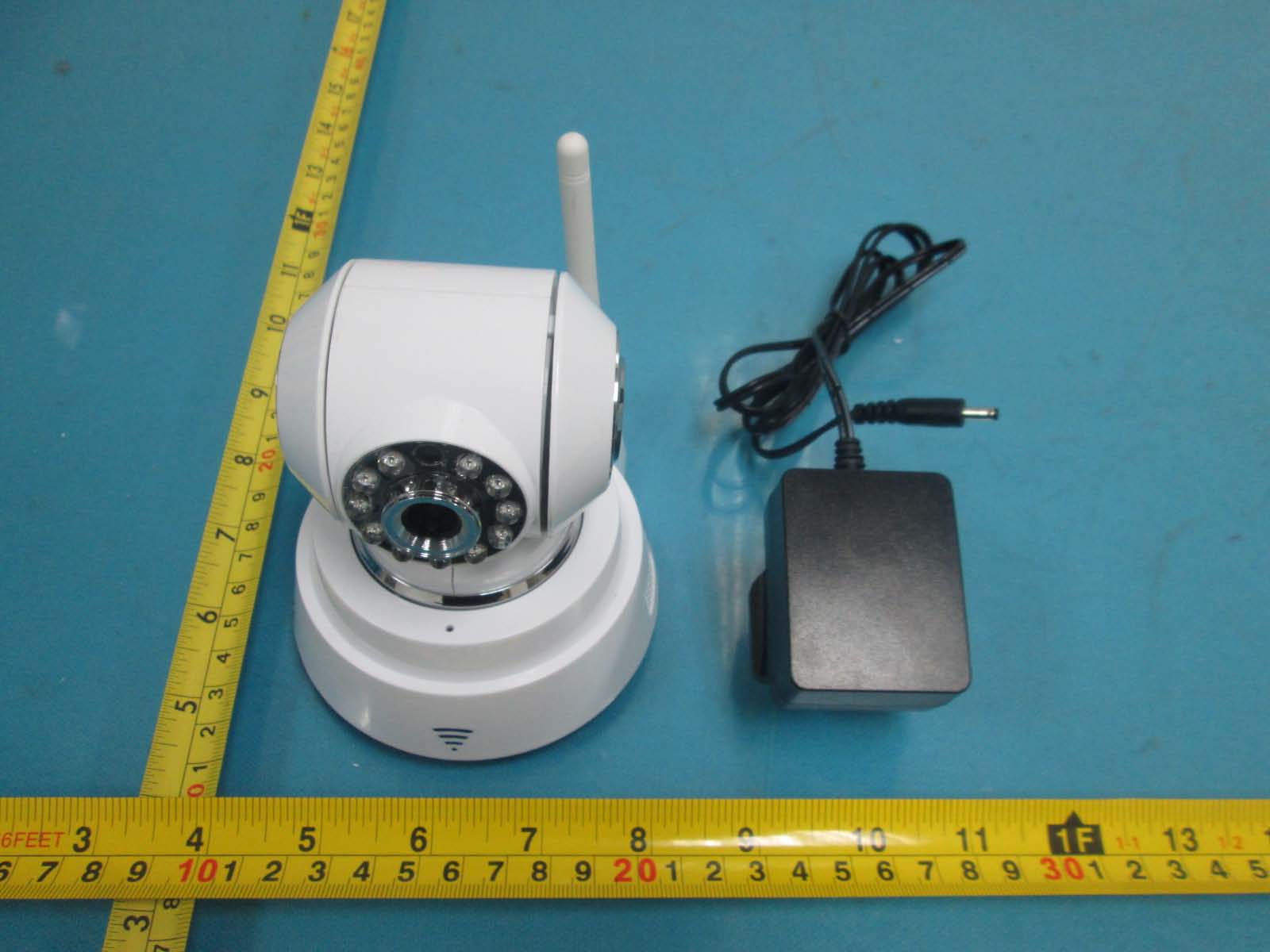

Z63-IPC18IP CAM

1 / 13 2 / 13 3 / 13 4 / 13 5 / 13 6 / 13 7 / 13 8 / 13 9 / 13 10 / 13 11 / 13 12 / 13 13 / 13 FCC Requirement Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. M/N: 256H1 FCC ID: Z63‐IPC18 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

DATE : 2014-03-24 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: Z63-IPC18 Product Name: IP CAM Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this Day of 20 A gency agreement expiration date:2014-03-24 to 2015-03-23 By: Owen Wong Si gnature Printed Title: RF manager On behalf of : ShenZhen Aoni Electronic Industry Co., Ltd. Telephone: 86-755-29106588

Her She reby we: enZhen Aoni F i Electronic amily Industry Co mode o., Ltd. els letteer

FCC label information： FCC-ID: Z63-IPC18 Please Sticker on here

RF Exposure evaluation According to KDB 447498 D01 General RF Exposure Guidance v05r02 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Worse case is as below: [2412MHz 7.43dBm（5.53mW） output power] (5.53mW /5mm) ·[√2.412 (GHz)]= 1.72 <3.0 for 1-g SAR Then SAR evaluation is not required

Report No. : EESZG01160013 Page 1 of 64 FCC TEST REPORT Product : IP CAM Trade mark : Aoni, ANC Model/Type reference : 256H1, 232H1, 960G0, 961H1, 970H1, 971H1, 980H1, 980M1, 981H1, 981M1, 982H1, 982M1, 962N1, 962N2, 963N1, 963N2, 951N1, 990H1, 256G0 Serial number : N/A Ratings : AC 100-240V, 50/60Hz FCC ID : Z63-IPC18 Report number : EESZG01160013 Date : Mar. 14, 2014 Regulations : See below Test Standards Results 47 CFR FCC Part 15 Subpart C 15.247: 2013 PASS Prepared for: SHENZHEN AONI ELECTRONIC INDUSTRY CO., LTD No.5 Bldg, Honghui Industrial park, 2 nd liuxian Road, Xinan street, Baoan District, Shenzhen Prepared by: Centre Testing International (Shenzhen) Corporation Hongwei Industrial Zone, 70 Area, Bao’an District, Shenzhen, Guangdong, China TEL: +86-755-3368 3668 FAX: +86-755-3368 3385 Tested by: Reviewed by: Approved by: Date: Mar. 14, 2014 Jimmy Li Lab manager Check No.: 1702046772 Report No. : EESZG01160013 Page 2 of 64 TABLE OF CONTENTS Description Page 1. CERTIFICATION INFORMATION .................................................................................. 4 2. TEST SUMMARY ........................................................................................................... 4 3. MEASUREMENT UNCERTAINTY ................................................................................. 5 4. PRODUCT INFORMATION ............................................................................................ 5 5. SYSTEM TEST CONFIGURATION ................................................................................ 6 6. TEST EQUIPMENT LIST ............................................................................................... 6 7. SUPPORT EQUIPMENT LIST ....................................................................................... 6 8. 6DB BANDWIDTH MEASUREMENT ............................................................................ 7 8.1. LIMITS ..................................................................................................................... 7 8.2. BLOCK DIAGRAM OF TEST SETUP ...................................................................... 7 8.3. TEST PROCEDURE ................................................................................................ 7 8.4. TEST RESULT ........................................................................................................ 7 9. POWER SPECTRAL DENSITY ................................................................................... 15 9.1. LIMITS ................................................................................................................... 15 9.2. BLOCK DIAGRAM OF TEST SETUP .................................................................... 15 9.3. TEST PROCEDURE .............................................................................................. 15 9.4. TEST RESULT ...................................................................................................... 15 10. MAXIMUM PEAK CONDUCTED OUTPUT POWER MEASUREMENT ................... 23 10.1. LIMITS ................................................................................................................... 23 10.2. BLOCK DIAGRAM OF TEST SETUP .................................................................... 23 10.3. TEST PROCEDURE .............................................................................................. 23 10.4. TEST RESULT ...................................................................................................... 23 11. BAND EDGE EMISSION MEASUREMENT ................................................................. 31 11.1. LIMITS ................................................................................................................... 31 11.2. BLOCK DIAGRAM OF TEST SETUP .................................................................... 31 11.3. TEST PROCEDURE .............................................................................................. 32 11.4. TEST RESULT ...................................................................................................... 32 Report No. : EESZG01160013 Page 3 of 64 12. SPURIOUS RF CONDUCTED EMISSIONS MEASUREMENT ................................ 41 12.1. LIMITS ................................................................................................................... 41 12.2. BLOCK DIAGRAM OF TEST SETUP .................................................................... 41 12.3. TEST PROCEDURE .............................................................................................. 41 12.4. TEST RESULT ...................................................................................................... 41 13. RADIATED EMISSIONS MEASUREMENT .............................................................. 48 13.1. LIMITS ................................................................................................................... 48 13.2. BLOCK DIAGRAM OF TEST SETUP .................................................................... 48 13.3. TEST PROCEDURE .............................................................................................. 49 13.4. TEST RESULT ...................................................................................................... 50 14. CONDUCTED EMISSION TEST ............................................................................... 54 14.1. LIMITS ................................................................................................................... 54 14.2. BLOCK DIAGRAM OF TEST SETUP .................................................................... 54 14.3. PROCEDURE OF CONDUCTED EMISSION TEST .............................................. 54 14.4. GRAPHS AND DATA ............................................................................................. 55 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP .............................................................. 57 APPENDIX 2 EXTERNAL PHOTOGRAPH…

Text truncated - open the document above for the full version.
