Z63-M2B109Wireless Headset

SHENZHEN AONI ELECTRONIC CO., LTD Feb.24, 2022 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Explanation of differences between product types FCC ID : Z63-M2B109 Model Number: A2301, A2302, A2303, A2304, A2305 To Whom It May Concern: We, The SHENZHEN AONI ELECTRONIC CO., LTD hereby declare that the models are identical except the model name. Except for the different above, no other modification is performed. Sincerely, Signature: SHENZHEN AONI ELECTRONIC CO., LTD Contact person: tendy Dong

SHENZHEN AONI ELECTRONIC CO., LTD Agent Authorization Company: SHENZHEN AONI ELECTRONIC CO., LTD Address: No.5, Bldg., Honghui Industrial Park, 2nd Liuxian Road, Xin'An streets, Baoan District, Shenzhen, China Product Name: Wireless Headset Model Number(s): A2301, A2302, A2303, A2304, A2305 Product Description: Wireless Headset We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2022-02-25 Name: tendy Dong Company: SHENZHEN AONI ELECTRONIC CO., LTD

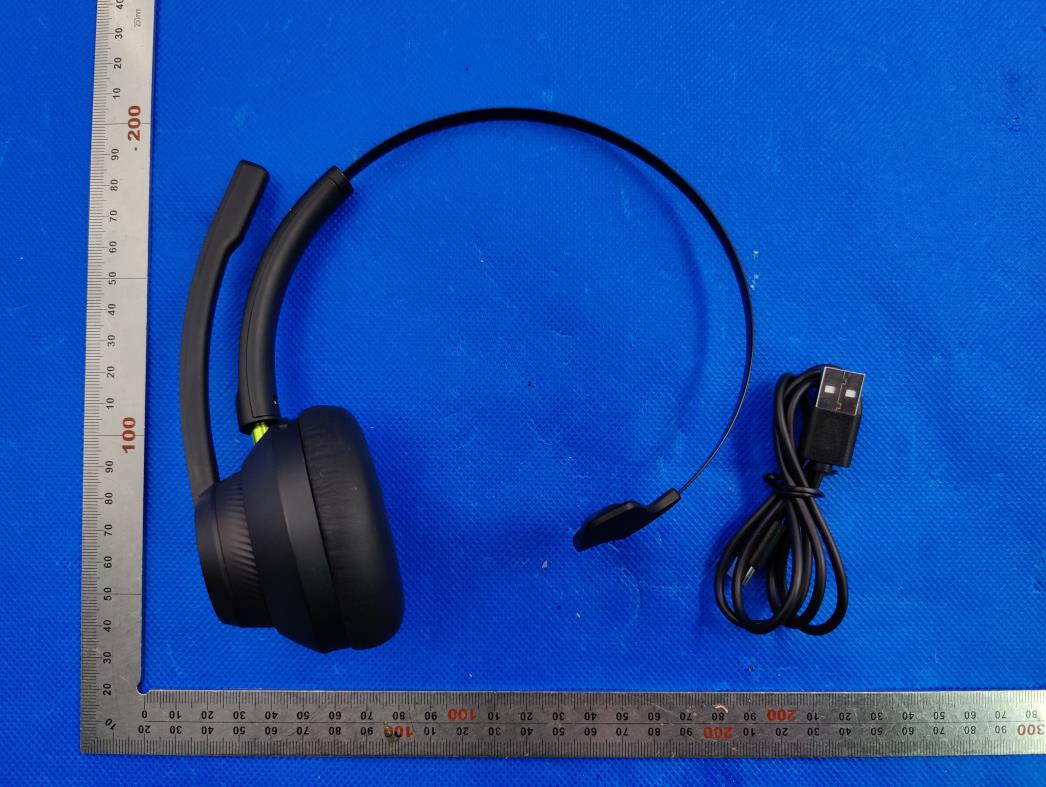

Report No.: AGC13779220101AP03 Page 1 of 4 EXTERNAL PHOTOS ALL VIEW OF EUT TOP VIEW OF EUT Report No.: AGC13779220101AP03 Page 2 of 4 BOTTOM VIEW OF EUT FRONT VIEW OF EUT Report No.: AGC13779220101AP03 Page 3 of 4 BACK VIEW OF EUT LEFT VIEW OF EUT Report No.: AGC13779220101AP03 Page 4 of 4 RIGHT VIEW OF EUT PORT VIEW OF EUT ****************************************End of Report****************************************

FCC ID Label Location 3mm&15mm FCC ID: Z63-M2B109

Report No.: AGC13779220101AP03 Page 1 of 3 INTERNAL PHOTOS OPEN VIEW OF EUT ANTENNA CLOSE-UP PHOTO-1 BT Antenna Report No.: AGC13779220101AP03 Page 2 of 3 BATTERY VIEW OF EUT INTERNAL VIEW OF EUT (FIGURE 1) Report No.: AGC13779220101AP03 Page 3 of 3 INTERNAL VIEW OF EUT (FIGURE 2) INTERNAL VIEW OF EUT (FIGURE 3) ****************************************End of Report****************************************

RF EXPOSURE EVALUATION 1. PRODUCT INFORMATION Product Description Wireless Headset Model Name A2301 Series Model A2302, A2303, A2304, A2305 FCC ID Z63-M2B109 2. EVALUATION METHOD According to 447498 D01 General RF Exposure Guidance v06 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 3. CALCULATION BR/EDR: P t =4.247dBm=2.66mW The value of the Maximum output power P t is referred to the test report of the CFR47 §15.247. The result for RF exposure evaluation SAR=(2.66mW / 5mm).[√2.480GHz)]=0.83<3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. BLE: P t =7.824dBm=6.06mW The value of the Maximum output power P t is referred to the test report of the CFR47 §15.247. The result for RF exposure evaluation SAR=(6.06mW / 5mm).[√2.402GHz)]=1.88<3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. 4. CONCLUSION The SAR evaluation is not required.

Page 1 of 67 FCC Test Report Report No.: AGC13779220101FE03 FCC ID : Z63-M2B109 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Wireless Headset BRAND NAME : AUSDOM MODEL NAME : A2301, A2302, A2303, A2304, A2305 APPLICANT : SHENZHEN AONI ELECTRONIC CO., LTD DATE OF ISSUE : Feb. 14, 2022 STANDARD(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC13779220101FE03 Page 2 of 67 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Feb. 14, 2022 Valid Initial Release Report No.: AGC13779220101FE03 Page 3 of 67 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY .................................................................................................................. 5 2. GENERAL INFORMATION .............................................................................................................................. 6 2.1. PRODUCT DESCRIPTION ........................................................................................................................ 6 2.2. TABLE OF CARRIER FREQUENCYS ....................................................................................................... 6 2.3. RECEIVER INPUT BANDWIDTH .............................................................................................................. 7 2.4. EXAMPLE OF A HOPPING SEQUENCY IN DATA MODE ......................................................................... 7 2.5. EQUALLY AVERAGE USE OF FREQUENCIES AND BEHAVIOUR ......................................................... 7 2.6. RELATED SUBMITTAL(S) / GRANT (S) .................................................................................................... 8 2.7. TEST METHODOLOGY ............................................................................................................................. 8 2.8. SPECIAL ACCESSORIES ......................................................................................................................... 8 2.9. EQUIPMENT MODIFICATIONS ................................................................................................................. 8 2.10. ANTENNA REQUIREMENT..................................................................................................................... 8 3. MEASUREMENT UNCERTAINTY ................................................................................................................... 9 4. DESCRIPTION OF TEST MODES ................................................................................................................. 10 5. SYSTEM TEST CONFIGURATION ................................................................................................................. 11 5.1. CONFIGURATION OF EUT SYSTEM ....................................................................................................... 11 5.2. EQUIPMENT USED IN TESTED SYSTEM ............................................................................................... 11 5.3. SUMMARY OF TEST RESULTS ............................................................................................................... 11 6. TEST FACILITY .............................................................................................................................................. 12 7. PEAK OUTPUT POWER ................................................................................................................................ 13 7.1. MEASUREMENT PROCEDURE ............................................................................................................. 13 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 13 7.3. LIMITS AND MEASUREMENT RESULT .................................................................................................. 14 8. 20DB BANDWIDTH ........................................................................................................................................ 19 8.1. MEASUREMENT PROCEDURE ............................................................................................................. 19 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 19 8.3. LIMITS AND MEASUREMENT RESULTS ............................................................................................... 20 9. CONDUCTED SPURIOUS EMISSION........................................................................................................... 25 9.1. MEASUREMENT PROCEDURE ............................................................................................................. 25 Report No.: AGC13779220101FE03 Page 4 of 67 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 25 9.3. MEASUREMENT EQUIPMENT USED .................................................................................................... 25 9.4. LIMITS AND MEASUREMENT RESULT .................................................................................................. 25 10. RADIATED EMISSION ................................................................................................................................. 46 10.1. MEASUREMENT PROCEDURE ........................................................................................................... 46 10.2. TEST SETUP ......................................................................................................................................... 48 10.3. LIMITS AND MEASUREMENT RESULT ............................................................................................... 49 10.4. TEST RESULT........................................................................................................................................ 49 11. NUMBER OF HOPPING FREQUENCY ...........................................…

Text truncated - open the document above for the full version.

Report No.: AGC13779220101FE03 Page 40 of 67 Test Graphs of Band Edge Emissions in Non-Restricted Frequency Bands Test_Graph_BR_ANT1_2402_1Mbps_Lower Band Edge Emissions Test_Graph_BR_ANT1_2480_1Mbps_Higher Band Edge Emissions Report No.: AGC13779220101FE03 Page 41 of 67 Test_Graph_BR_HOP_ANT1_NA_1Mbps_Lower Band Edge Emissions Test_Graph_BR_HOP_ANT1_NA_1Mbps_Higher Band Edge Emissions Report No.: AGC13779220101FE03 Page 42 of 67 Test_Graph_EDR_ANT1_2402_2Mbps_Lower Band Edge Emissions Test_Graph_EDR_ANT1_2480_2Mbps_Higher Band Edge Emissions Report No.: AGC13779220101FE03 Page 43 of 67 Test_Graph_EDR_HOP_ANT1_NA_2Mbps_Lower Band Edge Emissions Test_Graph_EDR_HOP_ANT1_NA_2Mbps_Higher Band Edge Emissions Report No.: AGC13779220101FE03 Page 44 of 67 Test_Graph_EDR_ANT1_2402_3Mbps_Lower Band Edge Emissions Test_Graph_EDR_ANT1_2480_3Mbps_Higher Band Edge Emissions Report No.: AGC13779220101FE03 Page 45 of 67 Test_Graph_EDR_HOP_ANT1_NA_3Mbps_Lower Band Edge Emissions Test_Graph_EDR_HOP_ANT1_NA_3Mbps_Higher Band Edge Emissions Report No.: AGC13779220101FE03 Page 46 of 67 10. RADIATED EMISSION 10.1. MEASUREMENT PROCEDURE 1. The EUT was placed on the top of the turntable 0.8 or 1.5 meter above ground. The phase center of the receiving antenna mounted on the top of a height-variable antenna tower was placed 3 meters far away from the turntable. 2. Power on the EUT and all the supporting units. The turntable was rotated by 360 degrees to determine the position of the highest radiation. 3. The height of the broadband receiving antenna was varied between one meter and four meters above ground to find the maximum emissions field strength of both horizontal and vertical polarization. 4. For each suspected emission, the antenna tower was scan (from 1 M to 4 M) and then the turntable was rotated (from 0 degree to 360 degrees) to find the maximum reading. 5. Set the test-receiver system to Peak or CISPR quasi-peak Detect Function with specified bandwidth under Maximum Hold Mode. 6. For emissions above 1GHz, use 1MHz RBW and 3MHz VBW for peak reading. Place the measurement antenna away from each area of the EUT determined to be a source of emissions at the specified measurement distance, while keeping the measurement antenna aimed at the source of emissions at each frequency of significant emissions, with polarization oriented for maximum response. The measurement antenna may have to be higher or lower than the EUT, depending on the radiation pattern of the emission and staying aimed at the emission source for receiving the maximum signal. The final measurement antenna elevation shall be that which maximizes the emissions. The measurement antenna elevation for maximum emissions shall be restricted to a range of heights of from 1 m to 4 m above the ground or reference ground plane. 7. When the radiated emissions limits are expressed in terms of the average value of the emissions, and pulsed operation is employed, the measurement field strength shall be determined by averaging over one complete pulse train, including blanking intervals, as long as the pulse train does not exceed 0.1 seconds. As an alternative (provided the transmitter operates for longer than 0.1 seconds) or in cases where the pulse train exceeds 0.1 seconds, the measured field strength shall be determined from the average absolute voltage during a 0.1 second interval during which the field strength is at its maximum values. 8.If the emissions level of the EUT in peak mode was 3 dB lower than the average limit specified, then testing will be stopped and peak values of EUT will be reported, otherwise, the emissions which do not have 3 dB margin will be repeated one by one using the quasi-peak method for below 1GHz. 9. For testing above 1GHz, the emissions level of the EUT in peak mode was lower than average limit (that means the emissions level in peak mode also complies with the limit in average mode), then testing will be stopped and peak values of EUT will be reported, otherwise, the emissions will be measured in average mode again and reported. 10. In case the emission is lower than 30MHz, loop antenna has to be used for measurement and the recorded data should be QP measured by receiver. High - Low scan is not required in this case. Report No.: AGC13779220101FE03 Page 47 of 67 The following table is the setting of spectrum analyzer and receiver. Spectrum Parameter Setting Start ~Stop Frequency 9KHz~150KHz/RB 200Hz for QP Start ~Stop Frequency 150KHz~30MHz/RB 9KHz for QP Start ~Stop Frequency 30MHz~1000MHz/RB 120KHz for QP Start ~Stop Frequency 1GHz~26.5GHz 1MHz/3MHz for Peak, 1MHz/3MHz for Average Receiver Parameter Setting Start ~Stop Frequency 9KHz~150KHz/RB 200Hz for QP Start ~Stop Frequency 150KHz~30MHz/RB 9KHz for QP Start ~Stop Frequency 30MHz~1000MHz/RB 120KHz for QP Report No.: AGC13779220101FE03 Page 48 of 67 10.2. TEST SETUP Radiated Emission Test-Setup Frequency Below 30MHz RADIATED EMISSION TEST SETUP 30MHz-1000MHz RADIATED EMISSION TEST SETUP ABOVE 1000MHz Report No.: AGC13779220101FE03 Page 49 of 67 10.3. LIMITS AND MEASUREMENT RESULT 15.209 Limit in the below table has to be followed Frequencies (MHz) Field Strength (microvolts/meter) Measurement Distance (meters) 0.009~0.490 2400/F(kHz) 300 0.490~1.705 24000/F(kHz) 30 1.705~30.0 30 30 30~88 100 3 88~216 150 3 216~960 200 3 Above 960 500 3 Note: All modes were tested for restricted band radiated emission, the test records reported below are the worst result compared to other modes. 10.4. TEST RESULT Radiated emission below 30MHz The amplitude of spurious emissions from 9kHz to 30MHz which are attenuated more than 20 dB below the permissible value need not be reported. Report No.: AGC13779220101FE03 Page 50 of 67 Radiated emission from 30MHz to 1000MHz EUT Wireless Headset Model Name A2301 Temperature 25°C Relative Humidity 60% Pressure 985hPa Test Voltage Normal Voltage Test Mode Mode 9 Antenna Horizontal RESULT: PASS Report No.: AGC13779220101FE03 Page 51 of 67 EUT Wirel…

Text truncated - open the document above for the full version.

Report No.: AGC13779220101AP02 Page 1 of 2 TEST SETUP PHOTOS RADIATED EMISSION TEST SETUP BELOW 1GHz RADIATED EMISSION TEST SETUP ABOVE 1GHz Report No.: AGC13779220101AP02 Page 2 of 2 RF CONDUCTED TEST SETUP ****************************************End of Report*************************************
